Starway DAYTONA User manual

GUIDE DE DÉMARRAGE

Page 2
Réglementation
Cet appareil est parfaitement conçu. Il répond aux dispositions réglementaires actuelles : CE, ROHS, R&TTE
Recyclage
Appareil soumis à la DEEE (Collecte sélective). Contribuez à la protection de l’environnement en éliminant les matériaux d’emballage de ce
produit via les lières de recyclage appropriées. Recyclez ce produit via une lière DEEE (déchets d’équipements électroniques). Ce produit
doit être repris par votre revendeur ou doit être déposé dans un centre de collecte spécique (déchetterie).
Garantie applicable en France
Le fabricant a apporté le plus grand soin à la conception et à la fabrication de votre produit pour qu’il vous apporte entière satisfaction.
Néanmoins, s’il apparaissait que votre produit était défectueux, vous bénéciez d’une garantie commerciale de 24 mois à compter de la
date d’achat. Pour mettre en œuvre cette garantie, l’utilisateur doit présenter le produit au distributeur, accompagné du ticket de caisse
ou la facture d’achat accompagnée du numéro de série.
Cette garantie, applicable en France, couvre tous les défauts du produit qui ne permettent pas une utilisation normale du produit. Elle
ne couvre pas les défauts liés à un mauvais entretien, une utilisation inappropriée, une usure prévisible ; ou si les recommandations du
fabricant n’ont pas été respectées.
La garantie ne couvre pas l’usure normale des pièces liée à l’utilisation du produit, tel que Batterie, Lampe, Roues, pièces d’usures, etc…
Eu égard au défaut et à la pièce concernée, le garant décidera alors de procéder à la réparation ou au remplacement de ladite pièce.
Le garant est : FREEVOX, 22, rue Édouard Buffard -MoNTeVraIN 77771 MarNe-La-VaLLÉe , 01.48.63.22.11.
La durée de fourniture de pièces détachées est de deux ans.
La garantie commerciale prévue ci-dessus ne limite aucunement le droit de l’acheteur d’agir en garantie des vices cachés ou de
non-conformité, tel que prévu aux codes civil et de la consommation Française.
Consignes de sécurité
VEUILLEZ LIRE ATTENTIVEMENT ET CONSERVEZ CE MANUEL
Toute personne impliquée dans l’installation, l’utilisation et la maintenance de cet appareil doit être qualiée et suivre les instructions
comprises dans ce manuel.
Soyez prudent risques de chocs électriques !
Avant la mise en fonction, soyez certain que le produit n’ait pas subi de dommage durant le transport. Dans le cas contraire, contactez
votre revendeur.
An de maintenir l’appareil en parfaites conditions, l’utilisateur doit suivre les instructions de sécurité et d’utilisation décrites dans ce
présent document.
Notez que les dysfonctionnements liés à la modication de l’appareil ne sont pas couverts par la garantie.
Cet appareil ne contient aucune partie remplaçable par l’utilisateur, pour toute intervention contactez votre revendeur.
Soyez prudent risque photo-biologique !
Attention !! Système d’éclairage professionnel
ne pas regarder le ux lumineux dans l’axe.
Risque d’incendie maintenir une distance minimale de 1 m entre le faisceau et une surface inammable.
IMPORTANT :
Cet appareil doit être utilisé en intérieur avec une température ambiante inférieure à 40°.
Fixer le projecteur d’une façon stable.
Ne pas faire cheminer le câble d’alimentation avec les autres câbles.
Manipuler le câble d’alimentation avec les précautions d’usage.
Ne pas insérer d’objets dans les aérations.
Ne pas démonter ou modier l’appareil. Risque d’électrocution !
Ne pas connecter cet appareil à un bloc de puissance.
Ne pas mettre En / Hors fonction de manière répétée.
Cet appareil doit être relié à la terre
N’utiliser cet appareil qu’après vous être familiarisé avec ses commandes et fonctions.
Eviter tout contact avec les ammes, éloignez l’appareil des surfaces inammables.
Laisser toujours un espace sufsant autour de l’appareil pour permettre sa convection.
Déconnecter l’appareil du secteur, lorsqu’il n’est pas utilisé ou avant de le nettoyer.
Toujours débrancher l’alimentation en tenant la prise secteur et non le câble.
Vérier que le cordon d’alimentation ne soit ni pincé ni endommagé, (prises et câbles)
Si l’appareil est tombé ou à reçu un choc, déconnecter le immédiatement du secteur et contacter un technicien qualié pour le vérier.
Si l’appareil a été soumis à d’importantes uctuations de température, ne le mettez pas en fonction immédiatement, la condensation
pourrait l’endommager en créant un CC (court-circuit).
Si l’appareil ne fonctionne pas correctement, mettez-le hors fonction immédiatement. Emballer-le, (de préférence dans son emballage d’origine).
Ce produit doit être utilisé exclusivement par un adulte en bonne santé.
Il doit être installé hors de portée des enfants.
Ne jamais utiliser le produit sans surveillance.
Ne pas utiliser l’appareil dans des zones ATEX ou et à proximité de d’hydrocarbure ou de produit inammable.
Cet appareil doit être utilisé conformément à ce manuel, pour éviter tous dysfonctionnement
Nettoyage
Penser à nettoyer régulièrement l’optique avec un chiffon micro-pore.
L’usage d’air comprimé permet de nettoyer le boitier.
Le projecteur doit être sécurisé par une élingue de sécurité

Page 3
Starway prend soin de notre belle planète et adopte l’éco-attitude !
Retrouvez les manuels en ligne et bien plus encore en ashant
le QR code apposé sur les produits !

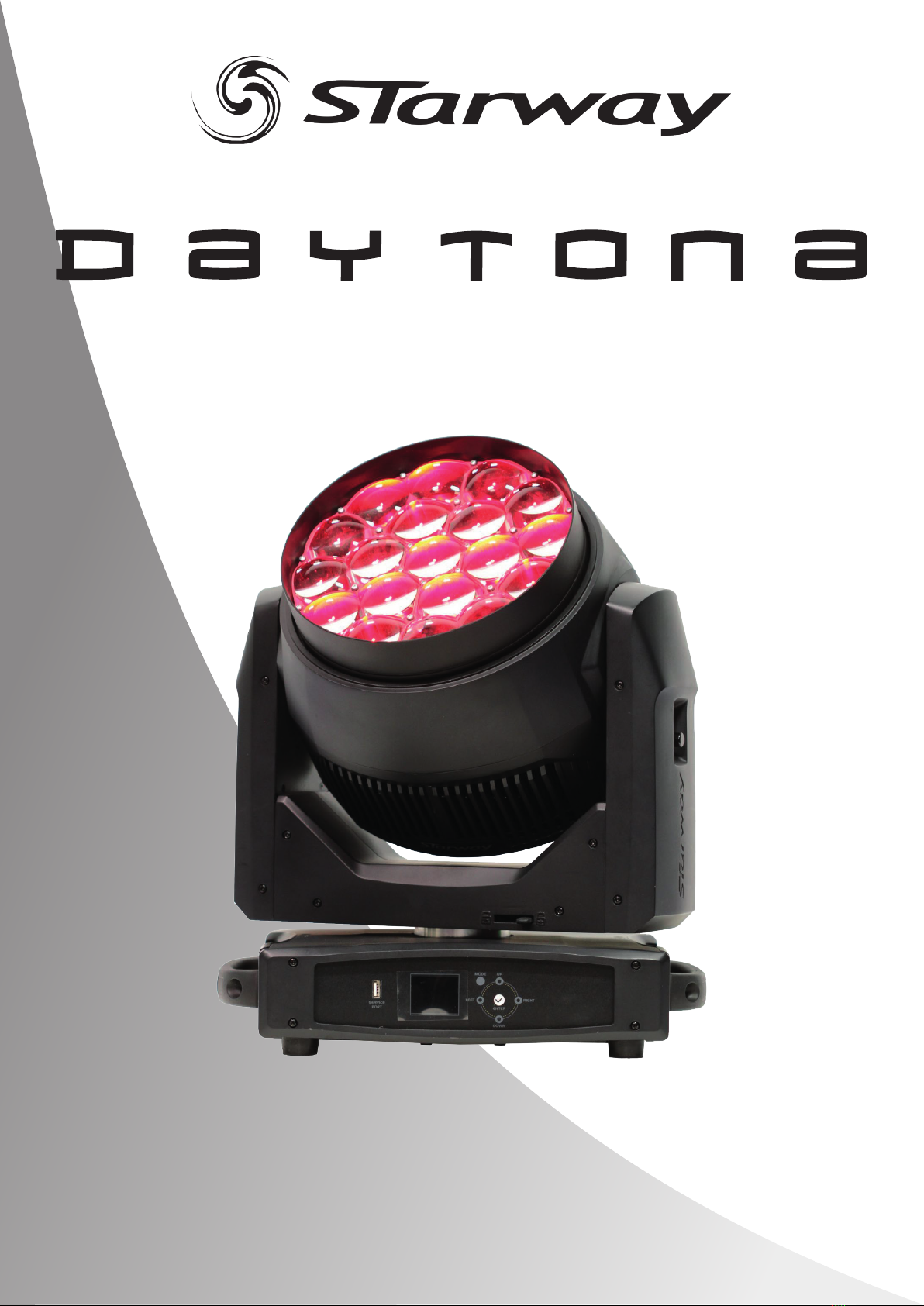

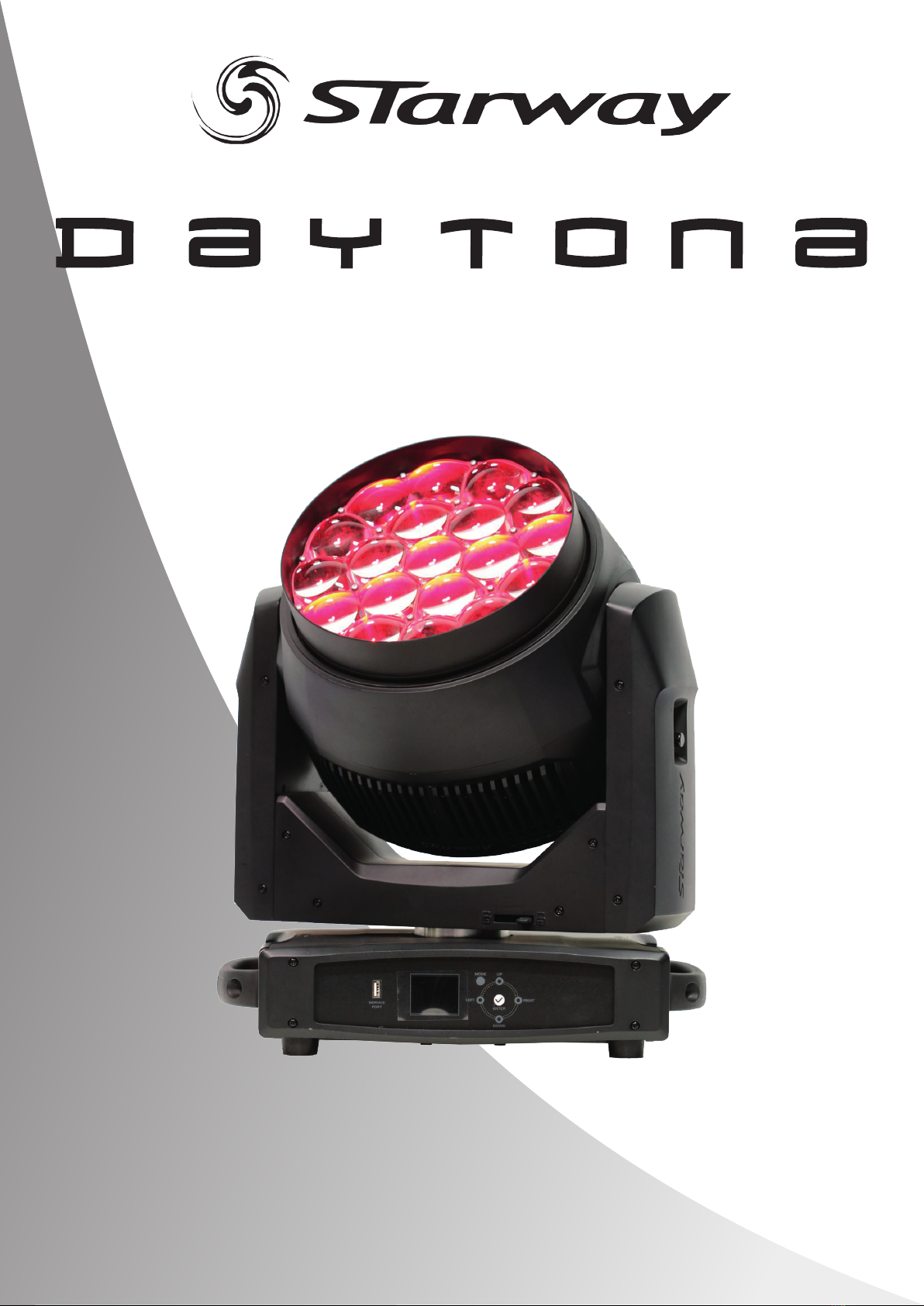

DAYTONA est une lyre wash équipée de 19 LEDs 40W RGBW.
Rapide et puissante, elle dispose d’un zoom de 5° à 52°, de 3 modes de refroidissement
et est Flicker Free. Ses 19 LEDs peuvent être gérées indépendamment (pixel to pixel) pour
générer des motifs, aussi bien grâce aux programmes internes qu’en gestion externe DMX,
Art-Net ou Kling-Net.
DAYTONA embarque également un mode halogène simulant l’effet d’une lampe à lament.
Equipée du système de gestion couleur BC Color System, qui permet de contrôler la couleur
dans tous les cas d’utilisation. Outre la possibilité de calibrer indépendamment les couleurs
et les blancs pour s’intégrer parfaitement à un parc existant, ce système permet de gérer
les couleurs à partir d’un blanc donné, comme si la machine était utilisée avec une gélatine.
SPÉCIFICATIONS TECHNIQUES :
• Zoom 5° - 52°
• Eclairement : 51 500 Lux à 5M/5°
• Flux max 11632 Lumens
• Refroidissement : Air forcé 3 modes
• Modes DMX : 17/21/25/63/163ch
• Protocoles : DMX/Artnet/sACN/Klingnet/RDM
• 30 programmes internes de patterns
• BColor System
• Flicker Free : Fréquence des leds ajustable de 9000 à 25000Hz
• Dmx In/Out connecteurs: 2 x XLR5.
• Artnet/ sACN/Klingnet connecteurs: 2 x RJ45
• Dimensions L x P x H : 399MM*255MM*406MM
• Poids net : 19Kg avec Omega d’accroche .
• Puissance max : 935W
* Etre vert avec Starway !

Retrouvez les différents modes DMX sur le manuel disponible en ashant le QR code
apposé sur les produits ou en cliquant sur le lien ci dessous :
http://ftp.technique.freevox.fr/STARWAY/225735_DAYTONA/225735_DAYTONA_FR.pdf
STARWAY
22, rue Édouard Buffard - MoNTeVraIN 77771
France
Tél. : +33 (0)820 230 007
Mode BASIC 16
Canal Fonction Valeur Description
1Pan 000~255 Pan
2Pan ne 000~255
3Tilt 000~255 Tilt
4Tilt ne 000~255
5Vitesse P/T
000~225 De Rapide à Lent
226~235 Mouvements au Black Out
236~255 Idle
6Dimmer 000~255 Dimmer
7Dimmer Fine 000~255 Dimmer Fine
8Strobe
000~009 Shutter fermé
010~019 Shutter ouvert
020~068 Strobe de lent à rapide
069~079 Shutter ouvert
080~128 Pulse en séquences
129~139 Shutter ouvert
140~188 Strobe random de lent à rapide
189~199 Shutter open
200~248 Strobe pixel random de lent à rapide
249~255 Shutter ouvert
9Rouge 000~255 Rouge
10 Rouge Fine 000~255
11 Vert 000~255 Vert
12 Vert Fine 000~255
13 Bleu 000~255 Bleu
14 Bleu Fine 000~255
15 Blanc 000~255 Blanc
16 Blanc Fine 000~255
17 Roue de Cou-
leur Virtuelle
000-010 Macro de Blanc
011-012 Emulation Tungsten 3200°K
013-014 Emulation Tungsten 4000°K
015-016 Emulation Tungsten 4500°K
017-250 Roue de couleur virtuelle
251-253 Rotation de la roue couleur virtuelle
sens horaire
254-255 Rotation de la roue couleur virtuelle
sens anti-horaire
18 Fade /
Vitesse Roue
de Couleurs
000-255
Fade entre les couleurs virtuelles /
Rotation de rapide à lent (de rapide
à lent)
19 Zoom 000~255 Zoom
20 Dim Modes
000~020 Selon le menu du projecteur
021~040 Standard
041~060 Stage
061~080 TV
081~100 Architectural
101~255 Theatre
21 Contrôle
000~004 Idle
005~009 Inversion Pan on (Maintient 3s)
010~014 Inversion Pan off (Maintient 3s)
015~019 Inversion Tilt on (Maintient 3s)
020~024 Inversion Tilt off (Maintient 3s)
025~029 Fan Silent (Maintient 3s)
030~034 Fan Auto (Maintient 3s)
035~039 Fan High (Maintient 3s)
040~089 Idle
090~101 Courbe Linear (Maintient 3s)
102~113 Courbe Square (Maintient 3s)
114~125 Courbe Inv-Square (Maintient 3s)
126~131 Courbe S (Maintient 3s)
132~137 Led Freq. 900 Hz (Maintient 3s)
138~143 Led Freq. 1000 Hz (Maintient 3s)
144~149 Led Freq. 1100 Hz (Maintient 3s)
150~155 Led Freq. 1200 Hz (Maintient 3s)
156~161 Led Freq. 1300 Hz (Maintient 3s)
162~167 Led Freq. 1400 Hz (Maintient 3s)
168~173 Led Freq. 1500 Hz (Maintient 3s)
174~179 Led Freq. 2500 Hz (Maintient 3s)
180~185 Led Freq. 4000 Hz (Maintient 3s)
186~191 Led Freq. 5000 Hz (Maintient 3s)
192~197 Led Freq. 10000 Hz (Maintient 3s)
198~203 Led Freq. 15000 Hz (Maintient 3s)
204~209 Led Freq. 20000 Hz (Maintient 3s)
210~215 Led Freq. 25000 Hz (Maintient 3s)
216~218 Reset Pan/Tilt (Maintient 3s)
219~221 Reset du zoom (Maintient 3s)
222~224 Reset général (Maintient 3s)
225~234 Idle
235~237 Klingnet Désactivé
238~240 Leds controled Klingnet only
241~243 Leds controled Klingnet + Dmx
244~246 Klingnet Calibration OFF
247~249 Klingnet Calibration ON
250~255 Idle

QUICK START

Page 6
WARNING! Before carrying out any operations with the unit,
carefully read this instruction manual and keep it with cure
for future reference. It contains important about the installation,
usage and maintenance of the unit.
SAFETY
GeNeraL INsTrucTIoN
• The products referred to in this manual conform to the European Community Directives and are there-fore marked with CE:.
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only. Never make any modica-
tions on the unit not described in this instruction manual, otherwise you will risk an electric shock.
• Connection must be made to a power supply system tted with efcient earthing (Class I appliance ac-cording to standard EN
60598-1 ). It is, moreover, recommended to protect the supply lines of the units from indirect contact and/or shorting to earth by
using appropriately sized residual current devices.
• The connection to the main network of electric distribution must be carried out by a qualied electrical installer. Check that the
main frequency and voltage correspond to those for which the unit is designed as given on the electrical data label.
• Never use the xture under the following conditions:
- in places wet;
- in places subject to vibrations or bumps;
- in places with an ambient temperature of over 45° C.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Do not dismantle or modify the xture.
• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for an inspection or contact
the manufacturer directly.
• If the unit is to be put out of operation denitively, take it to a local recycling plant for a disposal which is not harmful to the environment.
WarNINGs aNd INsTaLLaTIoN precauTIoNs
• Never let the power cord come into contact with other cables! Handle the power cord and all connections with the mains with particular
caution!
• Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.
• Never strain the cable. There must always be sufcient cable going to the device. Otherwise, the cable will be damaged, which can cause
serious damage.
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never lift the device holding it by the projector-head, as the mechanics may be damaged
• Do not shake the device. Avoid brute force when installing or operating the device.
• Only operate the device after having checked if the housing is rmly closed and all screws are tightly fastened.
• Only operate the device after having familiarized with its functions.
• Avoid ames and do not put close to ammable liquids or gases.
• Always allow a free air space of at least 0.8 m around the unit for ventilation.
• Always disconnect power from the mains, when device is not used or before cleaning! Only handle the power cord holding it by the plug.
Never pull out the plug by tugging the power cord.
• Make sure that the device is not exposed to extreme heat or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power cord is never crimped or damaged. Check the device and the power cord from time to time.
• Make sure that the core diameter of extension cords and power cords is sufcient for the required power consumption of the device.
• Always hold the device by the transport handles.
• Never place any material over the LEDs or lens.
• Never look directly into the light source.
• Never leave any cables lying around.
• Never use the device during thunderstorms, unplug the device immediately.
• Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc within children’s reach, as they potential sources of
danger.
• Do not insert objects into air vents.
• Do not open the device and do not modify the device.
• Do not connect this device to a dimmer pack.
• Do not switch the device on and off in short intervals, as this will reduce the device’s life.
• Do not touch the device’s housing bare-handed during its operation (housing becomes very hot). Allow the device to cool for at least 5
minutes before handling.
• If the lens or LEDs are obviously damaged, they need to be replaced to prevent their functions from being impaired, due to cracks or
deep scratches.
• If the external cable is damaged, it has to be replaced by a qualied technician.
• If device was dropped or struck, disconnect mains power supply immediately. Have a qualied engineer inspect for safety before operat-
ing.
• If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The arising
condensation water might damage your device. Leave the device switched off until it has reached room temperature.
• If your device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material),
and return it to your dealer for service.
• For adult use only. The device must be installed beyond the reach of children. Never leave the unit running unattended.
• Never attempt to bypass the thermostatic switch or fuses.
• For replacement use fuses of same type and rating only.
• This device is heavy. When handling, use a two-person lift to prevent injury.
• The user is responsible for correct positioning and operating of the device. The manufacturer will not accept liability for damages caused
by the misuse or incorrect installation of this device.
• This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.
• Repairs, servicing and electric connection must be carried out by a qualied technician.
Rigging
This device is heavy. When handling, use a two-person lift to prevent injury.
Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Page 7
Starway takes care of our beautiful planet and adopts the eco-attitude!
Find manuals online and more by ashing
the QR code on the products!
DAYTONA is a beam/wash moving head with its 19 x 40W RGBW LEDs. Fast and
powerful, providing a luminous ux of 11650 lumens, Daytona offers a zoom range from
5° to 52° and 3cooling modes. Its 19 LEDs can be managed independently (pixel to pixel)
but also with patterns thanks to its internal generator and also features a halogen mode
simulating the effect of a lament lamp. DAYTONA is compatible with DMX, Art-Net or
Kling-Net management.
DAYTONA also features a halogen mode simulating the effect of a lament lamp.
BC Color system is an innovative color management system giving the light designer the
ability to adjust in real time the white macros as well the hue of the virtual color wheel. BC
Color system allows you to select a white amongst the 10 values of calibrated white from
2700°K to 10000°K while keeping the control of the color in the range of the chosen color
temperature. BC Color system also allows you to recalibrate the white macros, in order to
harmonize with a group of different projectors, whatever their brands are. When one of the
colors of the virtual wheel is activated, the RGB channels are deactivated but the white
LEDs, meanwhile, remains active to “pastelize” the chosen color.
TECHNICAL SPECIFICATIONS :
• Zoom 5 ° - 52 ° beam
• Illuminance: 51 500 Lux at 5M / 5 °
• Max ux 11632 Lumens
• Cooling: Forced air 3 modes
• DMX modes: 15/19/21/25/41 / 69ch
• Protocols: DMX / Artnet / sACN / Klingnet / RDM
• 30 internal pattern programs
• BColor System
• Flicker Free: Led frequency adjustable from 900 to 25000Hz
• Dmx In / Out connectors: 2 x XLR5.
• Artnet / sACN / Klingnet connectors: 2 x RJ45
• Dimensions W x D x H: 399MM * 255MM * 406MM
• Net weight: 19Kg with Omega grip.
• Max power: 935W

Find the different DMX modes on the manual available by ashing the QR code
afxed to the products or by clicking on the link below:
http://ftp.technique.freevox.fr/STARWAY/225735_DAYTONA/225735_DAYTONA_US.pdf
Please note that the manuals are multi-language
STARWAY
22, rue Édouard Buffard - MoNTeVraIN 77771
France
Tél. : +33 (0)820 230 007
Mode BASIC 16
CH Feature Value Description
1 Pan 000 - 255 Pan
2Pan ne 000 - 255
3 Tilt 000 - 255 Tilt
4Tilt ne 000 - 255
5P/T Speed
000 - 225 Max to min speed
226 - 235 Blackout by movement
236 - 255 Idle
6 Dimmer 000 - 255 Dimmer
7Dimmer
Fine 000 - 255 Dimmer Fine
8 Strobe
000 - 009 Shutter Closed
010 - 019 Shutter open
020 - 068 Strobe effect slow to fast
069 - 079 Shutter open
080 - 128 Pulse - effect in sequences
129 - 139 Shutter open
140 - 188 Random strobe effect slow to fast
189 - 199 Shutter open
200 - 248 Random ash Pixel slow to fast
249 - 255 Shutter open
9 Red 000 - 255 Red
10 Red Fine 000 - 255
11 Green 000 - 255 Green
12 Green Fine 000 - 255
13 Blue 000 - 255 Blue
14 Blue Fine 000 - 255
15 White 000 - 255 White
16 White Fine 000 - 255
17 Virtual Co-
lor Wheel
000 - 010 White macro
011 - 012 Tungsten Emulation 3200°K
013 - 014 Tungsten Emulation 4000°K
015 - 016 Tungsten Emulation 4500°K
017 - 250 Virtual color wheel
251 - 253 CW Virtual Color Wheel rotation
254 - 255 CCW Virtual Color Wheel rotation
18 Colour
Fade/Speed 000 - 255 Fade between Virtual colors/ Speed
from fast to slow.
19 Zoom 000 - 255 Zoom
20 Dim Modes
000 - 020 Default unit setting
021 - 040 Standard
041 - 060 Stage
061 - 080 TV
081 - 100 Architectural
101 - 255 Theatre
21 Control
000 - 004 Idle
005 - 009 Invert Pan on (Hold 3s)
010 - 014 Invert Pan off (Hold 3s)
015 - 019 Invert Tilt on (Hold 3s)
020 - 024 Invert Tilt off (Hold 3s)
025 - 029 Fan Silent (Hold 3s)
030 - 034 Fan Auto (Hold 3s)
035 - 039 Fan High (Hold 3s)
040 - 089 Idle
090 - 101 Linear Dimmer Curve (hold 3s)
102 - 113 Square Dimmer Curve (hold 3s)
114 - 125 Inv - Square Dimmer Curve (hold 3s)
126 - 131 S - Dimmer Curve (hold 3s)
132 - 137 Led Freq. 900 Hz (hold 3s)
138 - 143 Led Freq. 1000 Hz (hold 3s)
144 - 149 Led Freq. 1100 Hz (hold 3s)
150 - 155 Led Freq. 1200 Hz (hold 3s)
156 - 161 Led Freq. 1300 Hz (hold 3s)
162 - 167 Led Freq. 1400 Hz (hold 3s)
168 - 173 Led Freq. 1500 Hz (hold 3s)
174 - 179 Led Freq. 2500 Hz (hold 3s)
180 - 185 Led Freq. 4000 Hz (hold 3s)
186 - 191 Led Freq. 5000 Hz (hold 3s)
192 - 197 Led Freq. 10000 Hz (hold 3s)
198 - 203 Led Freq. 15000 Hz (hold 3s)
204 - 209 Led Freq. 20000 Hz (hold 3s)
210 - 215 Led Freq. 25000 Hz (hold 3s)
216 - 218 Reset Pan/Tilt (Hold 3s)
219 - 221 Reset only Head (Hold 3s)
222 - 224 Reset All Functions (Hold 3s)
225 - 234 Idle
235 - 237 Klingnet Disable
238 - 240 Leds controled Klingnet only
241 - 243 Leds controled Klingnet + Dmx
244 - 246 Klingnet Calibration OFF
247 - 249 Klingnet Calibration ON
250 - 255 Idle
Other manuals for DAYTONA
1
Table of contents
Languages:
Other Starway Lighting Equipment manuals
Popular Lighting Equipment manuals by other brands

InoTec
InoTec CLS 24.1-7Ah Mounting and operating instructions

Armacost Lighting
Armacost Lighting RibbonFlex PRO manual

NORLUX
NORLUX Anka 6700-04-1 installation manual

Loop-Loc
Loop-Loc Ultra Loc III Solid installation guide

Endon
Endon EL-10092 instruction manual

GE
GE LED7-C7-50 Important safety instructions

Blizzard Lighting
Blizzard Lighting Lo-Pro Flux user manual

American DJ
American DJ rotogobo User instructions

U-Line
U-Line H-6436 installation instructions

Model Train Technology
Model Train Technology CABOOSE II Series Operation manual

EuroLite
EuroLite LED PAR-64 RGBA user manual

Lupo
Lupo Superpanel 60 user manual
