Stealth Products UniLink Comfort Plus Series Guide

UniLink™ Headrest Hardware
Owner’s Manual
and Maintenance Guide
Head Support

Stealth Products is committed to 100% customer satisfaction. Your complete
satisfaction is important to us. Please contact us with feedback or suggestions to
help us improve the quality and usability of our products.
You may reach us at:
Stealth Products, LLC
104 John Kelly Drive
Burnet, TX 78611
Phone: [phone] Toll Free: [phone]
Fax: [phone] Toll Free: [phone]
[email protected]
www.stealthproducts.com
MDSS GmbH
Schigraben 41
30175 Hannover, Germany
General
Read and understand all instructions prior to the use of the product. Failure to
adhere to instructions and warnings in this document may result in property
damage, injury, or death. Product misuse or failure to follow instructions will void
the warranty.
Immediately discontinue use if any function is compromised, if parts are missing
or loose, or if any component shows signs of excessive wear. Consult with your
supplier for repair, adjustment, or replacement.
All persons responsible for tting, adjustment, and daily use of the devices
discussed in the these instructions must be familiar with and understand all safety
aspects of the devices mentioned. In order for our products to be used
successfully, you must read and understand all instructions and warnings, and
maintain our products according to our instructions on care and maintenance.
The installation instructions will guide you through this product’s options and
possibilities.
Instructions are written with the expressed intent of use with standard
congurations. They also contain important safety and maintenance information,
as well as describe possible problems that can arise during use. For further
assistance, or more advanced applications, please contact Stealth Products at
[phone] or toll free at [phone] or your supplier.
Always keep the operating instructions in a safe place so they may be referenced
as necessary.
All information, pictures, illustrations, and specications are based on the product
information that was available at the time of printing. Pictures and illustrations
shown in these instructions are representative examples and are not intended to
be exact depictions of the various parts of the product.
General Information
1

These products are designed to be tted, applied, and installed exclusively by
a healthcare professional trained for these purposes. The tting, application,
and installation by a non-qualied individual could result in serious injury.
CAUTION
General Information
2
Warranty
Our products are designed, manufactured, and produced to the highest of
standards. If any defect in material or workmanship is found, Stealth Products will
repair or replace the product at our discretion. Any implied warranty, including the
implied warranties of merchantability and tness for a particular purpose, shall not
extend beyond the duration of this warranty. Stealth Products does not warrant
damage due to, but not limited to: Misuse, abuse, or misapplication of product,
and/or modication of product without written approval from Stealth Products,
LLC. Any alteration or lack of serial number, where applicable, will automatically
void all warranty.
Stealth Products, LLC Is liable for replacement parts only. Stealth Products, LLC is
not liable for any incurred labor costs.
Stealth Products warrants against failure due to defective materials or
workmanship:
Covers: 18 months
Hardware: 5 years
Electronics: 3 years
In the event of a product failure covered by our warranty, please follow the
procedures outlined below:
1. Call Stealth Products at [phone] or toll free at [phone].
2. Request a Return Authorization (RA) form from the Returns Department and
follow the documentation instructions.
You can download additional copies of this manual by accessing the Stealth
website (https://stlpro.site/stealth-docs) and searching “UniLink Headrest
Hardware” in the search bar at the top of the page.
Supplier Reference
Supplier:
Telephone:
Address:
Purchase Date:
Model:

3
Warning Labels
Warnings are included for the safety of the user, client, operator, and property.
Please read and understand what the signal words DANGER,WARNING,
CAUTION,NOTICE, and SAFETY mean, and how they could aect the user, those
around the user, and property.
Limited Liability
Stealth Products, LLC accepts no liability for personal injury or damage to property
that may arise from the failure of the user or other persons to follow the
recommendations, warnings, and instructions in this manual.
Stealth Products does not hold responsibility for nal integration of nal assembly
of product to end user. Stealth Products is not liable for user death or injury.
Testing
Initial setup and driving should be done in an open area free of obstacles until the
user is fully capable of driving safely.
CAUTION
Identies a potential situation which, if not avoided, may result in minor to
moderate injury and property damage.
WARNING
Identies a potential situation which, if not avoided, may result in severe
injury,death, and property damage.
DANGER
Identies an imminent situation which, if not avoided, may result in severe
injury,death, and property damage.
Identies important information not related to injury, but possible property
damage.
NOTICE
SAFETY
Indicates steps or instructions for safe practices, reminders of safe
procedures, or important safety equipment that may be necessary.
CAUTION
Identies a potential situation which, if not avoided, may result in minor to
moderate injury and property damage.
WARNING
Identies a potential situation which, if not avoided, may result in severe
injury,death, and property damage.
Identies important information not related to injury, but possible property
damage.
NOTICE
SAFETY
Indicates steps or instructions for safe practices, reminders of safe
procedures, or important safety equipment that may be necessary.
General Information

4
Table of Contents
TABLE OF CONTENTS
Customer Satisfaction....................................................................................... 1
General Information ......................................................................................1-3
Warranty ...................................................................................................... 2
Supplier Reference Table....................................................................... 2
Warning Labels.......................................................................................... 3
Limited Liability......................................................................................... 3
Testing .......................................................................................................... 3
Table of Contents................................................................................................. 4
Design & Function ..........................................................................................5-6
Intended Use.............................................................................................. 5
Preparations ............................................................................................... 5
Installation Plan ........................................................................................ 6
Required Tools........................................................................................... 6
Included Fasteners................................................................................... 6
Installation ..........................................................................................................7-8
Installing Seat Back Mount Hardware.............................................. 7
Installing UniLink Headrest Hardware ............................................. 8
Making Adjustments............................................................................... 8
Headrest Installation............................................................................... 9
Headrests........................................................................................................ 10-12
Comfort Plus Series...............................................................................10
Tri-Comfort Plus Series ........................................................................10
Adjustable Comfort Plus Series ........................................................11
Combo Series...........................................................................................12
First Time Use......................................................................................................13
Cleaning & Maintenance ...............................................................................14

The UniLink headrest hardware features:
• Link-style design for fast, simple height and depth adjustment;
• A ball mount for angle and rotation adjustment;
• Correct point-of-contact adjustability, regardless of seating variances;
• A stop collar to act as a reference point for headrest mounting height;
• Multiple pad and link sizing options;
• Full surface contact; and,
• An easy installation process.
5
Intended Use
Design & Function
WARNING
Do not expose this product or its system to excessive heat,
such as an open ame or sparks.
Only a qualied service technician may install the UniLink Headrest Hardware
and its accessories.
UniLink
Preparations
A critical component of a properly tted head
support system, the UniLink Headrest Hardware is
intended to connect to the wheelchair’s back,
providing the user the necessary support and
stability for their neck and head.
Designed to be compatible with all Stealth
Products’ ball mount-based pads, UniLink’s link-
style hardware provides ample adjustment for
Stealth headrests. Multiple planes of adjustment for
posterior, anterior, and angle allow full surface
contact while accommodating postural anomalies,
and individual link adjustment capabilities isolate
planes and angles, providing reinforcement to even
the most complex head support solutions.
The UniLink Headrest Hardware increases a
user’s ability to successfully engage in daily
activities, as well as promotes upright posture and
the maintenance of a healthy head position.

6
Set up a plan before beginning the installation.
This plan should take into account:
• Where the UniLink Headrest Hardware will be placed, as well as applicable
attachments and accessories; and,
• The amount of clearance necessary for other hardware and accessories.
Design & Function
Required Tools
Use the proper tools to install and adjust the UniLink Headrest Hardware to the
desired position for the user.
2mm (M2)
Hex Wrench
4mm (M4)
Hex Wrench
11mm
Wrench
Included Fasteners
The seat back mount will be packaged with the following fasteners:
• Two M6x1x18mm Button Head Screws with M6 nylon lock nuts; and,
• Four M5x0.8x12mm Button Head Screws for mounting to seat backs with threaded
holes.
This selection of screws should accommodate your installation needs. If you have
trouble with the installation of the seat back mount, or have a question outside the
scope of this manual, please contact your supplier, or call us at the numbers listed
on the inside cover.
CAUTION
The use of improper tools may cause damage to the device.
Insucient tightening of fasteners may lead to discomfort
for the user or component failure.

7
Installation

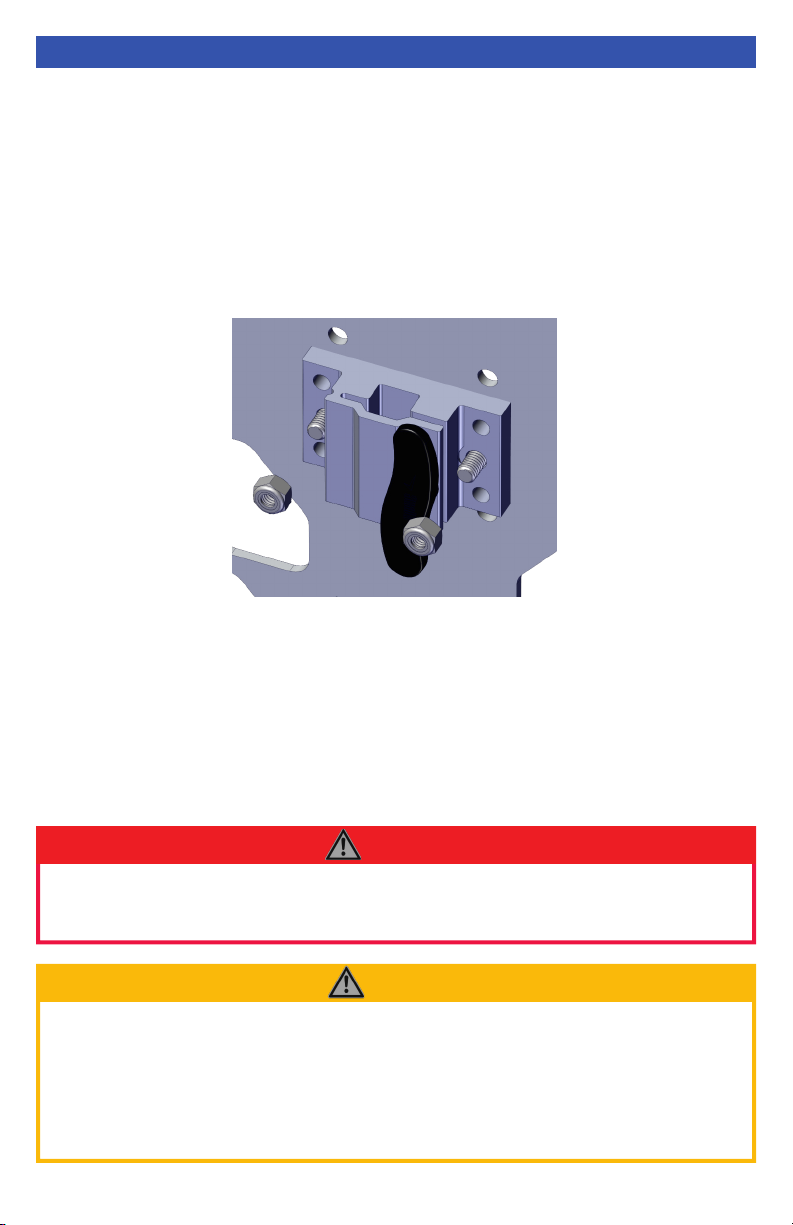

For seat backs with two holes:
Place the seat back mount on the back of the seat and line up the center hole
on either side of the seat back mount with the holes in the seat. From the
front, insert the two M6 x 1 x 18 button head screws through the holes in the
seat back and through the mount. Thread the nylon lock nuts onto the screws
and tighten the mount to the back of the seat.
On seat backs with four threaded holes (image not shown):
Place the seat back mount on the back of the seat and line up the holes with
the threaded holes of the seat back. Use the M5 x 0.8 x 12mm button head
screws to secure the seat back mount to the seat back. Make sure the tips of
the screws do not protrude past the surface of the seat on the side opposite
the mount.
WARNING
An incorrect installation of UniLink headrest hardware or its accessories may
cause damage to the hardware and/or injury to the user.
CAUTION
Any connection must be secured with all included fasteners.
Use only the fasteners provided in the package.
The installation of alternate or additional parts to a wheelchair
could change its functional structure.
Thoroughly assess whether additional wheelchair safety features are
necessary to maintain chair stability and eectiveness.

8
Installation
Loosen the handle (A) of the seat back mount by turning it counterclockwise
and insert the headrest hardware shaft into the square receptacle.
A
B
If the shaft is too high or too low,
the stop collar (B) requires re-
positioning. Loosen it with the
M2 Hex Key and adjust the stop
collar to the desired position.
Tighten the set screw with the
M2 Hex Key to secure the stop
collar in position.
When the stop collar is in the
proper position and the shaft is
inserted fully into the seat back
mount, tighten handle (A) by
turning it clockwise until the
shaft is secure in the mount.
Making Adjustments
The UniLink Headrest Hardware can be
adjusted in three planes: depth, height and
angle. To adjust one of these planes,
loosen any of the three M5 screws using an
M4 Hex Key. Change the orientation of the
link and re-tighten the screw until snug.
To adjust depth, height, or
angle of the headrest, loosen
these three screws and re-
tighten them when the proper
location is reached.
CAUTION
Care should be taken when tightening fasteners. Over-tightening of
screws may lead to stripped threads and component failure.

This section covers installation of the following headrests on UniLink
headrest hardware:
Comfort Plus Series Adjustable
Comfort Plus Series Combo Series Tri-Comfort Plus
Series
To install a headrest to the
UniLink Headrest Hardware: Place the 1” ball into the
designated socket in the rear
of the headrest.
Slip the split ring around the
1” ball, notch facing down.
Tighten screws with an M4 hex key, ensuring the screws are tightened
evenly and that the split ring is parallel with the mounting plate on the other
side of the 1” ball.
Insert the four M5 x 0.8 x 14
socket head screws (B) through
the ring and into the threaded
holes in the rear of the headrest.
Headrest Installation
9
Installation
CAUTION
Never use this product to maneuver a chair or anything to which it is
attached. This product is intended only for its stated use, and should never
be used as a support, lift, guide, handle, or an anything other than the
instrument of its original function.

10
Headrests
Comfort Plus Series
The Comfort Plus Series is a series of single pad headrests made for
comfort and ease of use.
This series is designed to:
• Supply a resting position or support against gravity in tilt or recline.
• Add a surface behind the head during automotive transportation.
• Easily accommodate the addition of positioning components and accessories to
provide additional clinical interventions.
• Simply allow additional lateral support pads and switches that are easily
congurable as needs change.
• To discourage hooking of the head behind the pad, the CP550 19in. (482mm) pad
oers over-sized support.
Tri -Comfort Plus
Series
The Tri-Comfort Plus Series expands the features of the Comfort Plus
Series with the addition of angled lateral wings.
This series is designed to:
• Supply a central posterior pad as a resting position or as a support against gravity
in tilt and recline.
• Increase lateral control with side wings that oer help in keeping the head on the
center posterior support.
• Add a surface behind the head during automotive transportation.
• Easily accommodates the addition of positioning components and accessories to
provide additional clinical interventions.

11
Headrests
Adjustable
Comfort Plus
Series
The Adjustable Comfort Plus Series combines all the features of the
Comfort Plus Series with an adjustable triple pad head support.
This series is designed to:
• Supply a resting position, or support against gravity in tilt and
recline.
• Provide individually adjustable side pads to help control lateral
exion.
• Oer adjustable lateral support more than 45° from a at position.
• Add necessary head support during automotive transport.
• Easily accommodate the addition of position components and
accessories to provide extra clinical interventions.
• Oer side pads that provide a range of individually adjustable angles
to meet many support and positioning needs.
• Discourage lateral exion while providing lateral support for low
tone clients.
The adjustment screws on this headrest are located under the cover. To adjust
them, unzip the zippers on the back of the headrest and refer to the instructions
detailed in “To Adjust the Combo Headrest” on the next page.

12
Headrests
The Combo Series merges many features of the
Adjustable Comfort Plus Series in a lower prole
system with individually adjustable bilateral wings.
Its intuitive function allows you to set the angle of
the wings and reliably holds them in place.
This series is designed to:
• Provide a lower, thinner prole when clinically required.
• Oer standard and custom ear relief cut outs.
• Allow reliable, individually adjustable side pads to control lateral exion.
• Oer more than 45° lateral support adjustment from a at position.
• Easily accommodate the addition of positioning components and
accessories to provide additional clinical interventions.
Combo Series
To Adjust the Combo Headrest:
Use an M4 Hex Wrench to loosen
the screw at the center of each side
hinge. Adjust the angle of the pad
and tighten the screw to secure the
pad in place.

Dealer Assistance
During rst-time use by the user, it is advised that the dealer or service
technician not only assembles the product, but also explains the
conguration of user positioning to the user (i.e., the user and or the
attendant). If needed, the dealer can make nal adjustments.
User Testing
It is important that the customer is fully aware of the installation of the
UniLink Headrest Hardware, how to use it, and how it can be adjusted to
t the client comfortably.
As a dealer, explain and show the customer how you have executed the
installation and explain the function.
• Have the user test the position of the UniLink Headrest Hardware.
• Is the hardware in the proper position for the client?
• Can all controls be operated safely and with minimal eort?
• If needed, make any adjustments to the positioning.
• Explain possible problems to the customer and how to address them.
Conditions of Use
The UniLink Headrest Hardware is intended for use as installed by the
dealer, in accordance to the installation instructions in this manual.
Ensure the foreseen conditions of use are communicated by the dealer or
service technician to the user and/or attendant during the rst-time use.
If usage conditions change signicantly, please contact your dealer or a
qualied service technician to avoid unintended damage.
13
First Time Use
CAUTION
Do not place any item between the chair user and the support surface of the
seating system. Doing so may reduce product eectiveness and increase
risk of injury.

Cleaning
To wash the covers of the headrests:
• Remove the pad/cover from the headrest;
• Machine wash in cold water on delicate cycle and drip dry.
Maintenance
Periodically check the hardware for loose screws or worn areas.
Check the pad/cover for any breakdown. If metal is protruding
through the cover or foam, discontinue use immediately and replace
the headrest.
Gently remove dust and dirt with a damp cloth.
14
Cleaning
NOTICE
Machine wash warm, gentle cycle. DO NOT Iron. DO NOT Bleach.
SAFETY
Repair or replace parts as needed.

Stealth Products, LLC · [email protected] · www.stealthproducts.com
[phone] | [phone] | 104 John Kelly Drive, Burnet, TX 78611
P143D636 Unilink Headrest Manual.pdf Revision Date - Jun 4, 2020
