Stealth Products Simple Solutions Tray User manual

Alternative
Drive Controls
Simple Solutions Tray
Owner’s Manual - Maintenance Guide
Simple Solutions Tray

2
Table of Contents
Customer Satisfaction ...................................................................... i
General...........................................................................................................i
Important Information............................................................... ii-iii
Warranty .......................................................................................................ii
Supplier Reference....................................................................................ii
Warning Labels..........................................................................................iii
Limited Liability.........................................................................................iii
Testing ..........................................................................................................iii
Design and Function ........................................................................ 1
Intended Use.............................................................................................. 1
Features........................................................................................................ 1
Mounting..................................................................................................... 1
Parts and Accessories ...................................................................... 2
Parts and Accessories Breakdown ..................................................... 2
Installation Instructions .............................................................. 3-5
Preparations ............................................................................................... 3
Installation Plan ........................................................................................ 3
Required Tools........................................................................................... 3
Installing the Tray..................................................................................... 4
Depth Adjustment ................................................................................... 5
Horizontal Adjustment........................................................................... 5
First Time Use ................................................................................... 6
Dealer Assistance ..................................................................................... 6
User Testing................................................................................................ 6
Conditions of Use .................................................................................... 6
Safety................................................................................................. 7
General Safety Guidelines..................................................................... 7
Maintenance ..................................................................................... 8
Cleaning....................................................................................................... 8
Disinfecting................................................................................................. 8
Maintenance .............................................................................................. 8
Notes ................................................................................................. 9

i
Customer Satisfaction
Stealth Products is committed to 100% customer satisfaction. Your complete satisfaction is
important to us. Please contact us with feedback or suggestions to help us improve the
quality and usability of our products.
You may reach us at:
General
Read and understand all instructions prior to the use of the product. Failure to adhere to
instructions and warnings in this document may result in property damage, injury, or death.
Product misuse or failure to follow instructions will void the warranty.
Immediately discontinue use if any function is compromised, if parts are missing or loose,
or if any component shows signs of excessive wear. Consult with your supplier for repair,
adjustment, or replacement.
All persons responsible for tting, adjustment, and daily use of the devices discussed in
these instructions must be familiar with and understand all safety aspects of the devices
mentioned. In order for our products to be used successfully, you must read and
understand all instructions and warnings, and maintain our products according to our
instructions on care and maintenance.
The installation instructions will guide you through this product’s options and possibilities.
Instructions are written with the expressed intent of use with standard congurations. They
also contain important safety and maintenance information, as well as describe possible
problems that can arise during use. For further assistance, or more advanced applications,
please contact your supplier or Stealth Products at [phone] or toll free at (800)
965-9229.
Always keep the operating instructions in a safe place so they may be referenced as
necessary.
All information, pictures, illustrations, and specications are based on the product
information that was available at the time of printing. Pictures and illustrations shown in
these instructions are representative examples and are not intended to be exact depictions
of the various parts of the product.
Stealth Products, LLC
104 John Kelly Drive,
Burnet, TX 78611
Phone: [phone] Fax: [phone]
Toll Free: [phone] Toll Free: [phone]
[e-mail]
www.stealthproducts.com
UK Authorized Representative
MDSS GmbH
Schigraben 41
30175 Hannover
Germany
SODIMED SA
Chemin Praz Devant 12
1032 Romanel sur-Lausanne
Switzerland
MDSS-UK RP
6 Wilmslow Road, Rusholme
Manchester M14 5TP
United Kingdom

ii
Important Information
Warranty
Our products are designed, manufactured, and produced to the highest of
standards. If any defect in material or workmanship is found, Stealth Products will
repair or replace the product at our discretion. Any implied warranty, including the
implied warranties of merchantability and tness for a particular purpose, shall not
extend beyond the duration of this warranty. Stealth Products does not warrant
damage due to, but not limited to: Misuse, abuse, or misapplication of product, and/or
modication of product without written approval from Stealth Products, LLC. Any
alteration or lack of serial number, where applicable, will automatically void all
warranty.
Stealth Products,LLC Is liable for replacement parts only. Stealth Products, LLC
is not liable for any incurred labor costs.
Stealth Products warrants against failure due to defective materials or
workmanship:
Covers: 2 years
Hardware: 5 years
Electronics: 3 years
In the event of a product failure covered by our warranty, please follow the
procedures outlined below:
Call Stealth Products at [phone] or toll free at [phone].
Request a Return Authorization (RA) form from the Returns Department and follow
the documentation instructions.
You can download additional copies of this manual by accessing the Stealth
website (www.stlpro.site/stealth-docs) and searching “Simple Solutions Tray” in the
search bar at the top of the page.
Supplier Reference
Supplier:
Telephone:
Address:
Purchase Date:
Model:
These products are designed to be tted, applied, and installed exclusively by
a healthcare professional trained for these purposes. The tting, application,
and installation by a non-qualied individual could result in serious injury.
CAUTION

iii
Important Information
Warning Labels
Warnings are included for the safety of the user, client, operator, and property.
Please read and understand what the signal words DANGER,WARNING,
CAUTION,NOTICE, and SAFETY mean, and how they could aect the user, those
around the user, and property.
Limited Liability
Stealth Products, LLC accepts no liability for personal injury or damage to property
that may arise from the failure of the user or other persons to follow the
recommendations, warnings, and instructions in this manual.
Stealth Products does not hold responsibility for nal integration of nal assembly
of product to end user. Stealth Products is not liable for user death or injury.
Testing
Initial setup and driving should be done in an open area free of obstacles until the
user is fully capable of driving safely.
DANGER
Identies an imminent situation which, if not avoided,
may result in severe injury,death, and property damage.
CAUTION
Identies a potential situation which, if not avoided, may result
in minor to moderate injury and property damage.
WARNING
Identies a potential situation which, if not avoided,
may result in severe injury,death, and property damage.
Identies important information not related to injury,
but possible property damage.
NOTICE
SAFETY
Indicates steps or instructions for safe practices, reminders of safe
procedures, or important safety equipment that may be necessary.

1
Design and Function
Intended Use
The Simple Solutions Tray eliminates the need for a user to pull under a table to
participate in independent 'activities of daily life'. Mounting screws are ush to the
surface of the tray to provide a at writing and work surface for the user. The tray
can also be used as a support device to help users maintain their posture and/or
support their arms. The clear material allows for visibility of the lower extremities
and correction of posture. The ip-away hardware lifts up and out of the way
during transfers or for wheelchair storage. It also allows depth adjustability of the
tray for comfort and optimal positioning for the user.
Features
The Simple Solutions Tray features:
• A range of adjustability through telescopic cane mounting and center track
mounting.
• A dual mounting option that allows one tray to be mounted left or right for the
user.
• A swing away option for ease of accessibility when getting on and o the chair.
• Polycarbonate material which provides strong impact resistance.
• A body cutout to prevent squeezing of the user's abdomen.
Mounting
The Simple Solutions Tray is mounted in the armrest of a wheelchair and is only
stable if the wheelchair is equipped with full length arms.
The hardware will mount to a 3/4" cane clamp.
CAUTION
The Simple Solutions Tray is intended to hold no more than 5 lbs (2.27 kg)
at a time. It is not intended to be a support surface or positioning device.

A
C
B
2
Parts and Accessories
Parts and Accessories Breakdown
A typical Simple Solutions Tray package comes with:
1. Tray
• Composed of shatter-resistant polycarbonate material with better impact
resistance and light transmission than most glass. Polycarbonate is safe, durable
and lightweight.
2. Swing Away Hardware
• Composed of 3/4" aluminum tubing with black anodizing.
Hardware Parts
Note: The size and shape of the tray will vary.

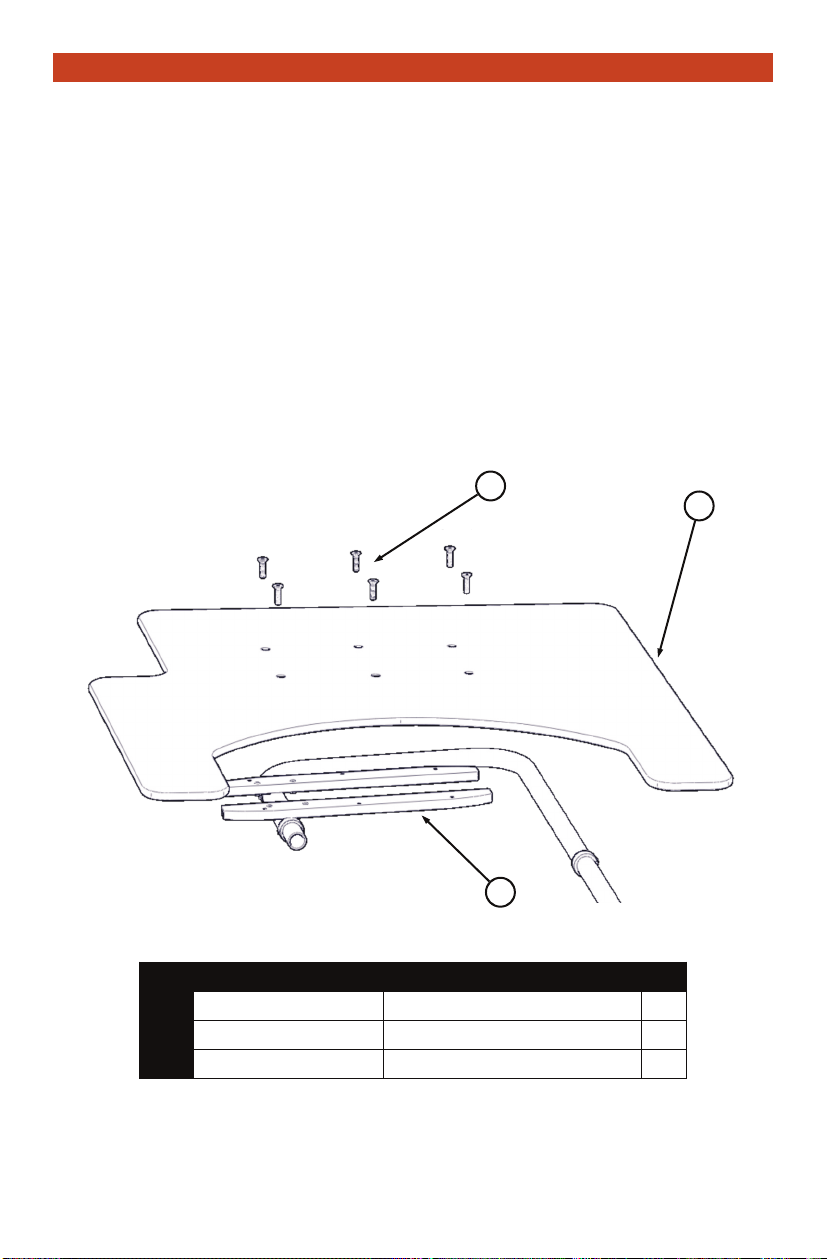

Description Qty
AMounting Screws M5 x 0.8 x 20mm FHS 6
BTray Simple Solutions Tray 1
CHardware Swing Away Hardware 1

3
Installation Instructions
Preparations
Only a qualied service technician may install the Simple Solutions Tray.
Installation Plan
Set up an installation plan before beginning the installation. This plan should take
into account:
• Where the tray will be placed, as well as applicable laterals and support cushions.
• How the tray will be operated, i.e. the quick release functions for the mount and
laterals.
• The provision of sucient clearance for other hardware and accessories.
Required Tools
Use the proper tools to install and adjust the Simple Solutions Tray to the desired
position for the user. Ensure all torque specications are followed.

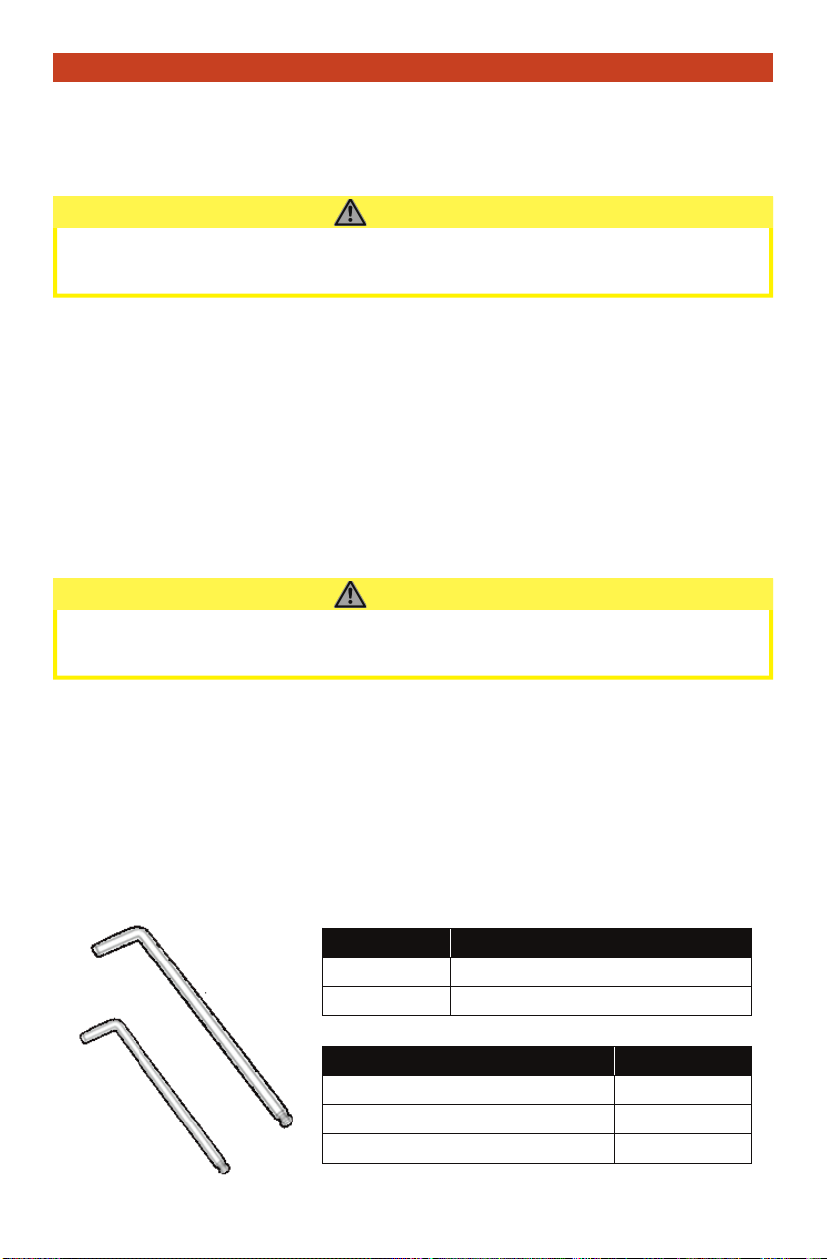

The tools needed to complete the installation of the Simple Solutions Tray are as
follows:
CAUTION
The use of improper tools may cause damage to the device. Insucient or
excess tightening can cause components to fail or cause discomfort for the user.
CAUTION
Any connection must always be secured with all delivered screws.
Use only the screws provided in the package.
Hardware Function
3mm Hex Key Track Mount to Tray, Set Screws
4mm Hex Key Mounting Hardware to Track Nut
Screws Torque Specications
M5 x 0.8 x 20mm Flat Head Screw 6.9 N·m
M5 x 0.8 x 4mm Set Screw 6.9 N·m
M6 x 0.8 x 10mm Button Head Screw 10.0 N·m

4
Installation Instructions
Installing the Tray

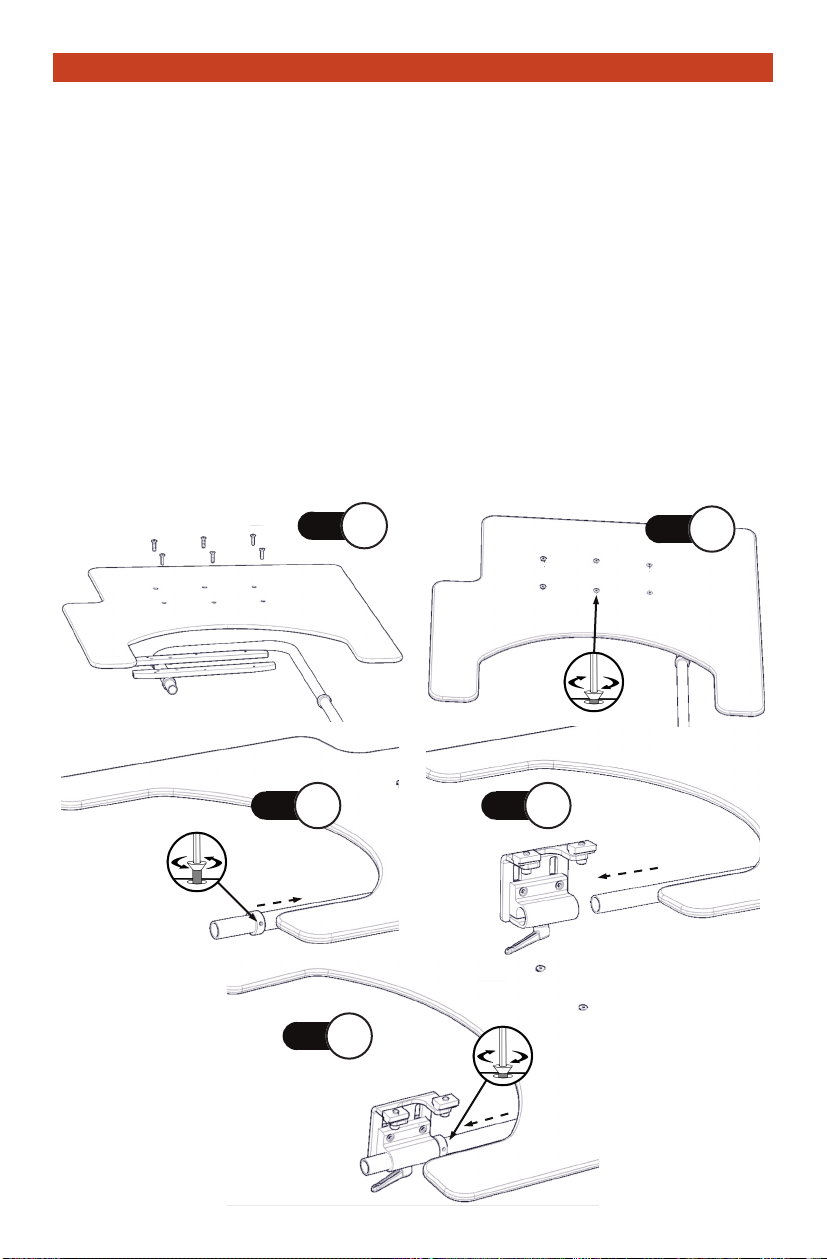

Step One: Place the plastic tray over the track mounts. Align the holes of the
plastic tray with the holes in the track mounts.
Step Two: Using the 3mm hex key, tighten the M5 x 0.8 x 20mm Flat Head
screws to the secure the tray to the hardware. Ensure the screws are
ush with the plastic to create a clean surface. (Do not overtighten as
doing so can damage the plastic.)
Step Three: Loosen the stop collar using a 3mm hex key and slide it forward on
the tube.
Step Four: Insert the tube into the clamp and adjust to the appropriate depth.
Lock using the latch on the clamp.
Step Five: Slide the stop collar along the tube, against the clamp and tighten it
in place using a 3mm hex key.
STEP 1STEP 2
STEP 3STEP 4
STEP 5

5
Installation Instructions
Depth Adjustment

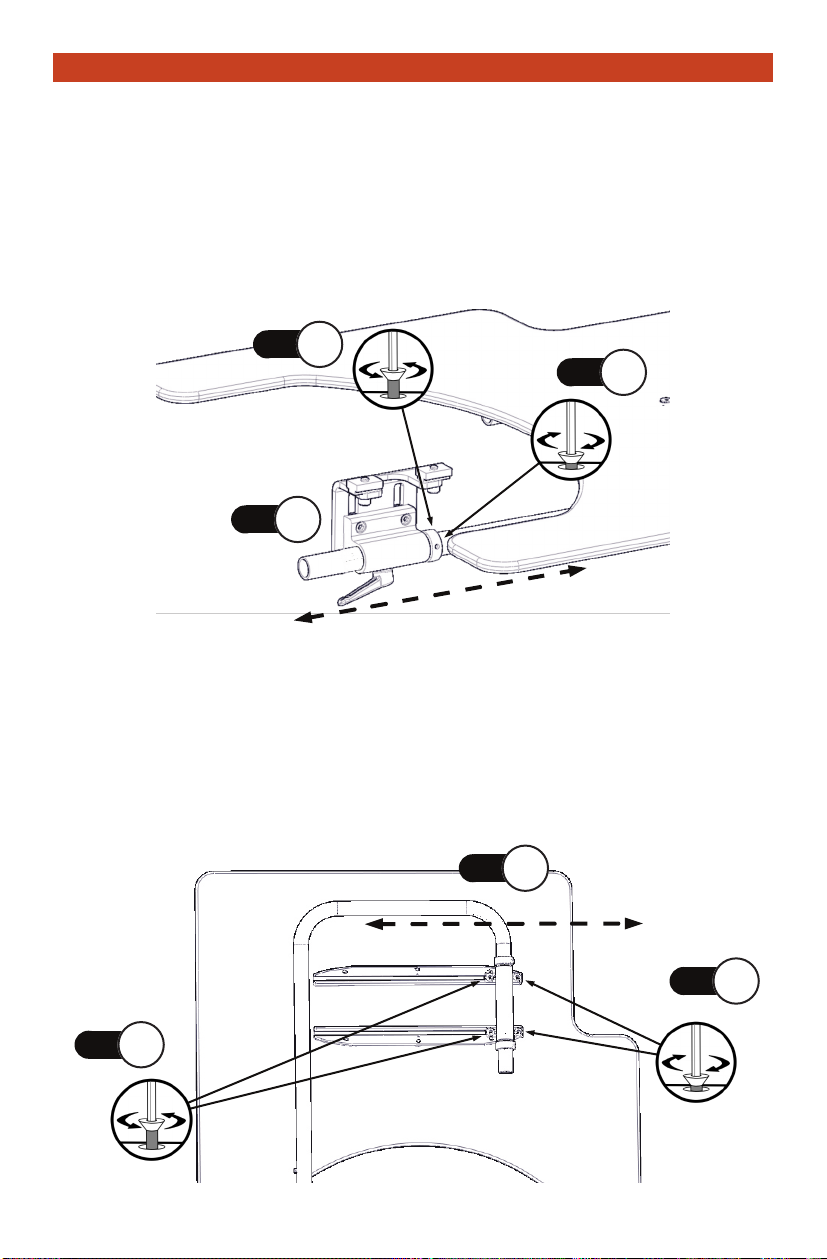

Step One: Loosen the stop collar using a 3mm hex key.
Step Two: Slide the tray to the correct position for the user. Lock using the latch.
Step Three: Slide the stop collar against the clamp to prevent unintentional
movement of the tray. Lock the stop collar in place by using a 3mm
hex key.
Horizontal Adjustment
Step One: Loosen the M6 x 1 x 10mm Button Head Screws using a 4mm hex key.
Step Two: Slide the tray to the correct position for the user.
Step Three: Tighten the M6 x 1 x 10mm Button Head Screws using a 4mm hex
key.
STEP 3
STEP 2
STEP 2
STEP 1
STEP 3
STEP 1

6
First Time Use
Dealer Assistance
During rst time use by the client, it is advised that the dealer or service technician
assists and explains the conguration to the customer (the user and/or the
attendant). If needed, the dealer can make nal adjustments.
User Testing
It is important that the customer is fully aware of the installation of the Simple
Solutions Tray, how to use it, and how it can be adjusted to t the client
comfortably. As a dealer, proceed as follows:
• Explain and show the client how you have executed the installation, and explain
the function.
Have the user test the position of the Simple Solutions Tray:
• Is the hardware in the proper position for the client?
• Can the user safely operate all controls with minimal eort?
Conditions of Use
The Simple Solutions Tray is intended for use as installed by the dealer, in
accordance to the installation instructions in this manual.
• The foreseen conditions of use are communicated by the dealer or service
technician to the user and/or attendant during the rst time use.
• If the conditions of use change signicantly, please contact your dealer or a
qualied service technician to avoid excessive wear and tear or unintended
damage.

7
Safety
General Safety Guidelines
WARNING
The edge of the tray should not be used as an armrest,
as it can cause soreness to the user's forearms.
WARNING
The tray is not intended to be used as a positioning device.
The tray should be adjusted such that it does not
make contact with the user's abdomen.
WARNING
Care should be taken, when swinging the tray to the side, not to strike
the user as it can lead to injury for the user or damage to the tray.
WARNING
Be mindful of ngers, cables, or other equipment
when swinging the tray to the side.
WARNING
The tray should be removed during operation or transportation of the chair.
Your safety is important to us. If there is any information in this manual
which you do not understand, or if you require additional assistance
for setup or operation, please contact your authorized dealer.
Failure to follow the instructions, warnings, and notes in this manual
and those located on the product can result in personal injury
or product damage and will void the product warranty.
NOTICE

8
Maintenance
Cleaning
• Wash the Simple Solutions Tray with a mild soap or detergent using a clean
sponge or soft cloth.
• Rinse the tray well with clean water.
• Do not scrub or use brushes or abrasive cleansers with this product.
Disinfecting
• Wipe gently with a cloth dampened with a household disinfectant.
Maintenance
These care and guidance instructions will keep the hardware and tray in good
condition for a longer period of time and prevent damage.
• Check and tighten all fasteners to the proper torque specications on a regular
basis. Reference the installation manual to nd proper torque specs.
• Check weldments on tray hardware for wear and ensure that tubing isn't bent or
damaged.

9
Notes

10
Notes

Stealth Products, LLC · [email protected] · www.stealthproducts.com
[phone] | [phone] | 104 John Kelly Drive, Burnet, TX 78611
P144D562R3 Simple Solu�ons Tray.afpub Dec 6, 2022
© 2021, Stealth Products, LLC
WarrantyInformation HomePage OnlineUserManual
