Stealth PINNACLE User manual

Service Manual
SC-36ZPL-HP230 / SC-36WPL-HP230

Service Manual
Table of contents
Part | : Technical Information
1. Summary..............................................................................................................................................1
2. Specification ..................................................................................................................................2 - 9
2.2 Capacity Variation Ratio According to Temperature...........................................................8
2.3 Noise Curve...................................................................................................................................9
2.4 Cooling and Heating Data Sheet in Rated Frequency ......................................................9
3.Outline Dimension Diagram .............................................................................................10 - 11
3.1 Indoor Unit .............................................................................................................................10
3.2 Outdoor Unit .................................................................................................................10 - 11
4. Refrigerant System Diagrams.........................................................................................12 - 14
5. Electrical Part...........................................................................................................................15 - 21
5.1 Wiring Diagram ...........................................................18
5.2 PCB Printed Diagram ...........................................................19 - 20
6. Function and Control...........................................................21 - 34
6.1 Remote Controller Introduction of YAN1F6F(WiFi)......................................................22 - 25
6.2 Remote Controller Introduction of YV1FB9F(WiFi) ......................................................26 - 29
6.3 GREE+ App Operation Manual................................................................................................30
6.4 Ewpe Smart App Operation Manual.......................................................................................31
6.5 Brief Description of Modes and Functions ....................................................................32 - 34
Table of Contents

Service Manual
Table of contents Table of contents
Part Ⅱ : Installation and Maintenance
7. Notes for Installation and Maintenance .......................................35 - 37
7.1 Main tools for installation and maintenance..........................................37
8. Installation..........................................................................................38 - 44
8.1 Installation Dimension Diagram.....................................................38 - 39
8.2 Installation Parts-checking ...................................................................40
8.3 Selection of Installation Location .........................................................40
8.4 Requirements for electrical connection.................................................40
8.5 Installation of Indoor unit...............................................................40 - 42
8.6 Installation of Outdoor unit…........................................................43 - 44
8.7 Vacuum Pumping and Leak Detection…..............................................44
8.8 Check after Installation and Test Operation.........................................44
9. Trouble...............................................................................................45 - 70
9.1 Flashing LED of Indoor/Outdoor unit and primary judgement.......45 - 51
9.1a. Analysis or processing of some of the malfunction display..................52
9.2 How to check the main part………………...……………………........56 - 68
9.3 Troubleshooting for basic malfunctions……………………….......…69 - 70
10.Exploded View and parts list.........................................................71 - 81
11.Removal Procedure.......................................................................82 - 101
11.1 Indoor Unit...................................................................................82 - 90
11.2 Removal Procedure of of outdoor unit......................................91 - 101
APPENDIX...........................................................................................102 - 106

1
Technical Information
Service Manual
1. Summary
Part Ⅰ: Technical Information

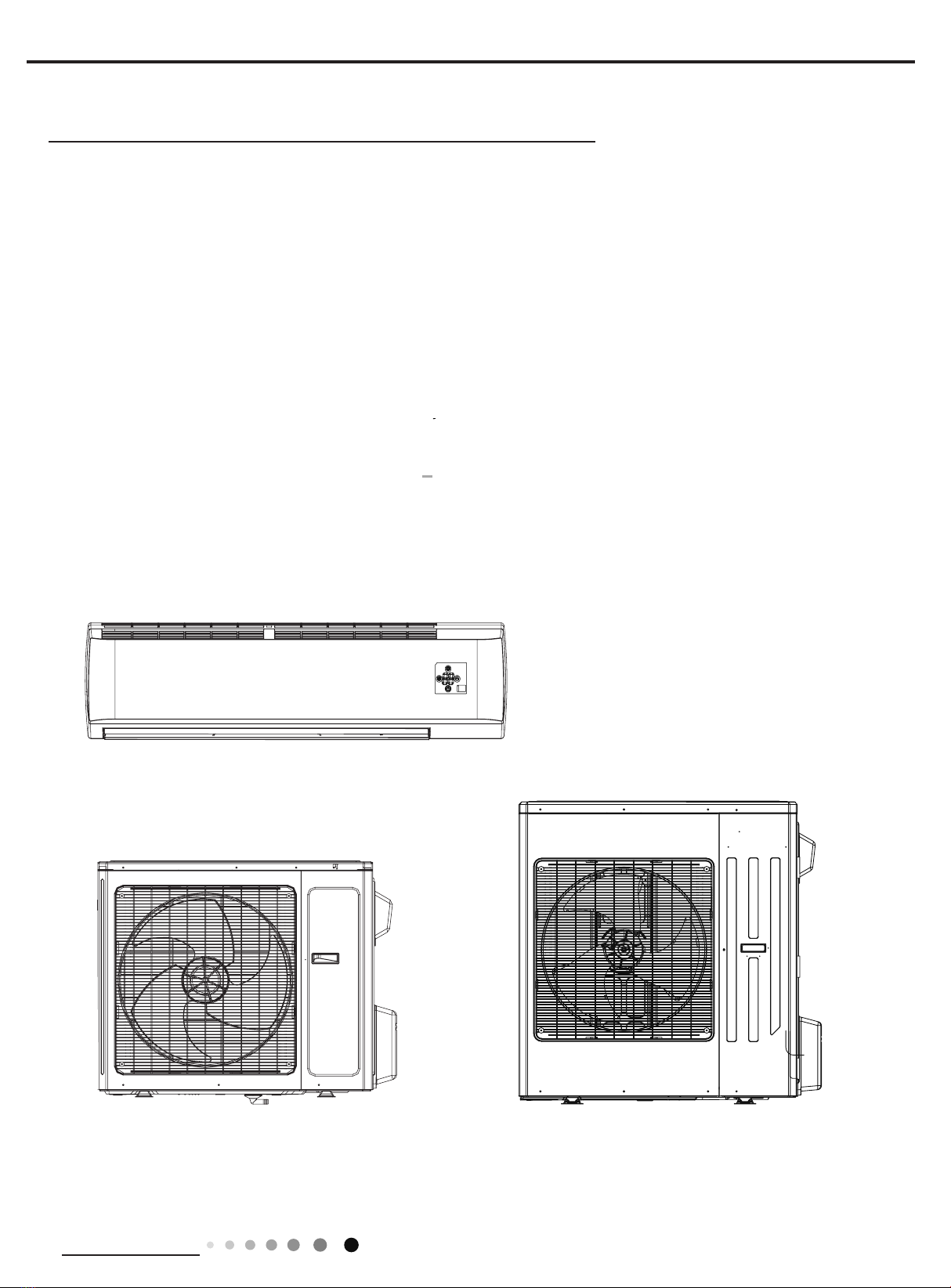

Indoor Unit:
SC-36ZPL-HP230 / SC-36WPL-HP230
Outdoor Unit:
A
YAN1F6F(WiFi)
Remote Controller:

4
Technical Information
Service Manual
Model SC-36ZPL-HP230
Product Code CB432010100
Power Supply
Rated Voltage V~ 208/230
Rated Frequency Hz 60
Phases 1
Power Supply Mode Outdoor
Cooling Capacity(Min~Max) Btu/h 33000(8800~40900)
Heating Capacity(Min~Max) Btu/h 34600(16700~49400)
Cooling Power Input(Min~Max) W 3220(500~4100)
Heating Power Input(Min~Max) W 3100(1000~7000)
Cooling Power Current A 14.7
Heating Power Current A 14.2
Rated Input W 7000
Rated Current A 19
Rated Heating Current A 30
Air Flow Volume(SH/H/M/L) CFM 824/706/589/441
Dehumidifying Volume Pint/h 7.4
EER (Btu/h)/W 10.25
COP (Btu/h)/W 11.16
SEER 23
HSPF 10.5
Application Area yd255.01-83.72
Indoor Unit
Model of indoor unit SC-36WPL-HP230
Indoor Unit Product Code CB432N10100
Fan Type Cross-flo
Diameter Length(DXL) inch Φ4 1/4X20 9/16
Fan Motor Cooling Speed (SH/H/M/L) r/min 1550/1300/1150/850
Fan Motor Heating Speed (SH/H/M/L) r/min 1500/1300/1150/1000
Output of Fan Motor W 70
Fan Motor RLA A 0.4
Fan Motor Capacitor μF /
Evaporator Form Aluminum Fin-copper Tube
Pipe Diameter inch Φ9/32
Row-fin Ga inch 2-1/16
Coil Length (LXDXW) inch 42 9/32X1X15
Swing Motor Model MP24BA
Output of Swing Motor W 2
Fuse A 5
Sound Pressure Level (SH/H/M/L) dB (A) 54/49/44/37
Sound Power Level (SH/H/M/L) dB (A) 64/59/54/47
Dimension (WXHXD) inch 53 9/64X12 53/64X9 61/64
Dimension of Carton Box (LXWXH) inch 56 39/64X16 29/64X13 55/64
Dimension of Package (LXWXH) inch 56 47/64X16 37/64X14 7/16
Net Weight Ib 41.9
Gross Weight Ib 51.8

5
Technical Information
Service Manual
Outdoor Unit
Model of Outdoor Unit SC-36ZPL-HP230
Outdoor Unit Product Code CB432W10100
Compressor Manufacturer/Trademark ZHUHAI LANDA COMPRESSOR
CO., LTD
Compressor Model QXAW-F518zX440C
Compressor Oil FV50S or equivalent
Compressor Type Rotary
Compressor Locked Rotor Amp (L.R.A) 36
Compressor RLA A 24
Compressor Power Input W 5830±3%
Overload Protector /
Throttling Method Electron expansion valve
Operation temp ºF 61~86
Ambient temp (cooling) ºF 0~109
Ambient temp (heating) ºF -31~75
Condenser Form Aluminum Fin-copper Tube
Pipe Diameter inch Φ5/16
Rows-fin Ga inch 2-1/16
Coil Length (LXDXW) inch 41 37/64X1 1/2×38 13/64
Fan Motor Speed rpm 940
Output of Fan Motor W 170
Fan Motor RLA A 0.73
Fan Motor Capacitor μF /
Air Flow Volume of Outdoor Unit CFM 3119
Fan Type Axial-flo
Fan Diameter inch Φ21 21/32
Defrosting Method Automatic Defrosting
Climate Type T1
Isolation I
Moisture Protection IPX4
Design Pressure(High) PSIG 550
Design Pressure(Low) PSIG 240
Sound Pressure Level (H/M/L) dB (A) 63/-/-
Sound Power Level (H/M/L) dB (A) 73/-/-
Dimension (WXHXD) inch 43 37/64X43 1/2X16 9/64
Dimension of Carton Box (LXWXH) inch 45 1/2X18 57/64X45 39/64
Dimension of Package (LXWXH) inch 45 39/64X19 X44 9/32
Net Weight Ib 253.53
Gross Weight Ib 271.17
Refrigerant R410A
Refrigerant Charge oz 123.5
Connection
Pipe
Length ft 24.6
Gas Additional Charge oz/ft 0.3
Outer Diameter Liquid Pipe inch 1/4
Outer Diameter Gas Pipe inch 5/8
Max Distance Height ft 98.4
Max Distance Length ft 164
Note:The connection pipe applies metric diameter.
The above data is subject to change without notice; please refer to the nameplate of the unit.

8
Technical Information
Service Manual

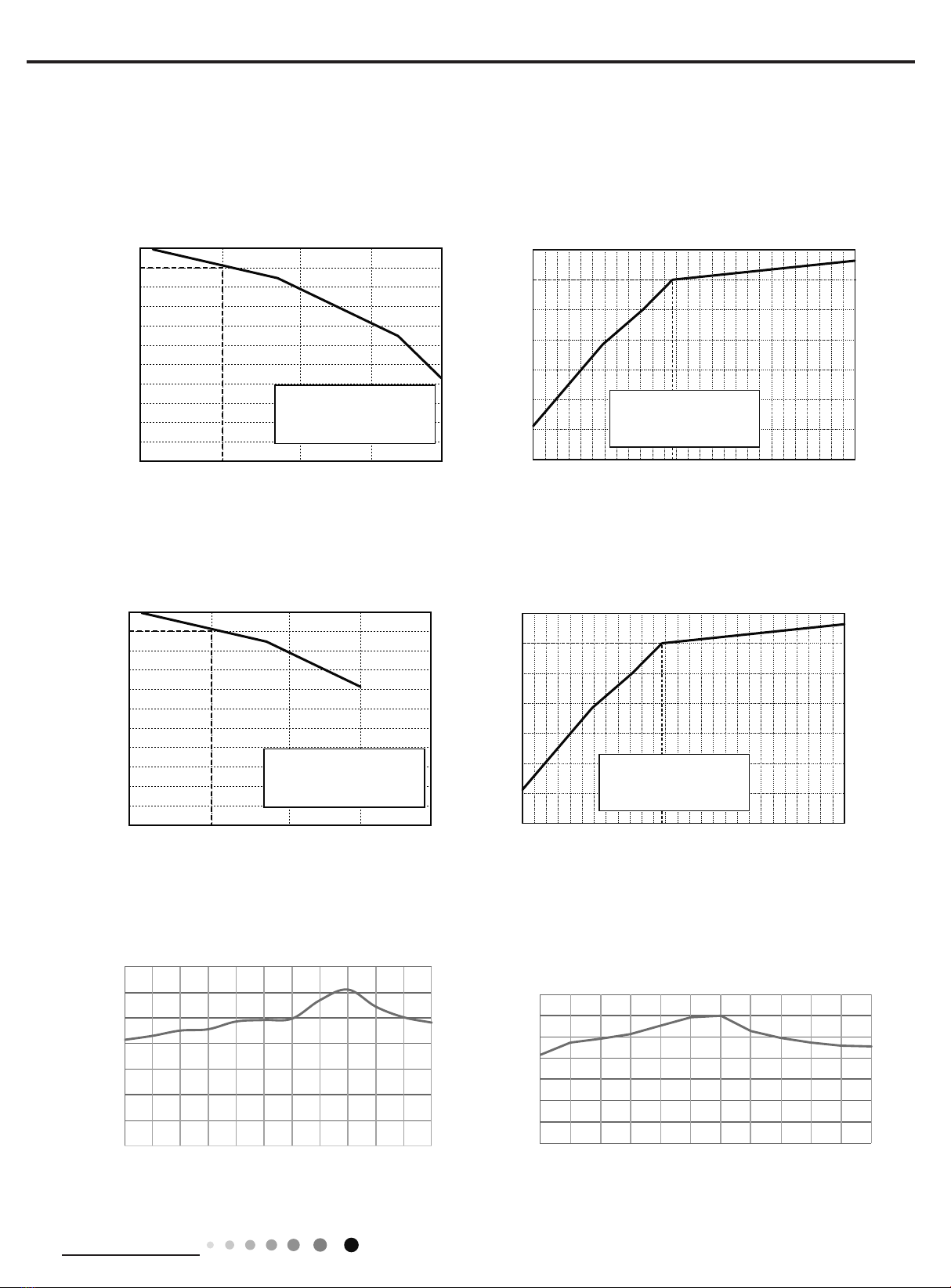

2.2 Capacity Variation Ratio According to Temperature
Cooling Heating
90 95 100 105109
100
105
95
90
85
80
75
70
65
60
55
50
Outdoor temp. (°F
)O
utdoor temp. (°F)
Capacity ratio (%)
Capacity ratio (%)
Conditions
Indoor:
Pipe length :
24.6ft
DB 80°F
WB66
°F
Indoor air flow: Super High
-4 514
110
100
90
80
70
60
50
40
23 32 41 50
Conditions
Indoor:DB
70°F
Indoor air flow:Super High
Pipe length:
24.6ft
0
20
40
60
80
100
120
140
0 14 23 32 59 68 77 86 95 104 109 115
0
20
40
60
80
100
120
140
-31-22 -13-4518 35 45 50 59 68
75
Capacity ratio (%) Capacity ratio (%)
Cooling Heating
Heating operation ambient temperature range is -4ºF~75ºF
Heating operation ambient temperature range is -13ºF~75ºF
Heating operation ambient temperature range is -31ºF~75ºF
Cooling Heating
90 95 100 105 109
100
105
95
90
85
80
75
70
65
60
55
50
Outdoor temp. (°F
)O
utdoor temp. (°F)
Capacity ratio (%)
Capacity ratio (%)
Conditions
Indoor:
Pipe length :
24.6ft
DB 80°F
WB66
°F
Indoor air flow: Super High
-13514
110
100
90
80
70
60
50
40
23 32 41 50
Conditions
Indoor:DB
70°F
Indoor air flow:Super High
Pipe length:
24.6ft

9
Technical Information
Service Manual
2.4 Cooling and Heating Data Sheet in Rated Frequency
Rated cooling
condition(°F) (DB/WB) Model
Pressure of gas pipe
connecting indoor and
outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger Fan speed of
indoor unit
Fan speed of
outdoor unit
Compressor
revolution
(rps)
Indoor Outdoor P (PSIG) T1 (°F) T2 (°F)
80/66 95/- 30K 130~145 46.8 to 52.8 127 to 96.8 Super High High 46
80/66 95/- 36K 130~145 46.8 to 52.8 127 to 96.8 Super High High 37
Rated heating
condition(°F) (DB/WB) Model
Pressure of gas pipe
connecting indoor and
outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger Fan speed of
indoor unit
Fan speed of
outdoor unit
Compressor
revolution
(rps)
Indoor Outdoor P (PSIG) T1 (°F) T2 (°F)
70/- 20/19 30K 507~550 134.4 to 102 36 to 39 Super High High 46
70/- 20/19 36K 507~550 134.4 to 102 36 to 39 Super High High 34
Instruction:
T1: Inlet and outlet pipe temperature of evaporator
T2: Inlet and outlet pipe temperature of condenser
P: Pressure at the side of big valve
Connection pipe length: 24.6ft.
Cooling:
Heating:
2.3 Noise Curve
30
40
50
60
LM
36K
30K
30K
HSH
Indoor fan motor rating speed
Noise/dB(A)
45
50
55
60
65
70
75
80
20 30 40 50 60 70 80 90 100
Compressor frequency(Hz)
Noise dB(A)
Indoor side noise Outdoor side noise
36K

10
Technical Information
Service Manual
53 9/64
12 53/64
9 61/34
11 19/32 3 1/2
1 37/64
13 25/32 1029 3/8
˜2 3/4
˜2 3/4
3. Outline Dimension Diagram
Unit:inch
3.2 Outdoor Unit
Unit:inch
14 37/64
31 7/64
16 13/16
15 9/16
39 1/2
24
36 2/9

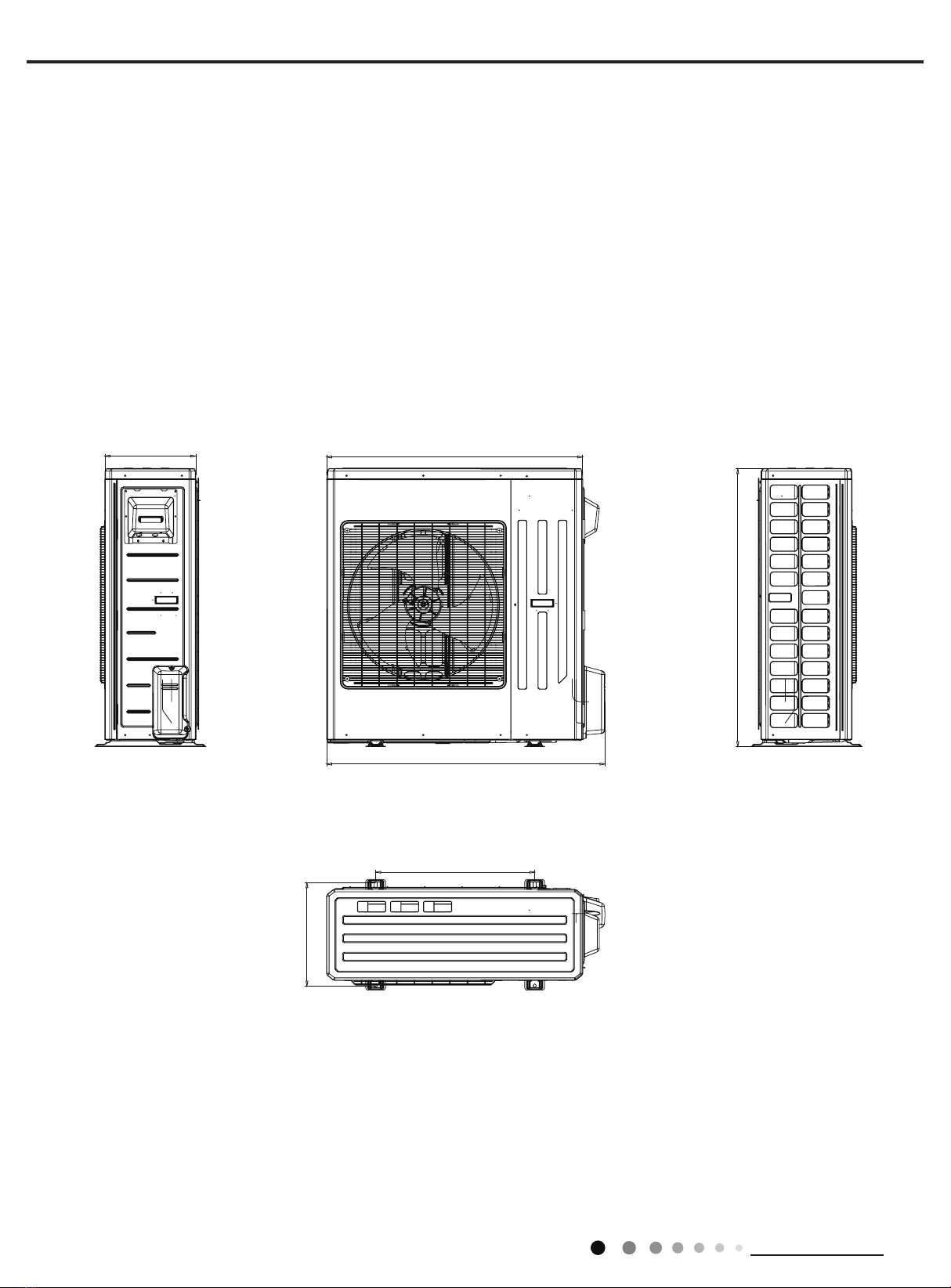

3.1 Indoor Unit SC-36WPL-HP23
SC-36ZPL-HP230

11
Technical Information
Service Manual
A
14 1/6 40
43 1/2
43 37/64
24 5/6
16 9/64
Unit:inch
SC-36ZPL-HP230/SC-36WPL-HP230

12
Technical Information
Service Manual

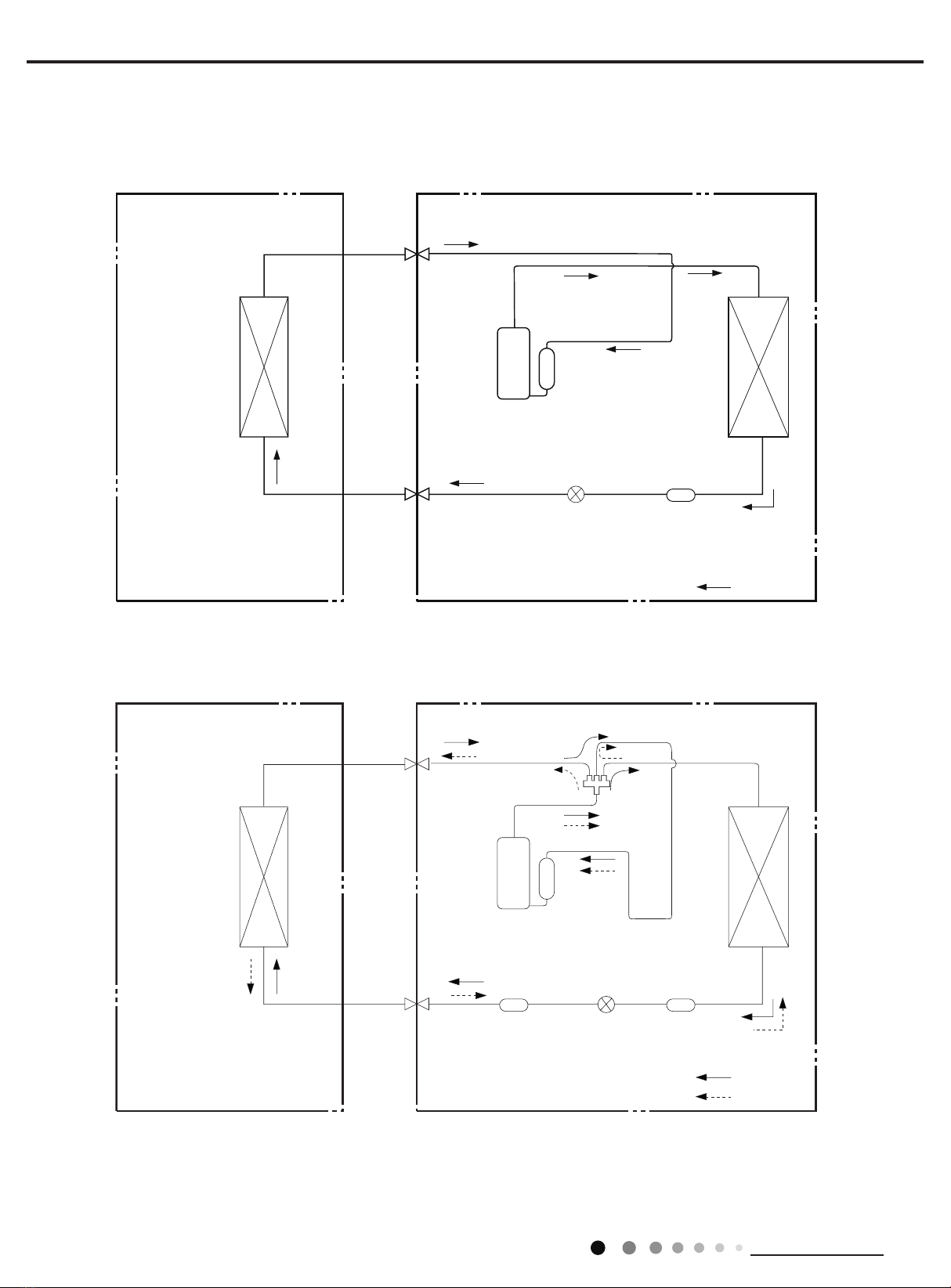

4. Refrigerant System Diagram
Indoor unit Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator) Heat
exchanger
(condenser)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Strainer Electron
expansion
valve
Strainer
Electron
expansion
valve
Accumlator
Compressor
Capillary
Indoor unit Outdoor unit
Accumlator
COOLING
Discharge
Suction
Heat
exchanger
(evaporator)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Compressor
Strainer
Capillary
Cooling only model
30K except :GWH30QF-D3DNB2I
Cooling and heating model
Connection pipe specification
Liquid pipe:1/4 inch
Gas pipe:5/8 inch

13
Technical Information
Service Manual
Cooling only model
36K except SC-36ZPL-HP230
Cooling and heating model
Indoor unit Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator) Heat
exchanger
(condenser)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Strainer Electron
expansion
valve
Strainer
Electron
expansion
valve
Accumlator
Compressor
Indoor unit Outdoor unit
Accumlator
COOLING
Discharge
Suction
Heat
exchanger
(evaporator)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Compressor
Strainer
Connection pipe specification
Liquid pipe:1/4 inch
Gas pipe:5/8 inch

14
Technical Information
Service Manual
Connection pipe specification
Liquid pipe:1/4 inch
Gas pipe:5/8 inch
Electronic
expansion
valve A
Electronic
expansion
valve B
Unloading valve
Flash vaporizer
Outdoor evaporator
4-way valve
Solenoid valve
(high pressure)
Solenoid valve
(low pressure)
Indoor evaporator
Air injection
Compressor
Variable
volume
Gas-liquid
separator
Gas-liquid
separator
COOLING
HEATING
SC-36ZPL-HP230/SC-36WPL-HP230

15
Technical Information
Service Manual
5. Electrical Part

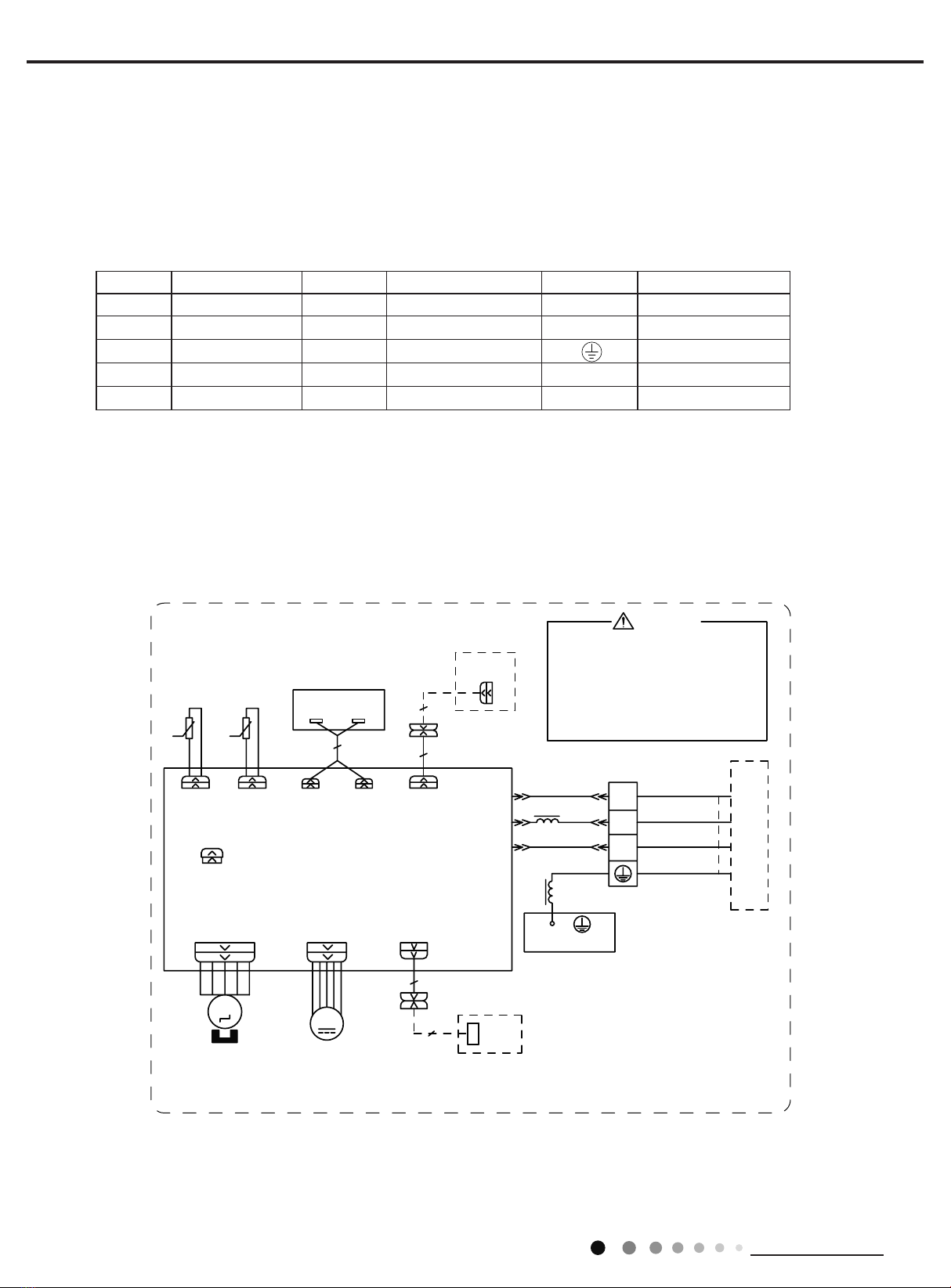

5.1 Wiring Diagram
● Indoor Unit
● Instruction
Symbol Symbol Color Symbol Symbol Color Symbol Name
WH White GN Green CAP Jumper cap
YE Yellow BN Brown COMP Compressor
RD Red BU Blue Grounding wire
YEGN Yellow/Green BK Black / /
VT Violet OG Orange / /
Note: Jumper cap is used to determine fan speed and the swing angle of horizontal lover for this model.
3OHDVHGRQWWRXFKDQ\
HOHFWURQLFFRPSRQHQWRU
WHUPLQDOZKHQWKHPDFKLQH
LVUXQQLQJVWRSSLQJRUKDV
EHHQSRZHUHGRIIIRUOHVV
WKDQPLQXWHVWRSUHYHQW
HOHFWULFVKRFN
287'22581,7
:+%8
%.
5'%1
*1<(*1
7(50,1$/%/2&.
52207(03 78%(7(03 6(1625 6(1625
',63/$<%2$5'
5(&(,9(5$1'
0$,1%2$5'
0
02725
6:,1*
:,5('
&21752//(5
&211(&725
-803
&$3
)$102725
$3
6:,1*8'
78%(5220
$&/
$3
',63',63
0
*
'&02725
&200$18$/
(9$325$725
%.
1
<(*1
&20287


1
%1
%8
;7
7575

/
/
:,),
:,),02'8/(
:$51,1*
$3
$3
63610000431

16
Technical Information
Service Manual

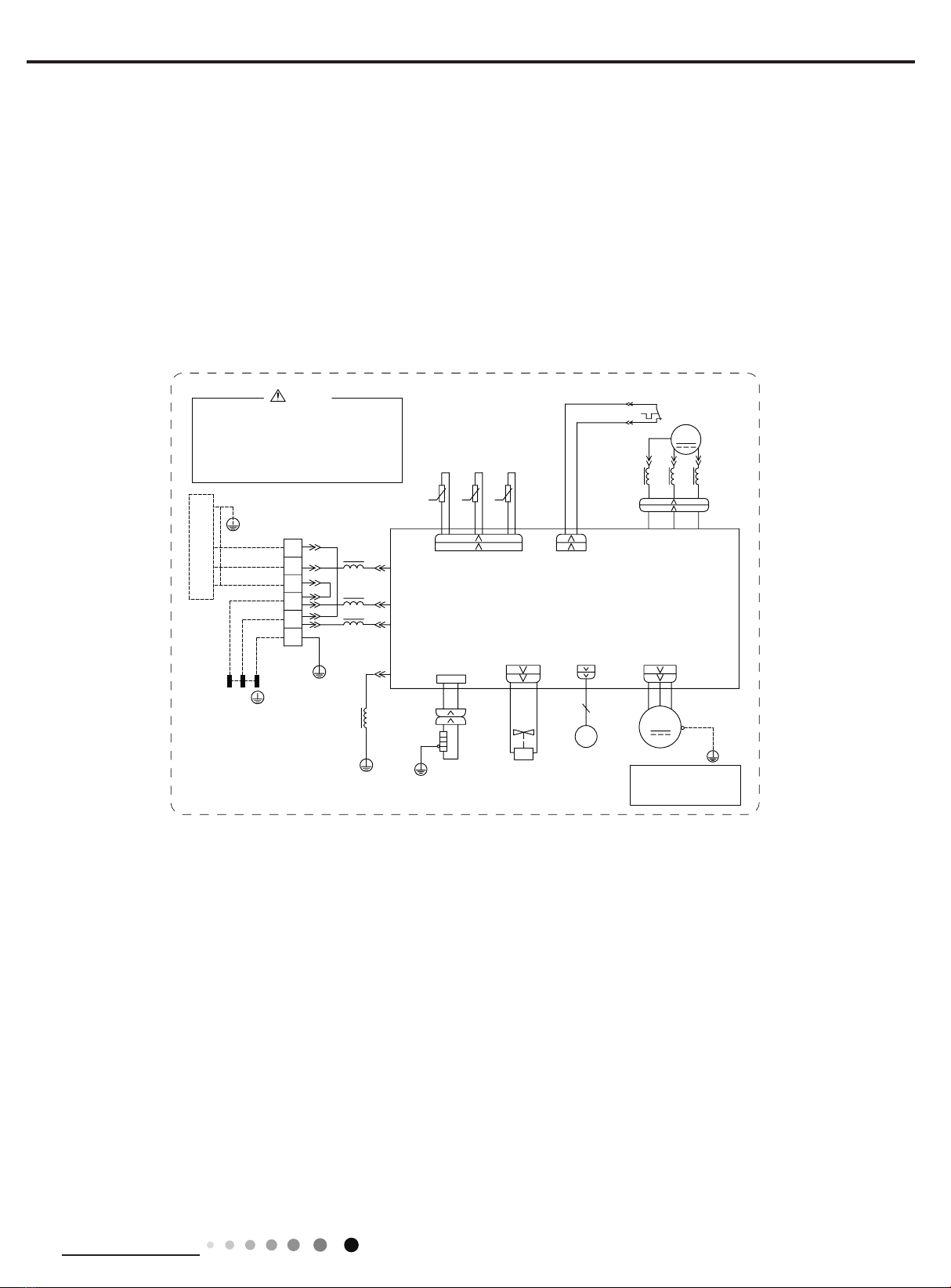

● Outdoor Unit
60000706049303
*
03D
RU03D
3OHDVHGRQWWRXFKDQ\
HOHFWURQLFFRPSRQHQWRU
WHUPLQDOZKHQWKHPDFKLQHLV
UXQQLQJVWRSSLQJRUKDVEHHQ
SRZHUHGRIIIRUOHVVWKDQ
PLQXWHVWRSUHYHQWWKHULVN
RIHOHFWULFVKRFN
:$51,1*
%8
/
/
/
(
<(*1
*
/
/1
/
5($&725
/ /
<( :+
*1<(*1
<(*1
*
/
/
%8
%1
%.
5,1*
/
%.%1
0$*1(7,&
*7(50,1$/
%/2&.
*1<(*1
%1
,1'22581,7
;7
:+%8
%.
5'%1
:+%8
32:(5
/ /
02725
/
. .
.
$3
5'
$&1
$&/
/3 /1
/
7979
9$/9(
:$<
<9
:$<
/ /
5,1*
0$*1(7,&
/
29(5/2$'3527(&725
&1
<(*1
:89
*
*
57 57 57
0
5'
*
2)$1'&
29&&203
5'
6$7
&203
&203
8%(<
7(036(1625 28778%( 2875220 7(036(1625 (;+$867 7(036(1625
<(*1
*
)$1
35,17('&,5&8,7%2$5'
5($&725

8
9:
/

&20
(+
%27720
+($7/+($7/
%$1'+($7(5
&2035(6625
(+
%$1'+($7(5
+33
35(6685(
6:,7&+
+,*+
+3
(;3$16,219$/9(
(/(&7521,&
(.9
(9
+33
+3
+,*+
6:,7&+
35(6685(
+:+:2*2*
%1%8
/
/
1


03D
3 3
127(
0RWRUJURXQGRQO\
DSSOLHVWRWKH
LURQVKHOOPRWRU
600007001457
3
*1<(*1
:$51,1*
3OHDVHGRQWWRXFKDQ\
HOHFWURQLFFRPSRQHQWRU
WHUPLQDOZKHQWKHPDFKLQHLV
UXQQLQJVWRSSLQJRUKDVEHHQ
SRZHUHGRIIIRUOHVVWKDQ
PLQXWHVWRSUHYHQWWKHULVN
RIHOHFWULFVKRFN
*
%8
%1
%.
%.%1
%/2&.
*7(50,1$/
*1<(*1
%1
,1'22581,7
;7
:+%8
%.
5'%1
:+%8
32:(5
/ /
02725
. .
.
1
$&/
9797
9$/9(
:$<
<9
:$<
/ /
5,1*
0$*1(7,&
/
76(1625
<(*1
:98
*
*
57 57 57
0
5'
*
2)$1
&203
&203
<(%8
7(036(1625 28778%( 2875220 7(036(1625 (;+$867 7(036(1625
<(*1
*
)$1
$3
35,17('&,5&8,7%2$5'

8
9:

&20,11(5
(+
%27720
+($7& +($7%
%$1'+($7(5 &2035(6625
(+
%$1'+($7(5
+33
35(6685(
6:,7&+
+,*+
+3
(/(&7521,& (;3$16,219$/9(%
(.9
)%
:+:+
/
/
1


6(1625
.
57

7(036(1625 68&7,21
3(
<(*1
*
(/(&7521,& (;3$16,219$/9($
(.9
)$
%8%8
&1
<9
%8%8
&1
<9
%8%8
&1
<9
35(6685(
:$<9$/9(
/2:
35(6685(
:$<9$/9(
+,*+
%8
:$<
9$/9(
0$.(83
ZKLWH EOXH UHGJUHHQ
%. %.:+
127(
0RWRUJURXQGRQO\
DSSOLHVWRWKH
LURQVKHOOPRWRU
SC-36ZPL-HP230/SC-36WPL-HP230

17
Technical Information
Service Manual
The above data is subject to change without notice. Please refer to the nameplate of the unit.
600007062741 9$/9(
(;3$16,21
<(*1
(/(&7521,&
)$
(.9
:$<
%/2&.
7(50,1$/
7(036(1625 (;+$867 7(036(1625 2875220 28778%( 7(036(1625
%.:+
%8 <(
&203
;
<9
&203
6$7
:+ :+
29&&203
5'
:$<
57
&20,11(5
:
9
8
8%8 9<( :5'
1
$&/
76(1625
%8
%1
%.
;7


1
/
/
*
32:(5
,1'22581,7
29(5/2$' 3527(&725
*
/ /
3OHDVHGRQWWRXFKDQ\HOHFWURQLF
FRPSRQHQWRUWHUPLQDOZKHQWKH
PDFKLQHLVUXQQLQJVWRSSLQJRU
KDVEHHQSRZHUHGRIIIRUOHVVWKDQ
PLQXWHVWRSUHYHQWWKHULVNRI
HOHFWULFVKRFN
:$51,1*
9$/9(
/
/
0$*1(7,&
5,1*
0$*1(7,&
5,1*
//
97 97
57 57
*
/
/
*1<(*1
*'58%(<
35,17('&,5&8,7%2$5'
$3
/
&211(&725
:+%8
%.
5'%1
%.%1
:+%8
*1<(*1
  
+($7%
5'
5'
(+
+($7(5
(/(&75,&
%27720
*
0
2)$1
)$102725
<(*1
*
LURQVKHOOPRWRU
RQO\DSSOLHVWRWKH
1RWH0RWRUJURXQG
3(
0$*1(7,&
5,1*
<(*1
*
%8
%1
<(*1
SC-36ZPL-HP230/SC-36WPL-HP230

18
Technical Information
Service Manual

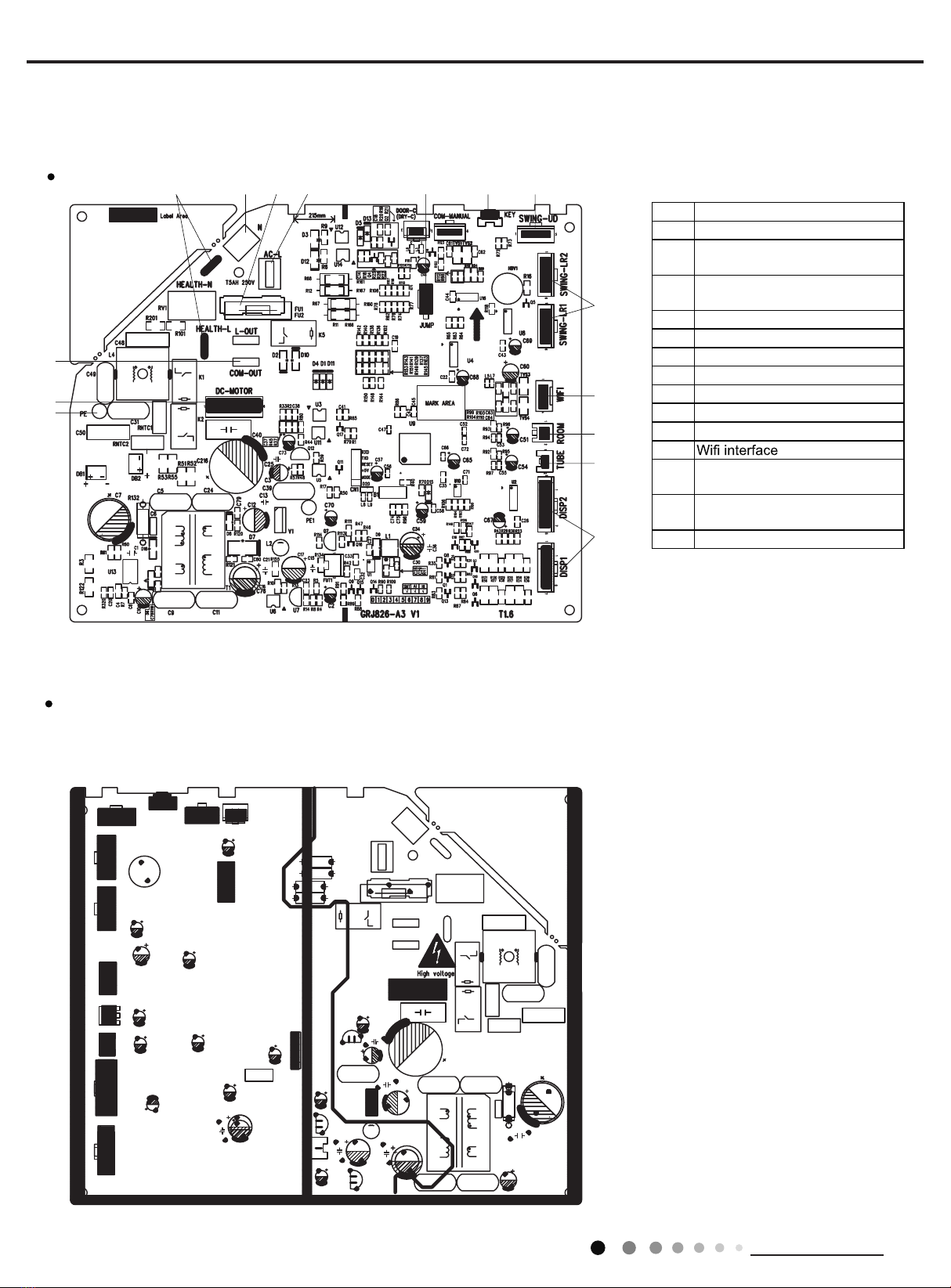

5.2 PCB Printed Diagram
Indoor Unit
Top View
Bottom View
1Grounding wire
2 DC motor needle stand
3Communication terminal for
outdoor unit
4Interface of health function(only
for the mode with this function)
5Interface of neutral wire
6Fuse
7Interface of live wire
8 Needle stand for jumper cap
9Auto button
10 up&down swing interface
11 Left&right swing interface
12
13
Interface of ambient temperature
sensor
14 Interface of tube temperature
sensor
15 Display interface
1
2
3
4567 8910
11
12
13
14
15

19
Technical Information
Service Manual

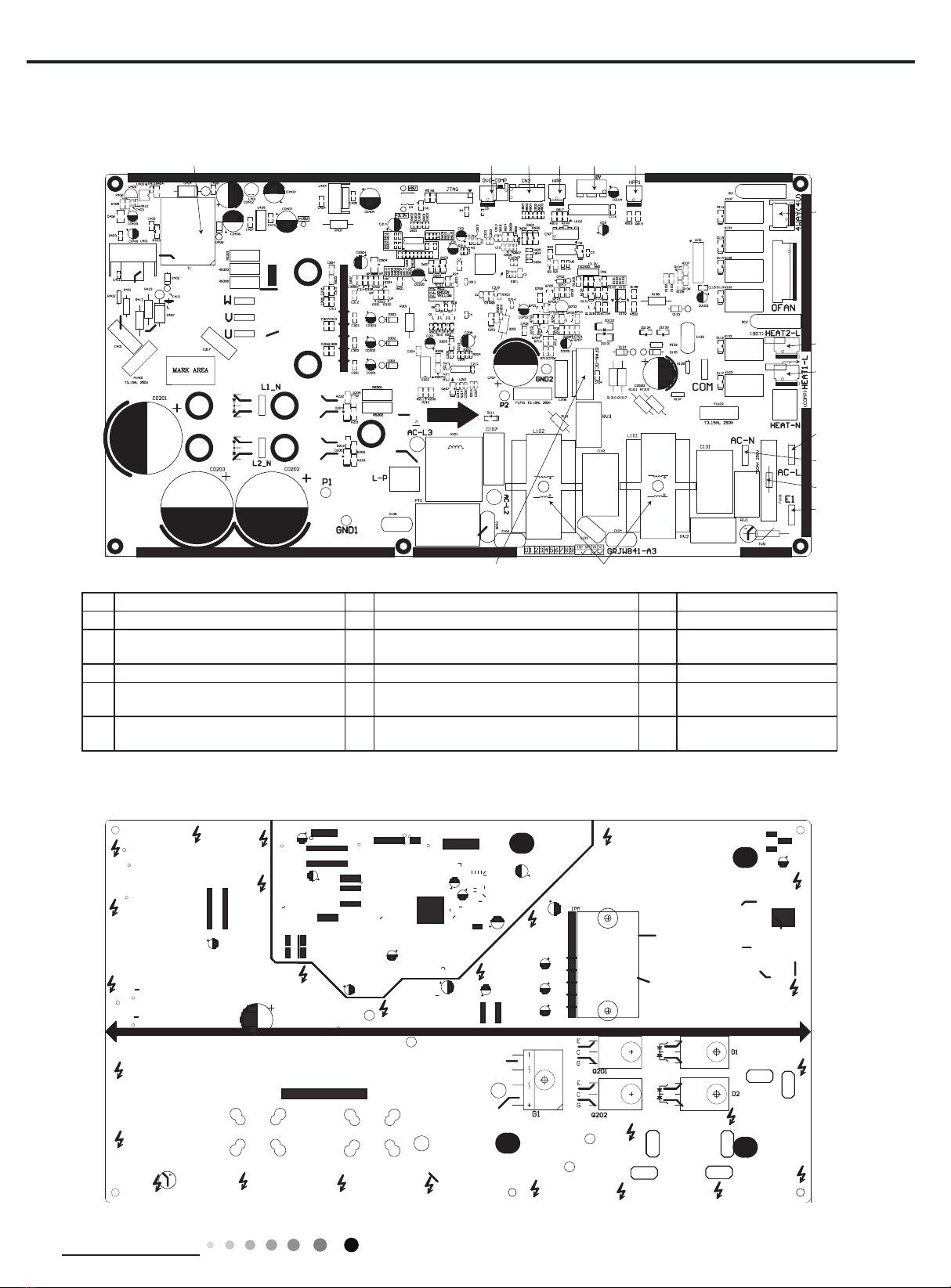

●Top view
●Bottom view
No. Name No. Name No. Name
1High-frequency transformer T1 6 High pressure protection terminal HPP1 11 Terminal of neutral wire
2Overload protection terminal of
compressor OVC-COMP 7 Terminal of 4-way valve 12 Protective tube FU101
3 Terminal of temp sensor CN2 8 Electric heater band of chassis HEAT2-L 13 Terminal of ground wire
4High pressure protection terminal
HPP 9Electric heater band of compressor
HEAT1-L 14 Choke L 101 and L102
5Electronic expansion valve terminal
EV 10 Terminal of live wire 15 Terminal of outdoor fan
OFAN-DC
12345 6
7
8
9
10
11
12
13
1415
SC-36ZPL-HP230/SC-36WPL-HP230

20
Technical Information
Service Manual
No. Name No. Name No. Name
1 Neutral wire 8 Interface B of electric heating 15 Terminal for high pressure protection
2 Grounding wire 9 Terminal of low pressure valve 16 Interface 2 of temperature sensor
3 Live wire 10 Terminal of 2-way valve 17 Interface of temperature sensor
4 Communication interface 11 Terminal of 4-way valve 18 Terminal A of electronic expansion valve
5 Terminal of outdoor fan 12 Terminal of compressor overload protection 19 Terminal B of electronic expansion valve
6 Terminal of high pressure valve 13 Terminal for 2 high pressure protection
7 Interface C of electric heating 14 Terminal for low pressure protection
1
2
3
4
5
6
7
8
9
10
1819 17 16 15 14 13 12 11
●Top view
●Bottom view
SC-36ZPL-HP230/SC-36WPL-HP230

21
Technical Information
Service Manual

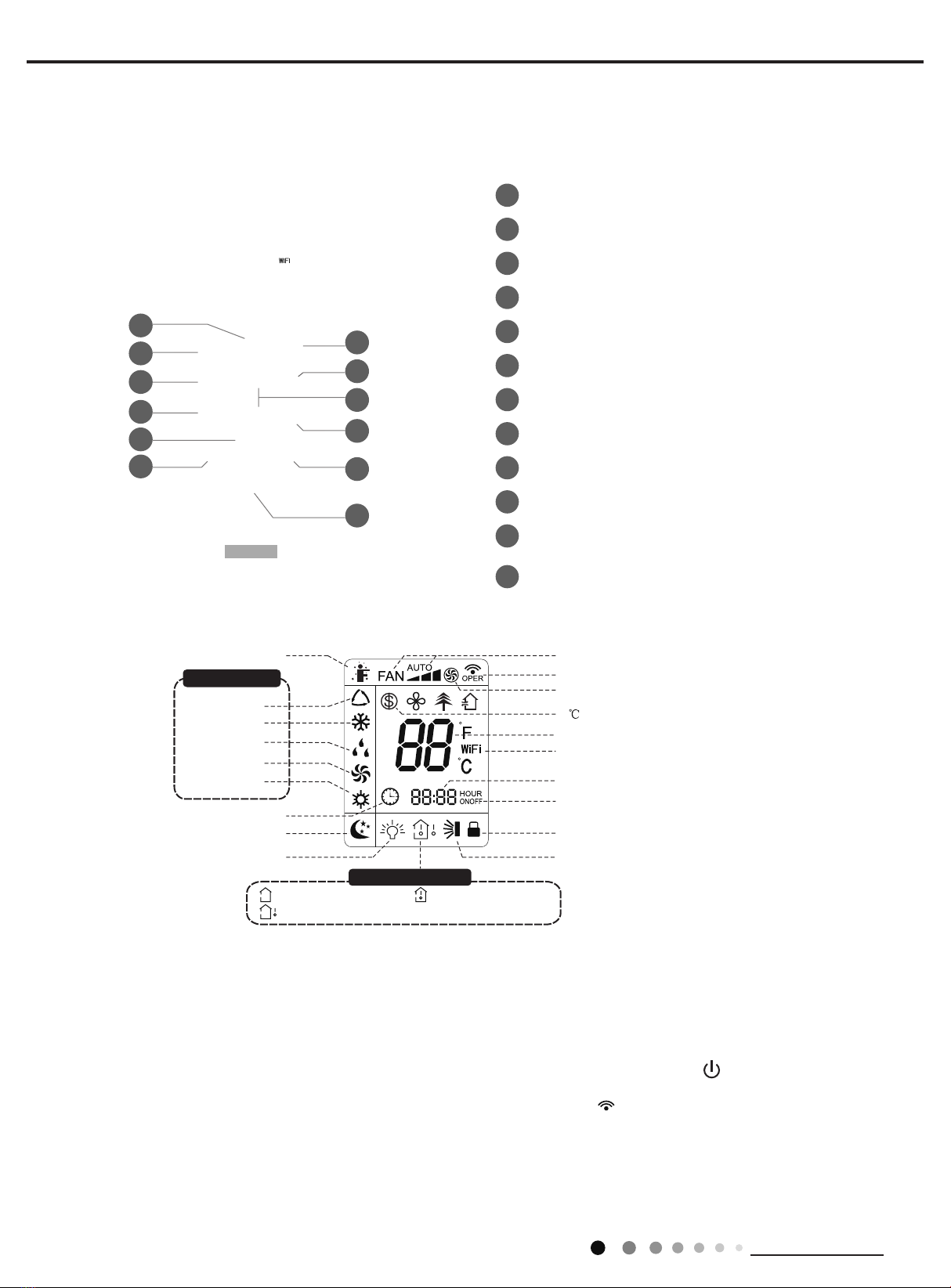

6.1 Remote Controller Introduction of YAN1F6F(WiFi)
Introduction for icons on display screen
Introduction for buttons on remote controller
5
3
6
8
10
12
11
9
7
4
2
1
1
2
3
4
5
6
7
8
9
10
11
12
ON/OFF button
MODE button
FAN button
SWING button
TURBO button
˜
˜/ butto n
SLEEP button
TEMP button
WIFI button
LIGHT button
CLOCK button
TIMER ON / TIMER OFF
button
Send signal
Turbo mode
8 heating function
Set time
Set temperature
WiFi function
TIMER ON /
TIMER OFF
Up & down swing
Child lock
Set fan speed
Light
Temp. display type
:Set temp.
:Outdoor ambient temp.
Sleep mode
splay type
:Indoor ambient temp.
Heat mode
Clock
Fan mode
Dry mode
Cool mode
Auto mode
Operation mode
I feel
Note:
Temp. di
Operation indicator " " is ON (red indicator, ˜ After putting through the power, .dnuos a tuo evig lliw renoitidnoc ria eht
tnereffid rof tnereffid si ruoloc eht models). After that, you can operate the air conditioner by using remote controller.
on the display of remote controller˜
Under on status, pressing the button on the remote controller, the signal icon " "
conditioner.
will blink once and the air conditioner will give
˜ Under of
f status, set temperature and clock icon will be displayed on the displa
ria eht ot tnes neeb sah langis eht snaem hcihw ,dnuos ”ed“ a tuo
remit ,no remit fI( rellortnoc etomer fo y
sponding icons will be displayed on the display of remote controller at the same
off and light functions are set, the corre-
time); Under on status, the display will show the corresponding set function icons.
˜ This is a general use remote controller, it could be used for the air conditioner
s
which the model doesn't have, if press
with multifunction; For some function,
original running status.
the corresponding button on the remote controller that the unit will keep the
6. Function and Control
