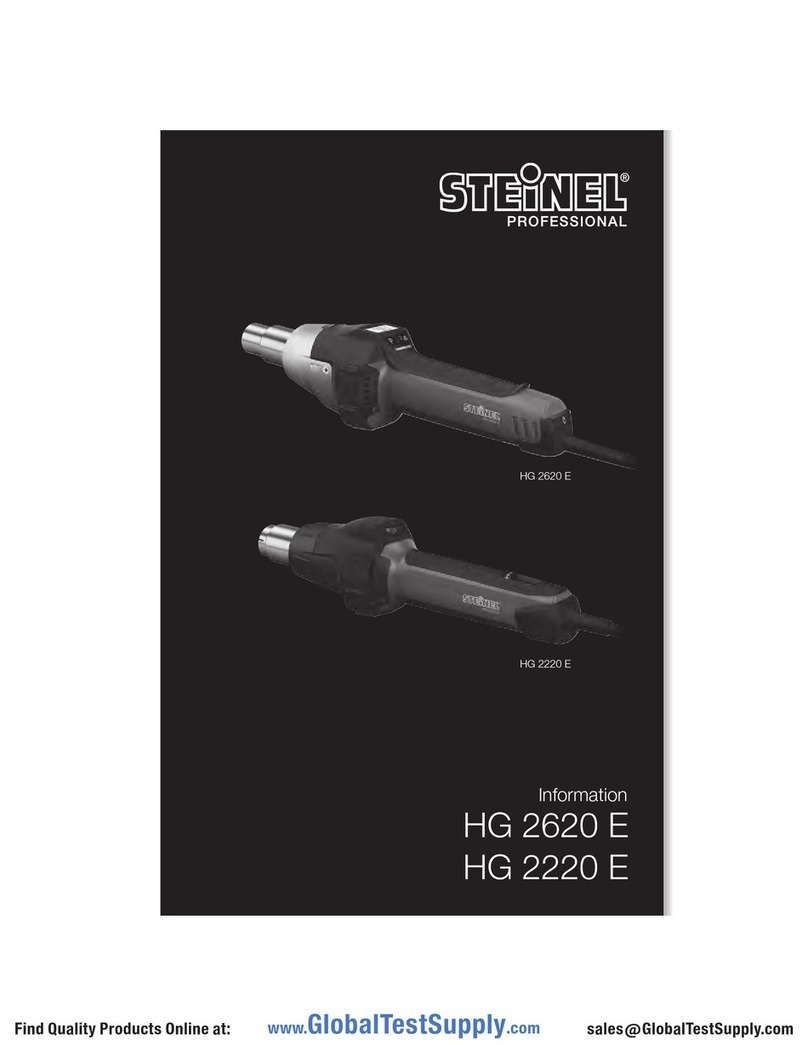

STEINEL PROFESSIONAL HG 2620 E User manual

- 2 - - 3 -- 3 -
HG 2620 E
HG 2620 E
16
4
13
- 2 -
HG 2220 E
1 2 3 4 5 6
7 8 9
HG2220E_HG2420E_DE_HG2120E_HG2320E 13.06.14 11:06 Seite 2
- 2 -
HG 2220 E
1 2 3 4 5 6
7
8 9
HG2220E_HG2420E_DE_HG2120E_HG2320E 13.06.14 11:06 Seite 2
10 2
7
3
47
8
14
11
10
9
12
5
5
11 10
9
12

- 10 - - 11 -
Please familiarise yourself with these operating instructions
before using this product because prolonged reliable and
trouble-free operation will only be ensured if it is handled
properly.
We hope your new hot air tool will give you lasting
satisfaction.
Translation of the original
operating instructions About this document
Read and observe this informa-
tion before using the tool. Failure
to observe the operating instruc-
tions may result in the tool
becoming a source of danger.
When using electric power tools,
observe the following basic safety
precautions to avoid electric shock
as well as the risk of injury and fire.
Used carelessly, the tool can start
an unintentional fire or injure persons.
Check the tool for any damage
(mains connection lead, housing etc.)
before putting it into operation and
do not use the tool if it is damaged.
Do not leave the tool switched on
unattended.
Children should be supervised to
make sure they do not play with
the tool.
Take the ambient conditions
into account.
Do not expose electric power tools
to rain. Do not use electric power
tools when they are damp or in a
damp or wet environment. Exercise
care when using the tool in the
proximity of flammable materials.
Do not direct the tool at one and
the same place for a prolonged
period. Do not use in the presence
of an explosive atmosphere. Heat
may be conducted to flammable
materials that are hidden from direct
sight.
Protect yourself from
electric shock.
Avoid coming in contact with groun-
ded objects, such as pipes,
radiators, cookers or refrigerators.
Do not leave the tool unattended
while in operation.
Please read carefully and keep in a safe place.
- Under copyright. Reproduction either in whole or in part
only with our consent.
- Subject to change in the interest of technical progress.
GB
Safety warnings
Protect the power cord from heat,
oil and sharp edges.
Beware of toxic gases and
fire hazards.
Toxic gases may occur when work-
ing on plastics, paints, varnishes or
similar materials.
Beware of fire and ignition hazards.
For your own safety, only use ac-
cessories and attachments that are
specified in the operating instructions
or recommended or specified by the
tool manufacturer.
Using attachments or accessories
other than those recommended in
the operating instructions or cata-
logue may result in personal injury.
Repairs must only be
carried out by a qualified
electrician.
This electric power tool complies
with the relevant safety regulations.
Repairs should only be performed by
a qualified electrician. Otherwise the
user may run the risk of accidents.
Store your tools in a
safe place.
After use, set the tool down on its
standing surface and let it cool
before putting it away.
When not in use, tools must be
stored in a dry, locked room out of
children's reach.
This tool may be used by children
aged 8 or above and by persons
with reduced physical, sensory or
mental capabilities or lack of experi-
ence and knowledge if they are
supervised or have been given in-
structions on how to use the tool
safely and understand the hazards
involved.
Do not allow children to play with
the tool.
Children are not allowed to clean or
carry out maintenance work on the
tool without supervision.
Do not overload
your tools.
Your work results and safety will be
enhanced if you operate the tool
within the specified output range.
After using the tool for a prolonged
period at maximum temperature,
you should reduce the temperature
before switching the tool off. This will
prolong the service life of the heating
element. Do not carry the tool by
the power cord. Do not unplug the
tool by pulling on the power cord.
Safety warnings
GB

- 12 - - 13 -
GB
Residual heat indicator
The residual heat indicator serves
as a visual warning to prevent injury
from direct contact with the hot
nozzle outlet. The residual heat indi-
cator also works when the tool is un-
plugged. The indicator starts working
after the tool has been
in use for 90 seconds and keeps
flashing until the temperature at the
nozzle outlet has fallen below 60 °C
at room temperature. The residual
heat indicator does not show if the
tool has been in operation for less
than 90 seconds. Responsibility
always rests with the user as care
must be taken at all times when han-
dling hot air tools.
Keep these safety precautions
with the tool.
Safety warnings
12
The tool is protected from overheating:
The thermal cut-out completely shuts down the tool if it is
overloaded.
For your safety
Tool description - Operation
Please note: The distance from the object you are working
on depends on material and intended method of working. Al-
ways try out the airflow and temperature on a test piece first.
Using the attachable accessory nozzles (see accessories
page on the cover) the flow of hot air can be controlled with
maximum precision.
Take care when changing hot nozzles! When using
the hot air tool in the self-resting position, make sure it is
standing on a stable, non-slip and clean surface.
1. Operation
The tool is switched on and off at the ON/OFF button 8on
the back of the grip handle. The joystick 9is used for con-
trolling temperature and airflow or fan speed.
2. Setting the temperature
Temperature can be infinitely varied over a range of
50-700 °C at the joystick on the control panel with LCD dis-
play. The actual temperature is measured at the hot air outlet
nozzle and indicated on the display. The joystick 9
is used as an input button with plus/minus function.
Briefly pressing the "+/–" joystick increases or reduces
the temperature setting in 10 ° steps. Keeping the joystick
pressed speeds up the temperature setting process. Once
the temperature has been set, the tool takes a few seconds
to reach temperature (depending on speed/airflow). The
temperature setting selected is shown on the display for 3
seconds. The display then shows the current actual temper-
ature. The "°C/°F" symbol continues to flash until the select-
ed temperature is reached.
If you want to alter the setting, simply press the joystick
again to increase or reduce the temperature. After switching
off, the hot air tool stays in the last setting.
3. Setting airflow rate
To change the airflow rate, first press the button for airflow
mode 10 ; the fan symbol flashes. Now use the joystick to
set the airflow rate. The airflow rate setting mode automati-
cally closes if the airflow rate setting is not changed within 5
sec. Pressing the airflow button again after setting the airflow
rate immediately closes the airflow rate setting mode. The
airflow rate can be varied from a minimum of 150 l/min to a
maximum of 500 l/min.
Temperature measurement on the workpiece
We recommend the STEINEL HG Scan PRO temperature
scanner (Prod. No.: 007553) for measuring the temperature
at the workpiece.
Programming mode [P]
Four programmes are factory-set for the most common
types of work. Press button "P" for programming mode.
Number 1 is displayed for programme 1. Continuing to
press the programme button will take you to programmes
2–4. Pressing the button again will return the tool to normal
operation.
Preset programmes
Memory function [S]
The values selected for the four programmes can be
changed and memorised at any time. To do this, first press
the programme button "P" 11 until the display shows the
programme you wish to change. Set the temperature and
airflow rate you require. Memory symbol on the LCD
flashes to indicate that the user programme selected has
been changed. To memorise this setting in the user pro-
gramme selected, press and hold down the programme
selector button. The memory symbol continues to flash for
approx. 2 sec. The settings entered are saved once the
memory symbol stays on all the time. To return to normal
operation, press the programme button until the programme
symbol disappears from the display.
Fine dust filter
The HG 2620 E has an integrated fine dust filter 3. To clean
it (with compressed air), undo screws (a), take off cover and
remove filter.
Changing the power cord
If the power cord is damaged, it can easily be changed with-
out opening the casing.
1. Important! Disconnect tool from power supply.
2. Undo screw 
dand pull off cover cap 
a.
3. Release cable grip 
b.
4. Undo mains terminals 
c.
5. Pull out cable 
e.
6. Insert new cable and secure in reverse order
(1. Firmly screw down mains terminals etc.).
Programme Temperature °C Air l/min
1 250 approx. 350
2 350 approx. 400
3 450 approx. 500
4 550 approx. 400
Changing the heating element
The plug-in heating element in the HG 2620 E can be
changed in a matter of seconds.
1. Important! Disconnect tool from power supply.
2. Undo guard sleeve screws (Fig. 1).
3. Remove guard sleeve (Fig. 1).
4. Undo 4 screws at the end of the hot air outlet nozzle (Fig. 2).
5. Detach heating element and replace it with a new one
(Fig. 2/3).
6. Firmly screw heating element into place (Fig. 3).
7. Firmly screw guard sleeve back on (Fig. 4).
Maintenance
Repair
a
a
14
3
1.
3.
2.
4.
Restart protection
Restart protection prevents the hot air tool from starting after
an interruption in the power supply. The hot air tool is only
ready for operation again after switching it on at the ON/OFF
button 8.
LOC function
To avoid altering the chosen settings unintentionally, the
HG 2620 E comes with a Lockable Override Control
Function (LOC). To find out how to set the LOC function,
please contact our Service Department on
+44/1733/366-700.
Other functions

- 14 - - 15 -
GB
220-230 V, 50/60 Hz
2300 W max.
50-700 °C, continuously variable
150-500 l/min, continuously variable
4000 Pa
30mm, using Professional nozzles
approx. 10,000 hrs.
approx. 800 hrs.
Yes
H07 RN-F 2X1 3.0M
II
Yes
≤ 70dB (A)
≤ 2.5 m/s2 / K = 0.08 m/s2
0.84 kg
Voltage
Output
Temperature
Airflow rate
Air pressure
Delivery nozzle Ø
Motor life
Heater life
Residual heat indicator
Power cord
Protection class (without earth terminal)
Thermal cut-out
Emission sound pressure level
Total vibration value
Weight without power cord
Subject to technical modifications
Applications
Here are some of the applications you can use STEINEL
hot air tools for. This selection is by no means exhaustive –
no doubt you can immediately think of other examples.
- Welding bitumen.
- Welding tarpaulins and films.
- Welding PVC floor coverings and linoleum.
- Working rigid thermoplastic materials in plastics and
tank construction.
- Shaping thermoplastics.
- Drying wet surfaces.
- Activating and removing glues and hot-melt adhesives.
- Drying and heating processes of all kinds.
Material
Rigid PVC
Rigid PE
(HDPE)
Polyethylene
PP
Polypropylene
ABS
Applications
Pipes, fittings, tiles, structural sections,
technical mouldings
300 °C welding temperature
Tubs, baskets, canisters,
insulating material, piping
300 °C welding temperature
High-temperature drainpipes, seat buckets,
packagings, automotive parts
250 °C welding temperature
Automotive parts,
equipment enclosures, cases
350 °C welding temperature
Characteristic signs
Chars when held in flame,
pungent odour;
crashing sound
Light yellow flame, drips continue to burn,
smells of a candle being extinguished;
crashing sound
Bright flame with a blue core,
drips continue to burn, pungent odour;
crashing sound
Black, fluffy smoke,
sweet odour;
crashing sound
Guide for selecting the right type of welding rod for welding plastics
Accessories (see Fig. on page 2.)
Tool features
Stainless steel outlet nozzle
Removable guard sleeve
Air inlet with integrated fine dust filter
Soft coating for non-slip standing
LCD display
Removable cap for mounting HG Scan PRO
temperature scanner
Heavy-duty rubber-insulated power cord
ON/OFF button
Joystick (for setting airflow rate and temperature)
Button for airflow rate mode
Programme selector button and memory button
Residual heat indicator
Soft grip handle for comfortable operation
Replaceable mains power cord
1
12
13
14
2
3
4
6
7
8
10
11
5
9
Technical Specifications
Your retailer has a wide range of accessories for you to
choose from.
1Round nozzle, 5 mm Prod. No. 092214
2Round nozzle, 10 mm Prod. No. 092313
3Flat angled nozzle, 20x2 mm Prod. No. 092115
4Flat angled nozzle, 40x2 mm Prod. No. 092016
5Welding nozzle Prod. No. 075316
6Weld slide Prod. No. 093013
7Feed roller Prod. No. 093211
8Jointing plane Prod. No. 093112
9Quarter-moon knife Prod. No. 092917
10 HG Scan PRO Prod. No. 007553
Functional Warranty
This STEINEL product has been manufactured with utmost
care, tested for proper operation and safety and then sub-
jected to random sample inspection. STEINEL guarantees
that it is in perfect condition and proper working order.
The product is guaranteed for 12 months or 10,000 hours
of operation commencing on the date of sale to the con-
sumer. We will remedy defects caused by material flaws
or manufacturing faults. The warranty will be met by repair
or replacement of defective parts at our own discretion.
This guarantee does not cover damage to wearing parts,
damage or defects caused by improper treatment or main-
tenance nor does it cover breakage as a result of the prod-
uct being dropped. Further consequential damage to other
objects shall be excluded.
Claims under warranty shall only be accepted if the product
is sent fully assembled and well packed complete with sales
receipt or invoice (date of purchase and dealer's stamp) to
the appropriate Service Centre or handed in to the dealer
within the first 6 months.
Repair service:
If defects occur outside the warranty
period or are not covered by warranty,
ask your nearest service station for the
possibility of repair.
Declaration of Conformity
(refer to page 160)
