MODEL P200
SURROUND SOUND PROCESSOR
INSTALLATION MANUAL
July 5, 2016

2
Compliance.........................................................................................................4
Pre-Installation....................................................................................................5
Home Automation System Integration................................................................7
Preparing the Model P200 for Mounting in a Rack .............................................8
Rear Panel..........................................................................................................9
Remote.............................................................................................................10
How to Pair Remote......................................................................................11
Switching Remote to RF and IR Mode..........................................................11
Setup Procedure...............................................................................................12
Installation Via OSD..........................................................................................13
Installation Via Web Interface...........................................................................13
Source..............................................................................................................14
Create...........................................................................................................14
Edit................................................................................................................15
Arrange.........................................................................................................15
Delete............................................................................................................15
Speaker and Room...........................................................................................16
Speaker Configuration ..................................................................................16
RoomPerfect™..............................................................................................16
How to Set Up RoomPerfect™.........................................................................18
Volume Setting..............................................................................................18
RoomPerfect™ Preparations ........................................................................18
Placing the Microphone in the Focus Position ..............................................18
Measuring the Focus Position.......................................................................19
Measuring Random Room Positions.............................................................19
Room Measurements Above 90% RoomKnowledge ....................................20
Video Setup......................................................................................................22
Video Output.................................................................................................22
Video Input....................................................................................................22
Audio Setup......................................................................................................23
Audio Processing..........................................................................................23
Voicing Setup................................................................................................23

3
Zone B..............................................................................................................24
Setup.............................................................................................................24
System Configuration .......................................................................................25
General Setup...............................................................................................25
Trigger In Setup ............................................................................................26
Trigger Out Setup..........................................................................................26
Network Configuration...................................................................................26
Streaming Setup ...........................................................................................26
Manage Software .............................................................................................27
Software Information.....................................................................................27
Network Information......................................................................................27
Backup..........................................................................................................27
Restore .........................................................................................................27
Factory Reset................................................................................................27
Software Update ...........................................................................................27
Troubleshooting................................................................................................29
RoomPerfect™..............................................................................................29
Network Setup..................................................................................................31
Connecting to Model P200 with a Network Cable.........................................31
Set Up a Fixed IP Address in Windows XP or Windows 7 ............................32
Trademarks ......................................................................................................34
Service Information...........................................................................................35

4
Compliance
WEEE
The European Parliament and the Council of the European Union have issued the Waste Electrical
and Electronic Equipment Directive. The purpose of the Directive is to prevent waste of electrical and
electronic equipment and to promote reuse, recycling, and other forms of waste recovery. Steinway
Lyngdorf products and the accessories packed with them are subject to the WEEE Directive. Please
dispose of any waste materials in accordance with your local recycling regulations. Products and
equipment which must be collected for reuse, recycling, and other forms of recovery are marked with
the icon of the crossed-out waste receptacle.
FCC
Steinway Lyngdorf products and accessories comply with parts 15 and 68 of the FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference; and (2) this device must accept any interference received, including any interference
that may cause undesired operation. Model A1/A2 amplifier and Model P200 processor contain TX
FCC ID: TYOJN5139M0.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment. Equipment marketed to a consumer must be capable
of complying with the necessary regulations in the configuration in which the equipment is marketed.

5
Pre-Installation
Please read all material carefully prior to installation. If you need additional assistance, contact your
Steinway Lyngdorf representative or email [email protected].
Unpacking the Product
Carefully remove the unit and accessory kit from the carton and check for shipping damage. Contact
both the shipper and your Steinway Lyngdorf representative immediately if the unit bears any sign of
damage.
Note: Keep the shipping carton and all packing material for future use. If this unit is
shipped without the original packing, damage could occur and void the warranty.
Inventory
Check the list below to ensure that all necessary product components have been delivered. Report all
discrepancies to your Steinway Lyngdorf representative immediately.
•Installation manual
•Power cord
•Link cable
•Remote
LED Signaling
Red: Standby / On
Orange: Switching on
Blinking: Updating software
Operating Voltage
Steinway Lyngdorf products must be connected to the mains power system only. The Model P200 will
automatically detect the voltage between 110-230v.

6
Ventilation Requirements
The Model P200 does not have a built-in fan, nor does it require special measures to ensure proper
heat dissipation. However, it should be placed according to the guidelines below:
•It should always have at least one inch of free space on all sides.
•It should be placed in an environment free of excessive heat.
•In a rack system, the Model P200 should be placed at the bottom of the rack.
•A minimum of one unit of spacing above the Model P200 is recommended.
Cables and Plugs
Use only mains cables and power plugs approved by Steinway Lyngdorf. Using other types may
cause damage to the system and will void the warranty.
Connecting
For cabling between the processor and amplifiers, please use RJ45 to RJ45 B standard cables. Use
only cables and connectors approved by Steinway Lyngdorf. Poor quality cables may violate safety/
EMC regulations as well as cause noise and interference.
•For cable lengths less than 1 meter, use CAT5E/shielded CAT6 cable.
•For cable lengths in excess of 1 meter, use double-shielded CAT5E cables.
•All RJ45 connectors should be shielded.
Please refer to the wiring diagram supplied by Steinway Lyngdorf to determine which cables you
need.

7
Home Automation System Integration
The Model P200 is compatible with home automation systems via the RS232 and network connector
on the rear socket panel. The Model P200’s IR and trigger connections can also be programmed for
use in a home automation system.
IP Control
Open a TCP connection on port 84 and use the same protocol as on the serial interface (please see
the Model P200 Serial Control Manual). Use Telnet, Putty, or similar programs to open the TCP
connection.
If you do not know the IP address of the Model P200 on your local network, the Model P200 supports
Apple´s Bonjour Discovery service, which must be on the computer you want to set up the Model
P200 with. The software is built-in as part of the Apple OS X operating system (not iOS devices). For
Windows operating systems, the software can be found at http://www.apple.com/support/bonjour/
Pressing the OK button on the remote and toggling through Info will also display the current IP
address of the unit.
Access the Model P200 by going to http://p200.local in your browser.

8
Preparing the Model P200 for Mounting in a Rack
The Model P200 processor is equipped from the factory with feet for free-standing placement on a
shelf, table, or rack.
To install the Model P200 in a rack:
1. Turn the Model P200 upside down and place it on a stable, even surface.
2. The screws used to fasten the rack brackets to the bottom of the Model P200 are in the holes
designated for the brackets when the product leaves the factory.
3. Fasten the brackets for rack mounting to the Model P200.
4. Mount the Model P200 in a rack.

9

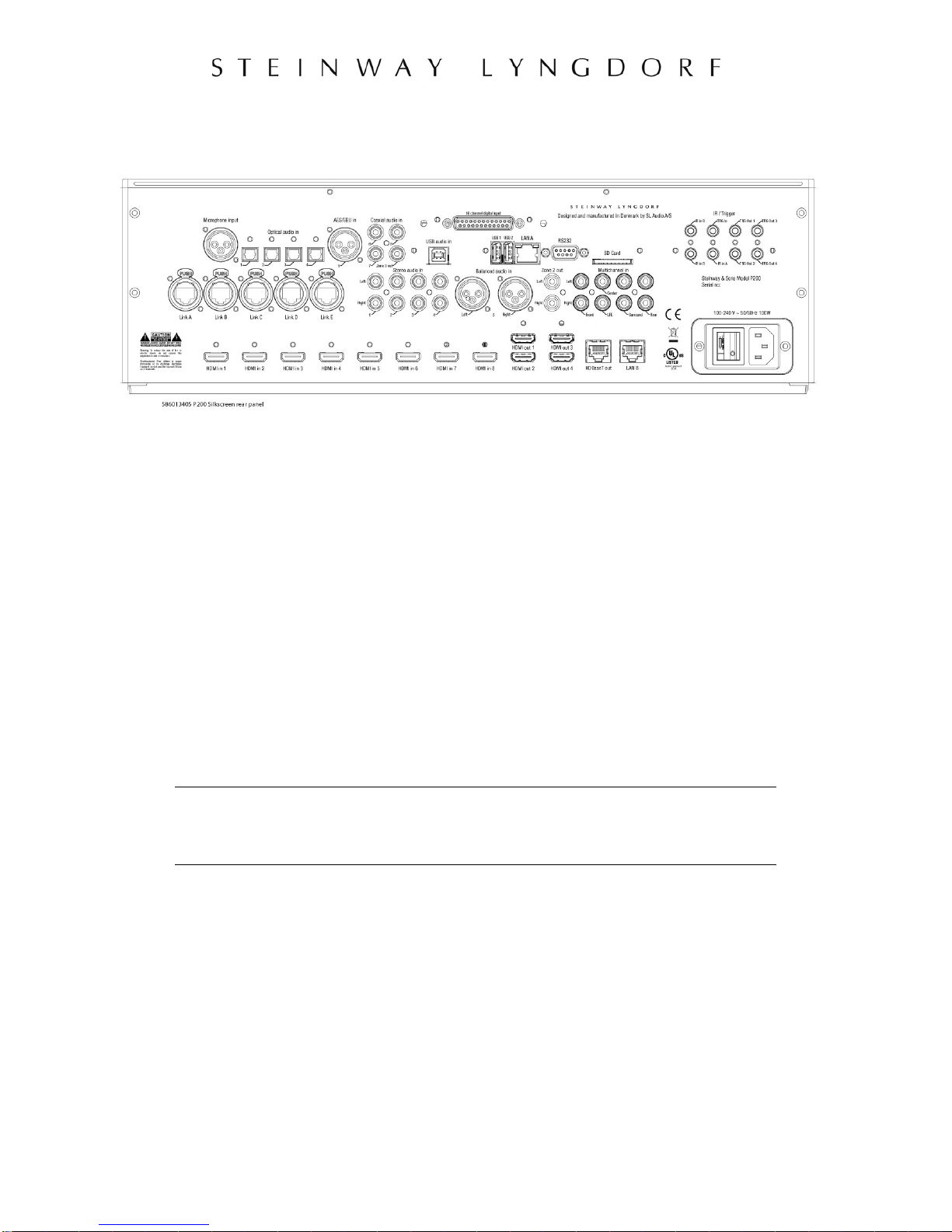

Rear Panel
On the back of the Model P200, you will find a range of inputs and outputs:
•Various optical, coaxial, and analog stereo audio inputs.
•8 HDMI inputs and 4 HDMI outputs, all 4K compatible.
•1 HDBaseT output.
•1 trigger input and 4 trigger outputs.
•2 IR inputs (IR input, A and B) and 1 IR connector output (IR input, B - duplicated).
•2 LAN connectors, for ethernet connection on the local network. IP control is supported.
•2 USB connectors, for music file playback, software updating, etc.
•1 streaming USB input.
•1 SD card slot for storing backup data.
•1 microphone input for the RoomPerfect™ room correction microphone.
•1 RS-232 connector for serial control of the unit.
•1 16-channel DCI-compliant digital AES/EBU input (optional upgrade).
•5 Digital Link outputs for connecting Steinway Lyngdorf’s amplifiers.
Note: Do not use the USB ports for charging smartphones and tablets.
In Standby mode, only LAN A is active; LAN B connector is not active.

10
Remote
The Model P200 comes with a dedicated RF and IR remote control for installations and everyday
use.
Setup Access the installation menu.
Standby Turn the Model P200 on and into standby.
Audio Access the post-processing menu.
PiP “Picture-in-picture” and other multi-view formats.
Up/Down Move up and down in menus.
Browse available settings in a menu.
Toggles between the available RoomPerfect™ filters.
Left/Right Move left and right in menus.
Toggle between neutral and the available voicings.
OK Activate the info screen, indicating the status of the unit.
Select a menu and store a selected setting.
Back Return to the previous menu.
Menu Access the user menu.
SRC Access the source menu list.
Source -/+ Toggle between active sources.
Volume +/- Turn volume up and down.
Mute Mute and restore the sound.
Play/Pause Play/pause the currently playing track of the media player.
Skip Forward/
Backwards Skip in the current playlist in the media player.
