Steren WR-800UHF User manual

ENGLISH
ENGLISH-02
Before using your new UHF amateur wireless microphone, please
read this instruction manual to prevent any damage. Put it away in
a safe place for future references.
IMPORTANT
IMPORTANT
Do not use or store the equipment near wet places.
Clean only with a soft, dry cloth.
Do not bump or drop the microphone
Do not use the microphone if it is exposed to direct sun light,
extreme heat, dust or moisture.
CONSIDERATIONS
If you need to purchase more than two UHF wireless microphone
systems and want to use them simultaneously, select microphones with
different frequencies. If the microphones have the same frequency, they
need to be operated at least 150 m apart. If they are not separated, the
microphones will interfere with each other.
FEATURES
FEATURES
Wide range of response
Indicator LEDs
Folding antenna, 30cm length for a better reception
Volume control
Frequency modulation
•
•
•
•
•
•
•
•
•
B
efore usin
g
y
our new UHF amateur wireless microphone, please
r
ea
d
t
hi
s
i
nstruct
i
on manua
l
to prevent an
y
d
ama
g
e.
P
ut
i
t awa
y
i
n
a
safe place for future references
.

ENGLISH
ENGLISH-03
CONTENT
CONTENT
1 microphone
1 receiver
1 AC power adapter
1 audio cable
CONTROLS
CONTROLS

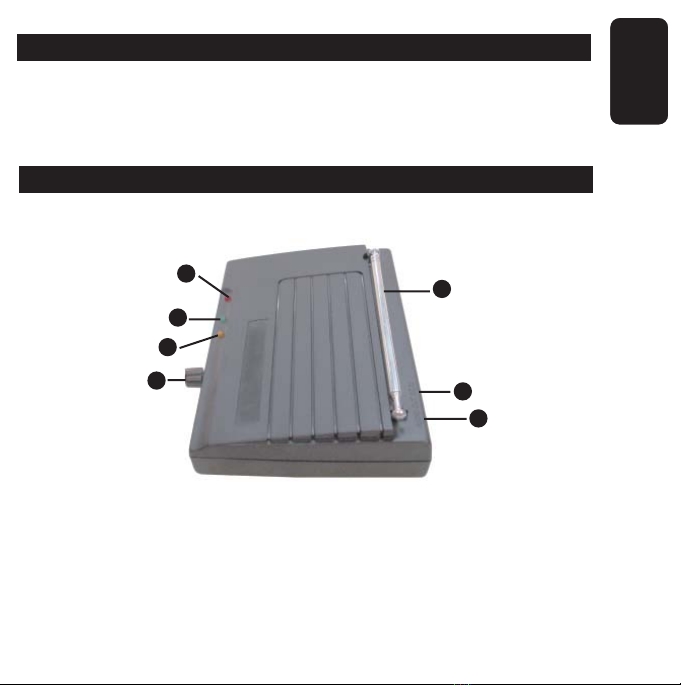

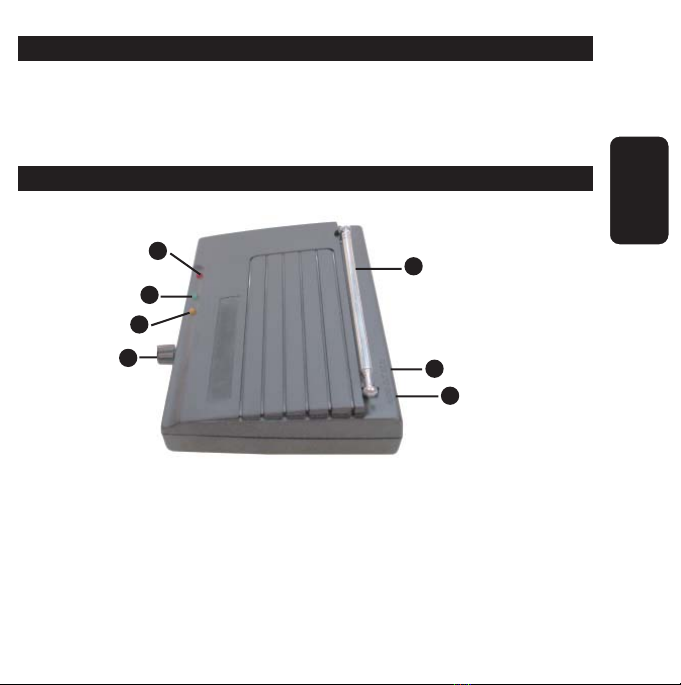

Receiver
1.- Power LED
It lights up in red when the receiver is connected to an outlet.
2.- Frequency indicator
It lights up when the microphone switch is placed at On or Mute
position.
•
•
•
•
1
2
3
4
5
6
7

ENGLISH
ENGLISH-04
3.- Peak indicator
It lights up when the volume from the microphone is too loud.
4.- Volume
Set the microphone volume level
5.- Antenna
Allows you to receive the microphone signal
6.- Audio output
Use this jack to connect a power amplifier
7. AC IN
Use it to connect the supplied AC power adapter

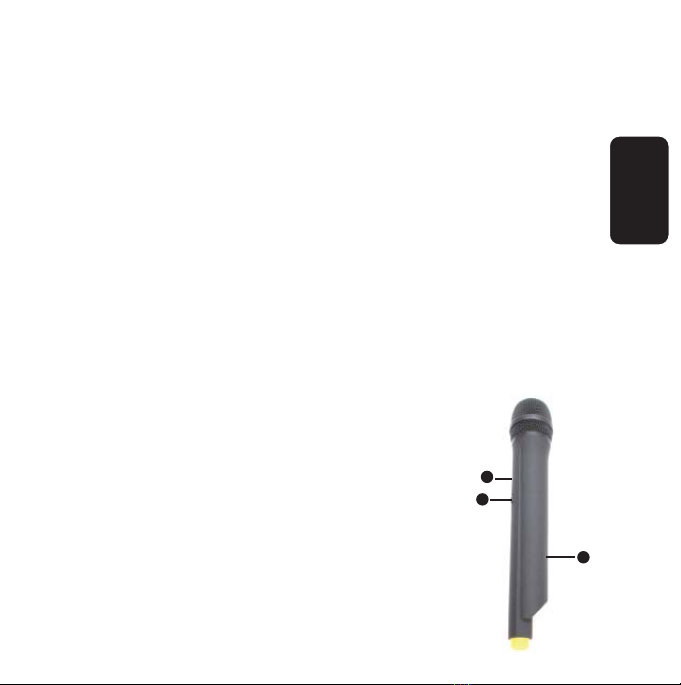

Microphone
1.- On / Off / Mute
Use it to power on / off or mute the microphone
2.- Battery compartment
Case for 2 AA batteries
3.- Battery indicator
It lights up when the battery energy is poor
1
2
3

ENGLISH
ENGLISH-05
HOW TO INSTALL AND USE THE SYSTEM
HOW TO INSTALL AND USE THE SYSTEM
1.- Connect the AC power adapter to DC IN connector in the receiver.
2.- Plug the AC power adapter into an outlet. The power LED will light
up.
3.- Unfold the antenna and place it in a 90° position.
4.- Set the volume level to the minimum (the know totally turned to the
left)
5.- Plug the audio cable into Audio Out jack, and the other extreme to a
power amplifier. Turn the amplifier on.
6.- Open the battery compartment in the microphone and place 2 new
AA alkaline batteries, paying attention to polarity.
7.- Place the power switch at on position. The RF LED will light up.
8.- Talk over the microphone, slowly, adjust the volume level until you
hear the required level.
9.- If the volume level is too loud, the yellow LED will light up in the
receiver. Set the volume level.
10.- If you want to mute the microphone, place the switch to Mute
position, the green LED keeps lighting.
11.- Turn the system off after their use.
The indicator LED in the microphone will light up when the
batteries’ energy is almost empty, please replace the batteries.
The distance between the receiver and the microphone won’t be
more than 30 metres.
Th
e
i
n
di
cator L
ED
i
n t
h
e m
i
crop
h
one w
ill
ligh
t up w
h
en t
h
e
b
atter
i
es’ ener
gy
i
s a
l
most empt
y
, p
l
ease rep
l
ace t
h
e
b
atter
i
es
.
Th
e
di
stance
b
etween t
h
e rece
i
ver an
d
t
h
e m
i
crop
h
one won’t
b
e
m
ore than 30 metres
.

ENGLISH
ENGLISH-06
SPECIFICATIONS
SPECIFICATIONS
Microphone
Input: 3V (2 x AA)
Frequency response: 40Hz – 15kHz
Harmonic distortion (THD):0,5%
Receiver
Input: 12V 250mA
Frequencies: 801,525MHz, 807,750MHz,
813,975MHz, 821,275MHz
Converter
Input: 120V ~ 60Hz
Output: 14,5V 300mA
Product design and specifications are subject to change without
previous notice
P
roduct desi
g
n and specifications are sub
j
ect to chan
g
e without
p
rev
i
ous not
i
c
e

WARRANTY
This Steren product is warranted under normal usage against defects in workmanship and
materials to the original purchaser for one year from the date of purchase.
CONDITIONS
1.- This warranty card with all the required information, invoice or purchase ticket, product
box or package, and product, must be presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free of charge.
3.- The repairing time will not exceed 30 natural days, from the day the claim was received.
4.- Steren sell parts, components, consumables and accesories to costumer, as well as
warranty service, at any of the addresses mentioned later.
THIS WARRANTY IS VOID IN THE NEXT CASES:
If the product has been damaged by an accident, acts of God, mishandling, leaky batteries,
failure to follow enclosed instructions, improper repair by unauthorized personnel, improper
safe keeping, among others.
a) The consumer can also claim the warranty service in the purchase establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.
Product: UHF amateur wireless microphone
Part number:WR-800UHF
Brand: Steren

RETAILER INFORMATION
Name of the retailer
Address
Product
Brand
Part number
Serial number
Date of delivery
In case your product fails or have questions, please contact your nearest dealer. If
you are in Mexico, please give a call to our Call Center.
Call Center
01 800 500 9000
