Steren 207-350 User manual

ENGLISH
ENGLISH-02
Before using your new RF modulator and switch read this
instruction manual to prevent any damage. Put it away in a safe
place for future references.
IMPORTANT
Clean only with a soft, dry cloth.
Do not try to open the equipment, may cause malfunction and
warranty repeal.
Do not use or store the equipment near wet places. May cause
malfunction or shock hazard.
REQUIRED EQUIPMENT (NOT INCLUDED IN THE PACKAGE)
For model 207-350 with RCA connectors:
- If the AV equipment have stereo outputs, one audio / video cable with
3 RCA connectors in each end
- If the AV equipment have mono outputs, one audio / video cable with 2
RCA connectors in each end
For models 207-360 and 207-370 with RCA & S-Video connectors:
- If the AV equipment have stereo outputs, one audio / video cable with
3 RCA connectors in each end
- If the AV equipment have mono outputs, one audio / video cable with 2
RCA connectors in each end
- One audio / video cable with 2 or 3 RCA connectors in one end, and
one S-Video connector at the other end
- Two coaxial cable with F connector (75ohm)
- One matching device from 75 to 300ohm, in case your TV set have not
VHF 75ohm connector
•
•
•
Before usin
g
y
our new RF modulator and switch read this
i
nstruction manual to prevent an
y
dama
g
e. Put it awa
y
in a safe
p
lace for future references
.

ENGLISH
ENGLISH-03
CONNECTING RCA AND S-VIDEO CABLE
If video source is in stereo:
1.- Locate the RCA connectors into the modulator, then insert one AV
cable on them.
2.- Plug the other end into AV device output jacks.
Make sure the colors match on both equipments.
If video source is in mono:
1.- Locate the RCA connectors into the modulator, then insert one AV
cable on them. For audio connections, use one of the connector and
insert it in L or R input jack.
2.- Plug the other end into AV device output jacks.
Make sure the colors match on both equipments.
You can connect up to 3 or 4 devices per modulator, depending of
the model.
For models 207-360 and 207-370:
Both models includes a S-Video connector, if you want to use it, just
plug a S-Video cable between AV device and modulator, on the Video
input and output jacks.
To connect the audio cable, it is necessary you have an AV cable with
two RCA connectors; then plug into Audio output and input jacks in the
modulator and the AV device.
You can connect up to 3 or 4 devices per modulator, depending of
the model.
Y
ou can connect up to 3 or 4 devices per modulator, dependin
g
of
t
he model
.
M
ake sure the colors match on both e
q
ui
p
ments
.
Y
ou can connect up to 3 or 4 devices per modulator, dependin
g
of
t
he model
.
M
ake sure the colors match on both e
q
ui
p
ments
.

ENGLISH
ENGLISH-04

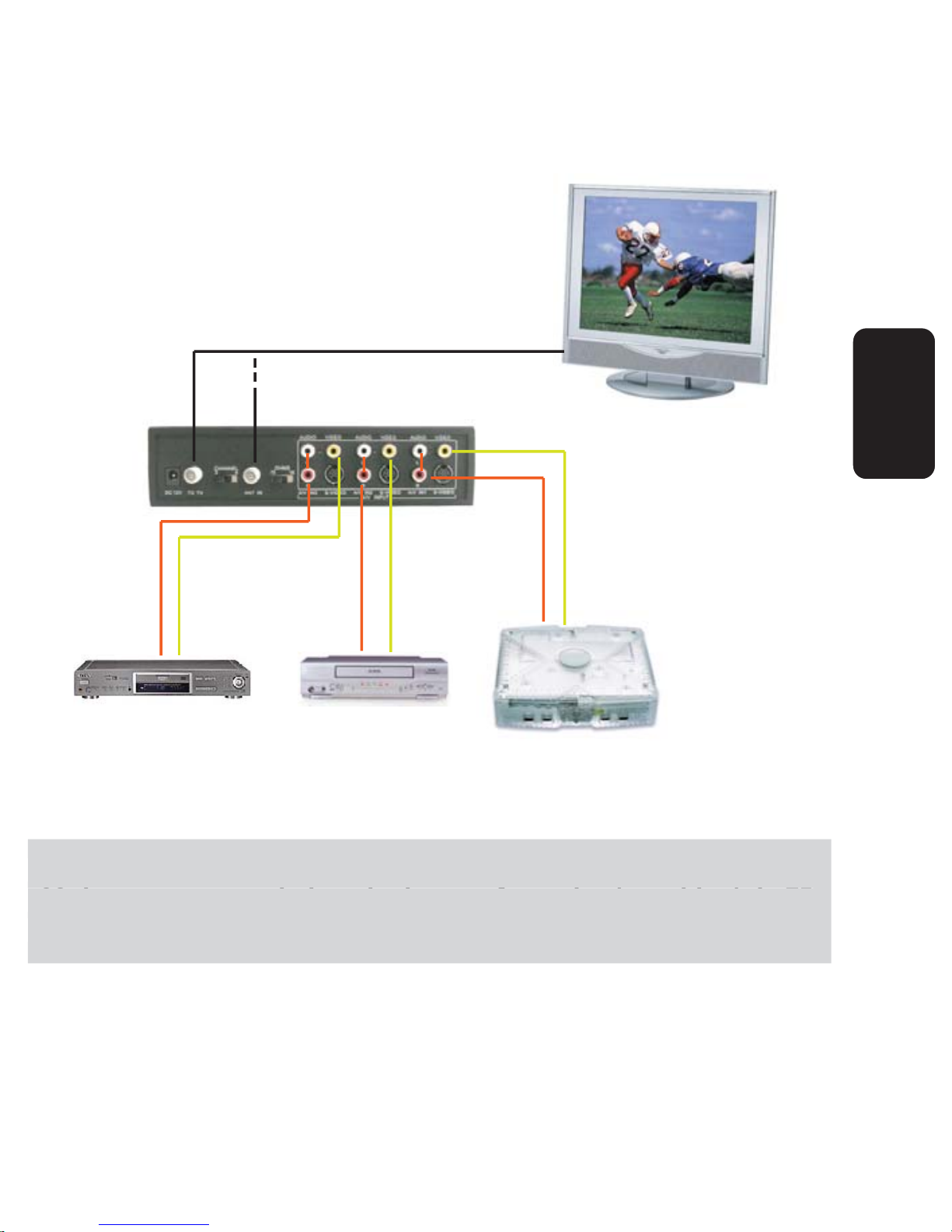

CONNECTING F CABLE
If you have a device connected to F connector on TV set (such as VCR
or Cable) unplug the coaxial cable from the TV set and plug into the
ANT IN connector in the modulator.
Then, plug other coaxial cable from TO TV output jack on the modulator
to F connector on TV set.
If you don’t have any device connected to F connector on TV, just plug a
coaxial cable from TO TV output to F connector on TV.
In case your TV set have 300ohm connector (screws) instead of F
connector, you must use a matching device from 75 to 300ohm, to
install the modulator as we seen before.
To TV
From Cable / VCR
To Video INTo Audio IN To Video INTo
Audio IN
To Video INTo
Audio IN
DVD VCR
Videogame
I
n case
y
our TV set have 300ohm connector
(
screws
)
instead of F
c
onnector,
y
ou must use a matchin
g
device from 75 to 300ohm, to
i
nstall the modulator as we seen before
.

ENGLISH
ENGLISH-05
HOW TO USE THE MODULATOR
Once you have made the right connections, follow these steps to start to
use the equipment:
1.- Turn the TV set on and choose channel 3 or 4 (usually, you need to
choose the channel without signal).
2.- Select channel 3 or 4 in the modulator.
3.- Turn the AV source on.
4.- Place the 75/1k switch in the position where you get the best image
quality.
5.- If the equipment is in use, an indicator will light in frontal panel.
6.- To switch between different devices, just press the button of the
corresponding device that you want to use (i.e. DVD player on input 1,
VCR on input 2, Video game on input 3; if you want to use the DVD,
press the button with number 1 in frontal panel, if you want to use the
video game, then press the button with number 3).
SPECIFICATIONS
General
Input: 12V 120mA
Video output: 69dB uV
RF output channels: 3 or 4
RF output impedance: 75ohm
Video input impedance: 75ohm to 1kohm
Audio input impedance: 13 + 3kohm
Loss insertion from
50 to 806MHz: 2dB

ENGLISH
ENGLISH-06
Weight: 0,36kg
Dimensions: 6 x 3 x 1,5in
AC power adaptor
Input: 120V~ 60Hz 3W
Output: 12V 120mA
Product design and specifications are subject to change without
previous notice.
P
roduct desi
g
n and specifications are sub
j
ect to chan
g
e without
p
revious notice
.

WARRANTY
This Steren product is warranted under normal usage against defects in workmanship and
materials to the original purchaser for one year from the date of purchase.
CONDITIONS
1.- This warranty card with all the required information, invoice or purchase ticket, product
box or package, and product, must be presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free of charge.
3.- The repairing time will not exceed 30 natural days, from the day the claim was received.
4.- Steren sell parts, components, consumables and accesories to costumer, as well as
warranty service, at any of the addresses mentioned later.
THIS WARRANTY IS VOID IN THE NEXT CASES:
If the product has been damaged by an accident, acts of God, mishandling, leaky batteries,
failure to follow enclosed instructions, improper repair by unauthorized personnel, improper
safe keeping, among others.
a) The consumer can also claim the warranty service in the purchase establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.
Product: RF modulator and switch
Part number: 207-350, 207-360, 207-370
Brand: Steren

RETAILER INFORMATION
Name of the retailer
Address
Product
Brand
Part number
Serial number
Date of delivery
In case your product fails or have questions, please contact your nearest dealer. If
you are in Mexico, please give a call to our Call Center.
Call Center
01 800 500 9000

Antes de utilizar su nuevo Convertidor de A/V a RF lea este
instructivo para evitar cualquier mal funcionamiento. Guárdelo
para futuras referencias.
IMPORTANTE
Siempre utilice un paño suave, limpio y seco para limpiar el equipo.
No intente abrir el equipo, puede ocasionar malfuncionamiento y
anulación de la garantía.
No use ni almacene este equipo en lugares donde existan goteras
o salpicaduras de agua.
EQUIPO REQUERIDO NO INCLUIDO EN EL EMPAQUE
Para el modelo 207-350 con entradas RCA:
- Un cable de audio / vídeo con 3 conectores tipo RCA en cada punta, si
el equipo de AV es estéreo
- Un cable de audio / vídeo con 2 conectores tipo RCA en cada punta, si
el equipo de AV es mono
Para el modelo 207-360 y 207-370 con entradas RCA y S-Vídeo:
- Un cable de audio / vídeo con 3 conectores tipo RCA en cada punta, si
el equipo de AV es estéreo
- Un cable de audio / vídeo con 2 conectores tipo RCA en cada punta, si
el equipo de AV es mono
- Un cable de audio / vídeo con 2 o 3 conectores tipo RCA en una punta
y un conector S-Vídeo en la otra punta
- Dos cables coaxiales con conectores tipo F de 75ohms
•
•
•
ESPAÑOL-02
ESPAÑOL
A
ntes de utilizar su nuevo Convertidor de A/V a RF lea este
i
nstructivo para evitar cualquier mal funcionamiento. Guárdelo
p
ara futuras referencias
.
