STI E2410FN000/010 User manual

Front bumper
① STI Front Under Spoiler
- Install the STI Front Under Spoiler by reading the Installation Manual carefully.
- Handle the STI Front Under Spoiler with care and do not let it fall.
- Do not install or use this product in any way other than described in this manual.
- We do not assume any responsibility for any trouble arising from failure to comply with the
instructions in this manual.
- Double-sided tape is used to attach the STI Front Under Spoiler.
Attach it with care as once it is attached, it is extremely difficult to remove.
-1-
STI Front Under Spoiler
Installation Manual
△00
- This manual describes how to install and handle the STI Front Under Spoiler.
- Read this manual carefully before work and make sure to install it correctly.
！
△
Precautions
Installation Completion Illustration
Genuine part number : E2410FN000/010
Applicable model : ＩＭＰＲＥＺＡ（ＧＵ）,ＴＹＰＥ Ａ～

①
② ③ ④
⑥
⑤
⑧⑦
Components
Tools
-2-
Before Work
①
②
No. QtyPart Name
STI Front Under Spoiler
4
- Make sure to check the components below before installation.
- When installing this product, park the car on a level ground and apply the parking brake.
- When installing this product, be sure not to damage the car body.
- Before installing this product, wipe off any dirt or oil film from the Front bumper attachment surface
with a soft waste cloth dampened in a neutral detergent. Then, let it dry completely before work.
- The adhesive strength is weakened significantly when the temperature is 15℃or low.In this case,
use a dryer to warm the double-sided tape before attachment.
(Do not warm up excessively as doing so may result in deformation.)
- Be extremely careful not to let this product get wet by washing, etc. for 24 hours after attaching it.
Dosing so may cause the product to come off.
- To protect yourself from burns, make sure to stop the engine and let it cool completely before work
- When jacking up the vehicle, be sure to keep the ground level and a hard place where the jack does
not bite, and be sure to support it with a rigid rack before carrying out the work.
③
④
⑤
Clip(Large)
2
3
Clip(Medium)
8
⑥
⑦
Washer(t1.0)
Wellnut
Bolt 8
1
- E2410FN001 : Parts set ②×4 ③×2 ④×3 ⑤×4 ⑥×8 ⑦×8 ⑧×1
● Masking tape
● Drill 3mm 6mm 9.5mm
● Needle
● Clean cloth
● Dryer
● Degreasing agent (recommended nonane)
● Sandpaper
● Phillips screwdriver
● Needle nose pliers
● Gloves ● Protective eyewear
● cloth adhesive tape
● Clip remover
⑧
4
Clip(Small)
1
Pattern paper (P8～P12)
-8-
！注意
・プリントした場合、縮尺が１／１でない可能性があります。
・縮尺が１／１になるようにコピーしてからご使用ください
型紙
型紙はライン外側で切り取ってください。
FRONT UNDER SPOILER
φ6.0
Ａ
R END R END

-3-
１
LH
Ft
Up
Ft
RH
Up
Ft
LH
Up
1. Drill holes in the Front Bumper
Installation procedure
Front bumper
Bottom view LH
Front bumper
Remove the
Vehilw clip
Remove the
Vehilw clip
( The RH also performs the same work. )
(1) Remove the vehicle clips on the bottom of the
Front bumper (2 places on one side) and the
vehicle clips on the wheel arch surface (1 place
on one side) shown in Fig 1.
(3 places each for LH and RH, 6 places in total)
wheel arch surface LH
！
Advice
・Do not reuse the removed vehicle clip.
・Be sure to use the supplied clips.
(2) As shown in Fig 2, determine the position of
the drilling template A on the grid of the front
bumper grille, fix it with masking tape, etc., and
mark the center of the hole with a marking
needle.
After that, make a pilot hole with 3 mm for the
hole of pattern paper A, and then make a hole
with 6 mm.
(Pattem paper A 1 place)
！Advice
Drill
cloth adhesive tape
During drilling, put a cloth adhesive tape
as a stopper around the drill blade about
5mm from its tip in order to prevent
damages to the Spoiler assy-side.
5mm
！
Advice
After drilling, remove the burrs around
the hole.
！
Advice
Cut the Pattern paper exactly along the lines.
２
R END
R END
Ft
RH
Up
R END R END
φ6.0
FRONT UNDER SPOILER
Ａ
3mm →6mm
LH
Ft
LH
Ft
Pattern
paper A
＜ Enlarged top view ＞
Match the
R end
Pattern paper A
＜ Bottom enlarged view ＞
Pattern
paper A
Marking position
Stick it along the surface
of the front bumper with
masking tape etc. so that
it does not sag.

-4-
！Advice
Drill
cloth adhesive tape
5mm
(3) As shown in Fig 3, determine the position of the
hole punching template B on the lower surface
of the front bumper, fix it with masking tape, etc.,
and mark the center of the hole with a marking
needle.
After that, make a pilot hole with 3mm for the
hole of pattern paper B, and then make a hole
with 6mm.
(1 places each for LH and RH, 2 places in total)
！
Advice
After drilling, remove the burrs around
the hole.
Bottom view LH
３
3mm →6mm LH
Ft
Up
a
FRONT UNDER SPOILER
φ6.0
Ｂ－ＬＨ
BUMPER
R END
FRONT UNDER SPOILER
φ6.0
Ｂ－ＬＨ
BUMPER
R END
＜ Detail view a ＞Match the shape
of the bumper
Pattern
paper B LH
Marking position
Front bumper
FRONT UNDER SPOILER
φ9.5
Ｅ-ＬＨ
BUMPER
４
3mm →6mm→9.5mm
LH
Ft
Up
φ9.5
FRONT UNDER SPOILER
φ9.5
ＣーＬＨ
LWR
φ9.5
FRONT UNDER SPOILER
Ｄ－ＬＨ
LWR
FRONT UNDER SPOILER
φ9.5
Ｅ-ＬＨ
BUMPER
φ9.5
FRONT UNDER SPOILER
Ｄ－ＬＨ
LWR
φ9.5
FRONT UNDER SPOILER
φ9.5
ＣーＬＨ
LWR
c
b
d
(4) Position the hole punching templates C, D, and
E on the lower surface of the front bumper as
shown in Fig. 4, fix them with masking tape, etc.,
and mark the center of the holes with a marking
needle, etc.
After that, drill pilot holes of 3mm, 6mm, and
finally 9.5mm.
(4 places each for LH and RH, 8 places in total)
To prevent the drill from interfering with other
parts when drilling, make a stopper with cloth
adhesive tape, etc., at a point about 5 mm
from the tip of the drill before working.
！Advice
Drill
cloth adhesive tape
5mm
To prevent the drill from interfering with other
parts when drilling, make a stopper with cloth
adhesive tape, etc., at a point about 5 mm
from the tip of the drill before working.
Bottom view LH
＜ Detail view b ＞
Match the
R end
Pattern
paper C LH
Marking position
Pattern
paper C LH
Pattern
paper D LH
Pattern
paper E LH
＜ Detail view c ＞
Match the
R end
Pattern
paper D LH
position
Marking
position
Marking
＜ Detail view d ＞
Pattern
paper E LH
Match the shape
of the bumper
！
Advice
After drilling, remove the burrs around
the hole.

！
Advice
If it is difficult to insert the wellnut, do not
twist it too much and insert it carefully.
-5-
７
６
///////
///////////
Ft
RH
Up
Bottom view LH
⑥ Wellnut
(4) Insert the ⑥ Wellnut into the 9.5 mm hole.
(4 places each for LH and RH, 8 places in total)
2. Cleaninng/Degreasing
Clean with a waste cloth, etc.
( The RH also performs the same work. )
If rainwater is attached, wipe it dry with
a dry cloth.
Insufficient wiping and drying can cause
the product to come off.
！Advice
(1) Clean, degreas, and dry the shaded area of
the Rear bumper with a degreasing
agent.
3. Installation of STI Front Under Spoiler
Masking tape
(1) Peel off about half of the release paper of the
double-sided tape attached to the ①STI Front
under spoiler, fold it over, and then attach it to
the surface of the product with masking tape,
etc., as shown in Fig 6.
！Advice
Do not remove the release paper more than
necessary.
The double-sided tape clings to the peripheral
parts, which makes it difficult to position them.
(2) As shown in Fig 8, align the ①STI front under
spoiler with the front bumper, and secure it with
⑤ Washer (t1.0) and ②Clips (Large) in the
order of Ⅰto Ⅱ.
(2 places each for LH and RH, 4 places in total)
＜ c-c Section ＞
② Clip (Large) ⑤ Washer
(t1.0)
８
ｅｅ
LH
Ft
Up
Ⅰ
Ⅱ
５
LH
Ft
Up
② Clip (Large)
⑤ Washer
(t1.0)

-6-
10
LH
Ft
Up
11
Ft
RH
Up
Ⅰ
Ⅱ
９
LH
Ft
Up
(3) As shown in Fig. 9, secure the fastening hole on
the wheel arch surface with the ③Clip (Medium)
and the 6mm hole with the ④Clip (Small).
③ Clip (Medium)
④ Clip (Small)
(2 places each for LH and RH, 4 places in total)
(1 place in the center)
Phillips screwdriver
⑦ Bolt
(4) As shown in Fig 10, use a Phillips screwdriver to
temporarily tighten the remaining bottom
fastening holes with ⑦Bolt.
(4 places each for LH and RH, 8 places in total)
(5) As shown in Fig. 11, press the double-sided tape
while slowly pulling out the release paper in the
direction of the arrow in order from I to II so that
it does not break in the middle.
！Advice
If it is difficult to remove the release paper,
slowly pull it out with needle-nose pliers.
Make sure that the molding does not turn
over when pulling out the release paper.
(6) Press the adhesive part of the double-sided
tape with enough force to shake the car.
(49N or more)
( The RH also performs the same work. )

-7-
12 (7) Fully tighten the ⑦Bolt on the bottom surface
of the ① STI Front Under Spoiler with
a Phillips screwdriver.
(4 places each for LH and RH, 8 places in total)
Reference tightening torque 1.0N・m
( 0.1kgf・m )
！Advice
(8) Finally, check the float and inclination of the
mounting part, and confirm that there are no
missing clips or bolts, and that there are no
omissions in tightening.
This is the end of the work.
△
Newly created document
Revised contents
Details of the work Date
26 / Jan / 2023
00
・By installing this product, it is up to 34mm lower than the Front bumper.
・Because it is easy to come into contact with curbs, ring clasps, steps, etc.
Be careful not to touch it while driving or parking.
If it comes in contact with it, it may be scratched, deformed, damaged or dropped, and the spoiler
may be damaged accordingly.
・In the case of slight contact, you may not notice the contact, so be sure to perform a pre-operation
inspection and check the area around the mounting part in particular.
・Also, running in snow or ruts may damage the spoiler, deform it, drop it off, or damage the vehicle.
Damage caused by these or equivalent external forces is not covered by the warranty.
To customers
・The back side of this product is not painted. It may vary depending on the product.
・We do not accept warranty repairs such as scratches, discoloration of paint, and peeling that occur
during use.
① STI Front Under
Spoiler
Front bumper
Hook your finger
on the winding
part and put it back
※How to correct when the mall is involved ・If the molding gets involved, please fix it
while paying attention to the damage to
the double-sided tape.
the bumper and peeling of
the normal position.
・
If you fix it by hooking your finger on the
winding part, it will return to

-8-
FRONT UNDER SPOILER
φ6.0
Ａ
R END R END
Cut on the outside of the line.

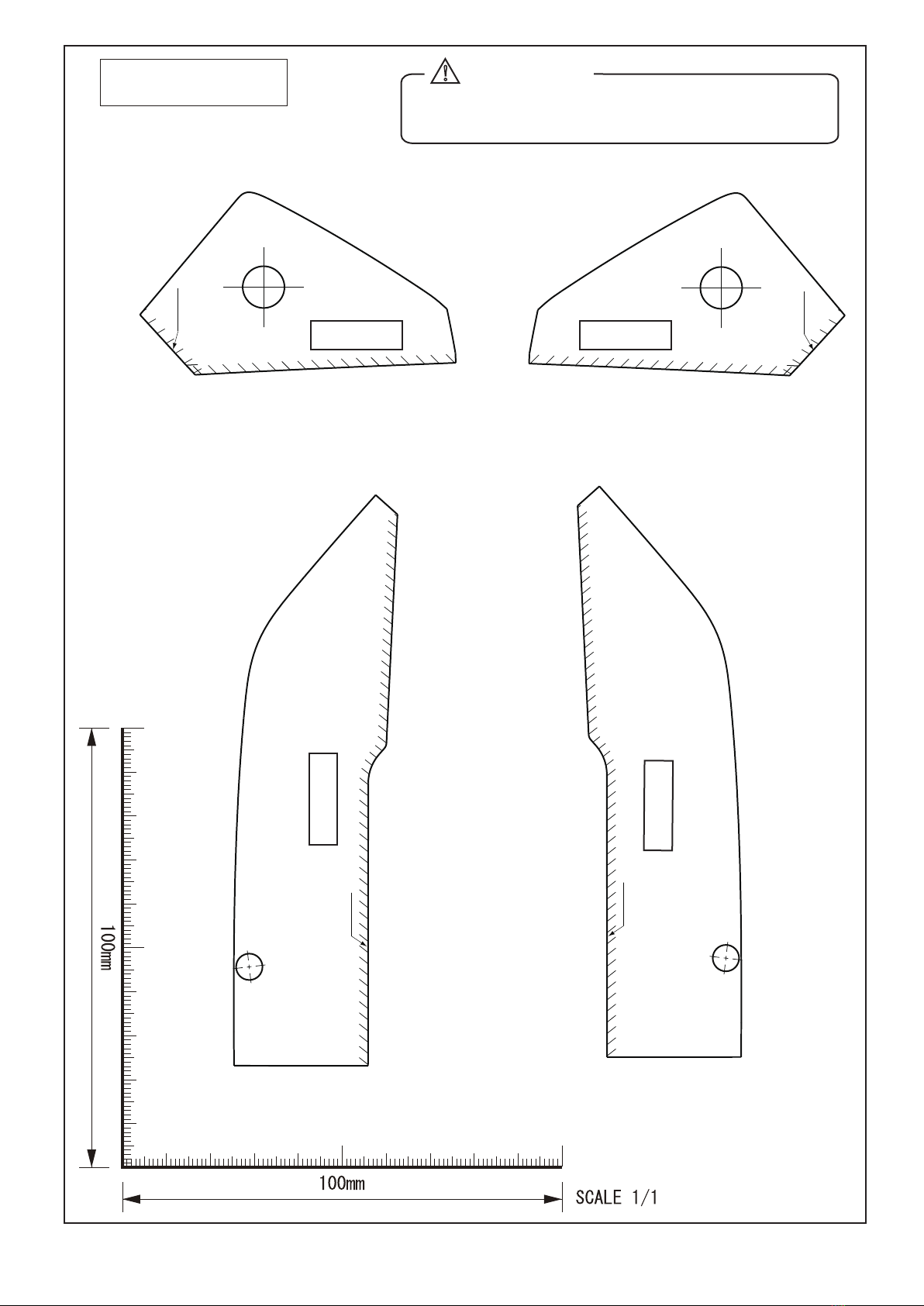

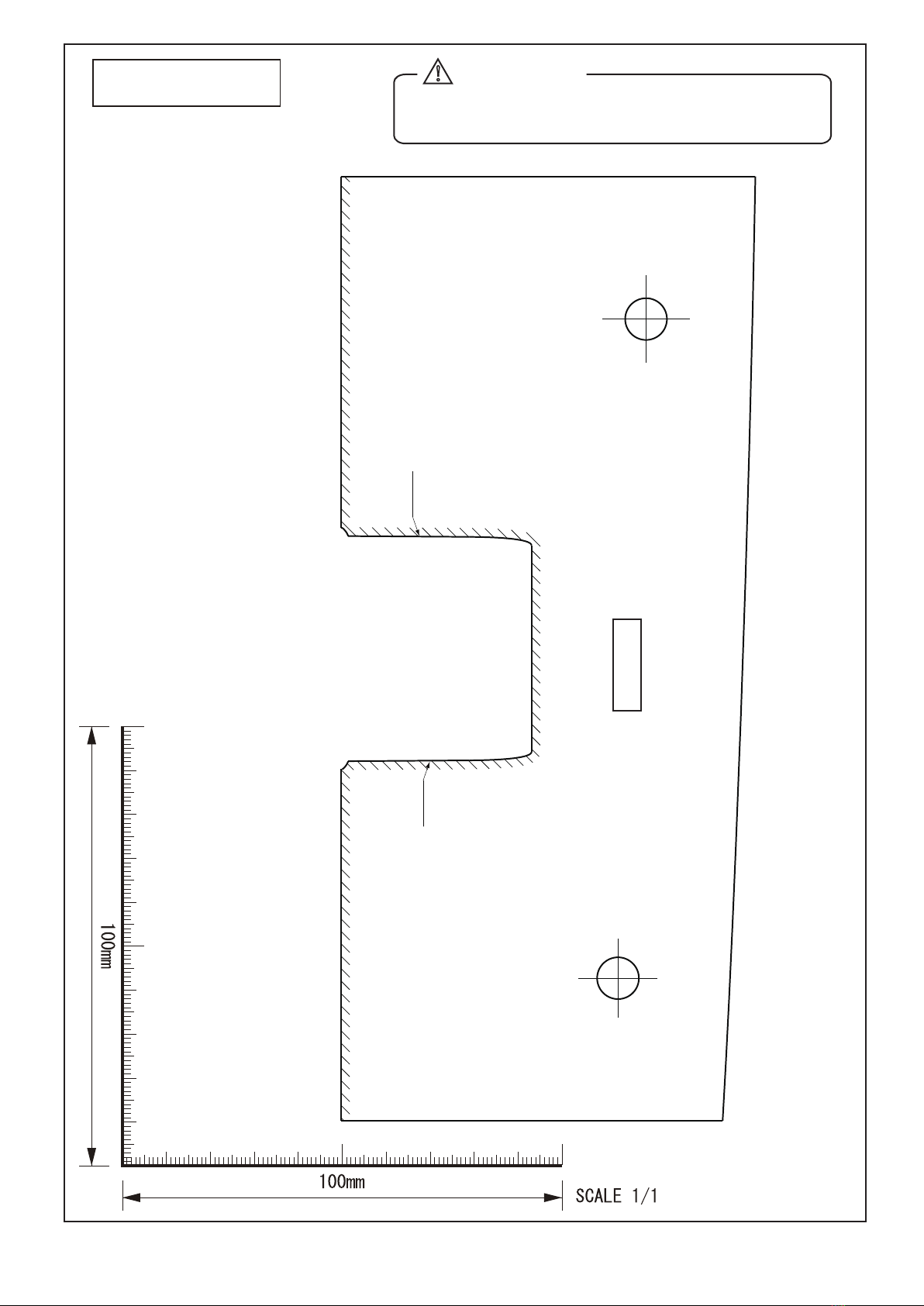

⑧ Pattern paper ！Advice
・If you print, there is a possibility of scale is not a 1/1.
・Use after copying so that the scale is 1/1.

φ9.5
φ9.5
FRONT UNDER SPOILER
Ｃ－ＲＨ
R END
-9-
R END
Cut on the outside of the line.
⑧ Pattern paper ！Advice
・If you print, there is a possibility of scale is not a 1/1.
・Use after copying so that the scale is 1/1.

φ9.5
FRONT UNDER SPOILER
φ9.5
Ｃ－ＬＨ
R END
-10-
R END
Cut on the outside of the line.
⑧ Pattern paper ！Advice
・If you print, there is a possibility of scale is not a 1/1.
・Use after copying so that the scale is 1/1.

FRONT UNDER SPOILER
φ9.5
Ｄ－ＲＨ
R END
-11-
φ9.5
FRONT UNDER SPOILER
Ｄ－ＬＨ
R END
Cut on the outside of the line.
⑧ Pattern paper ！Advice
・If you print, there is a possibility of scale is not a 1/1.
・Use after copying so that the scale is 1/1.

-12-
FRONT UNDER SPOILER
φ6.0
Ｂ－ＬＨ
Ｂ－ＲＨ
FRONT UNDER SPOILER
φ6.0
BUMPER
BUMPER
FRONT UNDER SPOILER
φ9.5
BUMPER
φ9.5
FRONT UNDER SPOILER
Ｅ－ＲＨ
BUMPER
Ｅ－ＬＨ
Cut on the outside of the line.
⑧ Pattern paper ！Advice
・If you print, there is a possibility of scale is not a 1/1.
・Use after copying so that the scale is 1/1.
