STIEBEL ELTRON Stratos Brahma Series User manual

Gas Room Heater
Stratos Brahma

2GENERAL
COMPLIANCE
Our appliance shall be installed in accordance with AS/NZS 5601.1, and local authority requirements.
is appliance must only be installed by an authorised person.
RANGE
MODEL CODE
Stratos 3.0
Stratos 5.0
Stratos 7.0
Stratos 9.0
SR30M0 M0300
SR50M0 M0300
SR70M0 M0300
SR90M0 M0300

Dear Customer
We inform you that this unit has a warranty specification (see specifications in the text to follow).
During the first switch on, there may be vapor emissions, or bothersome odors absolutely not dangerous.
In these cases, you should operate the device at the maximum power for several hours, keeping the room
well ventilated.
Kind Technical
We thank you for choosing the appliance. We can assure you its performance will be long lasting, and
reliable when it is installed and used properly (manufacturer’s guidelines are followed).
Good work and thanks
The Manufacturer.
3
GENERAL
WARRANTY



GENERAL
General informations pag.5
Safety rules pag.5
Appliance description pag.6
Identification pag.6
Structure pag.7
Technical data pag.8
Accessories pag.8
Electrical scheme pag.9
Control panel pag.10
INSTALLATION
Receiving the product pag.11
Weight and dimension pag.12
Installation: WALL FITTING or FLOOR STANDING
- Apparatus choice location pag.13
- Intake & exhaust tube fumes assembly pag.14
-- Tube Kit Ø 32 o Ø 54 mm with unique term. (Standard) pag.16
KIT “FLOOR STANDING” support structure pag.18
KIT “PROTECTION FOR WALLS MADE OF WOOD PANELS” pag.19
Electrical connections pag.20
Gas connection pag.20
SERVICING INSTRUCTIONS
Preliminary operations pag.21
First start up pag.21
Processor control box malfunction pag.22
Controls during the first & after starting service pag.22
Gas transformation pag.23
Regulation pag.24
Ordinary maintenance pag.25
Appliance clean out pag.25
Components replacement pag.26
Disassembly & reassembly of the casing pag.30
Faults & Symptoms pag.30
Useful information pag.32
4GENERAL
In some parts of this book these symbols are used:
Attention: is used to underline particular caution or actions.
Prohibited: is used to underline the actions that should not be
executed.
INDEX

We like to remember that, products that use combustion
or electrical energy there are safety rules to observe before
operating.
Do not allow children to be near the appliance.
It is prohibited to turn on an electrical device if there is a
gas smell.
In this case:
- Open windows and door.
- Close the gas tap.
- Call a Technical Service Assistance.
It is prohibited to touch the appliance with wet hand or
other parts of your body.
-Electrical Hazard: Do not touch the appliance with wet
feet or other part of your body.
It is prohibited to clean the appliance when it is running.
It is prohibited to pull, remove electric wires outside the
appliance It is prohibited to place over the appliance,
towels, clothes or other items that could cause ineffi-
ciency or also be a source of hazard.
It is prohibited to leave paper, plastic, or other things of
the appliance box outside within a child’s reach.
It could be potential source of hazard.
DO NOT MODIFY THIS APPLIANCE
DO NOT PLACE ARTICLES ON OR AGAINST THIS
APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR
THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN OPERATION.
After removing the packaging, check the integrity of the
contents. In case of discrepancies, contact the Agency
that sold the appliance.
The APPLIANCE must be used as intended by the
Manufacturer and for the purpose for which it was
expressly built.
The Manufacturer disclaims any contractual and non-
contractual liability for injury to persons and ani-
mals and damage to things caused by installation,
adjustment and maintenance errors or improper
appliance use.
If the APPLIANCE is not used for a long period of time,
the following operations will have to be performed:
- position the master switch of the appliance on “OFF”
- position the master switch of the system, if fitted, on
“OFF” or disconnect the plug from the power socket.
- close the gas tap
The appliance should be serviced at least once a year.
Do not build the appliance into bookcases and walls.
This booklet is an integral part of the appliance and
must therefore be carefully looked after and ALWAYS
accompany the APPLIANCE, including when this is sold
to another user or transferred to another system.
In case of damage or loss, ask the Area After Sales servi-
ce of the Manufacturer for another copy.
Always make sure that curtains or other objects do not
obstruct the suction filter and the room air outlet vent.
Only connect the appliance to properly earthed power
sockets.
Only install the appliance in dry environments (protec-
tion IP 20)
The appliance must not be operated wherever there are
hazardous materials, vapours or liquids.
Install the appliance on a flat surface to prevent any
malfunction.
5
GENERAL
GENERAL INFORMATIONS
SAFETY RULES

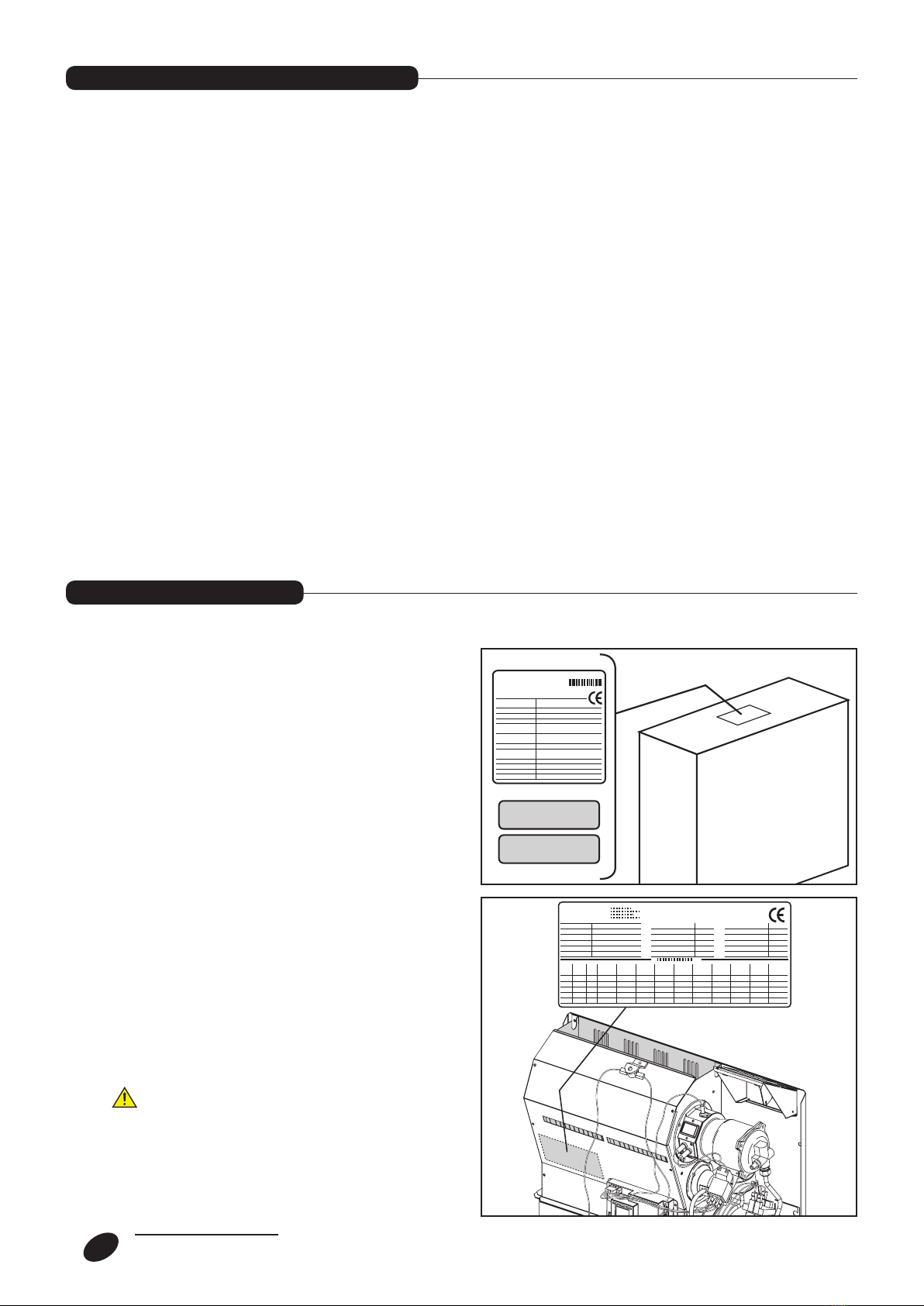

The appliance is identified through:
- Packed label:
A label that indicates the code and the gas it uses to
identify the appliance.
- Technical label:
The technical label reports the serial numbers, the gas
arrangement, and technical specifications.
-Gas prearrangement label:
It reports the kind of gas the appliance has to use, and
if there is a conversion from one kind of gas to another
you have to change the old label.
Spare parts, or technical operation require, a preci-
se identification of the type of model.
If there is any tampering of the technical label, this
will not allow the right identification of the apparatus.
The appliance is a gas radiator that heats up the atmo-
sphere.
It has an intake of air that goes into the combustion
chamber type C.
The appliance is made with an aluminium body that
allows a high efficiency of heat; it also has a fan that
allows the dispersal of air faster into the room.
The appliance is built to be used with Natural Gas
(Methane), but they can be converted to be used with
Universal LP Gas. A conversion kit is supplied.
It also has an electrical device that allows you to do a
series of things.
There also is a Processor Control Box (P.C.B assy) that
controls all the principals’ function of the apparatus,
there is also a Control Panel that has other options.
6GENERAL
Natural Gas
ULPG
APPLIANCE DESCRIPTION
IDENTIFICATION

7
GENERAL
  
 
 
 
  
     
   
  
   
 
  
  
  
   
  
  
  
  
  
  
  
   
   




 














 
STRUCTURE

8GENERAL
TECHNICAL DATA
Gas consumption
Minimum consumption
Test point pressure
Minimum test point pressure
Injector size
Electrical rating
6 5

9
GENERAL
ELECTRICAL SCHEME

10 GENERAL

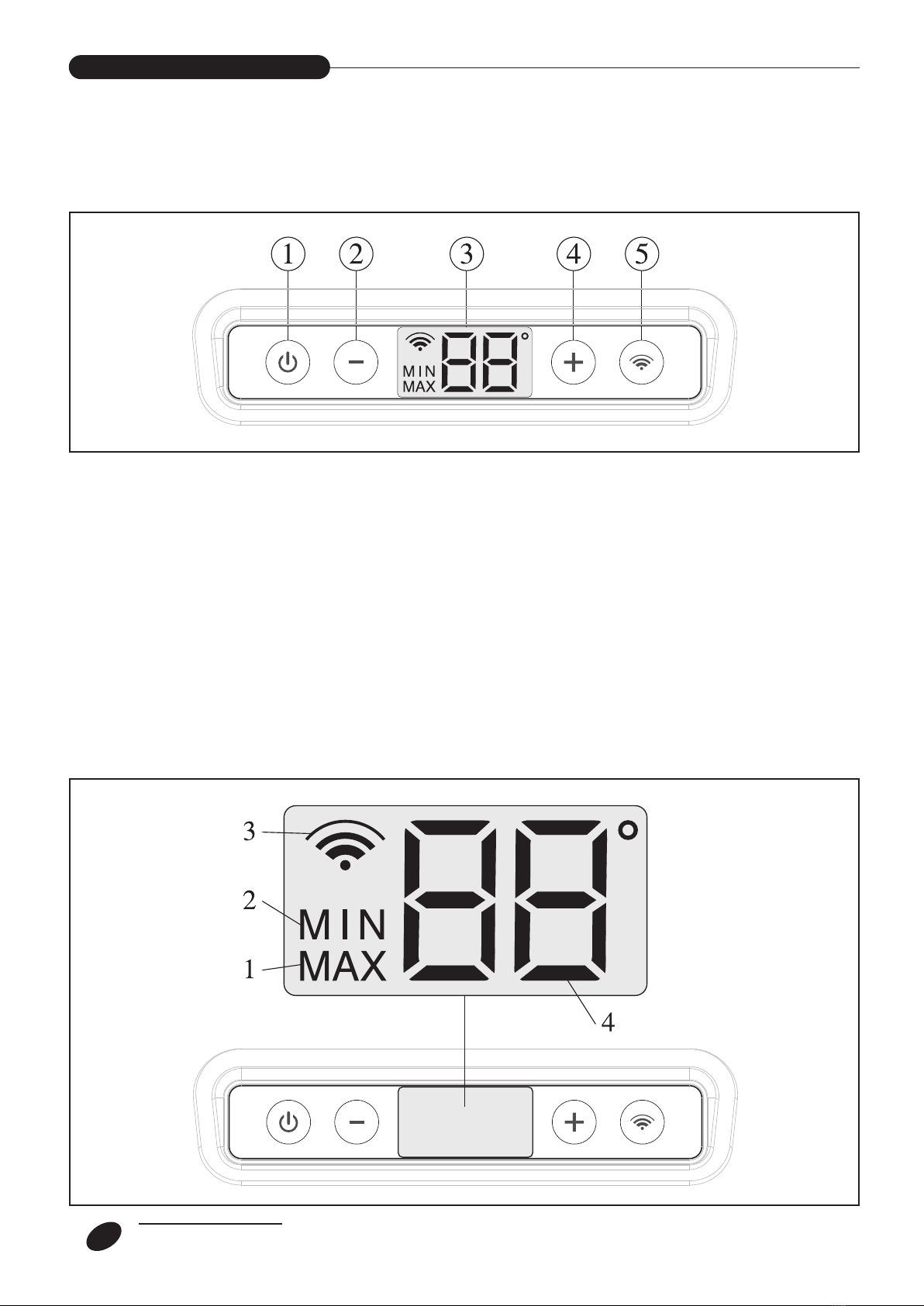

CONTROL PANEL
DESCRIPTION OF DISPLAY
This type of screen simultaneously provides an
entire series of information:
- MIN operating power.
- MAX operating power.
- Wire command enabling.
- ambient temperature.
- desired ambient temperature.
- degrees centigrade unit scale.
- data transmission
DESCRIPTION OF ICONS
1 - operation at MAX power.
2 - operation at MIN power.
3 - data transmission between the device and
the Wireless command (intermittent icon).
3b - Wireless command enabled (fixed on
icon).
4 - Detected ambient temperature.
4b - Desired ambient temperature.
1 - On/Off key and device RESET
2 - Reduce temperature key (MIN 5°C)
3 - Light display
4 - Increase temperature key (MAX 35°C)
5 - Enable/disable Wireless command key

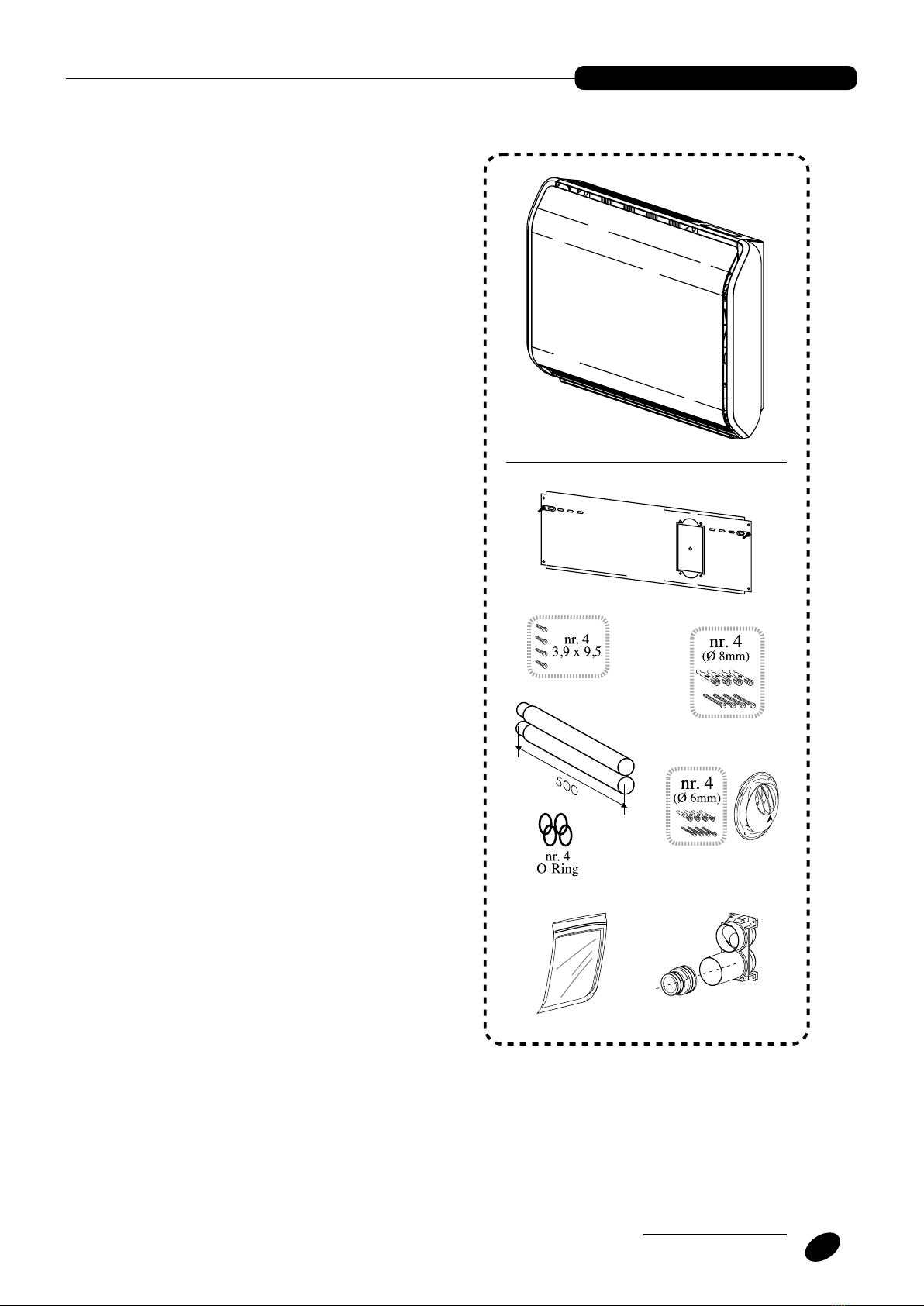

The appliance is supplied in one cardboard package:
Contents of appliance package:
1 Appliance
1 Manual control
1 Metal template
1 Pipe KIT:
1 Adapter union
1 Suction pipe (L = 500mm)
(Ø 32mm Mod. 3.0 - 5.0)
(Ø 54mm Mod. 7.0 - 9.0)
1 exhaust pipe (L = 500mm)
(Ø 32mm Mod. 3.0 - 5.0)
(Ø 54mm Mod. 7.0 - 9.0)
1 Single outer end piece + anchors
(Ø 32mm Mod. 3.0 - 5.0)
(Ø 54mm Mod. 7.0 - 9.0)
1 Document envelope:
1 Operator’s instruction booklet
1 Installer’s instruction booklet
1 Gas conversion kit
1 Spare parts catalogue
1 Warranty certicate
1 Warranty labels
1 Power socket
1 Paper template
PLEASE NOTE: A rear flue extension kit of 1000mm is
available as an optional accessory to extend the ue to a
maximum of 1500mm.
11
INSTALLER
RECEIPT OF PRODUCT
nr. 4
(Ø 8mm)
mod.
3.0
5.0
7.0

12 INSTALLER

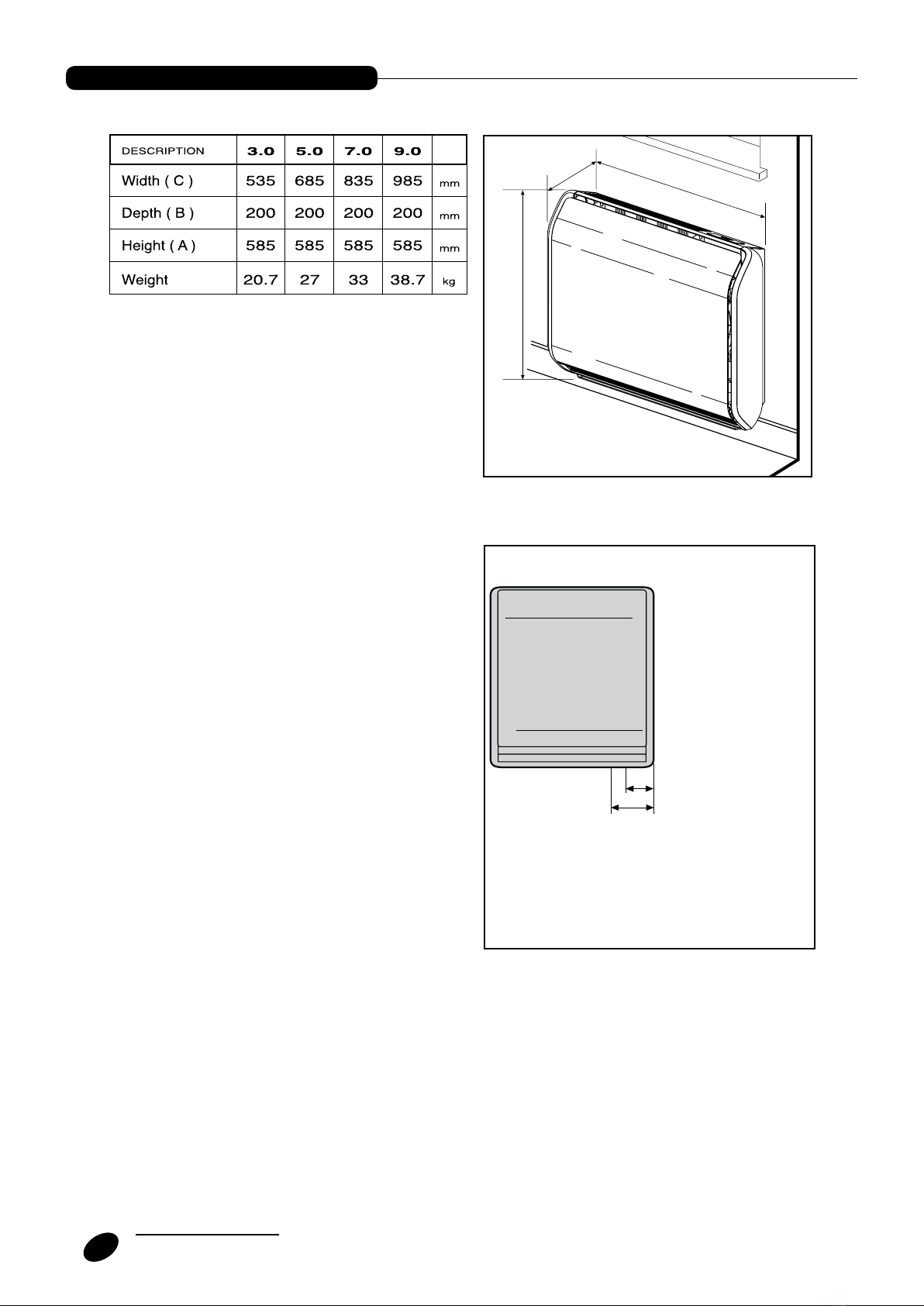

WEIGHT & DIMENSION



95
125
Gas connection
Electrical connection
Gas and electrical connection
location measurements

GENERAL INFORMATION
-When the appliance is being installed do not use parts
that are not from the manufacturer.
-Don’t let the electrical cable touch heated parts, like the
grill or the intake & exhaust tubes.
-Don’t block with anything, the heaters intake & exhaust
tubes.

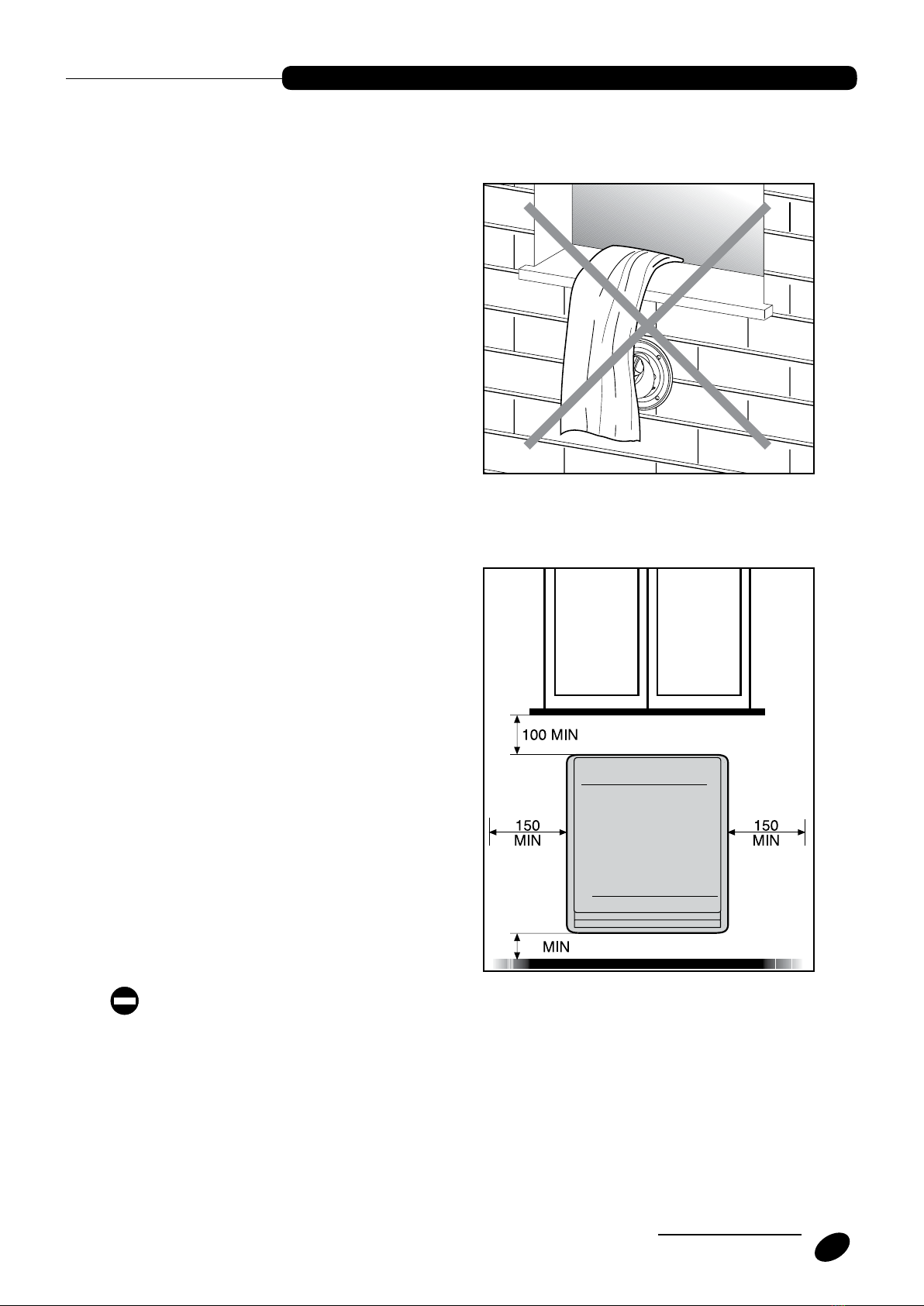

APPLIANCE LOCATION
Before you’re going to install the appliance, check if
there is enough space for the correct function of the
appliance.
Check if there are no hazardous materials around the
flue terming. Check if the wall is made of the right
material and can support the appliance weight. Verify
if around the exhaust ue, there is no wood or plastic
but there is the right material that can support the
appliance.
The material where the appliance it going to be placed
has to resist the exhaust ue gases (about 180°C).
NOTE: Minimum clearance of 85mm from the oor must
be adhered to.
Its prohibited to install the appliance in rooms like
bath, or showers. For this installation you need to
realize special protections that make the apparatus
consistent to the Electrical security rules.
INSTALLATION: WALL FITTING or FLOOR STANDING
85
13
INSTALLER

14 INSTALLER
INTAKE AND EXHAUST FLUE ASSEMBLY
Ø unloaded intake tubes
Ø Wall hole common terminal tubes
Max common terminal tube length
Min comprehensive tube length
3.0
80 80
mm
mm
m
mm
54
110
15
54
110
15
32
65
1
32
65
5
80
54
110
15
5.0 7.09.0
80
54
110
10
Max separate terminal tube length m15 15310 15 10
85

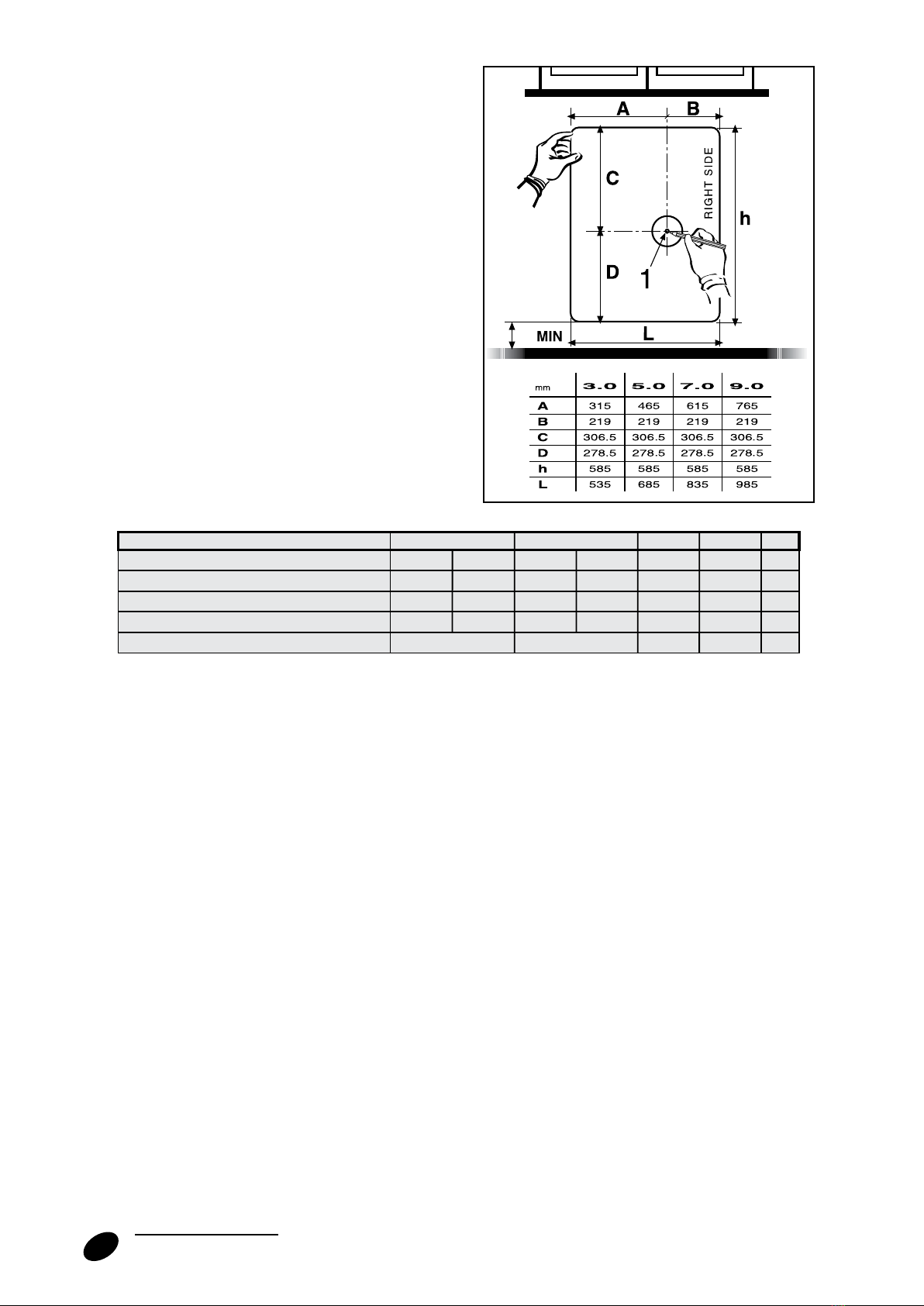

FITTING THE TEMPLATE, UNION AND PIPES
To determine the position of the APPLIANCE and of the
support template (3), use the paper template
(4) provided:
- level and mark the holes (1, 2), then remove the paper
template from the wall;
- make the holes (2) for fastening the template to the
wall;
- make the centring hole (1), through the entire wall
thickness;
- make the hole for the flue pipes using the centring
hole (1);
Ø 65 mm hole for Ø 32 mm pipes or Ø 110 mm hole for
Ø 54 mm pipes.
- remove the plate (5);
- t the adapter union unit (6) on the template, using the
screws provided;
- cut the pipes to the thickness of the wall adding 25
mm, then eliminate the excess parts.
The cut must be perpendicular to the pipe axis,
being very careful not to deform these. After cut-
ting, carefully remove any burrs.
To make it easier to t pipes with O-rings, use silicone
grease or a soapy solution and make sure the O-rings do
not exit from their seats.
In the event of the spacer support being used, the tem-
plate + unit + pipes must be fastened directly on the
support and the pipes must be tted in the slots provi-
ded on the support.
- t and fasten the pipes (7) on the unit (6);
- level the template + unit + pipes;
- insulate the exhaust pipe (8) and t the pipes in the
hole in the wall;
Before fastening the pipes, only for lengths greater
than 50cm, insulate the fume exhaust using mate-
rial resistant to temperatures above 200 °C (e.g.
HT/-Armaex).
- fasten the template + unit + pipes on the wall using
the screw anchors provided (2);
Use the screw anchors most suitable for sustaining
the weight and suitable for the material of which
the wall is made and to which it is being fastened.
8
6
3
7
2
2
5
6
3
2
2
3
2
2
1
4
15
INSTALLER

16 INSTALLER
Outside grill assemblage GP and GPu
To assemble the grill you only need the inserts, and the
steel ange.
Assembly SDP protection
The assembly is to be installed in the following way:
-After you have drilled on the outside wall put the pro-
tection (1) with mortar
-Assemble the terminal tube with the equipment screws
-Adapt the terminal to the tube length and grill (2) pro-
tection between the walls.
The tube cuts have to be perpendicular being real care-
ful do not deform.
Kit parallel tube Ø 32/54 mm with unique terminal (stan-
dard)
This kind of system is used when the exhaust fume and
the intake of air are next to the apparatus.
Assemble the adapter ue connection unique terminal,
from the out side.
-Insert in the wall the assembled group adapter connec-
tion, angles, and curves.
Position the exhaust/intake tubes at thread outside
wall, being real careful that the short tube is always up
(exhaust tube)
-Fasten the group adepter connection to the template
with the screw set.
-Insert the unique terminal until the plastic ring touches
the wall.
-Mark with a punch the holes for the fastening
-Cut the terminal then make the hole for the inserts Ø 6
mm
-Fasten the unique terminal to the wall using the inserts
Ø 6mm seeing that the exhaust tube is toward up.
Ascertain that the adapter tubes connections are
correctly inserted. To fasten the tubes assemblage,
use silicone grease and verified that the O-ring
don’t come out from there seating.
For lengths greater than 50cm, provide to insulate
the exhaust fume tube with material resistant to
the 200° C° (ex. HT/-Armaex).
PLEASE NOTE: A rear flue extension kit of 1000mm is
available as an optional accessory to extend the ue to a
maximum of 1500mm.

1
2
Ø32
Ø54
Ø32
Ø54
Ø32
Ø54
GP
SDP
GPu

FITTING THE REMOTE DIGITAL CONTROL
For correct installation of the remote control in the requi-
red position, follow these instructions:
- Choose the position of the remote control:
- away from the appliance;
- on the BASE (provided).
- Install the remote control.
To ensure correct operation, install the remote con-
trol at a MAX distance of 6 metres.
- Remote control away from the appliance
This solution makes it possible to read the perfect room
temperature for comfort. In fact in this position, the remote
control “feels” the temperature at human height.
To ensure correct operation, install the remote con-
trol at a height o the oor between MIN 1m and
MAX 1.5m.
Installation:
- choose the position;
- open the remote control, t the batteries and check:
- Display unit operation
- range of action (see User Sect.)
Check the range of action:
A) If the LED ashes 4 times a second, reception is correct.
B) If the LED flashes slowly, you are at the limit of the
range of action.
C) If the LED does not ash, you are outside the range of
action.
- mark the position of the fastening holes on the wall and
drill;
- t the screw anchors and screws most suitable for the
chosen wall;
- fasten the rear part of the remote unit to the wall;
- assemble the front part with Display unit.
.
To ensure correct operation, position the control away
from heat sources, sunrays, heated surfaces and
open transit areas.
I
17
INSTALLER

18 INSTALLER
MOUNTING THE “FLOOR STANDING” SUPPORT
STRUCTURE
The support structure kit is used when the wall selected
for installation is unable to support the weight of the
appliance. Thanks to this accessory, all the weight of the
appliance is discharged onto the oor.
Installation
- check the contents of the KIT;
- choose the installation wall and its actual consistency
for making the hole (A) for the suction and exhaust
pipes;
- assemble the side brackets (1) with the template (2) so
as to create a single structure (5);
- move the single structure up against the wall and with
the help of a spirit level, make the centre of hole (A);
- make the hole (A);
Ø 65 mm hole for Ø 32 mm pipes or Ø 110 mm hole for
Ø 54 mm pipes.
- remove the plate (3) from the template (2);
- t the unit (4) on the template (2);
- t and fasten the pipes (10) on the unit (4);
NOTE: Minimum clearance of 85mm from the oor must
be adhered to.
Option A:
- t the supports (6) on the side brackets (1), using the
adjustment screws (7);
Option B:
- t the optional base (8) on the side brackets (1);
- t the new unit (structure + pipes) on the frame (11) of
the appliance;
- move the appliance up against the wall and level;
- connect the power and gas supplies;
- t the cover (9);
FLOOR STANDING
1
optional
6
7
9
1
8
9
2
4
1
10
10
2
1
411
12
3
5
AØ32 A= 65mm
Ø54 A= 110mm

FITTING SILUMINA FRAME ASSEMBLY FOR
INSTALLATION ON COMBUSTIBLE OR WOODEN WALL
This assembly is suitable for walls between 100 mm and
500 mm thick.
- Having chosen the position for the heater in accordan-
ce with the installation booklet for the heater, cut a hole
through the wall, with these dimensions: diameter (A).
The hole in the wall as neatly as possible to enable the
flue assembly to be installed both straight and level
through the wall.
- Fit the silumina frame assembly to the wall, as follows:
1) Measure the wall thickness, not including the
stainless-steel plate and cut the tube (2) to length equal
to the wall thickness.
Fit the internal tube, (2) inside the opening cut in the wall.
Fit the metal plate (5) to the inside of the wall, using
the 4 screws with anchors for wooden walls provided,
for xing the plate on the wall. Fit the cut tube to the
wall working from inside the building, ensuring that it
ts within the lugs on the stainless-steel plate. Fit the
internal wall plate so that the 4 screws (1) on it t inside
the tube.
2) Fit the external stainless - stell (3) AISI 304 to the
outside of the wall using the 4 screws, included in the
pack, if the external wall is hard stone chose screws and
anchors suitable for stone walls.
Use a water resistant compound (e.g. Secomasic or
Silastic) between the plate and the wall to prevent
rainwater reaching the interior of the wall.
PLEASE NOTE: A rear flue extension kit of 1000mm is
available as an optional accessory to extend the ue to a
maximum of 1500mm.
PROTECTION FOR WALLS MADE OF WOOD PANELS





 

 

  




19
INSTALLER

20 INSTALLER

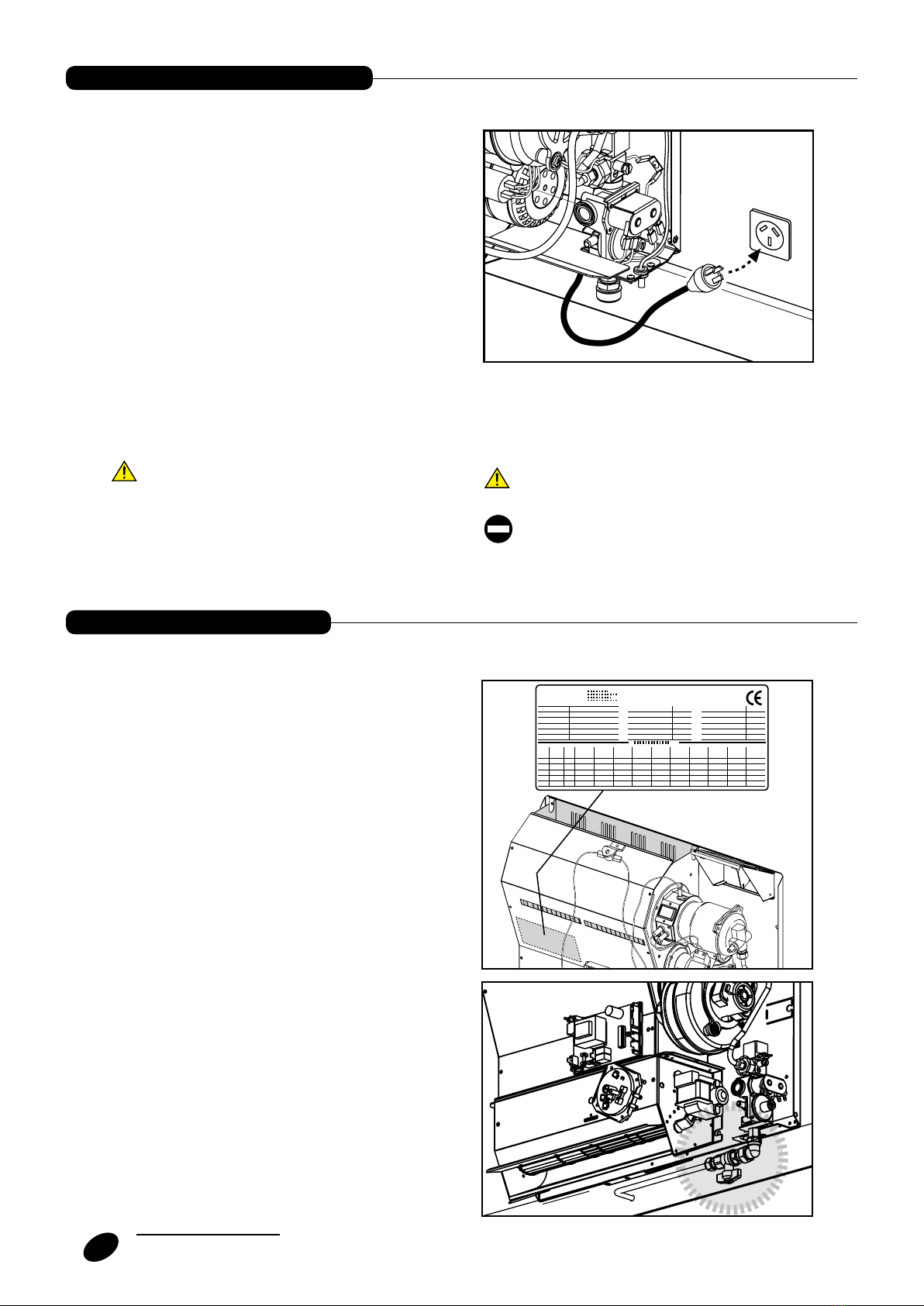

Check on the technical label that is on the heat exchan-
ger cover, for the kind of gas that the appliance uses.
Use the proper gas tubes and pipe tting in accordance
with AS/NZS 5601.1. The etching under the appliance is
a 3/8” M UNI ISO 7/1.
After the gas connection is done, do the first seal
tests.
GAS CONNECTION
The appliance must be installed by an authorised per-
son. Upon completing the installation, such companies
or persons must issue a declaration of installation con-
formity in accordance with applicable national and local
laws (see art. 17 of law no. 46/90) and the instructions
provided by the Manufacturer in the installer’s booklet
attached to the product.
The appliances are fully wired in the factory and comple-
te with plug for connection to the power mains.
Only a HAR H05 RRF type power cable need be made
with MIN cross section of 1 mm, using, for connection
to the appliance, the socket provided and making an
EARTH connection that is 2 cm longer than the PHASE
and NEUTRAL leads.
Connect the other end of the cable to a socket or omni-
polar switch, in conformity with CEI standards, con-
nected to an eective EARTH system.
A proper earth connection is mandatory.
The manufacturer of the appliance cannot be held liable
for any damage caused by lack of proper earth connec-
tion.
For jobs of an electrical nature, always refer to the dia-
gram attached to this booklet.
Fit a disconnection device from the power mains upstre-
am of the power cable (omnipolar switch or plug) such as
to ensure a contact opening of at least 3 mm.
Unsheath the EARTH lead so this is at least 2 cm
longer than the other two leads.
Never use gas and/or water pipes to earth the
appliance.
POWER CONNECTIONS
