SPECIAL INFORMATION
SPECIAL INFORMATION
- The appliance may be used by children aged3
and older and persons with reduced physical,
sensory or mental capabilities or a lack of ex-
perience and know-how, provided that they
are supervised or they have been instructed
on how to use the appliance safely and have
understood the potential risks. Children must
never play with the appliance. Cleaning and
user maintenance must not be carried out by
children without supervision.
- During operation, the tap can reach temper-
atures in excess of 50 °C. There is a risk of
scalding at outlet temperatures in excess of
43°C.
- The appliance is not suitable for supplying a
shower (shower operation).
- Ensure the appliance can be separated from
the power supply by an isolator that discon-
nects all poles with at least 3mm contact
separation.
- The specified voltage must match the mains
voltage.
- The appliance must be permanently connect-
ed to fixed wiring, exception EIL3Plus.
- The power cable must only be replaced (for
example if damaged) by a qualified contrac-
tor authorised by the manufacturer, using an
original spare part.
- Secure the appliance as described in chapter
"Installation/ Installation".
- Observe the maximum permissible pressure
(see chapter "Specification/ Data table").

OPERATION
General information
4| EIL Plus www.stiebel-eltron.com
- The specific water resistivity of the mains
water supply must not be undershot (see
chapter "Installation/ Specification/ Data
table").
- Drain the appliance as described in chapter
"Installation/ Maintenance/ Draining the
appliance".
OPERATION
1. General information
The chapter "Operation" is intended for appliance users and qual-
ified contractors.
The chapter "Installation" is intended for qualified contractors.
Note Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
KEYWORD Type of risk Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.

ENGLISH
www.stiebel-eltron.com EIL Plus | 5
OPERATION
General information
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns (burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
1.2 Other symbols in this documentation
Note Notes are bordered by horizontal lines above and below
the text. General information is identified by the adjacent
symbol.
 Read these texts carefully.
Symbol
Material losses (appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note Unless specified otherwise, all dimensions are given in
mm.
!

OPERATION
Safety
6| EIL Plus www.stiebel-eltron.com
2. Safety
2.1 Intended use
The appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in non-do-
mestic environments, e.g. in small businesses, as long as it is
used in the same way.
This appliance is designed to heat DHW. The appliance is designed
for one hand washbasin.
Any other use beyond that described shall be deemed inappro-
priate. Observation of these instructions and of the instructions
for any accessories used is also part of the correct use of this
appliance.
2.2 General safety instructions
DANGER Scalding During operation, the tap can reach temperatures in
excess of 50 °C. There is a risk of scalding at outlet tem-
peratures in excess of 43°C.
!WARNING Injury
The appliance may be used by children aged3 and older
and persons with reduced physical, sensory or mental
capabilities or a lack of experience and know-how, pro-
vided that they are supervised or they have been in-
structed on how to use the appliance safely and have
understood the potential risks. Children must never play
with the appliance. Cleaning and user maintenance must
not be carried out by children without supervision.
DANGER Electrocution Any damaged power cables must be replaced by a qual-
ified electrician. This prevents potential hazards from
arising.
!Material losses
Protect the appliance and tap against frost.
!Material losses
Only use the special aerator provided. Prevent scale
build-up at the tap outlets (see chapter "Cleaning, care
and maintenance").
2.3 Test symbols
See type plate on the appliance.

ENGLISH
www.stiebel-eltron.com EIL Plus | 7
OPERATION
Appliance description
3. Appliance description
The hydraulically controlled mini instantaneous water heater
heats the water directly at the draw-off point. The heating system
starts automatically when the tap is opened. The short pipe runs
ensure that energy and water losses are minimal.
The DHW output depends on the cold water temperature, the heat-
ing output and the flow rate.
The bare wire heating system is suitable for hard and soft water
areas. This heating system has a low susceptibility to scale build-
up. The heating system ensures quick and efficient DHW provision
at the hand washbasin.
Fitting the special aerator supplied provides an optimum water jet.
4. Settings
The appliance heating system switches on automatically as soon
as you open the DHW valve at the tap or activate the sensor of a
sensor tap. The water is heated. The water temperature can be
adjusted at the tap:
For the starting flow rate, see chapter "Specification/ Data table/
On".
Increasing the temperature
 Reduce the flow rate at the tap.
Reducing the temperature
 Open the tap further or add more cold water.
Following an interruption to the water supply
See chapter "Commissioning/ Recommissioning".
5. Cleaning, care and maintenance
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
 Check the taps regularly. Limescale deposits at the tap out-
lets can be removed using commercially available descaling
agents.
 Have the electrical safety of the appliance regularly checked
by a qualified contractor.
 Regularly descale or replace the special aerator (see chapter
"Appliance description/Accessories").

8| EIL Plus www.stiebel-eltron.com
OPERATION | INSTALLATION
Troubleshooting
6. Troubleshooting
Problem Cause Remedy
The appliance will not
start despite the DHW
valve being fully open.
No power at the appli-
ance. Check the fuse/MCB in your fuse box/distribu-
tion board.
The aerator in the tap is
scaled up or dirty. Clean and/or descale the aerator or replace the
special aerator.
The water supply has been interrupted. Vent the appliance and the cold water inlet line
(see chapter "Settings").
If you cannot remedy the fault, notify your qualified contractor.
To facilitate and speed up your request, provide the number from
the type plate (000000-0000-00000).
EIL . . .
Model: 000000 E no.:
F no.: 0000-00000
INSTALLATION
7. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
7.1 General safety instructions
We guarantee trouble-free function and operational reliability only
if original accessories and spare parts intended for the appliance
are used.
!Material losses
Observe the max. permissible inlet temperature. Higher
temperatures may damage the appliance. You can limit
the inlet temperature by installing a central thermostatic
valve.

ENGLISH
www.stiebel-eltron.com EIL Plus | 9
INSTALLATION
Appliance description
7.2 Instructions, standards and regulations
Note Observe all applicable national and regional regulations
and instructions.
The specific electrical resistance of the water used must not fall
below that stated on the type plate. In a linked water network,
factor in the lowest electrical resistance of the water (see chapter
"Specification/ Data table"). Your water supply utility will advise
you of the electrical resistivity or conductivity of the water in your
area.
8. Appliance description
8.1 Standard delivery
The following are delivered with the appliance:
-Sieve inside the cold water inlet
-Special aerator
-Connection hose 3/8, 500mm long, with gaskets*
-Tee 3/8*
*for the connection as pressure-tested appliance
8.2 Accessories
Special aerator
Note Fitting the special aerator supplied provides an optimum
water jet.
Taps/valves
 Use suitable taps.
Pressure-tested taps
Suitable pressure-tested taps are available from specialist trade
shops.
Non-pressurised taps
- MAW (OT) - Non-pressurised wall mounted tap
- MAZ (UT) - Non-pressurised twin lever basin tap
- MAE (UTE) - Non-pressurised mono lever basin tap

INSTALLATION
Preparation
10 | EIL Plus www.stiebel-eltron.com
9. Preparation
 Flush the water line thoroughly.
Water installation
No safety valve is required.
10. Installation
10.1 Installation site
Install the appliance in a room free from the risk of frost and near
the draw-off tap.
Ensure that the lateral fixing screws for the cover are always ac-
cessible.
The appliance is only suitable for undersink installation (water
connections at the top).
DANGER Electrocution Protection rating IP 25 is only ensured if the appliance
back panel is fitted.
 Always fit the appliance back panel.
10.2 Installation options
Undersink installation, pressure-tested, with pressure-tested
tap
26�02�05�0041

ENGLISH
www.stiebel-eltron.com EIL Plus | 11
INSTALLATION
Installation

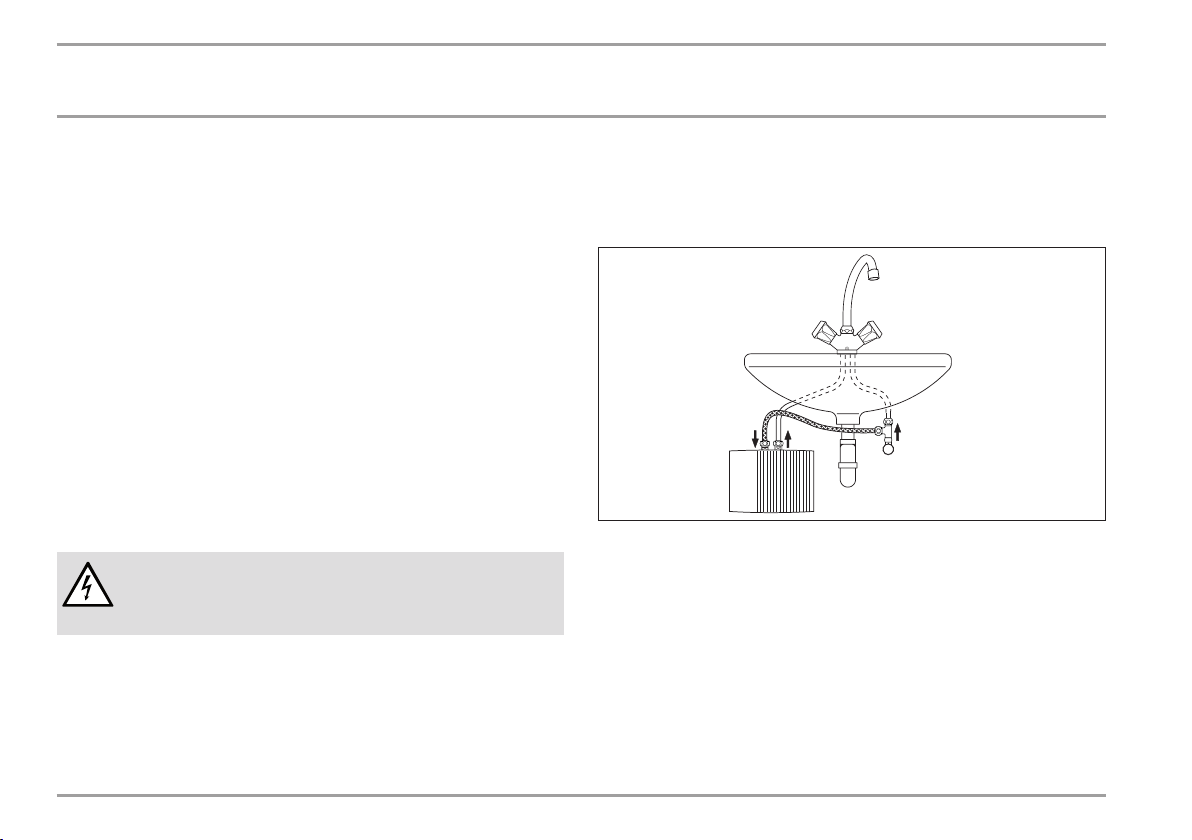

Undersink installation, non-pressurised, with non-pressurised
tap
26�02�05�0086
10.2.1 Appliance installation
 Mount the appliance on the wall.
Note The wall must have sufficient load bearing capacity.



26�02�05�0042
 Undo the cover fixing screws by two turns.
 Undo the snap fastener using a screwdriver.
 Remove the appliance cover with the heater towards the
front.
 Using pliers, break out the knock-out for the power cable
in the appliance cover. Correct the contours with a file if
necessary.

INSTALLATION
Installation
12 | EIL Plus www.stiebel-eltron.com
26�02�05�0084

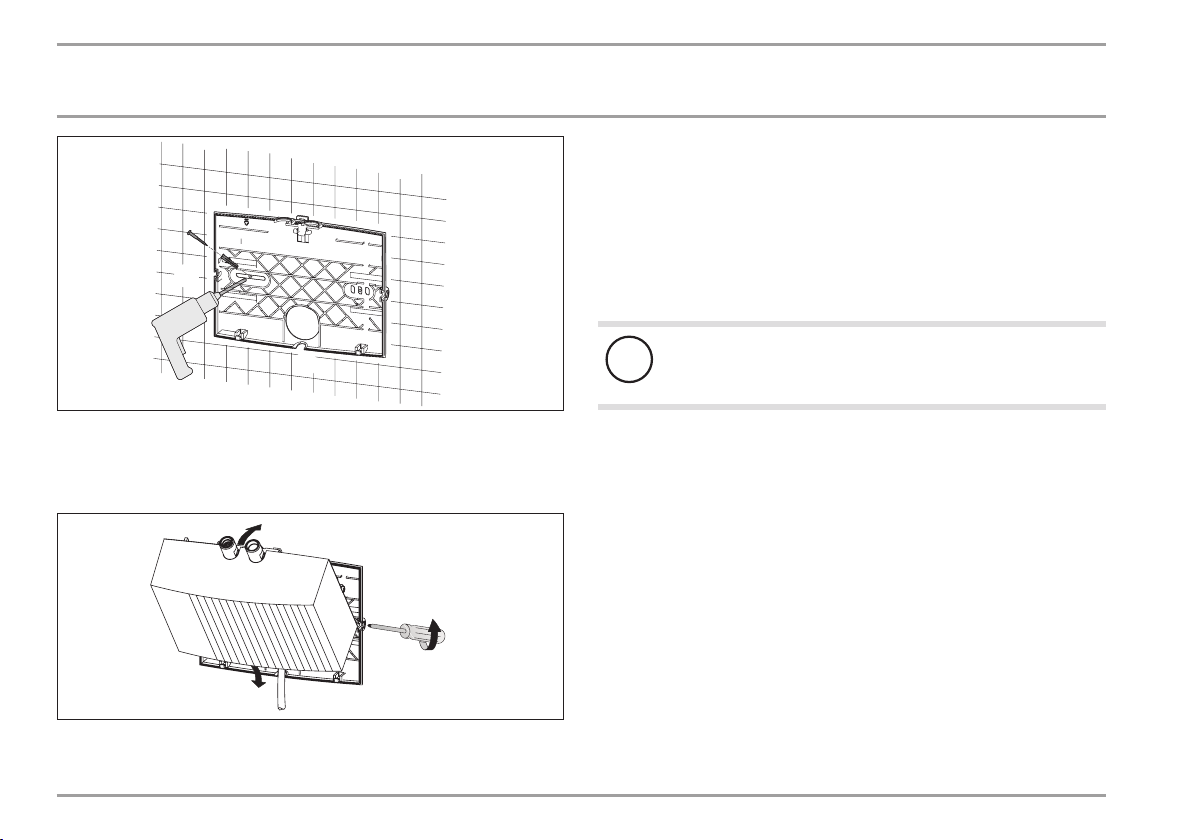

 Use the appliance back panel as a drilling template.
 Secure the appliance back panel to the wall with suitable
rawl plugs and screws.



26�02�05�0085
 Route the power cable through the cable entry in the back
panel.
 Hook in the appliance cover with the heater at the bottom.
 Click the heater into place using the snap fastener.
 Secure the appliance cover with the cover fixing screws.
10.2.2 Tap installation
!Material losses
When making the connections, counter the torque on the
appliance using a size 14 spanner.
Pressurised connection
 Fit the 3/8 connection hose and the 3/8 tee provided.
 Install the tap. For this, also observe the tap operating and
installation instructions.
Non-pressurised connection
 Install the tap. For this, also observe the tap operating and
installation instructions.

ENGLISH
www.stiebel-eltron.com EIL Plus | 13
INSTALLATION
Commissioning
10.3 Making the electrical connection
DANGER Electrocution Carry out all electrical connection and installation work
in accordance with relevant regulations.
DANGER Electrocution Ensure that the appliance is earthed.
Ensure the appliance can be separated from the power
supply by an isolator that disconnects all poles with at
least 3mm contact separation.
DANGER Electrocution The appliances are delivered with a power cable
(EIL3Plus with plug).
Connection to a permanent power supply is possible,
provided the fixed cable has a cross-section that is at
least equal to that of the standard power cable of the
appliance. A maximum cross-section of 3x6mm² may
be used.
!Material losses
When making the connection to a standard safety socket
(in the case of a power cable with plug), ensure that the
socket is freely accessible after the appliance has been
installed.
!Material losses
Observe the type plate. The specified voltage must match
the mains voltage.
 Connect the power cable as shown in the wiring diagram
(see chapter "Specification/ Wiring diagram").
11. Commissioning
11.1 Initial start-up
26�02�05�0087
 Fill the appliance by running the tap several times until the
pipework and appliance are free of air.
 Carry out a tightness check.
 Insert the power cable plug, if present, into the standard
safety socket or set the fuse/MCB.
 Check the appliance function.

INSTALLATION
Appliance shutdown
14 | EIL Plus www.stiebel-eltron.com
11.2 Appliance handover
 Explain the appliance function to users and familiarise them
with how it works.
 Make the user aware of potential dangers, especially the risk
of scalding.
 Hand over these instructions.
11.3 Recommissioning
!Material losses
Following an interruption of the water supply, recommis-
sion the appliance by carrying out the following steps,
in order to prevent irreparable damage to the bare wire
heating system.
 Isolate the appliance from the power supply. Pull the power
cable plug, if present, from the socket, or remove the fuse/
reset the MCB.
 See chapter "Initial start-up".
12. Appliance shutdown
 Isolate the appliance from the power supply by means of the
fuse/MCB in your fuse box or by pulling the power cable plug
from the socket.
 Drain the appliance (see chapter "Maintenance").
13. Troubleshooting
Problem Cause Remedy
The appliance will not
start despite the DHW
valve being fully open.
The aerator in the tap is
scaled up or dirty. Clean and/or descale the aerator or replace the
special aerator.
The sieve in the cold
water line is blocked. Clean the sieve after shutting off the cold
water inlet line.
The heating system is
faulty.
Check the resistance of
the heating system and
replace the appliance if
required.
The safety pressure limit-
er has responded.
Remedy the cause of
the fault. Isolate the ap-
pliance from the power
supply and depressurise
the water line. Activate
the safety pressure
limiter.

ENGLISH
www.stiebel-eltron.com EIL Plus | 15
INSTALLATION
Maintenance
Activating the safety pressure limiter
1
2
D0000039769
1 1-pole safety pressure limiter EIL4Plus / EIL6Plus
2 2-pole safety pressure limiter EIL3Plus / EIL7Plus
14. Maintenance
DANGER Electrocution Before any work on the appliance, disconnect all poles
from the power supply.
14.1 Draining the appliance
DANGER Scalding Hot water may escape during draining.
If the appliance needs to be drained for maintenance or to protect
the whole installation when there is a risk of frost, proceed as
follows:
 Close the shut-off valve in the cold water inlet line.
 Open the draw-off valve.
 Undo the water connections on the appliance.

INSTALLATION
Maintenance
16 | EIL Plus www.stiebel-eltron.com
14.2 Clean strainer

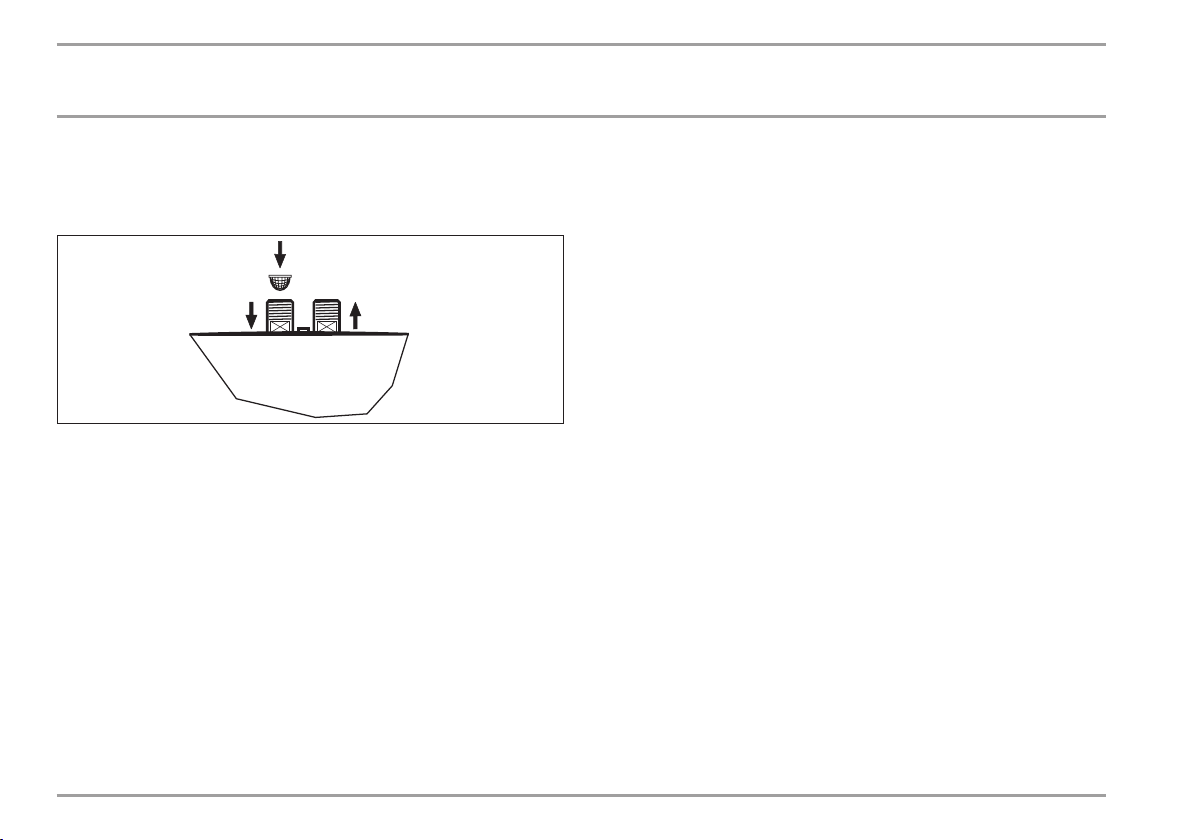

You can clean the fitted strainer after removing the cold water
supply pipe.
26�02�05�0065�
14.3 Tests in accordance with VDE0701/0702
Earth conductor check
 Check the earth conductor (in Germany e.g. DGUV A3) on the
earth conductor contact of the power cable and on the appli-
ance connector.
Insulation resistance
 If an appliance with a rated heating output of >3.5kW does
not achieve an insulation resistance of 300kΩ, we recom-
mend that the insulating properties of the appliance are
checked by conducting a differential current test of the earth
conductor current/leakage current to VDE0701/0702 (Fig.
C.3b).
14.4 Appliance storage
 Store the dismantled appliance free from the risk of frost, as
water residues remaining inside the appliance can freeze and
cause damage.
14.5 Replacing the power cable for the EIL6Plus
 If replacing the cable for the EIL6Plus, use a power cable
with 4mm² cross-section

ENGLISH
www.stiebel-eltron.com EIL Plus | 17
INSTALLATION

15. Specification

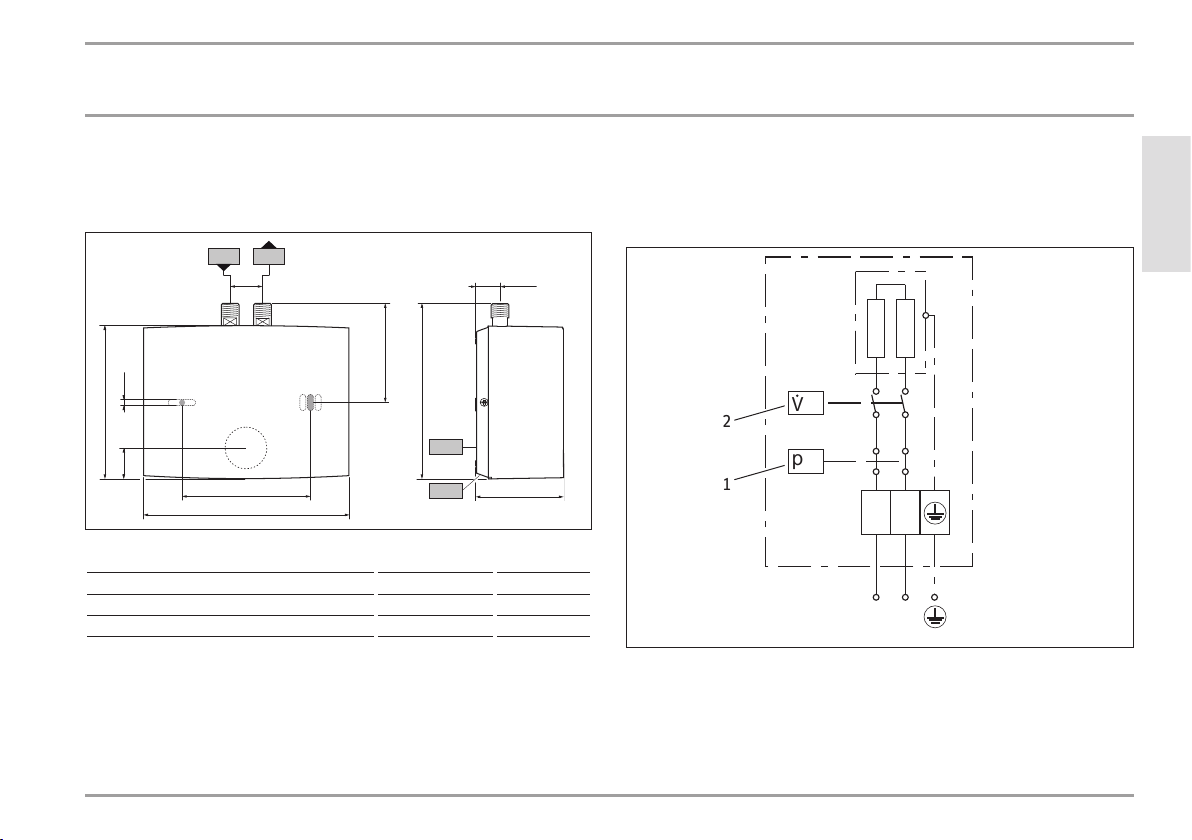

15.1 Dimensions
95
28
30
120
143
190
4,8
165
82
20
b02
b03
c06
c01
D0000018336
b02 Entry for electrical cables I
b03 Entry electrical cables II
c01 Cold water inlet Male thread G 3/8 A
c06 DHW outlet Male thread G 3/8 A
15.2 Wiring diagram
15.2.1 EIL3Plus
1/N/PE ~ 200-240 V
V >
p>
L N
L N
D0000035307
1
2
1 Safety pressure limiter
2 Pressure differential switch

INSTALLATION

18 | EIL Plus www.stiebel-eltron.com
15.2.2 EIL4Plus | EIL6Plus
1/N/PE ~ 200-240 V
V >
p>
L N
L N
D0000040409
1
2
1 Safety pressure limiter
2 Pressure differential switch
!Material losses
 In the case of a permanent power supply, connect
the power cable according to the designations on
the socket terminals.
15.2.3 EIL7Plus
2/PE ~ 380-415 V
V >
p >
L L
L L
D0000029688
1
2
1 Safety pressure limiter
2 Pressure differential switch

ENGLISH
www.stiebel-eltron.com EIL Plus | 19
INSTALLATION

15.3 Temperature increase
At 230V / 400V, the following water temperature increases occur:
15,0
20,0
25,0
30,0
35,0
40,0
45,0
50,0
55,0
1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5
1
2
3
4
D0000082719
X Flow rate in l/min
Y Temperature increase in K
1 3.5kW - 230 V
2 4.4kW - 230 V
3 5.7kW - 230 V
4 6.5kW - 400 V

Flow rate l/min 2.0
Temperature increase K25
Cold water supply temperature °C 12
Maximum possible outlet temperature °C 37
15.4 Application areas
For the specific electrical resistance and specific electrical
conductivity, see "Data table".
Standard specifica-
  
Spec.
Resis-
tivity
ρ ≥
Spec. Conductiv-
ity σ≤
Spec.
Resis-
tivity
ρ ≥
Spec. Conductiv-
ity σ≤
Spec.
Resis-
tivity
ρ ≥
Spec. Conductiv-
ity σ≤
Ωcm mS/m μS/cm Ωcm mS/m μS/cm Ωcm mS/m μS/cm
1100 91 909 970 103 1031 895 112 1117

INSTALLATION

20 | EIL Plus www.stiebel-eltron.com
15.5 Energy consumption data
Product datasheet: Conventional water heaters to regulation (EU) no. 812/2013 | 814/2013
EIL 3 Plus EIL 4 Plus EIL 6 PLus EIL 7 Plus
200138 200139 200140 200141
Manufacturer STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON
Load profile XXS XXS XXS XS
Energy efficiency class A A A A
Energy conversion efficiency %39 38 39 40
Annual power consumption kWh 478 478 478 466
Sound power level dB(A) 15 15 15 15
Special information on measuring efficiency None None None None
Daily power consumption kWh 2.200 2.200 2.200 2.130
