STIEBEL ELTRON EIL 3 Trend Instruction Manual

Hydraulically controlled mini instantaneous water heater| Mini chauffe-eau instantané
à gestion hydraulique | Hydraulisch gestuurde mini-doorstromer | Hydraulicky řízený
průtokový mini ohřívač | Hydraulicky riadený mini prietokový ohrievač | Hydraulicznie
sterowany mini przepływowy ogrzewacz wody | Mini-încălzitor instant controlat hidraulic |
Hidraulički upravljani mali protočni grijač | Малогабаритный проточный нагреватель с
гидравлическим управлением
» EIL 3 Trend
» EIL 4 Trend
» EIL 6 Trend
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
OBSLUHA A INSTALACE
OBSLUHA A INŠTALÁCIA
OBSŁUGA I INSTALACJA
OPERARE ȘI INSTALARE
RUKOVANJE I INSTALACIJA
ЭКСПЛУАТАЦИЯ И УСТАНОВКА

2| EIL Trend www.stiebel-eltron.com
CONTENTS
SPECIAL INFORMATION
OPERATION
1. General information ������������������������������������������������ 4
1.1 Safety instructions �������������������������������������������������������4
1.2 Other symbols in this documentation��������������������������������5
1.3 Units of measurement���������������������������������������������������5
2. Safety����������������������������������������������������������������� 6
2.1 Intended use���������������������������������������������������������������6
2.2 General safety instructions���������������������������������������������6
2.3 Test symbols���������������������������������������������������������������7
3. Appliance description ���������������������������������������������� 7
4. Settings �������������������������������������������������������������� 7
5. Cleaning, care and maintenance ���������������������������������� 8
6. Troubleshooting����������������������������������������������������� 8
INSTALLATION
7. Safety����������������������������������������������������������������� 9
7.1 General safety instructions���������������������������������������������9
7.2 Instructions, standards and regulations�����������������������������9
8. Appliance description ���������������������������������������������� 9
8.1 Standard delivery���������������������������������������������������������9
8.2 Accessories �������������������������������������������������������������� 10
9. Preparation ���������������������������������������������������������10
10. Installation����������������������������������������������������������10
10.1 Installation site���������������������������������������������������������� 10
10.2 Installation options ���������������������������������������������������� 11
10.3 Making the electrical connection ����������������������������������� 13
11. Commissioning �����������������������������������������������������14
11.1 Initial start-up����������������������������������������������������������� 14
11.2 Appliance handover���������������������������������������������������� 14
11.3 Recommissioning������������������������������������������������������� 14
12. Appliance shutdown�����������������������������������������������15
13. Troubleshooting����������������������������������������������������15
14. Maintenance��������������������������������������������������������15
14.1 Draining the appliance ������������������������������������������������ 15
14.2 Clean strainer ����������������������������������������������������������� 16
14.3 Tests in accordance with VDE0701/0702 �������������������������� 16
14.4 Appliance storage ������������������������������������������������������ 16
14.5 Replacing the power cable for the EIL6Trend ������������������� 16
15. Specification ��������������������������������������������������������17

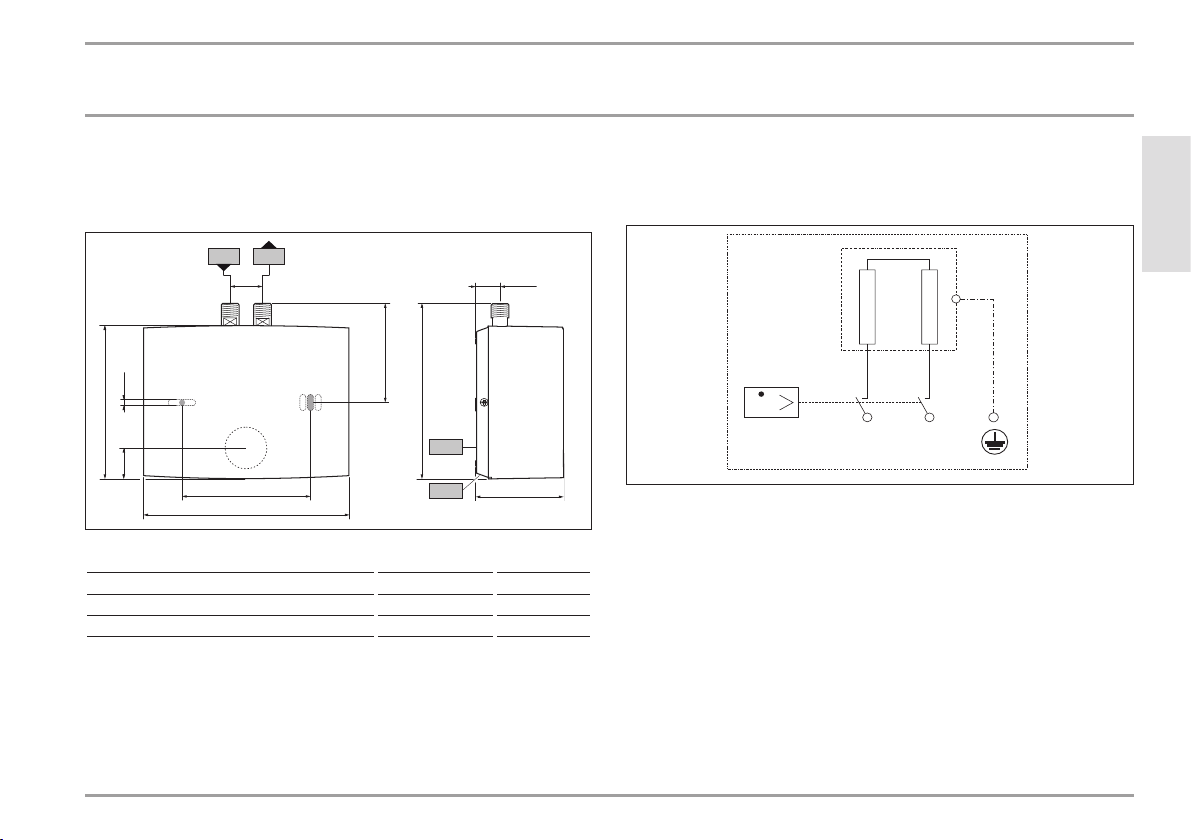

15.1 Dimensions �������������������������������������������������������������� 17
15.2 Wiring diagram ��������������������������������������������������������� 17
15.3 Temperature increase ������������������������������������������������� 18
15.4 Application areas������������������������������������������������������� 18
15.5 Energy consumption data �������������������������������������������� 19
15.6 Data table ���������������������������������������������������������������� 19
GUARANTEE
ENVIRONMENT AND RECYCLING

ENGLISH
www.stiebel-eltron.com EIL Trend | 3
SPECIAL INFORMATION
SPECIAL INFORMATION
- The appliance may be used by children aged3
and older and persons with reduced physical,
sensory or mental capabilities or a lack of ex-
perience and know-how, provided that they
are supervised or they have been instructed
on how to use the appliance safely and have
understood the potential risks. Children must
never play with the appliance. Cleaning and
user maintenance must not be carried out by
children without supervision.
- During operation, the tap can reach temper-
atures in excess of 50 °C. There is a risk of
scalding at outlet temperatures in excess of
43°C.
- The appliance is not suitable for supplying a
shower (shower operation).
- Ensure the appliance can be separated from
the power supply by an isolator that discon-
nects all poles with at least 3mm contact
separation.
- The specified voltage must match the mains
voltage.
- The appliance must be permanently connect-
ed to fixed wiring, exception EIL3Trend.
- The power cable must only be replaced (for
example if damaged) by a qualified contrac-
tor authorised by the manufacturer, using an
original spare part.
- Secure the appliance as described in chapter
"Installation/ Installation".
- Observe the maximum permissible pressure
(see chapter "Specification/ Data table").

OPERATION
General information
4| EIL Trend www.stiebel-eltron.com
- The specific water resistivity of the mains
water supply must not be undershot (see
chapter "Installation/ Specification/ Data
table").
- Drain the appliance as described in chapter
"Installation/ Maintenance/ Draining the
appliance".
OPERATION
1. General information
The chapter "Operation" is intended for appliance users and qual-
ified contractors.
The chapter "Installation" is intended for qualified contractors.
Note Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
KEYWORD Type of risk Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.

ENGLISH
www.stiebel-eltron.com EIL Trend | 5
OPERATION
General information
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns (burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
1.2 Other symbols in this documentation
Note Notes are bordered by horizontal lines above and below
the text. General information is identified by the adjacent
symbol.
 Read these texts carefully.
Symbol
Material losses (appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note Unless specified otherwise, all dimensions are given in
mm.
!

OPERATION
Safety
6| EIL Trend www.stiebel-eltron.com
2. Safety
2.1 Intended use
The appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in non-do-
mestic environments, e.g. in small businesses, as long as it is
used in the same way.
This appliance is designed to heat DHW. The appliance is designed
for one hand washbasin.
Any other use beyond that described shall be deemed inappro-
priate. Observation of these instructions and of the instructions
for any accessories used is also part of the correct use of this
appliance.
2.2 General safety instructions
DANGER Scalding During operation, the tap can reach temperatures in
excess of 50 °C. There is a risk of scalding at outlet tem-
peratures in excess of 43°C.
!WARNING Injury
The appliance may be used by children aged3 and older
and persons with reduced physical, sensory or mental
capabilities or a lack of experience and know-how, pro-
vided that they are supervised or they have been in-
structed on how to use the appliance safely and have
understood the potential risks. Children must never play
with the appliance. Cleaning and user maintenance must
not be carried out by children without supervision.
DANGER Electrocution Any damaged power cables must be replaced by a qual-
ified electrician. This prevents potential hazards from
arising.
!Material losses
Protect the appliance and tap against frost.

ENGLISH
www.stiebel-eltron.com EIL Trend | 7
OPERATION
Appliance description
!Material losses
Ensure that the non-pressurised appliance is not exposed
to any pressure as this could cause irreparable damage:
 Only use the special aerator provided.
 Never use aerators or hoses with aerators.
 Never seal the tap outlets.
 Prevent scale build-up at the tap outlets (see chapter
"Cleaning, care and maintenance").
2.3 Test symbols
See type plate on the appliance.
3. Appliance description
The hydraulically controlled, non-pressurised mini instantaneous
water heater heats the water directly at the draw-off point. The
heating system starts automatically when the tap is opened. The
short pipe runs ensure that energy and water losses are minimal.
The DHW output depends on the cold water temperature, the heat-
ing output and the flow rate.
The bare wire heating system is suitable for hard and soft water
areas. This heating system has a low susceptibility to scale build-
up. The heating system ensures quick and efficient DHW provision
at the hand washbasin.
Fitting the special aerator supplied provides an optimum water jet.
4. Settings
The appliance heating system switches on automatically as soon
as you open the DHW valve at the tap or activate the sensor of a
sensor tap. The water is heated. The water temperature can be
adjusted at the tap:
For the starting flow rate, see chapter "Specification/ Data table/
On".
Increasing the temperature
 Reduce the flow rate at the tap.
Reducing the temperature
 Open the tap further or add more cold water.
Following an interruption to the water supply
See chapter "Commissioning/ Recommissioning".

OPERATION
Cleaning, care and maintenance
8| EIL Trend www.stiebel-eltron.com
5. Cleaning, care and maintenance
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
!Material losses
Scale build-up at the tap outlets can put the appliance
under pressure and may cause irreparable damage.
 Check the taps regularly. Limescale deposits at the tap out-
lets can be removed using commercially available descaling
agents.
 Have the electrical safety of the appliance regularly checked
by a qualified contractor.
 Regularly descale or replace the special aerator (see chapter
"Appliance description/Accessories").
6. Troubleshooting
Problem Cause Remedy
The appliance will not
start despite the DHW
valve being fully open.
No power at the appli-
ance. Check the fuse/MCB in your fuse box/distribu-
tion board.
The aerator in the tap is
scaled up or dirty. Clean and/or descale the aerator or replace the
special aerator.
The water supply has been interrupted. Vent the appliance and the cold water inlet line
(see chapter "Settings").
If you cannot remedy the fault, notify your qualified contractor.
To facilitate and speed up your request, provide the number from
the type plate (000000-0000-00000).
EIL . . .
Model: 000000 E no.:
F no.: 0000-00000

ENGLISH
www.stiebel-eltron.com EIL Trend | 9
INSTALLATION
Safety
INSTALLATION
7. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
7.1 General safety instructions
We guarantee trouble-free function and operational reliability only
if original accessories and spare parts intended for the appliance
are used.
!Material losses
Observe the max. permissible inlet temperature. Higher
temperatures may damage the appliance. You can limit
the inlet temperature by installing a central thermostatic
valve.
!Material losses
Only operate the appliance with non-pressurised taps.
7.2 Instructions, standards and regulations
Note Observe all applicable national and regional regulations
and instructions.
The specific electrical resistance of the water used must not fall
below that stated on the type plate. In a linked water network,
factor in the lowest electrical resistance of the water (see chapter
"Specification/ Data table"). Your water supply utility will advise
you of the electrical resistivity or conductivity of the water in your
area.
8. Appliance description
8.1 Standard delivery
The following are delivered with the appliance:
- Sieve inside the cold water inlet
- Special aerator
- Company logo for oversink installation

INSTALLATION
Preparation
10 | EIL Trend www.stiebel-eltron.com
8.2 Accessories
Special aerator
Note Fitting the special aerator supplied provides an optimum
water jet.
Non-pressurised taps
- MAW (OT) Wall mounted tap for oversink installation
- MAZ (UT) Twin lever basin tap
- MAE (UTE) Mono lever basin tap
9. Preparation
 Flush the water line thoroughly.
Water installation
No safety valve is required.
Taps/valves
 Use suitable taps (see chapter "Appliance description/
Accessories").
10. Installation
10.1 Installation site
Install the appliance in a room free from the risk of frost and near
the draw-off tap.
Ensure that the lateral fixing screws for the cover are always ac-
cessible.
The appliance is suitable for undersink installation (water con-
nections at the top) and oversink installation (water connections
at the bottom).
DANGER Electrocution Protection rating IP 25 is only ensured if the appliance
back panel is fitted.
 Always fit the appliance back panel.

ENGLISH
www.stiebel-eltron.com EIL Trend | 11
INSTALLATION
Installation
10.2 Installation options
10.2.1 Undersink installation, non-pressurised, with non-
pressurised tap
26�02�05�0035
10.2.2 Appliance installation
 Mount the appliance on the wall.
Note The wall must have sufficient load bearing capacity.



26�02�05�0042
 Undo the cover fixing screws by two turns.
 Undo the snap fastener using a screwdriver.
 Remove the appliance cover with the heater towards the
front.

INSTALLATION
Installation
12 | EIL Trend www.stiebel-eltron.com
 Using pliers, break out the knock-out for the power cable
in the appliance cover. Correct the contours with a file if
necessary.
26�02�05�0084
 Use the appliance back panel as a drilling template.
 Secure the appliance back panel to the wall with suitable
rawl plugs and screws.



26�02�05�0085
 Route the power cable through the cable entry in the back
panel.
 Hook in the appliance cover with the heater at the bottom.
 Click the heater into place using the snap fastener.
 Secure the appliance cover with the cover fixing screws.
Tap installation
!Material losses
When making the connections, counter the torque on the
appliance using a size 14 spanner.
 Install the tap. For this, also observe the tap operating and
installation instructions.

ENGLISH
www.stiebel-eltron.com EIL Trend | 13
INSTALLATION
Installation
10.2.3 Oversink installation, non-pressurised, with non-
pressurised tap
26�02�05�0033
Tap installation
 Install the tap. For this, also observe the tap operating and
installation instructions.
!Material losses
 When making the connections, counter the torque
on the appliance using a size 14 spanner; see chap-
ter "Installation alternatives/ Undersink installa-
tion".
Appliance installation
 Fit the appliance to the tap with the water connections.
10.3 Making the electrical connection
DANGER Electrocution Carry out all electrical connection and installation work
in accordance with relevant regulations.
DANGER Electrocution Ensure that the appliance is earthed.
Ensure the appliance can be separated from the power
supply by an isolator that disconnects all poles with at
least 3mm contact separation.
DANGER Electrocution The appliances are delivered with a power cable
(EIL3Trend with plug).
Connection to a permanent power supply is possible,
provided the fixed cable has a cross-section that is at
least equal to that of the standard power cable of the
appliance. A maximum cross-section of 3x6mm² may
be used.
 If the appliance is installed over the sink, route the
power cable behind the appliance.

INSTALLATION
Commissioning
14 | EIL Trend www.stiebel-eltron.com
!Material losses
When making the connection to a standard safety socket
(in the case of a power cable with plug), ensure that the
socket is freely accessible after the appliance has been
installed.
!Material losses
Observe the type plate. The specified voltage must match
the mains voltage.
 Connect the power cable as shown in the wiring diagram
(see chapter "Specification/ Wiring diagram").
11. Commissioning
11.1 Initial start-up
26�02�05�0087
 Fill the appliance by running the tap several times until the
pipework and appliance are free of air.
 Carry out a tightness check.
 Insert the power cable plug, if present, into the standard
safety socket or set the fuse/MCB.
 Check the appliance function.
 In the case of oversink installation, affix the company logo
supplied over the existing company logo.
11.2 Appliance handover
 Explain the appliance function to users and familiarise them
with how it works.
 Make the user aware of potential dangers, especially the risk
of scalding.
 Hand over these instructions.
11.3 Recommissioning
!Material losses
Following an interruption of the water supply, recommis-
sion the appliance by carrying out the following steps,
in order to prevent irreparable damage to the bare wire
heating system.
 Isolate the appliance from the power supply. Pull the power
cable plug, if present, from the socket, or remove the fuse/
reset the MCB.
 See chapter "Initial start-up".

ENGLISH
www.stiebel-eltron.com EIL Trend | 15
INSTALLATION
Appliance shutdown
12. Appliance shutdown
 Isolate the appliance from the power supply by means of the
fuse/MCB in your fuse box or by pulling the power cable plug
from the socket.
 Drain the appliance (see chapter "Maintenance").
13. Troubleshooting
Problem Cause Remedy
The appliance will not
start despite the DHW
valve being fully open.
The aerator in the tap is
scaled up or dirty. Clean and/or descale the aerator or replace the spe-
cial aerator.
The sieve in the cold water
line is blocked. Clean the sieve after shutting off the cold water
inlet line.
The heating system is
faulty.
Check the resistance of
the heating system and
replace the appliance if
required.
14. Maintenance
DANGER Electrocution Before any work on the appliance, disconnect all poles
from the power supply.
14.1 Draining the appliance
DANGER Scalding Hot water may escape during draining.
If the appliance needs to be drained for maintenance or to protect
the whole installation when there is a risk of frost, proceed as
follows:
 Close the shut-off valve in the cold water inlet line.
 Open the draw-off valve.
 Undo the water connections on the appliance.

INSTALLATION
Maintenance
16 | EIL Trend www.stiebel-eltron.com
14.2 Clean strainer
You can clean the fitted strainer after removing the cold water
supply pipe.
26�02�05�0065�
14.3 Tests in accordance with VDE0701/0702
Earth conductor check
 Check the earth conductor (in Germany e.g. DGUV A3) on the
earth conductor contact of the power cable and on the appli-
ance connector.
Insulation resistance
 If an appliance with a rated heating output of >3.5kW does
not achieve an insulation resistance of 300kΩ, we recom-
mend that the insulating properties of the appliance are
checked by conducting a differential current test of the earth
conductor current/leakage current to VDE0701/0702 (Fig.
C.3b).
14.4 Appliance storage
 Store the dismantled appliance free from the risk of frost, as
water residues remaining inside the appliance can freeze and
cause damage.
14.5 Replacing the power cable for the EIL6Trend
 If replacing the cable for the EIL6Trend, use a power cable
with 4mm² cross-section.

ENGLISH
www.stiebel-eltron.com EIL Trend | 17
INSTALLATION

15. Specification
15.1 Dimensions
95
28
30
120
143
190
4,8
165
82
20
b02
b03
c06
c01
D0000018336
b02 Entry for electrical cables I
b03 Entry electrical cables II
c01 Cold water inlet Male thread G 3/8 A
c06 DHW outlet Male thread G 3/8 A
15.2 Wiring diagram
1/N/PE ~ 200-240 V
L N
V
85�02�05�0002

INSTALLATION

18 | EIL Trend www.stiebel-eltron.com
15.3 Temperature increase
At 230V, the following water temperature increases result:
15,0
25,0
35,0
45,0
55,0
65,0
0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5
1
2
3
D0000082719
X Flow rate in l/min
Y Temperature increase in K
1 3.5kW - 230 V
2 4.4kW - 230 V
3 5.7kW - 230 V

Flow rate l/min 1.6
Temperature increase K31
Cold water supply temperature °C 12
Maximum possible outlet temperature °C 43
15.4 Application areas
For the specific electrical resistance and specific electrical
conductivity, see "Data table".
Standard specifica-
  
Spec.
Resis-
tivity
ρ ≥
Spec. Conductiv-
ity σ≤
Spec.
Resis-
tivity
ρ ≥
Spec. Conductiv-
ity σ≤
Spec.
Resis-
tivity
ρ ≥
Spec. Conductiv-
ity σ≤
Ωcm mS/m μS/cm Ωcm mS/m μS/cm Ωcm mS/m μS/cm
1100 91 909 970 103 1031 895 112 1117

ENGLISH
www.stiebel-eltron.com EIL Trend | 19
INSTALLATION

15.5 Energy consumption data
Product datasheet: Conventional water heaters to regulation (EU) no. 812/2013 | 814/2013
EIL 4 Trend EIL 6 Trend
200143 200144
Manufacturer STIEBEL ELTRON STIEBEL ELTRON
Load profile XXS XXS
Energy efficiency class A A
Energy conversion efficiency %38 39
Annual power consumption kWh 478 478
Sound power level dB(A) 15 15
Special information on measuring efficiency None None
Daily power consumption kWh 2.200 2.200
15.6 Data table
EIL 3 Trend EIL 4 Trend EIL 6 Trend
200142 200143 200144
Electrical data
Rated voltage V200 220 230 240 200 220 230 240 200 220 230 240
Rated output kW 2.7 3.2 3.53 3.8 3.3 4.0 4.4 4.8 4.3 5.2 5.7 6.2
Rated current A13.3 14.5 15.2 15.8 16.7 18.2 19.1 20 21.6 23.6 24.7 25.8
Fuse protection A16 20 25 25 25 32
Frequency Hz 50/60 50/60 50/60
Phases 1/N/PE 1/N/PE 1/N/PE
Max. mains impedance at 50Hz Ω 0.394 0.377 0.361
Specific resistance ρ15 ≥ Ω cm 1100 1100 1100
Specific conductivity σ15 ≤ μS/cm 909 909 909

INSTALLATION

20 | EIL Trend www.stiebel-eltron.com
EIL 3 Trend EIL 4 Trend EIL 6 Trend
Connections
Water connection G 3/8 A G 3/8 A G 3/8 A
Application limits
Max. permissible pressure MPa 000
Values
Max. permissible inlet temperature °C 15 15 35
On l/min > 1.0 > 1.3 > 2.6
Pressure drop at flow rate MPa 0.06 0.07 0.08
Flow rate for pressure drop l/min 1.0 1.3 2.6
Flow rate limit at l/min 1.6 2.0 4.3
DHW delivery l/min 1.6 2.0 2.6
Δϑon delivery K31 31 31
Hydraulic data
Nominal capacity l 0.1 0.1 0.1
Versions
Oversink installation X X X
Undersink installation X X X
Open vented type X X X
Protection class 1 1 1
Insulating block Plastic Plastic Plastic
Heating system heat generator Bare wire Bare wire Bare wire
Cover and back panel Plastic Plastic Plastic
Colour White White White
IP rating IP25 IP25 IP25
Dimensions
Height mm 143 143 143
Width mm 190 190 190
Depth mm 82 82 82
Length of connecting cable mm 700 700 700
