Stihl MF-MM User manual

Instruction Manual
Notice d’emploi
STIH)
STIHL MF-MM
BA_U1_82_01.fm Seite 0 Dienstag, 27. Januar 2004 11:02 11

1MF-MM
English
BA_SE_152_004_01_03.fmPrinted on chlorine-free paper.
Printing inks contain vegetable oils; paper can be recycled.
© ANDREAS STIHL AG & Co. KG, 2006 0458 483 8221. M0,25. E6. PM. Printed in USA
STIHl
Contents
MultiSystem ...................................... 2
Guide to Using this Manual .............. 2
Safety Precautions and
Working Techniques ......................... 3
Approved MultiEngines .................. 12
Mounting the MultiTool ................... 13
Starting / Stopping the Engine ........ 16
Replacing Spring Tines ................... 16
Main Parts ...................................... 17
Specifications ................................. 18
Special Accessories ....................... 18
Maintenance and Repairs ............... 18
Ensure that your power tool combination
is only used by persons who have read
the owner's manuals for the MultiEngine
and the related MM-attachments.
The maintenance and safety
instructions from page 3 onwards must
be read and understood before using the
power tool in order to obtain maximum
performance and satisfaction from your
STIHL MultiTool.
Consult your STIHL dealer or the STIHL
wholesaler responsible for your area if
you do not understand any of the
instructions in this manual.
!Important!
A number of special safety precautions
must be observed in order to reduce the
risk of injury due to the high-speed tool
used in this power tool. Negligence or
incorrect use can cause serious or even
fatal injuries.
It is the philosophy of STIHL constantly
to improve all our products. Design
changes and improvements are
therefore regularly implemented.
Please contact your STIHL dealer for
information and advice if the operating
properties or appearance of your
attachment differ from those described
in this manual.

2
English
MF-MM

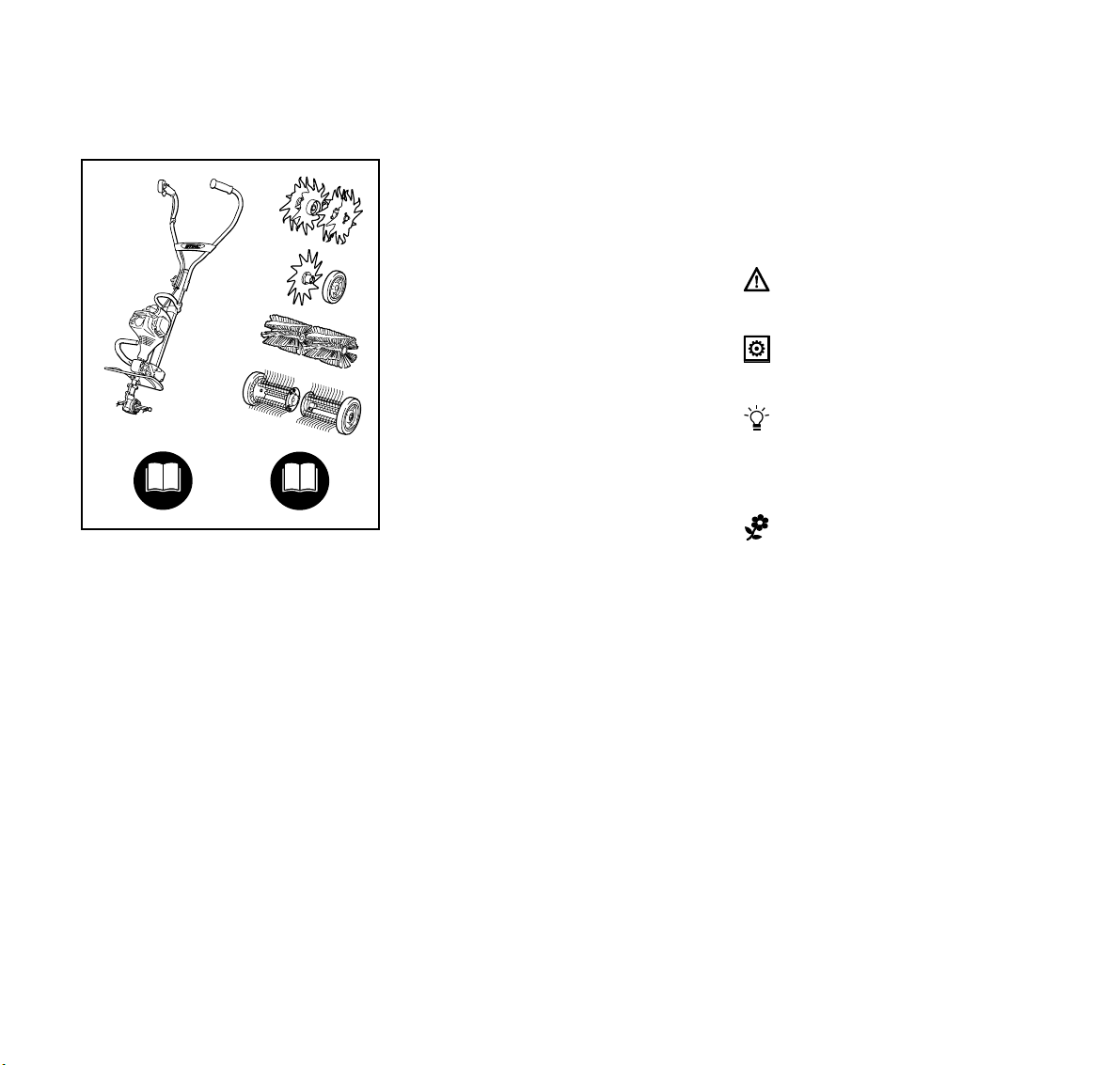

In the STIHL MultiSystem the
MultiEngine can be combined with a
number of different MultiTools to
produce a power tool. In this instruction
manual the functional unit formed by the
MultiEngine and MultiTool is referred to
as the power tool.
The MultiEngine and MultiTool come
with separate instruction manuals.
Always read and make sure you
understand both instruction manuals
before starting and using your machine.
Keep the manuals in a safe place for
later reference.
Pictograms
All the pictograms attached to the
machine are shown and explained in
this manual.
The operating and handling instructions
are supported by illustrations.
Symbols in text
The individual steps or procedures
described in the manual may be marked
in different ways:
:A bullet marks a step or procedure
without direct reference to an
illustration.
A description of a step or procedure that
refers directly to an illustration may
contain item numbers that appear in the
illustration.
Example:
Loosen the screw (1)
Lever (2) ...
In addition to the operating instructions,
this manual may contain paragraphs
that require your special attention. Such
paragraphs are marked with the
symbols described below:
Warning where there is a risk of an
accident or personal injury or
serious damage to property.
Caution where there is a risk of
damaging the machine or its
individual components.
Note or hint which is not essential
for using the machine, but may
improve the operator’s under-
standing of the situation and result
in better use of the machine.
Note or hint on correct procedure in
order to avoid damage to the
environment.
MultiSystem
469BA028 KN
+
+
Guide to Using this Manual

3MF-MM
English
Equipment and features
This instruction manual may refer to
several models with different
features. Components that are not
installed on all models and related
applications are marked with an
asterisk (*). Such components may
be available as special accessories
from your STIHL dealer.
Engineering improvements
STIHL’s philosophy is to continually
improve all of its products. As a result,
engineering changes and improvements
are made from time to time. If the
operating characteristics or the
appearance of your machine differ from
those described in this manual, please
contact your STIHL dealer for
assistance.
Therefore some changes, modifications
and improvements may not be covered
in this manual.
Warning!
Because a MultiEngine
equipped with an
dethatcher MultiTool is a
powerful tool, special
safety precautions must
be observed to reduce the
risk of personal injury.
It is important that you
read, fully understand and
observe the following
safety precautions and
warnings. Read the
instruction manuals and
the safety instructions of your
MultiEngine and MultiTool periodically.
Careless or improper use of any power
tool may cause serious or fatal injury.
Have your STIHL dealer show you how
to operate your power tool. Observe all
applicable local safety regulations,
standards and ordinances.
!Warning!
Do not lend or rent your power tool
without the instruction manuals. Be sure
that anyone using your power tool
understands the information contained
in these manuals.
!Warning!
The use of any dethatcher may be
hazardous. If the attachment tool comes
in contact with your body, it will injure
you. Solid foreign objects such as rocks
or bits of metal can damage the tool.
STIHL does not recommend the use of a
dethatcher in stony areas.
!Warning!
Minors should never be allowed to use a
power tool. Bystanders, especially
children, and animals should not be
allowed in the area where a power tool is
in use!
Never let the dethatcher run unattended.
Most of these safety precautions and
warnings apply to the use of all STIHL
dethatchers. Different models may have
different parts and controls. See the
appropriate sections of your MultiEngine
and MultiTool instruction manuals for a
description of the controls and function
of the parts of your power tool model.
Safety Precautions and
Working Techniques

4
English
MF-MM
Safe use of a power tool involves
1. the operator
2. the power tool
3. the use of the power tool.
THE OPERATOR
Physical Condition
You must be in good physical condition
and mental health and not under the
influence of any substance (drugs,
alcohol, etc.) which might impair vision,
dexterity or judgment. Do not operate a
power tool when you are fatigued.
Be alert – if you get tired while operating
your power tool, take a break. Tiredness
may result in loss of control. Working
with any power tool can be strenuous. If
you have any condition that might be
aggravated by strenuous work, check
with your doctor before operating a
dethatcher.
!Warning!
Prolonged use of a power tool (or other
machines) exposing the operator to
vibrations may produce whitefinger
disease (Raynaud's phenomenon) or
carpal tunnel syndrome.
These conditions reduce the hand's
ability to feel and regulate temperature,
produce numbness and burning
sensations and may cause nerve and
circulation damage and tissue necrosis.
All factors which contribute to white-
finger disease are not known, but cold
weather, smoking and diseases or
physical conditions that affect blood
vessels and blood transport, as well as
high vibration levels and long periods of
exposure to vibration are mentioned as
factors in the development of whitefinger
disease. In order to reduce the risk of
whitefinger disease and carpal tunnel
syndrome, please note the following:
– Wear gloves and keep your hands
warm.
– Maintain a firm grip at all times, but
do not squeeze the handles with
constant, excessive pressure and
take frequent breaks.
All the above mentioned precautions do
not guarantee that you will not sustain
whitefinger disease or carpal tunnel
syndrome. Therefore continual and
regular users should closely monitor the
condition of their hands and fingers. If
any of the above symptoms appear,
seek medical advice immediately.
Proper Clothing
!Warning!
To reduce the risk of injury, the operator
should wear proper protective apparel.
!Warning!
To reduce the risk of injury
to your eyes never
operate a dethatcher
unless wearing goggles or
properly fitted protective
glasses with adequate top
and side protection complying with
ANSI Z 87.1 (or your applicable national
standard).

5MF-MM
English
!Warning!
Dethatcher and engine
noise may damage your
hearing. Wear sound
barriers (ear plugs or ear
mufflers) to protect your
hearing. Continual and
regular users should have their hearing
checked regularly.
Protect your hands with
gloves when handling the
power tool and the
attachment. Heavy-duty,
nonslip gloves improve
your grip and protect your
hands.
Clothing must be sturdy
and snug-fitting, but allow
complete freedom of
movement.
Avoid loose-fitting jackets,
scarves, neckties, jewelry,
flared or cuffed pants,
unconfined long hair or
anything that could
become caught on
branches, brush or moving parts of the
unit.
Wear long pants made of heavy material
to protect your legs. Do not wear shorts,
pants, sandals or go bare foot. Secure
hair so it is above shoulder level.
Good footing is most
important in dethatcher
work. Wear sturdy boots
with nonslip soles. Steel-
toed safety boots are
recommended.
Wear an approved safety
hard hat to reduce the risk
of injury to your head
when there is a danger of
head injuries.
THE MF-MM DETHATCHER
MULTITOOL
For illustrations and definitions of the
dethatcher MultiTool parts see the
chapter on "Main Parts".
!Warning!
Never modify a MultiTool in any way.
Only attachments supplied by STIHL or
expressly approved by STIHL for use
with the specific STIHL power tool
models are authorized. Although certain
unauthorized attachments may be
useable on the STIHL power tool, their
use may, in fact, be extremely
dangerous.
THE USE OF THE DETHATCHER
Transporting the Dethatcher
!Warning!
Always turn off the engine and make
sure the attachment has stopped before
putting a dethatcher down. When
transporting your dethatcher in a
vehicle, properly secure it to prevent
turnover, fuel spillage and damage to the
dethatcher.
Prepartions before Using the Power
Tool
Before starting work, swing the
handlebar into the normal working
position and tighten it down with the
rotary knob. See chapter on "Adjusting
Handlebar" in the MultiEngine
instruction manual.
Always check your dethatcher for proper
condition and operation before starting,
particularly the throttle trigger, throttle
trigger interlock (and if applicable stop
switch), attachment and deflector.
The throttle trigger must move freely and
always spring back in the idle position.
The attachment must be properly
tightened and in safe operating
condition. Inspect for loose parts (nuts,
screws, etc.) and for cracked, bent,
warped or damaged parts.

6
English
MF-MM
Fueling
Your STIHL product uses an oil-gasoline
mixture for fuel. For further instructions
see the safety precautions and the
chapter on "Fuel" in the MultiEngine
instruction manual.
!Warning!
Gasoline is an extremely
flammable fuel. If spilled
and ignited by a spark or
other ignition source, it
can cause fire and serious
burn injury or property
damage. Use extreme caution when
handling gasoline or fuel mix.
Do not smoke or bring any fire, spark or
flame near the fuel or dethatcher.
Operating notes
The power tool may only be used for the
jobs described in the owner's manual.
!Warning!
Your power tool is a one-person
machine.
To reduce the risk of eye and other injury
insure that bystanders are at least 16 ft
(5 m) away. Bystanders should be
encouraged to wear eye protection. Stop
the engine immediately if you are
approached. Start and operate your
dethatcher without assistance.
Before Starting
Always check your power tool for proper
condition and operation before starting –
refer to appropriate sections in the
instruction manuals.
!Warning!
To reduce risk of injury from MultiTool
rotating in the wrong direction, check
that the position of the gearbox is correct
and change it if necessary.
On metal tools (top illustration), position
the gearbox so that the shaft is below
the drive tube.
On sweeping tools (bottom illustration),
position the gearbox so that the shaft is
above the drive tube.
Also see notes on "Before Starting" in
the MultiEngine instruction manual.
5m (16ft)

7MF-MM
English

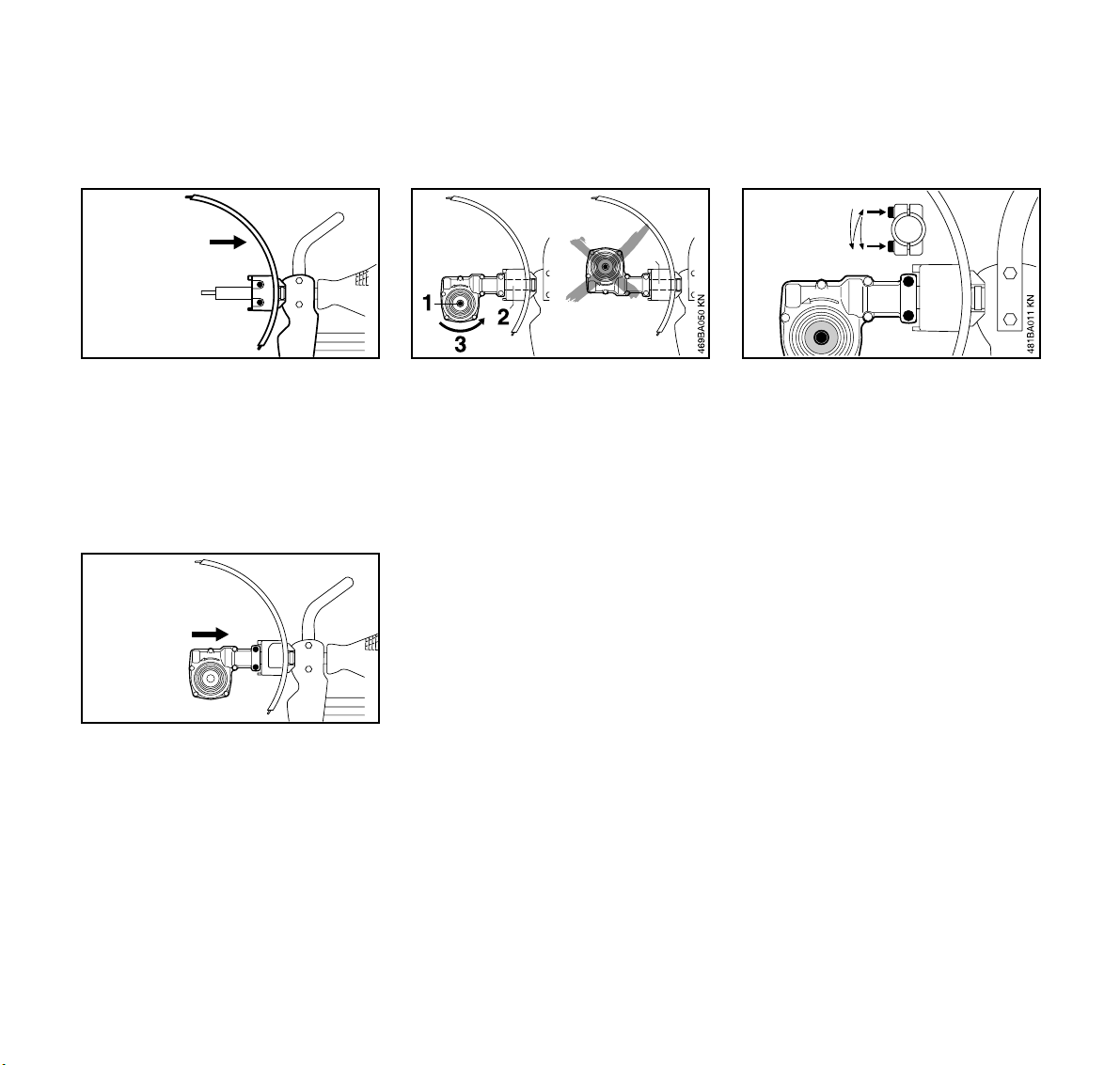

Correct Position of Gearbox:
(using the dethatcher)
The gearbox output shaft (1) must be
below the drive tube (2) – the arrow (3)
shows the correct direction of rotation of
the MultiTool.
See chapter on "Mounting the
MultiTool".
Check the Deflector
!Warning!
To reduce the risk of injury from thrown
objects, operate the MF-MM dethatcher
only with the deflector shown above in
combination with properly mounted
deflector extensions and mud flap.
Starting the engine
Details on starting the engine can be
found in the appropriate chapter of the
owner's manual for the MultiEngine.
Place the unit on firm ground in an open
area. The attachments must be clear of
the ground and all other obstructions.
!Warning!
When starting, make sure you have a
firm footing - as shown; always stand to
one side of the machine to avoid risk of
injury from contact with rotating tool.
2
469BA043 KN
1
3
486BA011 KN
469BA027 KN

8
English
MF-MM
!Warning!
To reduce the risk of injury
from loss of control, be
absolutely sure that the
attachment can turn freely
when the engine is
started. When the engine
is started in the START position, engine
speed will be fast enough for the clutch
to engage and turn the attachment.
Working Conditions
Operate and start your power tool only
outdoors in a well ventilated area.
Operate the dethatcher under good
visibility and daylight conditions only.
Work carefully.
!Warning!
Your power tool produces
toxic exhaust fumes as
soon as the engine is
running. These gases
(e.g. carbon monoxide)
may be colorless and
odorless. To reduce the risk of serious or
fatal injury from inhaling toxic fumes,
never run the dethatcher indoors or in
poorly ventilated locations.
!Warning!
Use of this product can generate dust
and fumes containing chemicals known
to cause respiratory disease, cancer,
birth defects, or other reproductive
harm. If you are unfamiliar with the risks
associated with the particular dust or
fume at issue, consult your employer,
governmental agencies such as OSHA
and NIOSH and other sources on
hazardous materials. The State of
California and some other authorities,
for instance, have published lists of
substances known to cause cancer,
reproductive toxicity, etc.
Control dust and fumes at the source
where possible. In this regard use good
work practices and follow the
recommendations of OSHA/NIOSH and
occupational and trade associations.
When the inhalation of toxic dust and
fumes cannot be eliminated, the
operator and any bystanders should
always wear a respirator rated for the
substance at hand by its manufacturer
and approved by NIOSH/MSHA for the
type of dust and / or fumes encountered.
Holding and Controlling the
Power Tool
Always hold the power tool firmly with
both hands. Wrap your fingers tightly
around the handles, keeping the
handles cradled between your thumb
and forefinger. Keep your hands in this
position to have your power tool under
control at all times. Make sure your
dethatcher handles and grips are in
good condition and free of moisture,
pitch, oil or grease.
!Warning!
Never attempt to operate any dethatcher
with one hand. Loss of control of the
dethatcher may result in serious or fatal
injury.
469BA045 KN

9MF-MM
English
!Warning!
Do not overreach. Keep proper footing
and balance at all times. Special care
must be taken in slippery conditions (wet
ground, snow) and in difficult, overgrown
terrain. Watch for hidden obstacles such
as tree stumps, roots and ditches to
avoid stumbling. Be extremely cautious
when working on slopes or uneven
ground.
Operate the dethatcher only at a normal
walking pace.
!Warning!
Be extremely cautious when pulling the
dethatcher towards you because of the
risk of injury from contact with the
attachment.
Be extremely cautious when changing
direction with the dethatcher – especially
on slopes.
!Warning!
Never work on steep slopes because of
the risk of injury through loss of control
of the dethatcher.
Before starting work,
inspect the area for
stones, glass, pieces of
metal, trash or other solid
objects. Such objects may
damage the attachment.
Do not use the dethatcher on gravel
surfaces.
!Warning!
To reduce the risk of injury from contact
with the attachment, never operate a
dethatcher without a properly mounted
deflector.
To reduce the risk of
injury, keep your hands
and feet well away from
the attachment.
!Warning!
Never touch a rotating attachment with
your hand or any part of your body. The
attachment continues to rotate for a
short period after the throttle trigger is
released (flywheel effect).
!Warning!
Do not operate using the starting throttle
lock as you do not have control of the
engine speed. See section of your
MultiEngine instruction manual on the
proper use of the slide control.
If the attachment or deflector becomes
clogged or stuck, always turn off the
engine and make sure the attachment
has stopped before cleaning. Grass,
moss, weeds, etc. should be cleaned off
the attachment as necessary.
!Warning!
During operation, check the tightness
and the condition of the attachment at
regular intervals. If the behavior of the
attachment changes, stop the engine
immediately and check the attachment.
Replace bent, worn or damaged
attachments immediately. Such
attachments may shatter at high speed
and cause serious or fatal injury.

10
English
MF-MM
Do not mount any attachment to a unit
without proper installation of all required
parts. Never use unauthorized parts to
secure the attachment. Failure to use
the proper parts may cause the
attachment to fly off and seriously injure
the operator or bystanders.
Important Adjustments
!Warning!
To reduce the risk of personal injury from
loss of control or contact with the
running attachment, do not use an
engine with incorrect idle adjustment. At
correct idle speed, the attachment
should not move. For directions on how
to adjust idle speed, see the appropriate
section of the MultiEngine instruction
manual.
If you cannot set the correct idle speed,
have your STIHL dealer check your
dethatcher and make proper
adjustments and repairs.
MAINTENANCE, REPAIR AND
STORAGE
STIHL may refuse to acknowledge a
warranty claim if the component has
not been handled or serviced
correctly or if unauthorized spare
parts have been used.
!Important!
Only use original spare parts. The use
of parts made by other manufacturers
may cause serious or fatal injuries.
Follow the maintenance and repair
instructions in the appropriate section of
your owner's manual. Refer to the
maintenance chart at the end of this
manual.
The daily maintenance routine set out in
the owner's manual for your power tool
should also be strictly followed.
!Important!
Always stop the engine and make sure
that the tool has come to a standstill
before starting any maintenance, repair
or cleaning work on the machine. Only
carry out the maintenance and repairs
described in the owner's manual. Have
any other work undertaken by your
STIHL service dealer.
!Important!
Never attempt to repair damaged tools
by welding, straightening or modifying
the shape. This may cause parts of the
tool to come off and result in serious or
fatal injuries.
Tighten all nuts, bolts and screws -
except the carburetor adjusting screws -
before each use.
Store the MultiTool in a dry place out of
reach of children.
Always empty the fuel tank before
storing the machine for more than a few
days. Refer to the chapter "Storage" in
the owner's manual for the MultiEngine.

11MF-MM
English
Using the MF-MM Dethatcher
The MF-MM dethatcher MultiTool is
designed to loosen and remove old, dry
cuttings, twigs as well as moss and the
residue of roots from lawns.
Preparations
If the lawn is very dry, spray it with water
to soften the ground a little and reduce
the amount of dust created.
If the grass is longer than about 2 in
(5 cm), mow it before using the
dethatcher.
:Set the handlebar to the normal
working position. See chapter on
"Adjusting the Handlebar" in the
MultiEngine instruction manual.
:To reduce the risk of accidents or
injury, remove all obstacles and
objects from the work area.
:Plan the route to be taken.
The MF-MM dethatcher is operated in
the forward direction only.
To reduce the risk of damage and
breakage, the dethatcher may only
rotate in one direction.
Arrows on the flanges show the correct
direction of rotation – see "Mounting the
MultiTool".
To reduce the risk of injury from
thrown objects, never use the
dethatcher without the properly
mounted deflector with the two
extensions and the mud flap.
These devices divert loosened and
removed material away from the
machine and operator.
483BA001 KN
483BA002 KN
483BA003 KN

12
English
MF-MM
Operation
:Start the engine.
:Work with the engine running at full
throttle.
:Walk at a pace that achieves the
required result without lugging down
the engine.
:Push the dethatcher forward no
faster than normal walking pace.

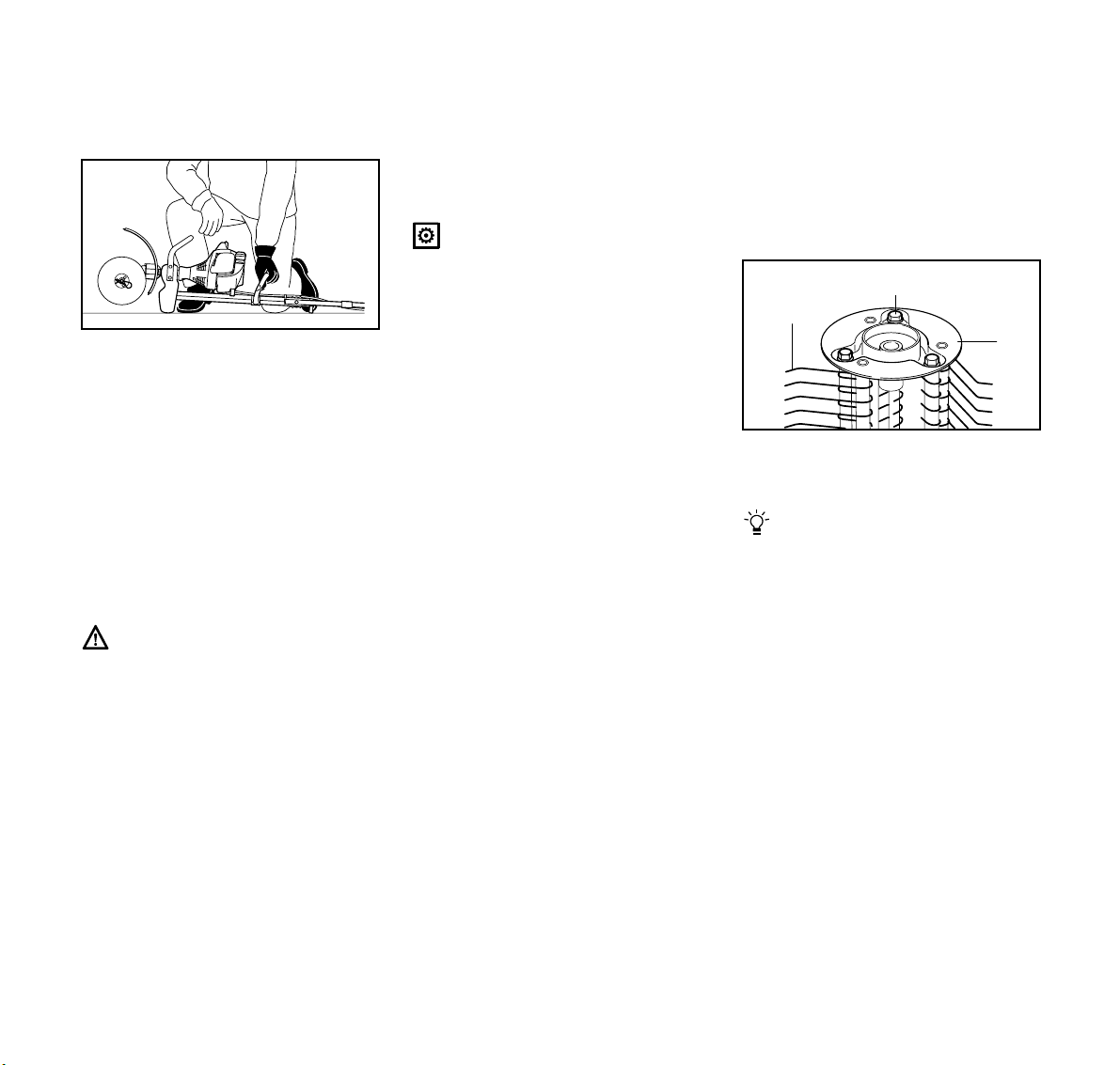

Cleaning the Dethatcher
Parts of plants, such as grass or roots,
may become tightly wound around the
tool mounting and the attachment itself.
Clean the attachment as follows:
– Shut off the engine.
– Wear gloves.
– Remove the inner hitch pin from the
shaft.
– Pull the dethatcher off the shaft.
– Remove the outer hitch pin (wheel)
from the shaft.
– Pull off the wheel.
– Remove pieces of roots, plants and
soil.
Refit the dethatcher – see also
"Mounting the MultiTool".
Only MultiEngines which have been
supplied by STIHL or specially approved
for use with this MultiTool may be used.
This MultiTool may only be used in
combination with STIHL MM 55.
Approved MultiEngines

13MF-MM
English
Removing Existing MultiTools
:Wear gloves to reduce the risk of
injury from contact with sharp,
pointed MultiTools and/or the hot
surface of the gearbox.
:Remove the hitch pin and pull the
MultiTool off the shaft.
:Clean the gearbox if necessary.
See also "Mounting the MultiTool" in the
instruction manual of the other MultiTool.
Checking the Deflector
To reduce the risk of injury from
thrown objects, the MF-MM
dethatcher may only be operated
with the deflector shown above
complete with deflector extensions
and mud flap.
Changing the Deflector
Removing the Gearbox
:Loosen the clamp screws (1) and
pull the gearbox (2) off the drive
tube.
Removing the Deflector
:Loosen the screw (3) and pull the
deflector (4) off the drive tube.
Mounting the MultiTool
481BA008 KN
486BA011 KN
1
486BA012 KN
21
3
486BA013 KN
4

14
English
MF-MM
Mounting the New Deflector
:Push the deflector (5) on to the drive
tube. Line it up with the flange (6)
and push it home as far as stop.
:Tighten down the clamp screws (7)
firmly.
Mounting the Gearbox
:Push the gearbox (2) on to the drive
tube. Turn the gearbox back and
forth and then push it home as far as
stop.
:Line up the gearbox.
:Go to "Checking Position of
Gearbox".
Checking Position of Gearbox
To reduce risk of injury from MultiTool
rotating in the wrong direction, check
that position of gearbox is correct and
adjust if necessary.
The shaft (1) must be below the drive
tube (2) so that the MultiTool rotates in
the direction of the arrow (3).
Adjusting Position of Gearbox
:Loosen clamp screws on gearbox.
:Turn gearbox 180°.
:Line up the gearbox in the correct
position.
:Tighten down the two clamp screws
on the gearbox in the following
sequence:
– Tighten first screw moderately.
– Tighten second screw moderately.
– Tighten down first screw firmly.
– Tighten down second screw firmly.
7
7
5
486BA014 KN
6
1
1
2
483BA009 KN

15MF-MM
English
Mounting the MultiTool
Left-hand and right-hand
dethatchers are different.
The direction of rotation is marked
with arrows on the gearbox and
flange. Make sure both arrows point
in the same direction. The spring
tines may be damaged or broken if
the direction of rotation is wrong.
:Rotate the left-hand dethatcher (4)
on the shaft until it can be pushed
into position. Check arrows showing
direction of rotation.
:Insert hitch pin (5) in hole in shaft
and snap it into position.
:Mount the right-hand dethatcher in
the same way.
Mounting and Removing the
Deflector Extensions
:Slide both deflector extensions onto
the right and left sides of the
deflector, push them fully home at
the top and bottom and engage the
tab (1).
To remove the extensions:
:Use the combination wrench to
disengage the tab (1) and pull the
extensions away.
The deflector extensions divert
removed material and debris away
from the machine and operator.
Never work without properly fitted
deflector extensions.
Installing and Removing the Skirt
:Secure the skirt (1) with screw (2)
and rotary knob (3) to the right-hand
side of the flange.
:Adjust the skirt to the required depth
so that it overlaps the deflector.
:Tighten the rotary knob firmly.
The skirt diverts removed material
and debris away from the machine
and the operator.
Never work without a properly
mounted skirt.
4
483BA004 KN
5
11
483BA007 KN
3
483BA011 KN
2

16
English
MF-MM
Starting
:Secure the handlebar in the
operating position.
:Retract the wheels, if fitted – see
notes on "Wheels" in the
MultiEngine instruction manual.
:Place the unit on a patch of clear
ground. It must rest securely on the
engine flange and the support on
the frame. Check that the working
tools are not touching the ground or
any other obstacles.
Make sure you have good balance
and secure footing – as shown in
the illustration. To reduce the risk of
injury from contact with rotating
attachments, always stand to the
side of the power tool, never in front
of or near the attachments.
:With your left hand on the loop
handle, press the unit firmly against
the ground.
Do not stand or kneel on the
handlebar or frame.
The starting procedure is now as
described in the MultiEngine instruction
manual.
To shut down the engine
:Push slide control in direction of
arrow ( h) to STOP – $.
Replace individual spring tines if they
are severely damaged or broken.
:Remove the dethatcher – see
"Mounting the MultiTool".
:Loosen the screws (1).
:Remove the flange (2).
Spring tines and washers are fitted
alternately on the tubes.
:Pull off the spring tines (3) and
washers.
:Replace damaged spring tines.
:Fit spring tines and washers on the
tubes until they are full.
:Fit the flange (2).
:Tighten down the screws (1) firmly.
:Mount the dethatcher – see
"Mounting the MultiTool".
Starting / Stopping the
Engine
469BA027 KN
Replacing Spring Tines
483BA006 KN
1
2
31

17MF-MM
English

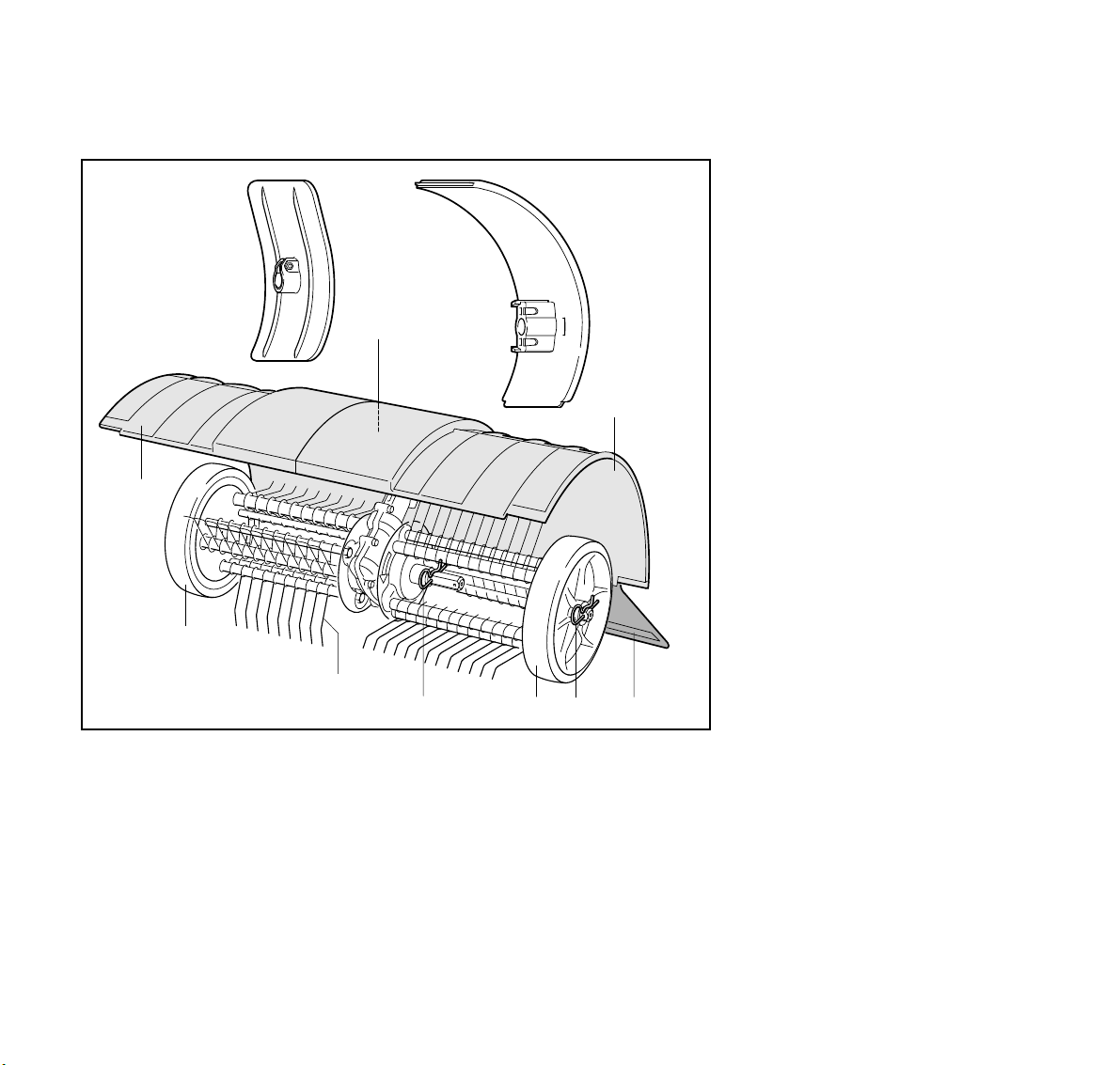

1Right-hand wheel
2Left-hand wheel
3Inner hitch pin, left
4Deflector extension, right
5Deflector extension, left
6 Mud flap
7 Outer hitch pin, left
8 Spring tines
9 Deflector
10 Deflector
Definitions
1. Right-hand Wheel
Keeps the spring tines of the
dethatcher at a constant height
above the ground.
2. Left-hand Wheel
see 1.
3. Inner Hitch Pin
Secures the attachment to the shaft
and simplifies installation and
removal of the attachment.
4. Deflector Extension, Right
Diverts removed materal and debris
away from machine and operator.
5. Deflector Extension, Left
see 4.
6. Mud flap
Diverts removed materal and debris
away from machine and operator.
7. Outer Hitch Pin
Secures the wheel to the
attachment and simplifies
installation and removal of the
wheel.
8. Spring Tines
Elements of attachment for
removing moss, dead grass and
root residue from lawns.
9. Deflector
Large deflector for attaching
deflector extensions.
10. Deflector
Not for the dethatcher.
Main Parts
1
483BA005 KN
8326
5
4
7
10
9
9

18
English
MF-MM
Dethatcher MultiTool
Weight
Protective glasses
Contact your STIHL dealer for the latest
information on these and other special
accessories.
Users of this unit should carry out only
the maintenance operations described
in this manual. Other repair work may be
performed only by authorized STIHL
service shops.
Warranty claims following repairs can be
accepted only if the repair has been
performed by an authorized STIHL
servicing dealer using original STIHL
replacement parts.
Original STlHL parts can be identified by
the STlHL part number, the
STIHl
logo and, in some cases, by the STlHL
parts symbol (. This symbol may
appear alone on small parts.
Dethatcher, left, right
Working width: 550 mm
Dethatcher with
deflector extensions
and mud flap 6.1 kg
