In the STIHL KombiSystem a number of
different KombiEngines and KombiTools
can be combined to produce a power
tool. In this instruction manual the
functional unit formed by the
KombiEngine and KombiTool is referred
to as the power tool.
Therefore, the separate instruction
manuals for the KombiEngine and
KombiTool should be used together for
the power tool.
Always read and and make sure you
understand both instruction manuals
before using your power tool for the first
time and keep them in a safe place for
future reference.
Pictograms
All the pictograms attached to the
machine are shown and explained in this
manual.
Symbols in text
WARNING
Warning where there is a risk of an
accident or personal injury or serious
damage to property.
NOTICE
Caution where there is a risk of
damaging the machine or its individual
components.
Engineering improvements
STIHL's philosophy is to continually
improve all of its products. For this
reason we may modify the design,
engineering and appearance of our
products periodically.
Therefore, some changes, modifications
and improvements may not be covered
in this manual.
Lend or rent your power tool only to
persons who are familiar with this model
and its operation – do not lend of rent
your power tool without the
KombiEngine and KombiTool instruction
manuals.

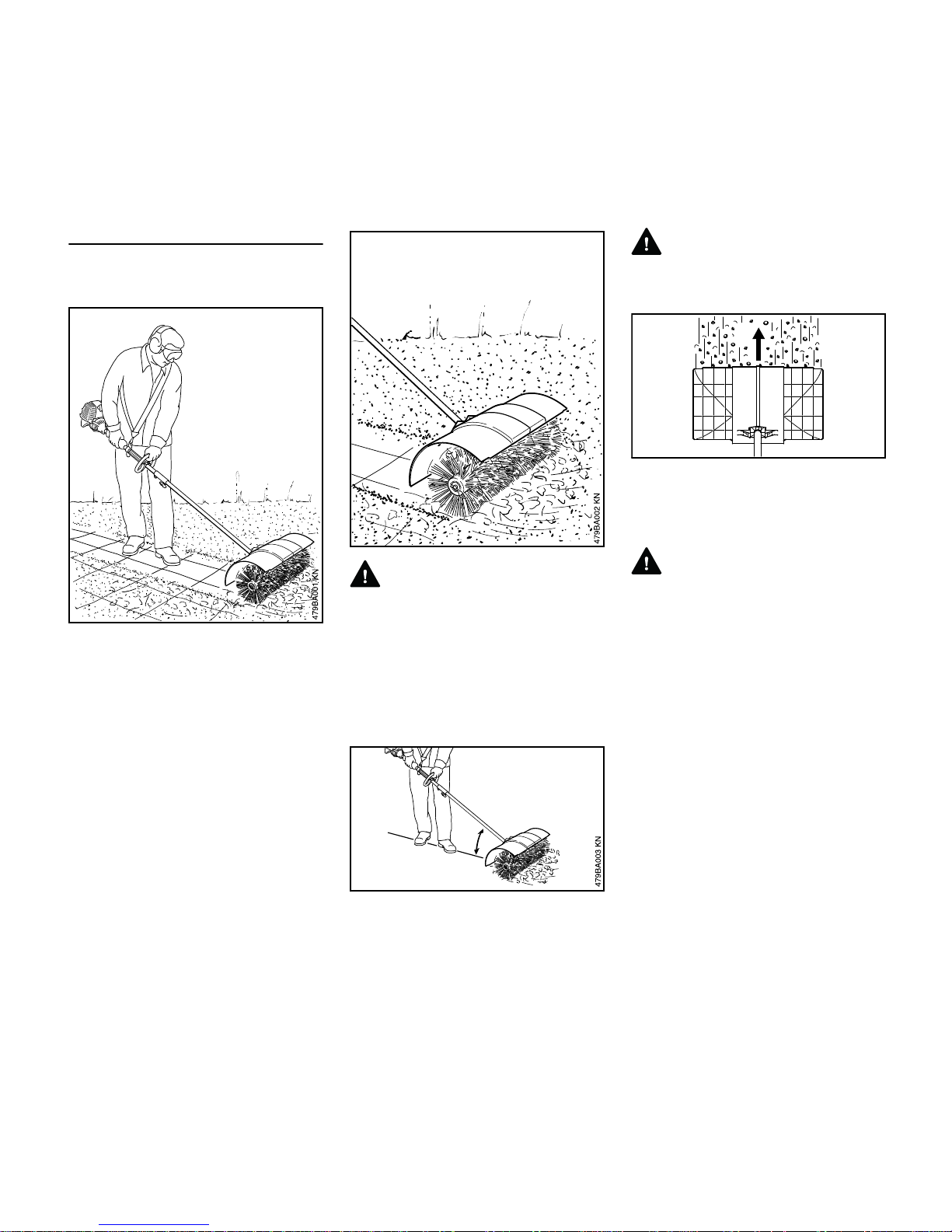

Use the bristle brush only for sweeping
areas and paths, including uneven and
jointed surfaces, and natural stone
paving.
Use the PowerSweep only for sweeping
areas and paths, moving wet materials,
such a leaves or dirt to a central point,
clearing snow and removing standing
water from solid surfaces.
Do not use your power tool for any other
purpose because of the increased risk of
accidents.
KombiSystem
.
.
.
.
002BA530 KN
+
+
Guide to Using this Manual Safety Precautions and
Working Techniques
Special safety precau-
tions must be observed
when working with the
PowerSweep and bristle
brush.
Always read and and
make sure you under-
stand both instruction
manuals (KombiEngine
and KombiTool) before
using your power tool for
the first time and keep
them in a safe place for
future reference. Non-
observance of the safety
precautions may result in
serious or even fatal
injury.

KB-KM, KW-KM
English
3
Only mount accessories that are
explicitly approved for this power tool
model by STIHL or are technically
identical. If you have any questions in
this respect, consult a servicing dealer.
Use only high quality tools and
accessories in order to avoid the risk of
accidents and damage to the machine.
STIHL recommends the use of genuine
STIHL tools and accessories. They are
specifically designed to match the
product and meet your performance
requirements.
Never attempt to modify your power tool
in any way since this may increase the
risk of personal injury. STIHL excludes
all liability for personal injury and
damage to property caused while using
unauthorized attachments.
Do not use a pressure washer to clean
the unit. The solid jet of water may
damage parts of the unit.
Clothing and Equipment
Wear proper protective clothing and
equipment.
Avoid clothing that could get caught on
branches or brush or moving parts of the
machine. Do not wear a scarf, necktie or
jewelry. Tie up and confine long hair
(e.g. with a hair net, cap, hard hat, etc.).
WARNING
Wear hearing protection, e.g. earplugs
or ear muffs.
STIHL offers a comprehensive range of
personal protective clothing and
equipment.
Transporting the Power Tool
Always turn off the engine.
Carry the machine by the carrying
handle, sweeping attachment in front of
you, hot muffler away from your body.
Transporting by vehicle: Properly secure
your power tool to prevent turnover, fuel
spillage and damage.
Before Starting
Check that your power tool is properly
assembled and in good condition – refer
to appropriate chapters in the
KombiEngine and KombiTool instruction
manuals.
–Check the attachment for correct
and secure assembly and good
condition.
–Both sweeping attachments must
be mounted.
–Never attempt to modify the controls
or safety devices in any way.
–Inspect the deflectors for damage
and wear. Do not operate the
machine with a damaged deflector –
replace damaged parts.
–Keep the handles dry and clean –
free from oil and dirt – for safe
control of the power tool.

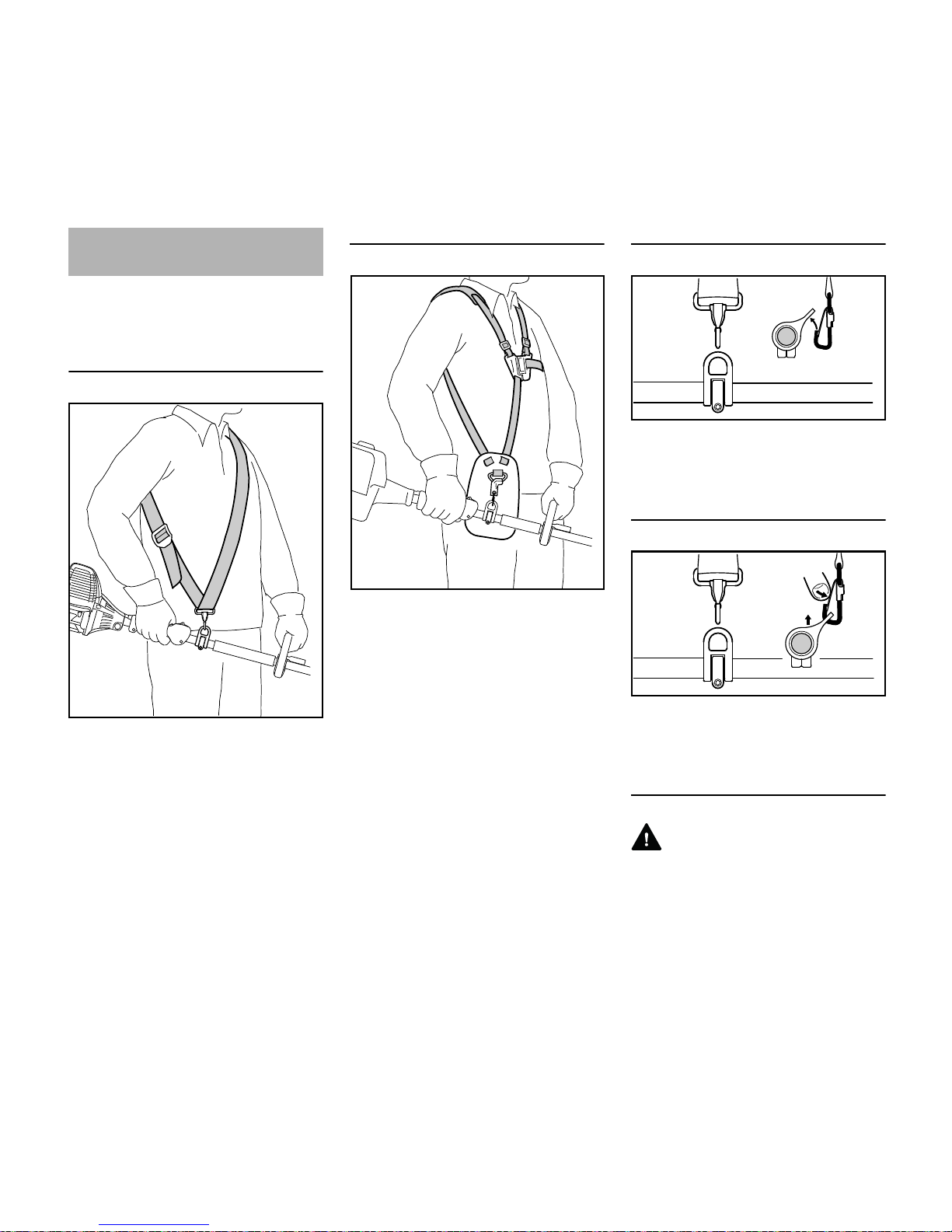

–Adjust shoulder strap and handles
to suit your height and reach. See
chapter on "Fitting the Harness".
To reduce the risk of accidents, do not
operate your power tool if it is damaged
or not properly assembled.
Clothing must be sturdy
but allow complete free-
dom of movement. Wear
snug-fitting clothing, an
overall and jacket combi-
nation, do not wear a
work coat.
Wear sturdy shoes with
non-slip soles.
To reduce the risk of eye
injuries, wear snug-fitting
safety glasses in accord-
ance with European
Standard EN 166. Make
sure the safety glasses
are a good fit.
Wear heavy-duty work
gloves made of durable
material (e.g. leather).
223BA000 KN

KB-KM, KW-KM
English
4
If you use sweeping attachments,
position the gearbox so that the axle is
above the drive shaft.
If you use a shoulder strap or full
harness: Practice removing and putting
down the power tool as you would in an
emergency. To avoid damage, do not
throw the machine to the ground when
practicing.
Replace damaged sweeping
attachments.
See also notes on "Before Starting" in
the instruction manual of the
KombiEngine you are using.
Holding and Controlling the Power Tool
Make sure you always have good
balance and secure footing.
Always hold the power tool firmly with
both hands on the handles.

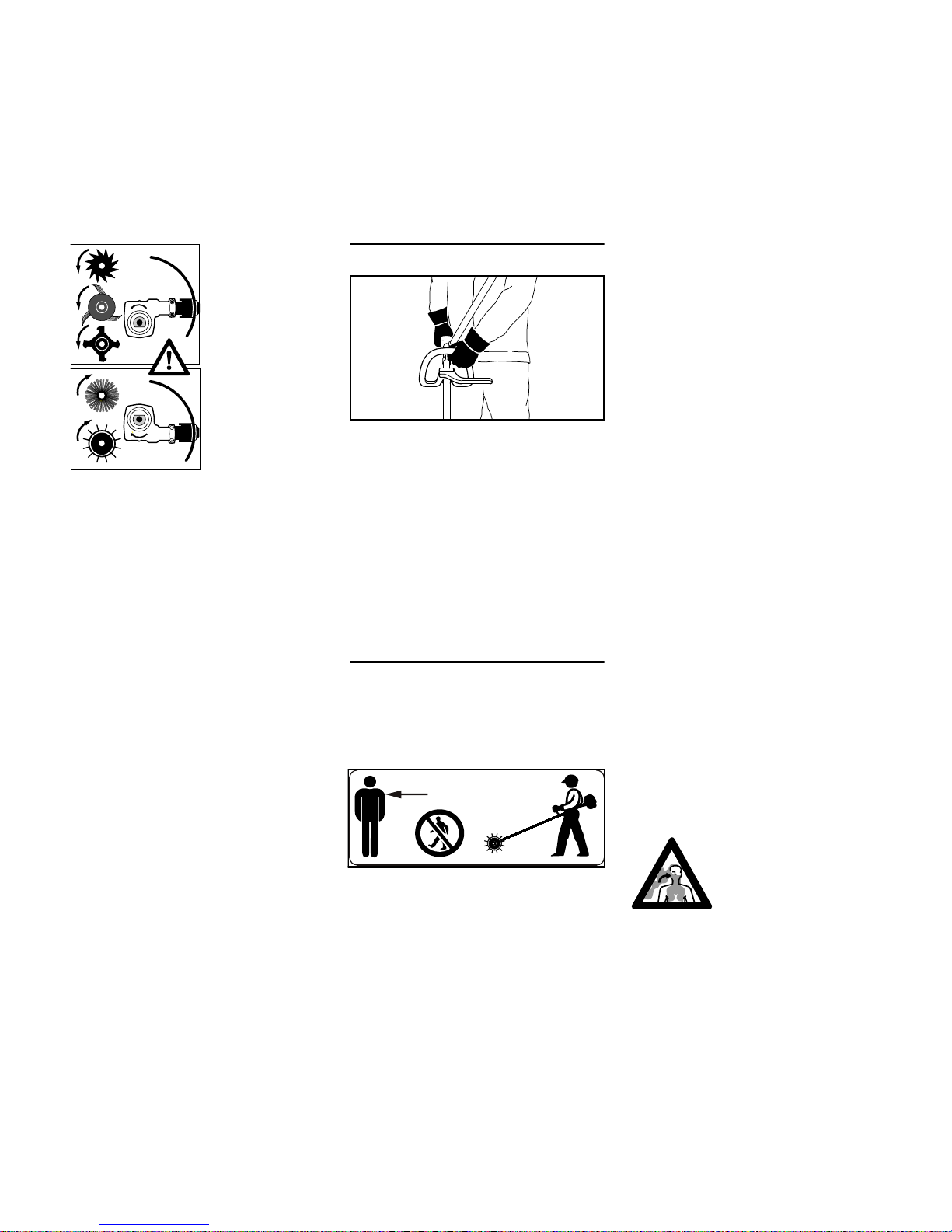

Right hand on control handle, left hand
on loop handle, even if you are left-
handed.
To ensure safe control, wrap your
fingers tightly around the front handle
and control handle.
During Operation
In the event of impending danger or in
an emergency, switch off the engine
immediately by moving the slide control
/ stop switch/button to 0or STOP.
To reduce the risk of injury from thrown
objects, do not allow any other persons
within a radius of 5 meters of your own
position. To reduce the risk of damage
to property, also maintain this distance
from other objects (vehicles, windows).
The correct engine idle speed is
important to ensure that the attachment
stops moving when you let go of the
throttle trigger. Check and correct the
idle speed setting regularly. If the
attachment still rotates when the engine
is idling, have your dealer check your
machine and make proper adjustments
or repairs – see KombiEngine instruction
manual.
Electrostatic charges may build up when
working on synthetic surfaces – risk of
electric shock and accidents.
Take special care in slippery conditions
(ice, wet ground, snow), on slopes or
uneven ground.
Watch out for obstacles: Roots and tree
stumps which could cause you to trip or
stumble.
Make sure you always have good
balance and secure footing.
Be particularly alert and cautious when
wearing hearing protection because
your ability to hear warnings (shouts,
alarms, etc.) is restricted.
To reduce the risk of accidents, take a
break in good time to avoid tiredness or
exhaustion.
Work calmly and carefully – in daylight
conditions and only when visibility is
good. Stay alert so as not to endanger
others.
002BA080 KN
5m (16ft)
The dusts, vapor and
smoke produced during
operation may be dan-
gerous to health. If dust
levels are high, wear a
suitable respirator.

KB-KM, KW-KM
English
5
To reduce the risk of a dust explosion,
spray very dusty surfaces with water
before sweeping.
If your power tool is subjected to
unusually high loads for which it was not
designed (e.g. heavy impact or a fall),
always check that it is in good condition
before continuing work – see also
"Before Starting". Make sure the safety
devices are working properly. Do not
continue operating your power tool if it is
damaged. In case of doubt, consult your
servicing dealer.
To reduce the risk of injuryfrom thrown
objects, never operate the unit without a
properly mounted deflector designed
specifically for the unit and the
attachment.
Special care must be taken when
working in overgrown terrain.
When clearing leaves, take care not to
harm small animals.
Check the sweeping attachments at
regular short intervals during operation
or immediately if there is a sudden
change in behavior:
–Shut off the engine, hold the unit
securely.
–Check condition and proper
mounting.
–Replace damaged sweeping
attachments immediately.
Before leaving the power tool
unattended: Shut off the engine.
Regularly clean the attachment
mounting and remove any blockages
and material that has accumulated
between the sweeping attachments or
around the deflector.
To reduce the risk of injury, shut off the
engine before changing attachments.
Maintenance and Repairs
Only carry out the maintenance
operations and repairs described in the
KB-KM, KW-KM KombiTool and
KombiEngine instruction manuals. All
other repairs must be performed by an
authorized STIHL service shop.
Only use original STIHL replacement
parts for maintenance and repairs.
Using replacement parts from other
manufacturers may result in damage to
the machine or personal injury.
Never attempt to modify the sweeping
attachments in any way. You may be
putting your own safety at risk.
Shut off the engine
–before carrying out any maitenance
or repair work
–before removing and installing
sweeping attachments
–before rectifying problems.
Store the power tool as described in the
instruction manuals – see chapter on
"Storing the Machine".
Sweeping Attachments
KombiTools for sweeping and cleaning
operations are available in two versions:
KB-KM bristle brush and KW-KM
PowerSweep.
Preparations
If the surface to be cleaned is dry, spray
it with water to reduce the amount of
dust created.
NTo reduce the risk of accidents or
injury, remove all obstacles and
objects from the work area.
NStart the engine.
NPut on the shoulder strap.
The KombiEngine with sweeping
attachment is operated in the forward
direction only.
Inspect the work area:
Stones, pieces of metal
or other solid objects may
be thrown and cause per-
sonal injury
Using the Unit

KB-KM, KW-KM
English
6
Working Technique
Bristle Brush
The the KB-KM KombiTool bristle brush
is used for cleaning areas and paths,
including uneven and jointed surfaces,
and natural stone paving.
WARNING
To reduce the risk of injury, never work
without the properly mounted deflector
and two extensions.
These devices divert material away from
the machine and the operator.
NPush the bristle brush steadily at
walking pace.
NAlways hold and guide the tool at a
shallow angle.
WARNING
The steeper the angle shown above, the
more difficult it is to control the tool.
NGuide the bristle brush at right
angles to the direction of travel (1).
Sweepings are thrown forwards,
ahead of the operator.
WARNING
The bristle brush pushes back towards
the operator.
479BA017 KN
1

KB-KM, KW-KM
English
7
PowerSweep
The KW-KM PowerSweep KombiTool is
used for sweeping areas and paths,
moving wet materials, such a leaves or
dirt to a central point, clearing snow and
removing standing water from solid
surfaces.
NPush the PowerSweep steadily at
walking pace.
NAlways hold and guide the tool at a
shallow angle.
WARNING
The steeper the angle shown above, the
more difficult it is to control the tool.
NGuide the PowerSweep at right
angles to the direction of travel (1).
Sweepings are thrown forwards,
ahead of the operator.
WARNING
The PowerSweep pushes back towards
the operator.
Cleaning the Sweeping Attachment
Clean away any dirt and debris that has
accumulated between the sweeping
attachments, around the gearbox or
between the sweeping attachments and
the deflector:
–Shut off the engine.
–Pull the hitch pins out of the axle.
–Remove the sweeping attachments
from the axle and clean them.
–Clean away dirt and debris from the
machine.
Refit the sweeping attachments – see
“Replacing the Sweeping Attachments”.
Only use KombiEngines supplied by
STIHL or expressly approved by STIHL
for use with the KombiTool.
This KombiTool may be operated only in
combination with the following
KombiEngines:
STIHLKM55R, KM56R, KM85R
1),
KM 90 R, KM 94 R, KM 100 R,
KM 110 R1), KM 130 R
WARNING
Loop-handled machines must be
equipped with a barrier bar.
479BA017 KN
1
Approved KombiEngines
1) outside the EU only

KB-KM, KW-KM
English
8
NPull the protective caps off the ends
of the drive tube and keep them in a
safe place for later use – see
"Storing the Machine".
NOTICE
The plug may come out of the drive tube
when you pull off the cap. Push it back
into the drive tube as far as stop.
Mounting the Deflector
NApply a mark at distance A
(125 mm) from the end of the drive
tube.
NLoosen the clamp screws (1) and
push the deflector (2) onto the drive
tube (3) and beyond the mark
(arrow). Then pull the deflector back
until it is flush with or just covers the
mark (arrow).
NLine up the deflector so that it is
vertical and the fixing lug (arrow) on
the drive tube points up (upper
magnified arrow).
NTighten down the clamp screws (1)
firmly.
WARNING
Check that the deflector is secure – it
must not be possible to rotate it on the
drive tube.
Mounting the Gearbox
NRemove both sweeping
attachments – see "Replacing the
Sweeping Attachmenrs".
NPush the sleeve (4) onto the drive
tube (3) as far as stop.
Assembling the Unit
413BA014 KN
002BA248 KN
1
1
2
3
479BA018 KN
3
479BA021 KN
4

KB-KM, KW-KM
English
9
NLoosen the clamp screws (5).
NPush the gearbox (6) onto the drive
tube (3), turn the gearbox back and
forth as necessary.
Aligning the Gearbox
NLine up the gearbox on the drive
tube so that the distance between
the horizontal axles (7) and the
deflector is the same at both sides.
NTighten down the clamp screws
firmly.
WARNING
It must not be possible to rotate the
gearbox on the drive tube.
NMount the two sweeping
attachments – see "Replacing the
Sweeping Attachmenrs".
NPush the lug (1) on the drive tube
into the slot (2) in the coupling
sleeve as far as stop.
When correctly installed, the red line (3)
(arrow point) must be flush with the end
of the coupling sleeve.
NTighten down the star knob (4)
firmly.
Removing the KombiTool
NReverse the above sequence to
remove the drive tube.
3
479BA019 KN
5
56
Mounting the KombiTool
1
002BA326 KN
2
3
002BA327 KN
4

KB-KM, KW-KM
English
10
The type and style of the harness and
carabiner (spring hook) depend on the
market.
Shoulder Strap
NPut on the shoulder strap (1).
NAdjust the length of the strap so that
the carabiner (2) is about a hand’s
width below your right hip.
NBalance the machine – see
"Balancing the Machine".
Full Harness
NPut on the full harness (1).
NAdjust the length of the strap so that
the carabiner (2) is about a hand’s
width below your right hip.
NBalance the machine – see
"Balancing the Machine".
Attaching Machine to Harness
NAttach the carabiner (1) to the
carrying ring (2) on the drive tube –
hold the carrying ring steady.
Detaching Machine from Harness
NPress down the bar on the
carabiner (1) and pull the carrying
ring (2) out of the carabiner.
Throwing Off the Machine
WARNING
The machine must be quickly thrown off
in the event of imminent danger.
Practice removing and putting down the
power tool as you would in an
emergency. To avoid damage, do not
throw the power tool to the ground when
practicing.
Fitting the Harness
1
002BA374 KN
2
1
002BA375 KN
2
1
002BA308 KN
2
1
2
1
002BA310 KN
2
1
2

KB-KM, KW-KM
English
11
Practice quickly detaching the power
tool from the carabiner as described
under "Detaching Machine from
Harness".
If you are using a shoulder strap:
Practice slipping the strap off your
shoulder.
If you are using a full harness: Practice
quickly opening the locking plate and
slipping the harness straps off your
shoulders.
Balancing the Machine
NLoosen the screw (3).
NSlide the carrying ring up or down
the drive tube until the sweeping
attachments touch the ground.
NTighten down the screw on the
carrying ring firmly.
Starting the Engine
Always follow the operating instructions
for the KombiEngine and basic power
tool.
NPlace the unit on the ground.
The sweeping attachments may touch
the ground, but no other obstacles – risk
of accidents.
NMake sure you have a firm footing,
either standing, stooping or
kneeling.
NHold the machine with you left hand
and press it down firmly – do not
touch the controls on the control
handle – see KombiEngine or basic
power tool instruction manual.
Balancing the Machine
002BA309 KN
3
Starting / Stopping the
Engine
406BA007 KN
406BA008 KN

KB-KM, KW-KM
English
12
NOTICE
Do not stand or kneel on the drive tube.
WARNING
The sweeping attachments may begin to
rotate and cause the machine to move
as soon as the engine starts. For this
reason, blip the throttle after starting –
the engine returns to idling speed.
The starting procedure is now as
described in the instruction manual of
the KombiEngine or basic power tool
you are using.
Stopping the Engine
NSee instruction manual of the
KombiEngine or basic power tool.
For periods of 3 months or longer
NRemove and clean the sweeping
attachments, inspect them for
damage and wear.
NIf the KombiTool is removed from
the KombiEngine and stored
separately: Fit the protective cap on
the drive tube to avoid dirt getting
into the coupling.
NStore the machine in a dry, high or
locked location – out of the reach of
children and other unauthorized
persons.
Bristle Brush
Removing
NRemove the hitch pin (1) from the
end of the axle (2).
NPull the bristle brush (3) off the axle.
Installing
NPush the bristle brush (3) onto the
axle.
NInsert the hitch pin (1) in the hole at
the end of the axle and fold it flat.
NUse the same procedure to mout
the other bristle brush.
WARNING
Always mount both bristle brushes.
Storing the Machine Replacing the Sweeping
Attachments

KB-KM, KW-KM
English
13
PowerSweep
Removing
NRemove the hitch pin (1) from the
end of the axle (2).
NPull the sweeper drum (3) off the
axle.
Installing
NPush the sweeper drum (3) onto the
axle.
NInsert the hitch pin (1) in the hole at
the end of the axle and fold it flat.
NUse the same procedure to mout
the other sweeper drum.
WARNING
Always mount both sweeper drums.
The following intervals apply to normal
operating conditions only. If your daily
working time is longer or operating
conditions are difficult (very dusty work
area, etc.), shorten the specified
intervals accordingly.
All accessible screws and nuts
NRetighten if necessary
Sweeping attachments and deflectors
NVisual inspection, check tightness
before starting work and after every
refueling stop
NReplace if damaged
Safety labels
NReplace illegible safety labels
Observing the instructions in this manual
and the KombiEngine manual helps
reduce the risk of unnecessary wear and
damage to the power tool.
The power tool must be operated,
maintained and stored with the due care
and attention described in these
instruction manuals.
The user is responsible for all damage
caused by non-observance of the safety
precautions, operating and maintenance
instructions. This includes in particular:
–Alterations or modifications to the
product not approved by STIHL.
–Using tools or accessories which
are neither approved or suitable for
the product or are of a poor quality.
–Using the product for purposes for
which it was not designed.
–Using the product for sports or
competitive events.
–Consequential damage caused by
continuing to use the product with
defective components.
Maintenance Work
All the operations described in the
chapter on "Maintenance and Care"
must be performed on a regular basis. If
these maintenance operations cannot
be performed by the owner, they should
be performed by a servicing dealer.
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
Maintenance and Care Minimize Wear and Avoid
Damage

KB-KM, KW-KM
English
14
servicing dealer. STIHL dealers are
regularly given the opportunity to attend
training courses and are supplied with
the necessary technical information.
If these maintenance operations are not
carried out as specified, the user
assumes responsibility for any damage
that may occur. Among other parts, this
includes:
–Corrosion and other consequential
damage resulting from improper
storage.
–Damage to the product resulting
from the use of poor quality
replacement parts.
Parts Subject to Wear and Tear
Some parts of the power tool are subject
to normal wear and tear even during
regular operation in accordance with
instructions and, depending on the type
and duration of use, have to be replaced
in good time. Among other parts, this
includes:
–Sweeping attachment (roller
brushes, sweeper belts)
–Deflector, deflector extension

KB-KM, KW-KM
English
15

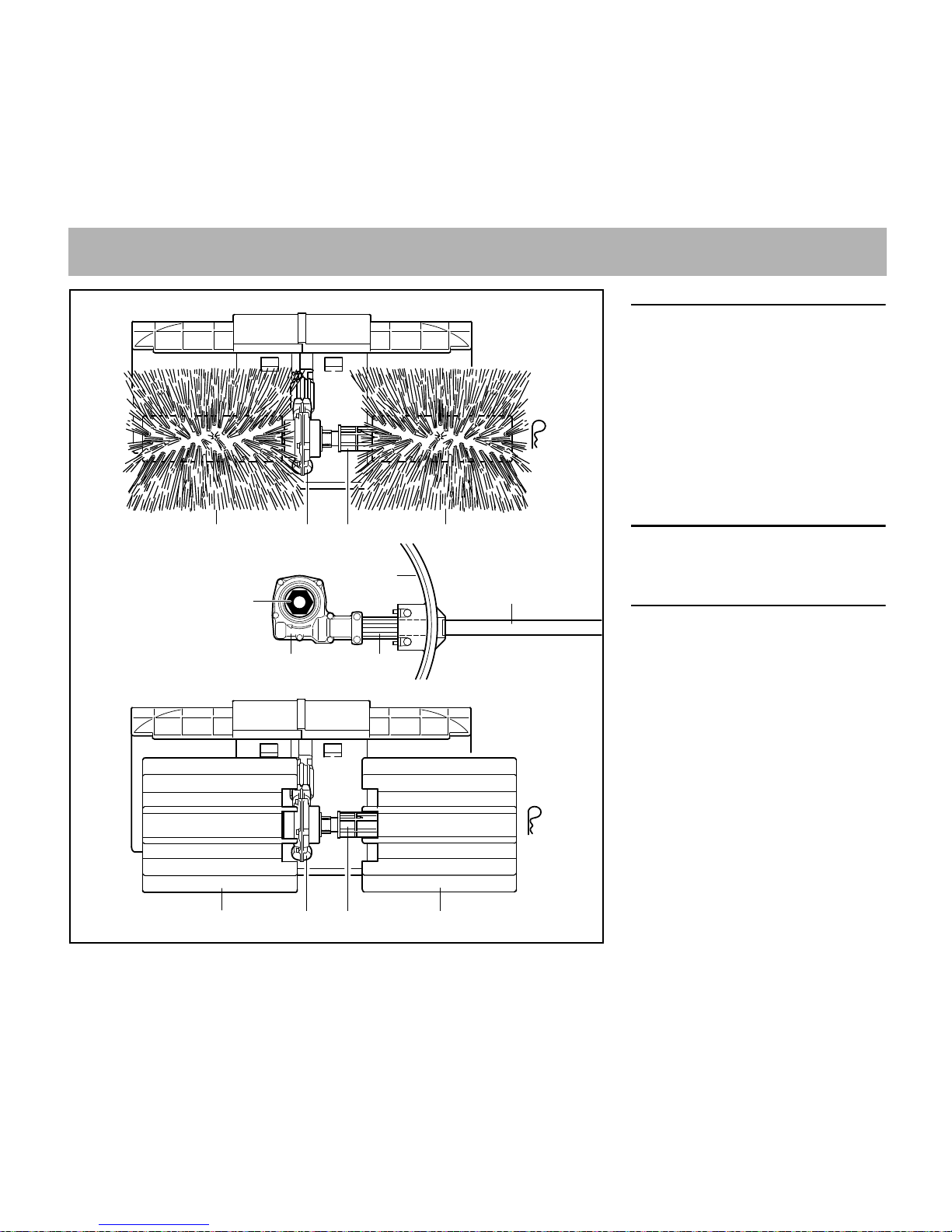

Bristle Brush, PowerSweep
1Gearbox
2Axle
3Hitch pin
4Deflector extension, right
5Defflector extension, left
6Sleeve
7Deflector
8Drive tube
Bristle Brush
9Roller brush
PowerSweep
10 PowerSweep with sweeper belt
Main Parts
7
8
1
479BA022 KN
2
3
99
4 5
10 10
3
21
16
2
4 5

KB-KM, KW-KM
English
16
Sweeping Attachments
KB-KM
KW-KM
Weight
Noise and Vibration Data
Noise and vibration measurements on
power tools with KombiTools KB-KM
and KW-KM include idling and racing in
a ratio of 1:6.
For further details on compliance with
Vibration Directive 2002/44/EC see
www.stihl.com/vib.
Sound pressure level Lp to ISO 6081
Sound pressure level Lp to ISO 11201
Sound power level Lw to ISO 3744
Sound power level Lw to ISO 3744
Sound power level Lw to ISO 11201
Vibration measurement ahv,eq to
ISO 7916
Vibration measurement ahv,eq to
ISO 20643
Vibration measurement ahv,eq to
ISO 22867
Specifications
Two roller brushes
Diameter: 250 mm
Working width: 600 mm
Two sweeping drums
Diameter: 270 mm
Working width: 600 mm
Complete with deflector and drive tube
KB-KM: 6.4 kg
KW-KM: 7.4 kg
KM 85 R with loop handle: 96 dB(A)
KM 55 R with loop handle: 96 dB(A)
KM 56 R with loop handle: 96 dB(A)
KM 90 R with loop handle: 92 dB(A)
KM 94 R with loop handle: 95 dB(A)
KM 100 R with loop handle: 90 dB(A)
KM 130 with loop handle: 99 dB(A)
KM 55 R with loop handle: 105 dB(A)
KM 56 R with loop handle: 106 dB(A)
KM 85 R with loop handle: 108 dB(A)
KM 90 R with loop handle: 102 dB(A)
KM 100 R with loop handle: 101 dB(A)
KM 130 R with loop handle: 106 dB(A)
KM 94 R with loop handle: 105 dB(A)
Handle,
left
Handle,
right
KB-KM, KW-KM
KM 85 R with
loop handle: 3.8 m/s25.5 m/s2
Handle,
left
Handle,
right
KB-KM
KM 55 R with
loop handle: 6.7 m/s28.2 m/s2
KM 56 R with
loop handle: 8.2 m/s28.2 m/s2
KM 90 R with
loop handle: 6.1 m/s24.1 m/s2
KM 100 R with
loop handle: 3.7 m/s26.6 m/s2
KM 130 R with
loop handle: 8.0 m/s28.6 m/s2
Handle,
left
Handle,
right
KW-KM
KM 55 R with
loop handle: 6.5 m/s27.0 m/s2
KM 56 R with
loop handle: 8.5 m/s27.5 m/s2
KM 90 R with
loop handle: 4.9 m/s27.0 m/s2
KM 100 R with
loop handle: 4.1 m/s26.5 m/s2
KM 130 R with
loop handle: 8.5 m/s29.4 m/s2
Handle,
left
Handle,
right
KB-KM
KM 94 R with
loop handle: 4.5 m/s25.5 m/s2

KB-KM, KW-KM
English
17
The K-factor in accordance with
Directive 2006/42/EC is 2.5 dB(A) for
the sound pressure level and sound
power level; the K-factor in accordance
with Directive 2006/42/EC is 2.0 m/s2
for the vibration measurement.
REACH
REACH is an EC regulation and stands
for the Registration, Evaluation,
Authorisation and Restriction of
Chemical substances.
For information on compliance with the
REACH regulation (EC) No. 1907/2006
see www.stihl.com/reach.
Users of this machine may only carry out
the maintenance and service work
described in this user manual. All other
repairs must be carried out by a
servicing dealer.
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer. STIHL dealers are
regularly given the opportunity to attend
training courses and are supplied with
the necessary technical information.
When repairing the machine, only use
replacement parts which have been
approved by STIHL for this power tool or
are technically identical. Only use high-
quality replacement parts in order to
avoid the risk of accidents and damage
to the machine.
STIHL recommends the use of original
STIHL replacement parts.
Original STIHL parts can be identified by
the STIHL part number, the {
logo and the STIHL parts symbol K
(the symbol may appear alone on small
parts).
Observe all country-specific waste
disposal rules and regulations.
STIHL products must not be thrown in
the garbage can. Take the product,
accessories and packaging to an
approved disposal site for environment-
friendly recycling.
Contact your STIHL servicing dealer for
the latest information on waste disposal.
Handle,
left
Handle,
right
KW-KM
KM 94 R with
loop handle: 4.6 m/s26.0 m/s2
Maintenance and Repairs Disposal
000BA073 KN

KB-KM, KW-KM
English
18
ANDREAS STIHL AG & Co. KG
Badstr. 115
D-71336 Waiblingen
Germany
confirms that the product described
below
conforms to the relevant provisions of
Directive 2006/42/EC and has been
developed and manufactured in
compliance with the following standards
in the versions valid on the date of
production:
EN ISO 12100 (in conjunction with the
specified KM and FS-models).
Technical documents deposited at:
ANDREAS STIHL AG & Co. KG
Produktzulassung (Product Licensing)
The year of manufacture is applied to
the power tool.
Done at Waiblingen, 11.03.2016
ANDREAS STIHL AG & Co. KG
Thomas Elsner
Director Product Management and
Services
EC Declaration of Conformity
Category: Bristle
Brush/Power-
Sweep
KombiTool
Make: STIHL
Model: KB-KM
KW-KM
Serial identification: 4601
