STILLA S3005 User manual

STILLA
ASSEMBLY INSTRUCTIONS
‘Richmond’6x4
S3005
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

1 | P a g e
Caution
Please be careful when handling all components, some parts have sharp metal edges.
Always wear work gloves, eye protection and long sleeves when assembling or maintaining
your shed.
Tools required for assembly
•Level
•Drill (capable of driving 100mm
Batten Screw)
•Hammer
•Ladder
•12mm Drill bit
•6mm Drill bit
•Tape measure
•Phillips head drive
•Hex Head Drive (5/16’)
•Safety glasses
•Gloves
•Circular/power saw (if rebated or
heavy duty floor was chosen)
•4mm Alan key
•Batten screw drive
Before assembly
•Before proceeding with installation, we recommend viewing the Cedar Shed video at
www.stilla.com.au/installation/ or search Stilla Classic Cedar Sheds on Youtube. This doesn’t
show the installation in detail however it could give you some handy tips. Please note we
haven’t videoed the assembly of each shed however the video online is the Maple 12x6 and
will give you an overall idea on how the installation process is completed.
•Remove all parts from packages and place in a safe place close to assembly area.
•Review all instructions; continue to refer to instructions throughout assembly –step
by step.
Preparing your site
•If you are installing your shed on the Stilla rebated floor we recommend finding a
place in your yard that is very close to level. Pavers or a solid material that will not be
affected by weather can be used to perfectly level the shed by placing under the
floor frame where required, make sure all members are supported.
•If you are installing your shed on the Stilla heavy duty floor, this can be placed on
unlevelled surfaces and levelled up by using the 100x100 stumps provided.

2 | P a g e
RICHMOND 6x4 PARTS CHECKLIST
Part Code
Checked
Part Description
Qty
12P
Cedar Clad Panel 1200x1895mm
2
9P
Cedar Clad Panel 900x1895mm
2
FP
Cedar Clad Panel 480x1895mm (180x1895mm if Double Doors)
2
CD
Colonial Door 830x1875mm (2x 714x1875mm if Double Doors)
1
FG
6ft Front Gable
1
BG
6ft Back Gable
1
CP
Corner Posts 1890x60x18mm
4
CS
Cover Strips 1890x40x7mm
1
F
6ft Fascia Pack (4)
1
R
Roof Rafter 870x70x45mm
4
DH
Door Head 840x42x35mm (1440mm if double doors)
1
DS
Door Step 840x19x42mm (1440mm if double doors)
1
E
Roof End Piece 203x70x30mm
12
RS
1120mm Roof Sheeting
4
RC
1520mm Ridge Cap
1
REP
Roof End Plate 1114x70x45mm
4
C
1520mm Channel
2
HK
6x4 Hardware Kit
1
IM
6x4 Instruction Manual
1
Floor Kit –Option
Floor Frame - 140x38mm
Part Code
Checked
Part Description
Qty
EP
End Plate 1884x140x38mm
2
DJ
Double Joist 1124x140x38mm
2
SJ
Single Joist 1124x140x38mm
3
L
Logs 750mm
4
FB
1798mm x 800mm
1
FB
1798mm x 311mm
1
Double Doors –Option –Changes to above kit
Part Code
Checked
Part Description
Qty
CD
Colonial Door 714x1875mm
2
FP
Front Panel 180x1890mm
2
DP
Door Leaver Packer 100x100x18mm
1
DH
Door Head 1440x42x35mm
1
DS
Door Stop 1440x42x19mm
1

3 | P a g e
If no floor option was purchased, go to step 2.0 (Wall Assembly)
SKIP TO BACK FOR IMAGES TO HELP WITH FLOOR INSTALL
STEP 1.0
FLOOR KIT
1.0 –FLOOR KIT
PART CODE
QTY
DESCRIPTION
EP
2
End Plate 1884mm
SJ
3
Single Joist 1124mm
DJ
2
Double Joist 1124mm
100BS
24
100mm Batten Screw
1.0 –FLOOR FRAME
Fasten floor frame together as indicated in diagram below, using lines and predrilled holes.
Screw through EP into DJ using 3x 100BS.
Screw through EP into SJ using 2 x 100BS per join.
Ensure frame is square by measuring from corner to corner diagonally, frame will be square
when both diagonal measurements equal the same.
ENSURE 42x35 side of the DJ sits at top.

4 | P a g e
STEP 1.1
FLOOR FRAME INSTALLATION
The 6x4 floor frame comes in one part. Install floor frame in desired position at desired
height and fasten to logs once level and square.
1.1 –FLOOR FRAME INSTALLATION
PART CODE
QTY
DESCRIPTION
L
4
Logs 750x100x100mm
100BS
16
100mm batten screws
200PB
4
200mm M12 Post Bolt
W
8
M12 Washers
1.1 –FLOOR FRAME INSTALLATION
1. Lay out frame in desired position and mark holes to dig, as indicated on diagram
below (use shovel or marking paint).
2. Dig and place logs in holes (using concrete if you wish).
3. Fasten floor frame to logs at desired height, using 4x 100BS per log, ensuring frame is
level*.
* Fasten frame to logs when roughly level and then critique by hammering in or adding dirt
(or concrete) to corners until perfectly level at every post.
Once frame is installed, predrill holes (using a 13mm drill bit) and bolt each log to the floor
frame in spots indicated with 200PB, using washers on both sides.

5 | P a g e
STEP 1.2
FLOOR INSTALLATION
1.2 –FLOORING INSTALLATION
PART CODE
QTY
DESCRIPTION
FB
1
Floor Board 1798x800mm
FB
1
Floor Board 1798x311mm
50PS
25
50mm Philips Screw
1.2–FLOORING INSTALLATION
Fasten floor sheets to floor frame as shown in diagram below using 50PS.
Bring Floor sheets in 43mm on all 4 sides from the outside of the floor frame.
Note- The x marked on the floor sheets do not line up with out joists.

6 | P a g e
STEP 2.0
WALL ASSEMBLY
2.0 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front panel
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
If optional window was purchased, it can take the place of any 1200mm (12P) panel.
2.0 - ASSEMBLY –WALL ASSEMBLY
Screw through FP into 12P (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on
the outside)
Note: Ensure tongue on VJ cladding is facing upwards.
12P
Screw 3 x 65HHS (Top,
centre & bottom)
FP
Cedar Strip
When screwing the four corners together please make sure the studs are flush on the
outside (not the inside) as per image below.

7 | P a g e
STEP 2.1
WALL ASSEMBLY
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
9P
1
900mm Wall panel
65HHS
3
65mm Hex head screw

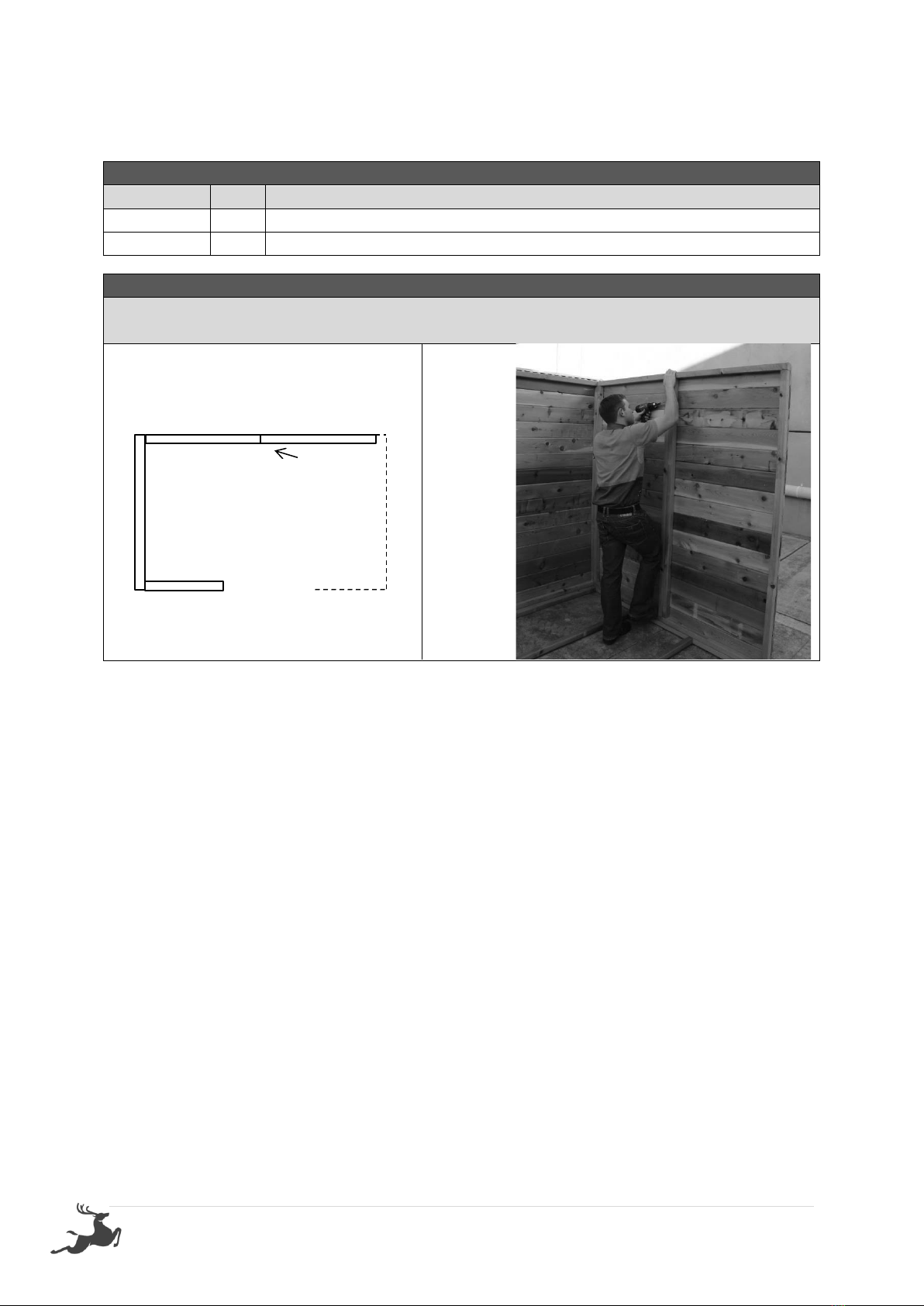

2.1 - ASSEMBLY –WALL ASSEMBLY
Screw through 9P into 12P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on
the outside.
9P
Screw 3 x 65HHS (Top,
centre & bottom)
FRONT OF SHED
12P

8 | P a g e
STEP 2.2
WALL ASSEMBLY
2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
9P
1
900mm Wall panel
65HHS
3
65mm Hex head screw

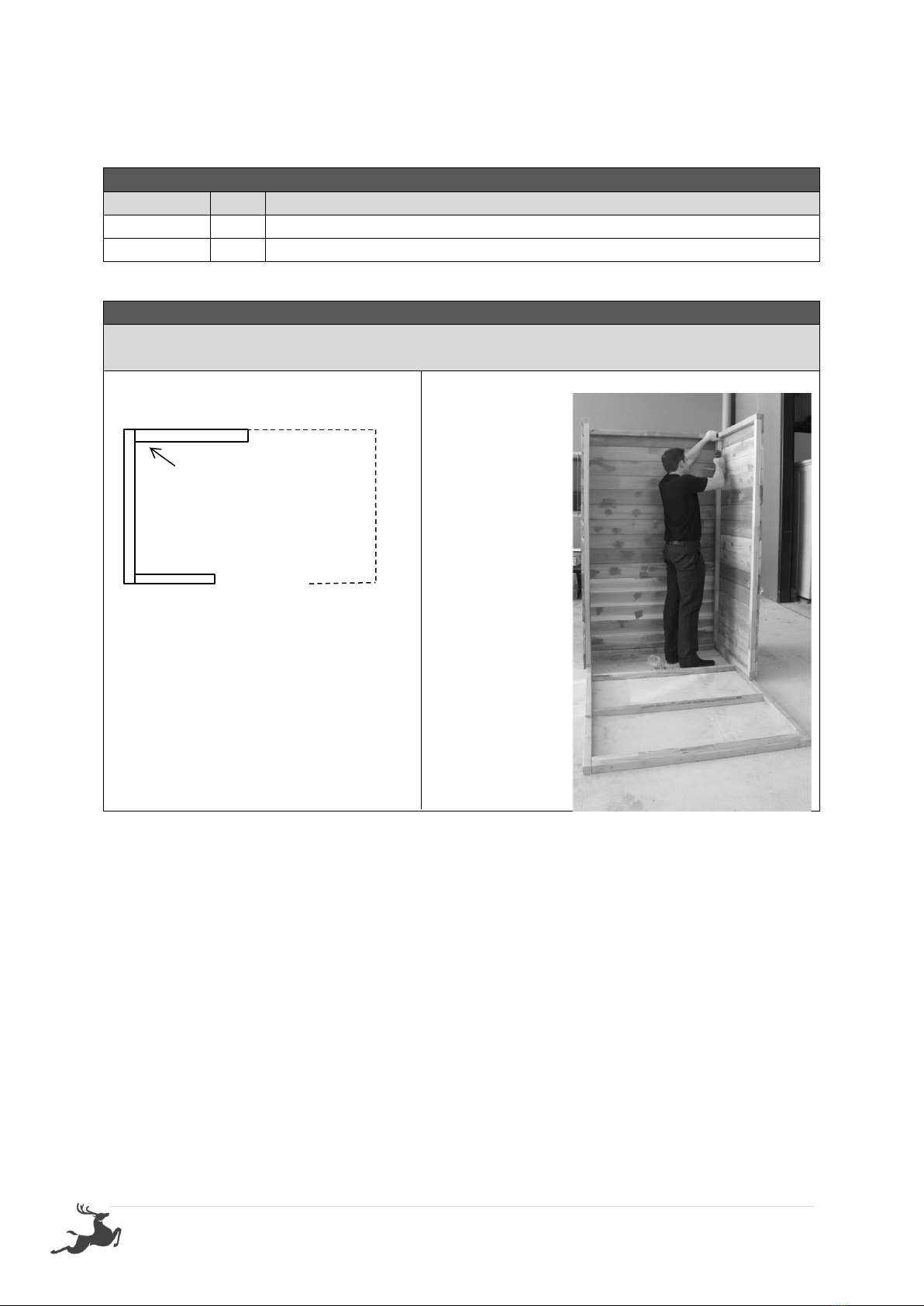

2.2 - ASSEMBLY –WALL ASSEMBLY
Screw through 9P into 9P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
inside.
9P
Screw 3 x 65HHS (Top,
centre & bottom)
9P
FRONT OF SHED

9 | P a g e
STEP 2.3
WALL ASSEMBLY
2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.3 - ASSEMBLY –WALL ASSEMBLY
Screw through 9P into 12P (top, centre & bottom) using 3 x 65HHS holding studs flush on
the outside.
Screw 3 x 65HHS (Top,
centre & bottom)
9P
12P

10 | P a g e
STEP 2.4
WALL ASSEMBLY
2.4 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front panel
65HHS
3
65mm Hex head screw
2.4 - ASSEMBLY –WALL ASSEMBLY
Screw through FP into 12P (top, centre & bottom) using 65HHS holding studs flush on the
outside.
Screw 3 x 65HHS (Top,
centre & bottom)
FRONT OF SHED
FP
12P
Cedar Strip

11 | P a g e
STEP 2.5
DOOR STEP INSTALL
2.5 - ASSEMBLY PARTS –DOOR STEP INSTALL
PART CODE
QTY
DESCRIPTION
DS
1
840x42x19mm Door Step (Replace with 1440 DS if DD)
DS
1
1440x42x19mm Door Step (ONLY IF DOUBLE DOOR OPTION PURCHASED)
40N
4
40mm Nail
2.5- ASSEMBLY –DOOR STEP INSTALL
Nail Door Step in position using 4x 40N* as seen below. Ensure wall panels are tight against DS.
* This is if floor option was chosen. If you are installing on concrete slab, use small dyno bolts to
fasten (not provided).

12 | P a g e
STEP 2.6
DOOR HEAD ASSEMBLY
2.6 - ASSEMBLY PARTS –DOOR HEAD ASSEMBLY
PART CODE
QTY
DESCRIPTION
1
Front End 6ft Gable
DH
1
840x42x35mm Door Head (replace with 1440mm DH if DD)
DH
1
1440x42x35mm Door Head (ONLY IF DD OPTION PURCHASED)
65HHS
4
65mm Hex head screw

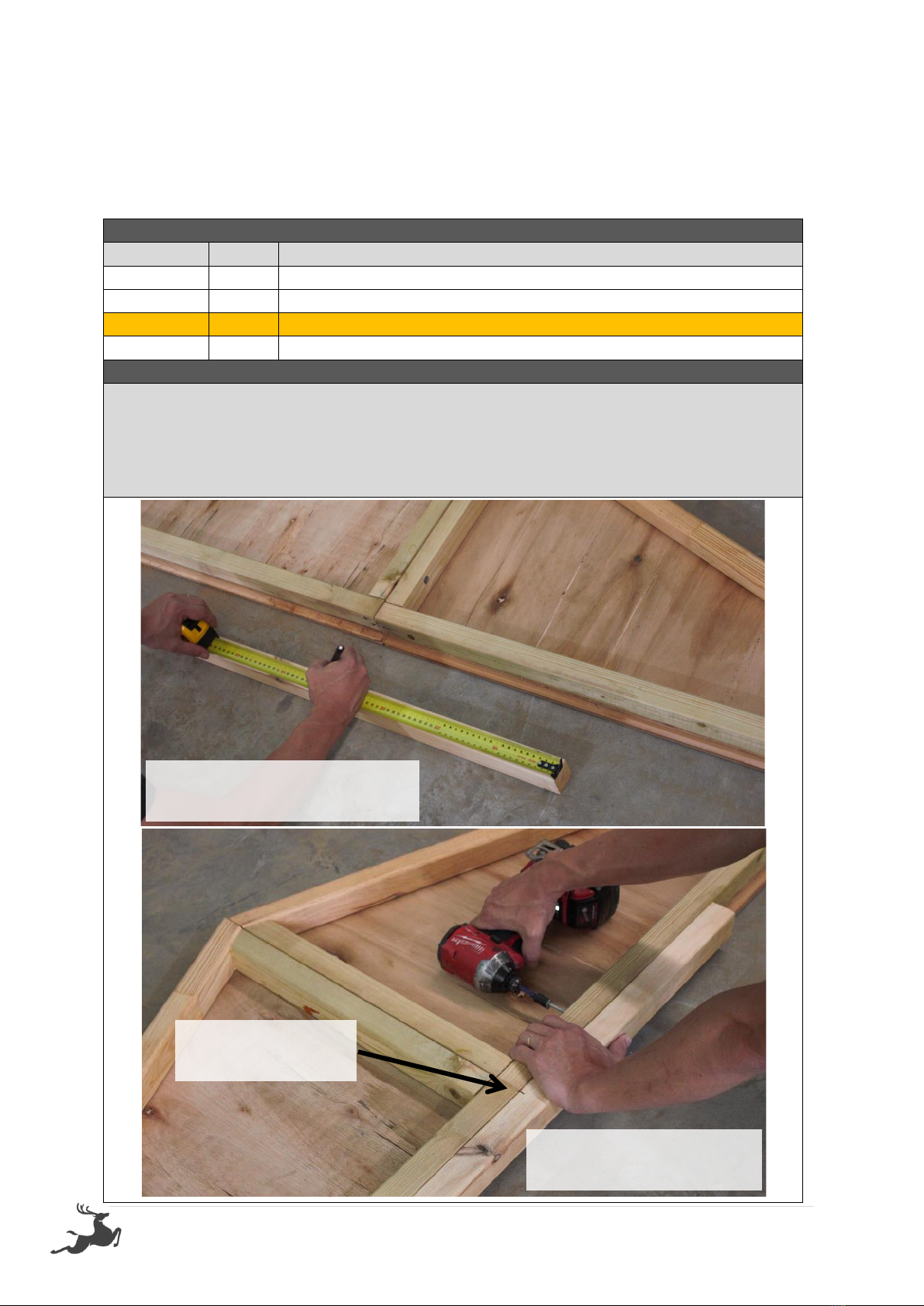

2.6 - ASSEMBLY –DOOR HEAD ASSEMBLY
Measure and mark middle of Door Head (DH)*. Lay Assembled front end Gable on a flat
surface with the frame facing upwards, as seen below. Line up middle mark on DH with
gable join centre, hold and screw down through gable into DH using 4x 65HHS- 2 either
side of gable join (as seen below).
* 420mm mark for SD / 720mm mark for DD.
Measure and mark middle of
Door Head
Screw through gable frame
into Door Head
Centre Door Head in
middle of Gable

13 | P a g e
STEP 2.7
FRONT END GABLE INSTALL
2.7 - ASSEMBLY PARTS –FRONT END GABLE INSTALL
PART CODE
QTY
DESCRIPTION
FG
1
Front End 6ft Gable
65HHS
4
65mm Hex head screw

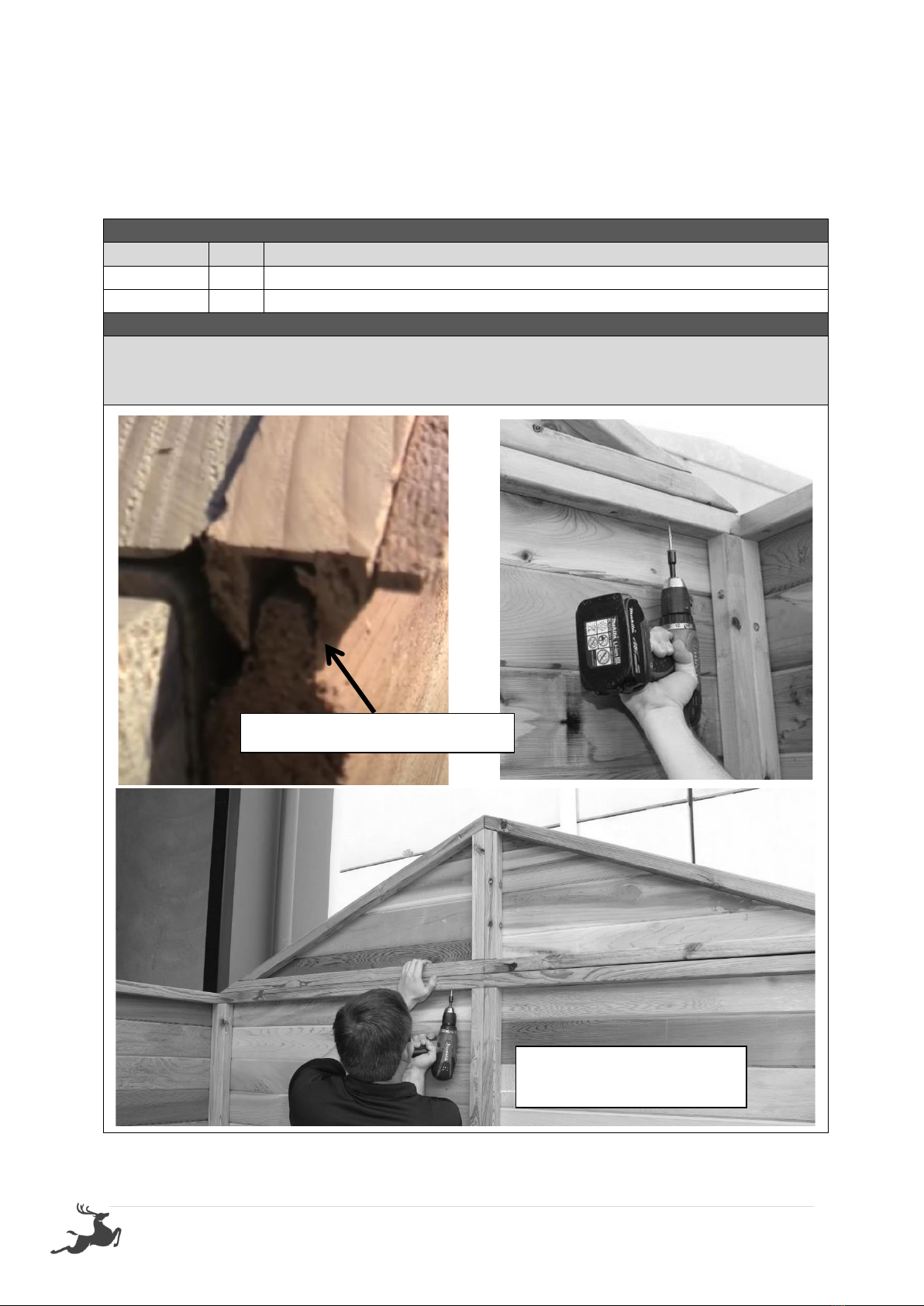

2.7 - ASSEMBLY –FRONT END GABLE INSTALL
Carefully place assembled gable on front wall, ensuring groove on gable slots into the tongue
on the wall, as seen below. Ensure end of gable sits flush with side of back wall panel and
fasten by screwing 4x 65HHS through panels into gable- 2 screws either side of join.
Ensure groove slots into tongue
Screw upwards through
wall panel into gable

14 | P a g e
STEP 2.8
BACK END GABLE INSTALL
2.8 - ASSEMBLY PARTS –BACK END GABLE INSTALL
PART CODE
QTY
DESCRIPTION
BG
1
Back End 6ft Gable
65HHS
4
65mm Hex head screw
2.8 - ASSEMBLY –BACK END GABLE INSTALL
Carefully place assembled gable on back wall, ensuring groove on gable slots into the tongue
on the wall, as seen below. Ensure end of gable sits flush with side of back wall panel and
fasten by screwing 4x 65HHS through panels into gable- 2 screws either side of join.
Ensure groove slots into tongue
Screw upwards through
wall panel into gable

15 | P a g e
STEP 3.0
ROOF FRAME ASSEMBLY
3.0 - ASSEMBLY PARTS –ROOF ASSEMBLY (REPEAT TWICE)
PART CODE
QTY
DESCRIPTION
REP
2
Roof End Plate 1114x70x45mm
R
2
Roof Rafter 870x70x45mm
75BS
8
75mm Batten Screw

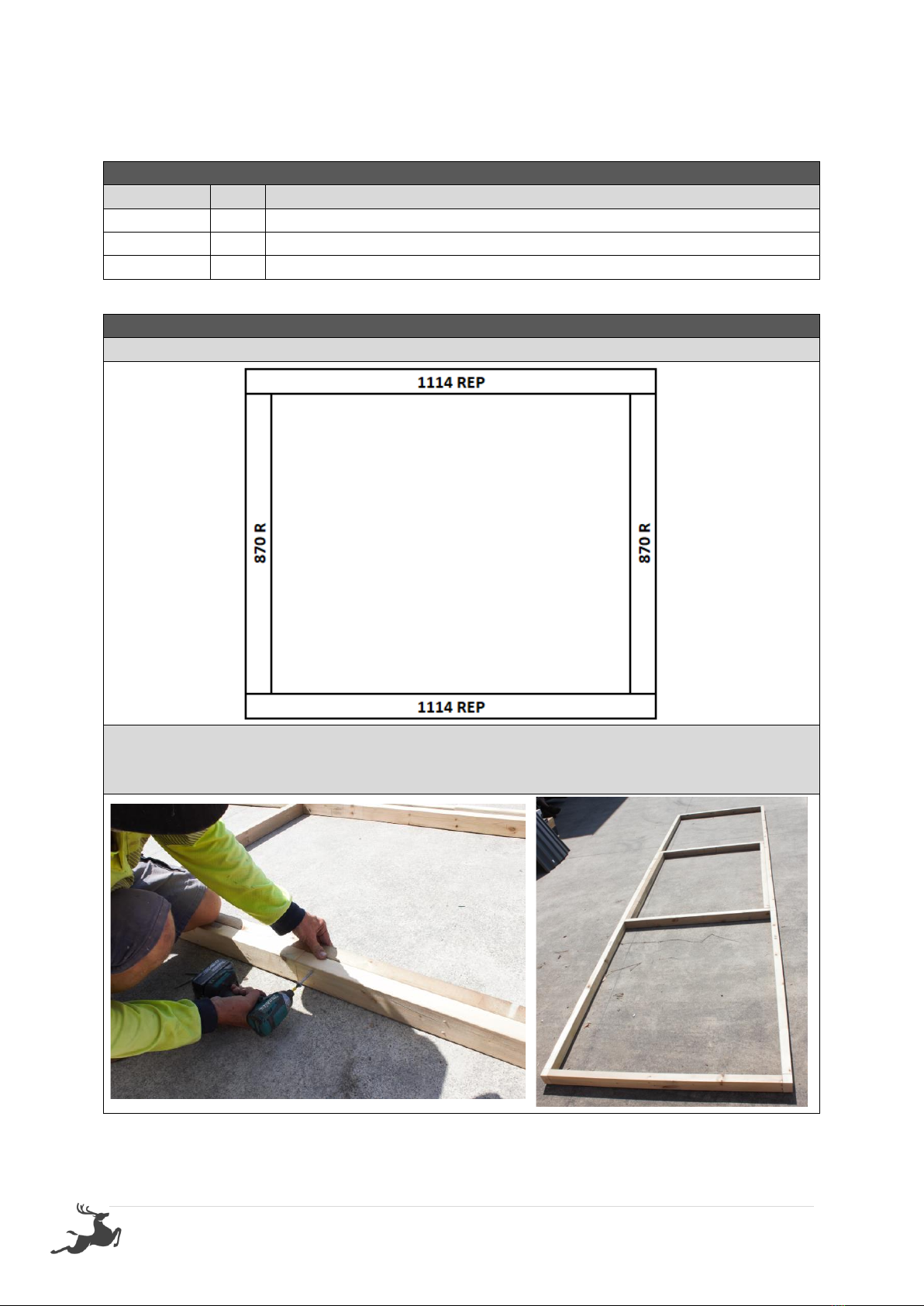

3.0- ASSEMBLY –ROOF ASSEMBLY (1 of 2 frames)
It helps to find a flat, level surface to complete this process on.
1. Place 2x Roof Rafters (R) in between REPs as seen in diagram above and screw 75BS into
predrilled holes to assemble roof frame.
Repeat this twice.
REPEAT THIS ASSEMBLY PROCESS TWICE TO COMPLETE BOTH ROOF
FRAMES READY FOR ROOF SHEETING

16 | P a g e
STEP 3.1
ROOF ASSEMBLY
3.1 - ASSEMBLY PARTS –ROOF ASSEMBLY (ROOF SHEETS)
PART CODE
QTY
DESCRIPTION
RS
2
1120mm roof sheet
40RS
3
40mm Roof screw
25RS
4
25mm Roof screw

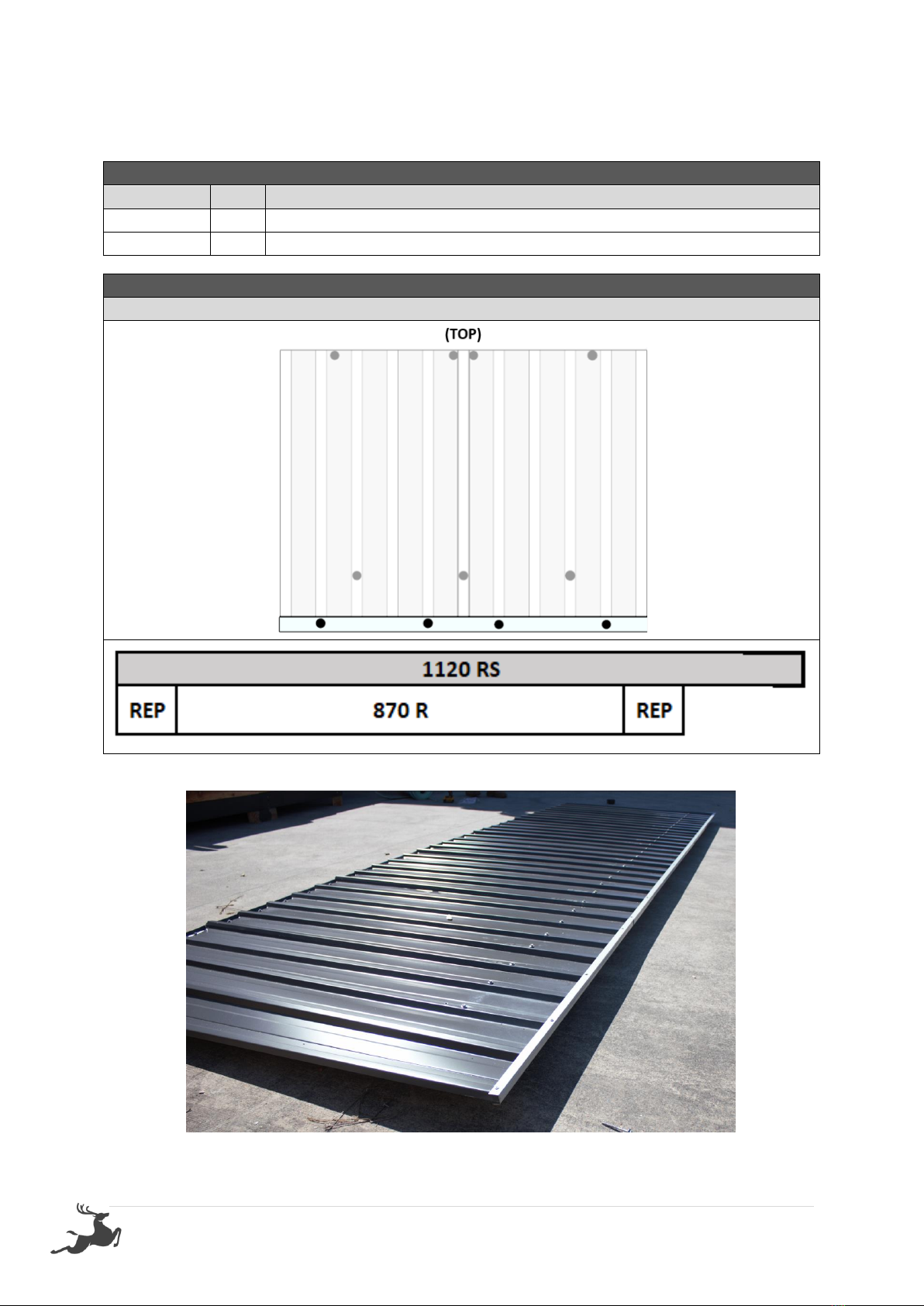

3.1 - ASSEMBLY –ROOF ASSEMBLY (ROOF SHEETS)
It helps to find a flat, level surface to complete this process on.
Position roof sheets (RS) at either end of roof frame and fasten in place as indicated in
diagrams. Lay roof sheet (bent edge) flush with top of roof frame while hanging side of roof
sheet 203mm* over end of roof frame. Once in position, screw 25RS through pan at top**
FIRST and then (checking bottom is still overhanging 203mm from side) screw a 40RS
through rib at the bottom** to fasten roof sheet in place.
Fasten roof sheets to battens in sequence shown. 1 x 25RS either side of join at top and 1 x
40RS through rib join at bottom.
Note: Use straight edge to keep all screws in line and centre of batten
* Use 203mm “E” or tape measure when placing overhanging side of roof sheet (ENSURE
ROOF SHEET RUNS PARRELEL TO ROOF FRAME END).
** Only screw 25RS in pan at the top and 40RS in the bottom of roof sheet.
REPEAT THIS STEP FOR SECOND ROOF FRAME
(TOP)
(SIDE VIEW)

17 | P a g e
STEP 3.2
ROOF ASSEMBLY
3.2 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
40RS
4
40mm Roof screw
25RS
6
25mm Roof screw
3.2 - ASSEMBLY –ROOF ASSEMBLY
Complete screwing roof off at top. 1 x 25RS in pan beside every rib. Once top is complete
screw bottom off using 1 x 40RS through every rib.
Note: Use straight edge to keep all screws in line and centre of batten.
REPEAT THIS STEP FOR SECOND ROOF FRAME

18 | P a g e
STEP 3.3
CHANNEL ASSEMBLY
3.3 - ASSEMBLY PARTS –CHANNEL ASSEMBLY
PART CODE
QTY
DESCRIPTION
ST
4
12mm self-tapping screw
C
1
Roof Channel
3.3 - ASSEMBLY –CHANNEL ASSEMBLY
Slide Roof channel onto end of roof sheeting overhang. Fasten in place using ST.
REPEAT TASKS 3.0 –3.3 TO COMPLETE THE OTHER ROOF PANEL.

19 | P a g e
STEP 3.4
ROOF END PIECE
3.4 - ASSEMBLY PARTS –RIDGE BEAM BRACKET
PART CODE
QTY
DESCRIPTION
E
12
Roof End Piece 203x70x30mm
65BS
12
65 Batten Screws
3.4 - ASSEMBLY –ROOF END PIECES TO GABLES
Standing inside shed on ladder, screw roof end pieces to top of gable in required positions
using 1x 65BS per piece. See positions in photo below. Lay 70mm side flat on top of gable
with 70x30mm face flush with inside of gable frame and screw in place (6 pieces per gable).
Note: It is advised to predrill through the E first with a 4mm drill bit, before securing to
gable.
Repeat this step on both gables.
