Stocks AG MICRO METER i-CON User manual

Original Instructions, Revision 1 August 2020
MICRO METER
i-CON
Original Operating Manual and parts list
Read carefully before installation and
operation
This document must not be copied duplicated or distributed without prior consent .
All and patent rights apply
STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.
Tel: [phone] Email: [e-mail] www.stocks-ag.co.uk

2
Index 2020
Section Page No.
2Index 2
3-1General information 3
3-2Technical data 3
3-3Intended use 3
3-4Unintended use 3
4Contents of the EC Declaration of Conformity 4
5Contents of the UKCA Declaration of Conformity 5
6-1Machine identification 6
6-2Warranty 6
7Safety 7
8-1Emergency Stop Instructions 8
9Maintenance 9
10 Safety warning decals and safety signs 10
11-1Clearing a blockage 11
11-2Storage 11
11-3OPTIONAL Heavy Duty Waterproof Cover 11
11-4Disposal 11
12 Machine Mounting 12
13-1i-CON Control System 13
13-2Wiring diagram 13
13-3Electrical Connections 13
14 Machine Components 14

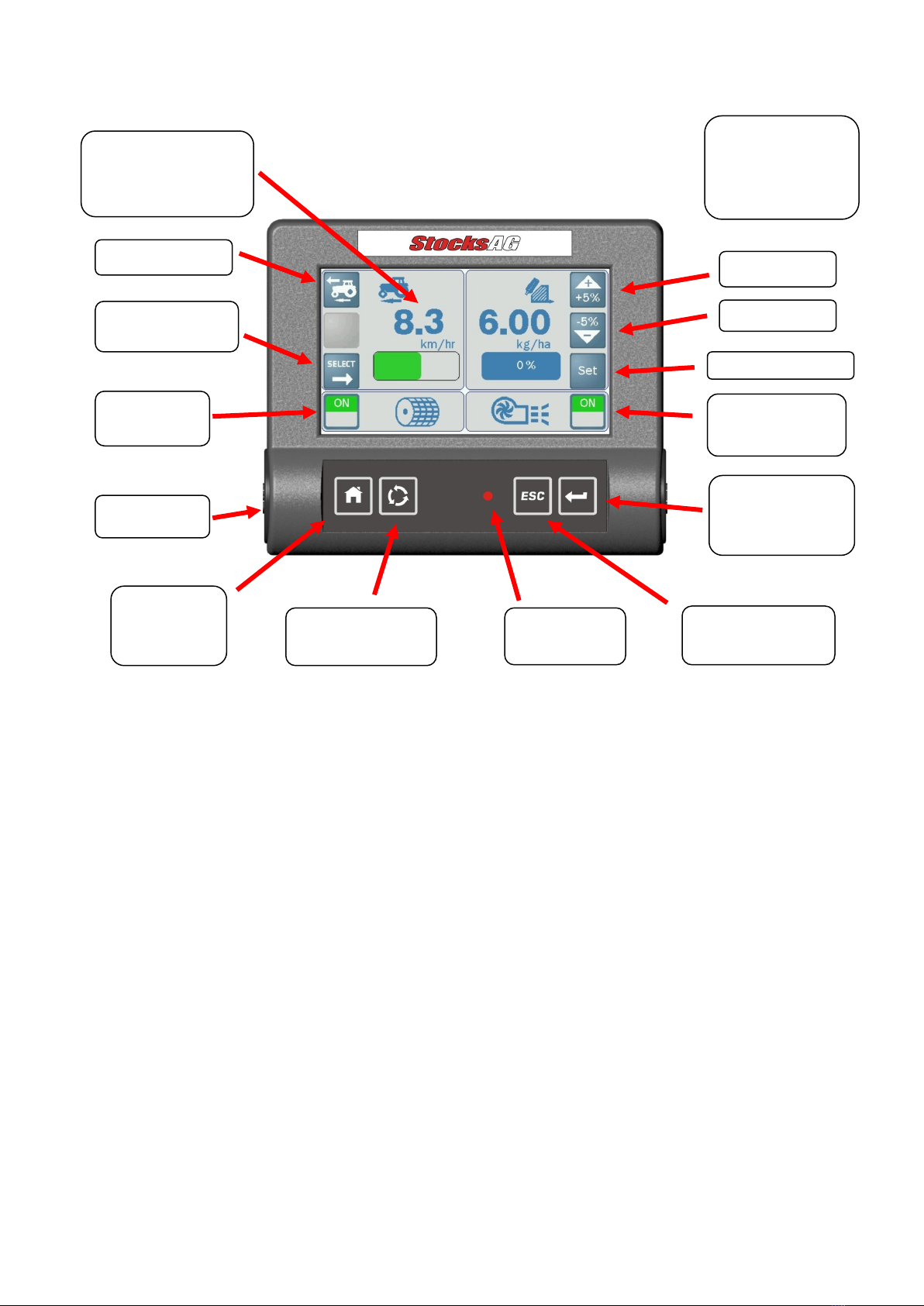

15-1i-CON instrument functions 15
15-2 Precision farming software access (OPTIONAL) 15
16-1Feed Shaft Speed 16
16-2Feed Roller Adjustment 16
17 i-CON Calibration (page 1) 17
18 i-CON Calibration (page 2) 18
19-1OPTIONAL Add On Units 19
19-2OPTIONAL Combi Units 19
19-3OPTIONAL Nematicide Kit 19

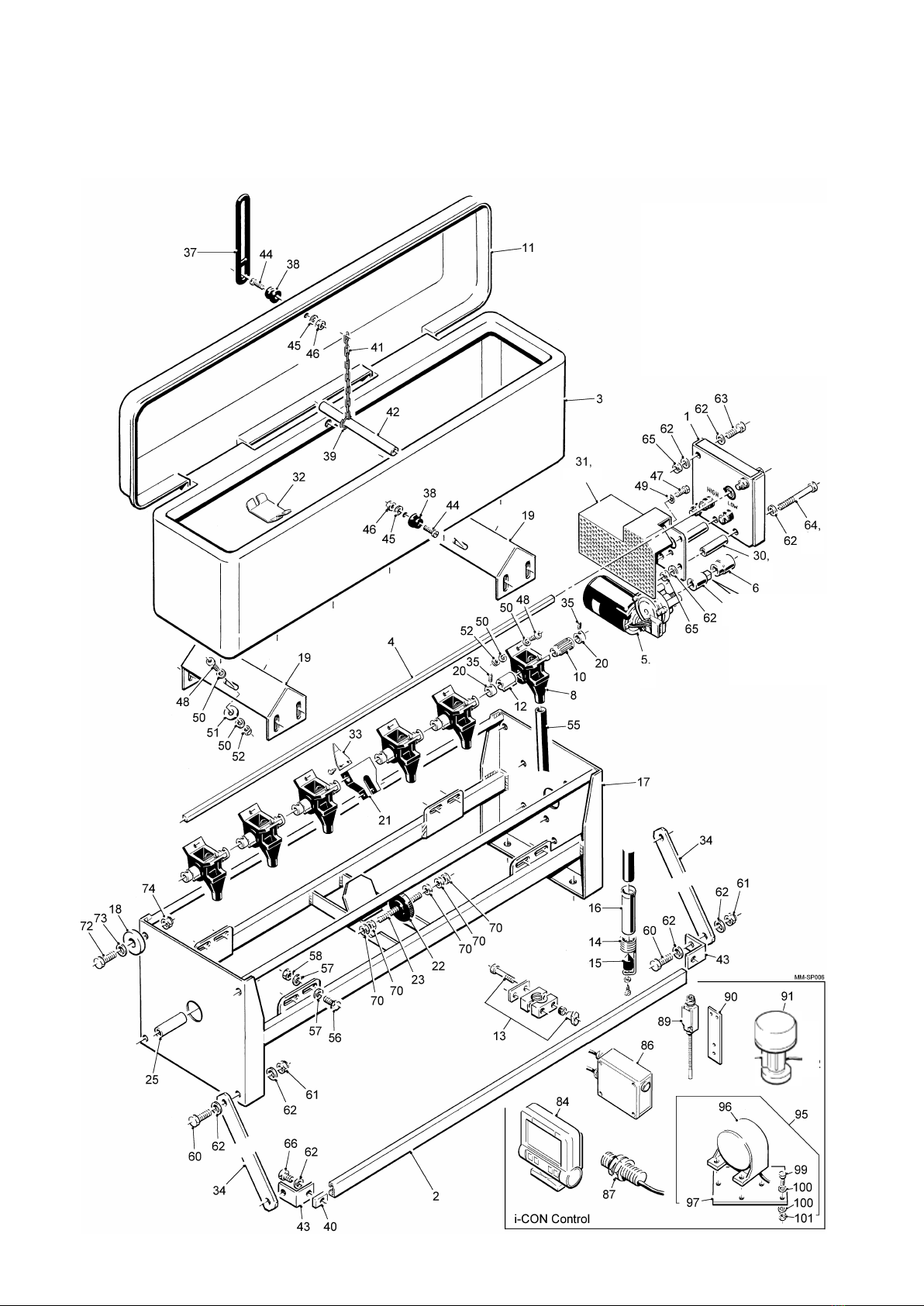

20 Parts drawing 20
21 Parts list (page 1) 21
22 Parts list (page 2) 22

3
3-1 General information
Congratulations on your Micro Metre purchase;
Please check the machine for any transport damage upon re-
ceipt and advise your supplier of any problems immediately.
Late claims regarding any damage may be rejected.
IMPORTANT
This Operating Manual forms part of the machine and must be readily available for the operator
who must read and follow the points covered before use
3-2 Technical data
Model: Micro Meter i-CON
60 litre hopper capacity;
Net weight: Approx. 40kg
Dimensions (W x D x H) 102 x 32 x 40 cm (Boxed; 104 x 54 x 41 cm)
Operating Voltage 12v; Power requirement 10 amps Motor outputs: 120W
Noise level: 65dB
3-3 Intended use
This machine has been designed to be mounting onto any non folding parent implements such as power
harrows, seed drills, planters, and vineyard interrow equipment to safely apply a large variety of seeds such
as OSR, grass, clover, kale, stubble turnips and can also be used to apply slug pellets, granular products
such as Avadex ® and low rate application of prilled or starter fertilisers for the agricultural, horticultural
and amenity sector.
Each hopper will cover up to 1.5m width for an even broadcast effect or to a wider width if band sowing.
For grass seed application our high output machine fitted with deep groove feed rollers may be required.
The operator alone bears the associated risk if used for unintended use.
Intended use also includes compliance with the conditions for operation, maintenance, and repairs.
The implement may only be used, maintained and repaired by persons who have relevant experience and
aware of the risks involved.
The manufacturer is not liable for any resulting damage if the machine is used for any other purpose than
the intended use also includes compliance with the conditions for operation, maintenance, and repairs pre-
scribed within this instruction manual .
This machine should not be used in the rain or during a thunderstorm.
The applicable accident prevention regulations as well as the other generally safety-related, occupational
health and road traffic regulations must also be observed.
Specifications descriptions and illustrations in this manual are accurate at the time of this publication but
may be subject to change this manual are correct at the time of printing but we reserve the right to change
and improve them. This machine is designed with safety in mind.
Maintenance and servicing in accordance with this manual will ensure safe operation and reliability of your
machine for many years
3-4 Unintended use
This machine is not designed to apply large seeds, abrasive materials such as sand & grit, or salt products
Machines are not designed to be tipped when in work
*Avadex ® is a Trademark used under licence by Gowan Crop Protection Ltd

4
E.C. DECLARATION OF CONFORMITY
Machine Type: Mounted Agricultural Implement - Pellet and Seed application broadcasters
Model(s): Fan Jet Pro All Variants & Versions
Fan Jet Pro Plus All Variants & Versions
Fan Jet Twin All Variants & Versions
Fan Jet Mini All Variants & Versions
Fan Jet Duo All Variants & Versions
Turbo Jet All Variants & Versions
Rotor Meter All Variants & Versions
Rotor Meter Air Force All Variants & Versions
Micro Meter All Variants & Versions
Maxi Meter All Variants & Versions
Serial No. ……………………………………………………………………………………………
Manufacturer: Stocks Ag Ltd
Cromwell Road
Wisbech
Cambridgeshire PE14 OSD
United Kingdom
This is to declare that the above machine conforms to the relevant Essential Health and Safety Requirements of the
Machinery Directive 2006/42/EC, implemented in the United Kingdom by Statutory Instrument 2008 No.
1597 – The Supply of Machinery (Safety) Regulations 2008 as amended.
The following standards have been applied in the design and construction of this machine:
BS EN ISO 12100: 2010 Safety of machinery – Basic concepts, general principles for design – Basic
terminology, methodology.
BS EN ISO 4254-1: 2015 Agricultural machinery – Safety - General requirements
BS EN ISO 4254-8: 2018 Agricultural machinery – Safety – Solid fertilizer distributors.
BS EN ISO 13854: 2019 Safety of machinery – Minimum gaps to avoid crushing of parts of the
human body.
BS EN ISO 13857: 2019 Safety of machinery – Safety distances to prevent hazard zones
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs.
The manufacturer stated above holds the technical file for this machine.
Signed on behalf of Stocks Ag Ltd
Name: J Woolway
Date: 06th August 2020
Position: Managing Director
t. [phone] f. [phone] e. [e-mail]

5
UKCA. DECLARATION OF CONFORMITY
Machine Type: Mounted Agricultural Implement - Pellet and Seed application broadcasters
Model(s): Fan Jet Pro All Variants & Versions
Fan Jet Pro Plus All Variants & Versions
Fan Jet Twin All Variants & Versions
Fan Jet Mini All Variants & Versions
Fan Jet Duo All Variants & Versions
Turbo Jet All Variants & Versions
Rotor Meter All Variants & Versions
Rotor Meter Air Force All Variants & Versions
Micro Meter All Variants & Versions
Maxi Meter All Variants & Versions
Serial No. ……………………………………………………………………………………………
Manufacturer: Stocks Ag Ltd
Cromwell Road
Wisbech
Cambridgeshire PE14 OSD
United Kingdom
This is to declare that the above machine conforms to the relevant Essential Health and Safety Requirements of the
Machinery Directive 2006/42/EC, implemented in the United Kingdom by Statutory Instrument 2008 No.
1597 – The Supply of Machinery (Safety) Regulations 2008 as amended.
The following standards have been applied in the design and construction of this machine:
BS EN ISO 12100: 2010 Safety of machinery – Basic concepts, general principles for design – Basic
terminology, methodology.
BS EN ISO 4254-1: 2015 Agricultural machinery – Safety - General requirements
BS EN ISO 4254-8: 2018 Agricultural machinery – Safety – Solid fertilizer distributors.
BS EN ISO 13854: 2019 Safety of machinery – Minimum gaps to avoid crushing of parts of the
human body.
BS EN ISO 13857: 2019 Safety of machinery – Safety distances to prevent hazard zones
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs.
The manufacturer stated above holds the technical file for this machine.
Signed on behalf of Stocks Ag Ltd
Name: J Woolway
Date: 01st December 2020
Position: Managing Director
t. [phone] f. [phone] e. [e-mail]

6

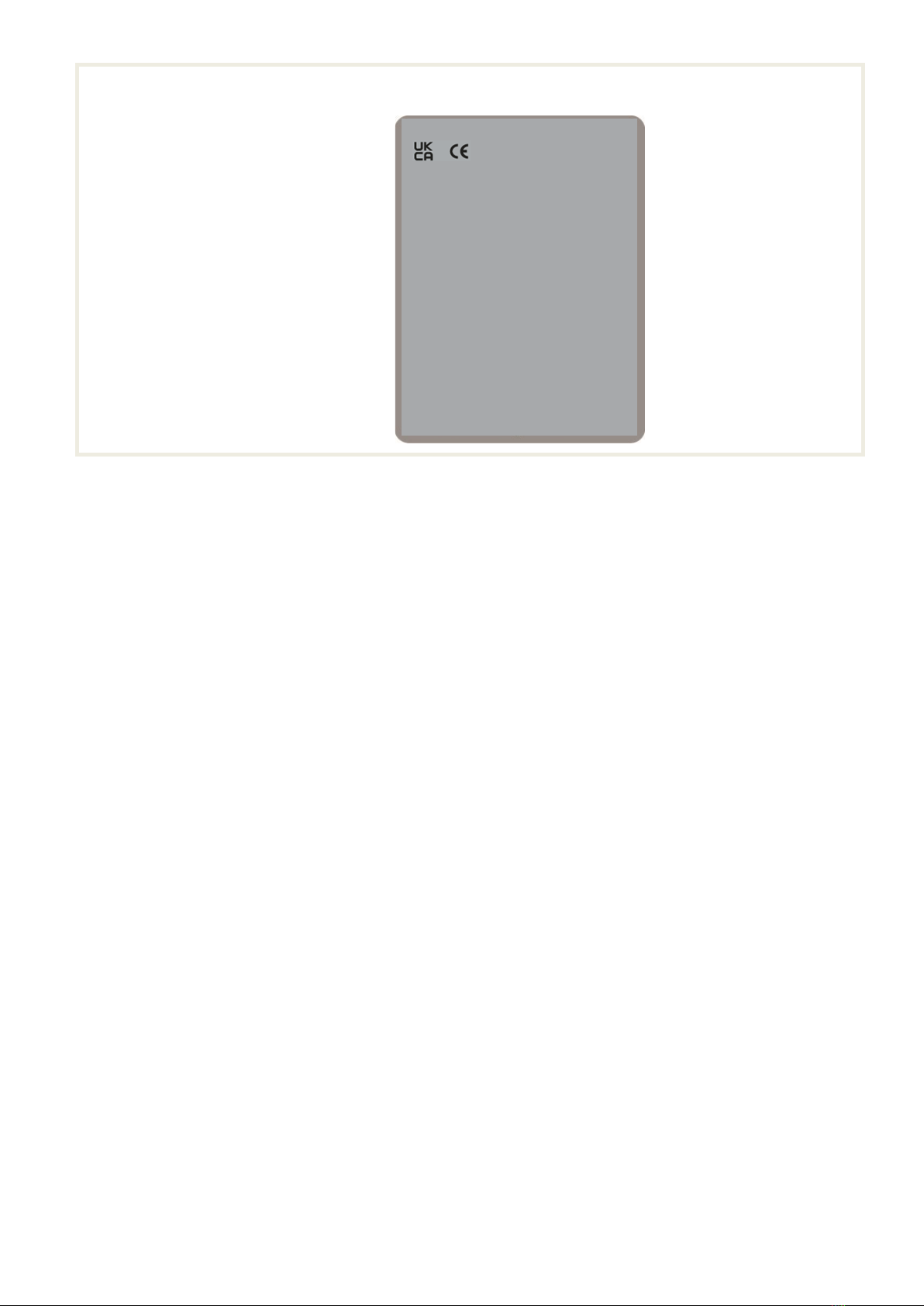

6-1 Machine identification
The machine the serial number decals are mounted on the steel chassis to one side of the hopper
6-2 Warranty
We provide a 12 month warranty as of the date of invoice
(your invoice for the machine which will serve as a warranty certificate).
This warranty is applicable for cases of material or construction faults and does not include parts that are
damaged by normal or excessive wear.
Warranty expires if damage is caused by external forces, operator error, modifications, Jet washed or if
the machine has not been used for its intended use.
Contact the company whom you purchased the machine from in the event of any problems, or before at-
tempting any repair. If the base machine or the controls system are modified in any way this will void any
warranty claim.
Please see our conditions of sale for full details a copy of which available upon request
Please record the machine serial number here; S/N ……………………………….
Purchase date: ………………………………… Dealer ……………………………...
MICRO METER
MK 3 MODEL
SERIAL No 217200
MANUFACTURED 2021
BY:-
STOCKS AG LIMITED
CROMWELL ROAD
WISBECH, CAMBS.
PE14 OSD, UK

7

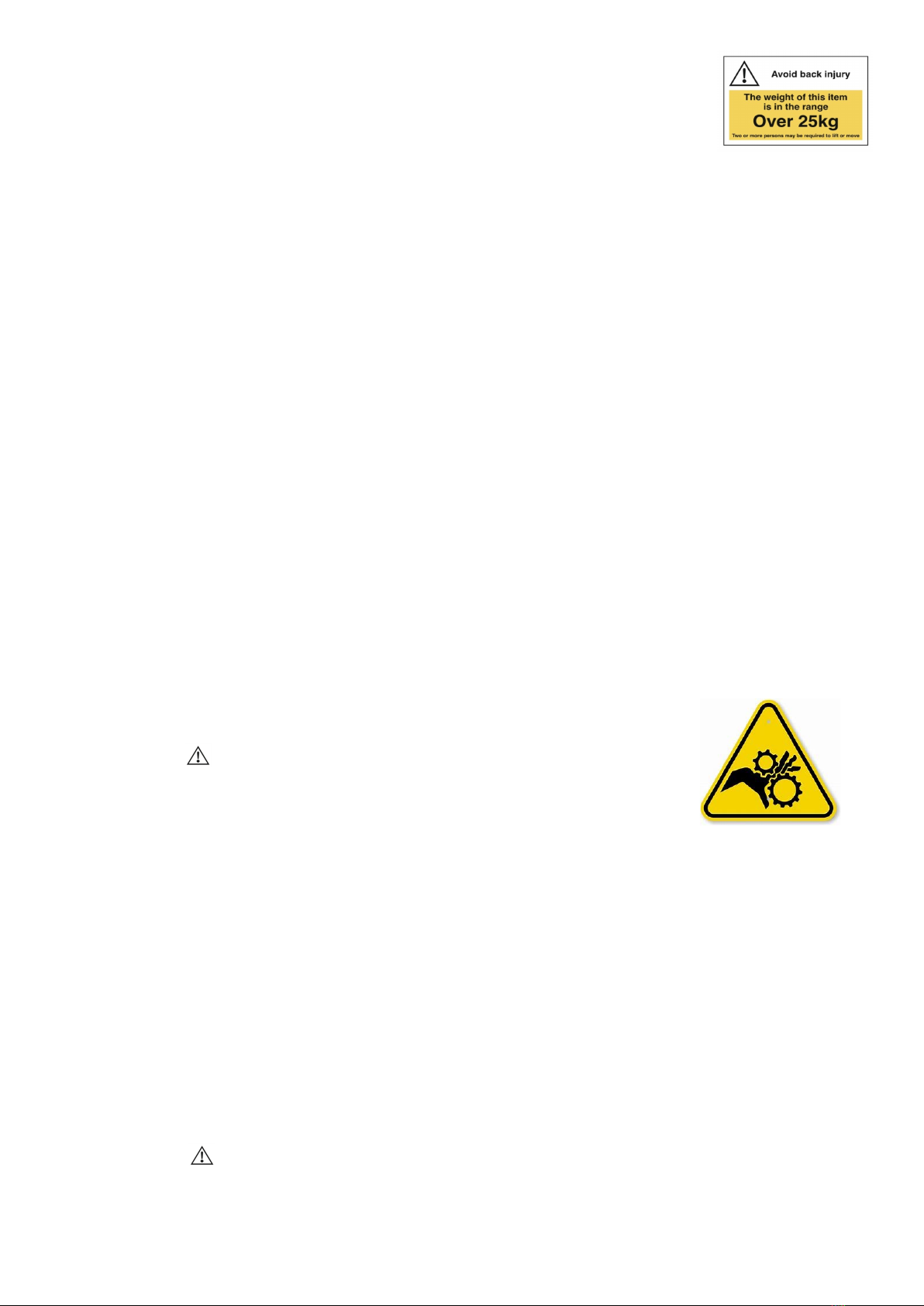

7 Safety
Ensure care is taken when lifting the machine
Safe lifting practice to be observed when handling as the net weight is over 25kg
We advise safety shoes and protective gloves are worn when handling the machine
Assistance will be required when lifting or lowering the machine
Care to be taken to avoid crushing due to the weight of the machine.
When lifting or fitting the machine to the parent vehicle or implement ensure work is performed on level
ground or flat surface to avoid slipping, stumbling or falling.
PERSONAL PROTECTION EQUIPMENT It is the responsibility of the operator or maintenance
engineer to ensure safe handling of the machine and the appropriate personal protection
equipment is worn for the material being applied and to prevent contamination to the machine or
the environment.
WARNING Always observe all application standards and guidelines provided by the product
manufacturer as some seed dressings and granular products may be toxic !
NOTE if unsure contact your seed or product supplier for more information.
If applying slug pellets or other toxic material and the parent vehicle has a closed cab the operator must
ensure the cabin is always closed and the air filter system is in good order.
Always ensure the stability of the parent vehicle is not affected when the machine is in use.
If in doubt contact the vehicle manufacturer for more information.
After working the machine ensure that any unused product is returned safely to its original packaging
Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied
If unsure contact the material supplier for more information.
WARNING Always adhere to the warning information and do not
remove any guard whilst the machine is in operation .
The machine may only be used, maintained and repaired by persons who have relevant
experience or a machinery dealer who is aware of any risks involved.
The applicable accident prevention regulations as well as the other generally safety related, occupational
health and road traffic regulations must also be observed.
The manufacturer is not liable for any damage resulting from unauthorised modifications and the use of
components and auxiliary parts
The machine must be checked regularly by the operator (before each use) for any damage loose bolts or
electrical connections, vibrations, unusual sounds, and to ensure they function correctly.
The machine must not be operated in wet weather conditions or during thunderstorms.
Observe the generally applicable safety and accident prevention regulations
Always empty the hopper of toxic materials to prevent harm to humans and animals after each use and prior to
storage.
WARNING
Always isolate the power supply if servicing or leaving the machine unattended.

8

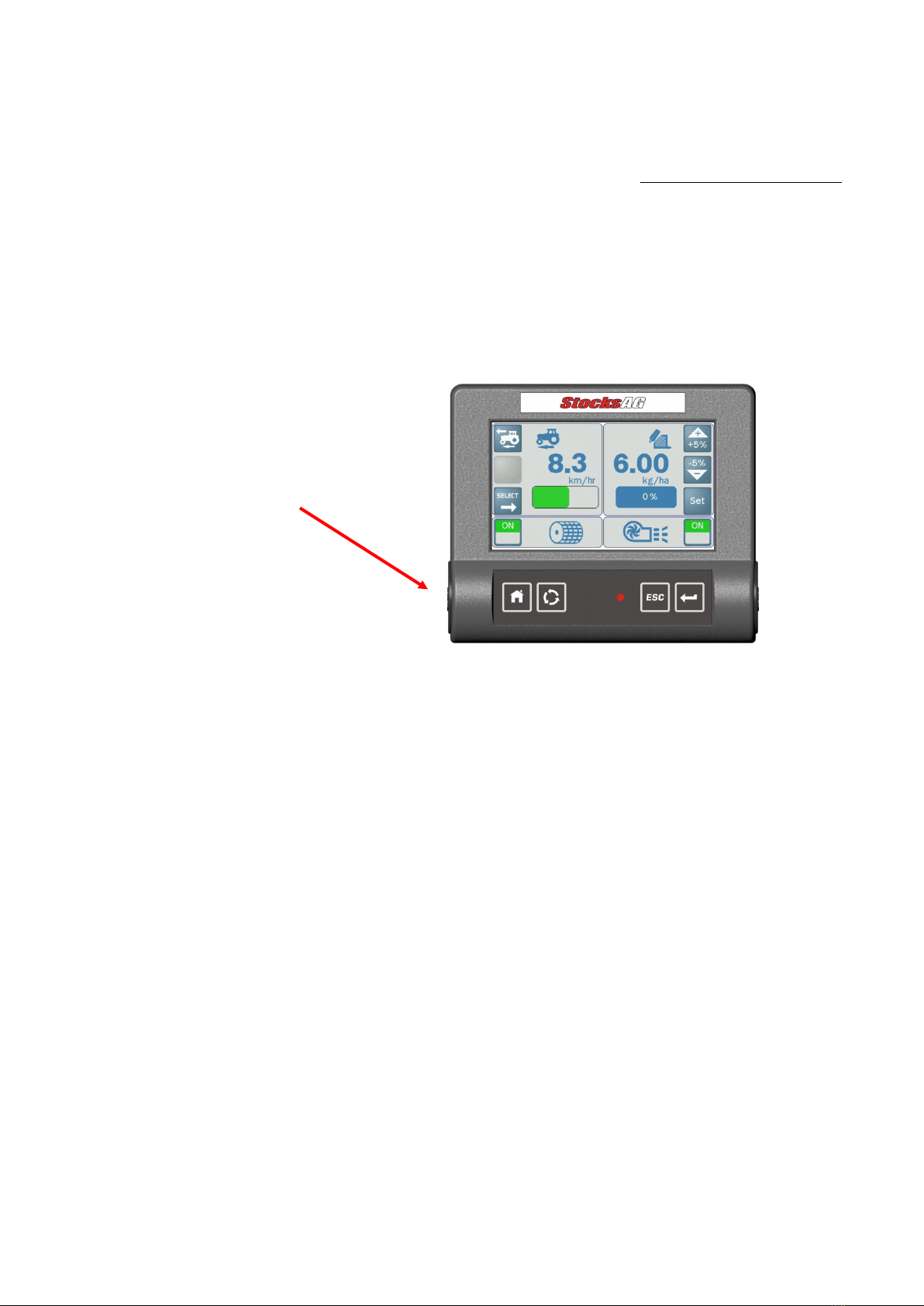

8 Emergency stop instructions
1. Power down the control system immediately by pressing and holding down the left-hand
rubber end cap on the instrument control panel for approx. 2 seconds — then release to power off.
2. Disconnect the power supply by unplugging the power cable or removing the inline
40amp fuse.
POWER
ON /OFF

9
9 Maintenance
WARNING
Always ensure the power supply is disconnected before any maintenance work or cleaning of
this machine.
Suitable protective clothing must be worn (See page 7)
The machine must be checked regularly by the operator for any damage loose bolts or electrical connec-
tions, vibrations, unusual sounds, and to ensure they function correctly.
Before use;
1. Ensure the machine is securely mounted
2. Check the power supply
3. Ensure all feed outlets and all feed hoses are clear of any product
Daily checks;
1. Check the feed motor is working correctly
2. Ensure feed outlets and feed hoses are clear of product and spreading correctly
After each use;
1. Empty hopper and clean the machine thoroughly ensuring all product residue has been cleaned from
the hopper feed rollers and housings.
2. Store in dry conditions to protect the machine and control system from moisture
WARNING Always observe all guidelines provided by the product manufacturer with regards to
handling storage and disposal of products as some may be toxic !

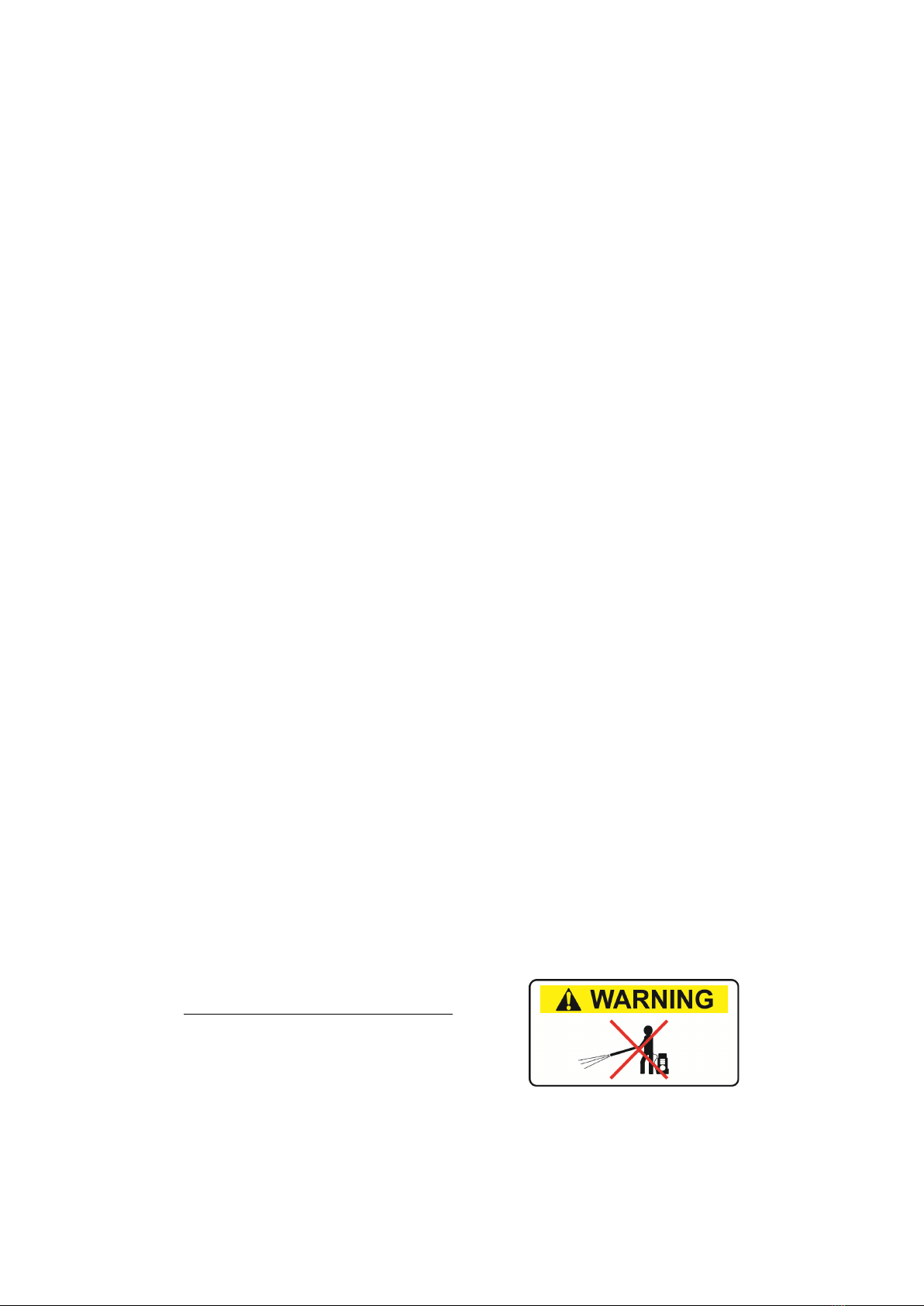

DO NOT JET WASH THIS MACHINE

10
10 Safety Warning Decals
Important ; observe this safely decals on the machine
WARNING
Read and understand the Operators Manual
instructions before operating this machine
Operator errors can result in serious injury
WARNING
Do Not Jet Wash
This machine is not designed to
withstand Jet Washing !
WARNING
Danger moving parts
Risk of serious injury whilst the machine is
in operation
WARNING
Risk of injury
Keep a safe distance whilst the
machine is in operation
WARNING
Keep Clear
Maintain a safe distance from the machine
when in operation
Wear the appropriate protective personal
equipment

11
11-1 Clearing a blockage
Disconnect the main power supply
Ensure the parent machine is stationary, switched off, and parked on level ground
Ensure the main power switch on the control panel is off and unplug the power supply cable or disconnecting
the power cable from the vehicle battery.
Ensure appropriate personal protection equipment is worn for the product being applied
Ensure any product removed is put back into its original container
Care to be taken not to spill any product that could contamination the environment.
Empty the hopper of any remaining product - industrial vacuum recommended.
Investigate and unblock as required.
11-2 Storage
Disconnect the power supply by unplugging the power cable or removing the inline fuse from the power cable
if storing the machine for long periods.
It is the responsibility of the operator to ensure the hopper is empty after each and use and cleaned
thoroughly before storage.
Store in dry conditions to protect the machine and control system from moisture
Always clean and spray electrical connectors with a moisture repellent spray when not in use for long periods.
11-3 Optional PVC Waterproof Covers
Heavy duty White PVC covers fitted with eyelets and bungie cord for easy attachment available for all
machines. Available through your local dealer
To order quote part number; MMCOVER
11-4 Disposal
Ensure that any persons handling the machine are aware that the machine may have been used to
apply toxic chemicals and so the appropriate personal protection equipment should be worn.
Ensure the hopper contents have been removed and any toxic residue removed and put back into a sealed
contained or disposed of in accordance with the manufacturers guidelines to eliminate any possible
contamination of others or the environment
Always adhere to the local disposal regulations paying particular attention to the plastics, rubber,
and electrical components.

12

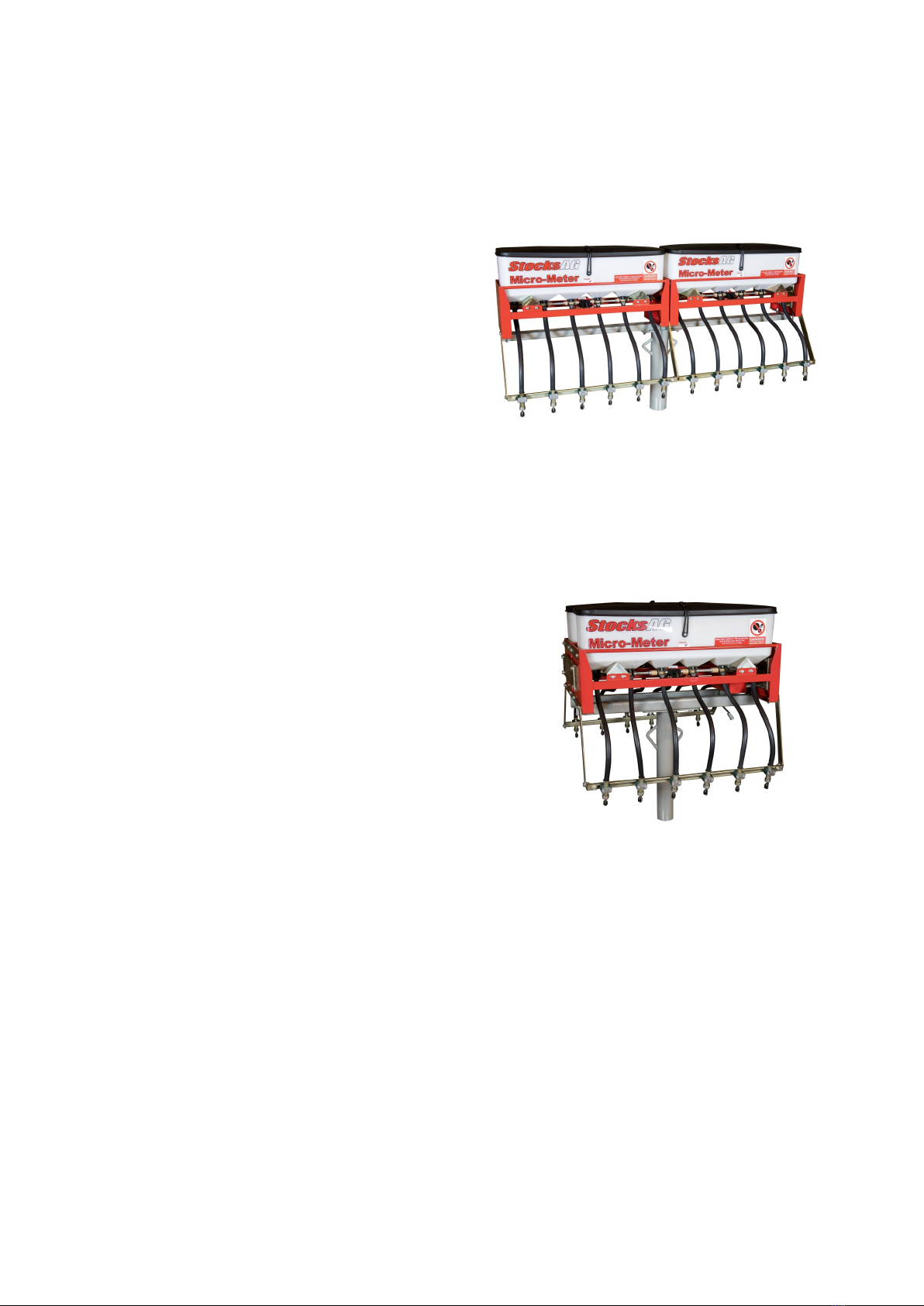

It is not practical to supply tailored mounting brackets for every implement on the market, and so the final
attachment of the Micro Meter to the implement is the responsibility of the supplying dealer or end user.
NOTE i-Con machines can be used in conjunction with two Add On units (see page 15)
As Micro Meters are gravity fed machines hoses must be routed downhill with sufficient fall to allow the
product to flow freely.
Hoppers may face forwards or backwards – whichever offers the easiest mounting and best flexible tube run.
Optional hopper units or Add On Unit can be bolted end to end to one side of the i-Con hopper unit using the
fixing kits supplied. Or alternatively use the optional 45cm feed shafts to space out the hopper units cutting
the feed shafts to length as required
The optional Combi Unit bolts to the rear of the i-Con hopper unit with brackets and fixing kit provided.
Positioning of hopper units, “C” section mounting rail, spreader plates and
hoses will depend upon the type of application required
Select a strong, rigid position to bolt to the hopper units to your implement
or parent vehicle. Fabricate and fit a work platform and steps, complete with
handrails if necessary ensuring there is sufficient room to access the hopper.
Ensure any potential trapping points are noted taking care not to
trap hands or fingers

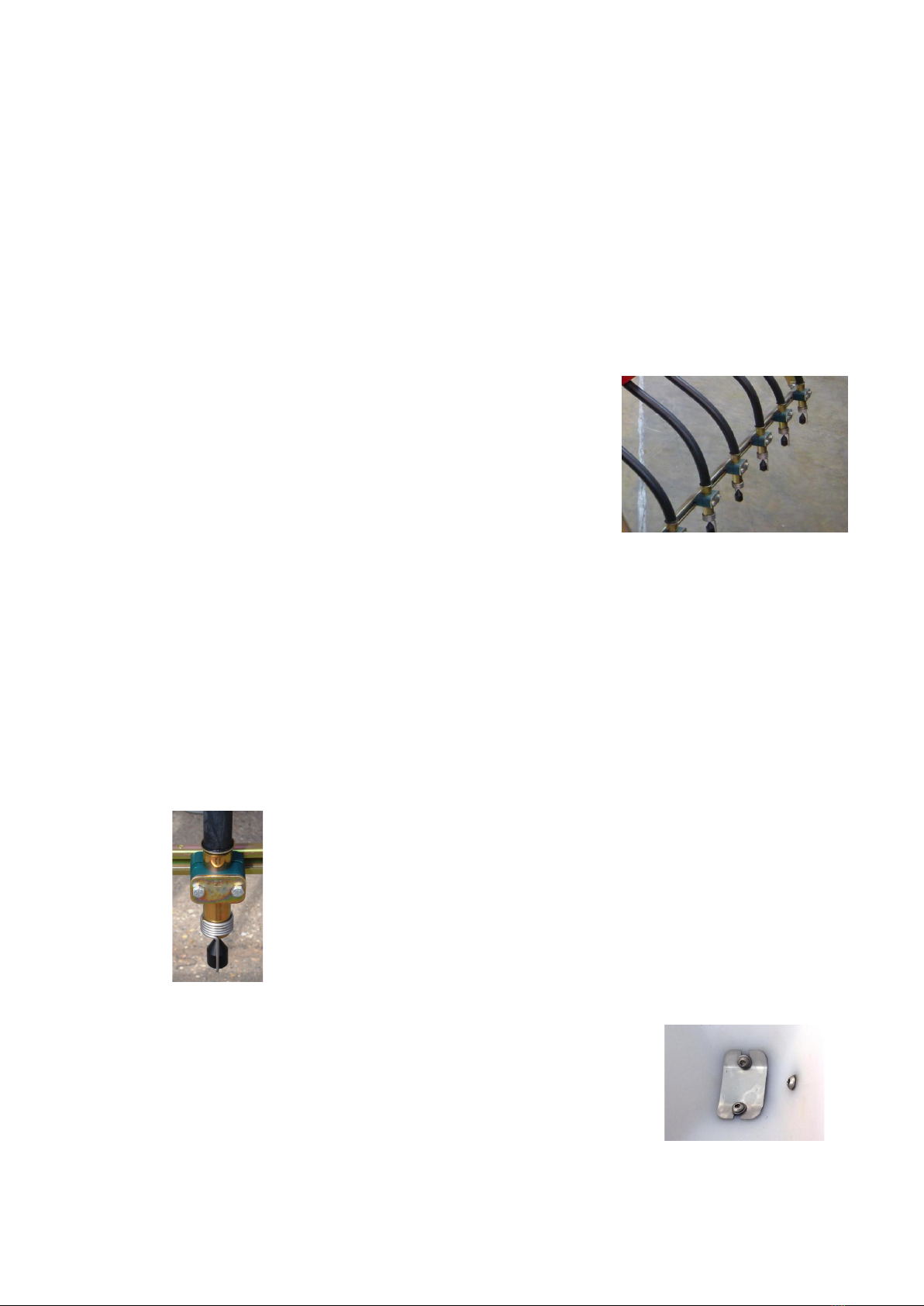

The spreader cone assemblies can be fixed to the “C” section mounting rail to give the planned spacing by
sliding each along the rail and locking into position using the integral bolts. Two 1m lengths of rail supplied
with each hopper unit to be cut down or extended to suit the implement width as required or fitted directly
under the hopper units with the brackets supplied.
NOTE If the spreader cone assemblies are positioned close behind the tractor wheels, roller or discs be
aware of wet soil being thrown up into the spreader causing blockages.
The feed hose needs to be cut to length and pushed onto each feed cup and into each corresponding spreader
tube (no hose clips required) ensuring all hose runs are as short as possible whilst giving a smooth downhill
route avoiding any kinks or severe bends.
One blanking plate supplied with each machine and three with every additional
hopper unit to reduce the number of outlets if required.
These fit over any chosen feed opening inside the hopper
To fit remove the two feed cup retaining screws, positioning the blanking plate,
and then re-tightening the retaining screws.
Extra feed hose, mounting rail, and hopper blanking plates available through your local Stocks dealer.
12 Machine Mounting
MM318
The 6 spreader cones supplied with each hopper unit will
distribute seed or product to a maximum overall spread width
of 1.5m when spaced equally across the mounting rail.
For a band sowing the cones and springs may be removed from
the steel tubes.
Working width will depend upon the height the hoppers are
mounted and length of feed hoses fitted.

13
13-1 i-CON Control System
All control system components integral to the applicator unit are factory fitted.
The Instrument has a 4.3" Colour Touch Screen which has 4 basic menu keys (see page 16)
Separate power cable and head unit leads interconnect the tractor and the Seed Applicator Unit.
The following components need to be installed during fitment (packed in hopper from factory)
• i-Con Instrument; TJ117C
• Instrument cables; TJ118C and TJ242A
• Power Cables; FJ107E
• GPS Receiver; TJ255B
• Cut out Switch; TJ252
13-2 Wiring diagram
i-Con
Instrument
TJ117C
6m Instrument
Cable TJ242A
Junction
Box
TJ119D
7m Fused
Power Cable
FJ107F
(not used)
(not used)
Feed
Motor
TJ044B
Instrument Connector
Cable TJ118C
GPS Receiver
TJ255B
Hopper Level
Sensor TJ251A
Cut Out Switch TJ252
OPTIONAL Ground Speed Radar TJ233A
OPTIONAL 6m Radar Cable TJ234
13-3 Electrical Connections
Power requirement is 12 volts with a minimum continuous 30amp supply. Ensure the power supply cable is
connected direct to the vehicle battery to ensure maximum power. Connect the positive wire (fused) to the
positive (+) terminal and negative earth connection to the negative (-) terminal
NOTE the disc should rotate in a clockwise direction when viewed from above.
WARNING Failure to connect to the vehicle battery may result in control function problems and
possible damage to the vehicle battery and charging system must be in good condition to achieve the best
results. All cables and controls are fitted with matching plugs and sockets.
WARNING any modifications to the wiring, fuse holder or control system will invalidate any warranty
claim and may effect the performance of the machine

14 Machine components
Feed Motor
The feed motor can be turned ON or OFF, either manually via the head unit, or automatically by the
remote mounted spring finger switch which can be fitted to the linkage or the implement. The feed motor
must be switched ON via the head unit for the spring finger switch to work automatically.
Spring Finger Switch
The switch should be mounted to a suitable place on the implement or linkage of the tractor, thus
deflecting the spring, and automatically switching the feed motor off or on accordingly as the circuit is
made or broken.
Position the finger switch so that the tip of the spring comes into contact with the moving part of the
implement or linkage when lifted out of work, and remains deflected until the implement is lowered back
into work. NOTE. Ensure that there is sufficient and positive deflection on the spring to prevent accidental
switching ON or OFF if the implement moves slightly up or down in work.
The standard wiring as supplied for this switch is when the spring is at rest, the feed motor will run
normally. NOTE if required, the switch can work in the opposite mode by changing the position of the 2
wires inside the switch so that the switch is out of work when the sprung is at rest.
To change over remove the PVC cover plate held in position with the retaining screw to access the wiring
terminals. Remove the 2 wires from terminals 13 and 14 and re-connect to terminals 21 and 22 (nearest
the gland nut) then re-fit the PVC cover plate. (NOTE the area meter also stops when the feed motor
stops)
GPS Sensor
Small and compact with integrated magnetic base for ease of fitting to tractor cab or suitable mounting
position. Fitted with a 5m lead which plugs into the i-Con instrument connector cable
Hoper Level Sensor
The instrument will alarm once the product in the hopper falls below the level of the sensor
Main Power Cable
The power cable should connect directly to the vehicle battery posts to ensure adequate 12v supply to
the disc motor. The in-line is 25 amp.
This 7m power cable connects from the battery to the power input flylead on the machine. .
Instrument Lead
The 6m instrument lead connects to the junction box mounted on the machine, and runs to the i-Con
instrument panel connector lead in the tractor cab.
NOTE Extension power and instrument cables are available if required.
Please contact your local StocksAG dealer for more information.
21
22
13
14

15
15-1 i-CON Instrument functions
·Seed Application Rate (kg/ha or Seeds/m2).
·Forward Speed (km/hr).
·Minimum/Maximum Forward Speed indicator with alarms, (beyond which the programmed seed rate
cannot be maintained).
·Metering Unit Status (On/Off) and Alarm.
·Fan Status (not applicable)
·Hopper contents (kg) and Low Level Alarm.
·Part and Full (Job) Totals for Area (ha), Product dispensed (kg) and hours worked.
·Grand Total for Area (ha), Product (kg) and hours worked.
Other features include,
·Simple and intuitive touchscreen Alarm codes and diagnostic displays in the event of system malfunction.
·menus for Forward Speed / Product calibration and adjustment.
·‘Pre-start’ - ensures seed delivery begins immediately the drill enters work (user-programmable).
·Rate ‘Nudge’ – on-the-move rate adjustment in pre-set increments (user-programmable).
NOTE a comprehensive control system user guide also supplied (packed with the i-Con instrument)
15-2 Precision farming software access
OPTIONAL
The instrument can be unlocked to activate the precision farming program as a cost option
This is something that can be requested when the machine is purchased or can be added at a later date
Please contact your local StocksAG dealer for more details
HOME
Return to Main
Screen
SCROLL between Menu
Pages
SD /USB Read /
Write indicator
ESCAPE
to previous Menu page
ENTER
Conrm an opon or
value within a menu
Power On/O
Funcon not available
on this model
Set Applicaon Rate
Nudge – Decrease
Nudge – Increase
Applicaon Rate
(kg/ha or Seeds/m2) and
% Nudge from Target
Forward Speed / Area and
Operang Range (0-100%)
Indicator
Manual Pre-Start
Forward Speed or Area
display
Metering On/O -
Metering Status

16
16-1 Feed Shaft Speed
WARNING Always observe all application standards and guidelines provided by the
product manufacturer as some products may be toxic !
Feed shaft speed is a combination of gearbox setting and or motor speed
The mechanical gearbox has 2 speeds. Two long bolts and spacers locate the motor and its mounting plate
to the gearbox. To select low gear, fit these bolts in the appropriate holes through the gearbox and connect
the socket to the marked low speed input shaft. To select high gear, fit these bolts and spacers to the alter-
native holes through the gearbox and connect the socket to the marked high speed input shaft.
NOTE machines are supplied with motors fitted on the low gearbox setting as standard.
Low gearbox setting suitable for most small seed applications such as OSR, kale, mustard,
stubble turnips, etc. and for most micro-granules and slug pellets.
High gearbox setting for lower rate grass seed and grass seed mix application, fertiliser or other
higher rate applications.
NOTE for higher rate grass seeding Deep Groove feed rollers may need to be fitted
Deep Groove feed rollers are not recommended for any other application.
If changing feed rollers from Standard to Deep Groove please contact your local dealer for
more information.

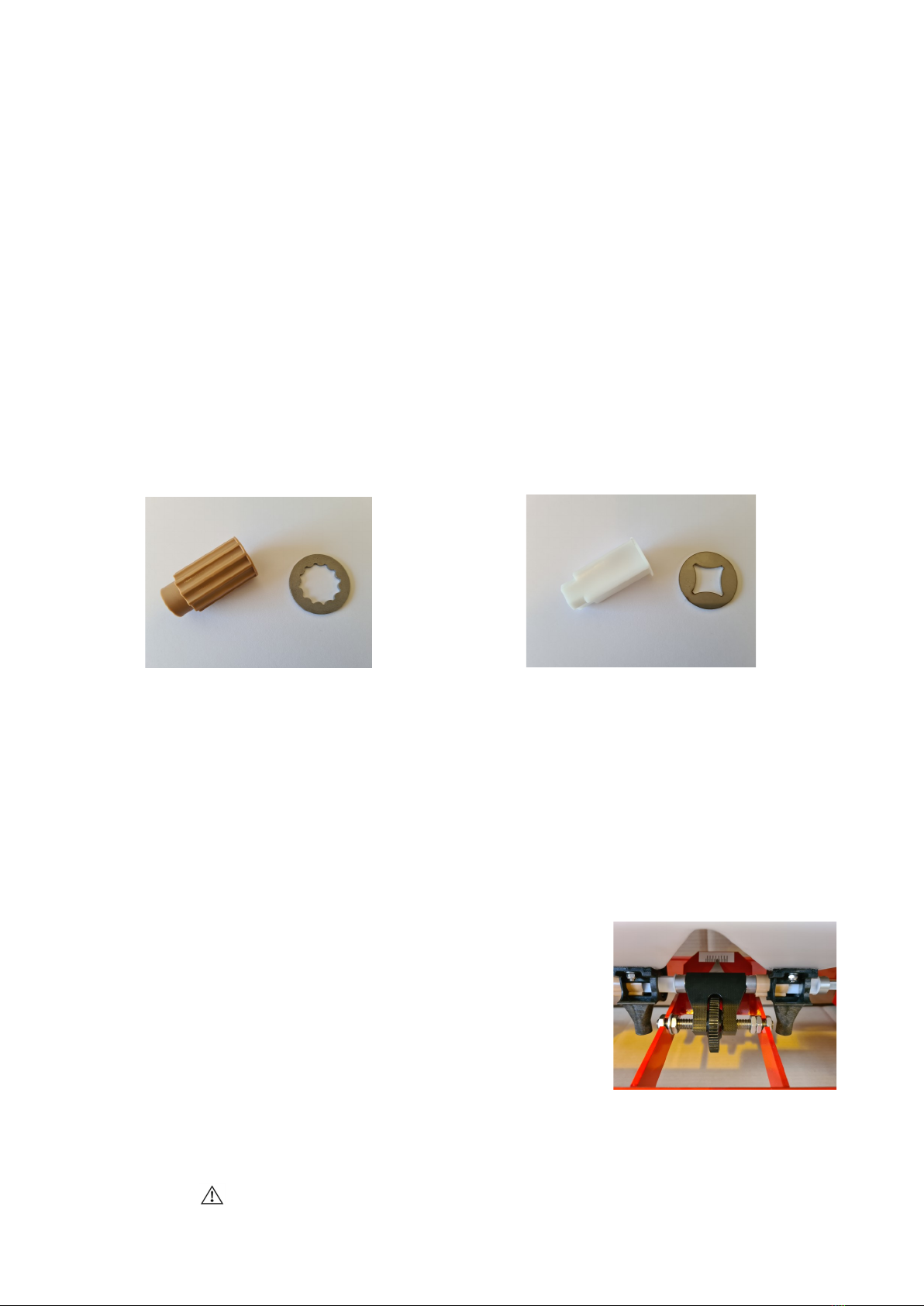

16-2 Feed Roller Adjustment
Standard feed roller with matching profile washer Deep Groove feed roller with matching profile washer
Feed rollers slide in their housings to expose between 0-100% of the roller to the material in the
hopper. Adjustment is made by turning the black plastic knob between the fork on the feed
shaft. Each individual hopper has its own adjuster – ensure each hopper is set to the same posi-
tion. Once set, the adjustments can be locked in position with the hexagonal nut to prevent
accidental movement. By hand, run the nut up to the nylon fork and then turn the plastic knob
in the opposite direction to lock in position.
NOTE when the adjuster reaches the end of its travel and begins to
tighten back off one full turn and lock into position.
Do not continue to rotate or force the adjuster beyond this
point.
Low rate application for small seeds such as OSR, kale, mustard,
stubble turnips, etc. set the feed rollers half open as a starting
position for the initial calibration then adjust as required.
High rate application such as most grass and grass mixes set the
feed rollers fully open as a starting position for the initial calibration then adjust as required.

17

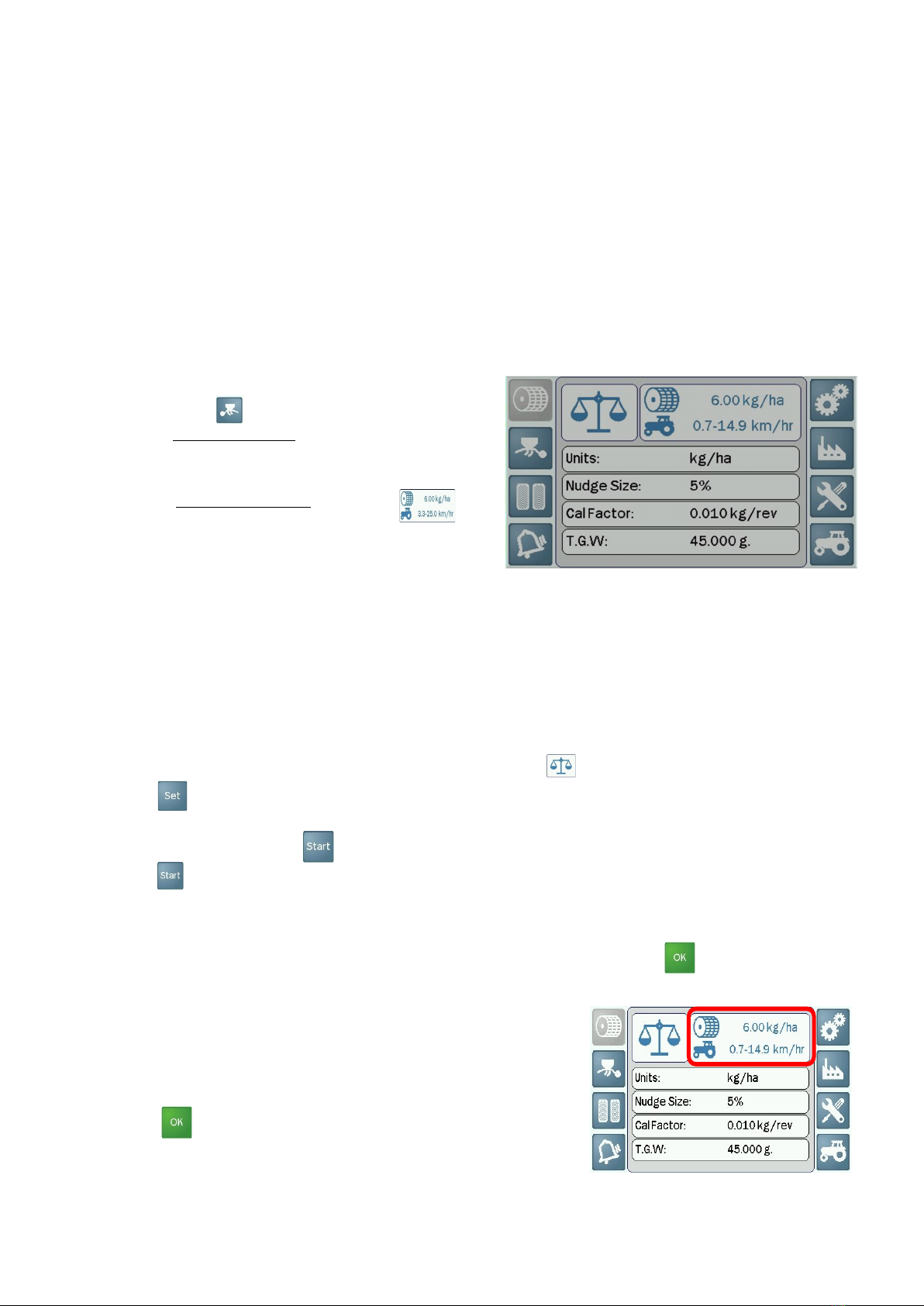

17 i-CON Calibration (Page 1 of 2)
You will need a suitable container to collect the product or seed when calibrating, and an accurate set of
scales which weighs in grams
At the machine
1. Position a suitable container to collect seed or product from all of the feed hoses whilst calibrating
2. Place a few kilograms of seed in the hopper
At the ICON instrument
1. Switch the head unit ON via the left hand side push button – wait until the start-up routine has finished
and displays the main “home screen”
2. Scroll through to the Setup Menu and select the
Applicator Icon
3. Adjust the implement width accordingly - refer to the
RDS manual, page 25, section 3.3, Set Implement
Width
4. Ensure the correct application rate is
entered – select and adjust accordingly,
refer to the RDS manual, page 21, section 3.1, Setting
the Application Rate
5. Ensure the feed roller setup is appropriate for the intended product or seed type, application rate and
forward speed range for application
6. The instrument calculates the calibration factor from the working width, target application rate, and the
metered weight delivered whilst calibrating. If however as a result of the calibration routine, you find that
you cannot achieve your desired field speed, displayed in the top right corner of the screen, then
re-configure the feed roll assembly and repeat the calibration procedure
7. Prime the feed rollers with product by pressing and holding briefly the prime button on the junction box
- this will ensure a higher initial calibration accuracy, empty the contents of the tray back into the hopper
8. For an Auto Calibration from the Product Setup page, touch
9. Touch and enter the quantity that you wish to dispense for calibration purposes. You can enter
the quantity in grams if preferred. The CAL factor will however, still be calculated in kg/rev
10. Touch on the screen page
11. After the key the motor runs at the calibration speed (calculated from the Simulated Forward
Speed, Width, Application Rate and current calibration factor)
12. The dispensed weight (based on the current calibration factor) is displayed
13. Weigh the product dispensed and then enter the measured weight, and press
14. A new calibration factor is then re-calculated and displayed
15. Your in field min and max speeds will be displayed as per the
image to the right hand side. If you find that you cannot achieve
your desired field speed, then re-configure the feed roller assembly
and repeat the calibration procedure (see pages 17 and 18 for
more details)
16. Touch to save the new factor, it is advised to repeat the
calibration 2 more times to ensure accuracy

18
18 i-CON Calibration (Page 2 of 2)
1. For a Manual Calibration Press and hold the Prime button on the
junction box, the larger the quantity dispersed the higher the accuracy
the final calibration factor will be, release the prime button once sufficient
product has been dispensed
1. The estimated dispensed weight (based on the current calibration fac-
tor) is displayed
2. Weigh the product dispensed and then enter the measured weight, and press
3. A new calibration factor is then re-calculated and displayed
4. Your in field min and max speeds will be displayed. If you find that you cannot achieve your desired field
speed, then re-configure the feed roller assembly and repeat the calibration procedure
(see pages 17 and 18 for more details)
5. Touch to save the new factor, it is advised to repeat calibration 2 more times to ensure accuracy
GPS Speed
The i-CON control system is automatically configured to run with GPS receiver supplied and is a simple
plug and play device. This system only works outside and if you are not receiving a GPS signal an alarm
will sound and a display appear on the main screen indicating NO GPS.
Common Calibration Mistakes
• Ensure you enter the width and required rate correctly – that the decimal point is in the correct position.
If the rate is 2.5 kg/ha, enter 2.5. (not 25 - which is 25kg/ha)
• Remember to deduct the weight of the collection container – weigh only the contents
• Ensure you work in grams – not kilograms
• Ensure you are working in the mode required – either Kilograms per Hectare or Seeds per Square Metre.
The standard default mode for the i-CON is in Kgs/Ha and you will have to reconfigure the display if you
want to display Seeds per Square Metre. You do not need to enter or change the TGW if working in
Kgs/Ha – only if working in Seeds per Square Metre - Refer to the RDS manual, Section 3, page 21,
Units and TGW
• Ensure you check the minimum and maximum speeds displayed, and that they are sensible for your field
operation. This is the speed range that the i-CON can maintain the required application rate, and de-
pends on the width of your machine, the application rate required, and the type and configuration of
feed rolls fitted
• Ensure that the speed range will work for you in the field – ensure that your target forward speed will
not be close to either the minimum or the maximum of the range, and that you have some reserve of
speed range above and below the in-field forward speed. Ideally your forward speed will be close to the
middle of the range
• If the minimum is too high, for example 4kph then the feed motor will be running too slowly if your
forward speed drops towards the minimum as you set in and lift out of work, and this could result in
missed patches (although the alarm will trigger when either the minimum or maximum speed is
reached)
• If the indicated speed range does not work for your operation, you must change the feed roller
adjustment or gearbox speed setting to apply more or less seed, per revolution of the feed mechanisms,
as required. Once completed, recalibrate and note the new speed range.
Ready For Work
Ensure feed outlets and feed hoses are clear of product and spreading correctly.

19
19-1 Optional Add On Unit
To increase the number of outlets available Add On Units are available
1 or 2 Add On Units can be bolted to the side of
the i-CON drive unit or mounted to one side and
driven by the 45cm feed shaft drive extensions
supplied with each Add On Unit (cut to length as
required)
Add On Unit are supplied with a full spreader kit
and 10m roll of hose
19-2 Optional Combi Unit
For applying two products simultaneously or for more outlets a Combi Unit is available
The Combi Units are bolted to the rear of the
existing hopper drive unit with the brackets
provided. The feed shaft is mechanically driven
via a chain and sprocket drive.
Supplied with full spreader kit and 10m of hose
Calibration of the Combi Unit must be carried out
as an independent unit if applying a second product
19-3 Optional Nematicide Kit
Safe handling of nematicides is essential and an optional nematicide kit is available if required
WARNING in no circumstances should a machine be used for nematicide or any other toxic
material without this kit fitted
For more information please contact your local StocksAG dealer or product supplier

20
20 Micro Meter i-CON Parts drawing
7
