Stocks AG Micro Meter Vari Speed User manual

Original Instructions, Revision 1 August 2020
MICRO METER
Vari Speed
Original Operating Manual and parts list
Read carefully before installation and
operation
This document must not be copied duplicated or distributed without prior consent .
All and patent rights apply
STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.
Tel: [phone] Email: [e-mail] www.stocks-ag.co.uk

2
Index 2020
Section Page No.
2Index 2
3-1General information 3
3-2Technical data 3
3-3Intended use 3
3-4Unintended use 3
4Contents of the EC Declaration of Conformity 4
5Contents of the UKCA Declaration of Conformity 5
6-1Machine identification 6
6-2Warranty 6
7Safety 7
8-1Emergency Stop Instructions 8
8-2Maintenance 8
9Safety warning decals and safety signs 9
10-1Clearing a blockage 10
10-2Storage 10
10-3OPTIONAL Heavy Duty Waterproof Cover 10
10-4Disposal 10
11 Machine Mounting 11
12-1Electrical Components 12
12-2 Electrical Connections 12
13 Control Boxes 13
14-1Feed Shaft Speed 14
14-2Feed Roller Adjustment 14

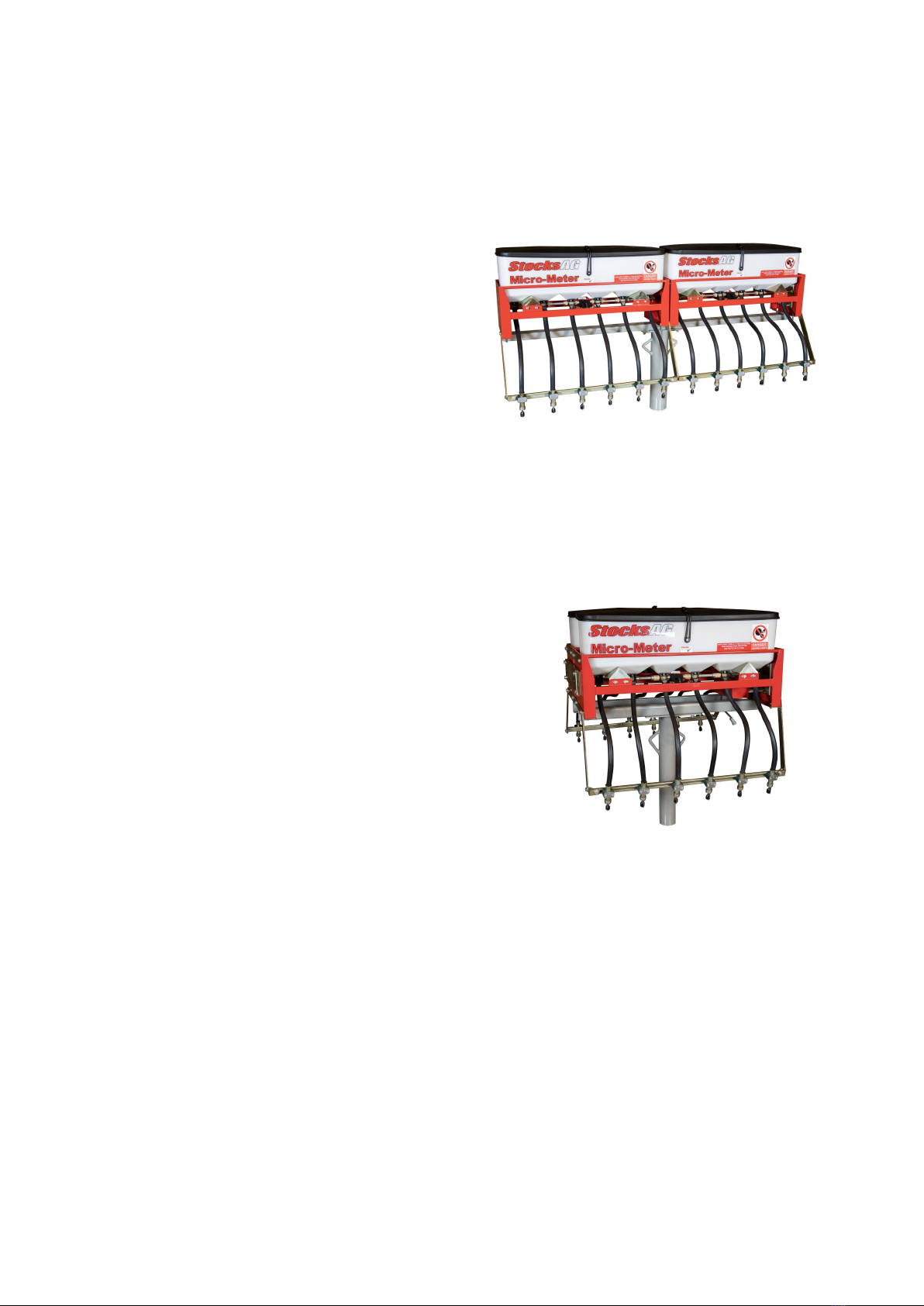

15-1 OPTIONAL Add On Units 15
15-2OPTIONAL Combi Units 15
15-3OPTIONAL Nematicide Kit 15
16-1Product Calibration 16
16-2Calibration catch and weigh test 16

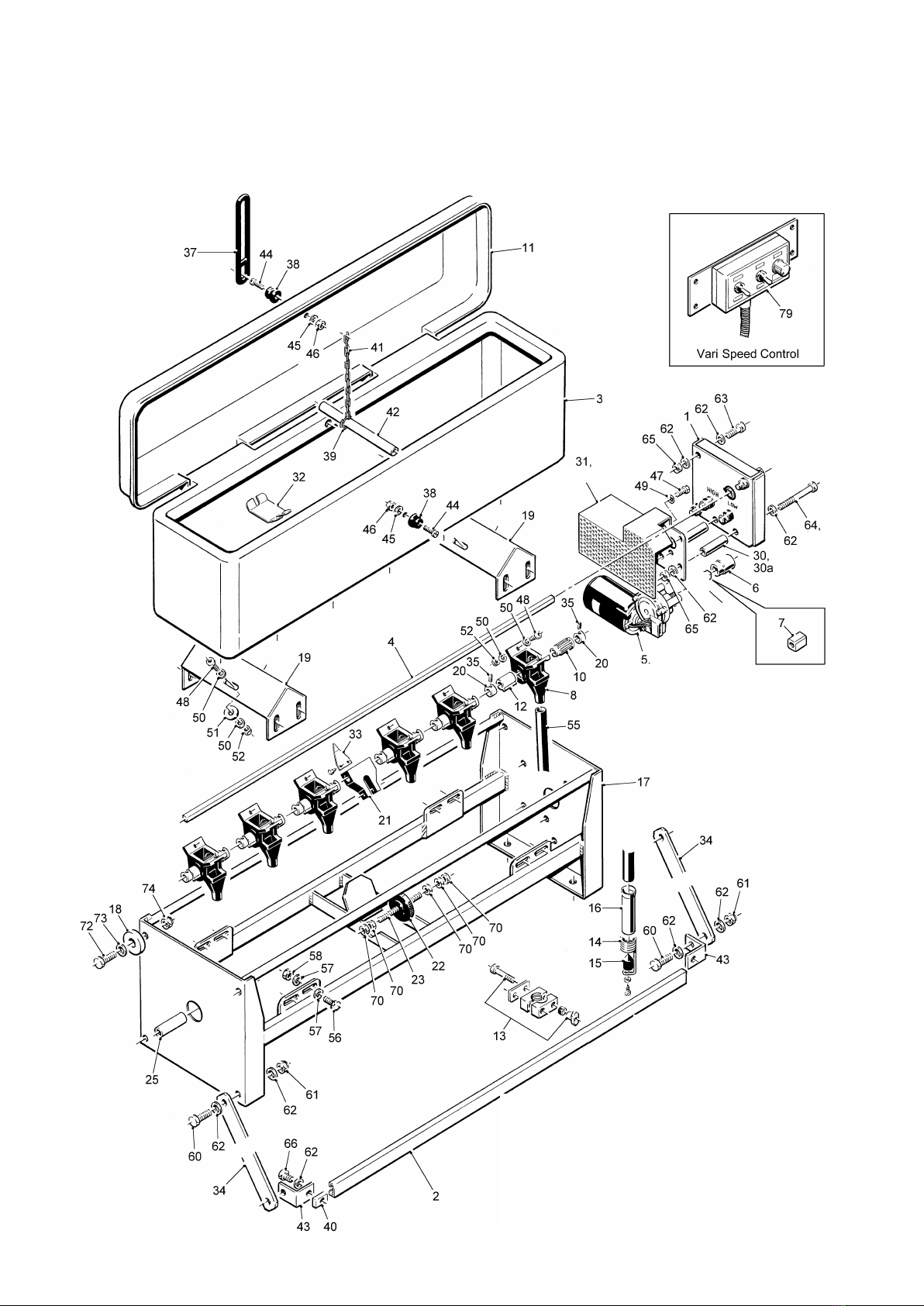

17 Parts drawing 17
18 Parts list (page 1) 18
19 Parts list (page 2) 19

3
3-1 General information
Congratulations on your Micro Metre purchase;
Please check the machine for any transport damage upon re-
ceipt and advise your supplier of any problems immediately.
Late claims regarding any damage may be rejected.
IMPORTANT
This Operating Manual forms part of the machine and must be readily available for the operator
who must read and follow the points covered before use
3-2 Technical data
Model: Micro Meter Vari Speed
60 litre hopper capacity;
Net weight: 36kg
Dimensions (W x D x H) 102 x 32 x 48 cm (boxed 104 x 41 x 54 cm)
Operating Voltage 12v; Power requirement 10 amps Motor outputs: 120W
Noise level: 65dB
3-3 Intended use
This machine has been designed to be mounting onto any non folding parent implements such as power
harrows, seed drills, planters, and vineyard interrow equipment to safely apply a large variety of seeds such
as OSR, grass, clover, kale, stubble turnips and can also be used to apply slug pellets, granular products
such as Avadex ® and low rate application of prilled or starter fertilisers for the agricultural, horticultural
and amenity sector.
Each hopper will cover up to 1.5m width for an even broadcast effect or to a wider width if band sowing.
For grass seed application our high output machine fitted with deep groove feed rollers may be required.
The operator alone bears the associated risk if used for unintended use.
Intended use also includes compliance with the conditions for operation, maintenance, and repairs.
The implement may only be used, maintained and repaired by persons who have relevant experience and
aware of the risks involved.
The manufacturer is not liable for any resulting damage if the machine is used for any other purpose than
the intended use also includes compliance with the conditions for operation, maintenance, and repairs pre-
scribed within this instruction manual .
This machine should not be used in the rain or during a thunderstorm.
The applicable accident prevention regulations as well as the other generally safety-related, occupational
health and road traffic regulations must also be observed.
Specifications descriptions and illustrations in this manual are accurate at the time of this publication but
may be subject to change this manual are correct at the time of printing but we reserve the right to change
and improve them. This machine is designed with safety in mind.
Maintenance and servicing in accordance with this manual will ensure safe operation and reliability of your
machine for many years
3-4 Unintended use
This machine is not designed to apply large seeds, abrasive materials such as sand & grit, or salt products
Machines are not designed to be tipped when in work
*Avadex ® is a Trademark used under licence by Gowan Crop Protection Ltd

4
E.C. DECLARATION OF CONFORMITY
Machine Type: Mounted Agricultural Implement - Pellet and Seed application broadcasters
Model(s): Fan Jet Pro All Variants & Versions
Fan Jet Pro Plus All Variants & Versions
Fan Jet Twin All Variants & Versions
Fan Jet Mini All Variants & Versions
Fan Jet Duo All Variants & Versions
Turbo Jet All Variants & Versions
Rotor Meter All Variants & Versions
Rotor Meter Air Force All Variants & Versions
Micro Meter All Variants & Versions
Maxi Meter All Variants & Versions
Serial No. ……………………………………………………………………………………………
Manufacturer: Stocks Ag Ltd
Cromwell Road
Wisbech
Cambridgeshire PE14 OSD
United Kingdom
This is to declare that the above machine conforms to the relevant Essential Health and Safety Requirements of the
Machinery Directive 2006/42/EC, implemented in the United Kingdom by Statutory Instrument 2008 No.
1597 – The Supply of Machinery (Safety) Regulations 2008 as amended.
The following standards have been applied in the design and construction of this machine:
BS EN ISO 12100: 2010 Safety of machinery – Basic concepts, general principles for design – Basic
terminology, methodology.
BS EN ISO 4254-1: 2015 Agricultural machinery – Safety - General requirements
BS EN ISO 4254-8: 2018 Agricultural machinery – Safety – Solid fertilizer distributors.
BS EN ISO 13854: 2019 Safety of machinery – Minimum gaps to avoid crushing of parts of the
human body.
BS EN ISO 13857: 2019 Safety of machinery – Safety distances to prevent hazard zones
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs.
The manufacturer stated above holds the technical file for this machine.
Signed on behalf of Stocks Ag Ltd
Name: J Woolway
Date: 06th August 2020
Position: Managing Director
t. [phone] f. [phone] e. [e-mail]

5
UKCA. DECLARATION OF CONFORMITY
Machine Type: Mounted Agricultural Implement - Pellet and Seed application broadcasters
Model(s): Fan Jet Pro All Variants & Versions
Fan Jet Pro Plus All Variants & Versions
Fan Jet Twin All Variants & Versions
Fan Jet Mini All Variants & Versions
Fan Jet Duo All Variants & Versions
Turbo Jet All Variants & Versions
Rotor Meter All Variants & Versions
Rotor Meter Air Force All Variants & Versions
Micro Meter All Variants & Versions
Maxi Meter All Variants & Versions
Serial No. ……………………………………………………………………………………………
Manufacturer: Stocks Ag Ltd
Cromwell Road
Wisbech
Cambridgeshire PE14 OSD
United Kingdom
This is to declare that the above machine conforms to the relevant Essential Health and Safety Requirements of the
Machinery Directive 2006/42/EC, implemented in the United Kingdom by Statutory Instrument 2008 No.
1597 – The Supply of Machinery (Safety) Regulations 2008 as amended.
The following standards have been applied in the design and construction of this machine:
BS EN ISO 12100: 2010 Safety of machinery – Basic concepts, general principles for design – Basic
terminology, methodology.
BS EN ISO 4254-1: 2015 Agricultural machinery – Safety - General requirements
BS EN ISO 4254-8: 2018 Agricultural machinery – Safety – Solid fertilizer distributors.
BS EN ISO 13854: 2019 Safety of machinery – Minimum gaps to avoid crushing of parts of the
human body.
BS EN ISO 13857: 2019 Safety of machinery – Safety distances to prevent hazard zones
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs.
The manufacturer stated above holds the technical file for this machine.
Signed on behalf of Stocks Ag Ltd
Name: J Woolway
Date: 01st December 2020
Position: Managing Director
t. [phone] f. [phone] e. [e-mail]

6
6-1 Machine identification
The machine the serial number decals are mounted on the steel chassis to one side of the hopper
6-2 Warranty
We provide a 12 month warranty as of the date of invoice
(your invoice for the machine which will serve as a warranty certificate).
This warranty is applicable for cases of material or construction faults and does not include parts that are
damaged by normal or excessive wear.
Warranty expires if damage is caused by external forces, operator error, modifications, Jet washed or if
the machine has not been used for its intended use.
Contact the company whom you purchased the machine from in the event of any problems, or before at-
tempting any repair. If the base machine or the controls system are modified in any way this will void any
warranty claim.
Please see our conditions of sale for full details a copy of which available upon request
Please record the machine serial number here; S/N ……………………………….
Purchase date: ………………………………… Dealer ……………………………...
MICRO METER
MK 3 MODEL
SERIAL No 217200
MANUFACTURED 2021
BY:-
STOCKS AG LIMITED
CROMWELL ROAD
WISBECH, CAMBS.
PE14 OSD, UK

7
7 Safety
Ensure care is taken when lifting the machine
Safe lifting practice to be observed when handling as the net weight is over 25kg
We advise safety shoes and protective gloves are worn when handling the machine
Assistance will be required when lifting or lowering the machine
Care to be taken to avoid crushing due to the weight of the machine.
When lifting or fitting the machine to the parent vehicle or implement ensure work is performed on level
ground or flat surface to avoid slipping, stumbling or falling.
PERSONAL PROTECTION EQUIPMENT It is the responsibility of the operator or maintenance
engineer to ensure safe handling of the machine and the appropriate personal protection
equipment is worn for the material being applied and to prevent contamination to the machine or
the environment.
WARNING Always observe all application standards and guidelines provided by the product
manufacturer as some seed dressings and granular products may be toxic !
NOTE if unsure contact your seed or product supplier for more information.
If applying slug pellets or other toxic material and the parent vehicle has a closed cab the operator must
ensure the cabin is always closed and the air filter system is in good order.
Always ensure the stability of the parent vehicle is not affected when the machine is in use.
If in doubt contact the vehicle manufacturer for more information.
After working the machine ensure that any unused product is returned safely to its original packaging
Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied
If unsure contact the material supplier for more information.
WARNING Always adhere to the warning information and do not
remove any guard whilst the machine is in operation .
The machine may only be used, maintained and repaired by persons who have relevant
experience or a machinery dealer who is aware of any risks involved.
The applicable accident prevention regulations as well as the other generally safety related, occupational
health and road traffic regulations must also be observed.
The manufacturer is not liable for any damage resulting from unauthorised modifications and the use of
components and auxiliary parts
The machine must be checked regularly by the operator (before each use) for any damage loose bolts or
electrical connections, vibrations, unusual sounds, and to ensure they function correctly.
The machine must not be operated in wet weather conditions or during thunderstorms.
Observe the generally applicable safety and accident prevention regulations
Always empty the hopper of toxic materials to prevent harm to humans and animals after each use and prior to
storage.
WARNING
Always isolate the power supply if servicing or leaving the machine unattended.

8

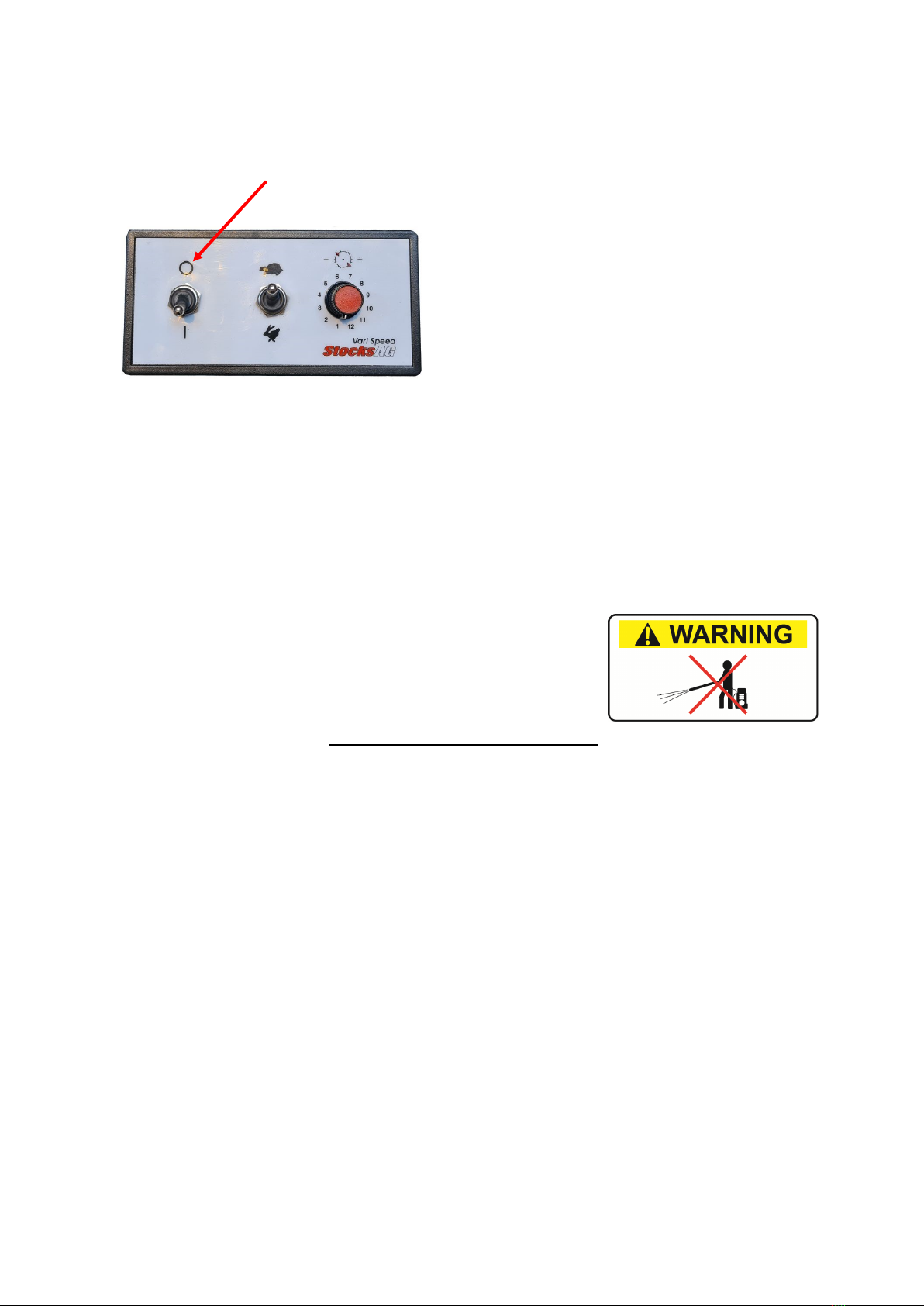

8-1 Emergency Stop instructions
1. Power down the control system immediately by switching the main power switch on the left hand
side of the cab control panel to the upper position A
2. Disconnect the power supply by unplugging the power cable or removing the inline fuse.
8-2 Maintenance
WARNING
Always ensure the power supply is disconnected before any
maintenance work or cleaning of this machine.
Suitable protective clothing must be worn (See page 6)
DO NOT JET WASH THIS MACHINE
The machine must be checked regularly by the operator for any damage loose bolts or electrical connections,
vibrations, unusual sounds, and to ensure they function correctly.
Before use;
1. Ensure the machine is securely mounted
2. Check the power supply
3. Ensure all feed hoses are routed and fitted correctly
Daily checks;
1. Check the feed motor is working correctly
2. Ensure feed outlets and all hoses are clear of product and seeding correctly
After each use;
1. Empty hopper and clean the machine thoroughly ensuring all product residue has been cleaned from the
feed rollers and housings.
2. Store in dry conditions to protect the machine and control system from moisture
WARNING Always observe all guidelines provided by the product manufacturer with regards to
handling storage and disposal of products as some may be toxic !
A
Vari Speed Control Panel
A

9
9 Safety Warning Decals
Important ; observe this safely decals on the machine
WARNING
Read and understand the Operators Manual
instructions before operating this machine
Operator errors can result in serious injury
WARNING
Do Not Jet Wash
This machine is not designed to
withstand Jet Washing !
WARNING
Danger moving parts
Risk of serious injury whilst the machine is
in operation
WARNING
Risk of injury
Keep a safe distance whilst the
machine is in operation
WARNING
Keep Clear
Maintain a safe distance from the machine
when in operation
Wear the appropriate protective personal
equipment

10
10-1 Clearing a blockage
Disconnect the main power supply
Ensure the parent machine is stationary, switched off, and parked on level ground
Ensure the main power switch on the control panel is off and unplug the power supply cable or disconnecting
the power cable from the vehicle battery.
Ensure appropriate personal protection equipment is worn for the product being applied
Ensure any product removed is put back into its original container
Care to be taken not to spill any product that could contamination the environment.
Empty the hopper of any remaining product - industrial vacuum recommended.
Investigate and unblock as required.
10-2 Storage
Disconnect the power supply by unplugging the power cable or removing the inline fuse from the power cable
if storing the machine for long periods.
It is the responsibility of the operator to ensure the hopper is empty after each and use and cleaned
thoroughly before storage.
Store in dry conditions to protect the machine and control system from moisture
Always clean and spray electrical connectors with a moisture repellent spray when not in use for long periods.
10-3 Optional PVC Waterproof Covers
Heavy duty White PVC covers fitted with eyelets and bungie cord for easy attachment available for all
machines. Available through your local dealer
To order quote part number; MMCOVER
10-4 Disposal
Ensure that any persons handling the machine are aware that the machine may have been used to
apply toxic chemicals and so the appropriate personal protection equipment should be worn.
Ensure the hopper contents have been removed and any toxic residue removed and put back into a sealed
contained or disposed of in accordance with the manufacturers guidelines to eliminate any possible
contamination of others or the environment
Always adhere to the local disposal regulations paying particular attention to the plastics, rubber,
and electrical components.

11
It is not practical to supply tailored mounting brackets for every implement on the market, and so the final
attachment of the Micro Meter to the implement is the responsibility of the supplying dealer or end user.
NOTE Vari Speed machines can be used in conjunction with a second hopper unit (see page 15)
As Micro Meters are gravity fed machines hoses must be routed downhill with sufficient fall to allow the
product to flow freely.
Hoppers may face forwards or backwards – whichever offers the easiest mounting and best flexible tube run.
An optional hopper unit or Add On Unit can be bolted directly the end of the Vari Speed hopper unit using the
fixing kit supplied. Or alternatively use the optional 45cm feed shaft can be used to space out the units which
can be cut to length as required
The optional Combi Unit bolts to the rear of the Vari Speed hopper unit with brackets and fixing kit provided.
Positioning of hopper units, “C” section mounting rail, spreader plates and
hoses will depend upon the type of application required
Select a strong, rigid position to bolt to the hopper units to your implement
or parent vehicle. Fabricate and fit a work platform and steps, complete with
handrails if necessary ensuring there is sufficient room to access the hopper.
Ensure any potential trapping points are noted taking care not to
trap hands or fingers
The spreader cone assemblies can be fixed to the “C” section mounting rail to give the planned spacing by
sliding each along the rail and locking into position using the integral bolts. Two 1m lengths of rail supplied
with each hopper unit to be cut down or extended to suit the implement width as required or fitted directly
under the hopper units with the brackets supplied.
NOTE If the spreader cone assemblies are positioned close behind the tractor wheels, roller or discs be
aware of wet soil being thrown up into the spreader causing blockages.
The feed hose needs to be cut to length and pushed onto each feed cup and into each corresponding spreader
tube (no hose clips required) ensuring all hose runs are as short as possible whilst giving a smooth downhill
route avoiding any kinks or severe bends.
One blanking plate supplied with each machine and three with every additional
hopper unit to reduce the number of outlets if required.
These fit over any chosen feed opening inside the hopper
To fit remove the two feed cup retaining screws, positioning the blanking plate,
and then re-tightening the retaining screws.
Extra feed hose, mounting rail, and hopper blanking plates available through your local Stocks dealer.
11-1 Machine Mounting
MM318
The 6 spreader cones supplied with each hopper unit will
distribute seed or product to a maximum overall spread width
of 1.5m when spaced equally across the mounting rail.
For a band sowing the cones and springs may be removed from
the steel tubes.
Working width will depend upon the height the hoppers are
mounted and length of feed hoses fitted.

12
12-2 Electrical Connections
Power requirement is 12 volts with a minimum recommended continuous supply of 15 amps
The machine is supplied with a control panel and all wiring
Ensure the power supply cable (2) is connected direct to the vehicle battery to ensure maximum power.
Connect the positive wire (fused) to the positive (+) terminal and negative earth connection to the negative
(-) terminal.
NOTE Always replace any blown fuse with the same amp rated blade type fuse as the original one fitted.
Control extension cables available If required please contact your local Stocks dealer
WARNING Failure to connect to the vehicle battery may result in control function problems and possible
damage to the vehicle battery and charging system must be in good condition to achieve the best results.
All cables and controls are fitted with matching plugs and sockets.
WARNING any modification to the wiring, fuse holder or controls will invalidate any warranty
claim and may affect the performance of the machine.
12-1 Electrical Components
1. GA115B Control Panel
2. MM107B 5m Fused Power Cable
3. MM108B 6m Control Connector Cable
4. MM044C Feed Motor
1
2
3
4

This is a simple and effective low cost manually operated electric control used to instantly start and stop the
feed motor at headlands, and uses a dial control to set the feed motor speed and thus the application rate. It
is not linked to forward speed so once calibrated the operator drives at a consistent forward speed to maintain
the rate, or can manually increase or decrease application rates on the move using the dial.
The left hand toggle switch (A) is Power On / Off and starts and stops the feed motor.
The motor is 2 speed and is switched using the centre toggle switch (B) from Low to High.
A 12 position rotary dial (C) offers 12 different speeds in each range, providing a total of 24 different motor
speeds. Application rates are increased with higher motor speeds and decreased with lower motor speeds.
REMOTE SWITCH FACILITY
Control Panels have a spare White wire within the wiring harness which can be earthed to negative (-) via a
suitable remote switch to switch off the feed motor
e.g. an additional switch can be positioned can be positioned so it is activated when the parent implement is
raised and lowered.
NOTE Heavy duty Cut Out Switch available; for more information please consult your local Stocks dealer
WARNING Ensure the position and operation of the control panel does not affect the visibility
of the operator or the ability to control the parent machine.
13 Vari Speed Control Panel
ABC

14
WARNING Always observe all application standards and guidelines provided by the
product manufacturer as some products may be toxic !
If unsure contact your supplier for more information.
Feed shaft speed is a combination of gearbox setting and motor speed
Fitted with a 2 speed motor and 2 speed mechanical gearbox the machine offers 4 different shaft
speed options. High and Low motor speeds are selected at the control panel (see page 13)
Two long bolts and spacers locate the motor and its mounting plate to the gearbox. To select low
gear, fit these bolts in the appropriate holes through the gearbox and connect the socket to the
marked low speed input shaft. To select high gear, fit these bolts and spacers to the alternative
holes through the gearbox and connect the socket to the marked high speed input shaft.
NOTE machines are supplied with motors fitted on the low gearbox setting as standard.
Low gearbox setting suitable for most small seed applications such as OSR, kale, mustard,
stubble turnips, etc. and for most micro-granules and slug pellets.
High gearbox setting for lower rate grass seed and grass seed mix application, fertiliser or other
higher rate applications.
NOTE for higher rate grass seeding Deep Groove feed rollers may need to be fitted
Deep Groove feed rollers are not recommended for any other application.
If changing feed rollers from Standard to Deep Groove please contact your local dealer
for more information.
Standard feed roller with matching profile washer Deep Groove feed roller with matching profile washer
14-2 Feed Roller Adjustment
Feed rollers slide in their housings to expose between 0-100% of the roller to the material in the
hopper. Adjustment is made by turning the black plastic knob between the fork on the feed shaft.
Each individual hopper has its own adjuster – ensure each hopper is set to the same position.
Once set, the adjustments can be locked in position with the hexagonal nut to prevent accidental
movement. By hand, run the nut up to the nylon fork and then turn the plastic knob in the opposite
direction to lock in position.
NOTE when the adjuster reaches the end of its travel and begins to
tighten back off one full turn and lock into position. Do not continue to
rotate or force the adjuster beyond this point.
Low rate application for small seeds such as OSR, kale, mustard, stub-
ble turnips, etc. set the feed rollers half open as a starting position for
the initial calibration then adjust as required.
High rate application such as most grass and grass mixes set the feed
rollers fully open as a starting position for the initial calibration then adjust as required.
14-1 Feed Shaft Speed

15
15-1 Optional Add On Unit
To increase the number of outlets available or to increase the spread width an Add On Unit is available
which is driven by the Vari Speed drive unit
The Add On Unit can be bolted to the side of the
Vari Speed drive unit or mounted to one side and
driven by the 45cm feed shaft adaptor supplied
(cut to length as required)
Supplied with full spreader kit and 10m of hose
15-2 Optional Combi Unit
For applying two products simultaneously or for more outlets a Combi Unit is available
The Combi Units are bolted to the rear of the
existing hopper drive unit with the brackets
provided. The feed shaft is mechanically driven via
a chain and sprocket drive.
Supplied with full spreader kit and 10m of hose
Calibration of the Combi Unit must be carried out
as an independent unit if applying a second product
15-3 Optional Nematicide Kit
Safe handling of nematicides is essential and an optional nematicide kit is available if required
WARNING in no circumstances should a machine be used for nematicide or any other toxic
material without this kit fitted
For more information please contact your local Stocks dealer or product supplier

16
16-1 Product Calibration
You will have to perform a catch and weigh test to establish the flow rate of product, and will need a suitable
container to collect the product being metered and an accurate set of scales to weigh kilograms and grams, and
a timer.
To establish the correct flow rate of product being applied for your bout width, forward speed and
application rate use the below formula;
Method
Use the following formula to establish the flow rate – this is a 1 minute catch test universal for all machines,
products, widths and speeds.
Application rate (kgs/ha) x forward speed (kph) x spread width (metres) = Flow rate in kgs per min
600
Example 1.
The required application rate is 25 kilograms per hectare. The target forward speed is 10 kilometres per hour.
The bout width is 6 metres wide.
25 kgs/ha x 10 kph x 6 metres = 2.5kgs per minute flow rate
600
Example 2.
The required application rate is 5.5 kilograms per hectare. The target forward speed is 12 kilometres per hour.
The bout width is 4.25 metres wide.
5.5 kgs/ha x 12 kph x 4.25 metres = 467 grams per minute flow rate
600
1. Position a collection container directly underneath ALL outlet pipes to catch the product being calibrated.
2. Put a small amount of material in the hopper.
3. Perform the catch and weigh test.
a. Be ready to time the test - switch on the feed rolls – start timing – stop the feed rolls after 1 minute.
b. Accurately weigh the product metered over the timed period, and compare the weight collected to the
figure indicated by the calibration chart at the end of manual. Increase or decrease the feed roll speed until
you collect the correct amount of product for your rate, width and forward speed.
c. Use the cab control to select High or Low motor speed range and in combination with the 12 position
motor speed dial adjust until the correct flow rate is obtained over a 1 minute catch test.
NOTE please see page 14 for more information regarding feed shaft speeds.
It is the responsibility of the operator to ensure safe handling of the machine and the appropriate
personal protection equipment is worn for the material being applied and to prevent contamination
to the machine or the environment.
16-2 Calibration catch and weigh test

17
17 Micro Meter Vari Speed Parts drawing

18
Item Part # Description Qty Remarks
1MM002G Gearbox Complete 1
2MM150 C’ Rail 2x1m
3MM021 Hopper (60Ltr) 1
4MM024 Feed Drive Shaft 1
5MM044C Metering Motor 1
6MM048 Drive Socket 1
7MM049A Square Drive Block 1
8MM100 Feed Cup 6
9MM101C Deep Groove Roller (Optional) 6(not shown MM102A Washer)
10 MM101B Feed Roller 6(not shown MM102C Washer)
11 MM022 Hopper Lid 1
12 MM102B Feed Cut Off Sleeve 6
13 MM223 Clamp Complete 6
14 MM225 Spring 6
15 MM226 Spreader Cone 6
16 MM227 Steel Outlet Tube 6
16a MM224 Spreader Assembly (6)
17 MM300A Micro-Meter Chassis 1
18 MM314A Chassis Spacer (4) Add On Unit only
19 MM315A Hopper Support Bracket 2
20 MM517 Locking Collar 12
21 MM519 Feed Adjuster Fork 1
22 MM520 Feed Adjuster Wheel 1
23 MM521 M12x130 Threaded Rod 1
24
25 MM531 Drive Shaft Connector (85mm) (2) (per MM534)
26 MM534 45cm Drive Shaft Extension (1) (not shown) Add On Unit only
28
29
30 MM047 Motor Mounting Bush 2
31 MM050A Motor Guard 1
32 MM318A Blanking Plate (1) (3 per Add On & Combi Unit)
33 MM523 Pointer 1
34 MM228A Mounting Arm 2
35 FJ008A M6x6 Grub Screw 12
36
37 FJ103A-1Rubber Tensioner 1
38 FJ104A-1Bobbin 2
39 FJ418A Split Ring 1
40 TJ151 Channel Nut 2
41 MM019 Chain 1
42 MM020 PVC Spacer 1
43 MM227A Mounting Angle 2
18 Micro Meter Parts list (page 1)

19
19 Micro Meter Parts list (page 2)
Item Part # Description Qty Remarks
44 M5–012 M5 x 25 Slot Head CSK Screw 4
45 M5-014 M5 Flat Washer 4
46 M5-017 M5 Nyloc Nut 4
47 M6-004 M6x16 Hex Head Setscrew 3
48 M6-006 M6x20 Button Head Setscrew 16
49 M6-015 M6 Flat Washer 3
50 M6-016 M6 Flat Washer 32
51 M6-018 M6 Repair Washer 4
52 M6-023 M6 Nyloc Nut 16
53
54
55 MM222 5/8”ID Rubber Feed Hose 10m
56 M8-003 M8x20 Hex Head Setscrew 8
57 M8-010 M8 Flat Washer 16
58 M8-019 M8 Nyloc Nut 8
59
60 M10-006 M10x30 Hex Head Setscrew 4
61 M10-022 M10 Nut 4
62 M10-016 M10 Flat Washer 20
63 M10-009 M10x40 Bolt 3
64 M10-015 M10x130 Bolt 2
65 M10-024 M10 Lock Nut 5
66 M10-001 M10x16 Bolt 2
70 M12-010 M12 Half Nut 5
72 M10-009 M10x40 Bolt (4) Add On Unit only
73 M10-016 M10 Flat Washer (4) Add On Unit only
74 M10-024 M10 Nyloc Nut (4) Add On Unit only
79 GA115B Vari Speed Control panel 1
80 MM107B 5m Fused Power Cable 1not shown
81 MM108B 6m Connector Cable 1not shown
82
83 n/a Decal “Serial No. / CE UKCA Mark”1not shown
84 MD002 Decal “Stocks AG”1not shown
85 MD020 Decal “Stocks MICRO-METER”1not shown
86 MD052 Warning Decal Kit 1not shown
87 MD024 Decal “Made in Britain” 1not shown
88
89
90
