Store It Cold CoolBot PRO User manual

INSTRUCTION MANUAL

Rev: 2018 –7A ©2018 Store It Cold, LLC 1
INDEX
DISCLAIMER AND WARRANTY .......................................................................................................................................2
WHAT’S IN THE BOX?.....................................................................................................................................................3
KNOWING YOUR COOLBOT PRO....................................................................................................................................4
HOW DOES THE COOLBOT PRO WORK WITH YOUR A/C? .............................................................................................6
HOW DOES THE JUMPER WORK WITH YOUR COOLBOT PRO?......................................................................................6
BEFORE INSTALLING YOUR COOLBOT PRO....................................................................................................................7
INSTALLING YOUR COOLBOT PRO .................................................................................................................................8
CONNECTING YOUR COOLBOT PRO TO YOUR WI-FI NETWORK ...............................................................................8
INSTALLING YOUR COOLBOT PRO TO YOUR A/C.......................................................................................................9
CHANGING SETTINGS ON THE COOLBOT PRO.............................................................................................................12
ROOM TEMPERATURE SETTING..............................................................................................................................12
FINS SETTING...........................................................................................................................................................12
HEATER DELAY SETTING ..........................................................................................................................................12
SWITCHING BETWEEN FAHRENHEIT AND CELSIUS .................................................................................................13
REBOOTING YOUR COOLBOT PRO...........................................................................................................................13
THE COOLBOT PRO APP...............................................................................................................................................13
WEB APP FEATURES ................................................................................................................................................13
PUTTING YOUR APP ON YOUR HOME SCREEN........................................................................................................13
THE STATUS TAB –Default Screen ..........................................................................................................................14
THE DEVICES TAB.....................................................................................................................................................16
THE ACCOUNT TAB..................................................................................................................................................20
ERROR CODES ON YOUR COOLBOT PRO .....................................................................................................................21
Er IS SHOWING ON MY COOLBOT DISPLAY .............................................................................................................22
Ef FLASHES ON MY COOLBOT DISPLAY....................................................................................................................22
“EH” SHOWING ON MY COOLBOT DISPLAY ............................................................................................................23
REBOOTING THE COOLBOT PRO .............................................................................................................................23
CHECKS ON YOUR COOLBOT PRO................................................................................................................................24
MY COOLBOT PRO HAS A BLANK DISPLAY BUT THE POWER LIGHT IS ON ..............................................................24
MY HEATER DOES NOT SEEM TO BE WORKING ......................................................................................................24
TEMPERATURE SENSORS CALIBRATION TEST .........................................................................................................24
CHECKS ON YOUR A/C UNIT ........................................................................................................................................24
DIRTY FINS...............................................................................................................................................................24
PROPER INSTALLATION AND SETTINGS...................................................................................................................25
DOUBLE YOUR WARRANTY! ........................................................................................................................................25

Rev: 2018 –7A ©2018 Store It Cold, LLC 2
DISCLAIMER AND WARRANTY
DISCLAIMER
By using the CoolBot Pro temperature controller, you (the “User”) acknowledge there are inherent hazards in getting
an air-conditioner (“A/C”) to do something it was not originally designed to do, and that these inherent hazards cannot
be ameliorated, mitigated or obviated while still maintaining the essential functionality of the CoolBot Pro. User
accepts all responsibility in the use of and monitoring of the CoolBot Pro and A/C. User assumes all risk of loss of
property or product due to improper functioning of the CoolBot Pro (or A/C). User assumes all risk of injury and
warrants that he/she will defend, indemnify and hold the seller harmless for any direct or consequential harm or
damage that may result from the use of this product. Users that don’t accept this responsibility must return the
CoolBot Pro for a FULL REFUND before use.
LIMITED WARRANTY: The CoolBot Pro is warranted against defects for 1 year, not including damage due to misuse or
accidents. To double the warranty on your CoolBot Pro see page 24 for details.
HAPPY CUSTOMER GUARANTEE: Return the CoolBot Pro in its original condition within 45 days if you are not fully
satisfied for a full refund (shipping not included). Credit only given if you email us at [e-mail] or call
888-871-5723 before shipping.

Rev: 2018 –7A ©2018 Store It Cold, LLC 3

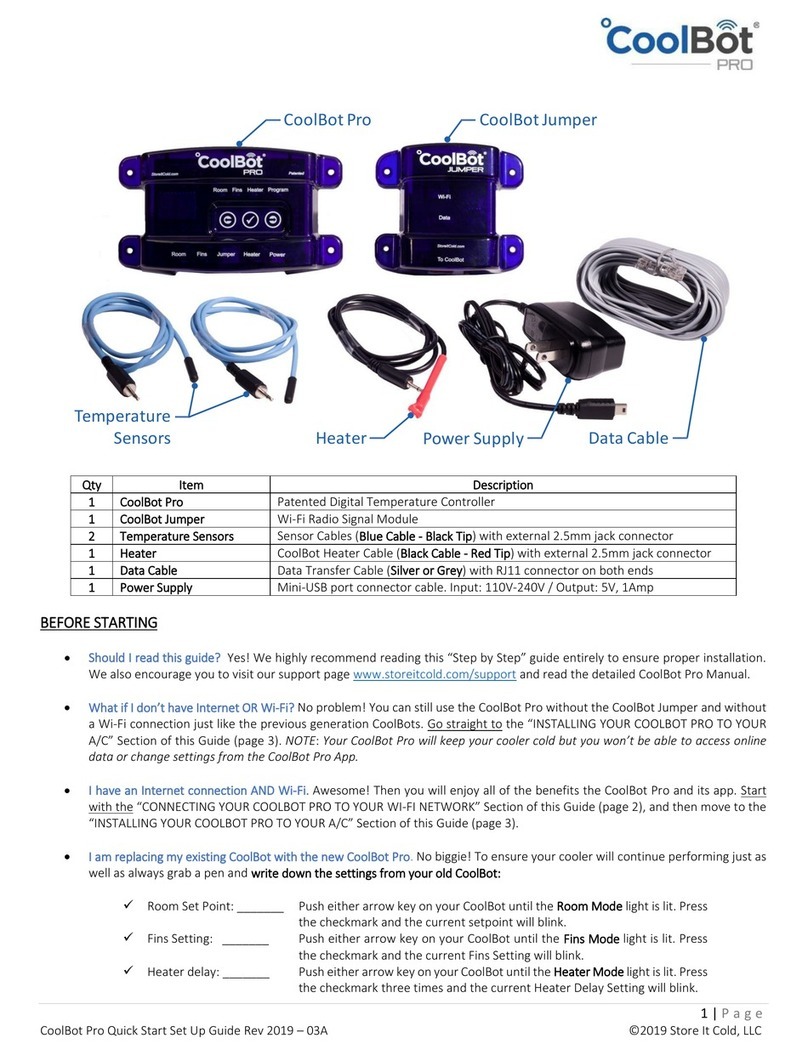

WHAT’S IN THE BOX?
(1) CoolBot Pro - Patented Digital Temperature Controller
(1) CoolBot Jumper - Wi-Fi Radio Signal Module
(2) Temperature Sensors - Sensor Cables (Blue) with external 2.5mm jack connector
(1) Heater Cable -CoolBot Heater Cable (Red Tip) with external 2.5mm jack connector
(1) Data Cable - Data Transfer Cable (Silver or Gray) with RJ11 connector on both ends
(1) Power Supply - Mini-USB port connector cable. Input: 110V-240V / Output: 5V, 1Amp
(1) CoolBot Pro Quick Start Set Up Guide - 4 pages
CoolBot Pro
Temperature
Sensors
CoolBot Jumper
Heater Power Supply Data Cable

Rev: 2018 –7A ©2018 Store It Cold, LLC 4

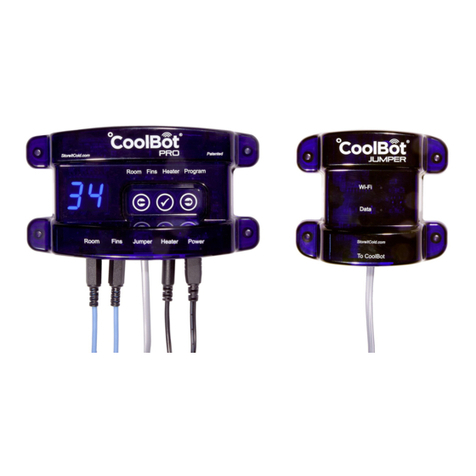

KNOWING YOUR COOLBOT PRO
FIG 1

Rev: 2018 –7A ©2018 Store It Cold, LLC 5
DISPLAY:
The display changes depending on which Mode Indicator Light is illuminated.
MODE INDICATOR LIGHT:
Shows which mode you are currently using.
Change modes by pressing the left or right arrows.
Room Mode: While in normal operation, the display shows the current room temperature and the Room
Mode Indicator Light is solid (no blinking).
Fins Mode: From the Room Mode, press the right arrow once to access the Fins Mode. The light above “Fins”
will turn on solid (no blinking). The display will show the current fins’ (A/C’s coil) temperature.
Heater Mode: From the Room Mode, press the right arrow twice to access the Heater Mode. The light above
“Heater” will turn on solid (no blinking). The display will show an “F” for Fahrenheit or a “C” for Celsius.
Program Mode: From the Room Mode, press the right arrow 3 times to access the Program Mode. The light
above “Program” will turn on solid (no blinking). The display will show a number (e.g. 7.8), which will be the
firmware version on your CoolBot Pro.
POWER INDICATOR LIGHT: This light is constantly on (solid), as long as your CoolBot Pro is plugged in and getting the
correct power supply (110V-230V).
HEATER ACTIVITY INDICATOR: When the CoolBot Pro is “calling for cooling” this light will blink slowly. It will stop
blinking if the room temperature has reached the “set point” or the fins are reaching the freezing set point.
INPUT TOUCH KEYS
CHECKMARK KEY: Press to enter the setup menu, save values, and exit each particular mode.
RIGHT ARROW KEY: Press to move the Mode indicator light in between modes from left to right.
LEFT ARROW KEY: Press to move the Mode indicator light in between modes from right to left.
ROOM AND FIN SENSOR CABLES: These two cables are interchangeable. They monitor the room temperature and the
A/C’s fin temperature.
DATA CABLE: This cable connects your CoolBot Pro and your Jumper.
HEATER CABLE: This cable (red tip) heats up the A/C’s temperature sensor when cooling is needed.
POWER CORD: This standard Mini USB cable brings power to your CoolBot and the Jumper.
JUMPER: This is a radio signal device that connects your CoolBot to your Wi-Fi and to the Internet.
WI-FI STATUS: Flashes when a message has come in from the server - from the Internet.
DATA STATUS: Flashes when data is received from the CoolBot Pro controller.

Rev: 2018 –7A ©2018 Store It Cold, LLC 6
HOW DOES THE COOLBOT PRO WORK WITH YOUR A/C?
The CoolBot Pro uses 2 temperature sensors (ROOM and FINS), the HEATER cable (red tip) and a programmed micro-
controller to direct your air conditioner to operate in such a way as to cool the room to a set temperature in between
33°F/0.5°C and 65°F/18°C without freezing up.
How does it do this?
The HEATER cable (red tip) is keeping your A/C’s sensor warm to make the A/C “think” it is warmer than the actual
room temperature. By doing this, the compressor on your A/C keeps running and cools down the space.
The ROOM and the FIN sensors tell the HEATER when to stop running. When the HEATER turns off, the A/C’s sensor
cools down and shuts off the compressor in response.
If the room temperature reaches the set value, the HEATER will stop running. Your A/C’s Temperature sensor will cool
down and shut the compressor off.
If the fins of your A/C are reaching the freezing set point (33°F factory default), the HEATER will stop running. Your
A/C’s Temperature sensor will cool down and shut the compressor off to allow for a defrost cycle. This is normal even
if the room has not reached its set point.
A slowly blinking Heater Activity Light is completely normal during operation.
It indicates that the CoolBot is “Calling for Cooling and the Heater Cable is getting hot.
The defrost cycle of the A/C does not use heat;
it defrosts by turning your compressor off and circulating air over the frosted coil.
HOW DOES THE JUMPER WORK WITH YOUR COOLBOT PRO?
The Jumper is the “middle man” in between your CoolBot Pro controller and your Wi-Fi Network. It allows the CoolBot
Pro App to receive data from the controller and vice versa. The Jumper does not need batteries. It gets power through
the Data Cable from the CoolBot Pro controller.
IMPORTANT!
An available Wi-Fi Network is required for the Jumper to operate. Mount the Jumper outside of your cooler in a
place where you have a strong Wi-Fi signal.
Connect your Jumper to the CoolBot Pro using ONLY the supplied Data Cable.
NOTE: The CoolBot Pro can still work to cool your room without the Jumper. Just install the CoolBot Pro without the
Data Cable and without the Jumper connected to it. Your CoolBot Pro will keep your cooler cold but you won’t be able
to access data or change settings from the CoolBot Pro App.

Rev: 2018 –7A ©2018 Store It Cold, LLC 7
BEFORE INSTALLING YOUR COOLBOT PRO
•Should I read this manual? Yes! We highly recommend reading this manual entirely to familiarize yourself
with the new CoolBot Pro, with the CoolBot Pro App, and to ensure proper installation.
•What if I don’t have Internet OR Wi-Fi? No problem! You can still use the CoolBot Pro without the CoolBot
Jumper and without a Wi-Fi connection just like the previous generation CoolBots. Go straight to the
“INSTALLING YOUR COOLBOT PRO TO YOUR A/C” Section of this manual (page 9). NOTE: Your CoolBot Pro
will keep your cooler cold but you won’t be able to access data or change settings from the CoolBot Pro App.
•I have an Internet connection AND Wi-Fi. Awesome! Then you will enjoy all of the benefits of the CoolBot Pro
and its App. Start with “CONNECTING YOUR COOLBOT PRO TO YOUR WI-FI NETWORK” Section of this manual
(page 8) and then move to the “INSTALLING YOUR COOLBOT PRO TO YOUR A/C” Section of this guide (page
9).
IMPORTANT
A subscription plan is required in order to access and use the CoolBot Pro App
•I am replacing my existing CoolBot with the new CoolBot Pro.No biggie! To ensure your cooler will continue
performing just as well as always grab a pen and write down the settings from your old CoolBot:
✓Room Set Point: _______
Push either arrow key on your CoolBot until the Room Mode light is lit. Press
the checkmark and the current setpoint will blink.
✓Fins Setting: _______
Push either arrow key on your CoolBot until the Fins Mode light is lit. Press
the checkmark and the current Fins Setting will blink.
✓Heater delay: _______
Push either arrow key on your CoolBot until the Heater Mode light is lit. Press
the checkmark three times and the current Heater Delay Setting will blink.
Please go through the following checklist before installing your CoolBot Pro:
❏The A/C Unit:
❏Has digital display only.
❏Has Automatic Restart.
❏Is properly sized in BTUs. To check A/C sizing visit: https://www.storeitcold.com/support
❏Is a recommended model. To check A/C compatibility visit: https://www.storeitcold.com/support
❏The A/C is installed:
❏High up on the cooler wall (bottom of the A/C above 5 feet/1.5 meters).
❏On a short wall if it is a rectangular room.
❏Tipped backwards (about 1 inch) and level from side to side to allow for proper draining.
❏The Room:
❏Ceiling and walls are insulated to R25 using Rigid Foam or Spray Foam (NO fiberglass batt
insulation!).
❏Seams, corners and door gaskets are tightly sealed.
❏Is airtight. When I close the door of my room (standing inside), I see no light through any cracks.
❏Floor is insulated (only if it’s a mobile cooler, trailer, container, deck, raised floor, or if trying to cool
below 38°F/3°C).

Rev: 2018 –7A ©2018 Store It Cold, LLC 8
INSTALLING YOUR COOLBOT PRO
Watch our CoolBot Pro Installation Video at www.storeitcold.com/support
CONNECTING YOUR COOLBOT PRO TO YOUR WI-FI NETWORK
IMPORTANT
A subscription plan is required in order to access and use the CoolBot Pro App
CoolBot Pro and CoolBot Jumper Set Up
STEP 1 Unpack the CoolBot Pro in an area with good Wi-Fi reception (outside of your cooler). Plug in the
Temperature Sensors and the Heater Cable into the corresponding ports (See diagram on page 4). Don’t
connect the cables to your A/C and don’t plug in the power supply.
STEP 2 Connect the CoolBot Jumper to the CoolBot Pro using ONLY the provided silver/grey Data Cable. The
provided Data Cable is specific to the CoolBot Pro/Jumper –standard phone cable will not work and may
damage your CoolBot Pro/Jumper.
STEP 3 In an area where your phone gets good Wi-Fi reception, plug in the CoolBot Pro’s Power Supply. You should
see codes and flashing mode lights for several seconds. These should settle down to one flashing Program
light, and the code “E0” alternating with the current room temperature.
Wi-Fi Configuration and Web App Set Up
STEP 4 Start the CoolBot Pro App by scanning the QR Code on your smartphone or go to the
web page https://cb.storeitcold.com on a device that has Wi-Fi (smartphone, tablet,
PC, etc.).
STEP 5 On the first screen, fill in your email address and create a password. The email address
will be used for notifications, as well as to link your data to your account.
STEP 6 Select “Create New Account” and the App will guide you through configuring the CoolBot Pro to talk to the
CoolBot server using your Wi-Fi Network.
STEP 7 The App will also connect you to our credit card processing portal for selection and payment for the
subscription service of your choice. This is necessary to enable the CoolBot Pro's interactive App-based
features.
STEP 8 Continue to follow the prompts. When prompted, you will need to change the Wi-Fi settings on your device
(smartphone, tablet, PC) to connect to the Wi-Fi Network called “CoolBot”. On most smartphone use
Settings > Wi-Fi and on most PCs use the network or Wi-Fi status icon.
STEP 9 Choose or type in the Wi-Fi Network you want the CoolBot to use. This is usually the same network your
phone uses, but it can be a different network if you prefer. Enter the Wi-Fi password for the network and
press Next.
STEP 10 Once the CoolBot Pro is connected to the Network, you should see no codes (and no flashing) on the
CoolBot Pro display.

Rev: 2018 –7A ©2018 Store It Cold, LLC 9
If your device did not automatically switch back to your usual Wi-Fi settings use the method outlined in
STEP 8 to switch them back. You should now see temperatures on the app.
You are all set up! Unplug your CoolBot Pro from the power supply and proceed to “INSTALLING YOUR COOLBOT PRO
TO YOUR A/C” Section of this guide and then to THE COOLBOT PRO APP Section to learn about the amazing features
of your web base app.
INSTALLING YOUR COOLBOT PRO TO YOUR A/C
IMPORTANT!
If you ever need to adjust the Data Cable or CoolBot Jumper placement, unplug the CoolBot Pro before
connecting or disconnecting the Data Cable.
ATTENTION!
We understand how important this investment is for you, and we understand the value behind the product that you
will store in your cooler. We highly recommend that you read your A/C and CoolBot Pro installation manual, follow
the setup guide step by step, and familiarize yourself with the use and troubleshooting of the CoolBot Pro as well as
your A/C unit.
After installing your CoolBot, we strongly advise you to run your cooler for a test period (at least 24 hours) and place
some buckets of water or non-perishables to add mass. This is to assure the system is performing correctly and to your
needs.
If you are installing your CoolBot Pro to a Mini Split air conditioner system please use this step by step guide
along with our Mini Split Installation Guide available at our library at: www.storeitcold.com/support

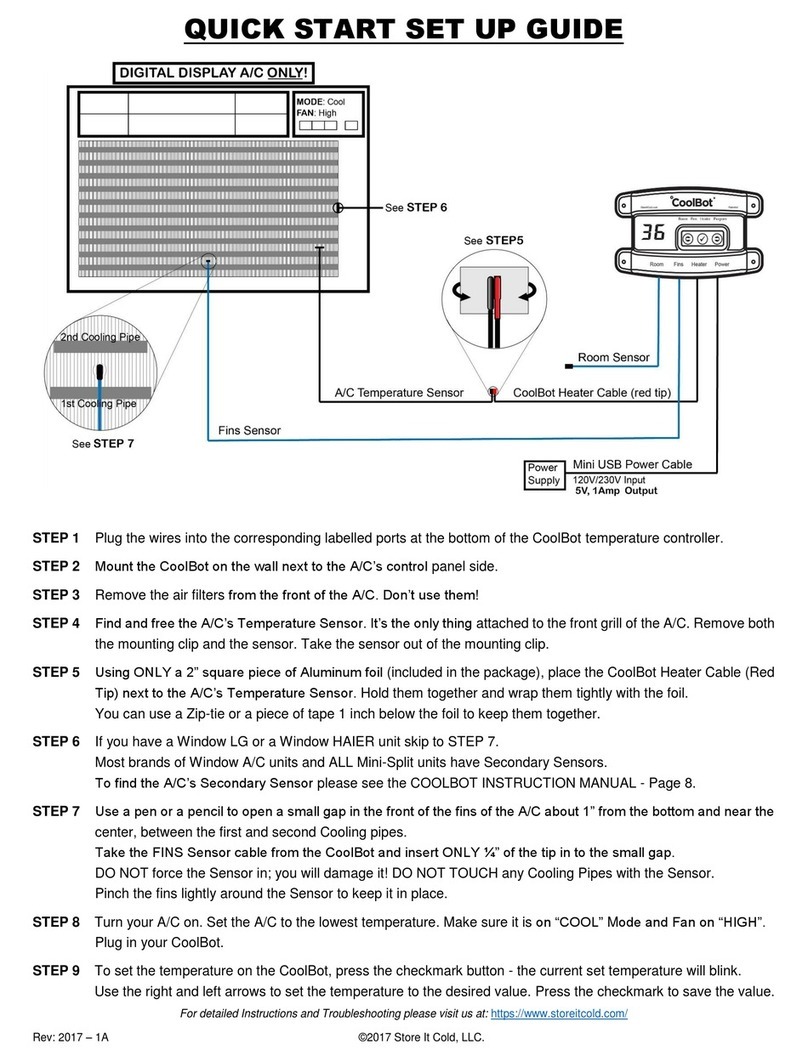

STEP 1 Plug the cables into the corresponding labeled ports at the bottom of the CoolBot Pro except for the Data
Cable.
Plug the cables in and out a couple times as sometimes they don't “seat” all the way the first time.
If you are replacing an existing CoolBot with removable Temperature Sensors and Heater Cables, you can
leave them in place and connect them to the CoolBot Pro.
The CoolBot Pro works with both black and blue Temperature Sensor Cables.
The Room Sensor should hang free in the room.
STEP 2 Mount the CoolBot on the wall next to the control panel side of the A/C to make it easier to connect the
cables.
CAUTION! Make sure the wall fasteners are smaller in diameter than the hole in the CoolBot Pro tabs or
you will break the plastic tabs.
STEP 3 Remove the air filter from the front of the A/C unit. DO NOT use it!
The filters drastically reduce cooling power and increase your chances of icing up.
Clean your fins two times a month.
Remove the plastic grill if you can.
Some A/C units have a “fresh air vent” tab. This allows some mix of outside air inside the room. If
applicable, make sure it is closed.

Rev: 2018 –7A ©2018 Store It Cold, LLC 10
STEP 4 Find and free your A/C’s Temperature Sensor. It’s the only thing attached to the front fins/grill of your air
conditioner.
On Mini Split air conditioning units this sensor is often not in front of the fins of the indoor unit. It may be
tucked into a plastic cover underneath or to the side of the unit. For pictures and examples of Mini Split
installations please visit our library section at: www.storeitcold.com/support
If your A/C has a clip built into the sensor to hold the sensor in the fins, remove the sensor from the clip
and free it enough to reach the side of the A/C - DO NOT use the mounting clip for this installation
STEP 5 Using ONLY a 2” square piece of Aluminum foil, place
the CoolBot Heater Cable (red tip) next to the A/C’s
Temperature Sensor (from STEP 4).
Keep together next to each other, pointing in the
same direction, and wrap them tightly with the foil.
Make sure they are away from the fins & flow of the air
and hang free, not touching anything cold or metal.
You can put a wire tie or zip tie around the 2 cables (1
inch before the foil) to keep the cables from getting
pulled apart.
STEP 6
IMPORTANT!
If your A/C has a Secondary Sensor, IT MUST BE UNPLUGGED.
➢Window LG (except Inverter models) and window HAIER units DO NOT have Secondary Sensors (skip to STEP 7).
➢Most GE, Danby, Frigidaire, Arctic King, etc. A/C units over 10K BTUs have a Secondary Sensor.
➢All “Mini-Split”air conditioners have Secondary Sensors.
Use just 1 layer of electrical tape to attach the end of the Secondary Sensor to the OUTSIDE of the aluminum foil
connection from STEP 5. See picture below.
For videos and pictures on how to locate the secondary sensor go to: https://www.storeitcold.com/support
Main A/C Sensor
Secondary A/C Sensor

Rev: 2018 –7A ©2018 Store It Cold, LLC 11
STEP 7 Use a pen/pencil to open a small gap in the fins about 1” from the bottom and near the center (horizontally),
between the bottom and second horizontal cooling pipes.
Take the cable sensor coming from the CoolBot Pro port labeled “Fins” and gently insert just 1/4 inch (0.7
cm) of the TIP into the small gap.
DO NOT force the sensor in, you'll damage it.
Do not touch a coolant pipe with the Fins Sensor.
You want to be between the bottom 2 horizontal cooling pipes.
Pinch the fins lightly around the sensor to keep it in place.
STEP 8 If you do not have Wi-Fi skip this step and go to STEP 9.
Mount the CoolBot Jumper outside of your cooler in a location close enough for the provided Data Cable
to connect the CoolBot Pro to the CoolBot Jumper.
The CoolBot Jumper is not weatherproof. If it is to be mounted outdoors where rain, snow, and sunlight
may get to it, then install it inside of a weatherproof nonmetallic container.
After your CoolBot Jumper is mounted, connect the CoolBot Pro and the CoolBot Jumper using ONLY the
provided Data Cable.
ATTENTION!
The provided Data Cable is specific to the CoolBot Pro/Jumper –standard phone cable will not work and may
damage your CoolBot Pro/Jumper.
STEP 9 Turn your A/C ON. Set the A/C on “COOL” Mode and set the Fan on “HIGH” speed. Set the A/C temperature
to the lowest setting. Plug in your CoolBot Pro power supply.
STEP 10 To set the temperature on your CoolBot Pro, press the checkmark button –the current set temperature
will blink. Use the right or left arrows to set the temperature to the desired value. Press the checkmark to
save the value.

Rev: 2018 –7A ©2018 Store It Cold, LLC 12
CHANGING SETTINGS ON THE COOLBOT PRO
The CoolBot will always remember all your last settings even if it has been unplugged for a long time.
ROOM TEMPERATURE SETTING
This setting is the average temperature you want in your cooler.
NOTE: The factory default temperature is set at 42°F/5.6°C.
To set a new value for the Room temperature:
●Make sure the Mode indicator light is in the Room position (Room Mode).
●Press the checkmark ✓button. The “set-temperature” will blink on the display.
●Use the arrow buttons to increase or decrease the temperature.
●Press the checkmark ✓button to program (save) your new setting into memory.
●The display will go back to Room Mode showing the current room temperature.
FINS SETTING
This setting adjusts the sensitivity of the FINS Sensor to prevent freeze ups.
NOTE: The factory default setting is “1.”
Adjust this setting ONLY if you are experiencing icing problems.
A higher setting is more “conservative.” Some users need to bump up to “3” or “4” to keep from icing up.
95% of CoolBot installations work well with settings in the GREEN zone.
SETTING
0
1
2
3
4
5
6
7
8
9
To adjust the Fins setting:
●Press the right arrow until the Mode indicator light is in the Fins position (Fins Mode).
●Press the checkmark ✓button. The current Fins setting will blink on the Display.
●Press the left/right arrow to lower/raise the setting value.
●Press the ✓button again to save your new setting into memory.
●The display will go back to the Fins Mode and after 20 seconds of inactivity it will go back to the Room Mode.
HEATER DELAY SETTING
This setting allows you to increase or decrease the defrost cycle time.
NOTE: The factory default Heater Delay setting is “d1”
If you are experiencing ice ups and the problem has not been solved by increasing your Fins setting, then raise your
Heater Delay setting.
95% of CoolBot installations work well with settings in the SHADED zone.
SETTING
d0
d1
d2
d3
d4
d5
d6
d7
d8
To change the Heater Delay setting:
●Press the right arrow until the Mode indicator light is in the Heater position (Heater Mode).
●Press the checkmark ✓button 3 times. The current Heater Delay setting will blink on the display.
●Press the right/left arrow to increase/decrease the value of the setting.
●Press the checkmark ✓button to save your new setting into memory.
●The display will go back to the Heater Mode and after 20 seconds of inactivity, it will go back to the Room
Mode.

Rev: 2018 –7A ©2018 Store It Cold, LLC 13
SWITCHING BETWEEN FAHRENHEIT AND CELSIUS
This setting allows you to switch your CoolBot Pro from displaying °F to °C
NOTE: The factory default temperature scale is in °F
To change the scale of the temperature display:
●Press the right arrow until the Mode indicator light is in the Program position (Program Mode).
●Press the checkmark ✓button 5 times. You'll see a blinking “P1”.
●Press the right arrow once or until you see “P2” blinking on the display.
●Press the checkmark ✓button once to enter the “P2” menu. You’ll see an “°F” blinking.
●Press the right arrow once or until you see a “°C” blinking on the display.
●Press the checkmark ✓button once to save the value.
●The display will go back to a “P2” blinking and after 20 seconds of inactivity, it will go back to the Room Mode.
REBOOTING YOUR COOLBOT PRO
See page 22.
THE COOLBOT PRO APP
WEB APP FEATURES
The current version of the web app shows the most recent Room temperature, and a graph of
its recent history on the default screen –Status Tab. You can drag to pan, pinch or scroll to
zoom into the graph, mouse-over or tap to see precise readings and times, and select different
time periods. You can also see a brief summary of the status of the sensors, heater, and
network connection under this Status Tab. Under the Devices and Account Tabs you can adjust
CoolBot Pro settings, set temperature ranges and notifications and reset your CoolBot Pro
among other features.
PUTTING YOUR APP ON YOUR HOME SCREEN
The CoolBot Pro App is a web-based app and is not available from your mobile phone App Store. On most devices you
can add a link to your home screen for the CoolBot Pro App so you can access it just like any other app. While in the
CoolBot Pro App on your browser do the following:
•In Chrome on Android, open the menu at the upper right and choose “Add to Home Screen.”
•In Safari on iOS, tap the Share button at the bottom of the screen and choose “Add to Home Screen.”
•In most desktop browsers, you can drag the icon at the left of the URL bar at the top of the browser and
drop it onto your desktop to create a shortcut.
NOTE: You may be prompted for your user ID and password the first time you access the app from the icon on the
home screen.

Rev: 2018 –7A ©2018 Store It Cold, LLC 14
THE STATUS TAB –Default Screen
This is the default tab. Every time you open your app, it will default to this screen.
1. Current Tab –Status Tab
2. Current Room Temperature
3. CoolBot Pro Name –Set by the user
4. Current System State
(see System States below)
5. Temperature History Graph
(see Hysteresis below)
Drag to pan, pinch or scroll to zoom
6. History Time Presets –click to choose
What Is Temperature Hysteresis?
As you watch your Temperature History Graph on your app, you may see that the air temperature in your cooler
behaves like a “wave” that goes up and down around your set point. This is completely normal for any refrigeration
system. Hysteresis is the difference in the On and Off temperatures of your cooler as it cycles.
On a perfect scenario, as soon as the refrigeration system reaches the set point (e.g. 38°F) it would turn off
immediately, warm up a bit (e.g. 38.01°F), and then turn on again, and at 38°F it would turn off again. The end result
would be something that is continually turning on and off. This constant starting and stopping would wear the
refrigeration system out and it would fail in a short period of time.
Hysteresis is not only normal but necessary to avoid this frequent On and Off cycling. Hysteresis is dependent of
many factors including calibration of equipment, response time of temperature probes, CoolBot settings, etc.
The hysteresis value on a CoolBot cooler that has been designed following our recommendations and with a
controller set to factory settings is normally around +/- 2°F from the set point.
Hysteresis in your cooler may be of a higher value and that is not a bad thing. Just adjust your set temperature so that
the high and low values stay within acceptable ranges for your product. Remember that the sensors of the CoolBot
are very sensitive to air changes, and the fact that the air temperature changes rapidly at a given point, doesn’t
mean that your product is changing temperature at the same rate.
Your product has significantly more mass than the CoolBot sensors and it will take a much longer time to gain
temperature when exposed to higher air temperatures.
If you were to measure your product temperature you would see that it remains essentially constant while the air
temperature in your cooler fluctuates up and down.

Rev: 2018 –7A ©2018 Store It Cold, LLC 15
System States
These are the possible states for the system as a whole, from the app’s point of view:
Light-shaded display texts (gold and salmon) indicate situations that might (gold) or do (salmon) need the user’s
attention.
Dark-shaded display texts (raspberry) indicate that we know for sure the cooler is not performing as desired.
Display text
Notes
User actions
All hardware OK
None
Starting up
Wait
Thermostat disabled
On user request
Turn Power On/ Off at
Device - Settings Tab
Updating firmware
Update time is normally less than one minute
Wait
Weak Wi-Fi signal
Move radio module or Wi-Fi
access point
Connecting
Provisioning or initial connection is completed, but we haven’t
heard from the device yet. Typically flashes too briefly to see;
if it shows for longer, could indicate a server or device issue.
Wait
Disconnected from server
E.g., timed out
Try reconnecting
Room temp briefly high
Temp is over the high threshold but the device hasn’t flagged
it for notification yet (takes 30 minutes consistently above, min.
60 minutes since last notification)
Check A/C, room, etc. - or
wait to see how long it
persists
Room temp briefly low
Same, but under the low threshold
Check A/C, room, etc. - or
wait to see how long it
persists
Room temp was high
Temp is under the high threshold now, but the device is still
waiting to clear the notification (takes 30 minutes or a fall of 3
°F)
Check A/C, room, etc. - or
wait to see how long it
persists
Room temp was low
Same, but now above the low threshold
Check A/C, room, etc. - or
wait to see how long it
persists
CoolBot briefly offline
Device is disconnected, but for less than 30 minutes
Check A/C, room, etc. - or
wait to see how long it
persists

Rev: 2018 –7A ©2018 Store It Cold, LLC 16
Can't connect to server
We tried but it's not resolvable or not accepting connections
Check Internet connection
on app device
Device offline
Reboot device, check Wi-Fi,
etc.
Room sensor error
Check cable
Fins sensor error
Heater error
Hardware error
Multiple failures
Check cables/ power/ etc.
Room temp too hot
Check A/C, room, etc.
Room temp too cold
THE DEVICES TAB
On the Devices tab, you can see more details about the device, set the CoolBot Pro’s settings, and turn on
Notifications for when the temperature goes outside of a set range or the CoolBot loses its network connection
1. Current Tab –Device Tab
2. CoolBot Pro Name –Click to change
3. CoolBot Pro Status Icon
4. Expandable Menus –Click to expand

Rev: 2018 –7A ©2018 Store It Cold, LLC 17
Settings Menu
After clicking on the Settings Expandable Menu click on EDIT to enter the edit screen
1. Current Menu –Settings
2. Set Temperature Point –Slide to adjust
3. Target Temperature Range
Low and High Temperature - Slide to adjust.
No less than 3°F from Set Temperature (+/-)
4. Fins Set Point –Slide to adjust
Please see CHANGING SETTINGS ON
THE COOLBOT PRO before adjusting
5. Heater Delay –Slide to adjust
Please see CHANGING SETTINGS ON
THE COOLBOT PRO before adjusting
6. Power ON/OFF CoolBot Pro –click to choose
This will ONLY turn ON and OFF your CoolBot Pro
NOTE: Your A/C unit will keep running and the Room
will be held at 60°F (or the lowest setting of your A/C)
7. Confirmation Icons –click to confirm
Notifications Menu
1. Current Menu –Notifications
2. Enable all notifications
3. E-mail Notifications –Slide to select
ON (blue) / OFF (gray)
4. SMS Notifications –Slide to select
ON (blue) / OFF (gray)

Rev: 2018 –7A ©2018 Store It Cold, LLC 18
Details Menu
Clicking on the Details Expandable Menu gives you Information about the most recent information the app obtained
from the CoolBot Pro and general information of the app and Wi-Fi signal.
Hardware Setup Menu
Clicking on the Hardware Setup Expandable Menu gives you choices for resetting your CoolBot Pro, downloading
latest firmware for the CoolBot Pro controller, and reconfigure you Wi-Fi connection.

Rev: 2018 –7A ©2018 Store It Cold, LLC 19
1. Factory Reset –Use this option to reset your CoolBot to Factory Settings (Wi-Fi configuration will be kept)
A confirmation screen will pop before resetting.
2. Update Firmware –This option downloads the latest Firmware version to your CoolBot JUMPER.
The tab will become gray and the Status Icon will indicate “updating” in yellow until done.
