Storz & Bickel GMBH Crafty User manual

STORZ & BICKEL GMBH & C O. K G
INSTRUCTIONS FOR USE
Read carefully before using the device
and save these instructions.

32
Table of Contents ............................................... page
1. Product overview, Scope of delivery ........................... 4
2. Explanation of Symbols,
Safety Recommendations ............................................ 6
3. Intended Use .............................................................. 10
4. Overview of Plants ..................................................... 11
5. Factors influencing Vaporization ................................ 12
6. The CRAFTY Vaporizer .............................................. 12
7. Commissioning and Operation ................................... 15
7.1. Charging the Battery ........................................ 15
7.2. Heating up ........................................................ 17
7.3. Temperature Setting ........................................ 17
7.4. Reset to Default Settings ................................. 17
8. Filling the Filling Chamber .......................................... 18
8.1. Filling Aid .......................................................... 19
8.2. Filling the Filling Chamber
Using the Filling Aid ......................................... 20
9. Application .................................................................. 21
10. Disassembling, Cleaning and Assembling ................ 22
10.1. Disassembling and Reassembling
the CRAFTY Cooling Unit ................................ 23
10.2. Cleaning the CRAFTY Cooling Unit ................ 25
10.3. Removal of the Lower Filling
Chamber Screen ............................................. 25
INSTRUCTIONS FOR USE ENGLISH INSTRUCTIONS FOR USE ENGLISH
Table of Contents ............................................... page
11. CRAFTY App .............................................................. 26
11.1. Default Settings ............................................... 26
11.2. Connecting the CRAFTY Vaporizer
with a Smartphone ........................................... 26
11.3. The Menu Items of
the CRAFTY App .............................................. 27
11.4. Setting Temperature with
the CRAFTY App .............................................. 28
11.5. Further Individual Settings .............................. 29
11.6. Menu Items for Device and Information ........... 30
12. Accessories ................................................................ 31
12.1. Dosing Capsules and Magazine ...................... 31
12.2. Disposable Lip Piece for Hygienic Use ........... 34
13. Technical Specifications ............................................. 35
14. CE Declaration of Conformity ..................................... 35
15. Warranty, Liability, Repair Service ............................. 36
DEENESFRITNL

Type Label
(on the underside)
Charging Socket
(behind the Filling
Chamber Tool)
Filling Chamber Tool
ON/OFF Switch
LED-Display
Filling Chamber Mouthpiece
Cooling Unit
CRAFTY Vaporizer functional elements:
Power
Adapter with
USB Cable
Herb Mill
Filling AidCleaning Brush
3 pcs. Spare Screens
1 Set of Spare Seal
Rings (one Seal
Ring each)
CRAFTY
Vaporizer
Dosing Capsule Liquid Pad
Instructions
for Use
54
1. PRODUCT OVERVIEW CRAFTY VAPORIZER
Scope of delivery:
(optional accessory: 12 Volt Car Charger)
Please check whether all components have been included. If not, please inform
the Storz & Bickel Service Center.
In the case of technical problems, questions about the device, repairs, warranty
claims and disposal of the device, customers in the US and Canada should
contact the following address:
Storz & Bickel America, Inc.
1078 60th Street, Suite A · Oakland, CA 94608
All other customers should contact this address:
Storz & Bickel GmbH & Co. KG
In Grubenäcker 5-9 · 78532 Tuttlingen, Germany
1. PRODUCT OVERVIEW CRAFTY VAPORIZER
DEENESFRITNL

76

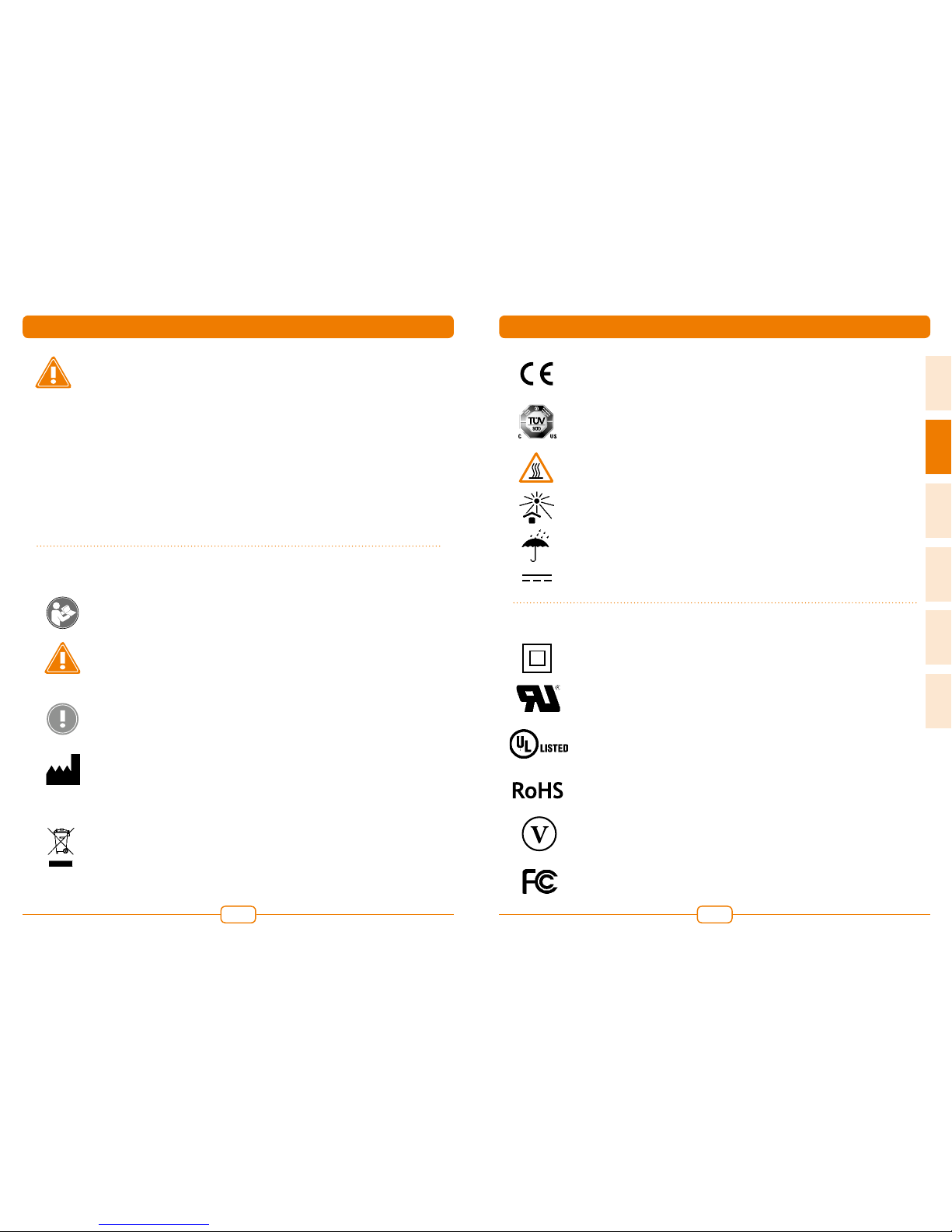

Explanation of symbols
Please follow these instructions carefully!
Safety recommendations!
In order to avoid injuries to persons and damage to the equipment,
it is mandatory to observe instructions marked with this symbol.
Note/Tip!
This symbol always gives you technical information or useful tips
regarding the Vaporizer.
EU conformity symbol:
The manufacturer confirms with this symbol the compliance of the
product with the applicable European directives and standards.
The device was introduced after 13 August 2005. It may not be
disposed of in normal household waste.The X on the trash can
indicates the necessity of disposing of this device separately. The
device contains a built-in rechargeable lithium-ion battery that
must be discharged before disposal.
Symbol for the manufacturer - the manufacturer‘s name and
address are next to the symbol
2. SAFETY RECOMMENDATIONS
Read the following safety
recommendations thor-
oughly and carefully before
using the device.
These Instructions for Use are a
significant part of the Vaporizer
and power adapter and must be
provided to the user.
The instructions given in these In-
structions for Use must be strictly
observed as they are extremely
important to ensure safety during
installation, use and maintenance
of the Vaporizer and power adapter.
Please keep this brochure in a safe
place for future reference.
You may download the current In-
structions for Use for the CRAFTY
on www.storz-bickel.com.
Safety Category II device
DC (direct current)
Caution! Hot surfaces!
Do not touch metal parts!
Keep away from sunlight.
Protect against moisture and humidity.
UL Recognized Component Mark: This symbol indicates that the
corresponding devices are listed by UL.
UL - Underwriters Laboratories: This symbol indicates that the
corresponding devices are listed by UL.
Restriction on the use of certain hazardous substances in
electrical and electronic equipment
Symbol for FCC declaration of conformity
(electromagnetic interference approval in the USA)
Efficiency Level 5
Efficiency of power adapter
2. SAFETY RECOMMENDATIONS
The following symbols relate to the power adapter:
Safety tested and production monitored by TUEV SUED according
to EN 60335-1, UL 499 and CAN/CSA-22.2 No. 64-M91.
DEENESFRITNL

98
2. SAFETY RECOMMENDATIONS
Safety Recommendations
The packaging material (plastic
bags, boxes etc.) must be kept out
of the reach of children as it is a
potential source of danger.
People who require assistance must
be supervised constantly during ap-
plictaion. Such persons often under-
estimate the hazards involved (e.g.
strangulation with the USB cable of
the power adapter), so resulting in
injury.
The device contains small parts
which can block the respiratory tract
and lead to choking. Therefore,
make sure that you always keep the
Vaporizer and accessories out of the
reach of babies and infants.
When charging the battery, only use
the power adapter supplied with the
Vaporizer or the 12 Volt car charger
available as an accessory from
Storz & Bickel. The use of products
from other sources can damage the
battery.
If you have any concerns, ask a
specialist to check whether the
electrical system is in accordance
with the local safety regulations.
If there are any problems during
operation, immediately pull out the
power adapter from the socket.
The USB cable of the power adapter
must be unwound over its entire
length (avoid rolling up and laying
the coils over each other). It must
not be exposed to any impacts and
must be kept out of the reach of
children. Also, it must not be kept
near liquids or sources of heat
and must not be damaged. Do not
wind the USB cable of the power
adapter tightly, nor pull it over sharp
edges and never crush or kink it. If
the mains USB cable is damaged,
please contact our Service Center
to have it replaced. Never try to
repair a power adapter USB cable
yourself!
The use of multiple sockets and/or
extension cables is not recommend-
The China Compulsory Certificate (CCC) is a certification system
that applies in China.
The lightning flash with arrowhead symbol within an equilateral
triangle alerts the user to the presence of uninsulated, dangerous
voltage within the system enclosure that may be of sufficient
magnitude to constitute a risk of electrical shock.
Equipment with this symbol may only be used in the house (dry
surroundings).
2. SAFETY RECOMMENDATIONS
ed. However, if this is absolutely
necessary, only products with a
quality certificate (such as UL, IMQ,
VDE, +S etc.) may be used, pro-
vided the specified power exceeds
the power required (A=Ampere) by
the devices that are connected.
After use, the Vaporizer must be
placed on a stable, flat surface. To
be used only at a sufficient distance
away from heat sources (ovens,
stoves, fireplaces), and in locations
where the ambient temperature can-
not drop below +5°C (+41°F). Store
the Vaporizer and power adapter in
a dry place protected against the ef-
fects of weather and out of the reach
of children or unqualified persons.
It cannot be used in damp locations
(such as bathrooms etc.).
Do not operate the Vaporizer close
to flammable objects such as cur-
tains, tablecloths, or paper.
Keep the Vaporizer and power
adapter away from pets (e.g.
hamsters, mice) and other animals
which could damage the insulation
of the power adapter USB cable.
The Vaporizer and power adapter
may only be repaired by our Service
Center. Incorrectly performed
repairs without the use of original
spare parts can prove dangerous to
the user.
Danger to life when opening the
power adapter as live components
and connections are exposed.
The Vaporizer must never be
repaired or transported when the
power adapter is plugged in.
The Vaporizer and power adapter
must never be operated when the
power adapter USB cable is faulty.
Do not put any objects into the
openings of the device.
Do not leave the Vaporizer unat-
tended while it is being operated.
After use, switch off the heater.
The ventilation slots and the hot air
outlet of the Vaporizer may not be
closed, obstructed, or blocked while
the device is being used, nor while it
is cooling down.
Caution! Hot surfaces!
The Filling Chamber is made of
metal; do not touch it when it is hot.
Before cleaning, disconnect the
power adapter from the socket. The
Vaporizer and the power adapter
should be cleaned only with a dry
cloth - or a damp cloth if absolutely
necessary. Never immerse the Va-
porizer or the power adapter in water
or any other liquid, nor clean it with
direct jets of water or steam.
The Vaporizer and the power adapter
must not be used in damp or wet
conditions.
Do not expose the Vaporizer or the
power adapter to rain. Do not use in
the bathroom or above water.
DEENESFRITNL

1110
The manufacturer is not re-
sponsible for any damage
or personal injury caused
by inappropriate, incorrect or irre-
sponsible use.
Never touch the Vaporizer or power
adapter with wet or damp parts of the
body.
Never operate the Vaporizer or
power adapter when it is wet or
damp. If the Vaporizer or the power
adapter gets wet, it must be checked
by our Service Center for damage to
electrical components.
Do not use in an atmosphere with
risk of explosion or ignition.
Never allow the Vaporizer or the
power adapter to be used by children
or unqualified persons.
Only use original Storz & Bickel ac-
cessories and spare parts.
2. SAFETY RECOMMENDATIONS
3. INTENDED USE
The CRAFTY Vaporizer releases fra-
grances or aromas from the herbs
and other plant materials listed below.
These aromatic substances are re-
leased through vaporization by heat-
ed air, and may be directly inhaled.
The device may only be used with the
recommended vaporizing media. The
use of other substances can present
a health risk.
The CRAFTY Vaporizer is not intend-
ed for medical/therapeutic purposes.
4. OVERVIEW OF PLANTS
Portion of the Temperature-
Plant name Botanical name plant used setting
Eucalyptus Eucalyptus globulus the leaves 130°C (266°F)
Hops Humulus lupulus the cones 154°C (309°F)
Chamomile Matriarca chamomilla the blossoms 190°C (374°F)
Lavender Lavandula angustifolia the blossoms 130°C (266°F)
Lemon balm Melissa officinalis the leaves 142°C (288°F)
Sage Salvia officinalis the leaves 190°C (374°F)
Thyme Thymus vulgaris the herb 190°C (374°F)
Below is an overview of the plants that
are suitable for vaporization in the
CRAFTY Vaporizer.
The aromas and fragrances from the
plant materials listed below may be
vaporized.*
Any other use is inappropriate and po-
tentially dangerous.
It is important to observe the follow-
ing instructions in order to set the
CRAFTY
Vaporizer with the plant material in the
best possible way for your personal
requirements.
*This statement has not been evalu-
ated by the FDA. The CRAFTY Vapor-
izer is not a medical device and is not
intended to diagnose, treat, cure or
prevent any disease.
WARNING:
Please consult your doctor or
pharmacist if you have any
medical concerns. It is possible that
some plants may cause allergic reac-
tions for the user. If this occurs, it is
urgently recommended to refrain from
further use of such plants.
Only use the plant parts which are
found in this list and which have been
verified according to the regulations
of the European or any other pharma-
copoeia with regard to genuineness,
purity and pathogenic germs. You can
purchase such plants or plant parts in
pharmacies.*
DEENESFRITNL

1312
The amount of aromas and fragrances
released can be influenced by the fol-
lowing factors:
1. Quality: The amount of aroma or
fragrance contained in the respec-
tive plant material that can be va-
porized.
2. Quantity: The amount of vaporiza-
tion material in the Filling Chamber.
3. Surface: The finer the plant is
ground, the greater the surface and
the more aromas and fragrances
can be released during the vapori-
zation cycle.
4. Temperature: The higher the tem-
peratures, the more aromas and
fragrances will be released at once.
Please note: Increasing the tempera-
ture should be the last resort, because
plant material tastes more roasted
when using higher temperature.
Since the plant ingredients are re-
leased in a gentle manner, the vapori-
zation cycle may be repeated with the
same contents in the Filling Chamber.
Depending on the four factors de-
scribed above, the Filling Chamber
contents may be reused multiple times
until the aromas and fragrances are
released completely.
If no more vapor is produced at the
highest temperature, then the vapori-
zation material is completely exhaust-
ed and must be replaced with new
material. However, for the best aroma
results it is advisable to replace the
vaporization material before this point.
5. FACTORS INFLUENCING VAPORIZATION
6. THE CRAFTY VAPORIZER
Unpacking
The box contains all components as
well as the Instructions for Use. Keep
the Instructions for Use for future ref-
erence.
Remove the Vaporizer and the ac-
cessories from the box. Immediately
after unpacking, check whether the
Vaporizer, the accessories, the power
adapter and the device plug are all in-
cluded in the delivery and work prop-
erly. If you notice any defects, inform
the seller or the delivery agent imme-
diately.
The packing material (plastic
bags, boxes etc.) must be
kept out of the reach of chil-
dren as it is a potential source of dan-
ger.
Please dispose of the packing mate-
rial in a proper and environmentally
friendly manner.
We recommend keeping the original
packaging in case it is required later
(transport, Storz & Bickel Service
Center etc.).
6. THE CRAFTY VAPORIZER
Power Connection
Before connecting up the Vaporizer,
make sure that the information given
on the power adapter type label cor-
responds to the local power supply
voltage.
All parts of the electrical system must
comply with currently applicable offi-
cial regulations.
Place the heated Vaporizer only on a
hard, stable surface, and not on any
soft or heat-sensitive material.
Take care that the power adapter USB
cable cannot be damaged through
kinking, crushing or pulling.
Improper installation may
lead to personal injury or ma-
terial damages, for which the
manufacturer cannot be held respon-
sible.
Application and Operation
This Vaporizer was devel-
oped for vaporizing the plant
materials listed in the plant
overview. Any other use is inappropri-
ate and potentially dangerous.
The user should always follow the
instructions listed here for use and
maintenance.
If you have any concerns, or if there
are any problems immediately switch
off the Vaporizer and pull the power
adapter cord, if used, from the socket.
Do not try to remedy the defect your-
self. Contact our Service Center di-
rectly.
After using the Vaporizer and power
adapter, allow them to cool down be-
fore placing them in storage.
Storage
Store the Vaporizer and the power
adapter in a dry place protected
against the effects of weather and out
of the reach of children or unqualified
persons.
In Case of Problems
If the power adapter has been in use,
unplug it at the socket and ensure that
no one can connect the Vaporizer to
the mains supply again without this
being noticed.
Before any maintenance work is done,
the Vaporizer has to be switched off
and the power adapter unplugged
from the power supply.
Put the Vaporizer in the original pack-
aging, or pack it properly in other
packing material, and send it to our
Service Center.
DEENESFRITNL

1514
If the preceding tips do not
yield the desired results, or for
any other defects or problems
not mentioned here, please unplug
the power adapter and contact our
Service Center immediately.
Do not open the Vaporizer or
the power adapter! Without
special tools and specialized
knowledge, any attempt to open either
of these devices will cause damage to
them. Such an attempt will invalidate
the warranty claim.
6. THE CRAFTY VAPORIZER
Do not try to remedy the defect your-
self. Contact our Service Center di-
rectly.
Disposal
If the Vaporizer or the power adapter
is irreparably damaged, please do not
simply throw them away. As they are
made of high quality, completely recy-
clable component parts, they should
be brought to a material recycling
center in your town or sent to our Ser-
vice Center for disposal.
Possible faults / Troubleshooting
Problem Possible cause/remedy
CRAFTY cannot be
switched on.
Please ensure that the CRAFTY’s battery is charged.
If the Vaporizer still does not work, then the device is
faulty. In this case, get in touch immediately with our
Service Center.
The LED display of
CRAFTY flashes alternately
red/blue.
Battery temperature is either too high or too low. Allow
the hot Vaporizer to cool down or the cold Vaporizer to
warm up.
The LED display of
CRAFTY flashes blue.
Battery is completely discharged. Please connect the
charger.
The LED display of
CRAFTY flashes alternately
red/green.
The power adapter or the USB cable is not suitable.
Please use an original Storz & Bickel power adapter and
USB cable or 12 Volt car charger.
The LED display of
CRAFTY flashes alternately
red/orange.
The Vaporizer is faulty. In this case, disconnect from the
mains without delay and get in touch immediately with
our Service Center.
7. COMMISSIONING AND OPERATION
Do not leave the device unat-
tended during operation.
Place the CRAFTY Vaporizer
only on a hard, heat-resistant, flat, sta-
ble surface, never on soft surfaces or
flammable material. Check whether
the power supply voltage corresponds
to the voltage rating listed on the pow-
er adapter. The power adapter and
USB cable must be in perfect condi-
tion. Connect the power adapter only
to a properly installed socket.
The manufacturer will not bear any
responsibility whatsoever if this acci-
dent prevention measure is not taken.
Please unplug the power adapter from
the mains socket to completely dis-
connect from the mains power supply.
7.1. Charging the Battery
The battery charge status is signaled
by the blue light on the LED display.
Explanations on the battery display
during the charging operation:
Steady blue light:
the battery is fully charged.
Blue, slow-flashing light: the battery
is between 61 and 96% charged
Blue, rapidly flashing light: the bat-
tery is between 31 and 60% charged
Blue flashing: the battery is up to
30% charged
Explanations of the battery display fol-
lowing switch off:
Steady blue light: the battery is
between 64 and 100% charged
Blue, slow-flashing: the battery is
between 32 and 64% charged
Blue, rapidly flashing: the battery is
between 1 and 32% charged
Blue flashing: battery is completely
discharged
Check the housings of the Va-
porizer and the power adapter
for signs of damage each time
before using or charging. The Vapor-
izer may not be charged and neither
Vaporizer nor power adapter used if
these are damaged.
The battery charge of the new product
has a level of up to 80%. Fully charge
before using for the first time.
The charging time for the battery de-
pends on how old it is and how high
the charge is on starting; it takes
about two hours if the battery is com-
pletely discharged.

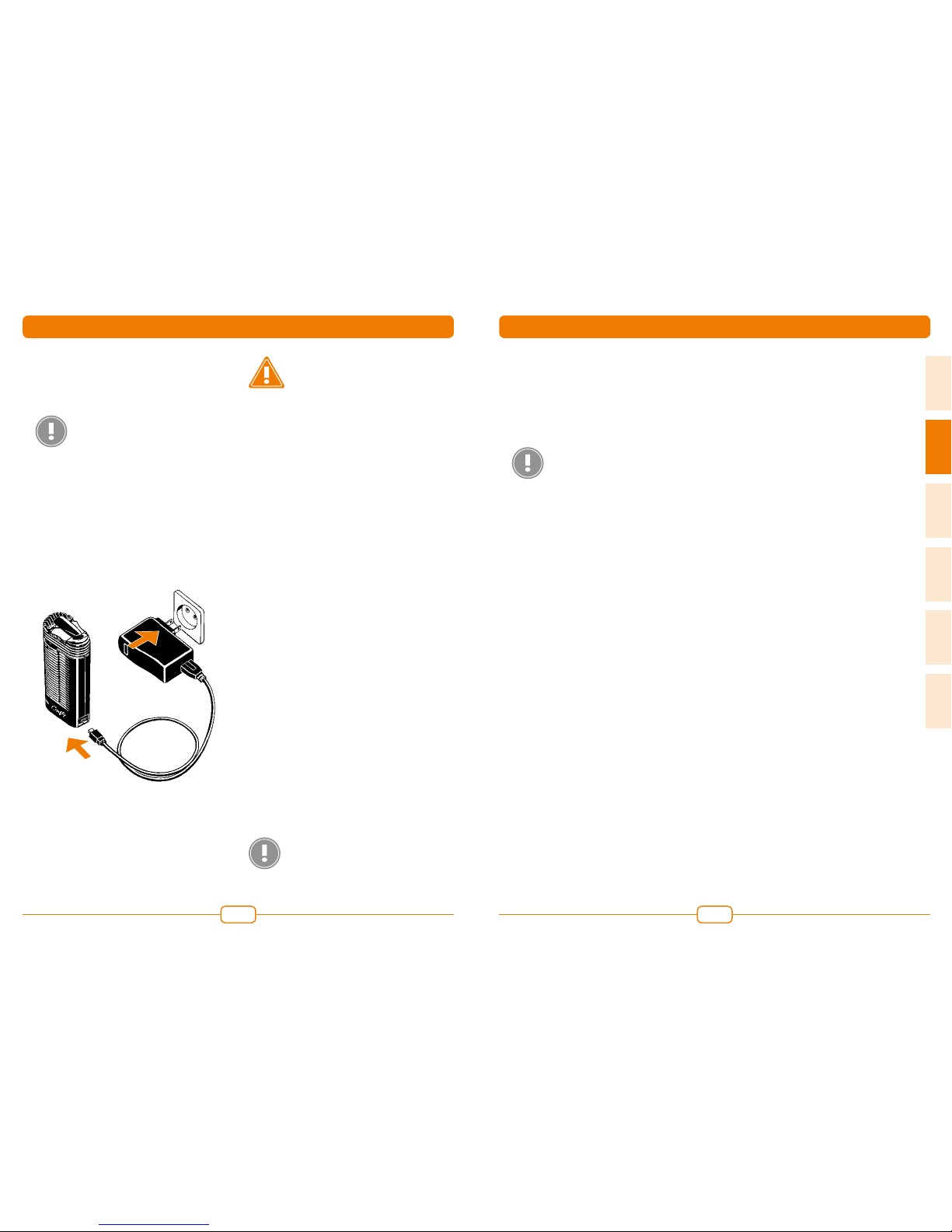

Connect the USB cable to the charg-
ing socket of the Vaporizer and to the
power adapter. Then plug the power
adapter into a suitable power socket.
Note: When the power adapter is
plugged into the mains, the LED dis-
play lights up in green/red/blue for a
moment and the Vaporizer vibrates
briefly. This serves as a functional
check and indicates that the charging
operation has started.
The LED lights up and starts to flash,
i.e. the battery is being charged. As
soon as the battery is fully charged,
the charge indicator lamp stops flash-
ing and shows a steady blue light.
DEENESFRITNL

1716
7. COMMISSIONING AND OPERATION
Connecting the Vaporizer using the power
adapter or 12 volt Car Charger
Once the charging operation is com-
plete, first disconnect the power
adapter from the mains socket and
then unplug from the Vaporizer.

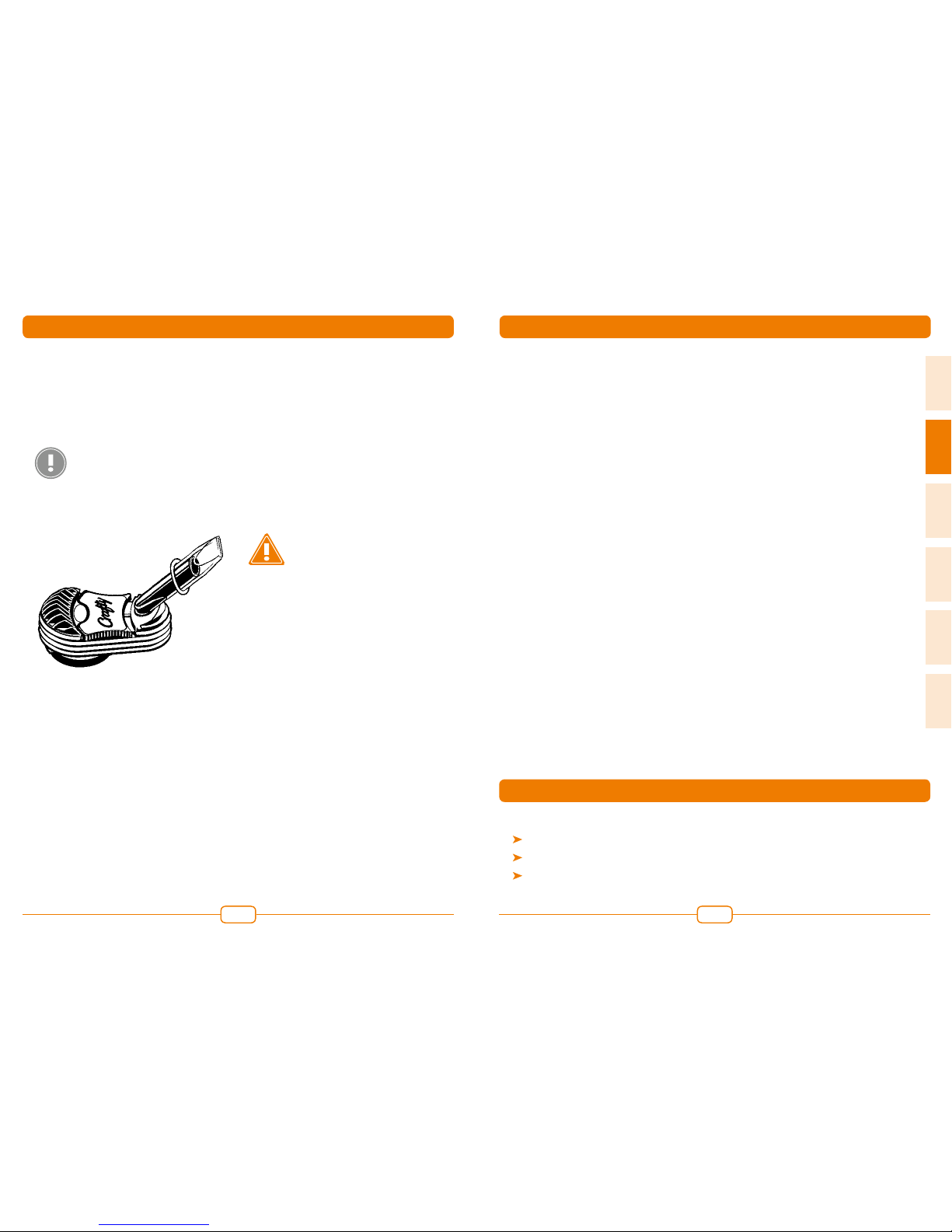

The battery can also be
charged via the optional 12
volt Car Charger. Connect the
12 volt Car Charger to the power sock-
et of the Vaporizer using the USB ca-
ble and then plug the Car Charger into
the socket in the car for the cigarette
lighter, or any other suitable 12 V
socket. Charge and complete the op-
eration in the same way as with the
power adapter (see Chapter 7.1.
“Charging the Battery”, page 15).
Batteries are specially as-
sembled consumable items
that can only be replaced by
Storz & Bickel when the CRAFTY Va-
porizer is sent in to them.
Any attempt by the customer to re-
place the battery by him/herself is
potentially dangerous and leads to
loss of any claims under the warranty
and exempts Storz & Bickel from any
liability.
Mains Operation
The CRAFTY Vaporizer cannot be be
operated with the power adapter if the
battery is completely discharged. The
battery must be first, at least partially,
charged. Proceed as described in
Chapter 7.1. “Charging the Battery”,
page 15 and then connect up the
Vaporizer.
Automatic Switching Off
The automatic switching off is used to
save battery capacity so that the Va-
porizer can be used as long as pos-
sible without charging.
The device switches off automati-
cally one minute after the last press
of a button or the last application.
The switching off of the Vaporizer is
indicated by a short vibration and by
displaying the charged state.
A short press of the ON/OFF
switch during operation can
reset the automatic switching-
off to one minute.
7. COMMISSIONING AND OPERATION
7.2. Heating Up
The CRAFTY Vaporizer provides two
temperature levels that are set in the
factory: The basic temperature at
180°C (356°F) and the booster tem-
perature at 195°C (383°F).
Both the basic and booster
temperatures can be altered
using a smartphone and the
CRAFTY App (see Chapter 11.4. “Set-
ting Temperature with the CRAFTY
App”, page 28).
Switch on the device (heating up the
Vaporizer with full Filling Chamber
and Cooling Unit mounted is recom-
mended). To do this, press the orange
ON/OFF switch for at least half a sec-
ond. The Vaporizer responds with a
short vibration. The vibration does not
take place if there is a fault.
The LED display indicates the heating
operation up to the basic tempera-
ture by a steady red light. Heating up
the heat exchanger can take up to
two minutes, depending on the tem-
perature setting and battery charge
level. Once the basic temperature is
reached, this is signaled by a short
double vibration and a steady green
light.
If the basic temperature can no longer
provide adequate evaporation, the
booster temperature can be activated
by means of a double-click on the
orange-colored ON/OFF switch. The
LED displays the heating-up opera-
tion for the booster temperature by a
red flashing signal. Once the booster
temperature is reached, this is sig-
naled by a short double vibration and
a green flashing signal.
7.3. Temperature Setting
The levels for the basic and booster
temperatures can be altered with the
aid of a smartphone and the CRAFTY
App. See Chapter 11. “CRAFTY App”,
page 26.
7.4. Reset to Default Settings
It is possible to reset settings (see
Chaper 11.1. “Default Settings”, page
26) which were changed using the
CRAFTY App. The reset is made by
pressing the ON/OFF button for ten
seconds while the CRAFTY Vaporizer
is switched on.
If the ON/OFF button has been
pressed for ten seconds, the signaling
of the reset is made by the following
running lights sequence: red/green/
blue/red/green/blue/red/green/blue.
The CRAFTY Vaporizer also vibrates
while the lights sequence is running.
DEENESFRITNL

1918

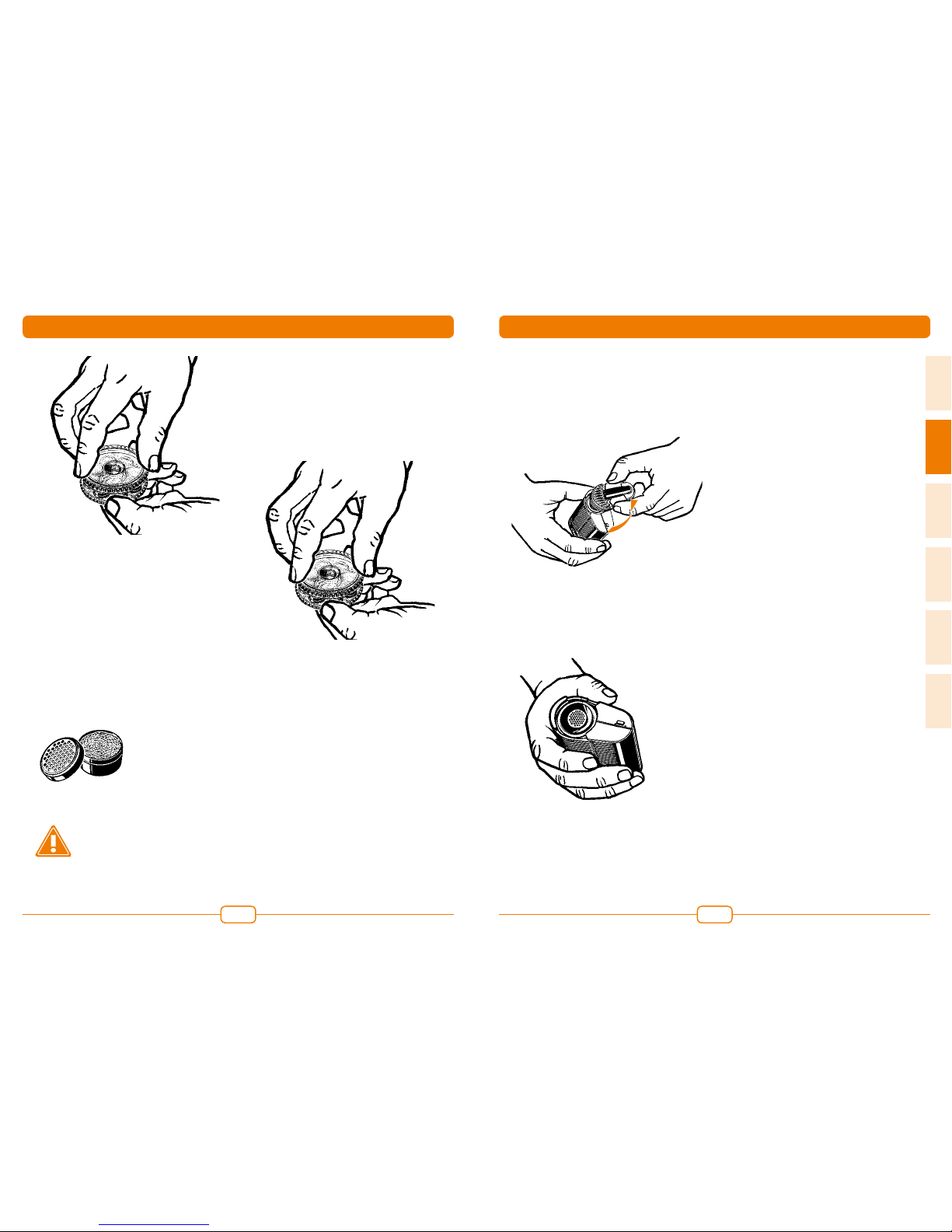

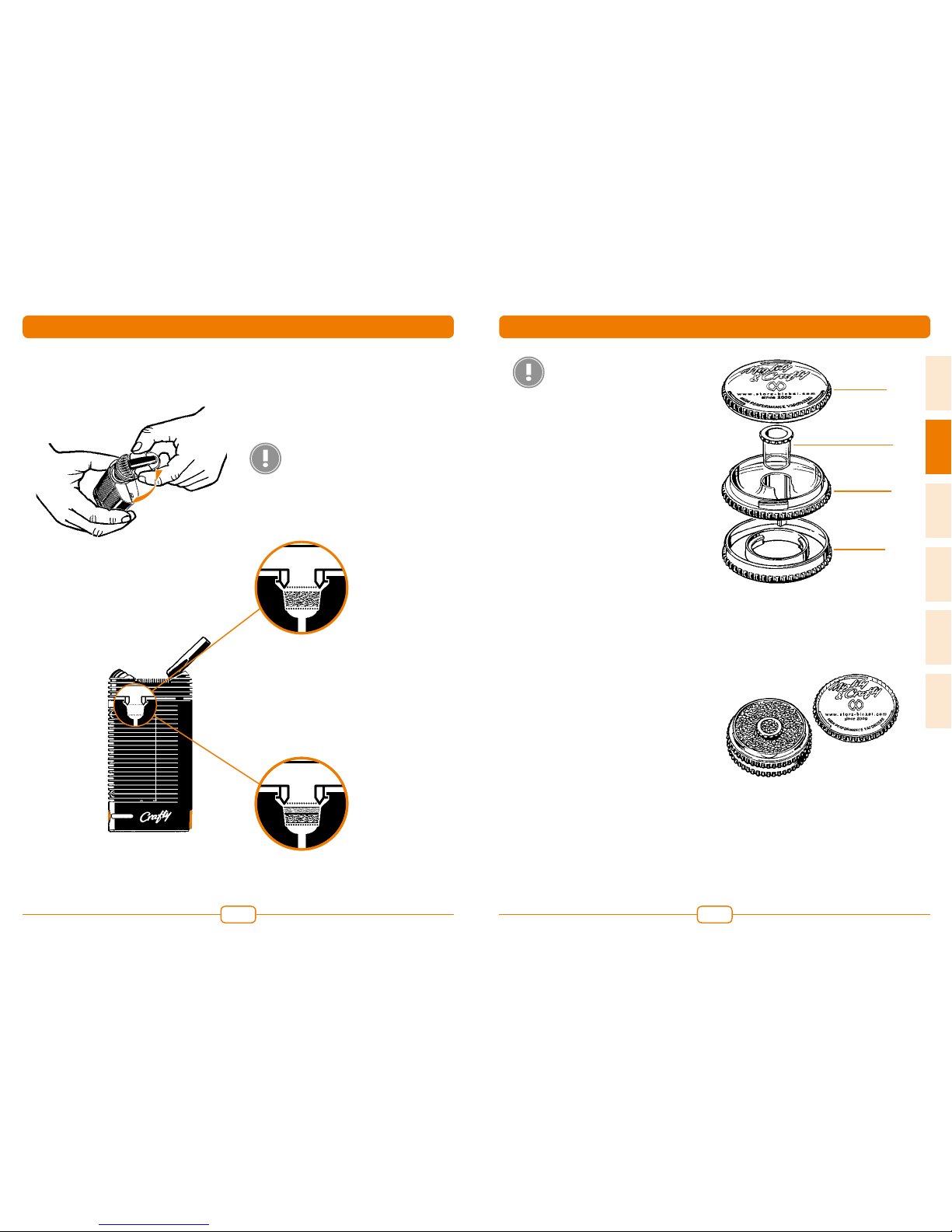

Turn the Cooling Unit with a 90° rota-
tion counterclockwise in order to re-
move it from the Vaporizer.
Always fill the Filling Chamber com-
pletely up to the plastic rim with
ground plant material. Do not com-
Removal of Cooling Unit (with Mouthpiece)
Filling Chamber properly filled
Filling Chamber partially filled, with Liquid
Pad placed on top
press the plant material too much so
that the airflow is not unnecessarily
impeded. Remove any excess plant
material left around the filling aperture
so that it is clean and allows the Cool-
ing Unit to be fitted.
If the Filling Chamber is only
partially filled, then the vapori-
zation material may shift
around; the hot air then bypasses the
vaporization material, so that no va-
porization can occur.
If the Filling Chamber is not to be
filled completely, it is recommended
to place the included Liquid Pad over
the herbs, and then mount the Cooling
Unit on the Vaporizer.
8. FILLING THE FILLING CHAMBER
Take care that the Screens
are not obstructed with plant
material. To guarantee opti-
mal results, we recommend cleaning
the Screens after each vaporization
cycle with the enclosed Cleaning
Brush.
The upper Screen especially can be-
come clogged with plant material and
so make inhaling difficult. In this case,
remove the Screen as in Chapter 10.
“Disassembling, Cleaning and As-
sembling”, page 22 and clean or
insert a new Screen.
Then re-mount the Cooling Unit by ro-
tating it clockwise through 90°.
As soon as the lower Filling Chamber
Screen is clogged or shows depos-
its, a cleaning of the Filling Chamber
is needed. For that, please firstly re-
move the lower Screen as described
in Chapter 10.3. “Removal of the lower
Filling Chamber Screen”, page 25
and clean the Filling Chamber with a
cotton stick that has been soaked in
alcohol. Please make sure that no al-
cohol drops into the inner of the de-
vice. After cleaning, a new screen is
to be inserted.
8.1. Filling Aid
The Filling Aid supplied with the unit
makes filling the Filling Chamber an
easy and clean operation and serves
as a magazine for transporting and
storing plant material already ground
in the Herb Mill.
To fill the Filling Aid, remove the up-
per cap and fill the bowl incl. plug with
ground plant material. Replace the
upper cap and close it.
Filled Filling Aid (upper cap removed)
Upper
Cap
Plug
Lower
Cap
Bowl
8. FILLING THE FILLING CHAMBER
DEENESFRITNL
