INSTRUCTIONS FOR USE ENGLISH
2 3

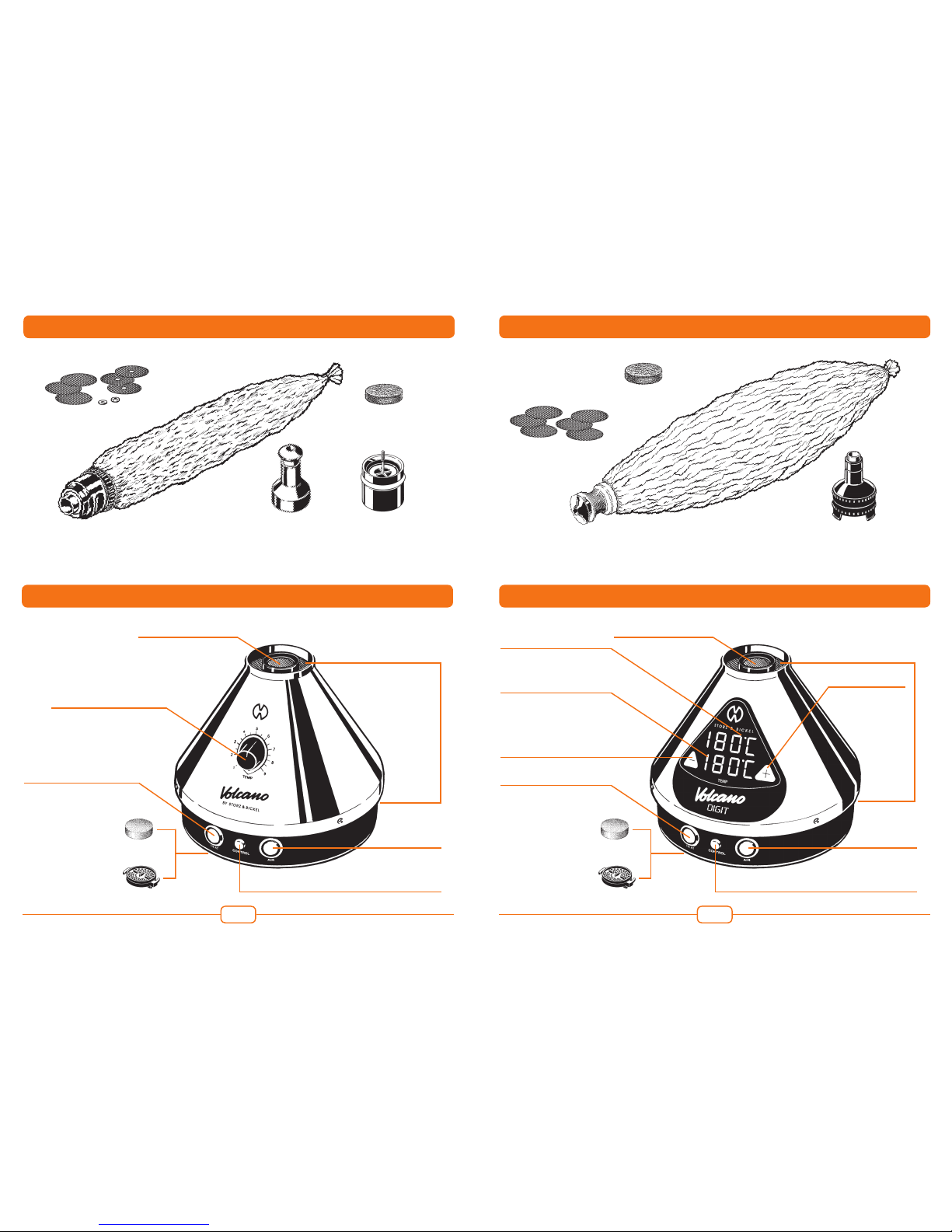

1. PRODUCT OVERVIEW S O LI D VA LV E
1. PRODUCT OVERVIEW VOLCANO CLASSIC
1. PRODUCT OVERVIEW EASY VALVE
1. PRODUCT OVERVIEW VOLCANO DIGIT
Normal Screen Set
Valve Balloon Mouthpiece Filling Chamber
Compatible with VOLCANO CLASSIC and VOLCANO DIGIT
Liquid Pad
Compatible with VOLCANO CLASSIC and VOLCANO DIGIT
Liquid Pad
Normal Screen Set
Valve Balloon with Mouthpiece Filling Chamber with Cap
Hot Air Outlet
Ventilation Slots
Temperature Regulator
“HEAT” Rocker Switch
(Heater)
Air Filter
Air Filter Cap
“AIR” Rocker
Switch (Air Pump)
Heater Control Lamp
Ventilation Slots
“AIR” Button
(Air Pump)
“HEAT” Button
(Heater)

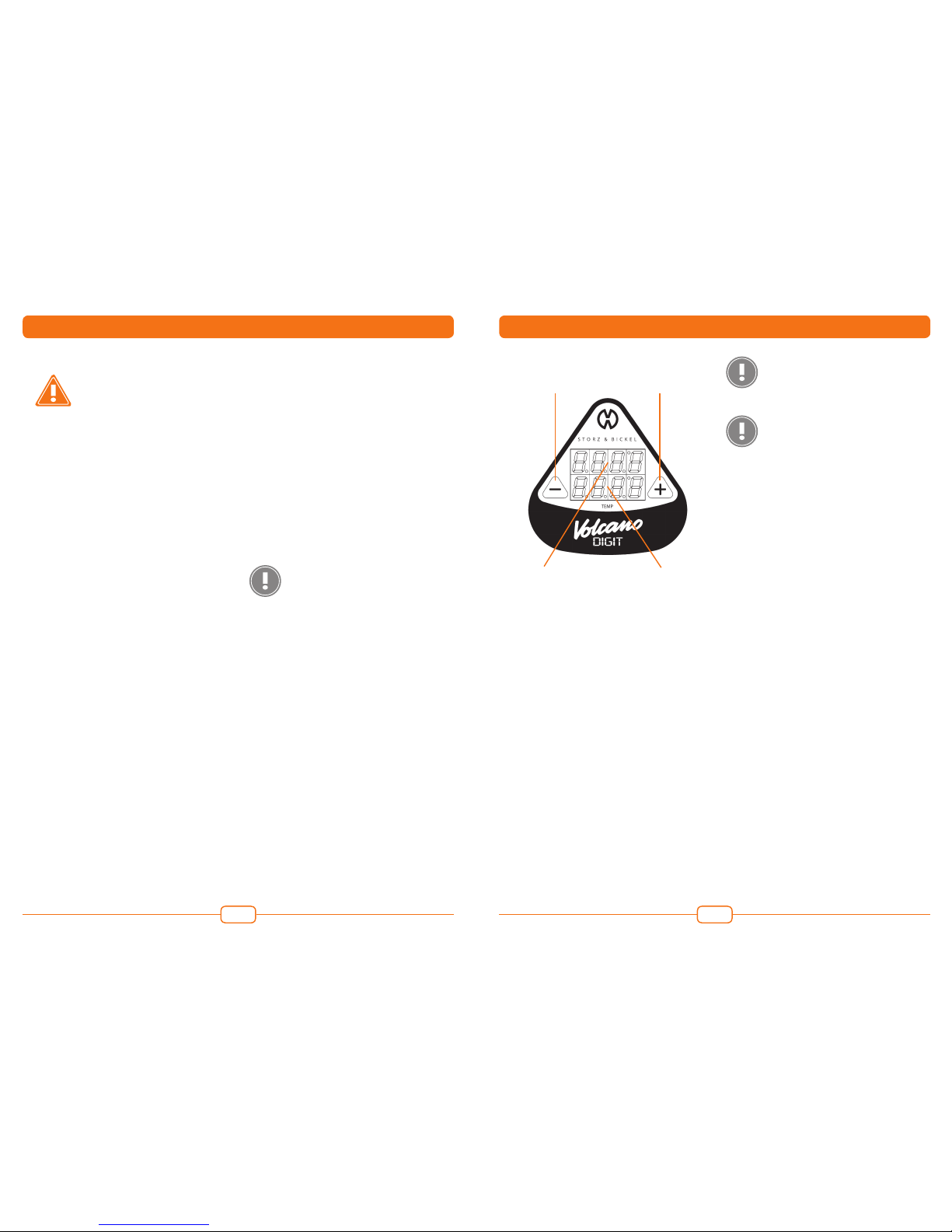

Plus Temperature
Button
Minus Temperature Button
Set Temperature
Display
Actual Temperature
Display
Air Filter
Air Filter Cap Heater Control Lamp
Hot Air Outlet
4 5

1. SERVICE
Read the following safety
recommendations thor-
oughly and carefully before
using the device.
These Instructions for Use are a
significant part of the VOLCANO
Vaporization System and must be
provided to the user. The instruc-
tions given in these Instructions
for Use must be strictly observed
as they are extremely important to
ensure safety during installation,
use and maintenance of the VOL-
CANO Vaporization System.
Please keep this brochure in a safe
place for future reference. You may
download the current Instructions
for Use for the VOLCANO Vaporiza-
tion System on www.storz-bickel.
com.
Please check whether all components have been included. If not, please inform
the Storz & Bickel Service Center.
In the case of technical problems, questions about the device, repairs, warranty
claims and disposal of the device, customers in the US and Canada should con-
tact the following address:
Storz & Bickel America, Inc.
1078 60th Street, Suite A
Oakland, CA 94608
All other customers should contact the following address:
Storz & Bickel GmbH & Co. KG
In Grubenäcker 5-9
78532 Tuttlingen, Germany
2. SAFETY RECOMMENDATIONS
2. EXPLANATION OF SYMBOLS
Explanation of Symbols
Please follow these instructions carefully!
EU conformity symbol:
The manufacturer confirms with this symbol the compliance of the
product with the applicable European directives and standards.
Caution! Hot surfaces!
Never leave Filling Chamber on VOLCANO Hot Air Generator.
Safety recommendations!
In order to avoid injuries to persons and damage to the equipment,
it is mandatory to observe instructions marked with this symbol.
Note/Tip!
This symbol always gives you technical information or useful tips
regarding the VOLCANO Vaporization System.
Keep away from sunlight.
The device was introduced after 13 August 2005. It may not be
disposed of in normal household waste. The X on the trash can
indicates the necessity of disposing of this product separately.
Protect against moisture and humidity.
Safety tested and production monitored by TUEV SUED according
to EN 60335-1, UL 499 and CAN/CSA-22.2 No. 64-M91.
Symbol for the manufacturer - the manufacturer‘s name and ad-
dress are next to the symbol
6 7

Safety Recommendations
 The packing material (plastic bags,
styrofoam material, boxes etc.) must
be kept out of the reach of children as
it is a potential source of danger.
 People who require assistance must
be supervised constantly during ap-
plication. Such persons often under-
estimate the hazards involved (e.g.
strangulation with the power cord),
thus resulting in a risk of injury.
 The device contains small parts which
can block the respiratory tract and lead
to choking. Therefore, make sure that
you always keep the Hot Air Generator
and accessories out of the reach of
babies and infants.
 Before connecting the Hot Air Gen-
erator, make sure that the informa-
tion given on the type label on the
underside of the Hot Air Generator
corresponds to the mains supply at
the place of installation.
 If there are any problems during
operation, immediately pull out the
power plug from the socket.
 The power cord must be unwound
over its entire length (avoid rolling
up the power cord and overlapping
the cord). It must not be exposed to
any impacts and must be kept out of
the reach of children. Also, it must
not be kept near liquids or sources of
heat and must not be damaged. Do
not wind the power cable tightly, nor
pull it over sharp edges and never
crush or kink it. If the power cord is
damaged, please contact our Service
Center to have it replaced. Never try
to repair a power cable yourself!
 The use of multiple sockets and/or ex-
tension cables is not re-commended.
However, if this is absolutely neces-
sary, only pro-ducts with a quality
certificate (such as UL, IMQ,VDE,
+S etc.) may be used, provided the
specified power exceeds the power
required (A = Ampere) by the devices
that are connected.
 If you have any concerns, ask a spe-
cialist to check whether the electrical
system is in accordance with the
local safety regulations.
 Install the Hot Air Generator on a
stable and dry surface at a sufficient
distance from sources of heat (oven,
stove, fireplace etc.) and in a place
where the ambient temperature
cannot drop below +5°C (+41°F).
Store the Hot Air Generator in a dry
place protected against the effects
of weather and out of the reach of
children or unqualified persons. It
cannot be used in damp locations
(such as bathrooms etc.).
 Do not operate the Hot Air Generator
close to flammable objects such as
curtains, tablecloths, or paper.
 Keep the Hot Air Generator away from
pets (e.g. hamsters, mice) and other
animals which could damage the insu-
lation of the mains adapter cord.
 The Hot Air Generator may only be
repaired by our Service Center. In-
correctly performed repairs without
2. SAFETY RECOMMENDATIONS
the use of original spare parts can
prove dangerous to the user.
 Danger to life when opening the Hot
Air Generator as live components and
connections are exposed.
 The Hot Air Generator must never
be repaired or transported when the
power plug is plugged in.
 To pull the power plug from the
socket, pull the power plug directly,
never pull the power cord.
 The Hot Air Generator must never
be operated when the power cord
is faulty.
 Do not put any objects into the open-
ings of the device.
 Do not leave the Vaporizer unattend-
ed during operation. After use, switch
off the heater and the air pump.
 The ventilation slots as well as the
hot air outlet of the Hot Air Genera-
tor must not be closed, obstructed
or blocked while the device is being
used, nor while it is cooling down.
Caution! Hot surface!
 When they are hot do not touch the
hot air outlet and the Filling Chamber.
 The Filling Chamber may only be
placed on the hot air outlet while fill-
ing the Valve Balloon. After filling the
Valve Balloon the Filling Chamber
must be removed from the Hot Air
Generator in order to avoid over-
heating of the Filling Chamber.
Caution! Hot surface!
 Do not put any body parts or objects
in the hot air jet.
 Before cleaning, remove the power
cord from the socket. The Hot Air
Generator should be cleaned only
with a dry cloth - or a damp cloth if
absolutely necessary. Never immerse
the Hot Air Generator in water or in
other liquid, nor clean it with direct jets
of water or steam.
 The Hot Air Generator must not be
used in damp or wet conditions.
 Do not expose the Hot Air Generator
to rain. Do not use in the bathroom or
above water.
 Never touch the Hot Air Generator
with wet or damp parts of the body.
 Never put containers containing
liquids on the Hot Air Generator.
 Never operate the Hot Air Genera-
tor when it is wet or damp. If the Hot
Air Generator gets wet, it must be
checked by our Service Center for
damage to electrical components.
 Do not use in an atmosphere with risk
of explosion or ignition.
 Never allow the Vaporizer to be used
by children or unqualified persons.
 Only use original Storz & Bickel ac-
cessories and spare parts.
The manufacturer is not re-
sponsible for any damage
or personal injury caused
by inappropriate, incorrect or irre-
sponsible use.
2. SAFETY RECOMMENDATIONS
8 9

The VOLCAN O Vaporization System
releases fragrances or aromas from
the herbs and other plant materials
listed below, or from their extracts
(aromatic oils). These aromatic sub-
stances are released through va-
porization by heated air, and may be
exhausted directly into the ambient
air, or collected in a Valve Balloon for
subsequent inhalation.
The device may only be used with the
recommended vaporizing media. The
use of other substances can present
a health risk.
The VOLCAN O Vaporization System
is not intended for medical/therapeu-
tic purposes.
3. INTENDED USE
4. OVERVIEW OF PLANTS
4. OVERVIEW OF PLANTS
Below is an overview of the plants
that are suitable for vaporization in
the VOLCAN O. The aromas and fra-
grances from the plant materials listed
below may be vaporized.*
Any other use is inappropriate and po-
tentially dangerous.
*This statement has not been evaluat-
ed by the FDA. The VOLCAN O Vapor-
ization System is not a medical device
and is not intended to diagnose, treat,
cure or prevent any disease.
Portion of the Temperature
Plant name Botanical name plant used setting
Eucalyptus Eucalyptus globulus the leaves 1 / 130°C (266°F)
Hops Humulus lupulus the cones 3 / 154°C (309°F)
Chamomile Matriarca chamomilla the blossoms 6 / 190°C (374°F)
Lavender Lavandula angustifolia the blossoms 1 / 130°C (266°F)
Lemon balm Melissa officinalis the leaves 2 / 142°C (288°F)
Sage Salvia officinalis the leaves 6 / 190°C (374°F)
Thyme Thymus vulgaris the herb 6 / 190°C (374°F)
The extracts (aromatic oils) of these
plants can be vaporized at up to 130°C
(266°F) with the help of the Liquid Pad
supplied with the Vaporizer. To do so,
please follow the instructions given in
Chapter 12. “Liquid Pad”, page 43.
WARNING: Please consult
your doctor or pharmacist if
you have any medical con-
cerns. It is possible that some plants
may cause allergic reactions for the
user. If this occurs, it is urgently rec-
ommended to refrain from further use
of such plants. Only use the plant
parts which are found in this list and
which have been verified according to
the regulations of the European or any
other pharmacopoeia with regard to
genuineness, purity and pathogenic
germs. You can purchase such plants
or plant parts in pharmacies.*
It is important to observe the following
instructions in order to set the VOL-
CANO Vaporization System with the
plant material in the best possible way
for your personal requirements.
*This statement has not been evaluat-
ed by the FDA. The VOLCAN O Vapor-
ization System is not a medical device
and is not intended to diagnose, treat,
cure or prevent any disease.
10 11

The amount of aromas and fragranc-
es released into the Valve Balloon can
be influenced by the following factors:
1. Quality: The amount of aromas
or fragrances contained in the
respective plant material that can
be vaporized.
2. Quantity: The amount of vaporiza-
tion material in the Filling Chamber.
3. Surface: The finer the plant is
ground, the greater the surface
and the more aromas and fra-
grances can be released during
the vaporization cycle.
4. Temperature: The higher the
temperatures, the more aromas
and fragrances will be released at
once.
Please note: Increasing the tempera-
ture should be the last resort, because
plant material tastes more toasted
when using higher temperature.
Since the plant ingredients are re-
leased in a gentle manner, the vapor-
ization cycle may be repeated with the
same contents in the Filling Chamber.
Depending on the four factors de-
scribed above, the load of the Filling
Chamber may be reused multiple
times until the aromas and fragrances
are released completely. It is advised
to take out the content of the Filling
Chamber and grind it once again to
increase the surface of the original
material. An increased temperature
would activate more vapor as well, but
has a negative effect on the taste. If
no more vapors are visible at the high-
est temperature, then the vaporization
material is completely exhausted and
must be replaced with new material.
However, for the best aroma results it
is advisable to replace the vaporiza-
tion material before this point.
It is important to watch the vapor den-
sity in the Valve Balloon. A fine, white
vapor feels very comfortable when
inhaled. As the vapor gets denser the
taste can get too strong. A very high
intensity (density) of the vapor can
lead to irritation of the respiratory pas-
sages from the concentration of the
aromas and fragrances. In this case,
the temperature should be lowerd,
so that the intensity of the vapors is
reduced.
ok
Watch vapor density
5. FACTORS INFLUENCING VAPORIZATION 5. FACTORS INFLUENCING VAPORIZATION
It is not necessary to fill the Valve Bal-
loon completely. It is often sufficient to
fill only half or even less than half of
the Valve Balloon in order to achieve
the desired results.
The Valve Balloon is not suitable for
storing vapors over a long period be-
cause the vapors condense on the
Valve Balloon Jacket over time (a few
hours). Only fill the amount you want
to inhale within 10 minutes.
Breathing Techniques
The device is not to be used, if
the user has respiratory tract
or lung conditions. Depending
on the density, the vapor could irritate
respiratory tracts or lungs, which can
lead to coughing.
Inhale only half the amount of air
you can normally manage. Hold your
breath for a few seconds and then
exhale slowly. It is advisable to delib-
erately concentrate on your breathing
process.
12 13

6.1. Unpacking
The box contains all components as
well as the Instructions for Use. Keep
the Instructions for Use for future ref-
erence.
Take out the Hot Air Generator and the
accessories from the box. Immediate-
ly after unpacking check whether the
Hot Air Generator, the accessories, the
power cord and the power plug are all
included in the delivery and work prop-
erly. If you notice any defects, inform
the seller or the delivery agent imme-
diately.
The packing material (plastic
bags, styrofoam material,
boxes etc.) must be kept out
of the reach of children as it is a poten-
tial source of danger.
Please dispose of the packing material
in a proper and environmentally friendly
manner.
We recommend keeping the original
packaging in case it is required later
(transport, Storz & Bickel Service
Center etc.).
6.2. Installation
Before installing the Hot Air Generator,
make sure that the information given
on the type label on the underside of
the device corresponds to the local
mains supply data. All parts of the elec-
trical system must comply with cur-
rently applicable official regulations.
Put the Hot Air Generator on a flat and
stable surface.
Take care that the power cord cannot
be damaged through kinking, crush-
ing or pulling.
Improper installation may lead
to personal injury or material
damages, for which the manu-
facturer cannot be held responsible.
6.3. Application and Operation
This Hot Air Generator was
developed for vaporizing the
plant materials listed in the
plant overview as well as their ex-
tracts. Any other use is inappropriate
and potentially dangerous.
For use and maintenance, the user
must always follow the instructions
given in these Instructions for Use.
If you have any concerns, or if there
are any problems immediately switch
off the Hot Air Generator and pull out
the power plug from the socket. Do
not try to remedy the defect yourself.
Contact our Service Center directly.
Allow the device to cool down before it
is packed away.
6.4. Care and Maintenance
Before any maintenance work is done,
the device has to be switched off and
the power plug has to be unplugged
from the power supply.
6. VOLCANO DIGIT AND CLASSIC
HOT AIR GENERATORS
Reassemble in
reverse order
6.6. In Case of Problems
Immediately unplug the power cord
and ensure that no one can connect
the Hot Air Generator to the mains
supply again without this being noticed.
If there are any faults in the electron-
ics of VOLCANO DIGIT, you can per-
form a reset by pulling out the power
plug and plugging it again after waiting
for a minimum of three seconds.
Put the Hot Air Generator in the origi-
nal packaging, or pack it properly in
other packing material, and take it to
our Service Center.
If the Hot Air Generator is irreparably
damaged, please do not simply throw
it away. As it is made of high qual-
ity, completely recyclable component
parts, it should be brought to a mate-
rial recycling center in your town or
sent to our Service Center for disposal.
6. VOLCANO DIGIT AND CLASSIC
HOT AIR GENERATORS
Only clean the device with a damp
cloth when dirty. Please do not use any
hard or abrasive implements, such as
steel wool, metal brushes, needles,
inappropriate plastic sponges, etc.,
nor any aggressive cleaning agents.
Clean the housing with a soft cloth; or,
if need be, use a mild cleaning agent
(soap water).
6.5. Storage
Store the Hot Air Generator in a dry
place protected against the effects of
weather and out of the reach of chil-
dren or unqualified persons.

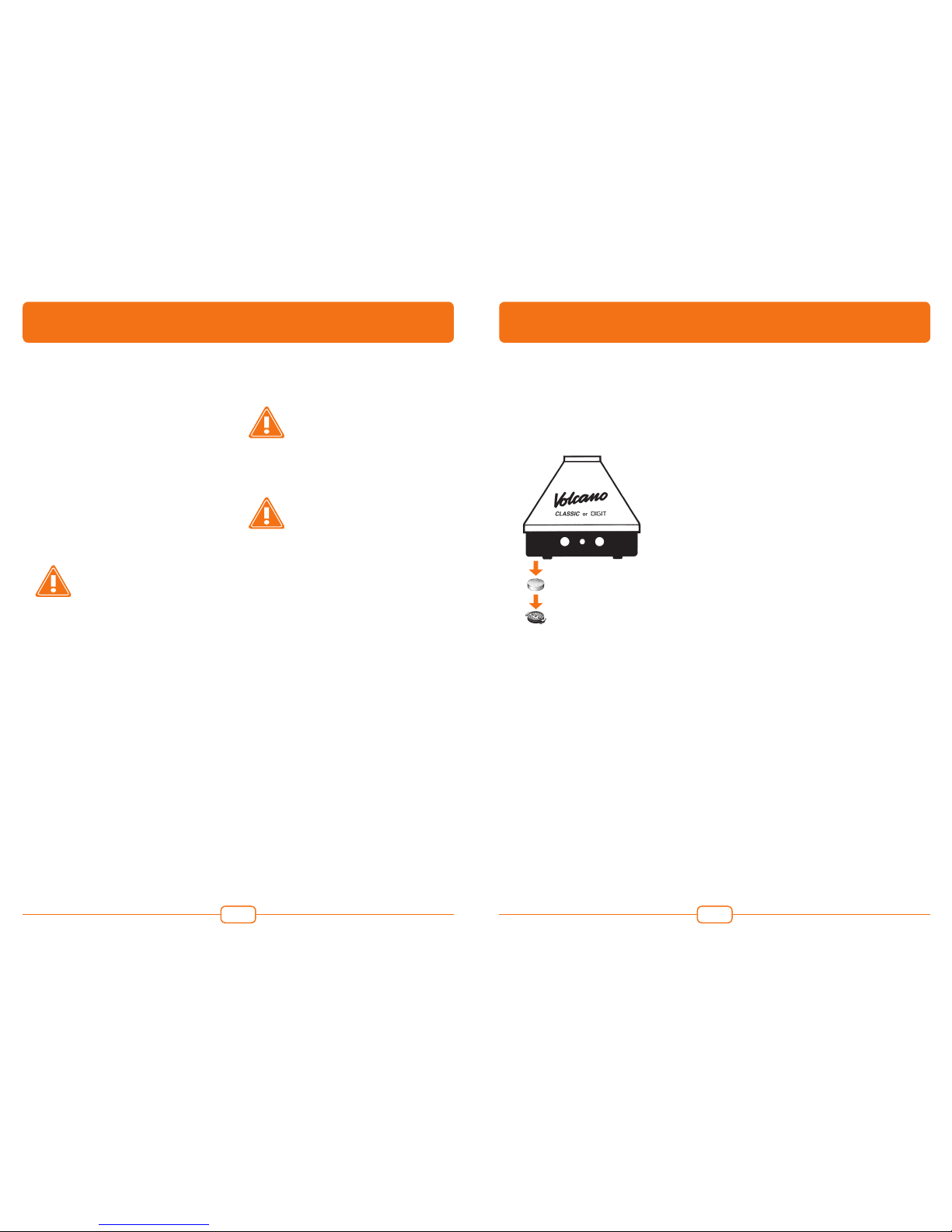

At the bottom of the Hot Air Genera-
tor is an Air Filter. The Air Filter must
be inspected for contamination every
four weeks by turning the Air Filter Cap
counterclockwise and remove the Air
Filter.
14 15

6. VOLCANO DIGIT AND CLASSIC
HOT AIR GENERATORS
6.7. Troubleshooting
If the device does not function properly when the power plug is connected to the
power socket, please check the Hot Air Generator using the tips in the following
table:
If the preceding tips do not
yield the desired results, or for
any other defects or problems
not mentioned here, please unplug
the power plug and contact our Ser-
vice Center immediately.
Do not open the Hot Air Gen-
erator! Without special tools
and specialized knowledge,
any attempt to open the device will
cause damage to it. Such an attempt
will invalidate the warranty claim.
Do not try to remedy the defect your-
self. Contact our Service Center di-
rectly.
6.8. Technical Specifications
VOLCANO DIGIT and
VOLCANO CLASSIC
Voltage: 220-240 V / 50-60 Hz or
110-120 V / 50-60 Hz.
The voltage specification is located
on the bottom side of the VOLCANO
Hot Air Generator.
Heat output: 100 W
Air pump output: 11 W
Vaporization temperature:
CLASSIC adjustable between approx.
130°C- 230°C (266°F-446°F);
DIGIT adjustable between approx.
40°C- 230°C (104°F-446°F)
Air flow: approx. 12 l/min
Size: CLASSIC and DIGIT 20.0 x
18.0 cm (7.9 x 7.1 inch)
Weight:
CLASSIC approx. 1.6 kg (3.5 lb);
DIGIT approx. 1.8 kg (4.0 lb)
Safety category I (electrically
grounded)
Please unplug to disconnect from the
mains current.
Subject to technical changes.
Patents: DE 198 03 376;
DE 100 42 396; EP 0 933 093;
EP 1 884 254; US 6,513,524.
Manufacturer:
Storz & Bickel GmbH & Co. KG
In Grubenäcker 5-9
78532 Tuttlingen, Germany
6. VOLCANO DIGIT AND CLASSIC
HOT AIR GENERATORS
16 17
Problem Possible Cause / Remedy
No green light signal vis-
ible on the display of the
VOLCANO ; no activation
of the heater or pump
possible.
Please make sure that the current is on and that the
fuse (in the mains fuse box) is switched on and is not
defective.
If the Hot Air Generator still does not function, the in-
ternal fuses may have been triggered. In this case, send
the VOLCANO Hot Air Generator to our Service Center.
No aerosol is formed. Check the set and actual temperature.
Make sure the Filling Chamber and/or Valve Balloon
were correctly attached.
Check whether an extract (aromatic oil) has been added
to the Liquid Pad or whether there is fresh, unused plant
material in the Filling Chamber.
The Valve Balloon does
not fill up.
Check whether the pump is turned on.
Check whether the Filling Chamber and/or Valve Balloon
are correctly attached.
The device switches off
(automatic switch-off of
the VOLCANO DIGIT ).
No button was pressed in the last 30 minutes – this
leads to automatic switch-off. Switch heater or pump
on again.
Plant particles in the Valve
Balloon (when using plant
material).
Check whether the Screen in the Filling Chamber Cap is
clogged or is not inserted into the notch properly.
Check whether the Filling Chamber was cleaned accord-
ing to the Instructions for Use.

7. VOLCANO DIGIT
7.1. Commissioning
Do not leave the device unat-
tended during operation. Put
the VOLCAN O DIGIT on a flat
and stable surface.
Check whether the mains voltage cor-
responds to the voltage rating stated
on the device. The power cord and the
power plug must be in perfect condi-
tion. Only connect the VO LCANO DIG-
IT to a properly installed (grounded)
socket.
It is mandatory to electrically ground
the Hot Air Generator. The manufac-
turer will not bear any responsibility
whatsoever if this accident prevention
measure is not taken.
When the power plug is plugged in, the
LED display of the device lights up
briefly. At the same time, an internal
software query is performed.
The green dot on the display shows
that the Hot Air Generator is connect-
ed to the mains supply.
7.2. Heating Up
To switch on the heater, push the but-
ton labeled “HEAT ”. The set/actual
temperature will light up, signaling
that the heater is switched on.
At the same time, the yellow control
lamp will light up to indicate that the
device is heating up.
The upper, red display shows the ac-
tual temperature in the Filling Cham-
ber with the air pump switched on, and
the lower, green display shows the
desired set temperature. The heat-
ing process is completed when the
set value is equal to the actual value.
The heating process can take up to 5
minutes depending upon the chosen
temperature. After the heating process
is completed, the temperature is con-
stantly maintained at the set value.
The luminous intensity of the yellow
control lamp corresponds to the inten-
sity of the heating process.
For technical reasons the
temperature in the Filling
Chamber cannot be mea-
sured during vaporization. During op-
eration the temperature is measured
at the heat exchanger. The display in-
dicates the reference values for the
attached Filling Chamber with the air
pump switched on.
Plus Temperature
Button
Minus Temperature
Button
Actual Temperature
Display (red)
Set Temperature
Display (green)
7. VOLCANO DIGIT
When you press the plus button, the
set value is increased, and when you
press the minus button, the set value
is decreased. When you briefly tap
on the plus or minus button, the set
values are increased or decreased
respectively in 1-degree increments.
If you keep the plus or minus button
pressed, the set values start running
continuously in the corresponding
direction. If you simultaneously tap
on the plus button and the minus but-
ton, the display changes from degree
Celsius to degree Fahrenheit and vice
versa.
If the actual value is higher
than the set value, you can
speed up the cool off process
by switching on the air pump.
30 minutes after the last time
a button is pressed, the device
automatically switches off.
As long as the heater has a substan-
tial amount of residual warmth, the
temperature is displayed until it drops
be-low +40°C (+104°F). Then the dis-
play turns off, and the green dot on
the display indicates that the Hot Air
Generator is connected to the mains
supply.
7.3. Temperature Setting
18 19

Select temperature
8.1. Commissioning
Do not leave the device unat-
tended during operation. Put
the VOLCAN O CLASSIC on a
flat and stable surface. Check wheth-
er the mains voltage corresponds to
the voltage rating stated on the device.
The power cord and the plug must be
in a perfect condition. Only connect
the VOLCAN O CLASSIC to a properly
installed (grounded) socket.
It is mandatory to electrically ground
the Hot Air Generator. The manufac-
turer will not bear any responsibility
whatsoever if this accident prevention
measure is not taken.
8.2. Heating Up
To switch on the heater, push the rock-
er switch labeled “HEAT”. The rocker
switch will light up signaling that the
heater is in operation. At the same
time, the yellow control lamp will be
signaling that the device is heating
up. This heating process of the heat
exchanger can take up to 5 minutes
depending upon the chosen tempera-
ture.
As soon as the yellow control lamp
turns off, the set temperature has
been reached, and the heat exchang-
er’s warming process is complete. If
the temperature in the heat exchanger
drops, the heat exchanger will auto-
matically heat up, which is signaled
by the yellow control lamp lighting up
again.
The vaporization temperature may
fluctuate about ± 5°C (± 9°F) related
to the indicated values because of the
heating and cool off process of the
heat exchanger. For example at level
6 from 185°C up to 195°C (365°F up
to 383°F).
Select the desired temperature at the
temperature regulator knob.
8.3. Temperature Setting

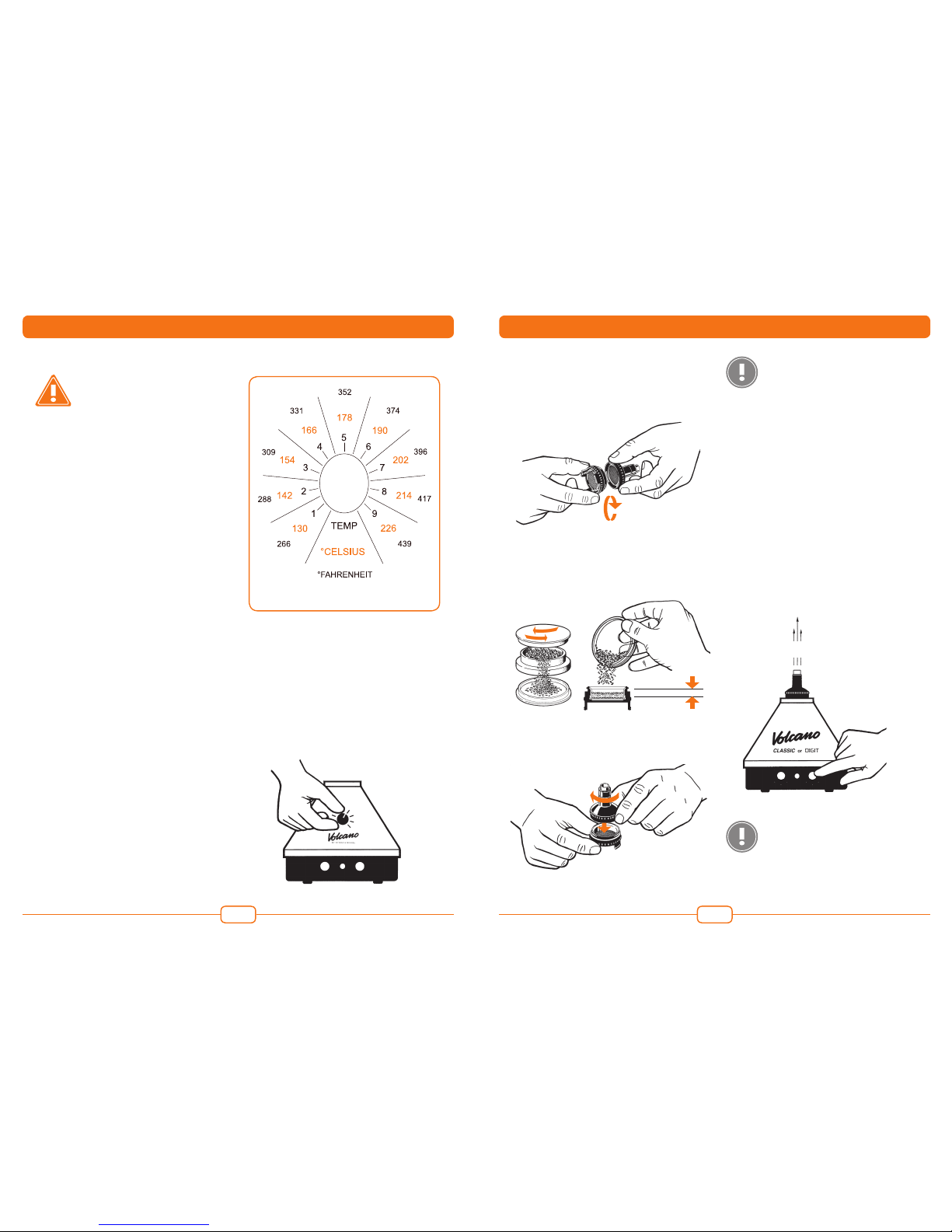

Vaporization Temperature Table
8. VOLCANO CLASSIC 9. EA SY VA LVE
Fill Filling Chamber
max. 10 mm
min. 1 mm
Remove Filling Chamber Cap
9.1. Application and Operation
Turn the Filling Chamber Cap counter-
clockwise in order to remove it from
the Filling Chamber.
Fill the desired amount of ground plant
material in the Filling Chamber.
Next screw on the Filling Chamber
Cap again.
Screw on Filling Chamber Cap
Take care that the Screens
are not obstructed with plant
material. To guarantee opti-
mal results, we recommend cleaning
the Screens after each vaporization
cycle with the enclosed Cleaning
Brush.
Put the Filling Chamber with Cap on
the hot air outlet of the Hot Air Genera-
tor and allow it to lock in place. Switch
on the air pump. To do so, press the
green button/switch labeled “AIR”.
The Filling Chamber as well as the va-
porization material must be preheated
for a couple of seconds before the aro-
mas and fragrances start to vaporize.
Before attaching, remove the Mouth-
piece from the Valve Balloon.
Preheat plant material for a few seconds
Before putting the Valve Bal-
loon on the Filling Chamber,
stretch it tight so that the Bal-
loon is placed vertically on the Hot Air
Generator when it is filled.
20 21
approx. 5 sec

9. EASY VALV E
Watch vapor density
When the Valve Balloon is filled, switch
off the air pump and remove the Valve
Balloon with Filling Chamber. To do
so, hold the Filling Chamber Cap at
the textured grip.
ok
Stretch Valve
Balloon tight
Remove Valve Balloon with Filling Chamber
Caution! Hot surface!
Do not touch any components
of the Filling Chamber (except
at the textured grip) until they
have cooled down after the
Valve Balloon has been filled.

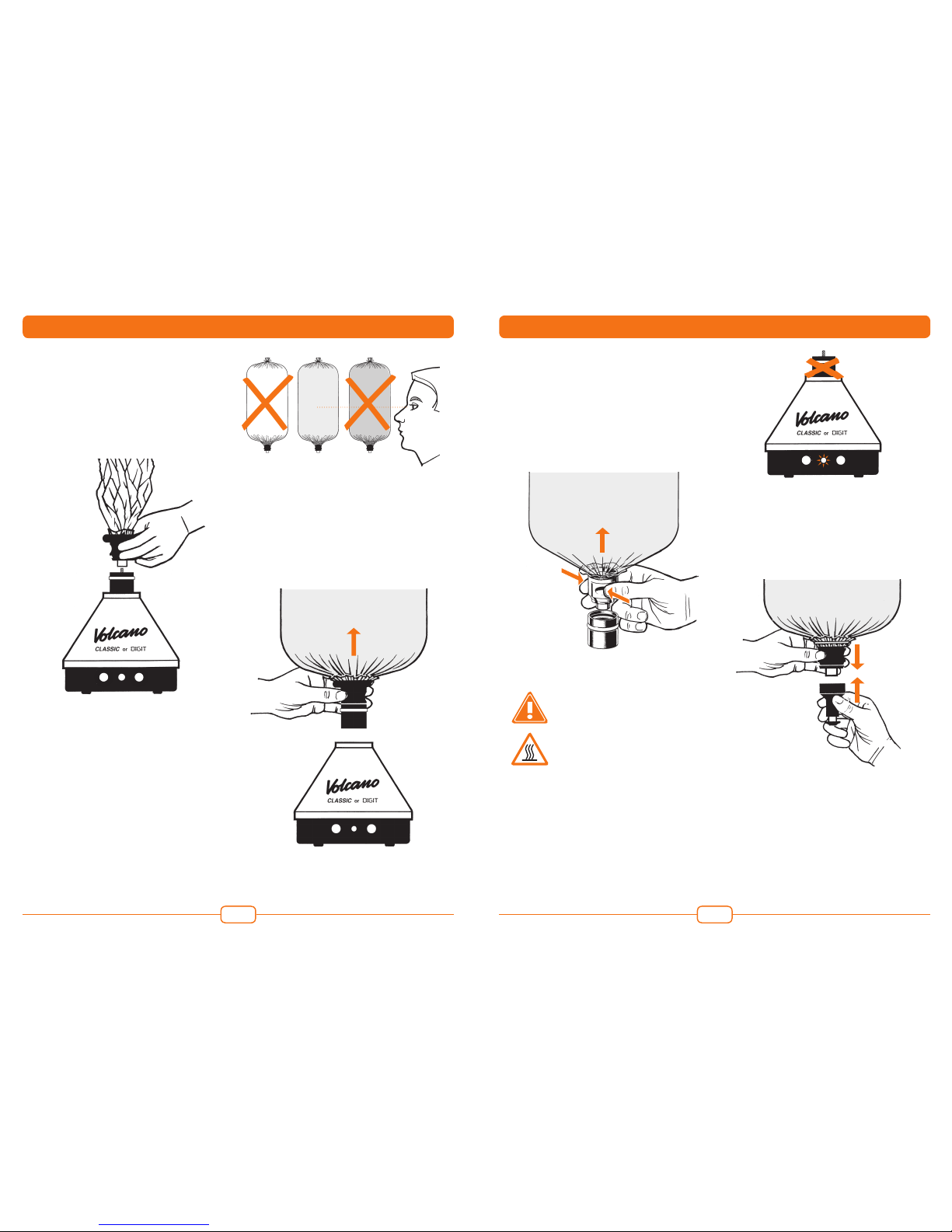

Put the Valve Balloon on the Filling
Chamber and allow it to lock in place.
This will open the Valve. Now the
Valve Balloon will fill with vapor.
Only fill the Valve Balloon with the ap-
proximate amount of vapor that you
intend to use within the next 10 min-
utes. Do not overfill the Valve Balloon
(overpressure) in order to prevent the
loss of vapor. It is important to watch
the vapor density in the Valve Balloon
(see Chapter 5. “Factors influencing
vaporization”, page 12).
9. EASY VALV E
Attach the Mouthpiece to the Valve
and allow it to lock in place.
Caution! Hot surface!
Never leave Filling Chamber on VOLCAN O
Detach Valve Balloon from Filling Chamber
Never leave the Filling Chamber on top
of the hot air outlet of the VOLCANO
as long as the heater is on, except
when filling the Valve Balloon. Non-
observance can lead to an overheated
Filling Chamber, which might burn
one’s fingers.
Detach the Valve Balloon from the
Filling Chamber. When you do so, the
Valve is automatically closed so that
the vapors in the Valve Balloon can-
not escape.
Attach the Mouthpiece to the Valve Balloon
To inhale, put the Mouthpiece to your
lips and press them lightly against the
Mouthpiece. By doing so, the Valve
opens and the vapors can be inhaled
from the Valve Balloon. As soon as
you remove the pressure from the
Mouthpiece, the Valve automatically
closes.
Press Mouthpiece against lips and inhale
slowly and evenly for several seconds
22 23

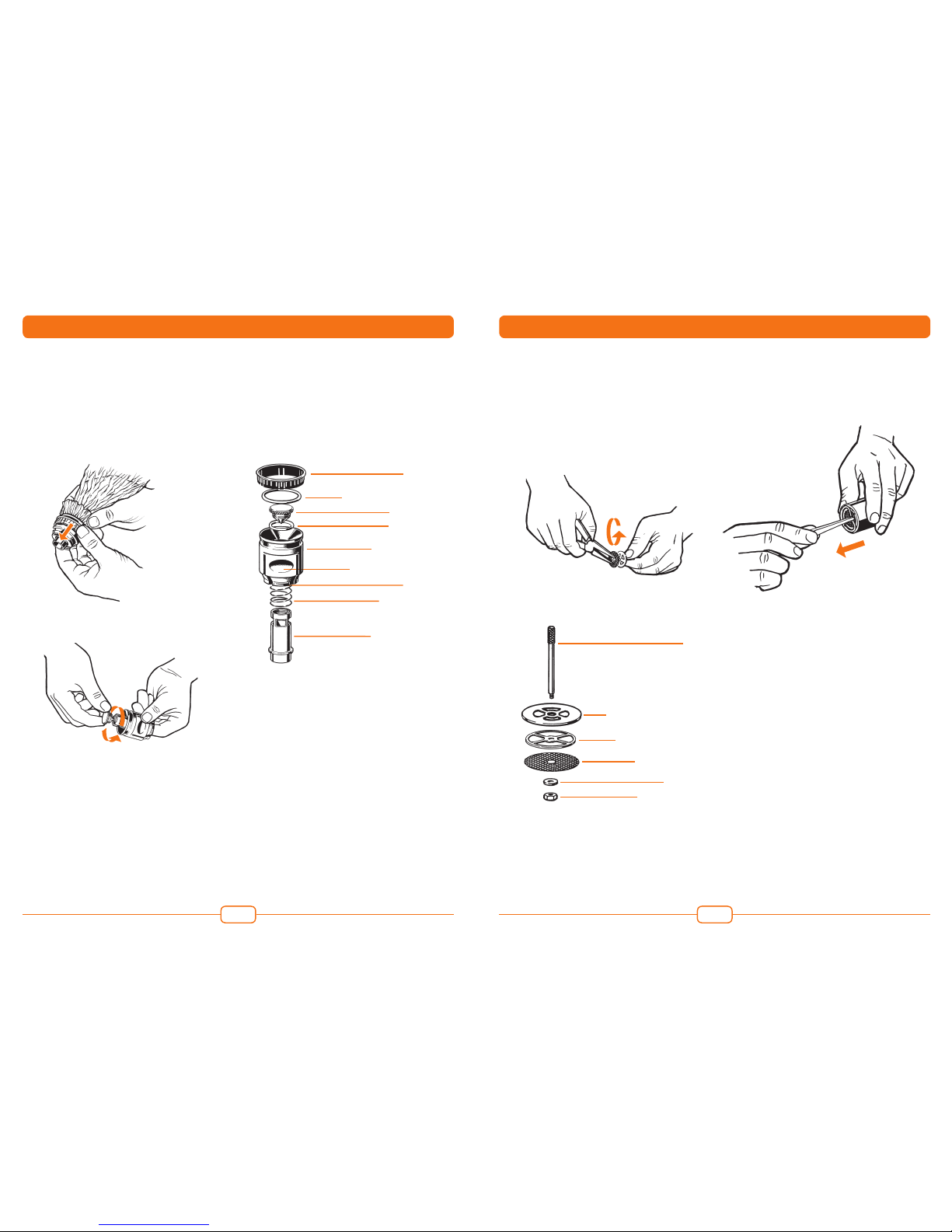

Cap Ring
Cap Housing
Cap Cylinder
Upper Screen
9. EASY VALV E
Stretch Valve
Balloon tight
Filling Chamber with Filling Cham-
ber Cap
Please allow the Filling Chamber and
the Cap to cool down before disas-
sembling them. The component parts
of the Filling Chamber must be thor-
oughly cleaned on a regular basis to
guarantee proper operation and pure
flavor. For hygienic reasons, it is also
necessary to clean the Filling Cham-
ber with Cap for hygienic reasons
when the device is to be used by a dif-
ferent person. If a new Valve Balloon
and Mouthpiece are used, the Filling
Chamber should also be cleaned be-
forehand. For manual cleaning, use
rubbing alcohol and paper or cotton
towels or warm water with wash-
up liquid. Filling Chamber and Cap
may be easily disassemblend and
reassembled for cleaning in a few
seconds. Filling Chamber and Cap
Components may also be cleaned in
a dishwasher. However, the Screens,
Cap Ring and Filling Chamber Clips
are very small, and may be lost if
placed in a dishwasher. Before as-
sembling allow all component parts to
dry properly.
As the content of the Valve
Balloon deflates, it may be
completely emptied by
stretching the Balloon taut and subse-
quently inhaling the content.
9.2. Cleaning and Maintenance
EA SY VA LVE Balloon with Mouth-
piece
The EA SY VA LVE Balloon and its
Mouthpiece require no maintenance.
For hygienic reasons, they should be
replaced with a new Valve Balloon
and Mouthpiece every two weeks.
To prevent any transfer of infectious
germs, the Valve Balloon and Mouth-
piece should be used only by one
person, and never shared by multiple
individuals.
9. EASY VALV E
Manual cleaning with alcohol (min. 90%)
Do not immerse any plastic
components in ethanol or al-
cohol for longer than an hour.
Extended contact with ethanol or al-
cohol may lead to discoloration or em-
brittlement of plastic parts.
After cleaning, check all component
parts for surface damage, tears, soft-
ening or hardening, impurities, distor-
tion and discoloration and set dam-
aged component parts aside.
Disassembling the Filling
Chamber Cap
Push the upper Screen downwards,
by using (for example) the handle of
the Cleaning Brush supplied.
Push the Cap Cylinder out of the Cap
Housing
Push out the upper Screen with help of the
Cleaning Brush
Push the Cap Cylinder downwards
out of the Cap Housing. At the same
time the Cap Ring will be stripped off.
Reassemble in reverse order.
The upper Screen has to be
placed carefully into the in-
tended notch. Non-obser-
vance may result in plant particles in
the Valve Balloon that might be in-
haled subsequently.
24 25

Filling Chamber Cylinder
Filling Chamber
Housing
Filling
Chamber Clip
Lower Screen
Filling Chamber
Cylinder
Filling Chamber
Housing
3 pcs. Filling
Chamber Clips
Disassembling the Filling
Chamber
Push the lower Screen or the Liquid
Pad upwards out of the Filling Cham-
ber Cylinder. Push the Filling Cham-
ber Cylinder upwards out of the Filling
Chamber Housing.
Push the Filling Chamber Cylinder upwards
out of the Filling Chamber Housing
When the Filling Chamber Cylinder is
pushed out, the three Filling Chamber
Clips are loosened and fall out of the
Filling Chamber Housing.
9. EASY VALV E
Insert Filling Chamber Clips
Assembling the Filling Chamber
Push the Filling Chamber Cylinder
from above into the Filling Chamber
Housing and allow it to lock in place.
Insert the Filling Chamber Clips in the
openings provided for them in the foot
of the Filling Chamber Housing.
Make sure the Filling Chamber Clips
are placed properly, as shown in the il-
lustration.
Insert the Screen or the Liquid Pad
into the Filling Chamber from above.
Screw Filling Chamber Cap on Filling
Chamber.
9. EASY VALV E
9.3. Accessories
9.3.1. Filling Chamber Reducer
Suitable for vaporizing small
amounts of plant material, is
the Filling Chamber Reducer,
which is available as an accessory,
along with the Dosing Capsules. For
vaporizing small amounts of aromatic
oils, the small Liquid Pad is to be used
additionally.
The Filling Chamber Reducer is in-
serted instead of the Filling Chamber
Cylinder (see Chapters “Disassem-
bling the Filling Chamber” and “As-
sembling the Filling Chamber”, page
26 onwards).
Filling the Filling Chamber Re-
ducer with ground Plant Material
The Filling Chamber Reducer can be
filled with ground plant material directly.
Dosing Capsules containing ground
plant material can be inserted into the
Filling Chamber Reducer as well.
Fill the Filling Chamber Reducer with
ground plant material directly or with a filled
Dosing Capsule
Filling the Filling Chamber Re-
ducer with aromatic Oils
Either the small Liquid Pad (measure-
ments 15 x 5 mm / 0.6 x 0.2 inch) or the
Dosing Capsule containing a Liquid
Pad (measurements 13 x 6 mm / 0.5
x 0.2 inch) are to be inserted into the
Filling Chamber Reducer.
Insert either a small Liquid Pad directly into
the Filling Chamber Reducer or a Dosing
Capsule equipped with a Liquid Pad
Please make sure to not over-
fill the Liquid Pad. It can con-
tain up to 5 drops.
For details on how to use the
Liquid Pad, please refer to
Chapter 12. “Liquid Pad”,
page 43.
26 27

9.3.2. Dosing Capsules and
Magazine
Dosing Capsules with Magazine
With the Dosing Capsules, which are
available as accessories, you can fill
ground plant material or aromatic oils
using the Liquid Pads into the Dosing
Capsules in advance and store them
in the Magazine. This facilitates the
handling.
Filling the Dosing Capsules with
ground Plant Material
The plant material has to be ground
with the included Herb Mill first.
The Dosing Capsules can be filled
with ground plant material per Cap-
sule and be stored in the Magazine as
a reserve.

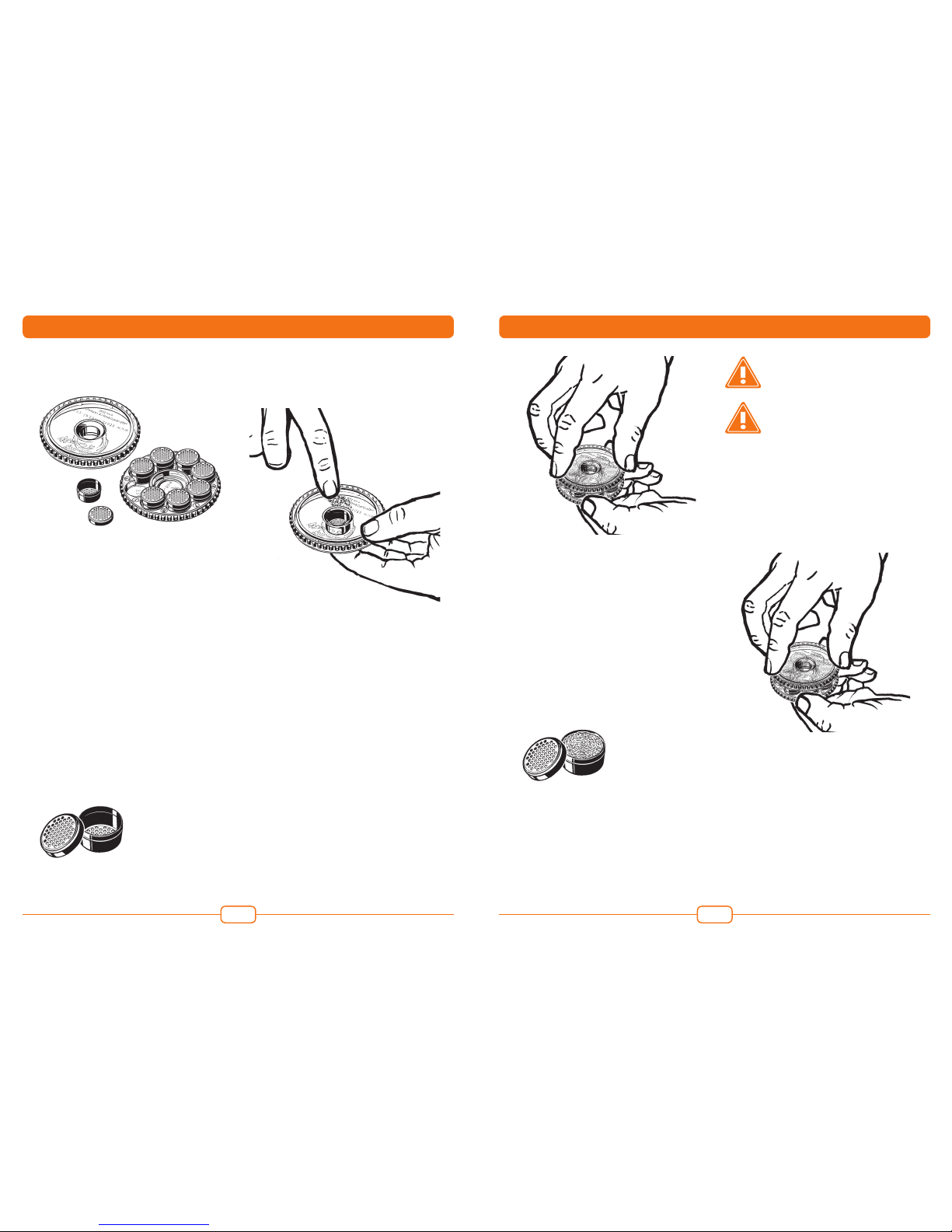

Dosing Capsule with removed cap
9. EASY VALV E
Grind the plant material and fill the
Dosing Capsule by using the Maga-
zine Cap (funnel).
Dosing Capsule while being filled with
Magazine Cap (funnel)
Attach the cap onto the Dosing Cap-
sule. Repeat the filling process until
the desired amount of Dosing Cap-
sules is filled and insert them into the
Magazine. The Magazine can hold up
to 8 Dosing Capsules.
9. EASY VALV E
Attaching the Magazine Cap
After filing the Dosing Capsules, at-
tach the Magazine Cap and close it by
turning it clockwise.
Filling the Dosing Capsules with
aromatic Oils
The Dosing Capsules with inserted
Liquid Pad, which are available as ac-
cessories, can be filled with aromatic
oils and store them in the Magazine.
Dosing Capsule with removed cap and
inserted Liquid Pad
Please make sure to not over-
fill the Liquid Pad. It can con-
tain up to 5 drops.
For details on how to use the
Liquid Pad, please refer to
Chapter 12. “Liquid Pad”,
page 43.
Attach the cap onto the Dosing Cap-
sule. Repeat the filling process until
the desired amount of Dosing Cap-
sules is filled and insert them into the
Magazine. The Magazine can hold up
to 8 Dosing Capsules.
After filing the Dosing Capsules, at-
tach the Magazine Cap and close it by
turning it clockwise.
Attaching the Magazine Cap
28 29

The Dosing Capsule inserted into the Filling
Chamber Reducer
Next screw on the Filling Chamber
Cap again.
Screw on Filling Chamber Cap
The Filling Chamber Reducer can be
filled directly as well (without a Dosing
Capsule), see Chapter 9.3.1. “Filling
Chamber Reducer”, page 27.
Inserting the Dosing Capsules
First, the Filling Chamber Reducer,
that is available as an accessory
as well, is to be inserted instead of
the Filling Chamber Cylinder (see
Chapters “Disassembling the Filling
Chamber” and “Assembling the Filling
Chamber”, page 26 onwards), af-
terwards, insert the Dosing Capsules
into the Filling Chamber Reducer.
9. EASY VALV E
9.3.3. Disposable Lip Piece for
Hygienic Use
The Lip Piece, which is available as
an accessory, will be delivered brand
new and in a low-germ, but not fully-
sterile state.
The Lip Piece is equipped
with a check valve. This check
valve reduces the danger of a
potential contamination inside the
Valve Balloon by preventing breathing
into the Valve Balloon.
The Lip Piece is put on the Mouth-
piece, slid until stop and is then ready
for operation. The Valve Balloon with
Mouthpiece and the Lip Piece may be
used by only one person.
Valve Balloon with Mouthpiece and Lip
Piece
9. EASY VALVE
A Lip Piece may be used for max. 4
hours after initial operation if it is un-
damaged and clean. Afterwards, it
must be disposed of in the household
waste and a new Lip Piece must be
used due to hygienic reasons.
Every further use beyond this or the
use of damaged and/or contaminated
products respectively is the user‘s re-
sponsibility.
We assume no liability if this recom-
mendation is ignored.
Please note that damaged or
brittle Lip Pieces are not to be
used.
30 31

Insert Filling Chamber Insert
approx. 1 mm
Make sure that the Filling Chamber
Disc sits properly in the Filling Cham-
ber. It must touch the top edge of the
Filling Chamber Cylinder made of
stainless steel.
Take care that the Screens
are not obstructed with plant
material. To guarantee opti-
mal results, we recommend to clean
the Screens after each vaporization
cycle with the enclosed Cleaning
Brush.
Put the Filling Chamber on the hot air
outlet of the Hot Air Generator. Switch
on the air pump. To do so, press the
green button/switch labeled “AIR”.
The Filling Chamber as well as the
vaporization material must be pre-
heated for a couple of seconds before
the aromas and fragrances will start to
vaporize.
10. S O LI D VA LV E
Fill Filling Chamber
max. 10 mm
min. 1 mm
10.1. Application and Operation
The Balloon Material must be
kept out of the reach of chil-
dren as it is a potential source
of danger. As an alternative to the VOL-
CANO Balloon, only use heat-resis-
tant, food safe and odor-free oven
tubes and oven bags.
Filling the Filling Chamber
Remove the entire Filling Chamber In-
sert and fill the Chamber with the de-
sired amount of ground plant material.
Fit in the Filling Chamber Insert and
use the pin to lower the Screen Unit so
that the content of the Filling Chamber
is loosely fixed between the Screens.
10. S O LI D VA LV E
approx. 5 sec
Stretch Valve
Balloon tight
Preheat plant material for a few seconds
Before putting the Valve Bal-
loon on the Filling Chamber,
stretch it so that it extends ver-
tically from the Hot Air Generator when
it is filled.
32 33

Only fill the Valve Balloon with the ap-
proximate amount of vapor that you
intend to use within the next 10 min-
utes. Do not overfill the Valve Balloon
(overpressure) in order to prevent the
loss of vapor. It is important to watch
the vapor density in the Valve Balloon
(see Chapter 5. “Factors influencing
Vaporization”, page 12).
When the Valve Balloon is filled,
switch off the air pump and remove
the Valve Balloon with Filling Cham-
ber. Grasp the Valve firmly with your
thumb and index finger at the desig-
nated grip indentation.
Attach Valve Balloon to Filling Chamber
ok
Watch vapor density
Remove Valve Balloon with Filling Chamber
Attach the Valve with the affixed Bal-
loon to the Filling Chamber. To do this,
set the Valve onto the Filling Chamber
from above until both grippers are
locked in place. The Valve will auto-
matically open up. The Valve Balloon
will slowly fill with vapor.
10. S O LI D VA LV E 10. S O LI D VA LV E
Caution! Hot surface!
Never leave Filling Chamber on VOLCANO
Attach the Mouthpiece to the Valve
Balloon. Make sure that both grippers
are locked in place.
To inhale, put the Mouthpiece to your
lips and press them lightly against the
Mouthpiece. By doing so, the Valve
opens and the vapors can be inhaled
from the Valve Balloon. As soon as
you remove the pressure from the
Mouthpiece, the Valve automatically
closes.
Attach the
Mouthpiece
to the Valve Balloon
Place the Filling Chamber on a heat-
proof surface, for example these
Instructions for Use, and detach the
Valve Balloon from the Filling Cham-
ber by pressing the grippers together.
The Valve closes automatically so that
the vapors in the Valve Balloon cannot
escape.
Caution! Hot surface!
Do not touch any components
of the Filling Chamber (except
at the textured grip) until they
have cooled down after the
Valve Balloon has been filled.
Do not leave the Filling Chamber on
top of the hot air outlet of the VOL-
CANO when “HEAT” is switched on,
except for filling the Valve Balloon.
Non-observance can lead to an over-
heated Filling Chamber, which might
burn one’s fingers.
Detach Valve Balloon from Filling Chamber
34 35

Mouthpiece Cylinder
Mouthpiece Housing
Lip Piece
Press Mouthpiece against lips and inhale
slowly and evenly for several seconds
Stretch Valve
Balloon tight
Manual cleaning with alcohol (min. 90%)
As the content of the Valve
Balloon deflates, it may be
completely emptied by stretch-
ing the Balloon taut and subsequently
inhaling the content.
10.2. Cleaning and Maintenance
Mouthpiece, Valve and Filling
Chamber
For hygienic reasons, the SOLID
VALVE component parts (Valve Bal-
loon with Mouthpiece and Filling
Chamber) should be cleaned at least
once every two weeks. To prevent
any transfer of infectious germs, the
Valve Balloon and Mouthpiece should
be used only by one person, and not
shared by multiple individuals. The
component parts should be cleaned
regularly to guarantee proper func-
tioning and a clean taste. For hygienic
reasons, a thorough cleaning is re-
quired whenever the S O LI D VA LV E is
to be used by another individual.
The Balloon should be replaced
whenever the Valve is cleaned. For
manual cleaning use rubbing alcohol
with paper or cotton towels or dish-
washing liquid with warm water.
10. S O LI D VA LV E
Pull off Lip Piece
The Mouthpiece, Valve and Filling
Chamber are easily disassembled
within seconds for cleaning. The com-
ponent parts of the Mouthpiece, Valve
and Filling Chamber may also be
cleaned in a dishwasher. The Screens
and the component parts of the Filling
Chamber Insert are too small for that
and might get lost in a dishwasher. Be-
fore assembling allow all component
parts to dry properly.
Do not immerse any plastic
components in ethanol or al-
cohol for longer than an hour.
Extended contact with ethanol or al-
cohol may lead to discoloration or em-
brittlement of plastic parts.
After cleaning, check all component
parts for surface damage, tears, soft-
ening or hardening, impurities, distor-
tion and discoloration and set dam-
aged component parts aside.
Reassemble in reverse order.
10. S O LI D VA LV E
Disassembling the Mouthpiece
Pull off the Lip Piece from the Mouth-
piece Cylinder and remove the Cylin-
der from the Mouthpiece Housing.
36 37

Slipring
Balloon Fixation Ring
Valve Cap
Valve Ring
Valve Housing
Gripper Indentation
Gripper
Valve Spring
Valve Cylinder Pin
Filling Chamber Disc
Screen Brace Disc
Upper Screen
Washer
Hex Nut (M2)
Screw off Valve Cap
Opening the Slipring
Disassembling the Valve
Undo the Slipring and remove the
Valve Balloon along with the Balloon
Fixation Ring. Insert your index finger
into the open end of the Valve Cylin-
der. Push up the Valve Cylinder until
you can unscrew the Valve Cap.
10. S O LI D VA LV E
Reassemble in reverse order.
Remove the Valve Cap and Valve
Ring. Pull out the Valve Cylinder
along with the Valve Spring of the
Valve Housing. In case of stiffness,
the component parts can be loosened
by warming them up in warm water.
10. S O LI D VA LV E
Disassembling the Filling Cham-
ber Insert
The Filling Chamber Insert can be
easily removed from the Filling Cham-
ber. The Filling Chamber Insert can
be disassembled by screwing off the
hex nut.
Disassembling the Filling Chamber Insert
Reassemble in reverse order.
Disassembling the Filling Chamber
The lower Screen will be pushed out
of the Filling Chamber. The Filling
Chamber Ring can be pulled off with
tweezers.
Pull off Filling Chamber Ring with tweezers
38 39
