Storz & Bickel GMBH Volcano User manual

ES
ENG
STORZ & BICKEL GMBH & C O. K G
INSTRUCTIONS FOR USE
Read carefully before using the device and
save these instructions.

INSTRUCTIONS FOR USE ENGLISH
Table of Contents....................................................Page
1. Product Overview, Service ...............................................4
2. Explanation of Symbols,
Safety Recommendations ..............................................6
3. Intended Use ....................................................................9
4. Overview of Plants.......................................................... 10
5. Factors Influencing Vaporization ................................... 11
6. The Hot Air Generators
VOLCANO DIGIT and VOLCANO CLASSIC............... 12
Unpacking, Installation, Application and
Operation, Care and Maintenance, Storage,
In Case of Problems, Troubleshooting,
Technical Specifications
7. VOLCANO DIGIT.......................................................... 15
Installation, Heating Up, Temperature Setting
8. VOLCANO CLASSIC.................................................... 17
Installation, Heating Up, Temperature Setting
9. EASY VA LVE
Application and Operation.................................. 18
Cleaning and Maintenance ................................21
10. SOLID VALVE
Application and Operation...................................18
Cleaning and Maintenance................................. 27
11. Attachment of the Balloon to the EASY VALVE
with Balloon Adapter resp. SOLI D VALVE ................. 30
12. Liquid Pad....................................................................32
13. CE Declaration of Conformity....................................... 34
14. Warranty, Liability, Repair Service ...............................34
3

1. PRODUCT OVERVIEW EASY VALVE1. PRODUCT OVERVIEW S O LI D VA LVE
Hot Air Outlet
Ventilation Slots
Temperature Regulator
“HEAT” Rocker Switch
(Heater)
Air Filter
Air Filter Cap
“AIR” Rocker
Switch (Air Pump)
Heater Control Lamp
Normal Screen Set
Valve Balloon
Mouthpiece
Filling Chamber
Compatible with VOLCANO CLASSIC and VOLCANO DIGIT
Liquid Pad
Compatible with VOLCANO CLASSIC and VOLCANO DIGIT
Liquid Pad
Normal Screen Set
Valve Balloon with
Mouthpiece Filling Chamber
with Cap
Ventilation Slots
“AIR” Button
(Air Pump)
“HEAT” Button
(Heater)
Plus Temperature
Button
Minus Temperature Button
Set Temperature
Display
Actual Temperature
Display
Air Filter
Air Filter Cap Heater Control Lamp
Hot Air Outlet
1. PRODUCT OVERVIEW VOLCANO CLASSIC 1. PRODUCT OVERVIEW VOLCANO DIGIT
4 5

1. SERVICE 2. SAFETY RECOMMENDATIONS
Read the following safety
recommendations thorou-
ghly and carefully before
using the device.
These Instructions for Use are a
significant part of the VOLCANO
Vaporization System and must be
provided to the user. The instruc-
tions given in these Instructions for
Use must be strictly observed as
they are extremely important to en-
sure safety during installation, use
and maintenance of the VOLCANO
Vaporization System.
Please keep this brochure in a safe
place for future reference. You
may download the current Instruc-
tions for Use for the VOLCANO Va-
porization System on www.storz-
bickel.com.
Explanation of Symbols
Please follow these instructions carefully!
EU conformity symbol:
The manufacturer confirms with this symbol the compliance of the
product with the applicable European directives and standards.
Caution! Hot surfaces!
Never leave Filling Chamber on VOLCANO Hot Air Generator.
Safety Recommendations
�The packing material (plastic bags,
styrofoam material, boxes etc.) must
be kept out of the reach of children
as it is a potential source of danger.
�People who require assistance must
be supervised constantly during
application. Such persons often
underestimate the hazards involved
(e.g. strangulation with the power
cord), thus resulting in a risk of
injury.
�The device contains small parts
which can block the respiratory tract
and lead to choking. Therefore,
make sure that you always keep the
Hot Air Generator and accessories
out of the reach of babies and
infants.
�Before connecting the Hot Air Ge-
nerator, make sure that the infor-
mation given on the type label on
the underside of the Hot Air Gene-
rator corresponds to the mains
supply at the place of installation.
Explanation of Symbols
Safety recommendations!
In order to avoid injuries to persons and damage to the equipment,
it is mandatory to observe instructions marked with this symbol.
Note/Tip!
This symbol always gives you technical information or useful tips
regarding the VOLCANO Vaporization System.
Keep away from sunlight.
The device was introduced after 13 August 2005. It may not be
disposed of in normal household waste. The X on the trash can
indicates the necessity of disposing of this product separately.
Protect against mosture and humidity.
Nationally Recognized Testing Laboratory: Additional requirements
of UL 499 and CNA/CSA-C22.2 No. 64 have been tested on the
basis of EN 60335-1.
Safety tested and production monitored by TUEV SUED Germany
Symbol for the manufacturer - the manufacturer‘s name and
address are next to the symbol
Please check whether all components have been included. If not, please inform the
Storz & Bickel Service Center.
In the case of technical problems, questions about the device, repairs, warranty
claims and disposal of the device, customers in the US and Canada should contact
the following address:
Storz & Bickel America, Inc.
1078 60th Street, Suite A • Oakland, CA 94608
All other customers should contact the following address:
Storz & Bickel GmbH & Co. KG
In Grubenäcker 5-9 • 78532 Tuttlingen, Germany
2. SAFETY RECOMMENDATIONS
6 7

tor must not be closed, obstructed
or blocked while the device is being
used, nor while it is cooling down.
Caution! Hot surface!
�When they are hot do not touch the
hot air outlet and the Filling
Chamber.
�The Filling Chamber may only be
placed on the hot air outlet while
filling the Valve Balloon. After filling
the Valve Balloon the Filling Cham-
ber must be removed from the Hot
Air Generator in order to avoid over-
heating of the Filling Chamber.
Caution! Hot surface!
�Do not put any body parts or ob-
jects in the hot air jet.
�Before cleaning, remove the power
cord from the socket. The Hot Air
Generator should be cleaned only
with a dry cloth - or a damp cloth if
absolutely necessary. Never im-
merse the Hot Air Generator in
water or in other liquid, nor clean
it with direct jets of water or steam.
�The Hot Air Generator must not be
used in damp or wet conditions.
�Do not expose the Hot Air Genera-
tor to rain. Do not use in the bath-
room or above water.
�Never touch the Hot Air Generator
with wet or damp parts of the body.
�Never put containers containing
liquids on the Hot Air Generator.
�Never operate the Hot Air Genera-
tor when it is wet or damp. If the
Hot Air Generator gets wet, it
must be checked by our Service
Center for damage to electrical
components.
�Do not use in an atmosphere with
risk of explosion or ignition.
�Never allow the Vaporizer to be
used by children or unqualified
persons.
�Only use original Storz & Bickel
accessories and spare parts.
The manufacturer is not re-
sponsible for any damage
or personal injury caused
by inappropriate, incorrect
or irresponsible use.
2. SAFETY RECOMMENDATIONS 2. SAFETY RECOMMENDATIONS
The VOLCANO Vaporization System
releases fragrances or aromas from
the herbs and other plant materials
listed below, or from their extracts
(aromatic oils). These aromatic sub-
stances are released through vapor-
ization by heated air, and may be ex-
hausted directly into the ambient air,
or collected in a Valve Balloon for
subsequent inhalation.
The device may only be used with the
recommended vaporizing media. The
use of other substances can present
a health risk.
The VOLCANO Vaporization System is
not intended for medical/therapeutic
purposes.
3. INTENDED USE
place protected against the effects
of weather and out of the reach of
children or unqualified persons. It
cannot be used in damp locations
(such as bathrooms etc.).
�Do not operate the Hot Air Generator
close to flammable objects such as
curtains, tablecloths, or paper.
�Keep the Hot Air Generator away
from pets (e.g. hamsters, mice) and
other animals which could damage
the insulation of the mains adapter
cord.
�The Hot Air Generator may only be
repaired by our Service Center. In-
correctly performed repairs without
the use of original spare parts can
prove dangerous to the user.
�Danger to life when opening the
Hot Air Generator as live compo-
nents and connections are exposed.
�The Hot Air Generator must never
be repaired or transported when
the power plug is plugged in.
�To pull the power plug from the
socket, pull the power plug di-
rectly, never pull the power cord.
�The Hot Air Generator must never
be operated when the power cord
is faulty.
�Do not put any objects into the ope-
nings of the device.
�Do not leave the Vaporizer unat-
tended during operation. After use,
switch off the heater and the air
pump.
�The ventilation slots as well as the
hot air outlet of the Hot Air Genera-
�If there are any problems during
operation, immediately pull out the
power plug from the socket.
�The power cord must be unwound
over its entire length (avoid rolling
up the power cord and overlapping
the cord). It must not be exposed to
any impacts and must be kept out
of the reach of children. Also, it
must not be kept near liquids or
sources of heat and must not be
damaged. Do not wind the power
cable tightly, nor pull it over sharp
edges and never crush or kink it. If
the power cord is damaged, please
contact our Service Center to have
it replaced. Never try to repair a
power cable yourself!
�The use of multiple sockets and/or
extension cables is not re-
commended. However, if this is
absolutely necessary, only pro-
ducts with a quality certificate(such
as UL, IMQ, VDE, +S etc.) may be
used, provided the specified power
exceeds the power required (A =
Ampere) by the devices that are
connected.
�If you have any concerns, ask a
specialist to check whether the
electrical system is in accordance
with the local safety regulations.
�Install the Hot Air Generator on a
stable and dry surface at a sufficient
distance from sources of heat (oven,
stove, fireplace etc.) and in a place
where the ambient temperature
cannot drop below +5°C (+41°F).
Store the Hot Air Generator in a dry
8 9

4. OVERVIEW OF PLANTS
The amount of aromas and fragranc-
es released into the Valve Balloon
can be influenced by the following
factors:
1. Quality: The amount of aromas or
fragrances contained in the respec-
tive plant material that can be vapo-
rized.
2. Quantity: The amount of vaporiza-
tion material in the Filling Cham-
ber.
3. Surface: The finer the plant is
ground, the greater the surface
and the more aromas and fra-
grances can be released during
the vaporization cycle.
4. Temperature: The higher the tem-
peratures, the more aromas and
fragrances will be released at
once.
Please note: Increasing the tempera-
ture should be the last resort, because
plant material tastes more toasted
when using higher temperature.
Since the plant ingredients are re-
leased in a gentle manner, the vapor-
ization cycle may be repeated with the
same contents in the Filling Chamber.
Depending on the four factors de-
scribed above, the load of the Filling
Chamber may be reused multiple
times until the aromas and fragrances
are released completely. It is advised
to take out the content of the Filling
Chamber and grind it once again to
increase the surface of the original
material. An increased temperature
would activate more vapor as well, but
has a negative effect on the taste. If no
more vapors are visible at the highest
temperature, then the vaporization
material is completely exhausted and
must be replaced with new material.
However, for the best aroma results it
is advisable to replace the vaporizati-
on material before this point.
It is important to watch the vapor den-
sity in the Valve Balloon. A fine, white
vapor feels very comfortable when in-
haled. As the vapor gets denser the
taste can get too strong. A very high
intensity (density) of the vapor can
lead to irritation of the respiratory pas-
sages from the concentration of the
aromas and fragrances. In this case,
the temperature should be lowerd, so
that the intensity of the vapors is re-
duced.
It is not necessary to fill the Valve Bal-
loon completely. It is often sufficient to
fill only half or even less than half of the
Valve Balloon in order to achieve the
desired results.
The Valve Balloon is not suitable for
storing vapors over a long period be-
cause the vapors condense on the
Valve Balloon Jacket over time (a few
hours). Only fill the amount you want to
inhale within 10 minutes.
ok
Watch vapor density
5. FACTORS INFLUENCING VAPORIZATION
Below is an overview of the plants
that are suitable for vaporization in
the VOLCANO. The aromas and fra-
grances from the plant materials
listed below may be vaporized.*
Any other use is inappropriate and
potentially dangerous.
Information and up to date news
about plants suitable for vaporiza-
tion will be published on
www.storz-bickel.com.
Portion of the Temperature
Plant name Botanical name plant used setting
Eucalyptus Eucalyptus globulus the leaves 1 / 130°C (266°F)
Hops Humulus lupulus the cones 3 / 154°C (309°F)
Chamomile Matriarca chamomilla the blossoms 6 / 190°C (374°F)
Lavender Lavandula angustifolia the blossoms 1 / 130°C (266°F)
Lemon balm Melissa officinalis the leaves 2 / 142°C (288°F)
Sage Salvia officinalis the leaves 6 / 190°C (374°F)
Thyme Thymus vulgaris the herb 6 / 190°C (374°F)
The extracts (aromatic oils) of these
plants can be vaporized at up to 130°C
(266°F) with the help of the Liquid Pad
supplied with the Vaporizer. To do so,
please follow the instructions given in
chapter 12. “Liquid Pad”, page 32.
WARNING: Please consult
your doctor or pharmacist if
you have any medical con-
cerns. It is possible that some plants
may cause allergic reactions for the
user. If this occurs, it is urgently rec-
ommended to refrain from further use
of such plants. Only use the plant
parts which are found in this list and
which have been verified according to
the regulations of the European or
any other pharmacopoeia with regard
to genuineness, purity and patho-
genic germs. You can purchase such
plants or plant parts in pharmacies.*
It is important to observe the follow-
ing instructions in order to set the
VOLCANO Vaporization System with
the plant material in the best possible
way for your personal requirements.
*This statement has not been evalu-
ated by the FDA. The VOLCANO Va-
porization System is not a medical de-
vice and is not intended to diagnose,
treat, cure or prevent any disease.
10 11

Breathing Techniques
The device is not to be used, if the user
has respiratory tract or lung conditions.
Depending on the density, the vapor
could irritate respiratory tracts or lungs,
which can lead to coughing.
Inhale only half the amount of air you
Only clean the device with a damp
cloth when dirty. Please do not use any
hard or abrasive implements, such as
steel wool, metal brushes, needles,
inappropriate plastic sponges, etc.,
nor any aggressive cleaning agents.
Reassemble in
reverse order
Clean the housing with a soft cloth; or,
if need be, use a mild cleaning agent
(soap water).
6.5. Storage
Store the Hot Air Generator in a dry
place protected against the effects of
weather and out of the reach of child-
ren or unqualified persons.
6.6. In Case of Problems
Immediately unplug the power cord
and ensure that no one can connect
the Hot Air Generator to the mains
supply again without this being noticed.
If there are any faults in the electro-
nics of VOLCANO DIGIT, you can per-
form a reset by pulling out the power
plug and plugging it again after wai-
ting for a minimum of three seconds.
Put the Hot Air Generator in the origi-
nal packaging, or pack it properly in
other packing material, and take it to
our Service Center.
If the Hot Air Generator is irreparably
damaged, please do not simply throw
it away. As it is made of high quality,
completely recyclable component
parts, it should be brought to a mate-
rial recycling center in your town or
sent to our Service Center for disposal.
6.7. Troubleshooting
If the device does not function proper-
ly when the power plug is connected
to the power socket, please check the
Hot Air Generator using the tips in the
following table:
6. VOLCANO DIGIT AND CLASSIC HOT AIR GENERATORS
If you have any concerns, or if there
are any problems immediately switch
off the Hot Air Generator and pull out
the power plug from the socket. Do not
try to remedy the defect yourself. Con-
tact our Service Center directly.
Allow the device to cool down before it
is packed away.
6.4. Care and Maintenance
Before any maintenance work is done,
the device has to be switched off and
the power plug has to be unplugged
from the power supply.
At the bottom of the Hot Air Generator
is an Air Filter. The Air Filter must be
inspected for contamination every four
weeks by turning the Air Filter Cap
counterclockwise and remove the Air
Filter.
6.1. Unpacking
The box contains all components as
well as the Instructions for Use. Keep
the Instructions for Use for future refe-
rence.
Take out the Hot Air Generator and
the accessories from the box. Imme-
diately after unpacking check whether
the Hot Air Generator, the accessories,
the power cord and the power plug
are all included in the delivery and
work properly. If you notice any de-
fects, inform the seller or the delivery
agent immediately.
The packing material (plastic
bags, styrofoam material, bo-
xes etc.) must be kept out of
the reach of children as it is a potenti-
al source of danger.
Please dispose of the packing material
in a proper and environmentally friendly
manner.
We recommend keeping the original
packaging in case it is required later
(transport, Storz & Bickel Service
Center etc.).
6.2. Installation
Before installing the Hot Air Genera-
tor, make sure that the information gi-
ven on the type label on the under-
side of the device corresponds to the
local mains supply data. All parts of the
electrical system must comply with
currently applicable official regulati-
ons. Put the Hot Air Generator on a
flat and stable surface.
Take care that the power cord cannot
be damaged through kinking, crush-
ing or pulling.
Improper installation may lead
to personal injury or material
damages, for which the manu-
facturer cannot be held responsible.
6.3. Application and Operation
This Hot Air Generator was
developed for vaporizing the
plant materials listed in the
plant overview as well as their ex-
tracts. Any other use is inappropriate
and potentially dangerous.
For use and maintenance, the user
must always follow the instructions
given in these Instructions for Use.
6. VOLCANO DIGIT AND CLASSIC HOT AIR GENERATORS
can normally manage. Hold your breath
for a few seconds and then exhale
slowly. It is advisable to deliberately
concentrate on your breathing process.
For current and detailed information
please visit our website:
www.storz-bickel.com
5. FACTORS INFLUENCING VAPORIZATION
12 13

6. VOLCANO DIGIT AND CLASSIC HOT AIR GENERATORS
If the preceding tips do not
yield the desired results, or
for any other defects or pro-
blems not mentioned here, please un-
plug the power plug and contact our
Service Center immediately.
Do not open the Hot Air Ge-
nerator! Without special tools
and specialized knowledge,
any attempt to open the device will
cause damage to it. Such an attempt
will invalidate the warranty claim.
Do not try to remedy the defect your-
self. Contact our Service Center di-
rectly.
6.8. Technical Specifications
VOLCANO DIGIT and VOLCANO
CLASSIC
Voltage: 220-240 V / 50-60 Hz or
110-120 V / 50-60 Hz.
The voltage specification is located
on the bottom side of the VOLCANO
Hot Air Generator.
Heat output: 100 W
Air pump output: 11 W
Vaporization temperature:
CLASSIC adjustable between approx.
130°C- 230°C (266°F- 446°F);
DIGIT adjustable between approx.
40°C- 230°C (104°F- 446°F)
Air flow: approx. 12 l/min
Dimensions: CLASSIC and DIGIT
20.0 x 18.0 cm (7.9 x 7.1 inch)
Weight:
CLASSIC approx. 1.6 kg (3.5 lbs);
DIGIT approx. 1.8 kg (4.0 lbs)
Safety category I (electrically groun-
ded)
Please unplug to disconnect from the
mains current.
Subject to technical changes.
Patents: DE 198 03 376;
DE 100 42 396; EP 0 933 093;
EP 1 884 254; US 6,513,524.
7. VOLCANO DIGIT
7.1. Commissioning
Do not leave the device unat-
tended during operation. Put
the VOLCANO DIGIT on a flat
and stable surface.
Check whether the mains voltage cor-
responds to the voltage rating stated
on the device. The power cord and
the power plug must be in perfect
condition. Only connect the VOLCA-
NO DIGIT to a properly installed
(grounded) socket.
It is mandatory to electrically ground
the Hot Air Generator. The manufac-
turer will not bear any responsibility
whatsoever if this accident prevention
measure is not taken.
When the power plug is plugged in, the
LED display of the device lights up
briefly. At the same time, an internal
software query is performed.
The green dot on the display shows
that the Hot Air Generator is connec-
ted to the mains supply.
6. VOLCANO DIGIT AND CLASSIC HOT AIR GENERATORS
Problem Possible Cause/Remedy
No green light signal visible
on the display of the VOL-
CANO; no activation of the
heater or pump possible.
No aerosol is formed.
The Valve Balloon does not
fill up.
The device switches off
(automatic switch-off of the
VOLCANO DIGIT).
Plant particles in the Valve
Balloon (when using plant
material).
Please make sure that the current is on and
that the fuse (in the mains fuse box) is swit-
ched on and is not defective.
If the Hot Air Generator still does not function,
the internal fuses may have been triggered.
In this case, send the VOLCANO Hot Air Ge-
nerator to our Service Center.
Check the set and actual temperature.
Make sure the Filling Chamber and/or Valve
Balloon were correctly attached.
Check whether an extract (aromatic oil) has
been added to the Liquid Pad or whether the-
re is fresh, unused plant material in the Filling
Chamber.
Check whether the pump is turned on.
Check whether the Filling Chamber and/or Val-
ve Balloon are correctly attached.
No button was pressed in the last 30 minutes
– this leads to automatic switch-off. Switch he-
ater or pump on again.
Check whether the Screen in the Filling
Chamber Cap is clogged or is not inserted
into the notch properly.
Check whether the Filling Chamber was clea-
ned according to the Instructions for Use.
14 15

7. VOLCANO DIGIT
Select temperature
8.1. Commissioning
Do not leave the device unat-
tended during operation. Put
the VOLCANO CLASSIC on a
flat and stable surface. Check
whether the mains voltage corre-
sponds to the voltage rating stated on
the device. The power cord and the
plug must be in a perfect condition.
Only connect the VOLCANO CLAS-
SIC to a properly installed (grounded)
socket.
It is mandatory to electrically ground
the Hot Air Generator. The manufac-
turer will not bear any responsibility
whatsoever if this accident prevention
measure is not taken.
8.2. Heating Up
To switch on the heater, push the
rocker switch labeled “HEAT”. The
rocker switch will light up signaling
that the heater is in operation. At the
same time, the yellow control lamp
will be signaling that the device is
heating up. This heating process of
the heat exchanger can take up to 5
minutes depending upon the chosen
temperature.
As soon as the yellow control lamp
turns off, the set temperature has
been reached, and the heat exchang-
er’s warming process is complete. If
the temperature in the heat exchang-
er drops, the heat exchanger will au-
tomatically heat up, which is signaled
by the yellow control lamp lighting up
again.
The vaporization temperature may
fluctuate about ± 5°C (± 9°F) related
to the indicated values because of
the heating and cool off process of
the heat exchanger. For example at
level 6 from 185°C up to 195°C (365°F
up to 383°F).
Select the desired temperature at the
temperature regulator knob.
8.3. Temperature Setting
Vaporization Temperature Table
8. VOLCANO CLASSIC
7.2. Heating Up
To switch on the heater, push the but-
ton labeled “HEAT”. The set/actual
temperature will light up, signaling
that the heater is switched on.
At the same time, the yellow control
lamp will light up to indicate that the
device is heating up.
The upper, red display shows the ac-
tual temperature in the Filling Cham-
ber with the air pump switched on,
and the lower, green display shows
the desired set temperature. The hea-
ting process is completed when the
set value is equal to the actual value.
The heating process can take up to 5
minutes depending upon the chosen
temperature. After the heating process
is completed, the temperature is con-
stantly maintained at the set value.
The luminous intensity of the yellow
control lamp corresponds to the inten-
sity of the heating process.
Plus Temperature
Button
Minus Temperature
Button
Actual Temperature
Display (red)
Set Temperature
Display (green)
For technical reasons the tem-
perature in the Filling Chamber
cannot be measured during
vaporization. During operation the tem-
perature is measured at the heat ex-
changer. The display indicates the refe-
rence values for the attached Filling
Chamber with the air pump switched on.
7.3. Temperature Setting
When you press the plus button, the
set value is increased, and when you
press the minus button, the set value is
decreased. When you briefly tap on the
plus or minus button, the set values are
increased or decreased respectively in
1-degree increments. If you keep the
plus or minus button pressed, the set
values start running continuously in the
corresponding direction. If you simulta-
neously tap on the plus button and the
minus button, the display changes from
degree Celsius to degree Fahrenheit
and vice versa.
If the actual value is higher
than the set value, you can
speed up the cool off process
by switching on the air pump.
30 minutes after the last time
a button is pressed, the device
automatically switches off.
As long as the heater has a substantial
amount of residual warmth, the tem-
perature is displayed until it drops be-
low +40°C (+104°F). Then the display
turns off, and the green dot on the dis-
play indicates that the Hot Air Genera-
tor is connected to the mains supply.
16 17

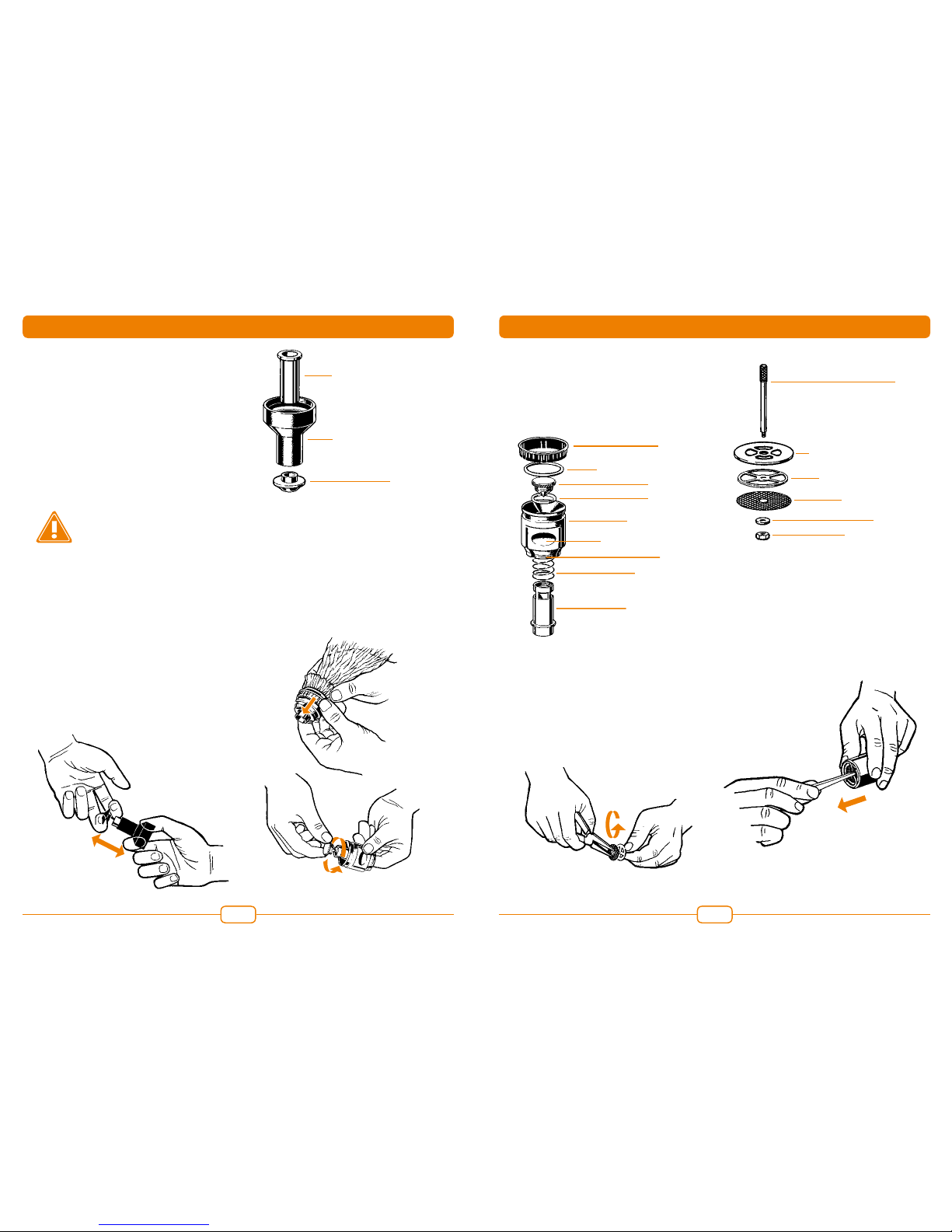

9. EASY VALVE 9. EASY VALVE
Watch vapor density
When the Valve Balloon is filled, switch
off the air pump and remove the Valve
Balloon with Filling Chamber. To do
so, hold the Filling Chamber Cap at
the textured grip.
ok
Stretch Valve
Balloon tight
Remove
Valve Balloon
with Filling
Chamber
Never leave the Filling Chamber on top
of the hot air outlet of the VOLCANO
as long as the heater is on, except
when filling the Valve Balloon. Non-
observance can lead to an overheated
Filling Chamber, which might burn
one’s fingers.
Caution! Hot surface!
Do not touch any components
of the Filling Chamber (except
at the textured grip) until they
have cooled down after the
Valve Balloon has been filled.
Put the Valve Balloon on the Filling
Chamber and allow it to lock in place.
This will open the Valve. Now the Val-
ve Balloon will fill with vapors of aro-
mas and fragrances.
Only fill the Valve Balloon with the ap-
proximate amount of vapor that you
intend to use within the next 10 mi-
nutes. Do not overfill the Valve Bal-
loon (overpressure) in order to pre-
vent the loss of vapor of aromas and
fragrances. It is important to watch
the vapor density in the Valve Balloon
(see chapter 5. „Factors influencing
vaporization“, page 11).
Fill Filling Chamber
max. 10 mm
min. 1 mm
Remove Filling Chamber Cap
Turn the Filling Chamber Cap counter-
clockwise in order to remove it from
the Filling Chamber.
Fill the desired amount of ground
plant material in the Filling Chamber.
Next screw on the Filling Chamber
Cap again.
Screw on Filling Chamber Cap
Take care that the Screens
are not obstructed with plant
material. To guarantee optimal
results, we recommend cleaning the
Screens after each vaporization cycle
with the enclosed Cleaning Brush.
Put the Filling Chamber with Cap on
the hot air outlet of the Hot Air Gene-
rator and allow it to lock in place.
Switch on the air pump. To do so,
press the green button/switch labeled
“AIR”. The Filling Chamber as well as
the vaporization material must be pre-
heated for a couple of seconds before
the aromas and fragrances start to
vaporize. Before attaching, remove the
Mouthpiece from the Valve Balloon.
approx. 5 sec
Preheat plant material
for a few seconds
Before putting the Valve Bal-
loon on the Filling Chamber,
stretch it tight so that the Bal-
loon is placed vertically on the Hot Air
Generator when it is filled.
9.1. Application and Operation
18 19
