Strava 100.600 User manual

©Copyright 2020 Strava Solutions, LLC All rights reserved
PART NUMBER: 400.600 Rev 3 Strava User Manual
REF 100.600 Standard Size
REF 100.600E
REF 100.600A
This manual must be given to the
user of the product. Before using this
product, this manual must be read and
saved for future reference.
Manufactured by:
STRAVA SOLUTIONS
2733 Kanasita Drive #125
Hixson, TN 37343 USA
STRAVA
SPLINT BATH
USER MANUAL

©Copyright 2020 Strava Solutions, LLC All rights reserved
Inspection 3
Contents of Box 3
Safety 3
Symbols 4
The Purpose of this Manual 6
Instructions for Proper Use 6
Indications for Use 6
Product Description 7
Technical Data 8
Material 9
Responsibility of the User 9
Instructions 10
Initial Set Up 10
Priming Instructions 10
Troubleshooting 14
Replacement Parts 14
Warranty/Replacements 15
Service Life 15
Storage and Handling 15
Contact the Manufacturer 15
Product Labeling 16
Contents

PAGE: 3
©Copyright 2020 Strava Solutions, LLC All rights reserved
Inspection
Safety
Contents of Box
Prior to shipment, the water baths are subjected to a thorough safety-related and functional quality
control and are carefully packed.
Check ALL parts for shipping damage. If shipping damage is noted, DO NOT USE. Contact dealer/
manufacturer for further instruction.
Products may only be returned in undamaged cardboard packaging – primarily the original cardboard
packaging.
The safety section contains important information for the safe operation and use of this product. Read
this information and any other safety information included with the product before using the splint
bath.
The Electric Shock Symbol is used to indicate a hazard arising from dangerous voltage. Any
mishandling could result in severe injury or death. The Exclamation Symbol appears in Warning and
Caution statements.
1. Splint Bath – Standard REF 100.600
2. User Manual REF 400.600
3. One of the following:
Power Cord (US) REF 300.107
Power Cord (Euro) REF 300.154
Power Cord (UK) REF 300.155
Power Cord (AU) REF 300.156
(do not use a detachable mains power cord with inadequate ratings to the Strava cord)
4. 8 ft Drain Hose REF 200.101
strava splint Bath
User ManUal

PAGE: 4
©Copyright 2020 Strava Solutions, LLC All rights reserved
DANGER!
CAUTION!
WARNING!
Danger indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
Caution indicates a potentially hazardous situation which, if not
avoided, may result in property damage or minor injury or both.
Warning indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
- Failure to follow these instructions could result in damage to
your new heating appliance and/or injury
DANGER!
CAUTION!
WARNING!
Signal words are used in this manual and apply to hazards
or unsafe practices which could result in personal injury or
property damage. See the information below for denitions
of the signal words.
sYMBols
This symbol designates where personal injury or damage to
the equipment is possible.

PAGE: 5
©Copyright 2020 Strava Solutions, LLC All rights reserved
European Union CE mark.
The CE mark indicates that this product satises the
relevant requirements of EC Directives.
Electric Shock
The Electric Shock Symbol is used to indicate a hazard
arising from dangerous voltage. Any mishandling could
result in severe injury or death.
Waste Electrical and Electronic Equipment (WEEE)
This symbol on the product or on its packaging indicates
that this product must not be disposed of with regular
waste. Instead, it is the user’s responsibility to dispose of
waste equipment according to the local laws. Separate
collection and recycling of the waste equipment at the
time of disposal will help conserve natural resources and
ensure it is recycled in a manner that protects human
health and the environment. For information about where
the user can drop o the waste equipment for recycling,
please contact your local waste collection authority.
Caution, consult the instructions for use.
Keep dry
Refer to User Manual
Product Certication Mark
Year of Manufacture
Catalogue Number
SYMBOL DESCRIPTION

PAGE: 6
©Copyright 2020 Strava Solutions, LLC All rights reserved
the pUrpose of
this ManUal
This User Manual is mainly focused on the set up, cleaning, operation and routine
maintenance of the Strava Splint Bath. These instructions help avoid dangers and repairs
while increasing product reliability. Keep this manual for future reference.
Instructions for Proper Use
Please read these instructions carefully before using the water baths.
These instructions will help avoid dangers, unnecessary repair costs and
down times. Following these instructions will increase the reliability and life
of the product.
The water bath is only intended for the heating of thermoplastic material for medical use.
•This water bath is not suitable for direct heating without using water.
•The heating of food and drinks, as well as other pharmaceutical and medical products,
is not allowed and constitutes improper use.
•Direct application on the patient is not allowed.
Indications for Use
The Strava Splint Bath is intended for use as a reservoir in hospitals, clinics and other
medical facilities to heat and soften thermoplastic used in the splinting process. The device
is intended for indoor use only.

PAGE: 7
©Copyright 2020 Strava Solutions, LLC All rights reserved

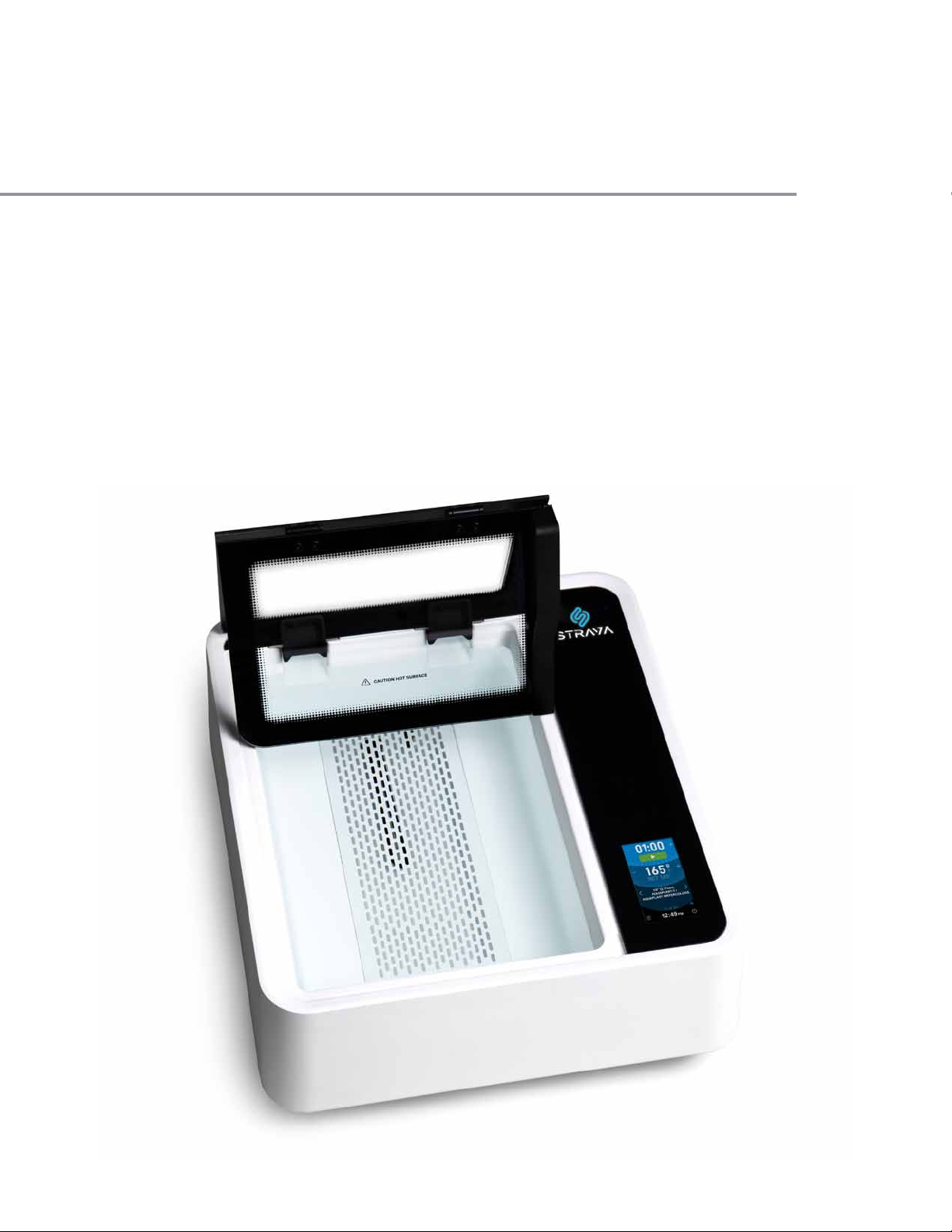

Product Description
Strava Splint Bath is a reservoir made of a thermoset composite material that holds and
heats water. The water bath allows for thermoplastic splint sheets to be softened and
made pliable to form to the body. The Strava Splint Bath has a custom LCD TOUCH display
for accurate water temperature readings, user-controlled water temperature and time
settings, thermoplastic sheet presets, user presets, sanitation cycles and automatic water
drainage. The Strava Splint Bath is equipped with three (3) MODES of cleaning: continuous
UV light, a sanitation cycle that heats the water temperature to kill levels, and quick water
evacuation. The Strava splint bath has a transparent, fold-up glass lid, a thermostat water
temperature regulator (+/-2F), and holds approximately 5 gallons of water.

PAGE: 8
©Copyright 2020 Strava Solutions, LLC All rights reserved
teChniCal Data
REF 100.600
Operating Temperature Range F 140o - 180oF
C 60o - 82oC
Temperature Variability F/C 2o
Sanitation Mode F 185o
Set Time Seconds 30 - 180
Storage (Altitude) ft 16,732 ft
Operation (Max) ft 16,732 ft
m 5100 m
m 5100 m
C 85o
Over Voltage W 11
Frequency Hz 50/60 Hz
Mains Voltage (+/- 10% of nominal voltage) V 100-120 VAC, 200-240 VAC
AC Current (Max) A <13 Amps
Water Fill Capacity Gallons 5.2 G
Litres 20 L
Water Fill Height in 5”
cm 12.5 cm
Unit Weight lbs 35 lbs
kg 15.9 kg
Unit Dims Outer (LxWxH) in 22.625”L 19.75”W 10”H
Unit Dims Inner (LxWxH) in 19”L 12”W 6”H
cm 60cm L 52cm W 25.5cm H
cm 48cm L 30cm W 15cm H
Standard IEC 61010-1, -2
Environment (Altitude)
UL 61010-1, -2
CSA C22.2#61010-1, -2
CB SCHEME
Technical Specifications Strava Splint Bath
Strava SPLINT BATH STD UM Spec
Material
Responsibility of the User
The outer chassis material is a thermoset composite material. The unit consists of
a tempered glass lid, drainage hose, water strainer, water pump, power supply and
ultraviolet (UV) light.
This product guarantees safe operation if installed, operated and maintained in
accordance with general safety rules. The operator of this device must read and
understand this manual and be trained in occupational therapy methods. All
operators are to be aware of the relevant dangers of using a hot water bath and
exercise measures to avert such dangers. In case of spillage of hazardous materials
on or inside the bath, operator must properly decontaminate the unit.

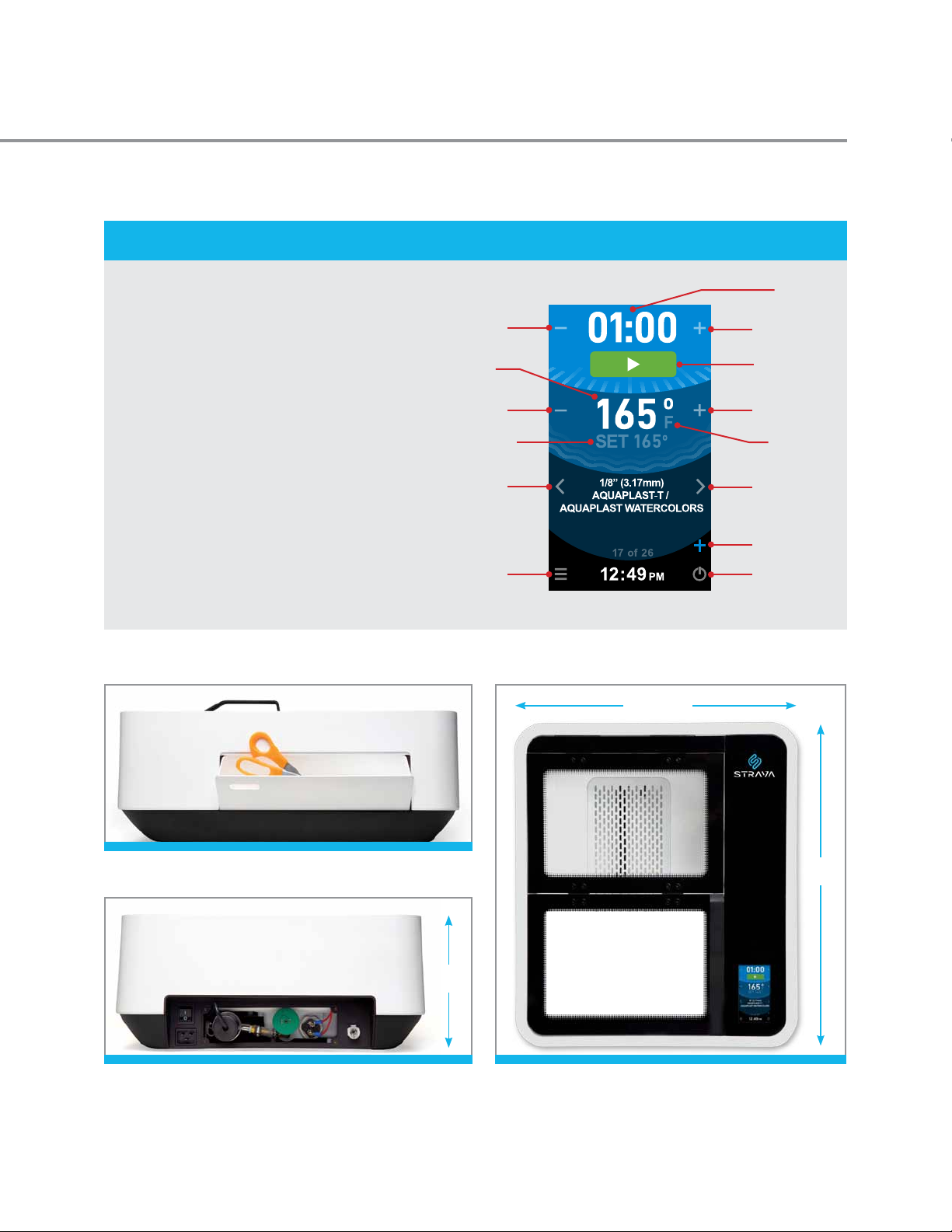

1 – Target temperature display
2 – Actual temperature display
3 – Temperature display mode °C/°F
4 – Time control up or down
5 – Timer START/STOP button
6 – Timer – time count down display
7 – Presets wheel
8 – Real time display
9 – Menu
10– Add a new preset
11 – Power down unit
4
8
7
9
4
8
7
10
11
2
13
5
6
Top Side of UnitSide of Unit
25.5cm
(10”)
60cm
(22.625”)
52cm (19.75”)
Rear of Unit
Inner Tub
30cm x 48cm x 15cm
(12” x 19” x 6”)
(w x l x h)
PAGE: 9
©Copyright 2020 Strava Solutions, LLC All rights reserved
Control Panel

PAGE: 10
©Copyright 2020 Strava Solutions, LLC All rights reserved
Initial Set Up
NOTE: Use tap water to fill unit. If you are in a hard water environment where distilled water
is preferred, add one cup of tap water to every gallon of distilled. Unit may not function
properly if distilled water is exclusivley used.
1Unpack the splint bath and place on a level surface that is
capable of bearing the bath and water load. Be sure there
is adequate space between the vent and wall for
ventilation. Make sure that all packaging materials are
cleared from the reservoir.
2Plug the Strava supplied power cord (do not use any
other power cord other than supplied by Strava) into the
back of the unit and a dedicated wall receptacle.
(Protective Earthing - a dedicated electrical circuit is
recommended). Be sure that thepower is off prior to
filling the tank with water.
3Fill the reservoir with water just above the water sensor
(approximately 2”/5cm). Gently lift the front of the unit
until the water travels to the base of the heater. This
process is to prime the unit - it removes any trapped air
and the pump will engage.
4Continue filling the tank to approximately 5 inches depth
or to the bottom of the internal hinge line. Flip the switch
at the back of the unit to turn the unit “on”. At initial
powering up of the bath, the start up wizard will display
on the LCD screen.
•Start up wizard will prompt user to set time, day of
the week, and temperature.
•Unit must be primed before operation. If it doesn’t
prime correctly, a loud humming sound from the
pump will be evident and the water will not lightly
bubble.
•Note: Sanitation cycle defaults to “on”.
instrUCtions
WARNING: Do not start the unit if the cable or plug is damaged, if there are obvious,
visible defects to the unit, or if the drain valve is not adequately closed.
Location of Sensor
Lift Unit

PAGE: 11
©Copyright 2020 Strava Solutions, LLC All rights reserved
Control panel:
The touchscreen LCD display lights up when the unit is turned on. The control
panel functionality provides the user with options to customize the device for
their needs.
•The home screen consists of the session time, current water
temperature, set temperature, presets, real time, and a menu icon.
•Presets are factory installed temperature and time suggestions
that are specific to the thermoplastic selected. These are
recommendations provided by the thermoplastic manufacturer.
Time and temperature can be changed prior to or during a session
by depressing – or + on the home screen. View all factory presets
with the horizontal scroll on the home screen with < or >
•Note: the wavy white lines indicates that the water is heating up.
It will change to green box with > symbol when the set temp is
reached and the session can begin.
The menu consists of the following features:
•Set auto on/off – this feature automatically sets “on” time and “off”
time for specific days of the week. Factory default for this is off. This
feature preheats the water to reach set temperature prior to a
session starting and to save energy in the evening when not in use.
•Water evacuation – when “start” button is pushed, the pump will
evacuate the water via the drain hose. Important: be sure that
the drain hose is properly inserted in the back of the unit. Drainage
can be stopped at any time by pushing the “stop” button. The pump
will automatically stop once the water level has sufficiently dropped.
•Sanitation cycle – Strava Solutions highly recommends daily
sanitation of the splint bath. The sanitation cycle factory default is
“on”. The unit is set to engage in a nightly sanitation cycle at
8:00pm (20:00 hrs) Sunday through Thursday. The time and day
can be modified by clicking “auto sanitation”. When sanitation cycle
is engaged, the unit will heat the water to an extremely high
temperature (~ 185oF/85oC) to kill microbes in the water. After the
sanitation cycle is completed, the unit will return to last preset used
(depending upon unit was set auto on/off).
Home Screen

New User Preset
PAGE: 12
©Copyright 2020 Strava Solutions, LLC All rights reserved
•RISK OF SEVERE BURN!
•Keep the lid closed during sanitation cycle. Do not insert any
thermoplastics or any other materials into the bath during
sanitation cycle. Do not put hands or appendages in the water.
•Helpful tips – this screen provides the user with helpful tips and
information about the Strava splint bath.
•Presets – in addition to the factory presets, the user can program
desired presets by name. Up to 50 user-defined presets can be stored in
the unit. The default time for a new user preset is 1:00 minute and the
default temperature is 155o F/68o C.
•To add a new user preset: 1. go to user presets in the menu, click +,
enter the material size (if desired), the sheet name, and adjust the
time and/or temperature with – and +. Click save after each selection.
2. From the home screen, click the + in the bottom right corner
beside the displayed preset. Enter the material size (if desired), the
sheet name, and adjust to the desired time and/or temperature with
the – and +. Click save.
•To modify an existing preset: go to user presets in the menu, click
on modify, make desired time and/or temperature change with –
and +. Click save.
• Note: factory preset names cannot be changed or deleted. User
defined presets can be removed.
•Temp setting – set in degrees Fahrenheit (F) or Celsius (C). Factory
default is F.
•Set time - set the real time clock with scroll wheel in either 12 hour or
24 hour time display. Factory default is 12 hour display mode.
•Audio/visual – adjust the screen brightness and the volume of auditory
signals. A beeping sound engages the last ten seconds of a session to
alert the user.
Note: audio can be shut off except on certain error message screens.
•Factory reset – CAUTION! by clicking reset, all factory defaults will be
restored and all user-defined presets will be erased.
If sanitation cycle is manually turned on, the 5 minute cycle will run when the “start” button is depressed.
The water temperature is displayed on the control panel during the sanitation cycle. At the conclusion of
the cycle, the water temperature last used preset temperature.
Only if auto on/off has been set will the unit go into sleep mode after auto sanitation.
instrUCtions Cont.
CAUTION! WARNING! DANGER!

PAGE: 13
©Copyright 2020 Strava Solutions, LLC All rights reserved
General Use:
Emptying the Water:
Cleaning the bath:
•Once the unit is filled to desired water level, the power is on, the preset is fixed,
and the set temperature has been reached, the unit is ready for the thermoplastic
materials.
• Insert the splinting material into the reservoir, being careful not to splash hot water
outside the tank.
• Press start (green button with arrow on home screen). At any time during a session,
the timer can be paused and restarted from the beginning or from the time the unit
was paused.
• To maintain an accurate water temperature, retain heat, and minimize evaporation,
keep lid closed.
• Use caution when retrieving the material from the bath. Apply the material to the
patient as per the splint manufacturer’s instruction.
• Maintain sufficient water level at all times. (approx 5”/13cm deep).
•Allow the water to cool before water evacuation. Water will not drain unless the water
temperature is below 165o F/74o C.
•Be sure that the drain hose is properly inserted at the back the unit. The water will not
drain if the hose is not connected.
•In the menu on the control panel, click on H2O Evacuation and press start.
•Once the bath is empty, proceed with tank cleaning.
•Strava recommends a minimum of a monthly water reservoir cleaning (more frequently
if conditions warrant it)
•Turn the power switch off and unplug the unit from the wall receptacle.
•Using a soft cloth with mild detergent, wipe out the reservoir. Sanitation wipes
(i.e CaviWipes, Sanizide, etc can be used). For hard water spots, use a vinegar and
water solution. Rinse and wipe dry.
•Refill with water as per the instructions for filling the tank. (found in initial start up
section of the manual)
• Note: do not use bleach, diluted bleach or peroxide-based agents in the water bath.
Note: The water pump and UV light are always on during normal operation of the unit.

PAGE: 14
©Copyright 2020 Strava Solutions, LLC All rights reserved
Troubleshooting
Replacement Parts
Over temp:
If the unit exceeds 195o F (91oC) turn off main power and contact technical service at
technicalservice@kismetus.
Low water:
1. If there is water in the reservoir, turn off the main power and contact technical service.
2. If there is no water in the reservoir, turn off the main power and investigate possible
causes - water evaporation or unit leakage.
•Water evaporation - always maintain adequate water volume in the tank.
• Water leakage - turn off main power and contact technical service.
UV lamp defective:
Turn main power off. Unplug cord from unit and wall. Remove rear access panel via 4 screws.
Carefully remove black rubber boot from UV housing, allowing the lamp to slide out of the
housing. Disconnect lamp from connectors on both ends. Replace bulb. Reconnect at both ends
and insert new bulb back into the housing. Attach rear access panel. Dispose of defective bulb
according to local regulation.
Pump occlusion:
Refers to blockage in the water system.
1. If evacuating the water, stop evacuation mode and contact technical service.
2. In standard operation, turn off the main power and contact technical service.
Temp sensor error:
Refers to the water temperature exceeding 195oF (90.5oC). If the over temp error message displays:
1. While evacuating the water, pause evacuation, wait for the water to cool, then resume
evacuation. Unplug cord from unit and wall. Contact technical service.
2. During standard operation, unplug cord from unit and wall. Contact technical service.
Consult manufacturer if there is any doubt of the compatibility of decontamination or cleaning
agents.
Heating Element REF 300.100
UV Lamp REF 300.105
Mains Power Cord (US Hospital Grade) REF 300.107
Mains Power Cord (Euro Hospital Grade) REF 300.154
Mains Power Cord (UK Hospital Grade) REF 300.155
Mains Power Cord (AU Hospital Grade) REF 300.156
Hose REF 200.101

PAGE: 15
©Copyright 2020 Strava Solutions, LLC All rights reserved
Warranty/Replacements
Service Life
Contact the Manufacturer
Storage and Handling
Strava Solutions warrants that its products are free from defects in material or
workmanship. Under normal use and following all guidelines defined in this manual,
Strava splint baths are warrantied for a period of one year from when product is received.
Should replacement or repair be required, purchaser must notify dealer or manufacturer
in writing. After obtaining an RA (returned goods authorization), product must be
returned in original packaging.
We estimate a service life of five years for this product, provided it is used in strict
accordance with the intended use as set out in this document and all maintenance and
service requirements are met. The estimated service life can be exceeded if the product
is carefully used and properly maintained, and provided technical and scientific advances
do not result in technical limitations. The service life can also be considerably reduced by
extreme or incorrect usage. The fact that we estimate a service life for this product does
not constitute an additional warranty.
General Information:
email: [email protected]
tel: [phone]
Technical Service:
email: [email protected]
tel: [phone]
•Check the power cord and plug for excessive wear or fraying. Replace as needed.
Do not use a detachable mains power cord with inadequate ratings. Only replace
with a Strava power cord.
It is recommended the following guidelines are used whenever this system is being stored
or transported to another location:
Operation: 32oF – 104oF (0oC – 40oC)
Storage: 32oF – 140oF (0oC – 60oC)
2Pollution degree
Operation: Up to 80%
Storage: Up to 90%, non-condensing
Environment (Temperature)
Environment (Humidity)

Strava Solutions, LLC
2733 Kanasita Drive, #125
Hixson, TN 37343 USA
TEL: [phone]
EMAIL: [email protected]
[email protected]
www.Stravasolutions.com
MANUFACTURED BY:
