3000-Lb. Vehicle Positioning Jacks
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #61132

Page 2 of 14
Thank you very much for choosing a Strongway™product!
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code: ________________________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
These jacks are designed for certain applications only. Northern Tool
and Equipment is not responsible for issues arising from modification or
improper use of these products such as an application for which they are
not designed. We strongly recommend that these products not be
modified and/or used for any application other than that for which they
were designed.
For technical questions, please call 1-800-222-5381.

Page 3 of 14
Table of Contents
Intended Use..........................................................................................................................................4
Technical Specifications......................................................................................................................4
Important Safety Information...............................................................................................................4
Specific Operation Warnings...............................................................................................................5
Operating Instructions..........................................................................................................................6
Maintenance ..........................................................................................................................................9
Troubleshooting....................................................................................................................................9
Parts Diagram......................................................................................................................................10
Parts List..............................................................................................................................................11
Replacement Parts..............................................................................................................................12
Limited Warranty.................................................................................................................................13

Page 4 of 14
Intended Use
The Strongway 3000-Lb. Vehicle Positioning Jack set maneuvers vehicles in any direction on 4 strong
casters. Using two jacks permits a full 180° vehicle pivot; using 4 jacks places the vehicle on a 360°
rolling platform.
Technical Specifications
Property
Specification
Size of Caster (in.)
4
Construction
A3 Steel
Wheel
Handles Wheels Up to 12”
Capacity (lb.)
1500 Per Jack
Important Safety Information
⚠WARNING
Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this tool. Always be
aware of the environment and ensure that the tool is used in a safe and responsible manner.
Do not allow persons to operate or assemble the product until they have read this manual and
have developed a thorough understanding of how it works.
Do not modify this product in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the product
was designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. This
product will be safer and do a better job at the capacity for which it was intended. DO NOT use
this equipment for a purpose for which it was not intended.
Industrial or commercial applications must follow OSHA requirements.
⚠WARNING
WORK AREA SAFETY
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas
may put you dangerously close to cutting tools and rotating parts.
Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the presence
of flammable liquids, gases, or dust. The product can create sparks, which may ignite the
flammable liquids, gases, or dust.
Do not allow the jack set to come into contact with an electrical source. The tool is not insulated
and contact will cause electrical shock.

Page 5 of 14
Keep children and bystanders away from the work area while operating the tool. Do not allow
children to handle the product.
Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your
work area. Some of these hazards may be hidden from your view and may cause personal injury
and/or property damage if contacted.
⚠WARNING
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use
the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of
inattention while operating the tool may result in serious personal injury.
Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts. Air vents on the tool often cover moving parts and should be avoided.
Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety
goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust mask in
dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection systems,
and hearing protection when appropriate. This applies to all persons in the work area.
Do not overreach. Keep proper footing and balance at all times.
⚠CAUTION
JACK SET USE AND CARE
Do not force the jack set. Products are safer and do a better job when used in the manner for
which they are designed. Plan your work, and use the correct product for the job.
Check for damaged parts before each use. Carefully check that the product will operate properly
and perform its intended function. Replace damaged or worn parts immediately. Never operate the
product with a damaged part.
Store the jack set when it is not in use. Store it in a dry, secure place out of the reach of children.
Inspect the tool for good working condition prior to storage and before re-use.
Use only accessories that are recommended by the manufacturer for use with your product.
Accessories that may be suitable for one product may create a risk of injury when used with
another tool. Never use an accessory that has a lower operating speed or operating pressure than
the tool itself.
Specific Operation Warnings
⚠WARNING
Study, understand, and follow all instructions before operating the jack set.
Do not exceed the rated load capacity.

Page 6 of 14
Use only on a hard, level surface.
Before moving, lower the load to the lowest possible point.
Apply load as close to the vertical portion of the lifting member as possible.
Before moving the load, assure that the load is centered and secured with a load restraint device.
No alterations should be made to this jack set.
Failure to heed these markings may result in personal injury and/or property damage.
Operating Instructions
⚠WARNING
Do not exceed the rated load capacity.
Use only on a hard, level surface.
Do not start the vehicle’s engine, or drive with jacks in use. Jacks are designed for hand
maneuvering of vehicles only.
Do not use the jacks to lift tires wider than 12 inches.
Do not attempt to push the jacks over obstacles. They are designed to be used on level and
smooth surface only.
After lifting, be sure to always lock the pin in place before operating. Pull the pin our after finishing
work and then release the valve.

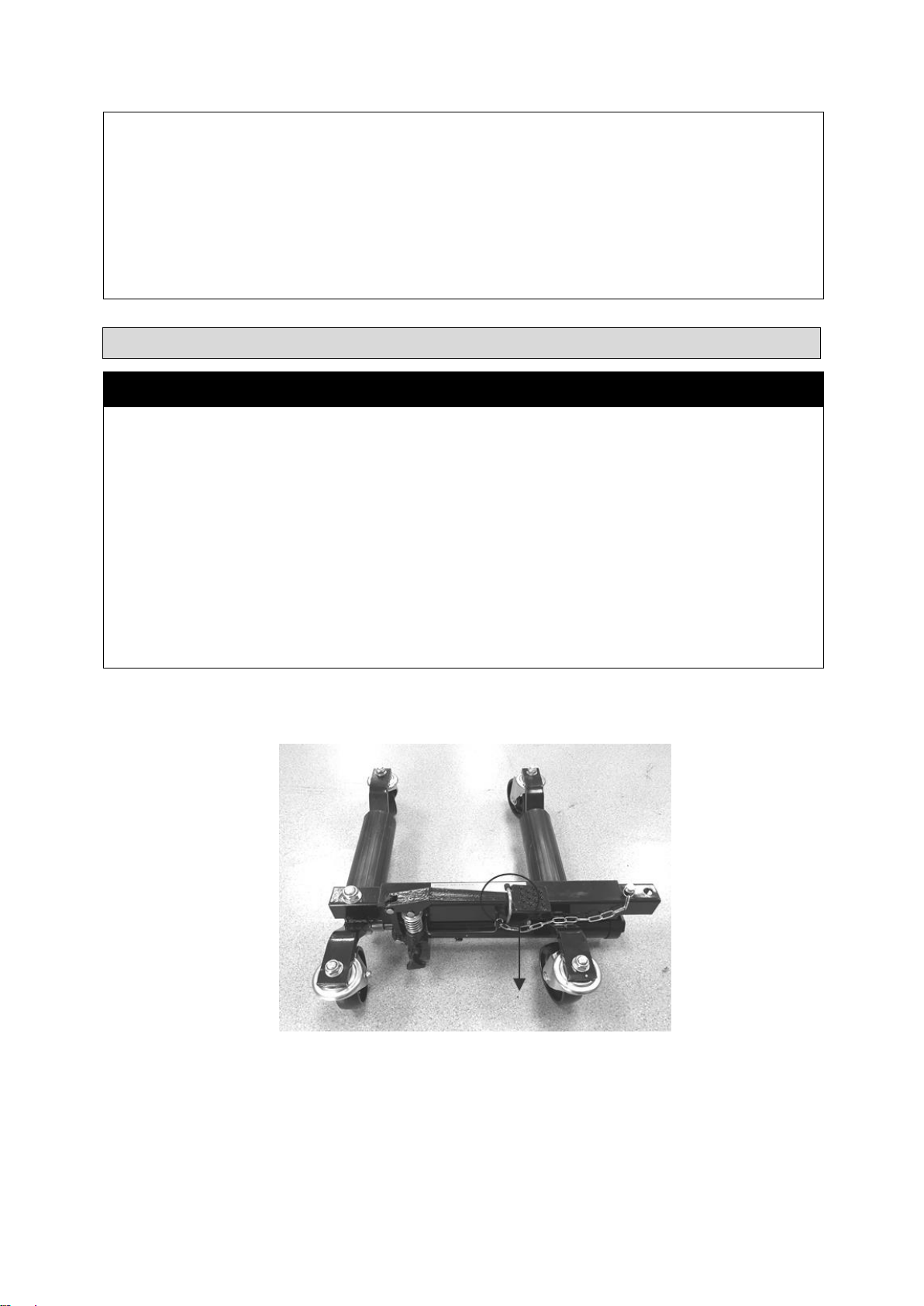

1. Place jack on floor and press the pedal down to release the pedal lock.

Page 7 of 14

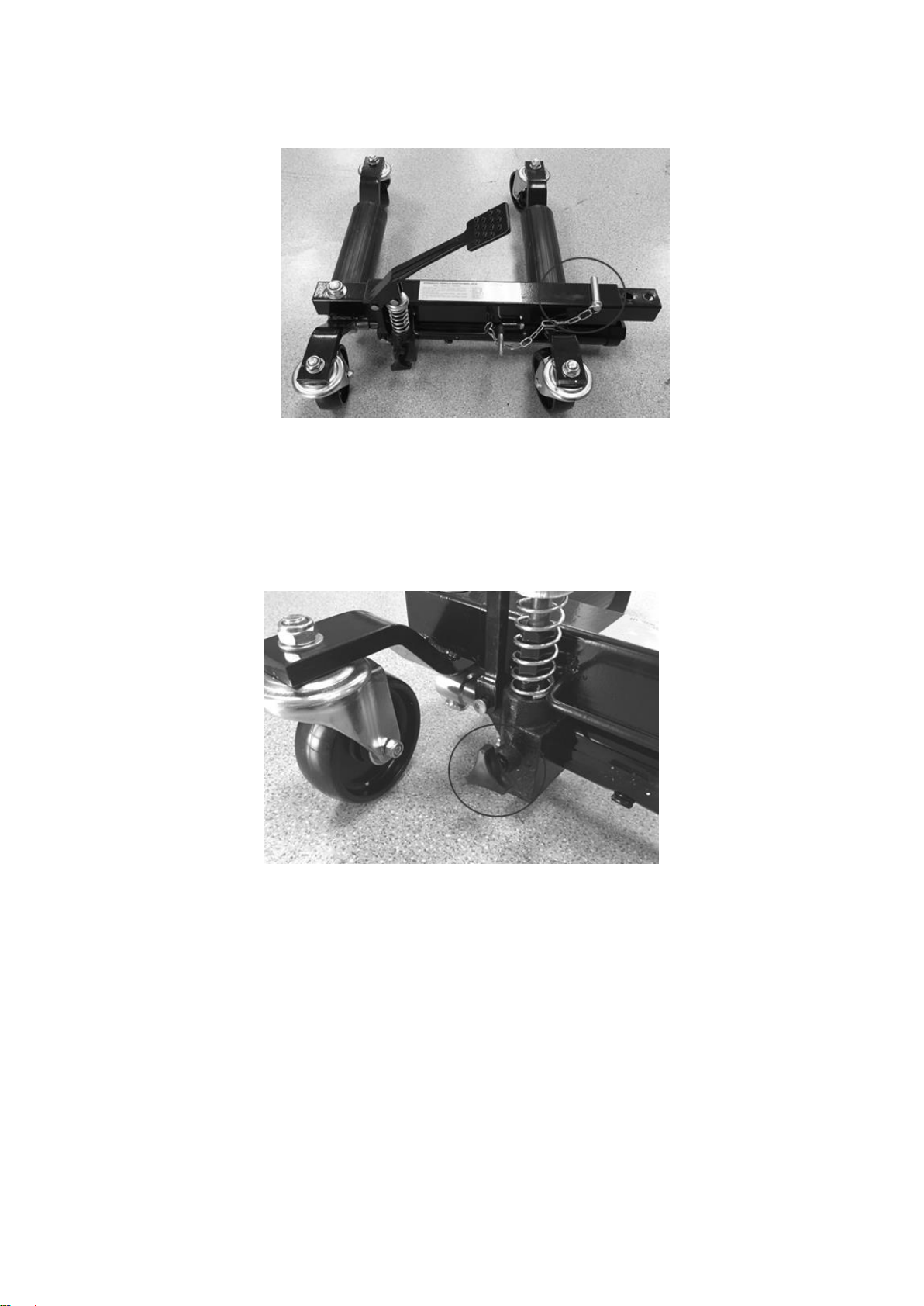

2. Pull the lock pin out from the frame.
3. Before operation, open the release valve by turning the hand-wheel counter-clockwise. Expand
the jack with the hand-wheel to place the rollers around the tire; position the jack so both rollers
are in contact with the tire tread. To obtain the best control of the jack while expanding the rollers
around the tire, place your left hand on top of the left side axle and place your right hand at the
center of the pedal. Close the release valve by turning the hand-wheel clockwise to a snug and
tight position. The jack may now be used.

Page 8 of 14
4. Install the jack so that the unit is parallel to the sidewall of the tire to be lifted. Leave
approximately 3/4" of clearance between tire and jack.
This is very important: If the unit is misaligned, the tire may hit the axle of the jack and not the
rollers. This may damage the jack and void the warranty.
5. To lift the tire, flip the directional lever up, then place a foot on the pedal, depressing the pedal
with smooth, even strokes. Cycle the pedal until the tire is lifted from the surface one inch or less.
After lifting, the lower the tire is to the ground the more stable the jack will be. After lifting, be sure
to always lock the pin in place before operation. If using more than one jack, repeat the process
on the other tires and maneuver the vehicles as required.
6. To release the jack, pull the pin out from the frame and open the valve by slowly turning the hand-
wheel counter-clockwise. The jack may be removed when the rollers disengage from the tire.

Page 9 of 14
Maintenance
Maintain the jack set by adopting a program of conscientious repair and maintenance in accordance
with the following recommended procedures. It is recommended that the general condition of any tool
be examined before it is used. Keep your tool in good repair. Keep handles dry, clean, and free from
oil and grease. The following chart is based on a normal operation schedule.
Maintenance Interval
Maintenance Point
Daily before operating
Use only a small amount of soap and a damp cloth to clean
the jack set.

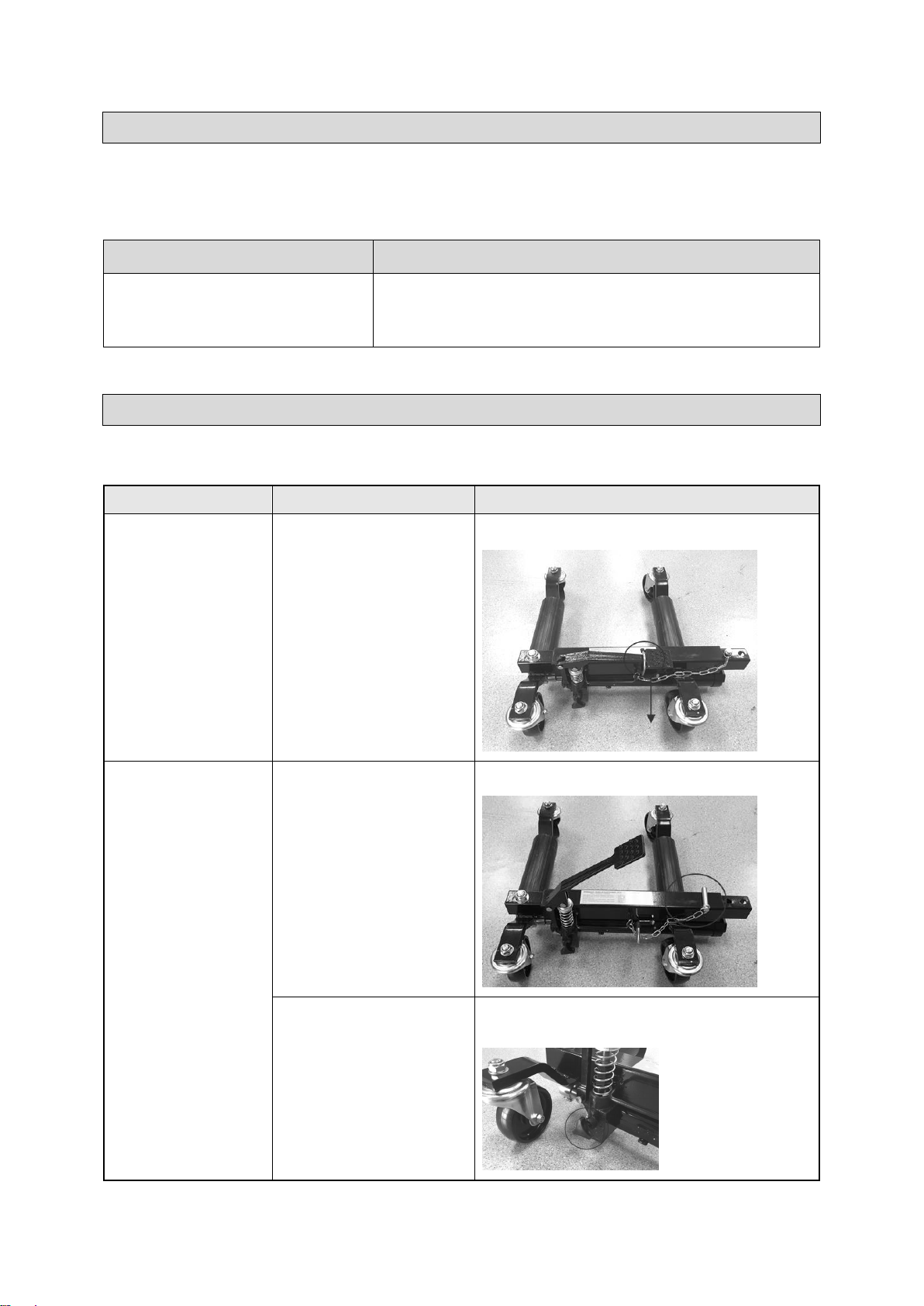

Troubleshooting
Use the table below to troubleshoot problems before contacting service personnel or your local
dealer. If the problem continues after troubleshooting, call your local dealer for assistance.
Failure
Possible Cause
Corrective Action
The pedal will not
move properly.
The pedal lock is locked.
Release the pedal lock.
Cannot open the jacks.
The lock pin is still in the
frame.
Pull the lock pin out from the frame.
The valve is locked.
Open and release the valve by turning the hand-
wheel counter-clockwise.

Page 10 of 14
Parts Diagram

Page 11 of 14
Parts List
Part Number
Part Description
Quantity
1
Ram assembly
1
2
Bolt M16x15
1
3
Flat washer Ø16
1
4
Nut M16
1
5
Roller raceway
4
6
Roller
2
7
Raceway lock screw
8
8
Lock nut M12
4
9
4”Swivel castor
4
10
Left frame
1
11
Lock pin with chain
1
12
Screw M6x20
4
13
Lock washer Ø6
4
14
Flat washer Ø6
4
15
Right frame
1
16
Hook
1
17
Washer for hook
1
18
Nut for hook
1
19
Foot pedal
1
20
Pedal pin Ø8x28
3
21
Connecting rod
1
22
Connecting bolt
1
23
Spring cover
1
24
Flat washer
1
25
Spring
1
26
Pump
1
27
Pump core
1
28
O-ring
1
29
Back-up ring
1
30
Screw M10x1.25
1
31
Small spring
1
32
Steel ball Ø6
3
33
Cylinder copper washer
1
34
Ram base
1
35
Copper washer
1
36
Screw M5
2
37
Steel ball Ø5
1
38
Rectangle seal ring
1
39
Release valve
1
40
Tank washer
2
41
Ram
1
42
Cylinder
1
43
Oil plug
1
44
Tank
1
45
Y-ring
1
46
Piston
1
47
Piston O-ring
1
48
Bowl seal ring
1
49
Tank nut
1
50
Steel ball Ø6
1
51
Steel ball seat
1
52
Safety valve spring
1

Page 12 of 14
Part Number
Part Description
Quantity
53
Safety valve screw
1
54
O-ring
1
55
Screw
1
Replacement Parts
For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
Not all product components are available for replacement. The illustrations provided are a
convenient reference to the location and position of parts in the assembly sequence.
When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part reference number.
The distributor reserves the rights to make design changes and improvements to product lines
and manuals without notice.

Page 13 of 14
Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or "Us'') warrants to the original purchaser only
("You'' or "Your") that the Strongway product purchased will be free from material defects in both
materials and workmanship, normal wear and tear excepted, for a period of one year from date of
purchase. The foregoing warranty is valid only if the installation and use of the product is strictly in
accordance with product instructions. There are no other warranties, express or implied, including the
warranty of merchantability or fitness for a particular purpose. If the product does not comply with this
limited warranty, Your sole and exclusive remedy is that We will, at our sole option and within a
commercially reasonable time, either replace the product or product component without charge to You
or refund the purchase price (less shipping). This limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect,
misuse, or as a result of any accident or in any other manner; (c) damage from misapplication,
overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration
in any manner by anyone other than Us, with the sole exception of alterations made pursuant to
product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make
and model number, and follow the claim instructions that will be provided. The product and the
purchase receipt must be provided to Us in order to process Your warranty claim. Any returned
product that is replaced or refunded by Us becomes our property. You will be responsible for return
shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty
or any other warranty related to the product. We shall not be liable for: service or labor charges or
damage to Your property incurred in removing or replacing the product; any damages, including,
without limitation, damages to tangible personal property or personal injury, related to Your improper
use, installation, or maintenance of the product or product component; or any indirect, incidental or
consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified
use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary
from state to state. Some states do not allow limitations or exclusions on implied warranties or
incidental or consequential damages, so the above limitations may not apply to You. This limited
warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to
conflicts of law. The state courts located in Dakota County, Minnesota shall have exclusive jurisdiction
for any disputes relating to this warranty.

Page 14 of 14
Distributed by:
Northern Tool & Equipment Company, Inc.
Burnsville, Minnesota 55306
www.northerntool.com
Made in China
