Strongway 46260 User manual

20 TON SHOP PRESS
OWNER’S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before
operating. Failure to follow the safety rules and other basic safety precautions may result in
serious personal injury.
Item# 46260

2
Thank you very much for choosing a Strongway product! For future reference, please complete the
owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to
become familiar with this product before you begin using it.
This machine is designed for certain applications only. The distributor cannot be responsible for issues
arising from modification. We strongly recommend this machine not be modified and/or used for any
application other than that for which it was designed. If you have any questions relative to a particular
application, DO NOT use the machine until you have first contacted the distributor to determine if it can
or should be performed on the product.
For technical questions please call 1-390-623-1536.
INTENDED USE
This Shop Press is designed for automotive, truck, implement, fleet, and industrial repair shops where
pressing, bending, straightening and forming tasks are required. Typical applications include installation
and removal of alternator and power steering pump bearings, axle bearings, transmission bearings,
seals, U-joints and many other jobs.
TECHNICAL SPECIFICATIONS
Description
Item
46260
Capacity
20 Ton
Bed Opening
24.4 inch
Work Range
0~ 39-5/16 inch
Stroke Length
5-1/2 inch
Inside Bed Dimensions L x W
23.94 x 5.91 inch
Dimensions L x W x H
59.45x29.53x23.6 inch

3
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed
below may result in serious injury.
CAUTION: Do not allow persons to operate or assemble this Shop Press until they have
read this manual and have developed a thorough understanding of how the Shop Press works.
WARNING: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be understood
by the operator that common sense and caution are factors which cannot be built into this product, but
must be supplied by the operator.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY CONSIDERATIONS
SHOP PRESS USE AND CARE
Do not modify the Shop Press in any way. Unauthorized modification may impair the function
and/or safety and could affect the life of the equipment. There are specific applications for which the
Shop Press was designed.
Always check of damaged or worn out parts before using the Shop Press. Broken parts will
affect the Shop Press operation. Replace or repair damaged or worn parts immediately.
Store idle Shop Press. When Shop Press is not in use, store it in a secure place out of the reach of
children. Inspect it for good working condition prior to storage and before re-use.
Not for use by children or people with reduced mental capacity.
Do not use under the influence of drugs or alcohol.
Ensure children and other bystanders are kept at a safe distance when using shop press.
INSPECTION
Inspect the shop press carefully before each use. Ensure the shop press is not damaged,
excessively worn, or missing parts.
Do not use the shop press unless it is properly lubricated.
Using a shop press that is not in good clean working condition or properly lubricated may cause
serious injury.
Inspect the work area before each use. Make sure it is free and clear of any potential hazards.

4
DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUR READING THIS
MANUAL.
To maintain the Shop Press and user safety, the responsibility of the owner is to read and follow these
instructions. Inspect the service shop press for proper operation and function. Keep instructions readily
available for equipment operators. Make certain all equipment operators are properly trained;
understand how to safely and correctly operate the unit. Allow unit operation only with all parts in place
and operating properly. Use only genuine replacement parts. Service and maintain the unit only with
authorized or approved replacement parts negligence will make the shop press unsafe for use and void
the warranty. Carefully inspect the unit on a regular basis and perform all maintenance as required.
Store these instructions in the handle of your shop press. Keep all decals on the unit clean and visible.
Safety always follow safety precautions when installing and operating this shop press. Keep all decals
on the unit clean and visible. Before proceeding that you fully understand and comprehend the full
contents of this manual. Failure to operate this equipment as directed may cause injury or death. The
distributor is not responsible for any damages or injury caused by improper use or neglect
SAFETY MARKINGS
WARNING:
1. Study, understand, and follow all instructions before operating the device.
2. Do not exceed rated capacity.
3. Prior to use, make sure the press is securely anchored.
4. The press shall be installed and operated in accordance with federal (OSHA), state, and local safety
standards.
5. Ensure the work area is clean and free of any hazards before operation.
6. Operators and observers shall wear eye protection that meetsANSI Z87.1 and OSHA standards.
7. Keep hands, arms, feet, and legs out of the work area.Accidental slippage can result in personal
injury.
8. Use appropriate guarding to contain any pieces that may break or fly apart when applying force.
9. Use only press accessories having a capacity rating equal to or greater than the capacity of the
press.
10. Verify lift cables are slack before pressing on the bolster.
11. Avoid off-center loads.
12. No alterations shall be made to the product.
13. Do not use this press for any use other than the manufacturer specified usage.
14. Failure to heed and understand these instructions and markings may result in personal injury,
property damage, or both.

5
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFETY INSTRUCTIONS AND
WARNINGS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE OF WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE TO PROPERTY AND/OR SERIOUS
PERSONAL INJURY. PLEASE KEEP THIS INSTRUCTION MANUAL SAFE FOR FUTURE USE.
We’ve done all we can to assure this press offers the outmost in safety, but you have to do your part. No
amount of warning can take the place of your good judgment, so make sure it’s the first thing you bring to
any job. Beyond that here are some obvious tips:
Steel and other materials can shatter, so always use protective eyewear that complies with the
appropriate ANSI code.
If you detect anything that may indicate imminent structural failure, stop using the press immediately
and inspect it thoroughly.
Bolt the press to the floor if it is to be used on bulky or unstable items.
Do not use press to compress springs or any other item that could disengage and cause a potential
flying hazard.
Use this press for the purpose for which it is intended. Do not use it for any other purpose it is not
designed to perform.
Keep children and unauthorized persons away from the work area.
Contain loose fitting clothing. Remove ties, watches, rings and other loose jewelry and contain long
hair.
WearANSI approved impact safety goggles, full-face impact safety shield and heavy-duty work
gloves when operating the press.
Keep proper balance and footing, do not overreach and wear nonskid footwear.
Only use this press on a surface that is stable, level, dry and not slippery, and capable of sustaining
the load. Keep the surface clean, tidy and free form unrelated materials and ensure that there is
adequate lighting.
Inspect the press before each use. Do not use if bent, broke, cracked, leaking or otherwise damaged.
Do not use if any suspect parts are noted or if the shop press has been subjected to a shock load.
Check to ensure that all applicable bolts and nuts are firmly tightened.
Ensure that work piece is center-loaded and secure.
Keep hands and feet away from bed area at all times.
Do not use the shop press to compress spring or any other item that could disengage and cause a
potential hazard. Never stand directly in front of loaded press and never leave loaded press
unattended.
Do not operate the press when you are tired or under the influence of alcohol, drugs or an
intoxicating medication.
Do not allow untrained persons to operate the press.
Do not make any modifications to the press.
Do not use brake fluid or any other improper fluid and avoid mixing different types of oil when adding
hydraulic oil. Only good quality hydraulic jack oil can be used.
Do not expose the press to rain or any other kind of bad weather.
If the press needs repairing and/or there are any parts that need to be replaced, have it repaired by
authorized technicians and only use the replacement parts supplied by the manufacturer.

6
Assembly
All numbers in parenthesis () refer to the index number from the parts breakdown.
1. Attached the two base support sections (10) and lower cross member (9) to the left and right frame
posts using bolts (11), washers (14), lock washers (13) and nuts (12).
2. Put the press frame in an upright position and attach the upper crossbeam (1) to left and right posts
(4) using bolts (3), washer (5), lock washer (6) and nuts (7).

7

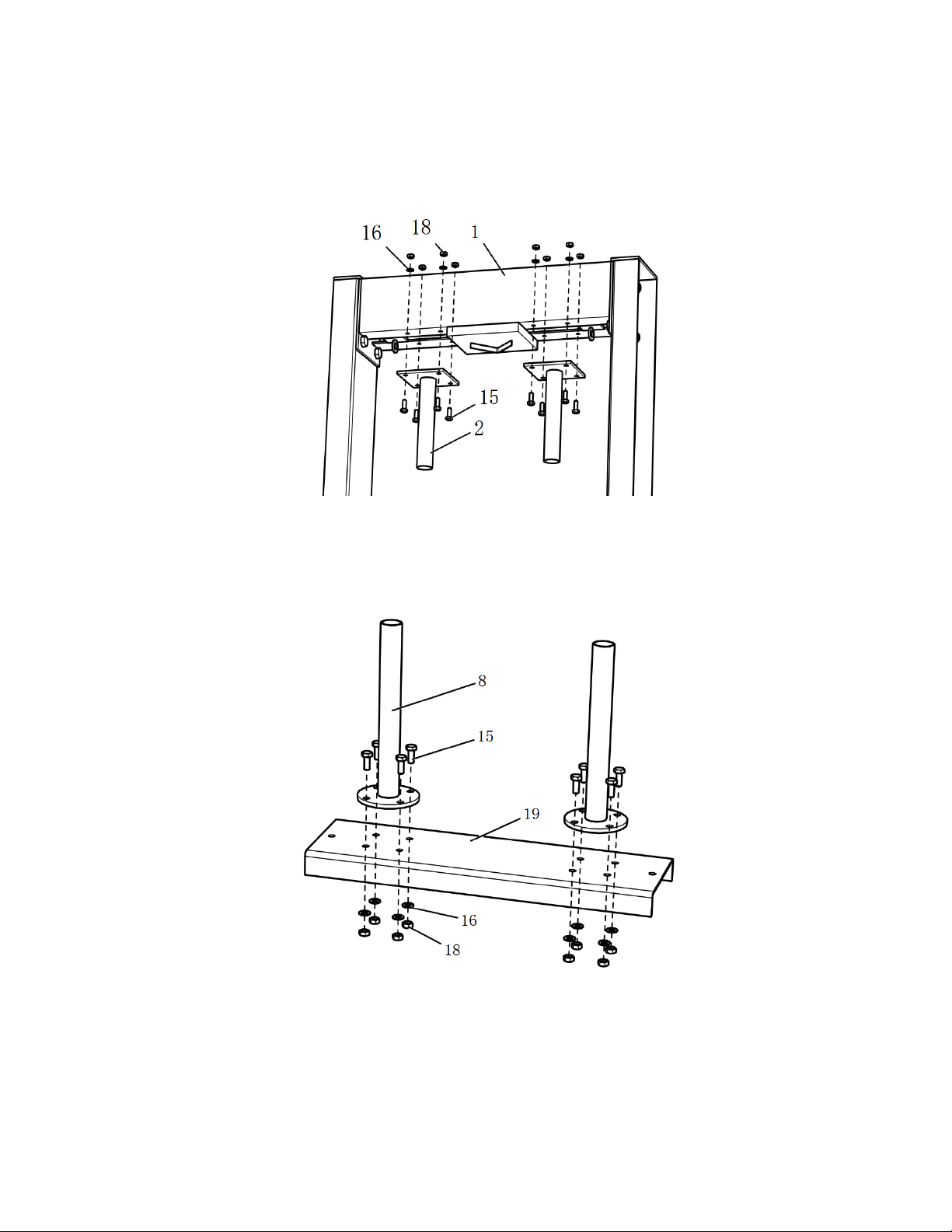

3. Attach the upper alignment tubes (2) by inverting the tubes facing down. Then attach the alignment
tubes under the upper crossbeam (1) using bolts (15), washer (16) and nuts (18) into the
corresponding holes on the bottom side of the upper crossbeam.
(THE UPPER ALIGNMENT TUBES WILL HAVE LARGER DIAMETER TUBING SLEEVES TO FIT
OVER THE BOTTOM ALIGNMENT TUBES.)
4. Before installing the jack press plate (19) attach the lower alignment tubes (8) facing up to the
corresponding holes on the jack press plate as shown using bolts (15), washers (16) and nuts (18).

8
5. Also before installing the jack press plate (19) attach the threaded eye bolts (21) with washers (16)
and nuts (18). Be sure to only finger tighten nuts (18).
6. Attach the return springs (20) to the upper crossbeam (1). Then insert the jack press plate (19) as
shown in the upright position so that the lower alignment tubes (8) will align with the upper alignment
tubes (2). Then and then attach return springs to the eyebolts (21) on the jack press plate (19).

9
7. Carefully place 20 ton hydraulic bottle jack (22) into the space between the jack press plate (19) and
upper crossbeam (1). Adjust the nuts (18) under the jack press plate into the proper position once
jack (22) has been installed.

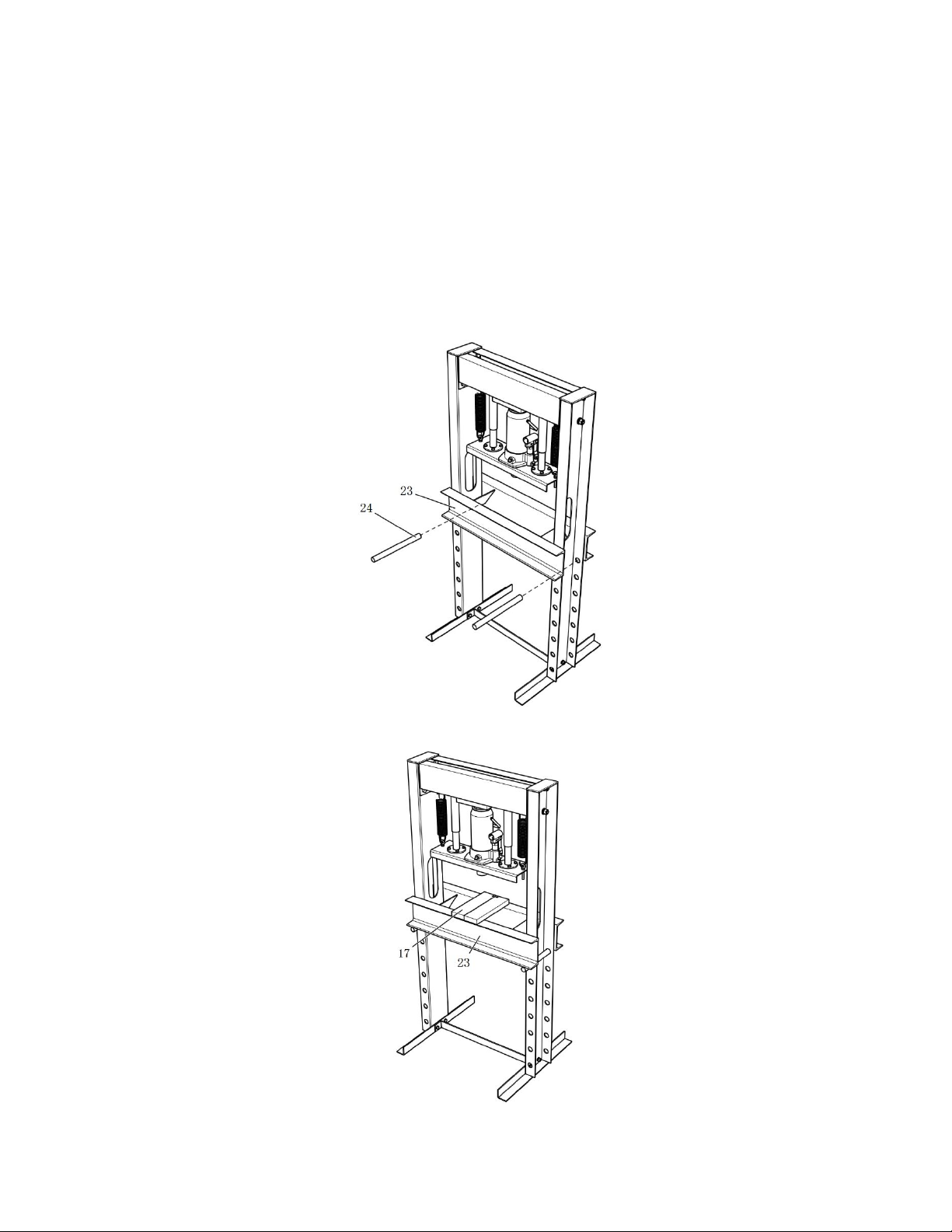

8. Insert bed frame pins (24) into the holes on the posts. Then insert the joined press bed frame (23)
into press frame and onto bed frame pins.

10
9. Verify that all bolts and screws have been tightened.

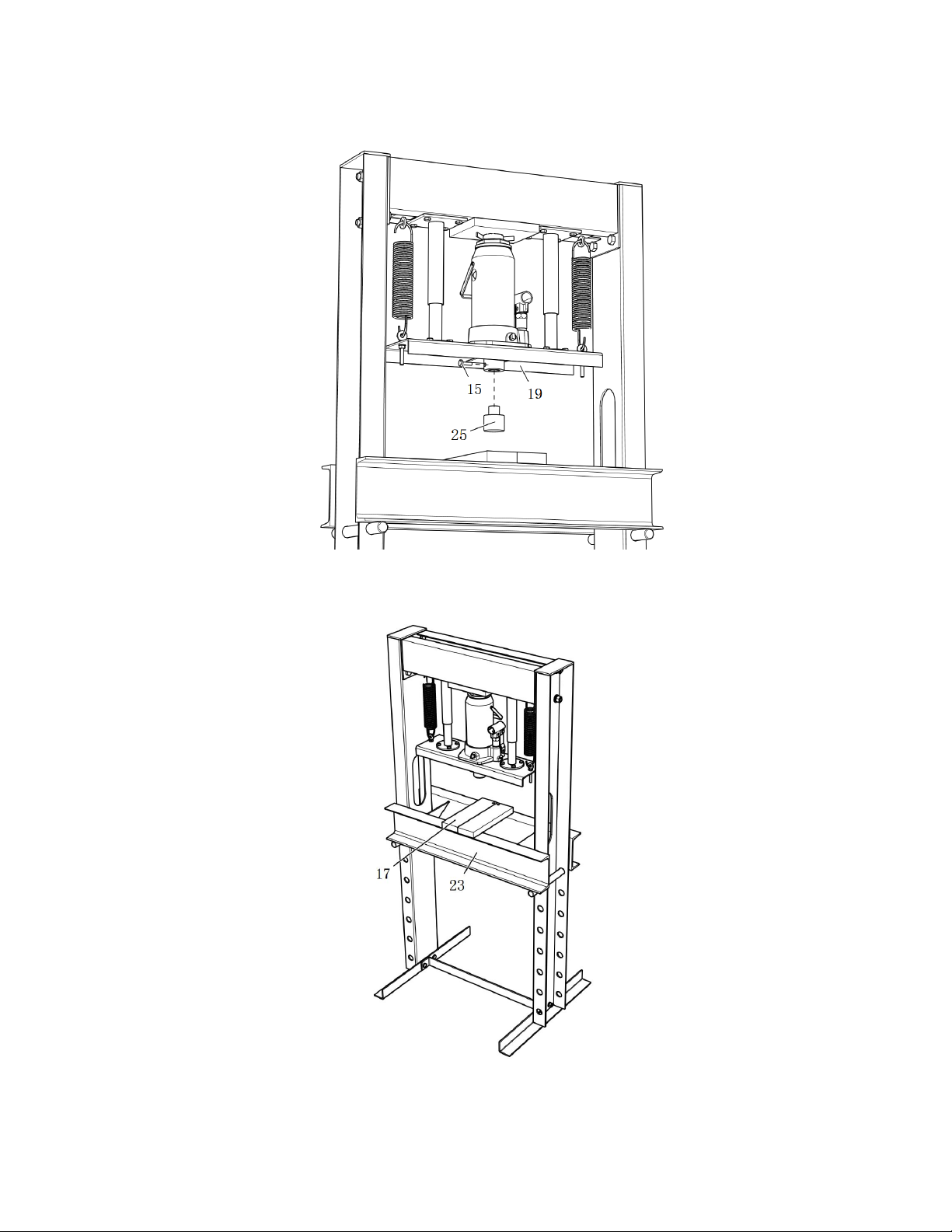

10. Insert the press adapter ram head (25) into the jack press plate (19) using bolt (15).
11. Place the bolster plates (17) onto the bed frame (23).

11

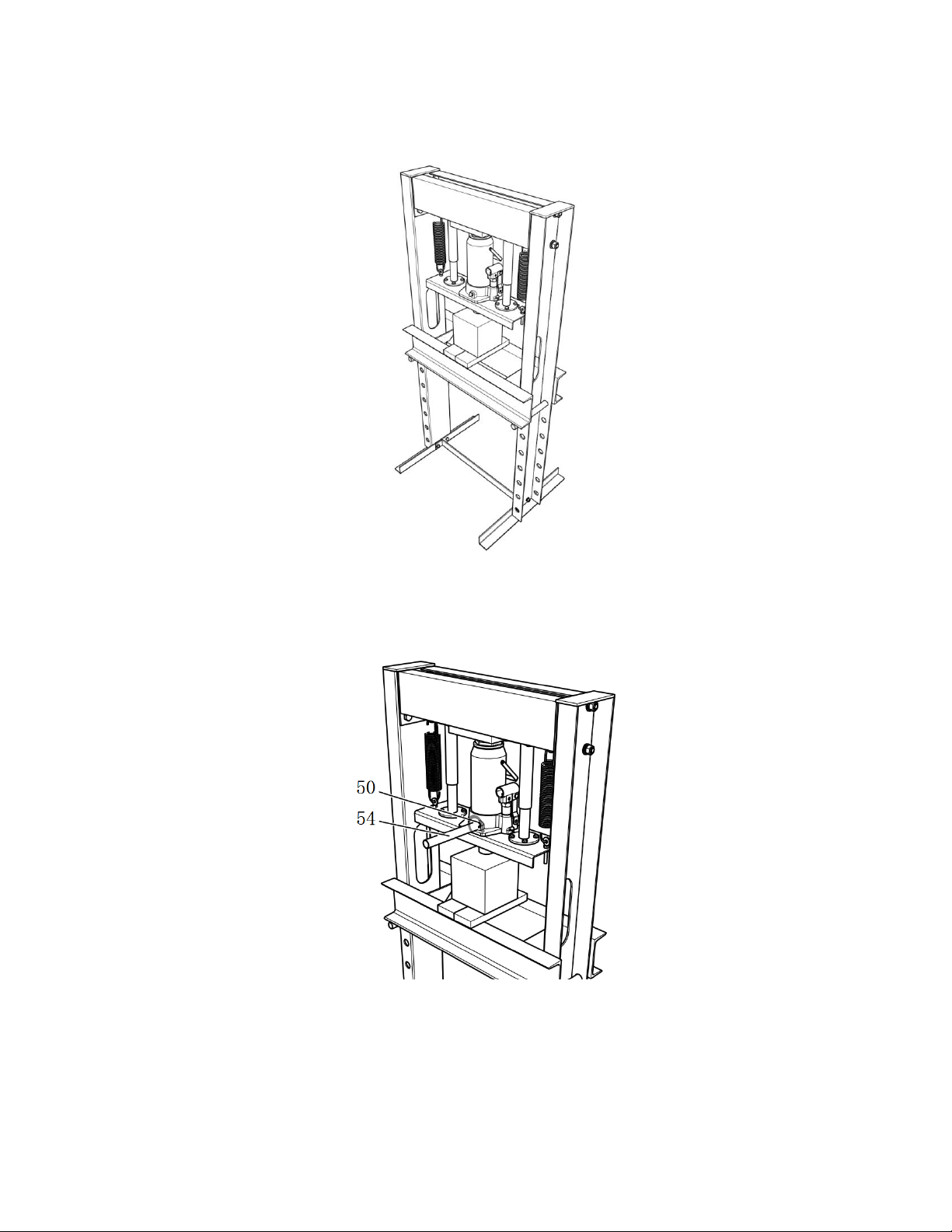

12. With notched (or stamped) end of jack handle (54), close the release valve (50) by turning it
clockwise until it is firmly closed and check for proper pump action.
13. Assembly is now complete.
System Air Purge Procedure
IMPORTANT: BEFORE FIRST USE
All numbers in parenthesis () refer to the index number from the parts breakdown.
Perform the followingAir Purge Procedure to remove any air that may have been introduced into the
hydraulic system as a result of product shipment and handing. This step is to be completed without and
weight on the jack.

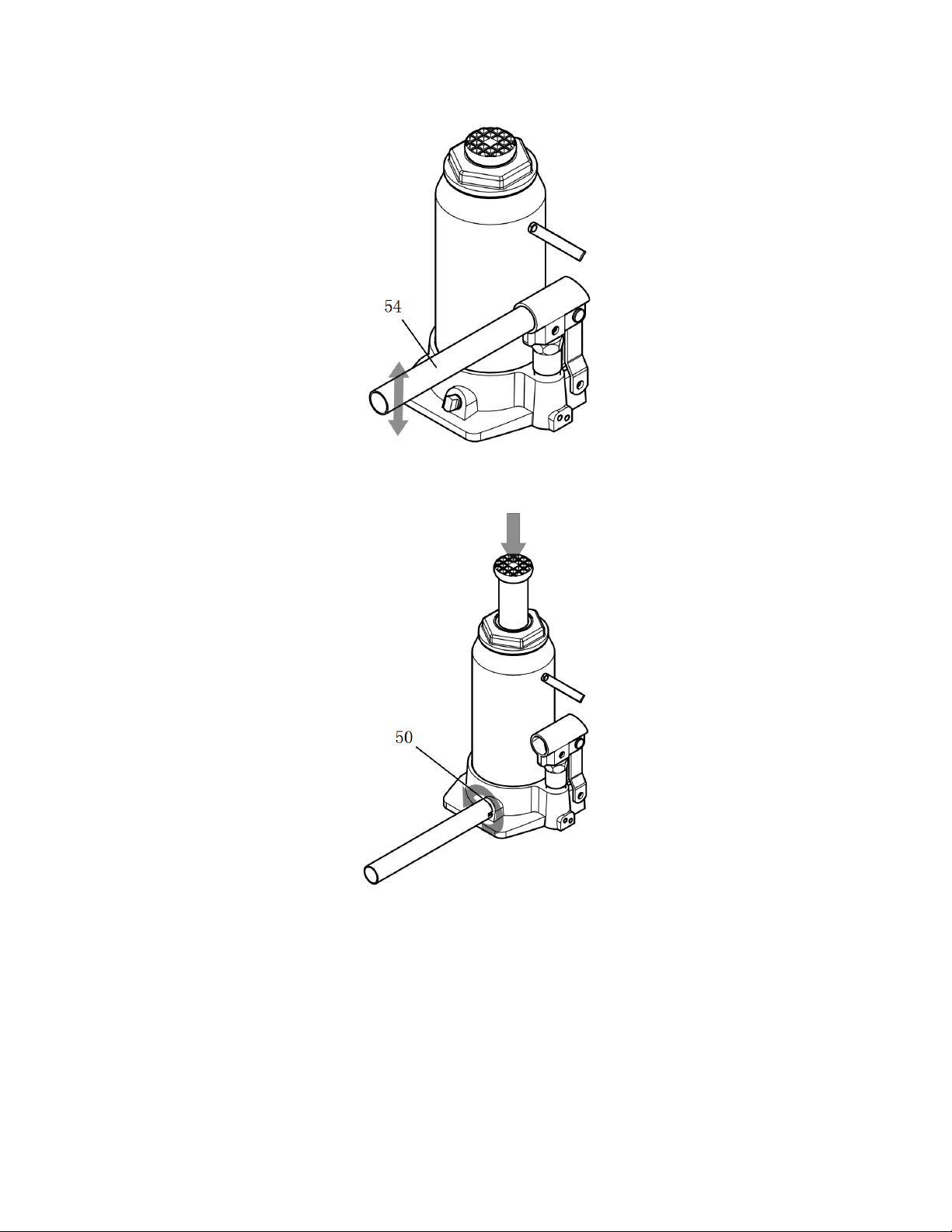

1. Turn release valve (50) clockwise to the closed position.

12
2. Pump handle (54) until the ram reaches maximum height and continue to pump several times to
remove trapped air in the ram.
3. Turn release valve (50) counterclockwise to the open position one full turn and lower ram to the
lowest position.

13
4. Carefully and slowly pinch oil fill plug (36) to release trapped air.
5. Turn release valve (50) clockwise to the closed position and check for proper pump action. It may be
necessary to perform the above step more than once to assume air is evacuated totally.
6. Jack is now ready for use.

14
BEFORE USE
1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly
with the product and the hazards associated with its improper use.
2. Perform the air purge procedure. (See previous instructions for system purge procedure.)
3. Inspect before each use. Do not use if bent, broken or cracked components are noted.
OPERATION
All numbers in parenthesis () refer to the index number from the parts breakdown.
1. Insert the bed frame pins (24) to desired height, then lower the bed frame (23). Ensure bed frame is
fully rested on the bed frame pins.
2. Place bolster plates (17) on press bed frame (23).

15
3. Place work piece on the bed frame or pressing block, use every precaution necessary to ensure
safety and to prevent accidents. Position work piece in a manner which will not allow it to
inadvertently fall from the bed frame or pressing block.
4. With notched (or stamped) end of jack handle (54), close the release valve (50) by turning it
clockwise until it is firmly closed.

16
5. Insert jack handle into handle socket and pump until ram nears work piece.Align ram and work piece
to ensure center-loading.Apply load to work piece by pumping handle. Do not overload work piece.
6. Keep ram and work piece aligned to ensure center-loading.
7. When work is completed, stop pumping the handle. Stabilize the work piece in a manner which will
not allow it to inadvertently fall from the bed frame once the load is removed, then slowly turn the
release valve counter-clockwise in small increments until ram is free from work piece.
Once ram has fully retracted, remove work piece from bed frame. Cautiously remove work piece
from press.

17
MAINTENANCEINSTRUCTIONS
If you use and maintain your equipment properly, it will give you many years of service. Follow the
maintenance instructions carefully to keep your equipment in good working condition.Never perform any
maintenance on the equipment while it is under a load.
Inspection
You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all
components function before each use. Follow lubrication and storage instructions for optimum product
performance.
Binding
If the product binds while under a load, use equipment with equal or a larger load capacity to lower the
load safely to the ground. After un-binding; clean, lubricate and test that equipment is working properly.
Rusty components, dirt, or worn parts can be causes of binding. Clean and lubricate the equipment as
indicated in the lubrication section. Test the equipment by lifting without a load. If the binding continues
contact Customer Service.
Cleaning
If the moving parts of the equipment are obstructed, use cleaning solvent or another good degreaser to
clean the equipment. Remove any existing rust with a penetrating lubricant.
Lubrication
This equipment will not operate safely without proper lubrication. Using the equipment without proper
lubrication will result in poor performance and damage to the equipment. Some parts in this equipment
are not self-lubricating; inspect the equipment before use and lubricate when necessary. After cleaning,
lubricate the equipment using a high grade light penetrating oil or lubricating spray.
-For light duty applications, use lubrication once a month.
-For heavy and constant use, lubrication is recommended every week.
-NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE SURFACES!
Rust Prevention:
-Check rams and pump plungers on the power unit assemblies daily for any signs of rust or corrosion.
Without a load on the equipment extended hydraulic rams to check if signs of rust are visible; clean as
needed.
How the Ram Operates
With release valve closed, an upward stroke of the jack handle draws oil from the reservoir tank into the
plunger cavity. Hydraulic pressure holds the valve closed, which keeps the oil in the plunger cavity. A
downward stroke of the jack handle releases oil into the cylinder, which forces the ram out. This extends
the ram. When the ram reaches maximum extension, oil is bypassed back into the reservoir to prevent
an over extended ram stroke and possible damage to the jack. Opening the release valve allows oil to
flow back into reservoir. This releases hydraulic pressure on the ram, which results in lowering the ram.
Storing the Ram
1. Fully Retract Ram after use.
2. Place the handle in the upright position.
3. Store in a dry location, recommended indoors.
Note: If the press is stored outdoors, be sure to lubricate all parts before and after use to ensure the
press stays in good working condition.

18
TO ADD JACK OIL:
The hydraulic cylinder assembly contains hydraulic fluid that must be kept at approximately 80% full at
all times for proper operation. To check the level and to fill remove oil filler plug.
1. Position the jack on level ground and lower the saddle.
2. Remove the oil plug.
3. Fill the oil case until oil level is just beneath the lower rim of the oil fill hole.
KEEP DIRT AND OTHER MATERIAL CLEAR WHEN POURING.

19
4. Replace oil plug.
5. Perform the Air Purge Procedure.
TO REPLACE JACK OIL:
1. Position the jack on level ground and lower the saddle.
2. Open release valve by turning handle counter-clockwise (4 full turns).

20
3. Remove the oil fill plug.
4. Turn the jack on its side so that old oil will drain from the oil fill hole.
Note: Dispose of hydraulic fluid in accordance with local regulations.
.
5. Position the jack on level ground and keep saddle in the lowered position.
