Strongway 46271 User manual

20-TON HYDRAULIC SHOP PRESS
OWNER’S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic
safety precautions may result in serious personal injury.
Item# 46271

2
Thank you very much for choosing a Strongway product! For future reference, please complete the
owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to
become familiar with this product before you begin using it.
This machine is designed for certain applications only. The distributor cannot be responsible for issues
arising from modification. We strongly recommend this machine not be modified and/or used for any
application other than that for which it was designed. If you have any questions relative to a particular
application, DO NOT use the machine until you have first contacted the distributor to determine if it can
or should be performed on the product.
For technical questions please call 1-800-222-5381.
INTENDED USE
This Shop Press is designed for automotive, truck, implement, fleet, and industrial repair shops where
pressing, bending, straightening and forming, is required. Typical applications include installation and
removal of alternator and power steering pump bearings, axle bearings, transmission bearings, seals,
u-joints and others.
TECHNICAL SPECIFICATIONS
Description
Item
46271
Capacity
20 Ton
Bed Opening
3-15/16 in
Work Range
0~ 35-13/16 in
Stroke Length
7-1/4 in
Inside Bed Dimensions L x W
3-15/16 x 21-1/4 in
Dimensions L x W x H
25-3/16 x 27-9/16 x 71-1/4 in
Safe Operating Temperature is between 40°F –105°F (4°C - 41°C)

3
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed below may
result in serious injury.
CAUTION: Do not allow persons to operate or assemble this Jack until they have read this
manual and have developed a thorough understanding of how the Jack works.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions or situations that could occur. It must be understood by the operator
that common sense and caution are factors which cannot be built into this product, but must be supplied by the
operator.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY CONSIDERATIONS
SHOP PRESS USE AND CARE
Do not modify the Shop Press in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the equipment. There are specific applications for which the Shop Press
was designed.
Always check of damaged or worn out parts before using the Shop Press. Broken parts will affect the
Shop Press operation. Replace or repair damaged or worn parts immediately.
Store idle Shop Press. When Jack is not in use, store it in a secure place out of the reach of children.
Inspect it for good working condition prior to storage and before re-use.
Not for use by children or people with reduced mental capacity.
Do not use under the influence of drugs or alcohol.
Ensure children and other bystanders are kept at a safe distance when using press.
INSPECTION
Inspect the press carefully before each use. Ensure the press is not damaged, excessively worn, or missing
parts.
Do not use the press unless it is properly lubricated.
Using a press that is not in good clean working condition or properly lubricated may cause serious injury.
Inspect the work area before each use. Make sure it is free and clear of any potential hazards.

4
DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL.
To maintain the Shop Press and user safety, the responsibility of the owner is to read and follow these
instructions. Inspect the service shop press for proper operation and function. Keep instructions readily
available for equipment operators. Make certain all equipment operators are properly trained; understand how
to safely and correctly operate the unit. Allow unit operation only with all parts in place and operating properly.
Use only genuine replacement parts. Service and maintain the unit only with authorized or approved
replacement parts negligence will make the shop press unsafe for use and void the warranty. Carefully inspect
the unit on a regular basis and perform all maintenance as required. Store these instructions in the handle of
your shop press. Keep all decals on the unit clean and visible.
SAFETY
Always follow safety precautions when installing and operating this shop press. Keep all decals on the unit
clean and visible. Before proceeding that you fully understand and comprehend the full contents of this manual.
Failure to operate this equipment as directed may cause injury or death. The distributor is not responsible for
any damages or injury caused by improper use or neglect
SAFETY MARKINGS
WARNING:
1. Study, understand, and follow all instructions before operating the device.
2. Do not exceed rated capacity.
3. Prior to use, make sure the press is securely anchored.
4. The press shall be installed and operated in accordance with federal (OSHA), state, and local safety
standards.
5. Ensure the work area is clean and free of any hazards before operation.
6. Operators and observers shall wear eye protection that meetsANSI Z87.1 and OSHAstandards.
7. Keep hands, arms, feet, and legs out of the work area.Accidental slippage can result in personal injury.
8. Use appropriate guarding to contain any pieces that may break or fly apart when applying force.
9. Use only press accessories having a capacity rating equal to or greater than the capacity of the press.
10. Verify lift cables are slack before pressing on the bolster.
11. Avoid off-center loads.
12. No alterations shall be made to the product.
13. Do not use this press for any use other than the manufacturer specified usage.
14. Failure to heed and understand these instructions and markings may result in personal injury, property
damage, or both.

5
PLEASE READ THESE INSTRUCTIONS CAREFULLY.NOTE THE SAFETY INSTRUCTIONS AND
WARNING.USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE OF WHICH IT IS
INTENDED.FAILURE TO DO SO MAY CAUSE DAMAGE TO PROPERTY AND/OR SERIOUS PERSONAL
INJURY. PLEASE KEEP THIS INSTRUCTION MANUAL SAFE FOR FUTURE USE.
We’ve done all we can to assure this press offers the utmost in safety, but you have to do your part. No amount
of warning can take the place of your good judgment, so make sure it’s the first thing you bring to any job.
Beyond that here are some obvious tips:
Steel and other materials can shatter, so always use protective eye-wear that complies with the
appropriate ANSI code.
If you detect anything that may indicate imminent structural failure, stop using the press immediately and
inspect it thoroughly.
Bolt the press to the floor if it is to be used on bulky or unstable items.
Do not use press to compress springs or any other item that could disengage and cause a potential flying
hazard.
Use this press for the purpose for which it is intended. Do not use it for any other purpose it is not designed
to perform.
Keep children and unauthorized persons away from the work area.
Remove loose fitting clothing. Remove ties, watches, rings and other loose jewelry and contain long hair.
WearANSI approved impact safety goggles, full-face impact safety shield and heavy-duty work gloves
when operating the press.
Keep proper balance and footing, do not over-reach and wear nonskid footwear.
Only use this press on a surface that is stable, level, dry and not slippery, and capable of sustaining the
load. Keep the surface clean, tidy and free form unrelated materials and ensure that there is adequate
lighting.
Inspect the press before each use. Do not use if bent, broke, cracked, leaking or otherwise damaged.Any
suspect parts are noted or it has been subjected to a shock load.
Check to ensure that all applicable bolts and nuts are firmly tightened.
Ensure that work piece is center-loaded and secure.
Keep hands and feet away from bed area at all times.
Do not use the shop press to compress spring or any other item that could disengage and cause a
potential hazard. Never stand directly in front of loaded press and never leave loaded press unattended.
Do not operate the press when you are tired or under the influence of alcohol, drugs or an intoxicating
medication.
Do not allow untrained persons to operate the press.
Do not make any modifications to the press.
Do not use brake fluid or any other improper fluid and avoid mixing different types of oil when adding
hydraulic oil. Only good quality hydraulic jack oil can be used.
Do not expose the press to rain or any other kind of bad weather.
If the press needs repairing and/or there are any parts that need to be replaced, have it repaired by
authorized technicians and only use the replacement parts supplied by the manufacturer.

6
ASSEMBLY
Use the exploded drawing as your guide to assembly. Lay all parts and assemblies out in front of you
before beginning. The following procedure is recommended:
All numbers in parenthesis () refer to the index number from the parts breakdown.
Use caution as parts may be heavy in weight and can cause pinch points to hands, body and feet.
1. Attach the two base support sections (01) and lower cross member (23) to the frame (12) using bolts
(03), washers (09), lock washers (10) and nuts (11).
2. Fix one end of side support rails (04) to the base support sections (01) and another end to the frame
(12) using bolts (03), washers (06), lock washers (07) and nuts (08).

7
3. Put the press frame in the upright position, attach one upper cross beam (29) to left and right frame
(12) using bolts (25), washer (26).lock washer (27) and nuts (28).
4. Put the opposing upper crossbeam (29) into position and insert the cylinder support plate (24) below
the two upper cross beams at the same time, then secure this cross beam to the frame using bolts
(25), washers (26).lock washers (27) and nuts (28).

8
5. Insert the hydraulic cylinder (31) from the top side of frame. Once the cylinder is inserted into the
frame support plate (24) make sure that the round lifting ring (40) is seated flat on the cylinder
support plate (24). Then attach the round threaded nut (41) to the hydraulic cylinder. Turn clockwise
to screw the round nut onto threaded shaft on the ram. Tighten round nut (41).
6. Insert the bed frame pins (13) into the frame holes. Then insert the joined press bed frame (21)
between the press frame and onto bed frame pins.

9
7. Attach the pump assembly plate(18) to the right frame using bolts (19), washers (09), lock washers
(10) and nuts (11), then secure the pump assembly using screws (16) and washer (17). When this
step is complete insert the handle to the handle bracket.
8. Locate the hydraulic hose fitting on the cylinder and install the pressure gauge (33) to the pressure
gauge connection fitting, on the top of the hydraulic cylinder (31).
9. Tighten all bolts and screws.

10
SYSTEM AIR PURGE PROCEDURE
Perform the followingAir Purge Procedure to remove any air that may have been introduced into the
hydraulic system as a result of product shipment and handing. This step is to be completed without and
weight on the shop press.
1. Firmly close the Release Valve by turning it clockwise.
2. Press the tip of the Hydraulic Hose Coupling against a hard surface and pump the pump handle.
3. Continue pumping until the hydraulic fluid coming out from the end of the coupler tip is free of air
bubbles.
4. Check the oil level and add oil if necessary. (See instruction in Maintenance Section “To Add Oil”.)
5. Turn the Release Valve counter-clockwise to release the pressure in the pump and hose.

11
BEFORE USE
1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly
with the product and the hazards associated with its improper use.
2. Perform the air purge procedure. (See previous instructions for system purge procedure.)
3. Inspect before each use. Do not use if bent, broken or cracked components are noted.
OPERATION
All numbers in parenthesis () refer to the index number from the parts breakdown.
1. Adjust the bed frame pins (13) to desired height. Ensure bed frame is fully rested on the bed frame
pins.
2. Place the bolster plates (22) on press bed frame (21), then insert work piece onto the bolster plates.
3. Place work piece on the bed frame or pressing block, use every precaution necessary to ensure
safety and to prevent accidents. Position work piece in a manner which will not allow it to
inadvertently fall from the bed frame or pressing block.
4. Close the release valve by turning it clockwise until it is firmly closed.

12

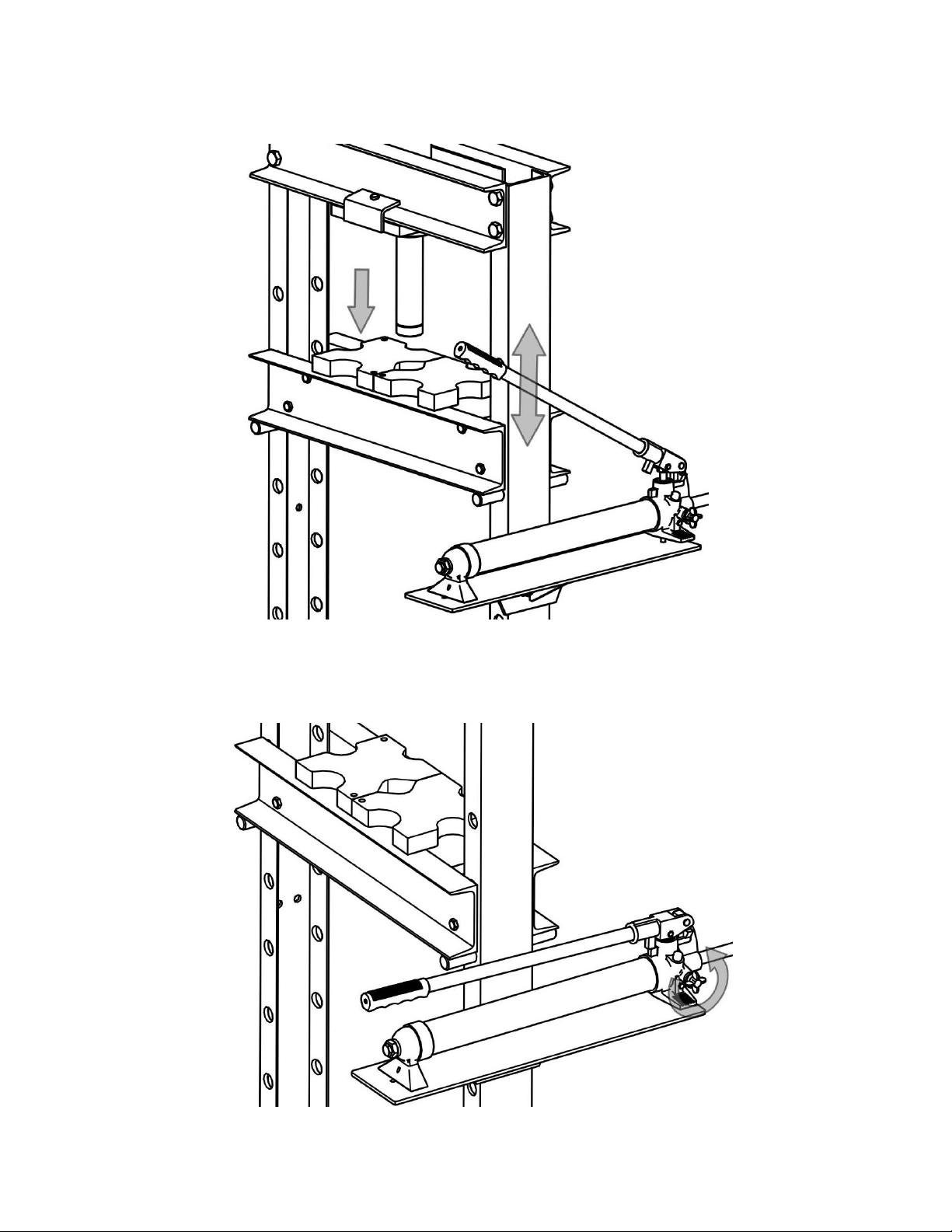

5. Pump the handle until ram nears work piece.Align work piece and ram to ensure center-loading.
Pump the handle to apply load onto work piece.
6. Align ram and work piece to ensure center loading.
7. When work is completed, stop pumping the handle. Slowly turn the release valve counter-clockwise
in small increments until ram is free from work piece.
8. Once ram has fully retracted, remove workplace from bed frame. Cautiously remove work piece from
press.

13
MAINTENANCEINSTRUCTIONS
If you use and maintain your equipment properly, it will give you many years of service. Follow the
maintenance instructions carefully to keep your equipment in good working condition. Never perform any
maintenance on the equipment while it is under a load.
Inspection
You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all
components function before each use. Follow lubrication and storage instructions for optimum product
performance.
Binding
If the product binds while under a load, use equipment with equal or a larger load capacity to lower the
load safely to the ground. After un-binding; clean, lubricate and test that equipment is working properly.
Rusty components, dirt, or worn parts can be causes of binding Clean and lubricate the equipment as
indicated in the lubrication section. Test the equipment by lifting without a load. If the binding continues
contact Customer Service.
Cleaning
If the moving parts of the equipment are obstructed, use cleaning solvent or another good degreaser to
clean the equipment. Remove any existing rust, with a penetrating lubricant.
Lubrication
This equipment will not operate safely without proper lubrication. Using the equipment without proper
lubrication will result in poor performance and damage to the equipment. Some parts in this equipment
are not self-lubricating inspect the equipment before use and lubricate when necessary. After cleaning,
lubricate the equipment using a high grade light penetrating oil or lubricating spray.
-For light duty use lubrication once a month.
-For heavy and constant use lubrication recommended every week.
-NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE SURFACES!
Rust Prevention:
-Check rams and pump plungers on the power unit assemblies daily for any signs of rust or corrosion.
Without a load on the equipment extended hydraulic rams to check if signs of rust are visible clean as
needed.
How the Ram Operates
With release valve closed, an upward stroke of the jack handle draws oil from the reservoir tank into the
plunger cavity. Hydraulic pressure holds the valve closed, which keeps the oil in the plunger cavity. A
downward stroke of the jack handle releases oil into the cylinder, which forces the ram out. This extends
the ram. When the ram reaches maximum extension, oil is bypassed back into the reservoir to prevent
an over extended ram stroke and possible damage to the jack. Opening the release valve allows oil to
flow back into reservoir. This releases hydraulic pressure on the ram, which results in lowering the ram.
Storing the Ram
1. Fully Retract Ram after use.
2. Place the handle in the upright position.
3. Store in a dry location, recommended indoors.
Note: If the press is stored outdoors, be sure to lubricate all parts before and after use to ensure the
press stays in good working condition.

14
To Add Oil:
1. Set Pump Unit upright on a level surface.
2. Remove the Screw with its attached dipstick.
3. Add 0.22 quarts (about 7.43oz., or 770ml) of oil. The oil level should be near Position (A).
Use a high grade anti-foaming hydraulic oil.
KEEP DIRT AND OTHER MATERIALS CLEAR WHEN POURING.

15
Replace the Oil Fill Screw.
4. Perform the Air Purge Procedure.
To Replace Oil:
1. Set Pump Unit upright on a level surface.
2. Remove the screw with its attached dipstick .

16
3. Turn the Pump Unit on its side so that old oil will drain from the oil fill hole.
4. Set Pump Unit upright on a level surface.
5. Add 0.22 quarts (about 7.43oz., or 770ml) of oil. The oil level should be near Position (A).
Use a high grade anti-foaming hydraulic oil.
KEEP DIRT AND OTHER MATERIALS CLEAR WHEN POURING.

17
6. Replace the Oil Fill Screw.
7. Perform the Air Purge Procedure.
ADDITIONAL WARNINGS:
DO NOT USE MOTOR OIL IN THE JACK.
ONLY USE ANTI-FOAMING JACK OIL.
ALWAYS USE A GOOD GRADE HYDRAULIC JACK OIL.
DO NOT USE HYDRAULIC BRAKE FLUID, ALCOHOL, GLYCERINE, DETERGENT, MOTOR OIL OR
DIRTY OIL.
USE OF A NON-RECOMMENDED FLUID CANCAUSE DAMAGE TO A JACK.
AVOID MIXING DIFFERENT TYPES OF FLUID AND NEVER USE BRAKE FLUID, TURBINE OIL,
TRANSMISSION FLUID, MOTOR OIL OR GLYCERIN. IMPROPER FLUID CAN CAUSE PREMATURE
FAILURE OF THE JACK AND THE POTENTIAL FOR SUDDEN AND IMMEDIATE LOSS OF LOAD.
DISPOSE OF HYDRAULIC FLUID IN ACCORDANCE WITH LOCAL REGULATIONS.
LUBRICATION
1. Clean the outside of the press with a dry, clean, and soft cloth. Periodically lubricate all joints and
moving parts with a long lasting lubrication oil.Apply as needed.
2. When not in use, the Pump Unit should be stored with the Release Valve open and the Pump Piston
fully retracted.

18
3. Periodically check the pump piston and ram for signs of rust or corrosion. Clean as needed and wipe
with a soft non-abrasive clean cloth.
4. A coating of light lubricating oil to pivot points.Axles and hinges will help to prevent rust.
When not in use, store the press in a dry location with ram and pump piston fully retracted.
Periodically check the rams for signs of rust or corrosion. Clean as needed and wipe with a soft
non-abrasive clean cloth.

19
ASSEMBLY DIAGRAM

20
ASSEMBLY PARTS LIST
Index #
Description
Part No.
Qty.
1
Base Supports Sections
TY20001-07
2
2
Nuts Bolt M10x25
GB5783
4
3
Nuts Bolt M12x35
GB5782
4
4
Side Support Rails
TY12002-02
4
5
Nuts Bolt M10x30
GB5783
2
6
Washer 10
GB97.1
10
7
Spring washer 10
GB93
10
8
Nuts M10
GB6170
10
9
Washer 12
GB97.1
6
10
Spring washer 12
GB93
6
11
Nuts M12
GB6170
6
12
Frame
TY20005-01
2
13
Support Pins
TY20001-06
2
14
Nuts bolt M8x16
GB70.1
1
15
Washer 8
GB97.1
1
16
Nuts bolt M6x16
GB70.1
1
17
Washer 6
GB97.1
1
18
PumpAssembly Plate
TY20005.2
1
19
Nuts bolt M12X30
GB5783
2
20
Press pump
TY20005.1
1
21
Bed Flat
TY20001-04
2
22
Heel Block
TY20001-03
2
23
Spreader
TY20001.3
1
24
Cylinder Support Plate
TY20001.2
1
25
Nuts bolt M16X35
GB5782
8
26
washer 16
GB97.1
8
27
Spring washer 16
GB93
8
28
Nuts M16
GB6170
8
29
Upper Crossbeam
TY20001-01
2
30
Nuts bolt M8X25
GB70
2
31
Press cylinder
TY20001Q.1
1
32
Nylon Ring 17X7.5X2.5
TY12001.1-15
1
33
Press Gauge
TY20001-08
1
34
Nuts bolt M10X130
GB5782
4
35
Support pins
TY20001-05
4
