Strongway 53970 User manual

SAVE THESE INSTRUCTIONS
Electric Chainsaw Sharpener
With Bar Mount
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #53970

Page 2 of 12
Thank you very much for choosing a Strongway®product!
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code: ________________________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
This chainsaw sharpener with bar mount is designed for certain
applications only. Northern Tool and Equipment is not responsible for
issues arising from modification or improper use of this product such as
an application for which it was not designed. We strongly recommend
that this product not be modified and/or used for any application other
than that for which it was designed.
For technical questions, please call 1-800-222-5381.

Page 3 of 12
Table of Contents
Intended Use..........................................................................................................................................4
Technical Specifications......................................................................................................................4
Important Safety Information...............................................................................................................4
Specific Operation Warnings...............................................................................................................5
Assembly Instructions..........................................................................................................................7
Operating Instructions..........................................................................................................................8
Maintenance ..........................................................................................................................................8
Parts Diagram........................................................................................................................................9
Parts List..............................................................................................................................................10
Replacement Parts..............................................................................................................................10
Limited Warranty.................................................................................................................................11

Page 4 of 12
Intended Use
This Strongway Electric Chainsaw Sharpener with Bar Mount allows chain sharpening without
removing the chain from the bar.
Technical Specifications
Property
Specification
Installed power
Electrical motor, max. 12V supply
Wheel thickness
1/8 in. (3.2mm) and 3/16 in. (4.7 mm)
Maximum speed
5500 RPM
Important Safety Information
⚠WARNING
Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this sharpener.
Always be aware of the environment and ensure that the tool is used in a safe and responsible
manner.
Do not allow persons to operate or assemble the sharpener until they have read this manual and
have developed a thorough understanding of how it works.
Do not modify this sharpener in any way. Unauthorized modification may impair the function
and/or safety and could affect the life of the product. There are specific applications for which the
product was designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. It will
be safer and do a better job at the capacity for which it was intended. DO NOT use this sharpener
for a purpose for which it was not intended.
Industrial or commercial applications must follow OSHA requirements.
⚠WARNING
This product may contain chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm.
⚠WARNING
WORK AREA SAFETY
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the sharpener in confined work areas
may put you dangerously close to other cutting tools and rotating parts.
Do not use the sharpener where there is a risk of causing a fire or an explosion; e.g., in the

Page 5 of 12
presence of flammable liquids, gases, or dust. The product can create sparks, which may ignite
the flammable liquids, gases, or dust.
Keep children and bystanders away from the work area while operating the tool. Do not allow
children to handle the sharpener.
⚠WARNING
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when operating the sharpener. Do
not use the tool while you are tired or under the influence of drugs, alcohol, or medication. A
moment of inattention while operating the sharpener may result in serious personal injury.
Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts. Air vents on the tool often cover moving parts and should be avoided.
Wear the proper personal protective equipment when necessary. Use ANSIZ87.1 compliant safety
goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust mask in
dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection systems,
and hearing protection when appropriate. This applies to all persons in the work area.
Do not overreach. Keep proper footing and balance at all times.
Secure the work with clamps or a vise instead of your hand when practical. This safety precaution
allows for proper tool operation using both hands.
⚠CAUTION
SHARPENER USE AND CARE
Do not force the sharpener. Products do a better job and are safer when used in the manner for
which they are designed. Plan your work, and use the correct product for the job.
Check for damaged parts before each use. Carefully check that the sharpener will operate
properly and perform its intended function. Replace damaged or worn parts immediately. Never
operate the sharpener with a damaged part.
Store the sharpener when it is not in use. Store it in a dry, secure place out of the reach of
children. Inspect the sharpener for good working condition prior to storage and before re-use.
Use only accessories that are recommended by the manufacturer for use with your sharpener.
Accessories that may be suitable for one product may create a risk of injury when used with
another tool. Never use an accessory that has a lower operating speed or operating pressure than
the tool itself.
Keep guards in place and in working order. Never operate the unit without the guards in place.
Specific Operation Warnings
⚠WARNING
To prevent personal injury or death, read and understand owner’s manual before use.

Page 6 of 12
Wear ANSI Z87.1 compliant safety goggles, hearing protection, a NIOSH compliant dust mask,
and work gloves when operating the machine.
Do not use grinding wheels that have a Max RPM less than the marked RPM Rating on the tool.
Keep hands clear from grinding wheel during use.
Electric shock hazard. Do not expose to rain or use in damp locations.
Disconnect power before servicing machine.
Ensure that the chain being sharpened is properly secured so it doesn't slip out.
Keep the machine clear of debris during operation.
Do not use a caustic solution to clean plastic parts.
Do not use the machine in the proximity of flammable liquids and vapors.
Check for damaged parts before use. Do not use if parts are damaged. Replace damaged parts
before continuing use.
Always hold the machine with both hands when working. Keep a safe footing and good posture.
Check that the voltage and frequency indicated on the sharpener correspond to supplied power.
Never use higher rated power supply, as this will damage the sharpener.
Not for use by or around children.

Page 7 of 12
Assembly Instructions
1. Adjust the black knob to attach the chainsaw
sharpener on the saw bar tightly.
2. Attach the chain on the groove of the bar-mount.
3. Find the correct angle between
the grinding wheel and the chain.
4. Lock this nut after step 3.
5. Adjust chain limiter device.
6. Set limiter board into proper position, as in the
picture shown.
7. Adjust bolt M6 to attach the rotating angle of
the grinding wheel.

Page 8 of 12
Operating Instructions
⚠WARNING
Wear ANSI Z87.1 compliant safety goggles, hearing protection, a NIOSH compliant dust mask,
and work gloves when operating the machine.
Do not use grinding wheels that have a Max RPM less than the marked RPM Rating on the tool.
Keep hands clear from grinding wheel during use.
Electric shock hazard. Do not expose to rain or use in damp locations.
Use an outdoor rated extension cord.
Ensure that the chain being sharpened is properly secured so it doesn't slip out.
Keep the machine clear of debris during operation.
Do not use the machine in the proximity of flammable liquids and vapors.
Always hold the machine with both hands when working. Keep a safe footing and good posture.
Not for use by or around children.
First, check that you have the proper size grinding wheel to match your chain. Check your
chainsaw specifications.
Be sure the wheel is securely installed. Always check the wheel for any damage before each use.
NEVER use without a wheel guard installed.
Install the sharpener onto chainsaw chain bar (centered).
Note: This machine is equipped with a safety switch with a release coil.
The provided power cables are complete with terminals for quick and safe connection to any 12V
battery. This allows the operator to use this sharpener on-the-job or in-the-field, wherever a 12V
battery is available.
Running the Machine
1. Make sure you have read the safety instructions at the beginning of the manual and that the
machine is set up properly.
2. Make sure all tools and objects used during set up are cleared away from the machine.
3. Turn the machine ON (push the "|" button).
4. Listen to and watch for abnormal noises or actions. The machine should run smoothly with little or
no vibration or rubbing noises. Strange or unusual noises should be investigated and corrected
before operating the machine further. Always disconnect the machine from power when
investigating or correcting potential problems.
5. Turn the machine OFF (push the "O" button).
Maintenance
⚠WARNING
Make sure this sharpener is disconnected from its power source before attempting any maintenance,
cleaning, or inspection.
Maintain your tools. It is recommended that the general condition of any tool be examined before
it is used. Keep your tools in good repair by adopting a program of conscientious repair and

Page 9 of 12
maintenance in accordance with the recommended procedures found in this manual. If any
abnormal vibrations or noise occurs, turn the tool off immediately and have the problem corrected
before further use. Have necessary repairs made by qualified service personnel.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control. Keep handles dry, clean, and free from oil and grease.
Use only soap and a damp cloth to clean your tools. Many household cleaners are harmful to
plastics and other insulation. Never let liquid get inside a tool.
Always disconnect from the power source before carrying out any maintenance, lubrication, or
cleaning operations.
Keep the sharpener clean using a cloth rag with soap and water. Always dry after cleaning.
Never use compressed air for cleaning. It can cause wood or metal dust to reach small areas in
the sharpener, causing damage to essential components of the sharpener.

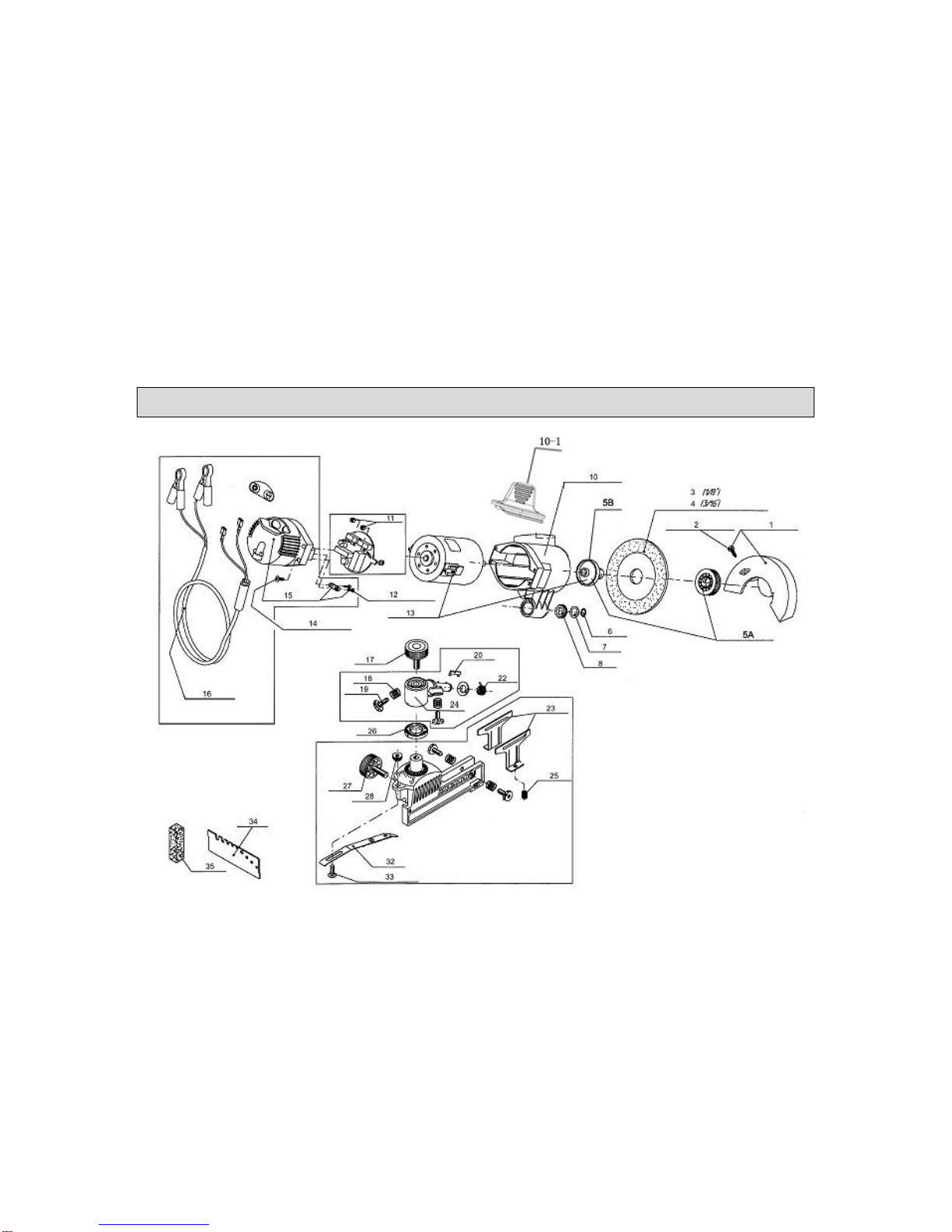

Parts Diagram

Page 10 of 12
Parts List
Parts #
Description
Qty
Parts #
Description
Qty
1
Grinding wheel cover
1
16
Cable set
1
2
Self-tapping screw
1
17
Lock nut
1
3
Grinding wheel
1
18
Reset spring
4
4
Grinding wheel
1
19
Adjustment bolt
4
5A
Grinding wheel cover
board
1
20
Torsion limit board
1
5B
Grinding wheel seat
1
22
Torsion
1
6
Axis Card
1
23
Elastic clip chain plate
2
7
Antifriction pad
1
24
Rotating seat
1
8
Torsion cover
2
25
Bearing spring
2
10
Body
1
26
Angle plate
1
10-1
Handle
1
27
Lock nut
1
11
PCB board
1
28
M5 nut
1
12
Pressure line board
1
32
Limited board set
1
13
Electrical set
1
33
Bolt M5X10
1
14
Self-tapping screw
4
34
Gauge
1
Switch cover
1
35
Shaping of sand
1
Replacement Parts
For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
Not all product components are available for replacement. The illustrations provided are a
convenient reference to the location and position of parts in the assembly sequence.
When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part reference number.
The distributor reserves the rights to make design changes and improvements to product lines
and manuals without notice.

Page 11 of 12
Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or '"Us'') warrants to the original purchaser only
("You'' or “Your”) that the Strongway product purchased will be free from material defects in both
materials and workmanship, normal wear and tear excepted, for a period of one year from date of
purchase. The foregoing warranty is valid only if the installation and use of the product is strictly in
accordance with product instructions. There are no other warranties, express or implied, including the
warranty of merchantability or fitness for a particular purpose. If the product does not comply with this
limited warranty, Your sole and exclusive remedy is that We will, at our sole option and within a
commercially reasonable time, either replace the product or product component without charge to You
or refund the purchase price (less shipping). This limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect,
misuse, or as a result of any accident or in any other manner; (c) damage from misapplication,
overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration
in any manner by anyone other than Us, with the sole exception of alterations made pursuant to
product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make
and model number, and follow the claim instructions that will be provided. The product and the
purchase receipt must be provided to Us in order to process Your warranty claim. Any returned
product that is replaced or refunded by Us becomes our property. You will be responsible for return
shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty
or any other warranty related to the product. We shall not be liable for: service or labor charges or
damage to Your property incurred in removing or replacing the product; any damages, including,
without limitation, damages to tangible personal property or personal injury, related to Your improper
use, installation, or maintenance of the product or product component; or any indirect, incidental or
consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified
use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary
from state to state. Some states do not allow limitations or exclusions on implied warranties or
incidental or consequential damages, so the above limitations may not apply to You. This limited
warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to
conflicts of law. The state courts located in Dakota County, Minnesota shall have exclusive jurisdiction
for any disputes relating to this warranty.

Page 12 of 12
Distributed by:
Northern Tool & Equipment Company, Inc.
Burnsville, Minnesota 55306
www.northerntool.com
Made in China
