Structural Concepts FSE663R User manual

REV R DATE: 04/28/2023
USER MANUALS\20-20438_OASIS_USER MANUAL_FSI(L)(H)R (ISLAND)_FSE(L)(H)R (END CAP)_CID CASE
THIS USER MANUAL IS APPLICABLE TO THE FOLLOWING MODELS:
> REFRIGERATED SELF-SERVICE ISLAND - CID MODELS FSI856R, FSI656R, FSI663R and FSI863R
> REFRIGERATED SELF-SERVICE PENINSULA END CAP - CID MODEL FSE663R
>> IMPORTANT: IF YOUR UNIT HAS AFTERMARKET PRODUCT BINS, SEE PAGE 20 OF MANUAL
FOR PLACEMENT INSTRUCTIONS.
USER
MANUAL
Model FSI663R
Model FSE663R
Model FSI656R
Model FSI863R
Oasis
READ AND SAVE THESE INSTRUCTIONS
® SCC P/N
20-20438
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: [phone] Fax: [phone] ∙ www.structuralconcepts.com
INTERNAL NOTE: ANY REVISIONS TO THIS
DOCUMENT MUST BE MADE TO P/N 20-20438

2
TABLE OF CONTENTS
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING DIAGRAM ..............
CASE REMOVAL FROM SKID AND SECURE PLACEMENT IN STORE ……………………………...
REMOTE UNITS: SWIVEL CASTERS / LEVELING UNIT VIA FRAME SUPPORT RAILS OR
LEVELERS ………………………………………………………………………….. …………......….
SELF-CONTAINED UNITS: IN-LINE CASTER RAILS / LEVELERS / CONDENSER PACKAGE
CASTERS ..…………………………………………………………………………....………………..
CEILING ORIGINATED ELECTRICAL & REFRIGERATION LINES / KNOCKOUT REMOVAL /
SEALING INLET & OUTLET …..................................................................................................
REMOTE CASES: REFRIGERATION LINE FIELD CONNECTION ……….…………………….…...….
REMOTE CASES: CONDENSATE PUMP LOCATION AND PURPOSE ………………………….……
FIELD WIRING BOX / DATA COLLECTION CABLE / MAIN POWER SWITCH ..…………………....
SELF-CONTAINED UNITS: TOE-KICK ATTACHMENT INSTRUCTIONS (HORIZ. vs. VERTICAL) ..
PLAN-O-GRAM (LOAD LEVEL GUIDELINES) …………………………………....……………………….
THERMOMETERS (DIGITAL THERMOMETER & OPTIONAL “CHECK TEMPERATURE”) …..…...
POWER-UP CHECK (EVAPORATOR FAN AREA) ...……………………………………………………..
MAINTENANCE FUNDAMENTALS, CONT’D: PRODUCT BIN ATTACHMENT GUIDE ……………..
MAINTENANCE FUNDAMENTALS, CONT’D: SHELF & BRACKET ASSEMBLY REMOVAL ……...
MAINTENANCE FUNDAMENTALS, CONT’D: LED LIGHT FIXTURES / REMOVAL /
REPLACEMENT ……………………………………………………………………………………….
REFRIGERATION FUNDAMENTALS: REMOTE DRAIN LAYOUT ...…....……………...……….……..
REFRIGERATION FUNDAMENTALS: SELF-CONTAINED DRAIN LAYOUT ………………….……...
REFRIGERATION FUNDAMENTALS: CONDENSATE PACKAGE ACCESS ………………….……...
REFRIGERATION FUNDAMENTALS: CONDENSATE PACKAGE ILLUSTRATED PARTS
BREAKDOWN ………………………………………………………………………………………….
GENERAL CLEANING (TO BE PERFORMED BY STORE PERSONNEL) ……………...……………..
PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY)..
TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL) ……………………………..
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) ……….
TROUBLESHOOTING: CONDENSING SYSTEM (BY TRAINED SERVICE PROVIDERS ONLY) .....
TROUBLESHOOTING: EVAPORATOR SYSTEM (BY TRAINED SERVICE PROVIDERS ONLY) …
SERIAL LABEL LOCATION & INFORMATION LISTED / TECH INFO & SERVICE………………......
PROGRAMMABLE CONTROLLER INFORMATION….……………………...………………....…….......
TECHNICAL SERVICE CONTACT INFORMATION / WARRANTY INFORMATION ..…………….....
3-4
5-9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27-28
29-30
31
32-33
34
35
36
37
38

3
OVERVIEW
• These Structural Concepts merchandisers are
designed to merchandise packaged products at 41 °F
(5 °C) or less product temperatures.
• Cases should be installed and operated according to
this operating manual’s instructions to ensure proper
performance.
• Improper use will void warranty.
CID UNITS - TYPE 2 CONDITIONS
These units are designed for the display of products in
ambient store conditions where temperatures and
humidity are maintained within a specific range.
• These CID units are designed for Type 2 conditions.
• Type 2 conditions are ambient conditions of 60%
maximum humidity and maximum temperatures of
80 °F (27 °C).
COMPLIANCE
• Performance issues when in violation of applicable
NEC, federal, state and local electrical and plumbing
codes are not covered by warranty.
• See below compliance guideline.
WARNINGS
• This sheet contains important warnings to prevent
injury or death. Please read carefully!
REFRIGERANT DISCLOSURE STATEMENT
• This equipment is prohibited from use in California
with any refrigerants on the “List of Prohibited
Substances” for that specific end-use, in accordance
with California Code of Regulations, title 17, section
95374.
• This disclosure statement has been reviewed and
approved by Structural Concepts and Structural
Concepts attests, under penalty of perjury, that these
statements are true and accurate.
WARNING
Hazardous moving parts. Do not operate unit with covers removed.
Fan blades may be exposed when deck panel is removed.
Disconnect power before removing deck panel.
WARNING
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
WARNING
ELECTRICAL
HAZARD
WARNING
KEEP
HANDS
COMPLIANCE
This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING DIAGRAM - PAGE 1 of 2
WARNING! POWER CORD AND PLUG MAINTENANCE
Risk of electric shock. If cord or plug becomes damaged,
replace only with cord and plug of same type.
ATTENTION
CONTRACTORS
WARNING: This product can expose you to chemicals, including
Urethane (Ethyl Carbamate), which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to P65Warnings.ca.gov.

4
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING DIAGRAM - PAGE 2 of 2
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle.
CAUTION! LED LAMP REPLACEMENT GUIDELINES
LED lamps reflect specific size, shape and overall design.
Any replacements must meet factory specifications.
CAUTION
PRECAUTIONS
• This sheet contains important precautions to prevent
damage to unit or merchandise.
• Please read carefully!
• See previous page for specifics on OVERVIEW,
CONDITION TYPE, COMPLIANCE and WARNINGS.
WIRING DIAGRAM
• Each case has its own wiring diagram folded and in
its own packet.
• Wiring diagram placement may vary; it may be
placed near ballast box, field wiring box, raceway
cover, or other related location.
CAUTION! CHECK CONDENSATE PUMP CONNECTIONS
Water on flooring can cause extensive damage!
Carefully check the following before powering up case:
• Condensate pump must be plugged into receptacle.
• Condensate lines must be connected to condensate pump.
CAUTION! ADVERSE CONDITIONS / SPACING ISSUES
• Performance issues caused by adverse conditions are NOT warranted.
• Rear panels must be kept at least 6” from walls and structures.
• Case must not be exposed to direct sunlight or any heat source.
• To maintain proper case temperature, keep case at least 15-feet from exterior
doors, overhead HVAC vents or any air curtain disruption.
• Self-contained case clearance: 6” min. air intake / 6” min. air discharge.
CAUTION
CAUTION! DO NOT RELY ON THERMOMETERS OR THERMOSTATS
FOR ACTUAL PRODUCT (FOOD) TEMPERATURES.
• Thermometers and thermostats reflect air temperatures ONLY.
• For ACTUAL food temperatures, use a calibrated food probe.
CAUTION! CHECK CONDENSATE PAN POSITION & PLUG!
Water on flooring can cause extensive damage!
• Before powering up case, check that condensate pan is positioned
directly under case’s condensate drain.
• Before powering up case, check that condensate pan’s electrical plug is
SECURELY connected to condensate system’s receptacle.

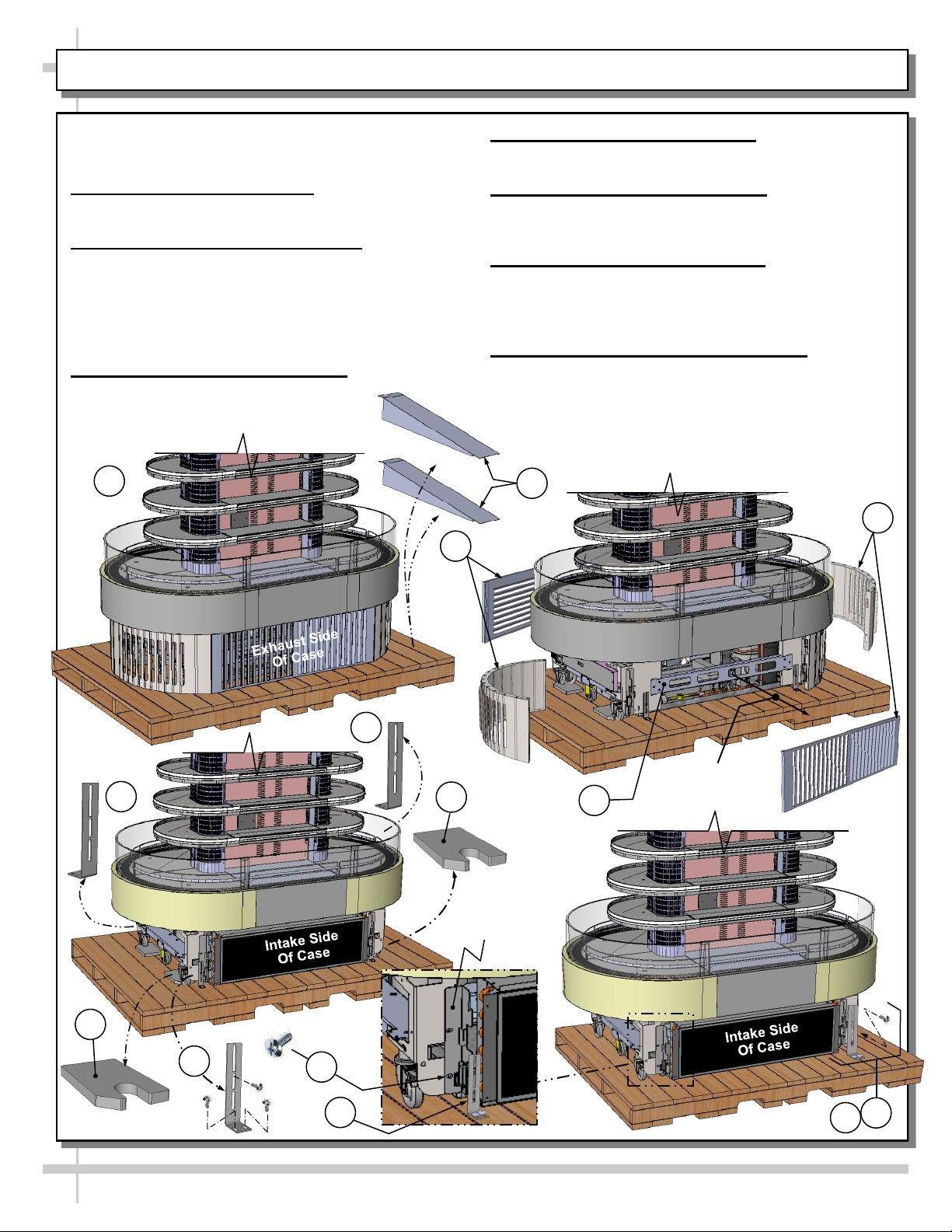

CASE REMOVAL FROM SKID AND SECURE PLACEMENT IN STORE - PAGE 1 OF 5
5
5
3
4
7
4
1
4. Wood Shipping Brace Removal
• Remove all (4) wooden shipping braces. Discard.
5. Metal Shipping Bracket Removal
• Remove (1) metal shipping brackets from each end of
air intake (coil) side of case by removing (3) screws .
6. Reattach (2) Screws to The Case
• Reattach one (1) screw at each end of case (2 screws
total) to securely fasten the ‘kick brackets’ to the base
at the intake (coil) side of case.
7. Metal Shipping Bracket Reattachment
• Reattach the (2) shipping brackets to the skid (NOT
THE CASE) by reusing the (2) screws that had been
removed from each end of the skid in step #5.
• Reattaching (2) brackets to each end of the skid will
prevent case from rolling off skid during this process.
>> Important! Case Must Be Rolled Off Skid
At Exhaust Side of Case!

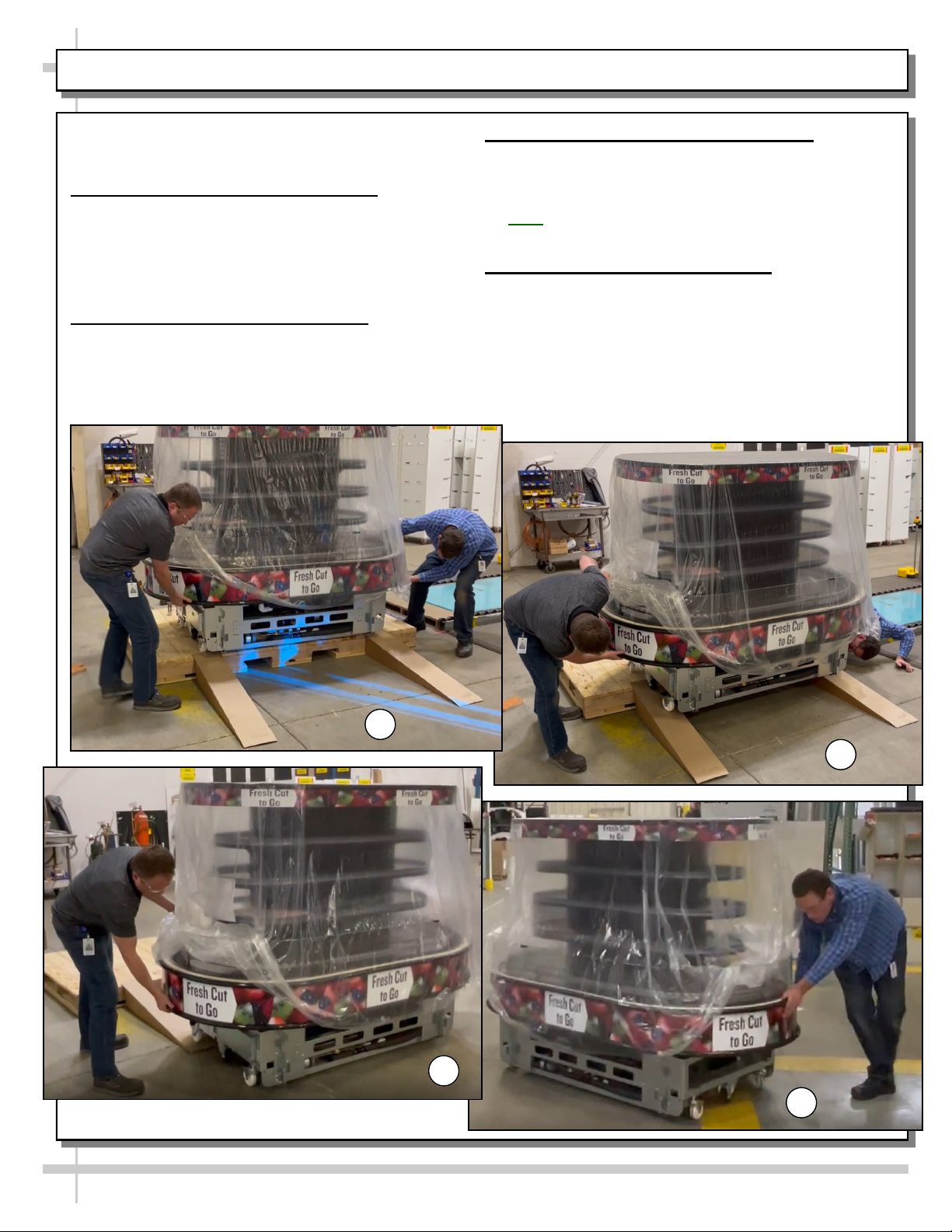

1. Case Received At Shipment
• Case will be shipped with lower panels attached.
2. Lower Panel Removal and Storage
• Remove ramps from skid (to use later in process).
• Remove lower panels by lifting up and off case.
• Place in area away from foot traffic.
• DO NOT REMOVE SUPPORT BRACE (at exhaust
side of case)!
3. Metal Shipping Bracket Removal
• Remove (2) metal shipping brackets
at air exhaust side of case.
3
2
Exhaust Side
Of Case
2
2
2
6
Kick
Bracket
7
6

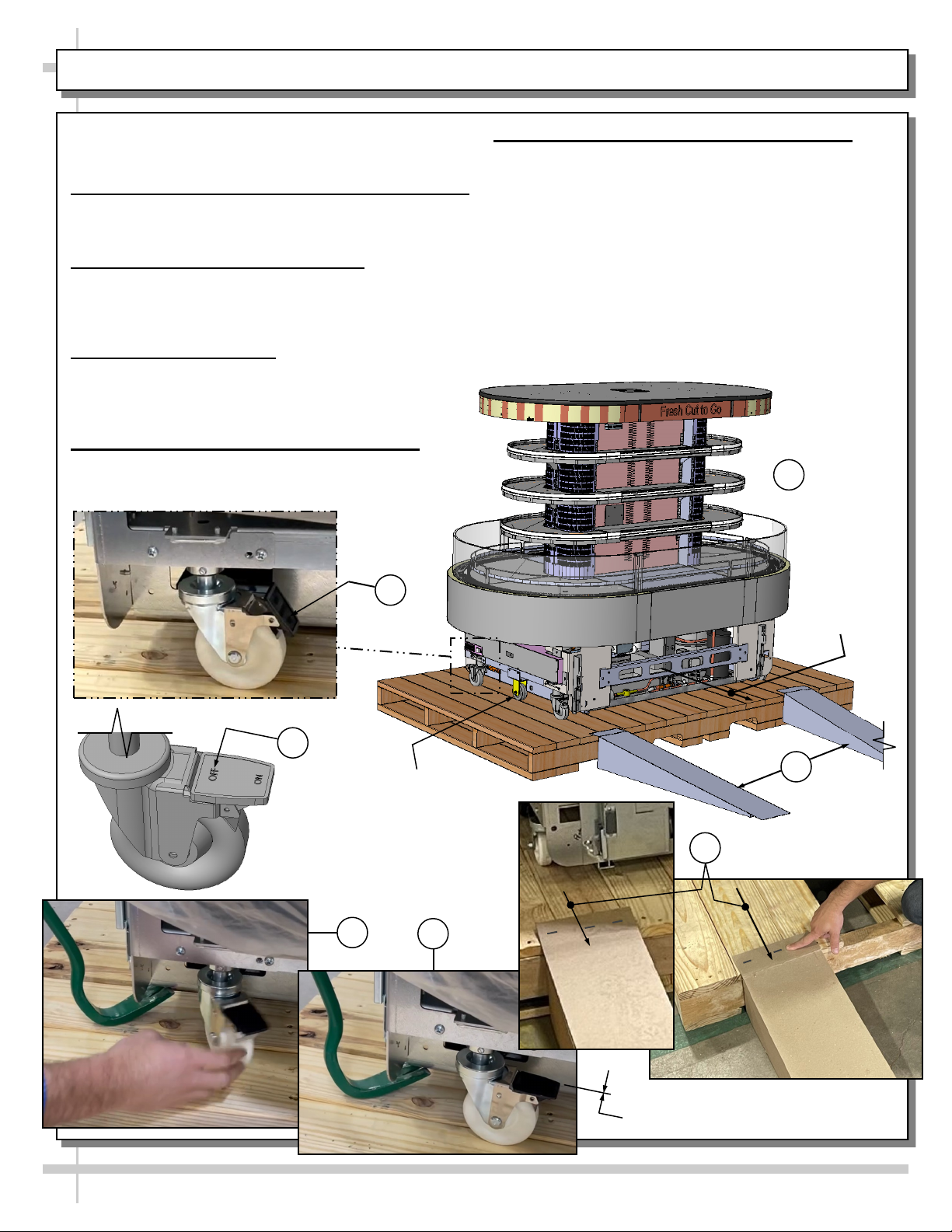

CASE REMOVAL FROM SKID AND SECURE PLACEMENT IN STORE - PAGE 2 OF 5
6
12. Cardboard Ramps To Align With Casters
• Cardboard ramps are shipped with skid.
• Place cardboard ramp lip atop edge of pallet (aligned
with casters) AT EXHAUST SIDE OF CASE!
• Use tape measure for exact dimensions at TOP AND
BOTTOM OF RAMPS! Do NOT just estimate caster
to ramp alignment!
• Screw or staple each ramp in place (in at least two
locations per ramp lip). Caution! If using screws, use
flat heads so casters will not be obstructed!
• Line up ramps to casters AT EXHAUST SIDE OF
CASE (as illustrated in item #8 below)!.
>> Important! Case Must Be Rolled Off Skid At
Exhaust Side of Case!
8. View of Case After Panels & Brackets Removed
• Case is now ready to remove from skid (without
damaging panels or being secured to skid).

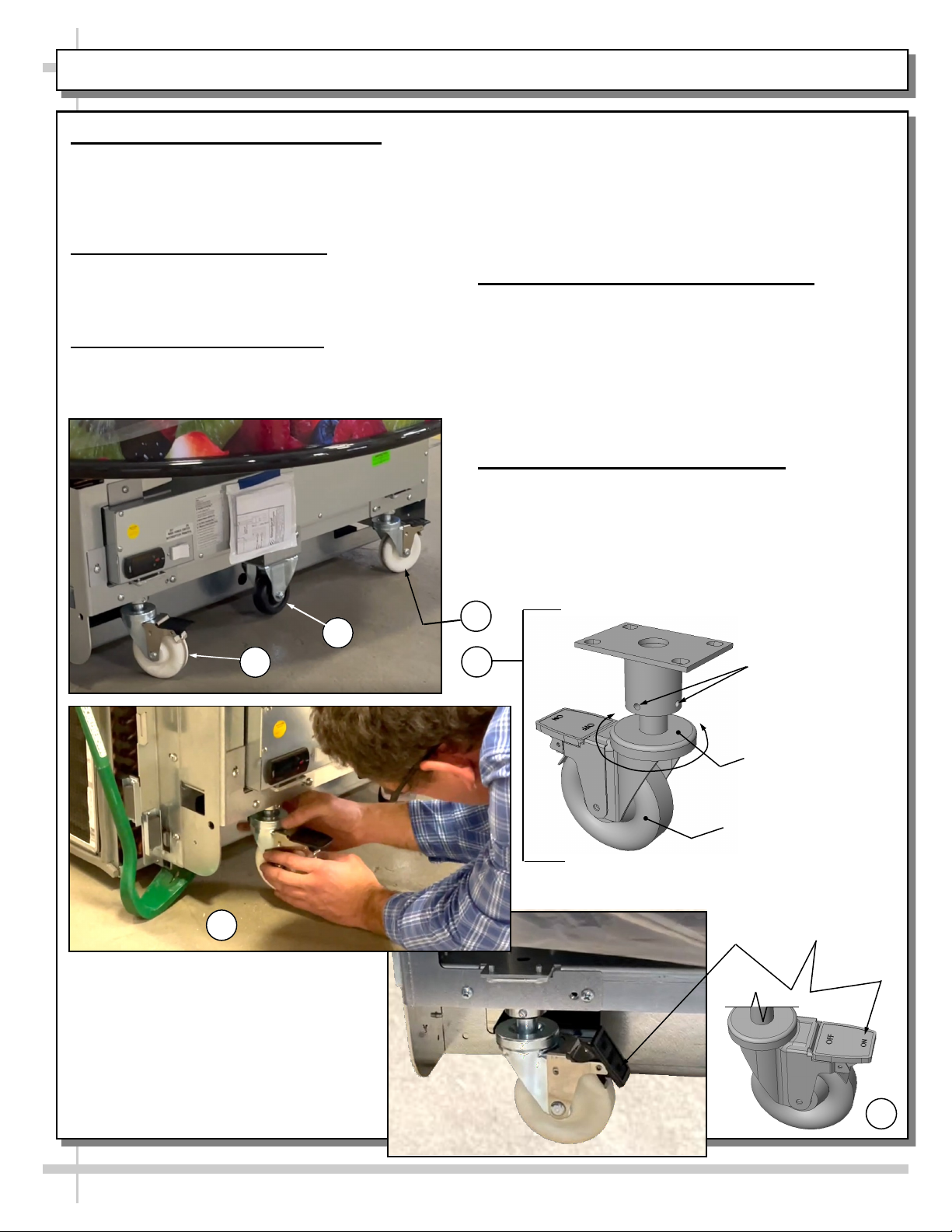

9. View of Caster in Locked Position
• Important! Case is shipped with casters factory set
at ON (locked) position (as shown) to help prevent
case from rolling during shipment.
10. Unlock All (4) Casters
• Unlock casters by forcefully pressing downward on
the OFF area of each caster lever.
• Lever will be parallel to floor when OFF/unlocked.
11. Use Pry Bar To Adjust Caster Positions
• Two (2) people may be required for this task.
• Press down on pry bar; rotate caster in-line.
Center Casters (One
At Each End) To
Remain On Case
During Skid Removal
9
10
10 11
12
Lever Will Be Parallel To Floor/
Skid When OFF/Unlocked.
12
Exhaust Side
Of Case
8

CASE REMOVAL FROM SKID AND SECURE PLACEMENT IN STORE - PAGE 3 OF 5
7
13
14
15
16
Exhaust Side
Of Case
Exhaust Side
Of Case
15. Carefully Slide Down Ramps to Floor
• Slowly/carefully roll case all the way down ramps to
floor.
• Make it a smooth transition from skid to floor.
>> Note: You man now discard/recycle skid,
cardboard ramps and metal shipping brackets!
16. Move Case To Desired Location
• ONE person may move case to desired location in
store.
• Due to weight of case, however, it is preferable that
TWO persons perform this task (one to move the
case while the other ‘steers’).
>> Important! Case Must Be Rolled Off Skid
At Exhaust Side of Case!
13. Slide Case To Edge of Skid/Ramps
• At least two people are required for steps 13 -15.
• Check that casters are at the center of each ramp
PRIOR TO rolling case down ramps.
• If not, remove staples/screws and adjust
accordingly.
14. Begin Rolling Case Down Ramps
• Begin rolling case down ramps.
• Important! Stop midway down ramps to check that
casters are still at center of ramps.
• If not, adjust ramps accordingly!

CASE REMOVAL FROM SKID AND SECURE PLACEMENT IN STORE - PAGE 4 OF 5
8
• Vertical height adjustment ring enables case to be
raised (or lowered) at each caster.
• Slotted head set screws MAY be tightened when the
desired vertical height is achieved.
• They may be loosened to adjust vertical height again.
• Vertical height adjustment ring set screws are NOT
tightened at factory.
20. Adjusting Case So It Is Level & Plumb
• Case must be in desired location before adjusting.
• Rotating vertical adjustment ring CLOCKWISE will
lower caster (raising case height).
• Use leveler on header for true level/plumb check.
• Start by adjusting caster’s vertical adjustment ring at
highest corner of case; lower it to floor.
• Then lower remaining casters until case is level and
plumb.
21, Locking ALL Casters Into Position
• To prevent case from moving after it has been moved
into position, casters must be locked.
• Lock casters after case is level and plumb.
• Press downward against the ON areas of all four (4)
caster levers with adequate force to lock them in place!
17. Remove Center Casters From Case
• Once case has been moved to desired location,
you may remove center casters.
• Just the removal of (2) horizontal screws will allow
caster to drop down and off case.
18. Caster Position at Shipment
• Case is shipped from factory with casters
RAISED to maximum height.
• This caster height aids in skid removal.
19. Caster Assembly Operation
• Image shows caster removed from case (for
illustrative purposes only).
17
20
All (4) Casters May
Now Be Locked (By
Pressing Downward
On The ON Lever).
21
Caster
Slotted Head Set
Screws May Be
Tightened When
Desired Vertical
Height Is Achieved)
Vertical Height
Adjustment Ring
(To Raise or
Lower Case)
19
18
18

CASE REMOVAL FROM SKID AND SECURE PLACEMENT IN STORE - PAGE 5 OF 5
9
22. Return Front and Rear Panels To Case
• Front and rear panels are to be returned case.
• Attach to case using upper hook, middle bracket
protrusion and lower magnet.
23. Return Left & Right Oval End Panels To Case
• Oval end panels are to attach to hooks, tabs and
magnets.
• They must align with front & rear end panels.
24. Adjust Left & Right Oval End Panels As Needed
• Brackets that secure oval end panels are adjustable
via obround slots.
• Loosen screws to adjust brackets (which adjusts
horizontally) to align oval end panels to front/rear
end panels so that space between panels are
WITHIN 1/4”. Then tighten screws securely.
25. View of Case - Front/Rear & End Panels Attached
• There should be NO LARGE GAPS between front/
rear panels in their alignment with oval end panels.
22
22
22
24
24
25
23
23 Panel Is Shown Transparent
For Viewing Slots

REMOTE UNITS: LEVELING UNIT VIA FRAME SUPPORT RAILS AND SHIMS
10
Model FSI656R Is Shown Above. It May Not Exactly
Reflect Every Feature or Option of Your Particular Model.
The Following Pertains To Remote Units
Leveling Unit Via Frame Support Rails
• Case must be level to assure proper operation.
• Case will have frame support rails.
• Frame support rails will need to be shimmed to
level the case.
Frame
Support Rail
Frame
Support Rail
• SCC P/N 27035 - A packet of (19) 3” x 3”
stainless steel, 18 gauge shims will be wrapped
and provided with cases with rails.
• After case has been properly shimmed, attach
panels to case (case below is shown with panels
for illustrative purposes only).

11

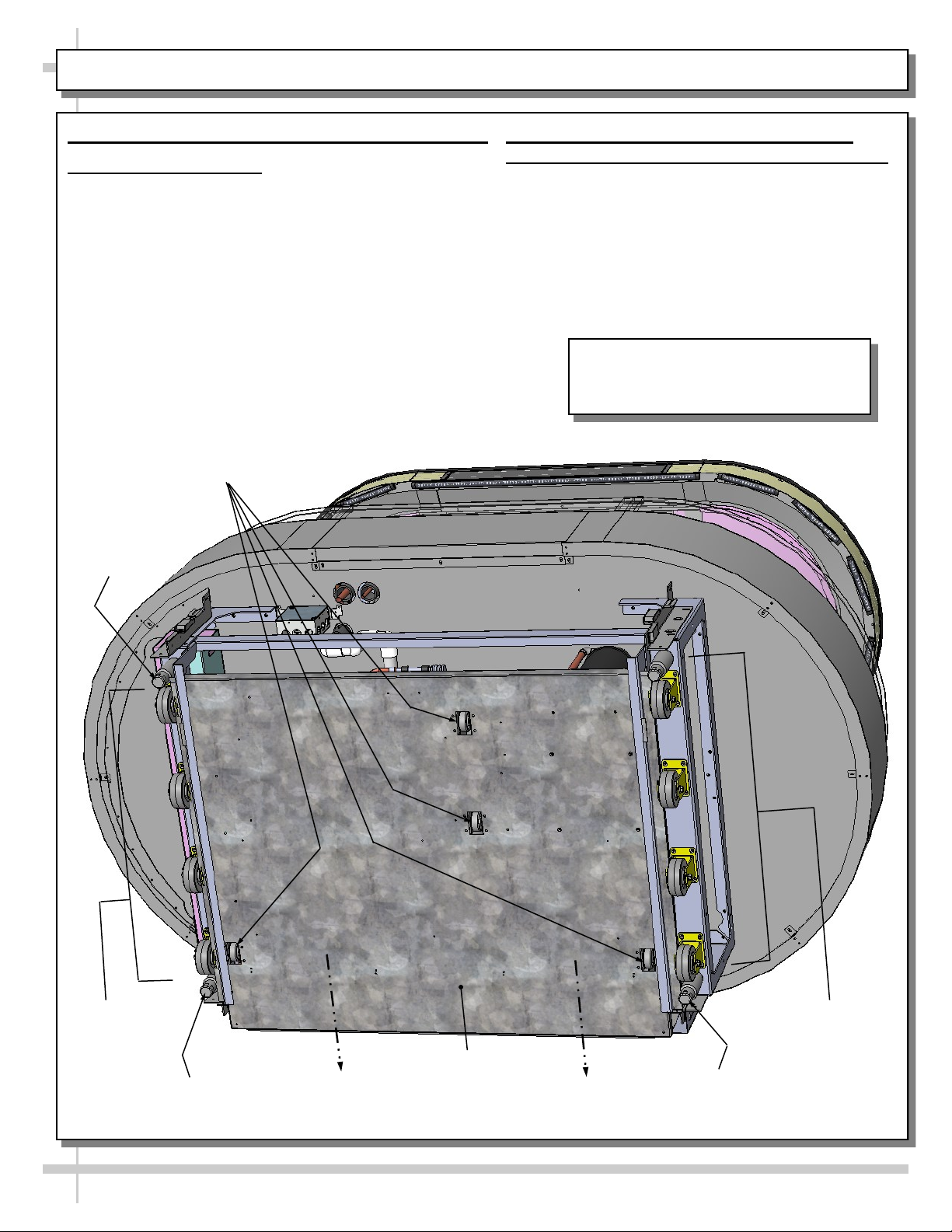

SELF-CONTAINED UNITS: IN-LINE CASTER RAILS / LEVELERS / CONDENSER PACKAGE CASTERS
The Following Pertains To Self-Contained Units
1. In-Line Caster Rails
• In-line caster rail allows the case to be moved/rolled
to different locations.
• All four (4) levelers must be raised off floor for case
to be moved/rolled into new position.
• After case has been moved to desired location,
levelers must then be lowered to floor again.
• Case must then be adjusted so that it is level and
plumb.
In-Line
Caster Rail
Casters (For Rolling
Condenser Package Out
From Under Case)
Leveler
Model FSI863R Is Shown Below. It May
Not Exactly Reflect Every Feature or
Option of Your Particular Model.
Underside of
Condenser Package
2. Condenser Package Casters (To Roll
Condenser Package Out From Under Case)
• Due to weight considerations, this unit’s
condenser package has its own casters to
assist in its sliding out from under
merchandiser.
• Case slides out at intake side of case.
• See illustration below.
Leveler
In-Line
Caster Rail
Leveler

12

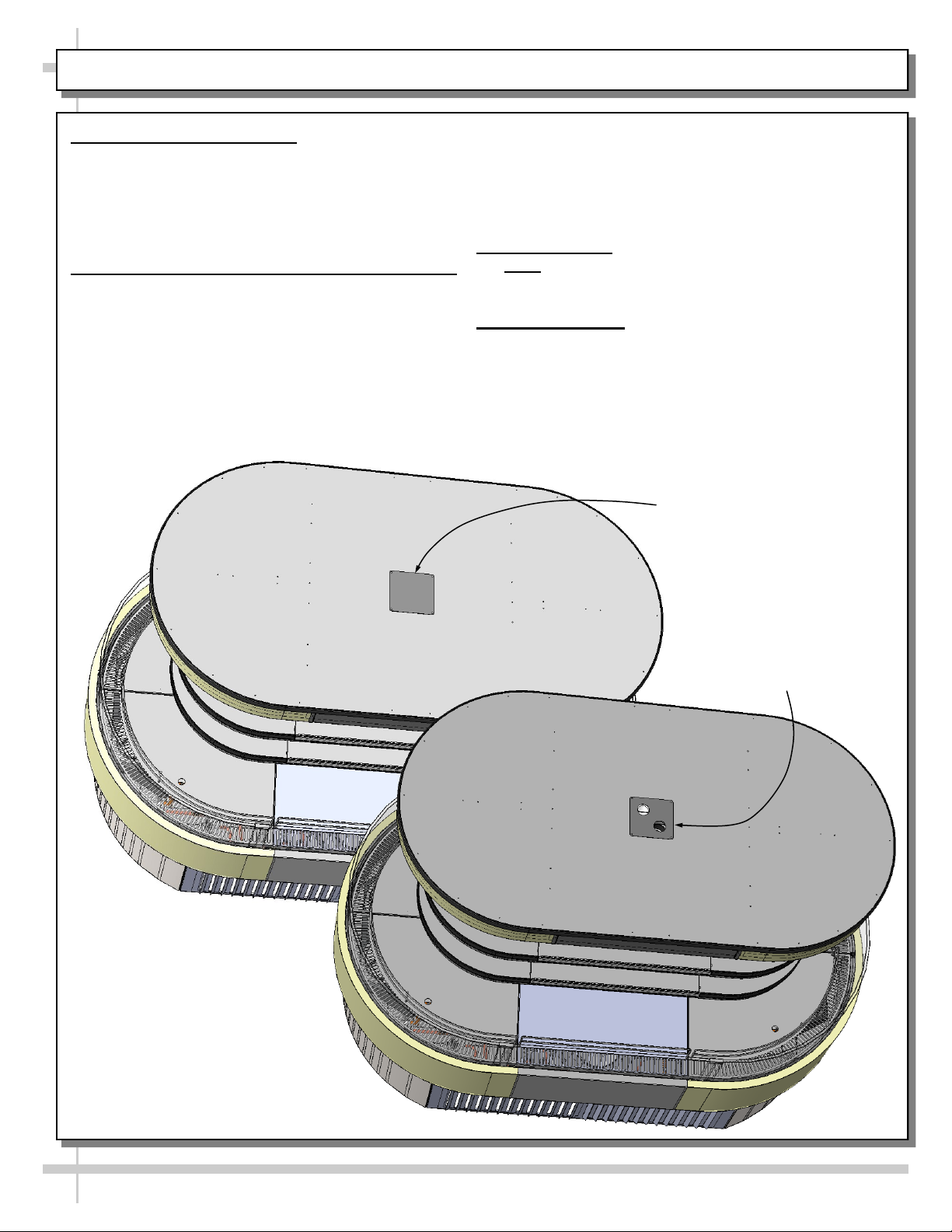

CEILING ORIGINATED ELECTRICAL & REFRIGERATION LINES / KNOCKOUT REMOVAL / SEALING
1. Merchandiser Versatility
• Structural Concepts cases can accompany
either floor or ceiling originated electrical and/or
refrigeration lines.
• This page shows how ceiling originated lines
are routed into case.
2. Ceiling Routed Electrical/Refrigeration. Lines
• A center pass-through protective plate is
mounted at top of case over two (2) PVC
center pass-throughs.
• If electrical/refrigeration lines are ceiling
originated, remove plate knockouts.
• Electrical and/or refrigeration lines may then be
dropped through PVC center pass-throughs.
Center Pass-Through
Protective Plate Shown After
Removal of Knock-Outs
• Caution! If ceiling originated lines are used,
you MUST seal both upper and lower PVC
pass-throughs (at entrance points) with
expandable foam sealant to prevent
condensation in case.
3. Plate Removal
• Note: Though not required, protective plate can be
removed from merchandiser via four (4) screws.
4. Case Underside
• Depending upon your model, see either
REFRIGERATION FUNDAMENTALS: REMOTE
DRAIN LAYOUT or REFRIGERATION
FUNDAMENTALS: SELF-CONTAINED DRAIN
LAYOUT section in this manual for location of
center pass-throughs at underside of case.
Center Pass-Through
Protective Plate Mounted
on Merchandiser
Caution! If ceiling
originated lines are used, you
MUST seal both upper and
lower PVC pass-throughs
(at entrance points) with
expandable foam sealant to
prevent condensation in case.

13
REMOTE CASES: REFRIGERATION LINE FIELD CONNECTION
1. Refrigeration Line Field Connection
• Warning! Turn power off and/or disconnect
power before providing maintenance and
service to unit.
• Assembly/disassembly/servicing is to be
performed by licensed refrigeration
contractor.
2. Refrigeration Lines at Underside
• Underside refrigeration lines are standard.
• Refrigeration lines are ALWAYS at rear of case.
• See photograph immediately below for illustration.

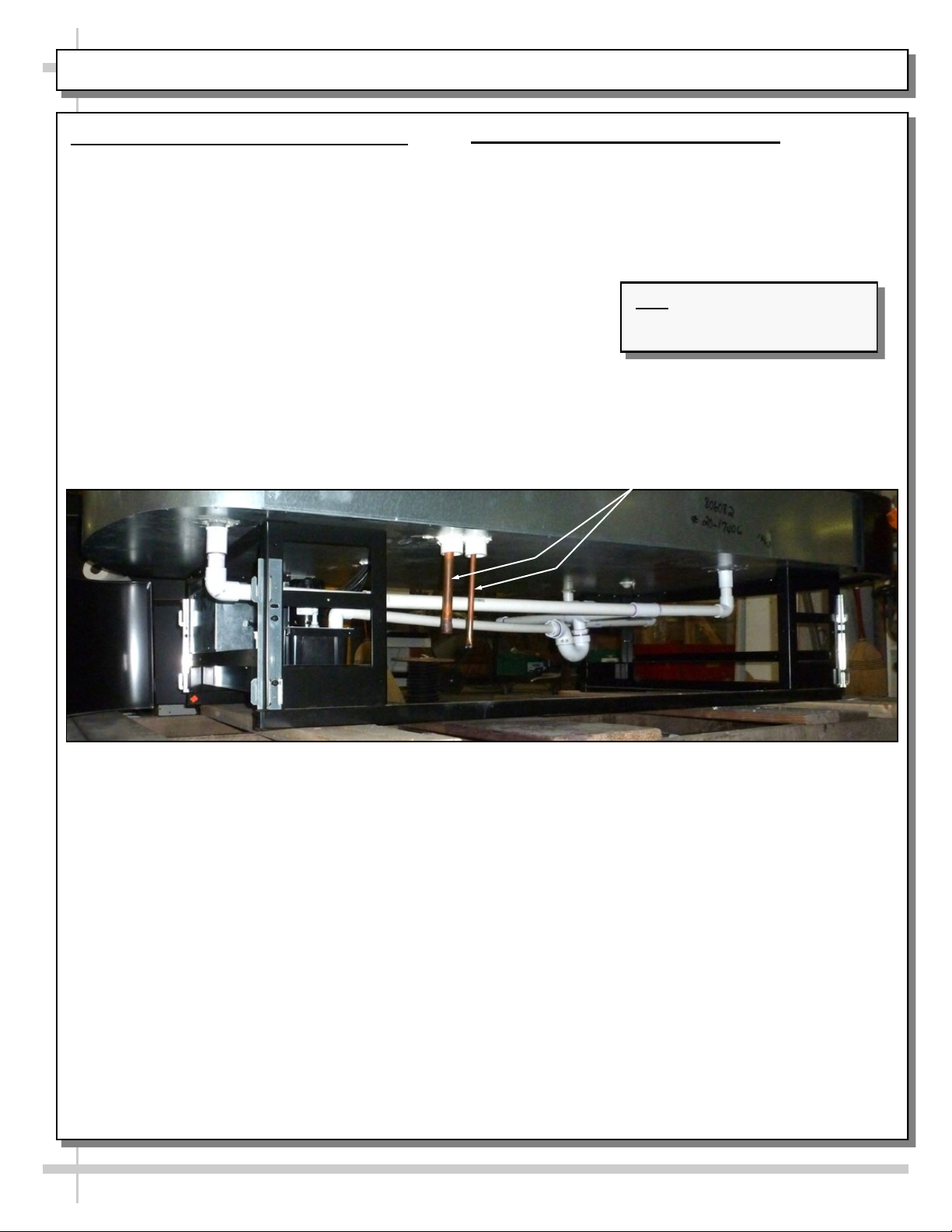

--- View of Remote Case With Underside Refrigeration Lines ---
Field-Connect
Refrigeration Lines Are Through
Underside PVC Tubes
Note: Illustration Shown May Not
Exactly Reflect Every Feature or
Option Of Your Particular Case.

Ballast
Box
Condensate
Pump Is To Be
Used When No
Floor Drain Is
Available
14
REMOTE CASES: CONDENSATE PUMP LOCATION AND PURPOSE
1. Condensate Pump Location
• Warning! Turn power off and/or disconnect
power before providing maintenance and
service to unit.
• Assembly/disassembly/servicing to be
performed by licensed refrigeration
contractor.
• Condensate pump is located just behind
ballast box (as shown in illustration below).
2. Condensate Pump Purpose
• Condensate pump is to be used when no floor
drain is available.
• Condensate pump transfers condensation
from lower section of case through top of
case and out.

15

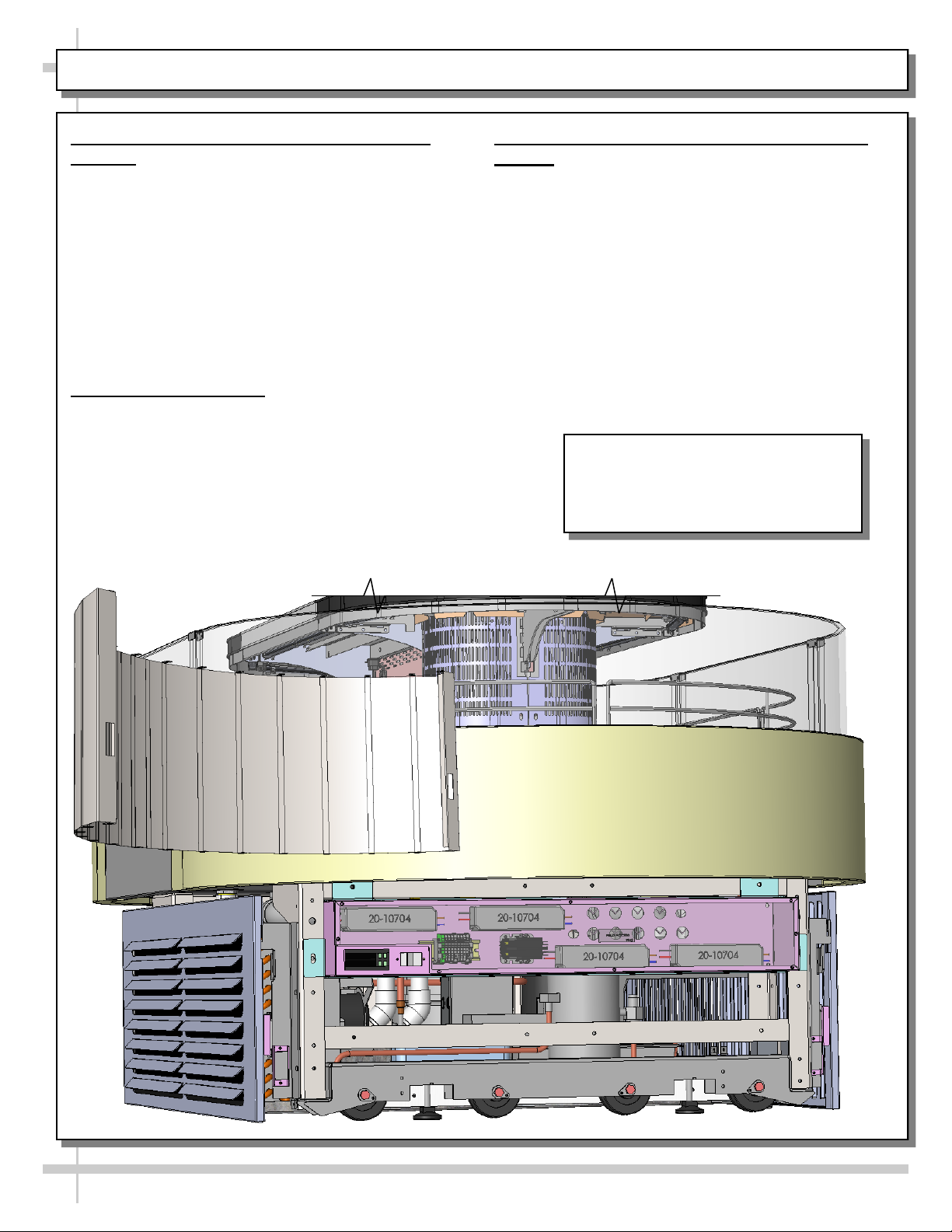

FIELD WIRING BOX / DATA COLLECTION CABLE / MAIN POWER SWITCH
1. Field Wiring Box / Data Collection Box
Access
• Warning! Turn power off and/or disconnect
power before providing maintenance and
service to unit.
• Assembly/disassembly/servicing to be
performed by licensed electrical contractor.
• Panel must be removed to access field wiring box
and switch.
• Data is collected from thermostat controller and
transmitted to designated collector.
• See illustration below.
2. End Panel Removal
• To remove panel (and access field wiring box),
lift panel up and off case hooks by grasping firmly
and pulling up and outward (and separating from
retaining magnets).
3. Self-Contained Cases Only: Main Power
Switch
• For self-contained cases, the main power switch
controls power to entire case.
• Remote cases energize when properly field
wired.
• For self-contained units, If main power switch is
not turned on, lights will not turn on NOR will
refrigeration components operate.
• See illustration below.
Note: Illustration Reflects Self-Contained
Model. Component Layout Differs From
Remote Units And May Not Exactly
Reflect Every Feature or Option of
Your Particular Case

16
SELF-CONTAINED UNITS: TOE-KICK ATTACHMENT INSTRUCTIONS (HORIZONTAL vs. VERTICAL)
Self-Contained Units: Toe-Kick Attachment Instructions
• Toe-kick venting designs vary depending upon whether it is located at
intake or discharge side of case.
• Proper airflow will be maintained by following these instructions:
A. Horizontally vented toe-kick must be attached to intake side of compressor
(as shown in item “A”).
B. Vertically vented toe-kick must be attached to the discharge side of
compressor (as shown in item “B”).
Note: Illustrations
Shown May Not
Exactly Reflect Every
Feature or Option of
Your Particular Case
--- Discharge Side of Compressor ---
Vertical Venting
Toe-Kick
Horizontal Venting
Toe-Kick
--- Intake Side of Compressor ---
A
B

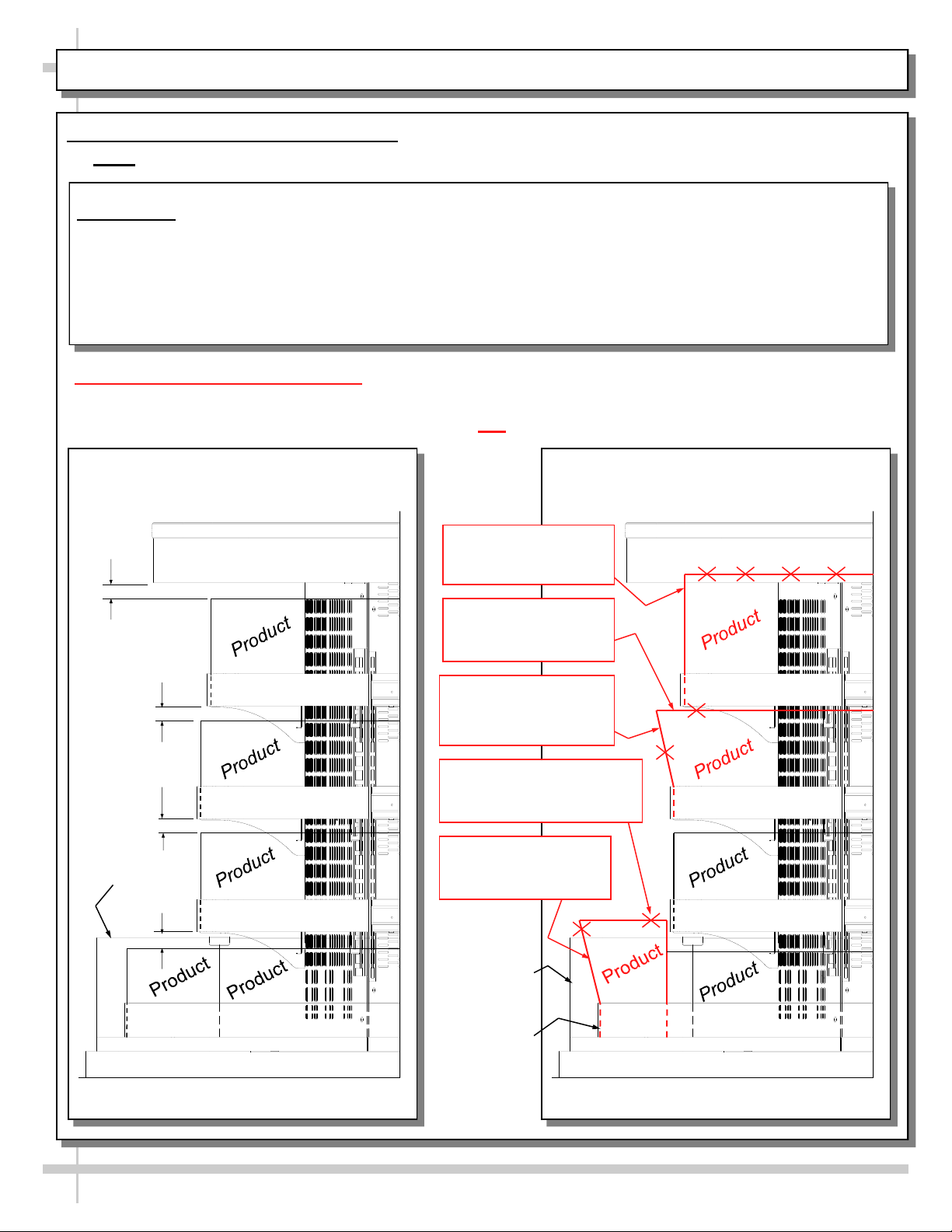

PLAN-O-GRAM (LOAD LEVEL GUIDELINES): FROM SCC P/N 20-24592
17
Plan-O-Gram (Load Level Guidelines)
> Note: Any changes to this sheet must also be made to SCC P/N 20-24592
CAUTION! TO MAINTAIN SAFE PRODUCT TEMPERATURES & AIRFLOW:
 DO NOT STACK PRODUCT NEARER THAN 1” TO UNDERSIDE OF FASCIA
 DO NOT STACK PRODUCT NEARER THAN 1” TO UNDERSIDE OF SHELVES
 DO NOT ALLOW PRODUCT TO HANG OVER FRONT OF SHELVES
 DO NOT STACK PRODUCT ON DECKS HIGHER THAN UNDERSIDE OF SHELF
 DO NOT ALLOW PRODUCT ON DECKS TO HANG OVER PRODUCT STOP
ACCEPTABLE
PRODUCT PLACEMENT
1” Min.
1” Min.
1” Min.
1” Min.
Top Shelf
RESTRICTED FOOD PRODUCTS
 SALADS (GARDEN, CHEF, CHICKEN, BLT, ETC.): PLACE ON SIDE DECKS ONLY
 CHEESE STICKS: PLACE ON SIDE DECKS OR END CAP DECKS
Middle Shelf
Lower Shelf
Fascia
--- SIDE VIEW ---
UNACCEPTABLE
PRODUCT PLACEMENT
Top Shelf
Middle Shelf
Lower Shelf
Fascia
--- SIDE VIEW ---
Product
Stop
Acrylic Air
Deflector
Do Not Allow Product
On Decks To Hang
Over Product Stop
Do Not Stack Product
Nearer Than 1” To
Underside of Fascia
Do Not Stack Product On
Decks Higher Than The
Underside Of Lower Shelf
Do Not Stack Product
Nearer Than 1” To
Underside of Shelves
Do Not Allow Product
To Hang Over Front
of Shelves
Acrylic
Air
Deflector
Product Stop

THERMOMETERS (DIGITAL THERMOMETER & OPTIONAL “CHECK TEMPERATURE”)
18
Thermometers
Thermometers are located on rear plenum at upper area of case.
• Digital thermometer is on ALL merchandisers.
• The “Check Temperature” thermometer is optional.
• See illustrations below.
Digital
Thermometer
Optional “Check
Temperature”
Thermometer
Illustration Shown
May Not Exactly
Reflect Every
Feature or Option
of Your Particular
Case

POWER-UP CHECK (EVAPORATOR FAN AREA)
19
Power-Up Check
(Evaporator Fan Area)
After power has been supplied,
evaporator coil fans will be
operational.
• To verify fans are
operational, lift up deck
pans; check to see that the
coil fans are all functioning
properly.
• Solenoid (location shown
on illustration) may be on
remote cases ONLY).

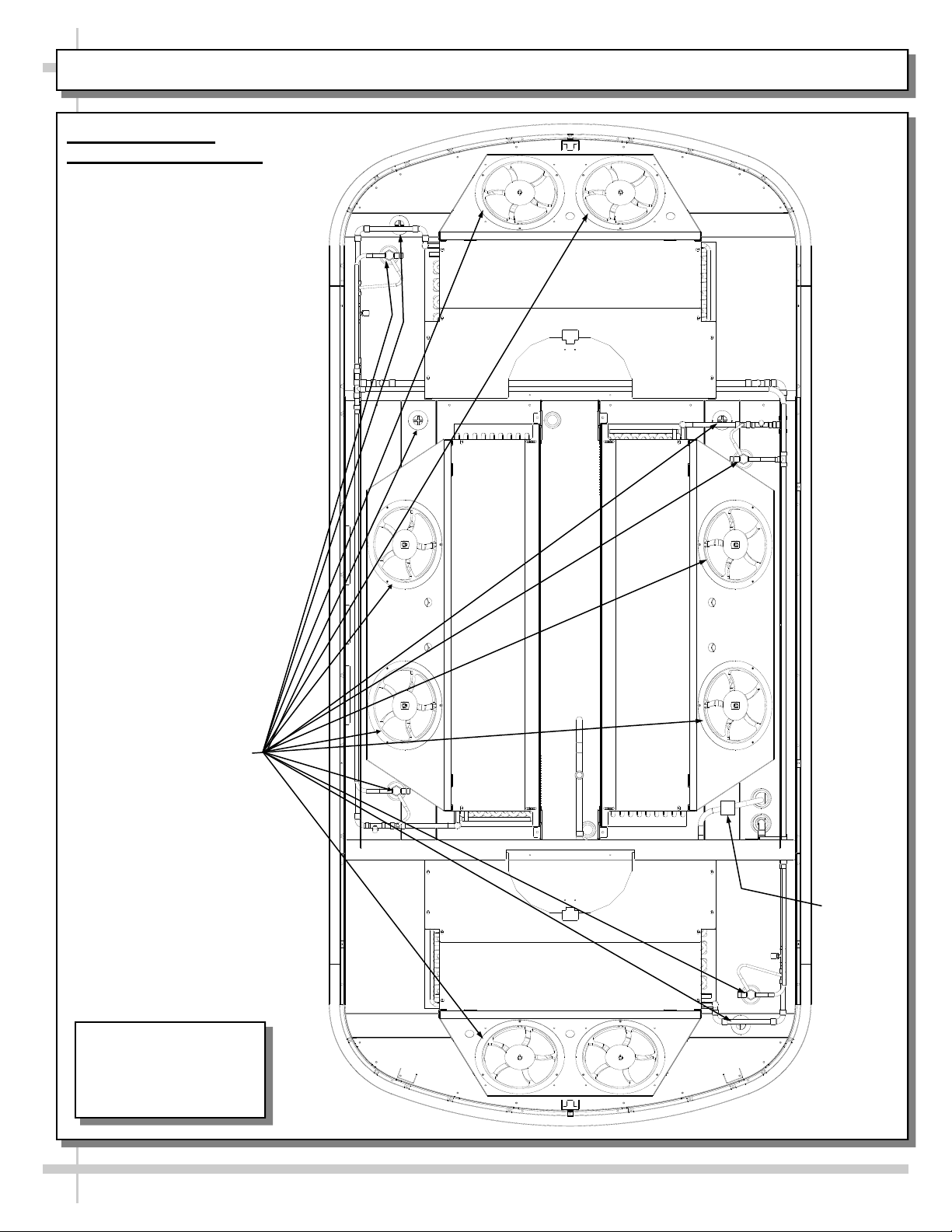

View of Evaporator
Coil Fans, TXV and
Drains After Decks and
Upper Canopy Have
Been Removed.
Front of Case
(Temperature
Controller Side)
Solenoid
(May Be
On
Remote
Cases
Only)
Illustration Shown May
Not Exactly Reflect
Every Feature or Option
of Your Particular Case.

20
MAINTENANCE FUNDAMENTALS: AFTERMARKET PRODUCT BIN - PLACEMENT

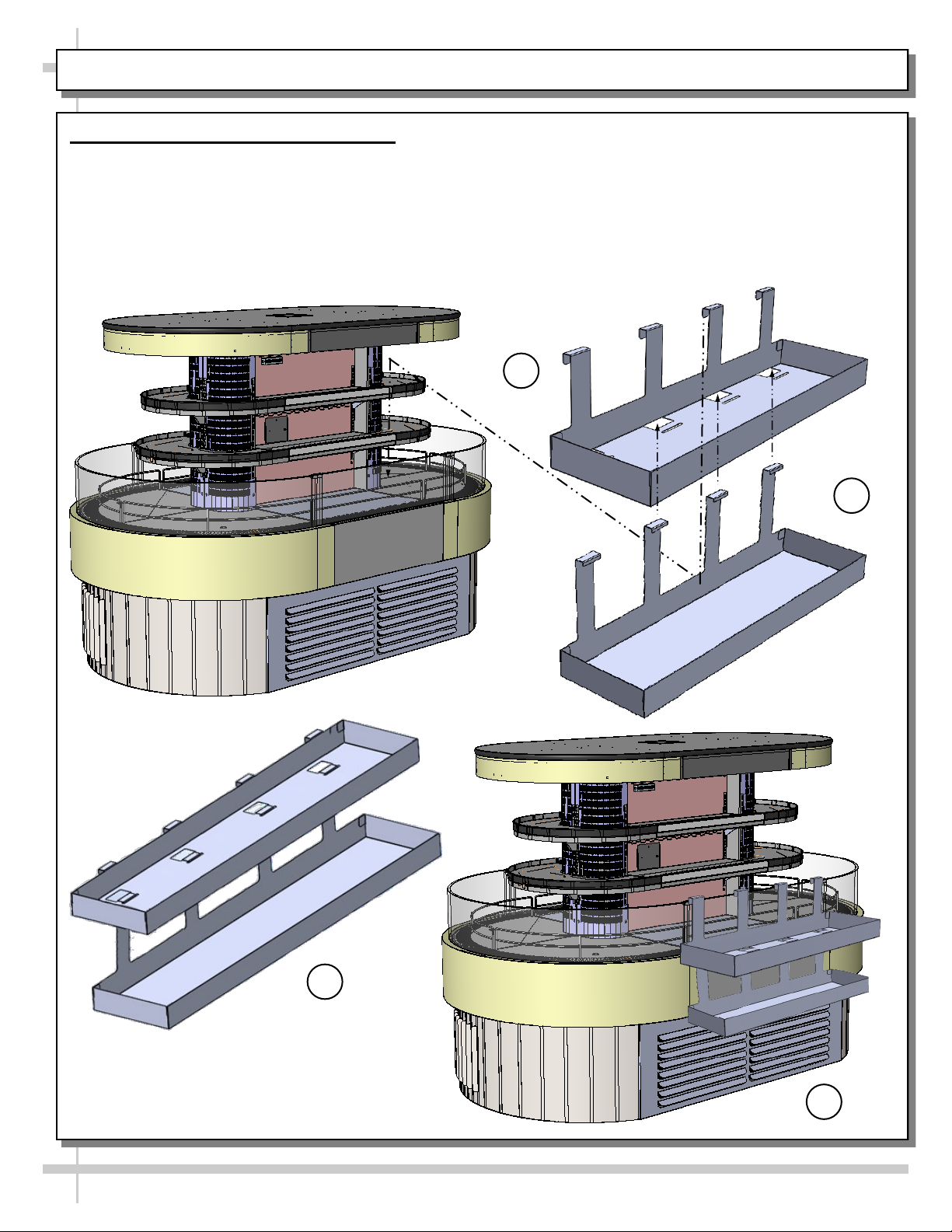

Aftermarket Product Bin - Placement
• ModelFSI656R (Shown Below) May Not Reflect
Every Feature Or Option Of Your Particular Case.
• Product bin is for placing bagged product such
as potato chips, pretzels, crackers, etc.
• Product bin is made of stainless steel.
• Remove product bin (to clean or replace).
1. Upper product bin is to hang on acrylic shield at
front of case.
2. Lower product bin prongs are to be inserted into
upper bin’s cutouts (in base) and hang securely.
3. View of assembled upper and lower product bins.
4. View of assembled upper and lower product bins
after being attached to case’s acrylic shield at front
of case.
1
2
3
4
