Structural Concepts Oasis B32 User manual

REV AU DATE: 10/14/2022
USER MANUALS\54110_OASIS_USER MANUAL_BXX_B(L)(D)_B(L)(D)TM_REF_SELF-SVC_BOX CASE
888 E. Porter Road ∙ Muskegon, MI 49441 Phone: [phone] Fax: [phone] www.structuralconcepts.com
Model B32
Important!
> If Adjoining Cases, see Synchronous Defrost
Connection Instructions on page 8 and
Adjoinment Instructions on Page 9 of Manual.
> If your unit has Aftermarket Product Bins, See
Page 13 of Manual for Placement Instructions.
OASIS REFRIGERATED “BOX CASES” /
SELF-CONTAINED & REMOTE /
OPTIONAL SECURITY COVERS /
TOP-MOUNTED CONDENSER
PACKAGES ON CERTAIN MODELS
Model B22.6817
Model B6632SC.6241
Model B5932TM.6785 (Similar To
B4732TM.6785) / (Top-Mounted
Condenser Pkg. / Underside
Pump) / Optional Rear Doors Model B8832 (With Optional
Roll-Down Security Cover)
Model B4732 (With Optional
Roll-Down Security Cover)
Model B32.7413
(End Panel Removed As
Part Of Lineup)
SCC P/N
54110
Oasis
READ AND SAVE THESE INSTRUCTIONS
® USER
MANUAL

2
TABLE OF CONTENTS / MODELS TO WHICH THIS MANUAL IS APPLICABLE
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS ………………………..
INSTALLATION: CASE REMOVAL (VIA LEVELERS & CASTERS) …….……………………………………..……..
INSTALLATION, CONTINUED: POSITIONING & ALIGNING CASE / ADJUSTING LEVELERS .…………..……..
INSTALLATION, CONTINUED: OPTIONAL SECURITY COVER INSTRUCTIONS ……………………….…….….
INSTALLATION, CONTINUED: SYNCHRONOUS DEFROST CONNECTION (OPTIONAL) …………….…….….
INSTALLATION, CONTINUED: ADJOINMENT INSTRUCTIONS ……………………………………..…..………….

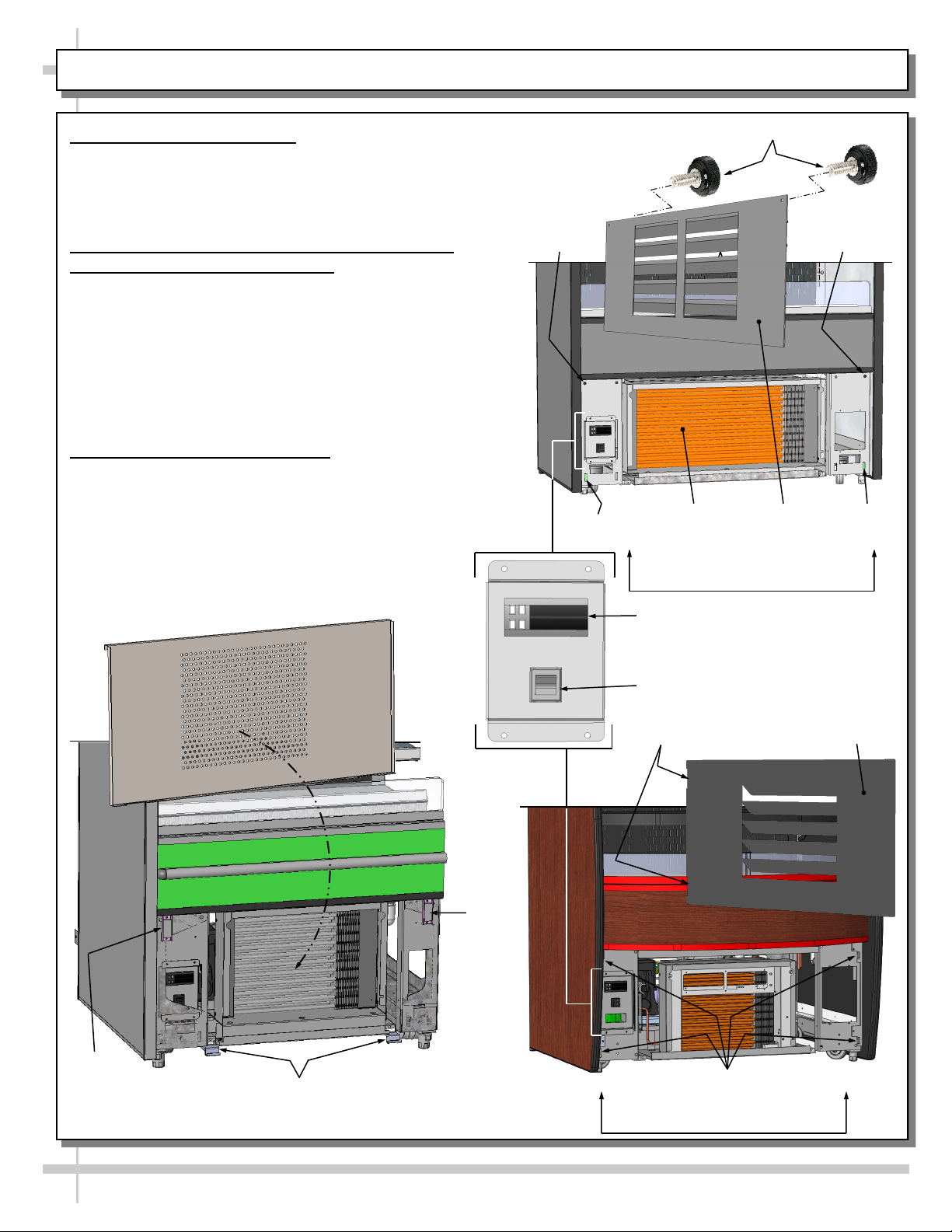

FRONT GRILLE REMOVAL / CONDENSER PACKAGE / OVERFLOW PAN / MAIN POWER SWITCH /
CAREL® THERMOSTAT …………………………………………………………………………………………
EVAPORATOR COIL FAN DISCHARGE / TXV (THERMOSTATIC EXPANSION VALVE) …………...………..….
HONEYCOMB AIR DIFFUSER ACCESS ……………………………………...…...…………….………….…………..
AFTERMARKET PRODUCT BIN - PLACEMENT ……………………………………………………………………….
LED LIGHT FIXTURES ………………………………………………………………………………………………..…....

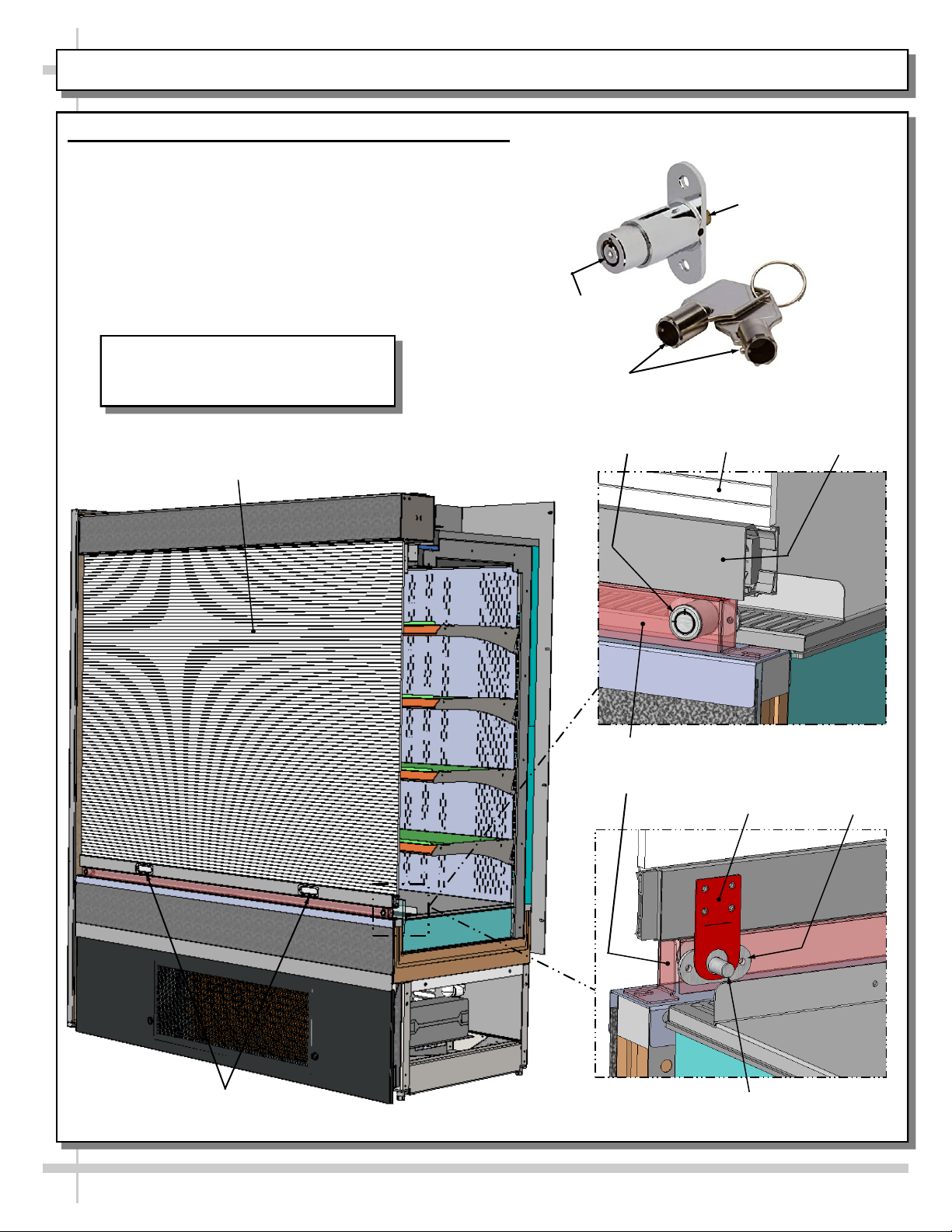

OPTIONAL ROLL-DOWN SECURITY COVER - MODEL B4732 ILLUSTRATED (YOUR MODEL MAY VARY) ..

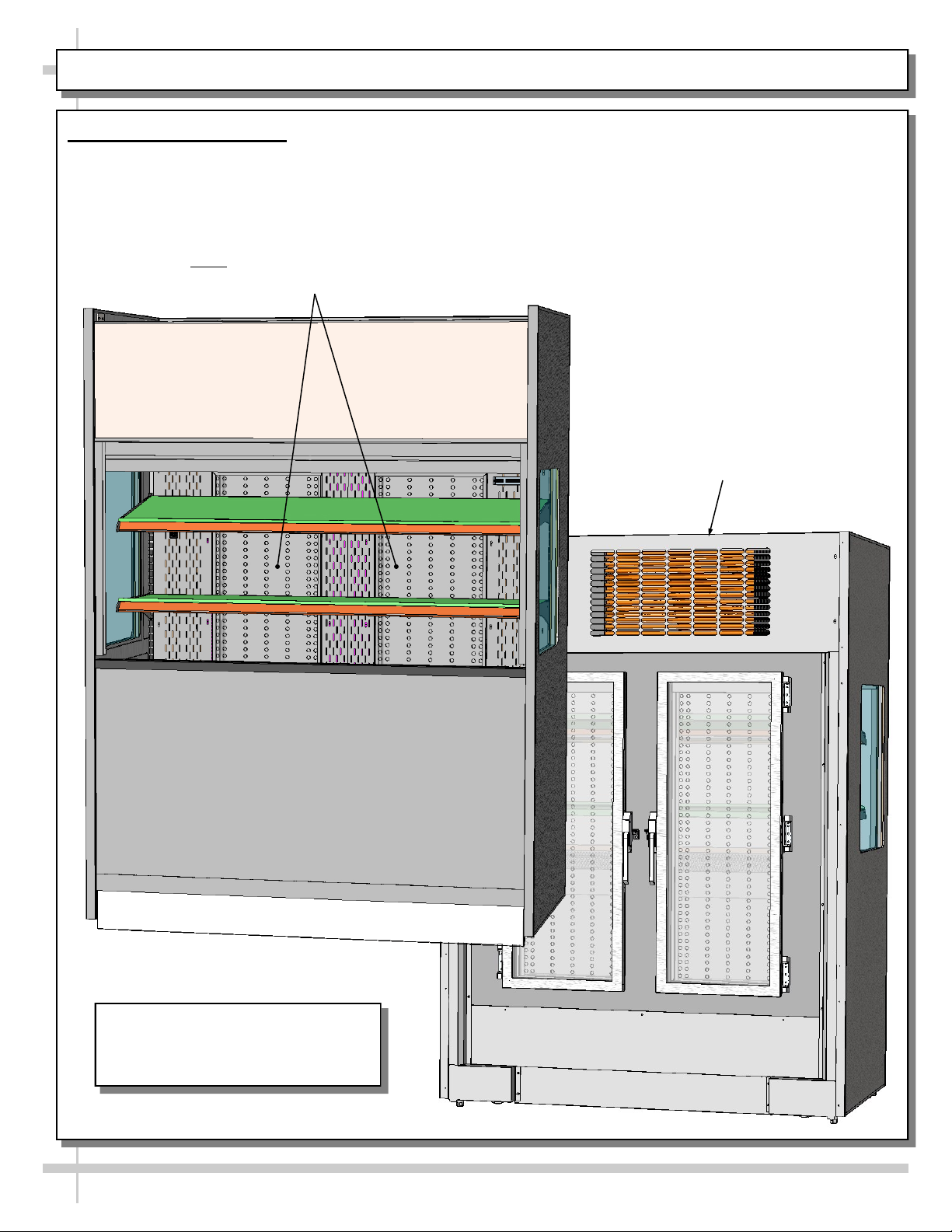

OPTIONAL DUAL REAR DOORS (WITH PERFORATED PLENUM DOORS) / B5932TM SHOWN …………..…...
OPTIONAL SINGLE REAR DOOR (WITH PERFORATED PLENUM AS PART OF DOORS) / B3632TM
SHOWN ...……………………………………………………………………………………………………………
WALL SPACING / REAR GRILLE & VENTING PANEL (MAY NOT BE APPLICABLE TO YOUR MODEL) ……..
CONDENSATE PAN ACCESS: STANDARD UNITS ………..……………………………………………...….............
CONDENSATE PAN ACCESS: REMOTE UNITS WITH CONDENSATE PANS ONLY …………………...............
SELF-CONTAINED HOT GAS LOOP CONDENSATE PACKAGE LAYOUTS ……………………………………....
SELF-CONTAINED HOT GAS LOOP CONDENSATE PACKAGE LAYOUTS - TOP MOUNTED ………………...
UNDERSIDE PUMP/DRAIN UNIT (FOR UNITS WITH TOP-MOUNTED SELF-CONTAINED COND. PKGS.) ….
LOAD LEVEL GUIDE / TEMPERATURE GUIDE (MODEL B42 SHOWN / APPLICABLE TO ALL OTHER
MODELS IN MANUAL) …..………………………………………………………………………………………..
CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) …..……………...…....……………….
PREVENTIVE MAINTENANCE - TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY ……...…..
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDER ONLY) ……………………...
TROUBLESHOOTING (BY TRAINED SERVICE PROVIDERS ONLY) - CONDENSING SYSTEM ………….......
TROUBLESHOOTING (BY TRAINED SERVICE PROVIDERS ONLY) - EVAPORATOR SYSTEM ………….…..
SERIAL LABEL LOCATION & INFORMATION LISTED / TECH INFO & SERVICE ……….…..………...…………
PROGRAMMABLE CONTROLLER INFORMATION……………………………………………………………………….
TECHNICAL SERVICE CONTACT INFORMATION / WARRANTY INFORMATION …...……………..…………..
3-4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21-22
23
24
25
26
27-31
32-34
35
36
37
38
39
B22.6817
B32 CORE
B32.5955A
B3632
B3632TM
B42
Partial List of Models To Which This Manual Is Applicable
B42.5955
B42.6662
B4732
B4732SC.6162
B4732SC.7773
B4732TM
B4732TM.6785
B4732SC.7382
B4736SC.7455
B5932
B5932TM
B5932TM.6785
6032SC.6162
B6032SC.6241
B62
B6632SC.6241
B7132 B7132TM
B7132TMDR
B7132SC.6162
CDR7317
B82
B8832
B8832TM
B9232
CDR7317 (B42/B62
ADJOINMENT)

3
OVERVIEW
• These Structural Concepts merchandisers are designed
to merchandise packaged products at 41 °F (5 °C) or
less product temperatures.
• Product must be pre-chilled to 41 °F (5 °C) or less
product temperatures prior to placing in merchandiser.
• Cases should be installed and operated according to
this operating manual’s instructions to ensure proper
performance.
• Improper use will void warranty.
TYPE I vs. TYPE II ENVIRONMENTAL CONDITIONS
This unit is designed for the display of products in ambient
store conditions where temperature and humidity are
maintained within a specific range.
• Type I display refrigerators are intended for use in an
area where environmental conditions are controlled and
maintained so that the ambient temperature does not
exceed 75 °F (24 °C) and 55% maximum humidity.
• Type II display refrigerators are intended for use in an
area where environmental conditions are controlled and
maintained so that the ambient temperature does not
exceed 80 °F (27 °C) and 60% maximum humidity.
• If unsure if your unit is Type I or II, see tag next to serial
label. See SERIAL LABEL LOCATION &
INFORMATION LISTED / TECH INFO & SERVICE
section in this manual for sample serial labels.
COMPLIANCE
• Performance issues when in violation of applicable NEC,
federal, state and local electrical and plumbing codes
are not covered by warranty. See below.
WARNINGS
• This sheet contains important warnings to prevent injury
or death. Please read carefully!
REFRIGERANT DISCLOSURE STATEMENT
• This equipment is prohibited from use in California with
any refrigerants on the “List of Prohibited Substances”
for that specific end-use, in accordance with California
Code of Regulations, title 17, section 95374.
• This disclosure statement has been reviewed and
approved by Structural Concepts and Structural
Concepts attests, under penalty of perjury, that these
statements are true and accurate.
WARNING
Hazardous moving parts. Do not operate unit with covers removed.
Fan blades may be exposed when deck panel is removed.
Disconnect power before removing deck panel.
WARNING
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
WARNING
Condensate Pan is Hot!
Disconnect and allow to cool before cleaning or removing from case.
WARNING
ELECTRICAL
HAZARD
WARNING
KEEP
HANDS
CLEAR
WARNING
HOT
SURFACE
COMPLIANCE
This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PAGE 1 of 2
ATTENTION
CONTRACTORS
WARNING: This product can expose you to chemicals, including
Urethane (Ethyl Carbamate), which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to P65Warnings.ca.gov.

4
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or local code requires GFCI (Ground
Fault Circuit Interrupter), use a GFCI breaker in lieu of a GFCI receptacle.
CAUTION! LAMP REPLACEMENT GUIDELINES
LED and fluorescent lamps reflect specific size, shape and design.
Any replacements must meet factory specifications, resist breakage and
reflect similar appearance as lamps from factory.
CAUTION
PRECAUTIONS
• This sheet contains important precautions to prevent
damage to unit or merchandise. Please read carefully!
• See previous page for specifics on OVERVIEW,
TYPE, COMPLIANCE and WARNINGS.
WIRING DIAGRAM
• Each case has its own wiring diagram folded and in its
own packet.
• Location: Diagram may be near ballast box, field wiring
box, raceway cover, or other related location.
CAUTION! POWER CORD AND PLUG MAINTENANCE
Risk of electric shock. If cord or plug becomes damaged,
replace only with cord and plug of same type.
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PAGE 2 of 2
CAUTION! CHECK CONDENSATE PAN POSITION & PLUG
Water on flooring can cause extensive damage!
Before powering up unit, check and confirm the following:
• Condensate pan is DIRECTLY UNDER condensate drain.
• Condensate pan plug is securely plugged into receptacle.
• Overflow pan has plug connected to its box. Units with
optional Clean Sweep™ must have TWO PLUGS connected.
CAUTION! ADVERSE CONDITIONS / SPACING ISSUES
• Performance issues caused by adverse conditions are NOT warranted.
• To prevent damage to end panels due to condensation, apply industrial grade
silicone sealant and tightly join to opposite end panels. When not adjoining
cases, keep end panels at least 6” away from walls/structures. Rear panels
must also be kept at least 6” from walls and structures.
• Case must not be exposed to direct sunlight or any heat source.
• To maintain proper case temperature, keep case at least 15-feet from exterior
doors, overhead HVAC vents or any air curtain disruption.
CAUTION
CAUTION! DO NOT RELY ON THERMOMETERS OR
THERMOSTATS FOR PRODUCT (FOOD) TEMPERATURES.
• Thermometers & thermostats reflect air temperatures ONLY.
• For ACTUAL product (food) temperatures, use a calibrated food
probe thermometers ONLY.
• For accurate readings, DO NOT use infrared food thermometers.

5
INSTALLATION: CASE REMOVAL (VIA LEVELERS & CASTERS)

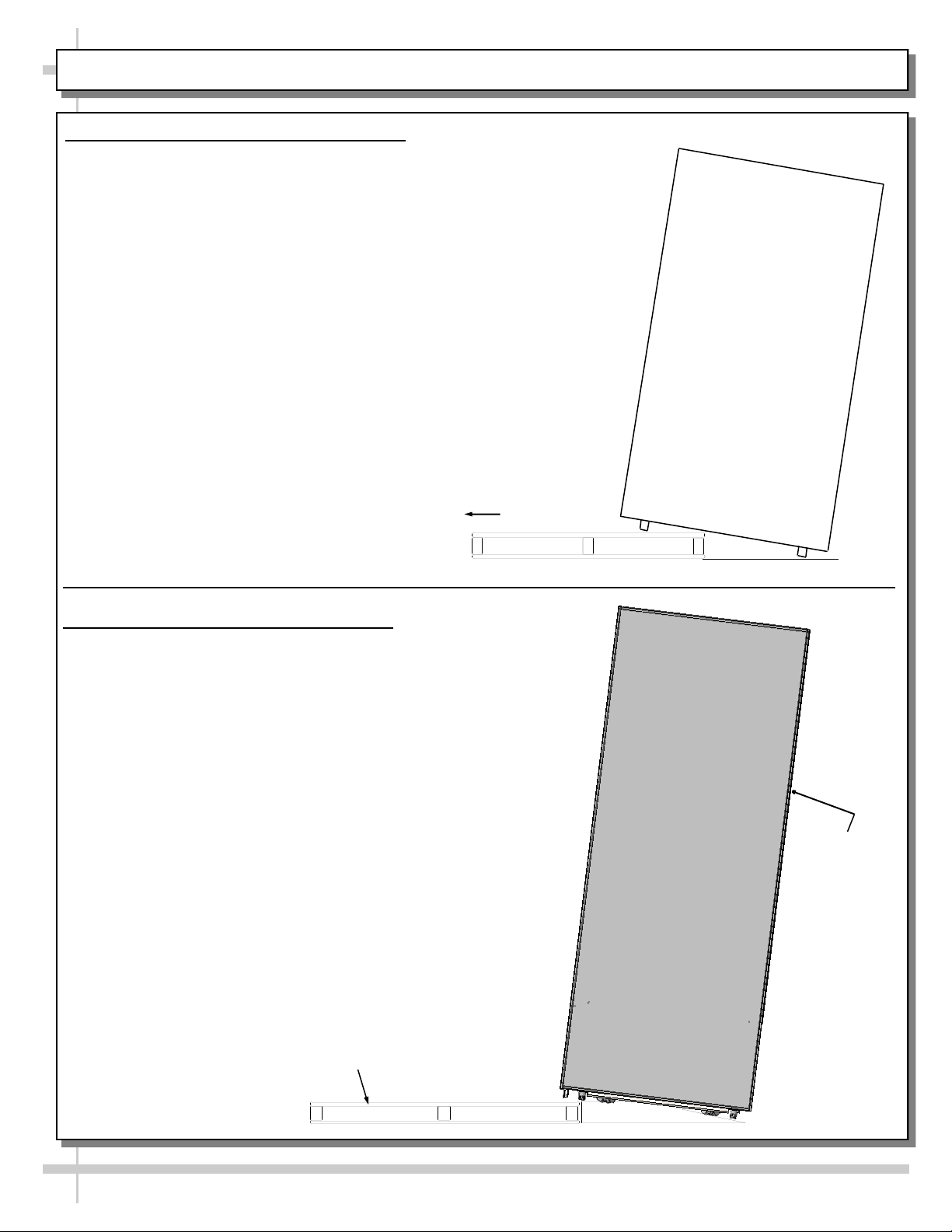

1. Remove Case From Skid (Levelers)
• Remove shipping brace that may be securing
case to skid.
• Support case to prevent tipping.
• Caution! Levelers can be damaged if case hits
floor with heavy force!
• Carefully slide unit to rear of skid and tip backward
off skid.
• Illustration may not reflect every feature or option
of your particular case.
• Case can be repositioned with pallet truck when
front lower panel is removed. Blocking may be
necessary to obtain adequate height.
Slide Skid Out
Ramp
Skid
Support case
while rolling
down ramp.
2. Remove Case From Skid (Casters)
Remove shipping brackets that secure casters to skid
• Important! Case is shipped with levelers in the
DOWN position (for stability). To prevent damage to
the case, all levelers must be raised ALL THE WAY
UP before moving unit off skid and into position.
• After levelers are raised all the way up, place ramp
up against skid (to allow case to smoothly roll off
from skid).
• Maintain support of case at all times or center of
gravity may cause case to fall.
• Roll unit to rear of skid. Roll down ramp and off skid.

6
INSTALLATION, CONTINUED: POSITIONING & ALIGNING CASE / ADJUSTING LEVELERS
3. Position & Align Alongside Other Cases
• Before adjusting levelers, make certain that the case is in proper position and, if required, aligned with
adjoining case(s).
• This may require the repositioning of the case you are installing or the already positioned cases.

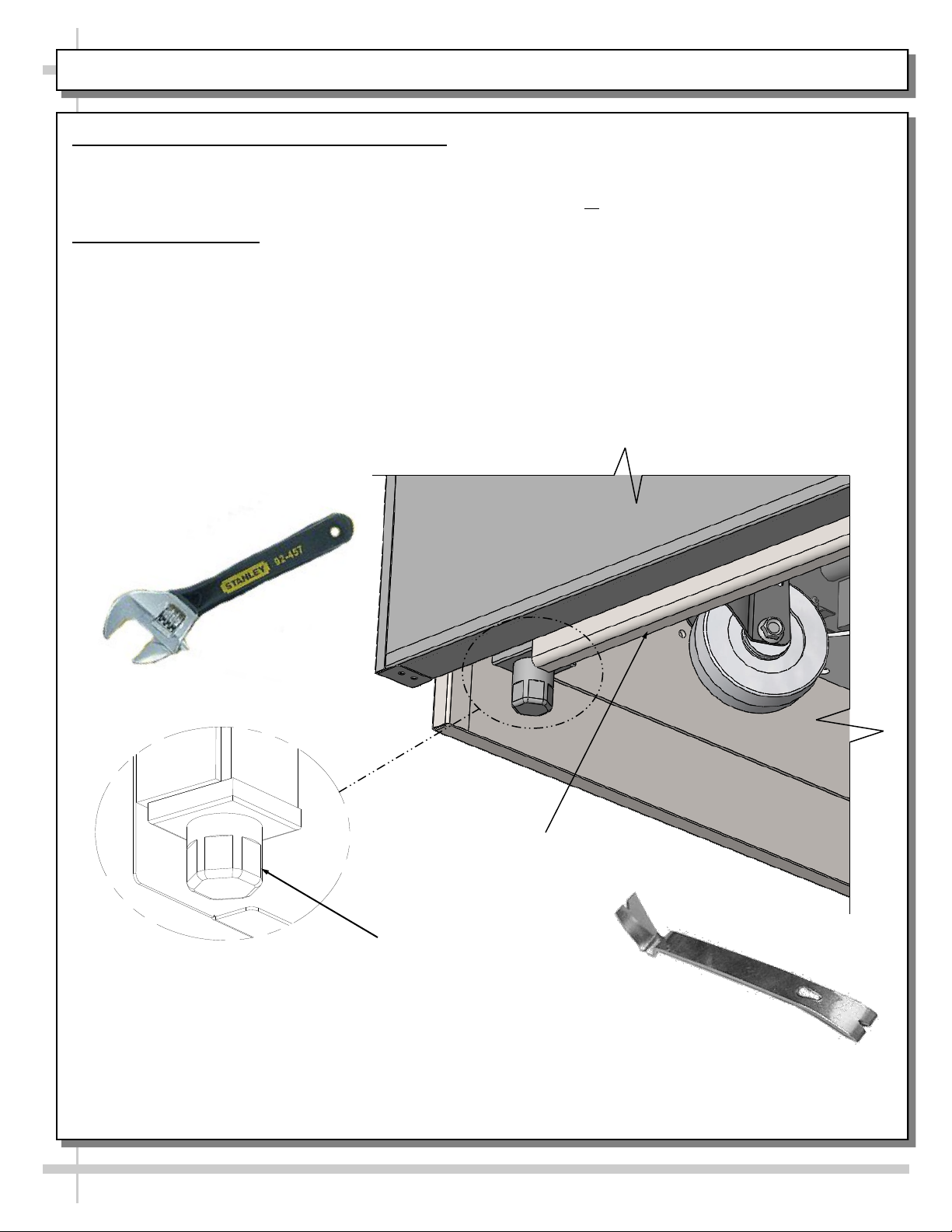

4. Adjusting Levelers
• Important! After case is in proper position, levelers must then be LOWERED to floor.
• Adjust levelers so the case is level and plumb.
• You may need to remove front and/or rear toe-kick to access levelers.
• Use adjustable wrench to adjust leveler.
• Depending upon case weight it may be necessary to use a pry bar to accomplish this task.
• Do not use pry bar on toe-kick as it may buckle.
• Do not use pry bar on end panel as it may chip.
• Use pry bar ONLY on base frame to avoid damaging case.
• See illustrations below.
Pry Bar
Base Frame
Adjustable
Wrench
Leveler

7
INSTALLATION, CONTINUED: OPTIONAL SECURITY COVER INSTRUCTIONS
5. Optional Security Cover Instructions

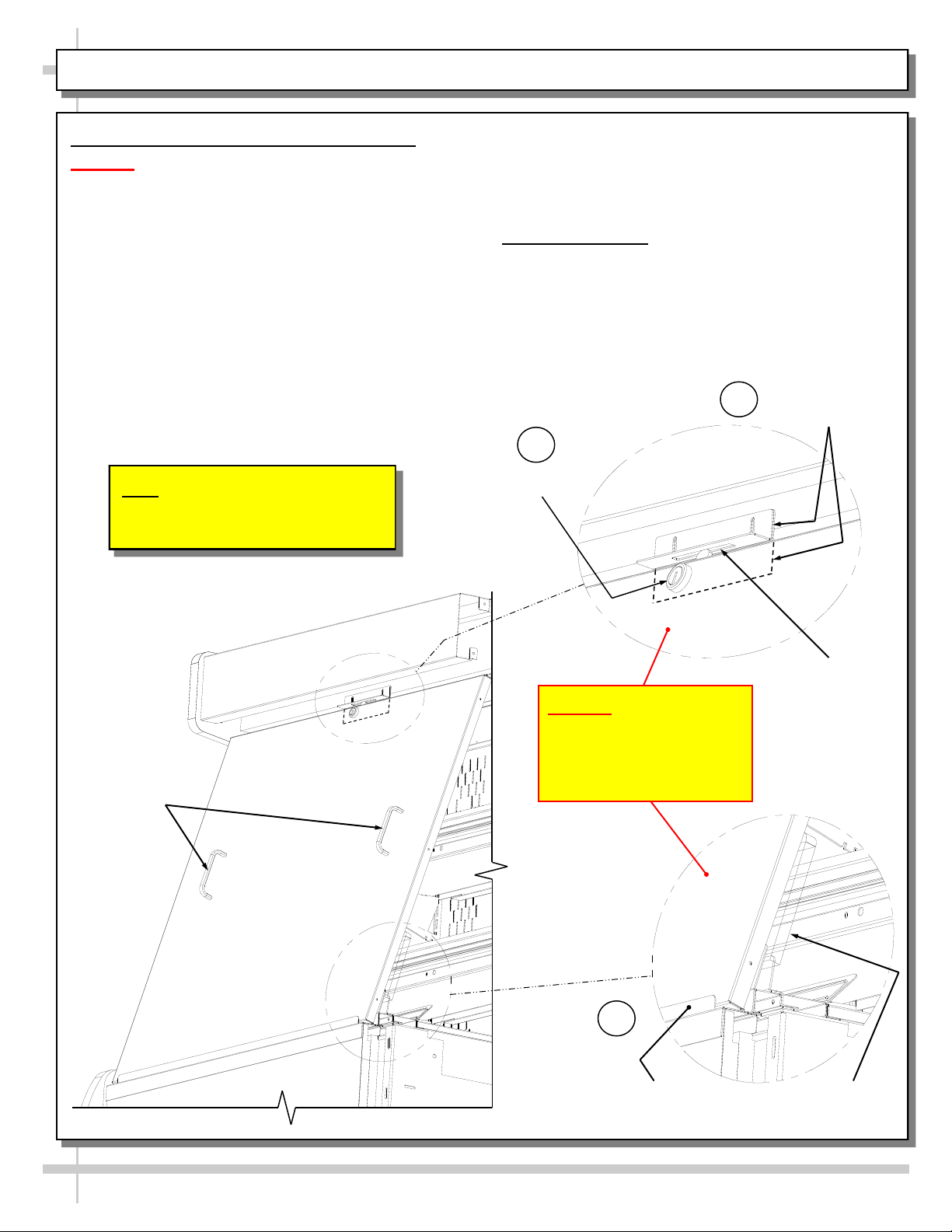

Caution! Security Cover MUST Be Placed On
OUTSIDE of Acrylic Air Deflector and INSIDE
Lower Security Bracket To Fit Properly.
> Steps A, B and C correspond to this sheet’s
illustrations A, B and C. Follow these step-by-step
instructions for proper security cover placement.
A. Firmly hold security cover handles, and place the
bottom of the security cover on the OUTSIDE of
the acrylic air deflector and INSIDE of lower
security bracket.
B. Lean upper edge of security cover against upper
bracket retainer (shown with hidden lines in
illustration ”B” on this sheet).
C. Check that the lock properly rotates its locking
mechanism into support angle slot (at upper
area).
> When removing security cover from case, store in
safe location away from foot traffic.
> Manufacturing note: if your case DOES NOT HAVE
the hardware shown on this sheet for proper
placement of security cover, contact Structural
Concepts Corporation Technical Service. Toll-free
number is listed on the last page of this document.
Note: Illustrations Shown May Not
Exactly Reflect Every Feature or
Option of Your Particular Case.
Caution! Security Cover
MUST Be Placed On
OUTSIDE of Acrylic Air
Deflector and INSIDE
Lower Security Bracket
Support
Angle Slot
Security
Cover
Handles
Lock
Lower Security
Bracket
A
Acrylic Air
Deflector
B
C
Upper Bracket
Retainer

8
INSTALLATION, CONTINUED: SYNCHRONOUS DEFROST CONNECTION (OPTIONAL)
6. Synchronous Defrost Connection (Optional)
• Adjoined cases MUST HAVE its synchronous defrost plugs connected.
• See wiring diagram accompanying case.
Attention!
Sample Case Adjoinment / Case Front View
Primary
Case
(At Left)
Field Access
Box (Typ.)
Secondary
Case
(At Center)
Secondary
Case
(At Right)
Note:“Daisy-Chain” Synchronous Wiring Must Route To Primary Case (At Left)
 Adjoined cases have
synchronous defrosts.
 Synchronous Defrost
Plugs Must Be Connected
At Rear of Electrical Box
During Case Adjoinment.
 See Your Case’s Wiring
Diagram For Instructions.
Rear Of
Electrical
Box (Typ.)
Sample
Synchronous
Defrost Plug (Typ.)
“Daisy-Chain”
Wire (Typ.)
SCC Internal Note: Any Changes To This Sheet
Must Also Be Made To SCC P/N 20-61248.

9
INSTALLATION, CONTINUED: ADJOINMENT INSTRUCTIONS
7. Overview / Silicone and Buty Application
Sealant Overview:
• Warranty is void if improper sealant is used.
• Sealing tub prevents air from escaping through seams
between cases (causing condensation problems and
reducing refrigeration efficiency).
• Sealing also prevents water from seeping between
cases to the floor.
Silicone and Urethane Application:
• Form (1) INNER sanitation bead AND (1) refrigeration
bead BEFORE case is adjoined (as shown).
• Then, AFTER case is adjoined (and bolted), form (1)
OUTER sanitation bead (as shown) into any cavities
or gaps that may remain along outer adjoinment areas
where urethane has ALREADY been applied.
• Also place a thick bead of urathane around drain.
8. Bolting Adjoined Units
• Bolt holes are at various locations (depending upon
model). Model illustrated MAY NOT exactly reflect
your particular unit but will likely be similar in layout.
• Use appropriately sized nuts and bolts for each hole.
• #1 hole is accessible at honeycomb (slight
adjustment or removal of honeycomb air diffuser
may be necessary for attachment of bolt).
• #2 hole is accessible near rear plenum.

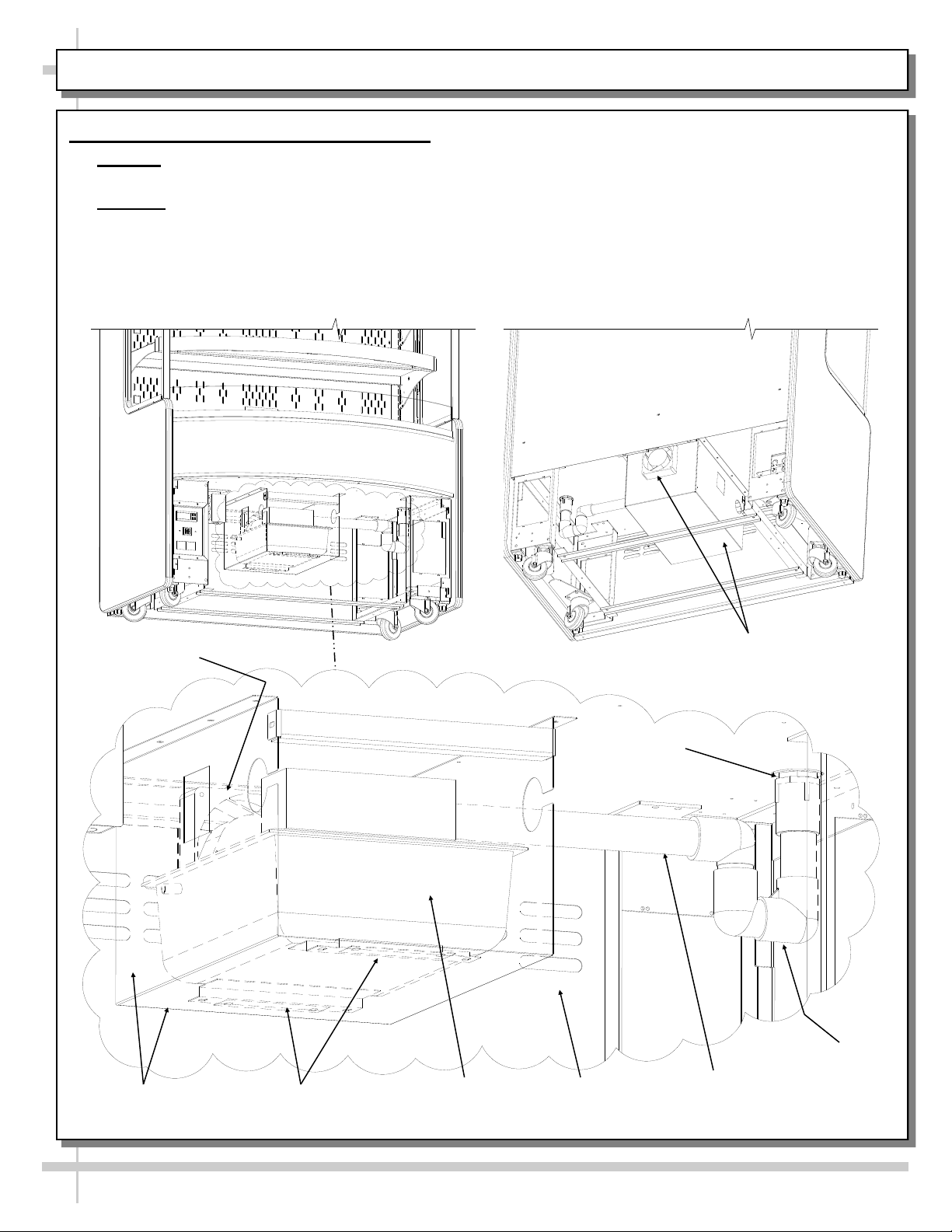

1
9
7/8
5/6
4
Deck
Refrigeration
Urethane
Bead
Refrigeration Urethane Bead
• #3 holes are accessible after removing decking.
• #4-6 holes are accessible after removing front panel.
• #7-9 holes are accessible after removing rear panel.
>> Be sure to reattach components to case after the
adjoinment process is complete.
2
Deck
3
Note: Model B4732 (Unit Shown) May
Not Exactly Reflect Every Feature or
Option of Your Particular Case.
Inner Silicone
Sanitation
Bead
Inner
Silicone
Sanitation
Bead
Outer
Silicone
Sanitation
Bead
Outer
Silicone
Sanitation
Bead
Note: Any changes to this document
must also be made do P/N 20-76683
Inner Silicone
Sanitation Bead
Refrigeration
Urethane Bead
Outer Silicone
Sanitation Bead
Silver, Black or Clear
Silicone Sealant
Conforming To
NSF/ANSI 51
Specifications
(For Sanitation
Bead Applications)
Industrial Grade
Urethane
Adhesive
(For Refrigeration
Bead Applications)

10
FRONT GRILLE REMOVAL / CONDENSER PACKAGE / OVERFLOW PAN / MAIN POWER SWITCH
1. Removable Front Grille
• Front grille can be removed/replaced via thumbscrew
and magnet removal method (shown top-right) OR slot
and hook method (shown lower-right).
• Also, hook/magnet method (shown lower-left).
2. Check That Overflow Condensate Pan is
Properly Connected To Outlet
• Caution! Condensate pan can come unplugged
from its electrical outlet during shipment!
• If case runs without proper connection, water will
overflow pan and drain onto floor causing damage!
• Before turning case on, check that power cord from
condensate pan is properly plugged in.
• See TROUBLESHOOTING section in operating
manual for additional information.
3. Turning On Power To Case
• Plug in power cord.
• Main power switch may be turned on by reaching
through front grille; however, removal of front grille will
allow unhindered access.
• Main power switch is located on main ballast
box, below controller. See illustration at right.
Thumbscrew
Location
Thumbscrew
Location
Magnet Magnet
Main Power
Switch
Carel®
Thermostat
Condenser
Coil
Thumbscrews
Front
Panel
Front
Panel
Slots (Typ.)
Hooks
Thumbscrew Controlled Front Panel
Shown In Above Illustration
Front Panel With Slots and Hooks
Shown In Above Illustration
Front Panel Style That Rests on Hooks And Attaches
To Magnets (Model B32.7413 Shown)
Hooks
Magnet
Magnet

11

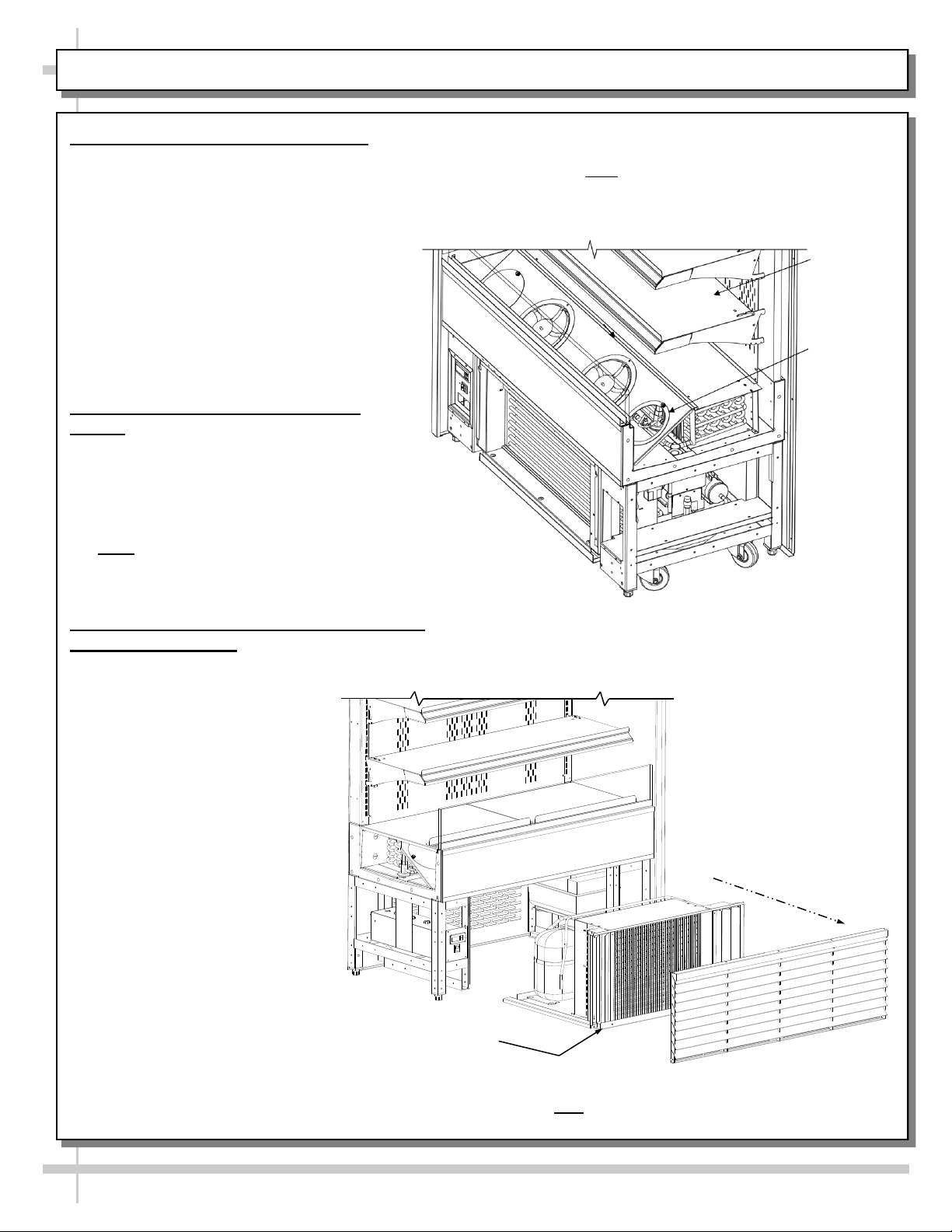

EVAPORATOR COIL FAN DISCHARGE / TXV (THERMOSTATIC EXPANSION VALVE)
1. Evaporator Coil Fan Discharge
• When Main Power Switch is turned on,
refrigeration assembly will energize (see
CASE START-UP & REFRIGERATION
ASSEMBLY ACCESS section).
• Evaporator coil fans should turn on.
From inside of the case, check for
discharge air from front baffle to confirm
that the fans are functioning properly.
• When the case is in a start up mode or
has been idle for a long period of time,
the unit will require 75 minutes of run
time to pull-down temperature.
• See below illustration.
2. TXV (Thermostatic Expansion
Valve)
• TXV is under TXV access panel.
• Decking must be removed for access.
• TXV cover must also be removed for
access (remove two thumb screws).
• See illustration below.
• Note: Standard cases have TXV at
customer-left. For cases with
EnergyWise, TXV is at customer-right.
3. Sliding Condenser Package Out From
Underside Of Case
• At shipment, removal of compressor pan
shipment screws may be necessary to access
condenser package. See
illustration below-left.
• Refrigeration assembly base
rests on plastic glides.
• Slide condenser package out
from under case.
Case Shown with End Panel, Decking, and TXV
Cover Removed. Note: Illustration Above Has
TXV at Customer Right. Your Case (If Standard /
Non-EnergyWise Refrigeration Package) Will
Have TXV Accessible at Customer-Left.
Decking
TXV Cover
(Shown
Removed)
Compressor Pan
Shipment Screw
Above View Shows Condenser Package Slid Out From
Under Case. Note: Illustration Shown May Not Reflect
Every Feature Or Option of Your Particular Case.

12
HONEYCOMB AIR DIFFUSER

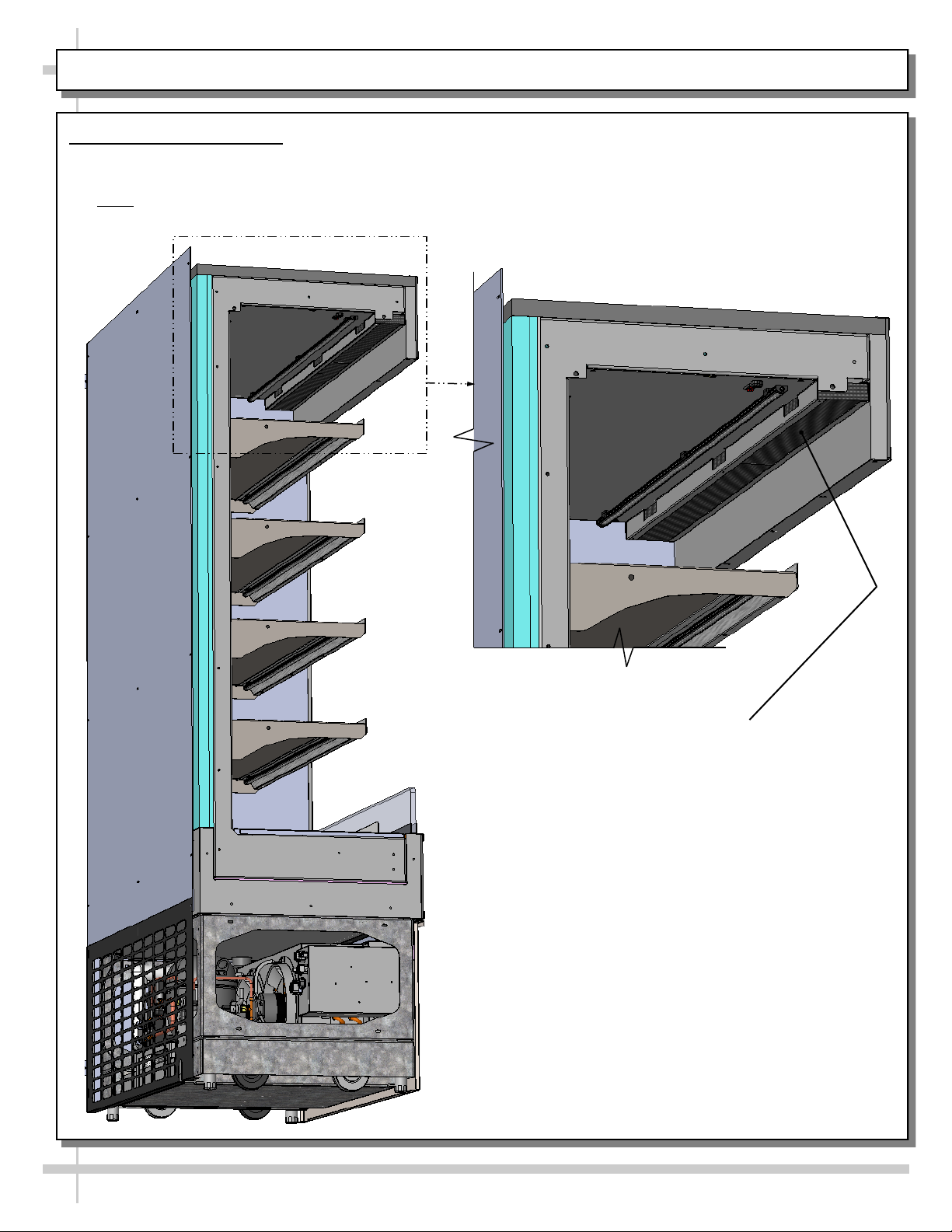

Honeycomb Air Diffuser
• Honeycomb is located in discharge air duct.
• See illustration below.
• Note: Illustration shown below is partially disassembled for illustrative purposes only.
Honeycomb Air
Diffuser

13
AFTERMARKET PRODUCT BIN - PLACEMENT

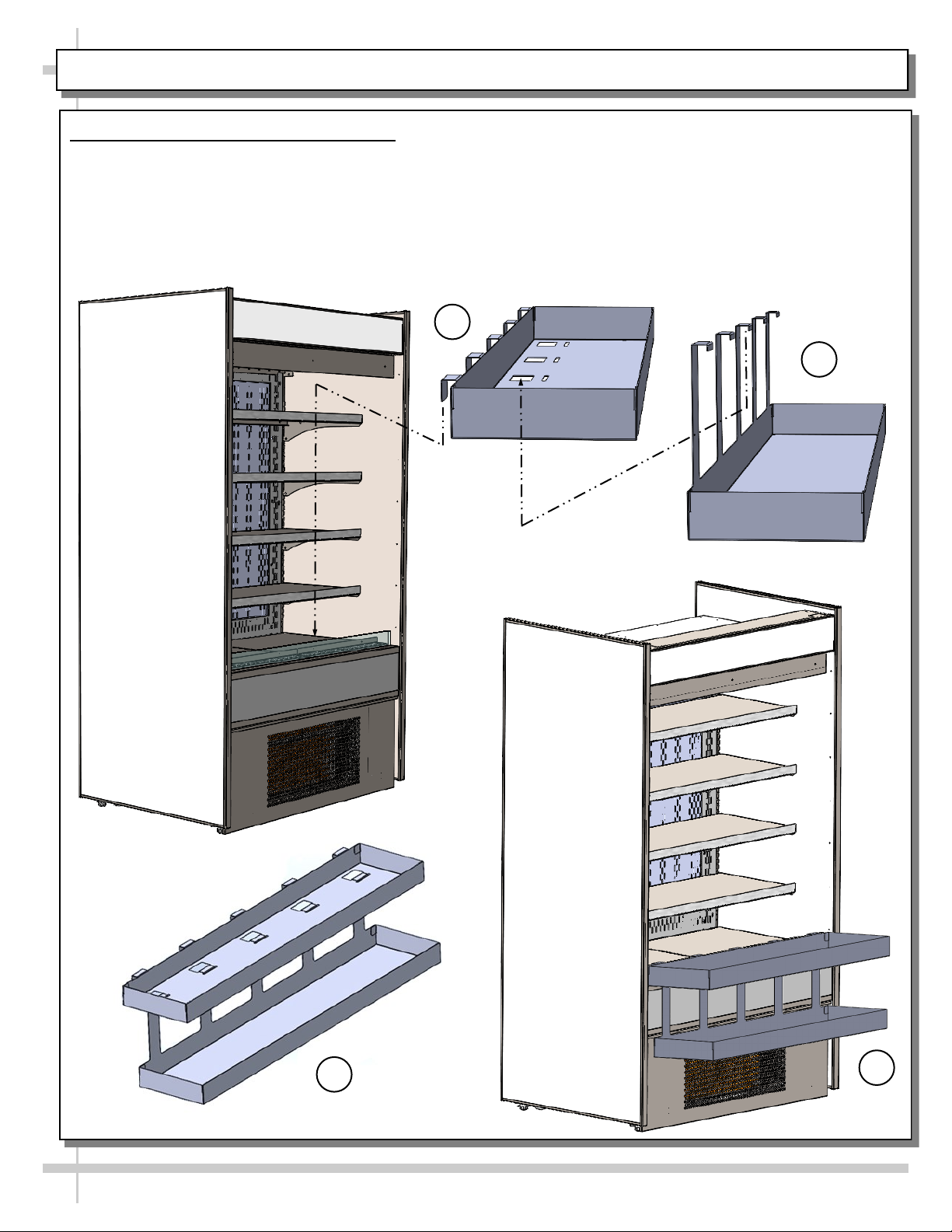

Aftermarket Product Bin - Placement
• Model B4732 (Shown Below) May Not Reflect
Every Feature Or Option Of Your Particular Case.
• Product bin is for placing bagged product such
as potato chips, pretzels, crackers, etc.
• Product bin is made of stainless steel.
• Remove product bin (to clean or replace).
1. Upper product bin is to hang on acrylic shield at
front of case.
2. Lower product bin prongs are to be inserted into
upper bin’s cutouts (in base) and hang securely.
3. View of assembled upper and lower product bins.
4. View of assembled upper and lower product bins
after being attached to case’s acrylic shield at front
of case.
1
2
34

LED Style Light Fixtures
Removal of Faulty LED Lights:
• Contact Structural Concepts’ Technical Service
Department for replacement LED lights.
• Turn off LED light switch.
• To remove faulty LED light, follow these steps:
A. Disconnect plug from LED light.
B. Using both hands, grasp LED light assembly
(with its magnetic mounting clips). Pull
downward and off its shelf (or header).
C. Remove magnetic mounting clips from LED
light by pressing against flange part of clip with
thumb.
>> Note: Mounting clips MAY be riveted to shelf or
header. In such instances, simply remove LED light
from mounting clips by pressing against flange part of
clips with thumb.
Replacement of LED lights:
• Attach magnetic mounting clips onto LED light.
• Adjust magnetic mounting clips so they are equally
spaced on LED light.
14
LED LIGHT FIXTURES
• Reattach LED light assembly to its shelf/header.
• Position properly in shelf/header.
>> Note: If mounting clips are riveted to shelf (or header),
attach by placing LED in base of clip and then snapping
into clip at FLANGE SIDE.
• Press plug’s barrel-shaped insert deep into LED light.
• Important: If plug is not inserted ALL THE WAY IN the
LED light’s orifice, the light may not energize. See
“BAD” vs. “GOOD” insertion illustrations below.
• Turn LED light switch back on.
--- Case Front of Model B43C ---
Light Switch
LED Lights
(Typ.)
Magnetic Mounting
Clip View #2
LED
Lights
B
A
Plug
Barrel
Shaped
Insert
LED
Light
C
Magnetic Mounting
Clip View #1
No Gap
Gap

OPTIONAL ROLL-DOWN SECURITY COVER - MODEL B4732 ILLUSTRATED / YOUR MODEL MAY VARY
15
Roll Down Security Cover (Optional): Shown Extended
• Optional roll down security cover has two handles for
grasping, lowering and raising.
• After roll-down cover is lowered, key may be turned
clockwise to lock latch into strike bracket.
• Turn counter-clockwise to unlock.
• Keep keys in safe and secure place.
• Sample lock mechanism components (including sample
set of keys) are shown at top-right.
Key Slot
--- Lock Mechanism Components ---
Set of Keys
Model B7132 Is Shown Partially
Disassembled With Transparent Strike
Bracket For Illustrative Purposes Only.
Handles (For Lowering
& Raising Security Cover)
Roll-Down
Security Cover
Rear View of Plunger (Shown
Extended Into Bracket)
Strike
Bracket (Shown
Transparent) Lock
Mechanism
Key Slot
(Controls Plunger)
Pull-Down Handle
Assembly
Pull-Down
Handle Bracket
Plunger (at Rear of
Lock Mechanism) That
Inserts Into Pull-Down
Handle Bracket
Curtain

16
OPTIONAL DUAL REAR DOORS (WITH PERFORATED PLENUM DOORS) / B5932TM SHOWN
Dual Rear Doors (Optional):
• Illustration below has had optional roll-down
security cover removed for illustrative purposes.
Model B5932TM.6785 Is Shown.
It May Not Reflect Every Feature
or Option of Your Particular Case
• Transparent rear doors have perforated plenum
as part of each hinged door.
• Note: Transparent doors are not available on
non-standard models.
• See illustrations below.
Rear Grille at Upper Section
(For Units With Top-Mounted
Condensate Packages)
Note: Transparent Doors Are Not
Available On Non-Standard Models

17
OPTIONAL SINGLE REAR DOOR (WITH PERF. PLENUM AS PART OF DOORS) / B3632TM SHOWN
Single Rear Door (Optional):
• Illustrations below show optional roll-down
security cover intact AND removed for illustrative
purposes.
• Rear door has stainless steel skin with stainless
steel perforated plenum as part of door assembly.
• See illustrations below.
Rear Grille at Upper Section
(For Units With Top-Mounted
Condensate Packages)
Model B3632TM Is Shown. It May
Not Reflect Every Feature or
Option of Your Particular Case
Roll-Down Security Cover
Removed To Show Stain-
less Steel Plenum (Part
of Rear Door).
Rear Door
Optional Roll-Down
Security Cover

Wall Spacing / Rear Venting (May Not Be Applicable To Your Model)
Venting Panel: Caution! Venting is an integral part of case temperature management. Case MUST
NOT be pushed up against wall if rear venting panel is not attached!
Rear Grille: Rear grille may be removed (by removing 4 screws) for service or maintenance of
condenser unit. Return rear grille to case rear when completed.
18
WALL SPACING / REAR GRILLE & VENTING PANEL (MAY NOT BE APPLICABLE TO YOUR MODEL)
--- Case Right Side of Model B4524 ---
Approx. 1” Space Between
Rear Vent/Grille And Case

19
CONDENSATE PAN ACCESS: STANDARD UNITS
---- Case Front (Refrigeration Assembly Removed) ----
Condensate
Pan
Condensate
Pan Foot
Condensate
Pan
Support
Two (2) Condensate Pan
Screws (Connecting
Pan Foot To Support)
Condensate Pan Access
Warning! Disconnect power before providing maintenance and service to unit.
First, remove the front grille and slide out the condenser package. See FRONT GRILLE ACCESS / CHECK
CONDENSER PAN / REFRIGERATION ASS’Y / TURN ON POWER section in this operating manual for
instructions.
• Unplug the condensate pan from its outlet.
• Remove the two (2) screws holding the condensate pan foot to the condensate pan support (see
illustration below).
• Carefully slide the condensate pan off from the condensate pan support.
• When done servicing or cleaning, return and reconnect in reverse order it was removed.
Note: Depending upon your
particular refrigeration package,
removable, electric-coil condensate
pan may not be part of case.
Cases with EnergyWise refrigeration
packages DO NOT have a removable
electric-coil condensate pan.

20
Condensate
Pan
Drain
P-Trap
Case Rear View of Condensate
Pan Cover and Exhaust Fan
(Rear Panel Removed)
Condensate Pan Access and/or Removal
• Caution: Only trained service providers are
to provide maintenance and service to unit.
• Warning! Disconnect power before providing
maintenance and service to unit.
• To access, remove the front panel. Simply lift
panel up and off (no screw removal is required).
CONDENSATE PAN ACCESS: REMOTE UNITS WITH CONDENSATE PANS ONLY
• To service or clean, unplug the condensate pan
from its outlet.
• Remove the screws holding the condensate pan
foot to the condensate pan support (see
illustration below).
• Carefully slide the condensate pan off from its
support.
• When done servicing or cleaning, return and
reconnect in reverse order it was removed.
Condensate Pan
Cover
Fan To
Condensate Pan
Rear Panel Drain Pipe
Drain
Condensate Pan
Feet/Support
