Structural Concepts Oasis BV3632 User manual

REV H DATE: 07/28/2023
USER MANUALS\20-90271_OASIS_USER MANUAL_BV(L)32_REF_SELF-SVC_ELEC-CNTR DOOR_BOX CASE
This Manual Reflects Oasis Model BV4732.
However, It May Also Be Applicable To
Models Not Illustrated Herein.
MICROMARKET REFRIGERATED, SELF-SERVICE, IN-AISLE “BOX CASE”
> MODELS INCLUDE THE FOLLOWING: BV3632, BV4732, BV5932, and BV7132
> SELF-CONTAINED & REMOTE UNITS > MODELS AKA “WALL UNITS”
> ELECTRONICALLY CONTROLLED ROLLING DOOR WITH BATTERY BACKUP
For Electronically
Controlled Door
Information, See
Pages 7 & 8 In
This User Manual.
Model BV4732 Shown Above
Oasis
READ AND SAVE THESE INSTRUCTIONS
® USER
MANUAL
SCC P/N
20-90271
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: [phone] Fax: [phone] ∙ www.structuralconcepts.com

2
TABLE OF CONTENTS
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS .…………….
INSTALLATION: CASE REMOVAL (VIA LEVELERS & CASTERS) ………….…………………………..
INSTALLATION, CONT’D: POSITIONING & ALIGNING CASE / ADJUSTING LEVELERS .…………...
INSTALLATION, CONT’D: BATTERY BACKUP SYSTEM GUIDE / PRE-CHARGING BATTERY ....
INSTALLATION, CONT’D: ELECTRONICALLY CONTROLLED DOOR / AUTO-CLOSE / RAISING
DOOR …………………………………………………………………………………………………......
INSTALLATION, CONT’D: OVERFLOW CONDENSATE PAN / PLUG IN UNIT / MAIN POWER
SWITCH …………………………………………………………………………………………………….
ELECTRONICALLY CONTROLLED ROLLING DOOR .……………………………………………………
EVAPORATOR COIL FAN DISCHARGE / TXV (THERMOSTATIC EXPANSION VALVE) ……….……..
HONEYCOMB AIR DIFFUSER / LED LIGHT FIXTURES / LED LIGHT REMOVAL &
REPLACEMENT ……………………………………………………………………………..….…...…
WALL SPACING / REAR VENTING / CASTER LOCKING OPERATION .………………..…………......
SELF-CONTAINED HOT GAS LOOP CONDENSATE PACKAGE LAYOUTS ….……………..................
LOAD LEVEL GUIDE / TEMPERATURE GUIDE (MODEL B42 SHOWN / APPLICABLE TO ALL
OTHER MODELS IN MANUAL) …….……………………………………………………………….....
CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) …..……………...….............
QUARTERLY PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE
PROVIDERS ONLY) ……………………………………………………………………………………..
ANNUAL PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE
PROVIDERS ONLY) ……………………………………………………………………………………..
TROUBLESHOOTING - GENERAL (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS
ONLY) ..…………………………………………………………………………………………………….
TROUBLESHOOTING - CONDENSING SYSTEM (BY TRAINED SERVICE PROVIDERS ONLY) ….....
TROUBLESHOOTING - EVAPORATOR SYSTEM (BY TRAINED SERVICE PROVIDERS ONLY) …....
SERIAL LABEL LOCATION & INFORMATION LISTED / TECH INFO & SERVICE ……….…….……
PROGRAMMABLE CONTROLLER INFORMATION …………………………………………..…….........
TECHNICAL SERVICE CONTACT INFORMATION / WARRANTY INFORMATION ……..……………
3-4
5
6
7
8
9
10
11
12
13
14-16
17
18
19-22
23
24-26
27
28
29
30
31

3
OVERVIEW
• These Structural Concepts Oasis® merchandisers are
designed to merchandise packaged products at 41 °F
(5 °C) or less product temperatures.
• Product must be pre-chilled to 41 °F (5 °C) or less
product temperatures prior to placing in merchandiser.
• Cases should be installed and operated according to
this operating manual’s instructions to ensure proper
performance. Improper use will void warranty.
NSF/ANSI TYPE I vs. II ENVIRONMENTAL CONDITIONS
This unit is designed for the display of products in ambient
environmental conditions where temperatures and relative
humidity are maintained within a specific range.
• NSF/ANSI Type I Conditions: Product is displayed in
store conditions with maximum ambient temperature of
75 °F (24 °C) and relative humidity of 55%.
• NSF/ANSI Type II Conditions: Product is displayed in
store conditions with maximum ambient temperature of
80 °F (27 °C) and maximum relative humidity of 55%.
• If unsure if your unit is classified as NSF/ANSI Type I or
Type II, see tag next to serial label on your case.
COMPLIANCE
• Performance issues when in violation of applicable
NEC, federal, state and local electrical and plumbing
codes are not covered by warranty.
• See below compliance guideline.
WARNINGS
• This sheet contains important warnings to prevent
injury or death. Please read carefully!
WARNING
Hazardous moving parts. Do not operate unit with covers removed.
Fan blades may be exposed when deck panel is removed.
Disconnect power before removing deck panel.
WARNING
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
WARNING
Condensate Pan is Hot!
Disconnect and allow to cool before cleaning or removing from case.
WARNING
ELECTRICAL
HAZARD
WARNING
KEEP
HANDS
CLEAR
WARNING
HOT
SURFACE
COMPLIANCE
This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PAGE 1 of 2
ATTENTION
CONTRACTORS
WARNING: This product can expose you to chemicals, including
Urethane (Ethyl Carbamate), which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to P65Warnings.ca.gov.

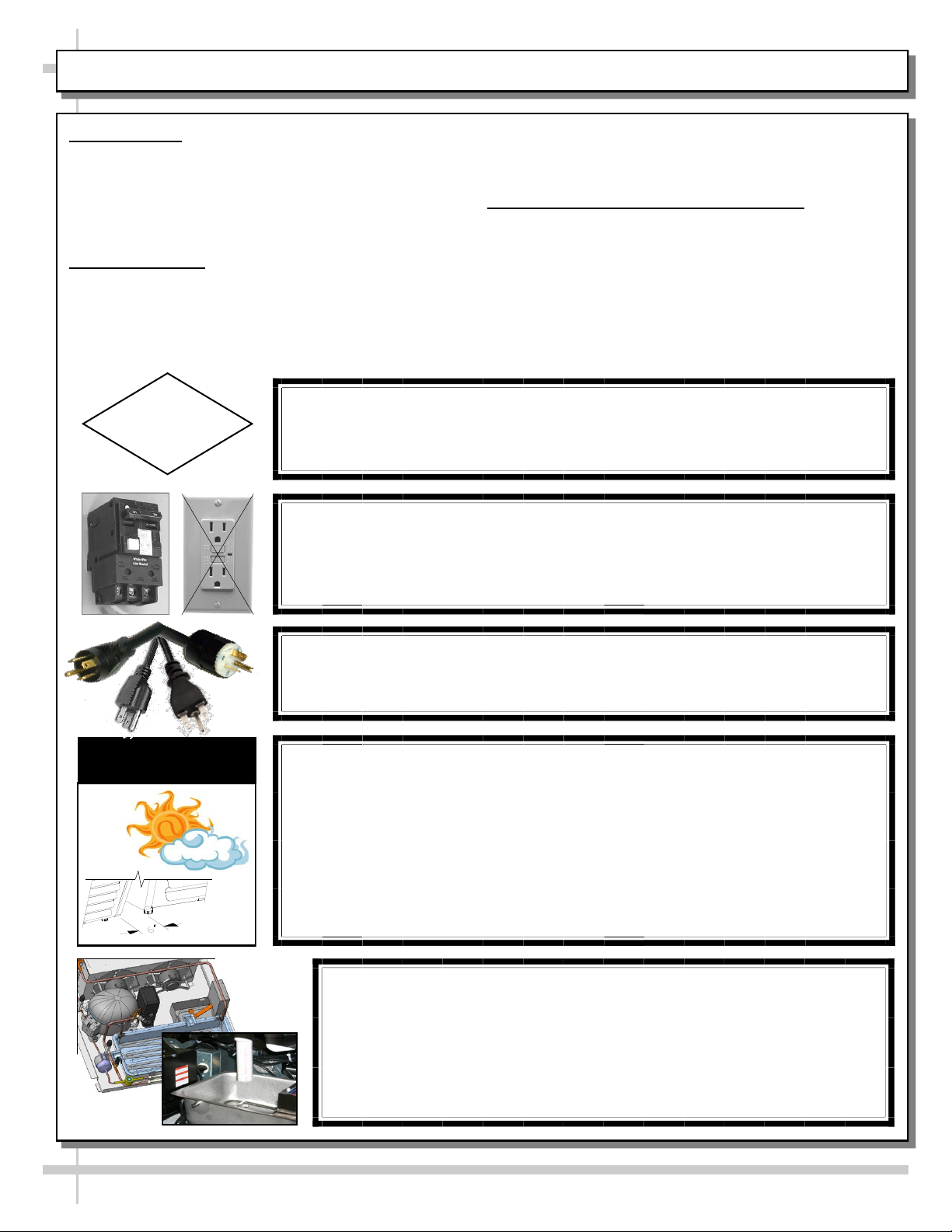

4
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle.
CAUTION! ADVERSE CONDITIONS / SPACING ISSUES
• Performance issues caused by adverse conditions are NOT warranted.
• To prevent damage to end panels due to condensation, apply industrial grade
silicone sealant and tightly join to opposite end panels. When not adjoining
cases, keep end panels at least 6” away from walls and structures. Rear
panels must also be kept at least 6” from walls and structures.
• Case must not be exposed to direct sunlight or any heat source.
• To maintain proper case temperature, keep case at least 15-feet from exterior
doors, overhead HVAC vents or any air curtain disruption.
• Self-contained case clearance: 6” min. air intake / 6” min. air discharge.
CAUTION
CAUTION! LAMP REPLACEMENT GUIDELINES
All lamps reflect specific size, shape, breakage resistance and overall
design. Replacements must meet factory specifications.
CAUTION
PRECAUTIONS
• This sheet contains important precautions to prevent
damage to unit or merchandise.
• Please read carefully!
• See previous page for specifics on OVERVIEW,
TYPE, COMPLIANCE and WARNINGS.
WIRING DIAGRAM
• Each case has its own wiring diagram folded and in its
own packet.
• Wiring diagram placement may vary; it may be placed
near ballast box, field wiring box, raceway cover, or
other related location.
REFRIGERANT DISCLOSURE STATEMENT
• This equipment is prohibited from use in California with
any refrigerants on the “List of Prohibited Substances”
for that specific end-use, in accordance with California
Code of Regulations, title 17, section 95374.
• This disclosure statement has been reviewed and
approved by Structural Concepts and Structural
Concepts attests, under penalty of perjury, that these
statements are true and accurate.
CAUTION! POWER CORD AND PLUG MAINTENANCE
Risk of electric shock. If cord or plug becomes damaged,
replace only with cord and plug of same type.
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PAGE 2 of 2
CAUTION! CHECK CONDENSATE PAN, ITS POSITION & PLUG!
Water on flooring can cause extensive damage!
• Before powering up case, check that condensate pan is positioned
directly under case’s condensate drain.
• Before powering up case, check that condensate pan’s electrical plug is
SECURELY connected to condensate system’s receptacle.
• If wicking material is used in condensate pan, check that it is secure.

5
INSTALLATION: CASE REMOVAL (VIA LEVELERS & CASTERS)
Ramp
Skid
Support case
while rolling
down ramp.
2. Remove Case From Skid (Casters)
Remove shipping brackets that secure casters to skid
• Important! Case is shipped with levelers in the
DOWN position (for stability). To prevent damage to
the case, all levelers must be raised ALL THE WAY
UP before moving unit off skid and into position.
• After levelers are raised all the way up, place ramp
up against skid (to allow case to smoothly roll off
from skid).
• Maintain support of case at all times or center of
gravity may cause case to fall.
• Roll unit to rear of skid. Roll down ramp and off skid.
Various Types Of
Case Shipping
Brackets

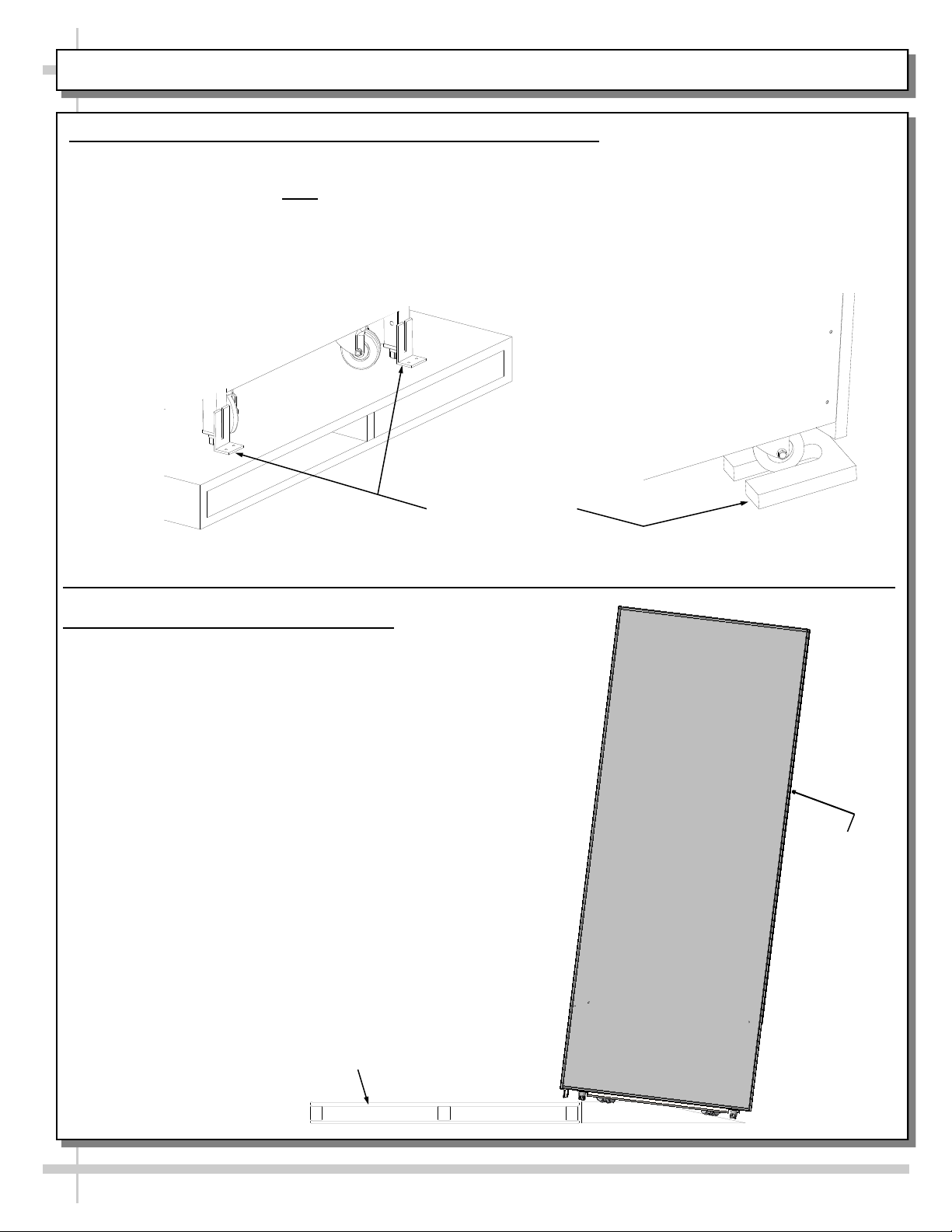

1. Removing Case Shipping Brackets That Are Attached To Skid
• Remove screws holding Case Shipping Brackets to skid.
• Remove Case Shipping Brackets from Skid.
• See illustrations below. Note: Shipping Brackets will vary in size, shape, material and location
depending upon case type and model.

6
INSTALLATION, CONT’D: POSITIONING & ALIGNING CASE / ADJUSTING LEVELERS
3. Position & Align Alongside Other Cases
• Before adjusting levelers, make certain that the case is in proper position.
• This may require the repositioning of the case you are installing or the already positioned case(s).
4. Adjusting Levelers
• Important! After case is in proper position, levelers must then be LOWERED to floor.
• Adjust levelers so the case is level and plumb.
• You may need to remove front and/or rear toe-kick to access levelers.
• Use adjustable wrench to adjust leveler.
• Depending upon case weight it may be necessary to use a pry bar to accomplish this task.
• Do not use pry bar on toe-kick as it may buckle.
• Do not use pry bar on end panel as it may chip.
• Use pry bar ONLY on base frame to avoid damaging case.
• See illustrations below.
Pry Bar
Base Frame
Adjustable
Wrench
Leveler

INSTALLATION, CONT’D: BATTERY BACKUP SYSTEM GUIDE / PRE-CHARGING BATTERY
7

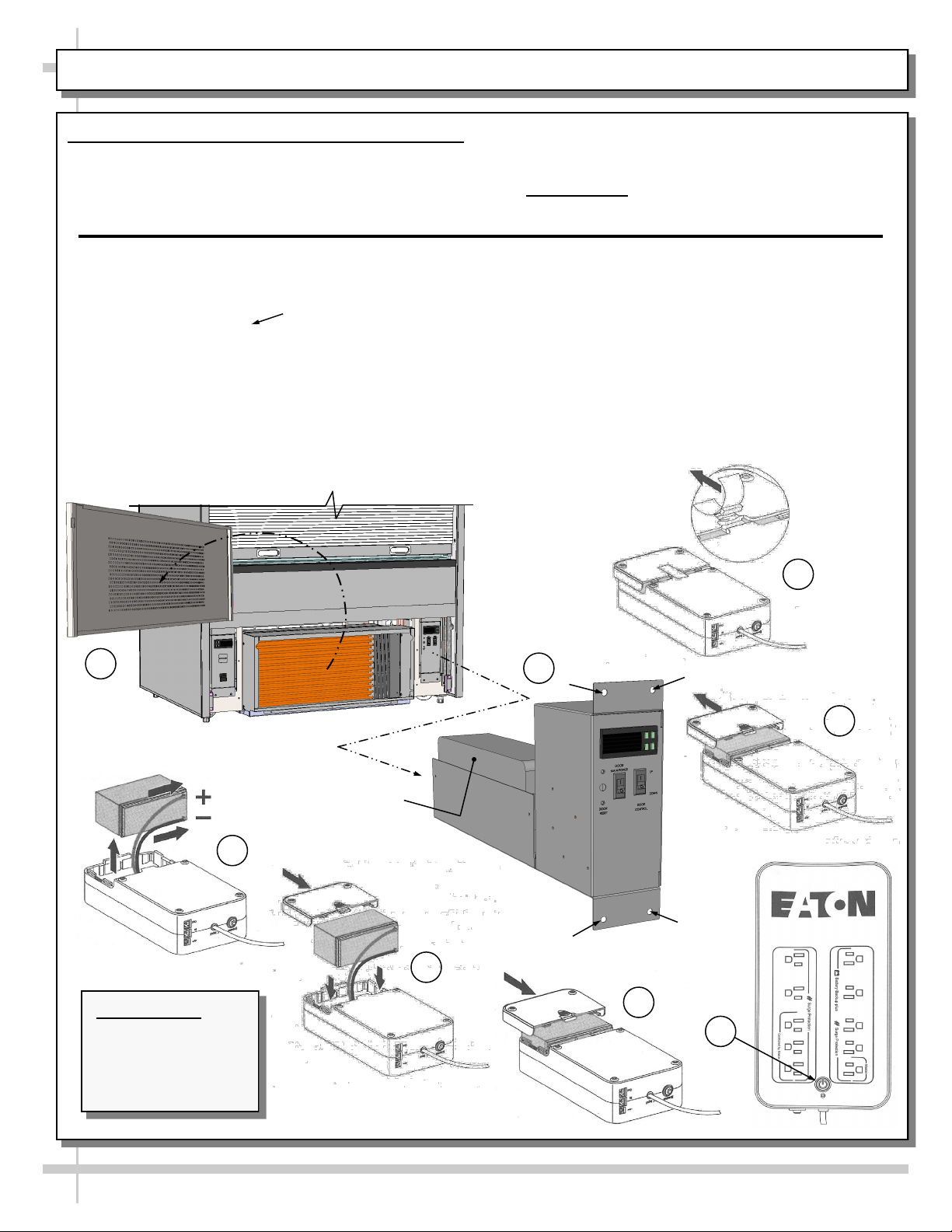

5. Connect Battery To Battery Backup System
Important Notes:
A. Battery is shipped DISCONNECTED to system.
You MUST connect battery to the battery backup
system at installation!
12
4
Eaton® 3S Battery
Backup System
5
6
7
8
Carefully follow these instructions:
1. Remove front grille from case to access the battery
backup system.
2. Remove (4) screws ( ) and slide door
controller box out from case to access Eaton 3S
Unit.
3. Peel off tape with rubber spacer (at its underside).
4. Slide battery cover off the Eaton 3S unit.
5. Pull out battery and connect the battery wires firmly
to battery terminals; red to positive (+) and black to
negative (-).
6. Insert battery back into the unit’s compartment.
7. Slide the battery cover on the unit until release
tab locks into place.
8. Press the power button on the unit.
>> Return unit to door controller box compartment.
>> Slide controller box back into case; replace the
(4) screws.
>> Return front grille to case.
>> Allow the battery to charge for 24 hours before
using electronically controlled door.
3
B. Battery must be connected & charged for
24 hours before operating the electronically
controlled door!
• Internal Note: Any changes to this document
must also be made to P/N 20-90377.
Internal Note: Any
changes to this
document must
also be made to
P/N 20-90377.

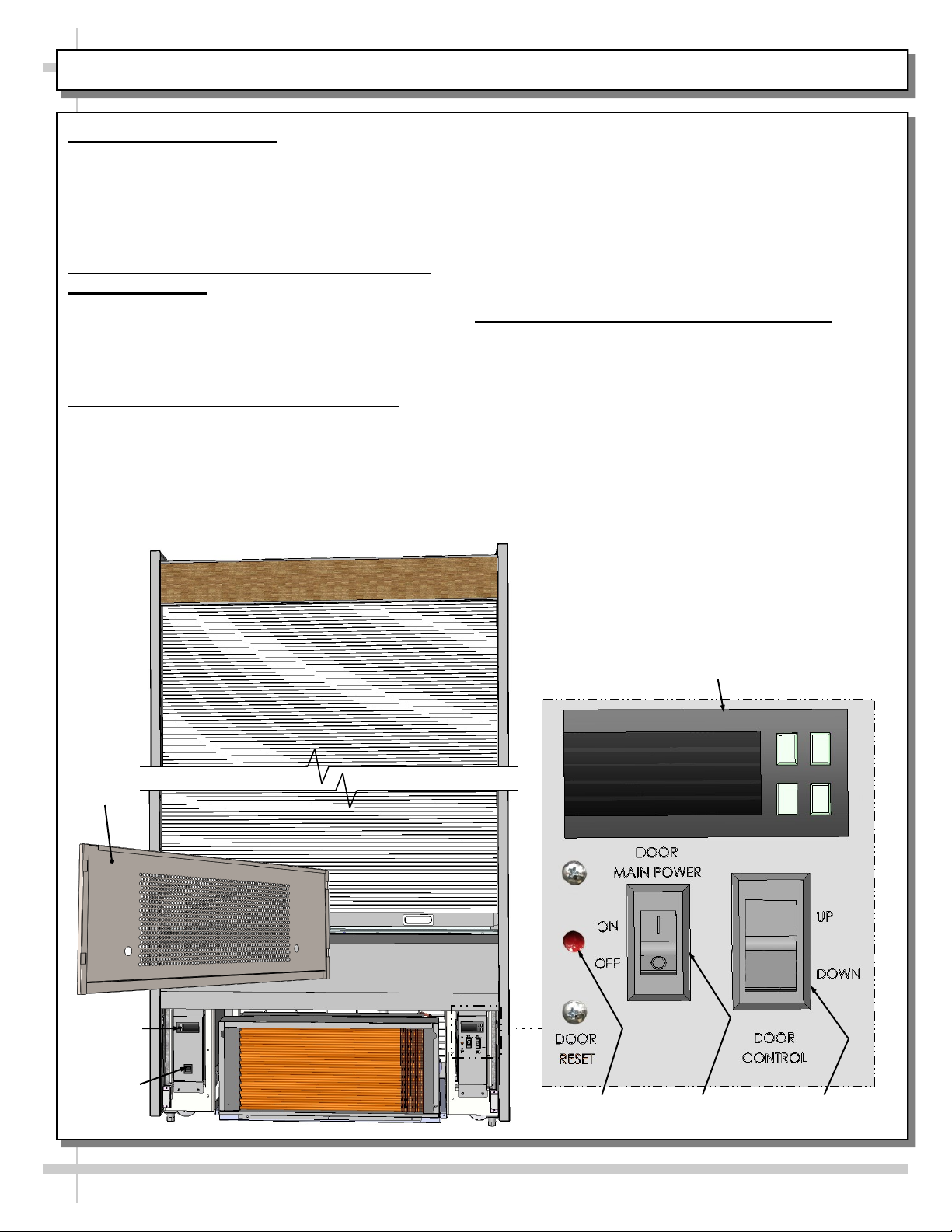

INSTALLATION, CONT’D: ELECTRONICALLY CONTROLLED DOOR / AUTO-CLOSE / RAISING DOOR
8
• If door closure is due to a malfunction of the case,
remove all hazardous/perishable foods and have
service performed by authorized technician.
• To raise the door, turn the DOOR MAIN POWER
switch “OFF” and then back “ON.”
• Then, use a rigid instrument (pen, pencil, etc.) to
press the red DOOR RESET button (which resets
the thermostat alarm). Then, raise the door again by
using DOOR CONTROL switch.
9. Raising Door For Cleaning or Service
• Many cleaning and service tasks can be performed
prior to door closing (within a 30-minute window).
• Door will remain raised until temperature exceeds
41 °F for 30 minutes; then it will automatically close.
• If door closes automatically during cleaning or
service, switch DOOR MAIN POWER to “OFF” and
then back “ON” (which resets the thermostat alarm).
• Then, use a rigid instrument (pen, pencil, etc.) to
press the red DOOR RESET button.
• Then, raise the door again by using the DOOR
CONTROL switch.
6. Front Grille Removal
• Front grille must be removed to access main
power switch, thermostat and door controls.
• Simply lift up and off hooks and magnets;
no screw removal is required.
• See illustration below.
7. Electronically Controlled Rolling Door
and Thermostat
• Door CANNOT be raised or lowered by hand.
• Use door control switch to raise and lower door.
• Door limits and parameters are programmed
into the door control thermostat (at factory).
8. Door’s ‘Automatic Close’ Function
• Door will automatically close if case
temperature exceeds 41 °F for 30 minutes.
• This door closure may be due to case
malfunction, a power outage, or even if power
to case is inadvertently turned off).
Door Control
Switch
Door Reset
Button
Door Main
Power Switch
Door Control
Thermostat
Front
Grille
Main
Power
Switch
Case
Thermostat

9
INSTALLATION, CONT’D: OVERFLOW CONDENSATE PAN / PLUG IN UNIT / MAIN POWER SWITCH
10. Sliding Condenser Package Out From
Underside Of Case
• At shipment, removal of compressor pan shipment
screws (at front of case) may be necessary to
access condenser package.
• See illustration below-right.
• Condenser package base rests on plastic glides.
• Slide condenser package out from under case.
11. Overflow Condensate Pan Check
• Caution! If case runs without proper
connection, water will overflow pan and drain
onto floor causing damage!
• Overflow condensate pan can unplug from its
electrical outlet during shipment!
• Before turning case on, check that power cord
from overflow condensate pan is plugged in.
• See TROUBLESHOOTING section in operating
manual for additional information.

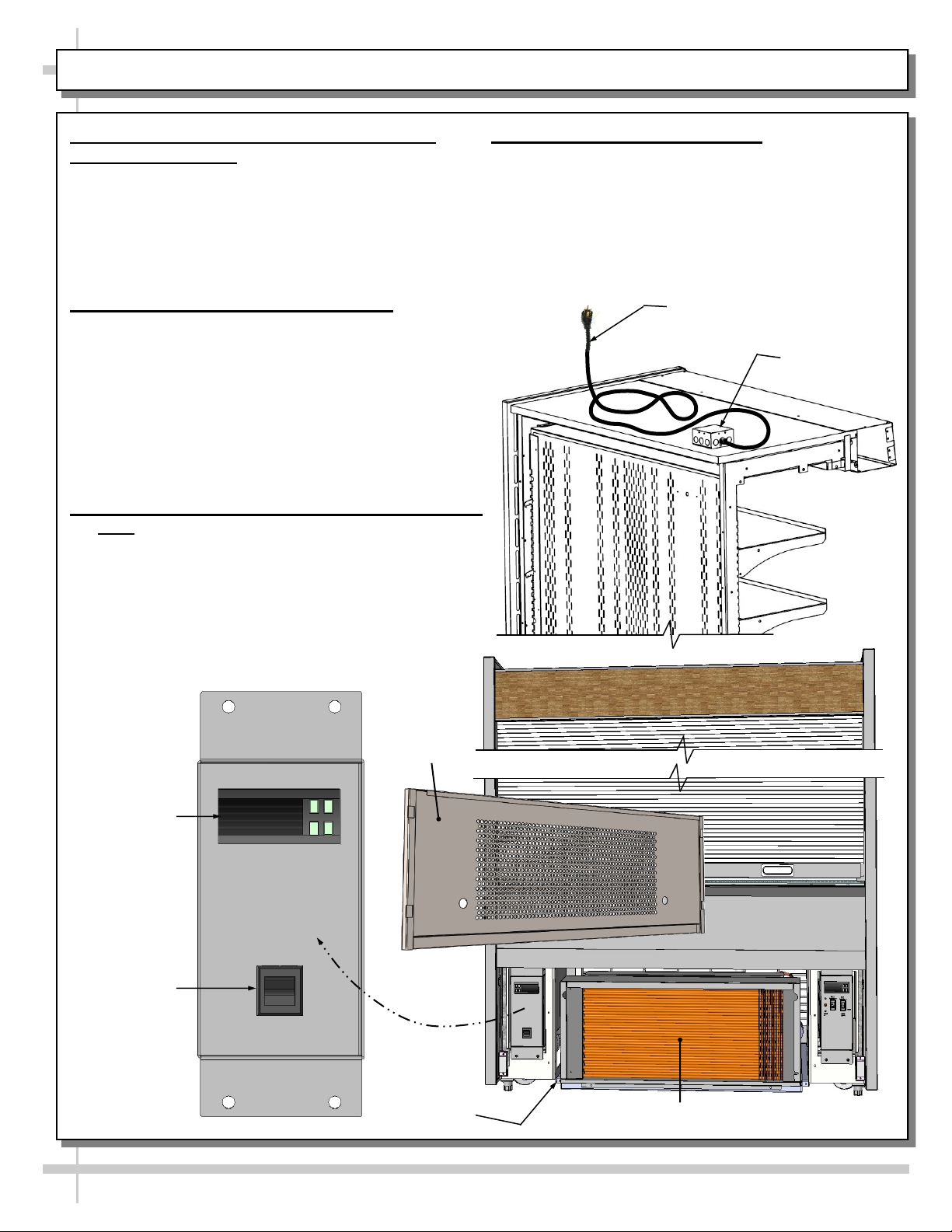

12. Merchandiser Power Cord Route & Plug-In
• Note: Depending upon floor layout and power
source location, cord may be routed through rear
of case below OR through 4x4 J-box atop.
• See illustration at top-right for view of case with
power cord routed atop case (through 4x4 box).
Main Power
Switch
Programmable
Controller
13. Turning On Power To Case
• Plug in power cord.
• Main power switch may be accessed by
removing front grille.
• Main power switch is located on electrical box
below controller. See illustration at lower-left.
Shipment
Screw (Typ.)
--- Electrical Box ---
Front
Grille
Condenser Package
Power Cord and Plug
J-Box Atop Case

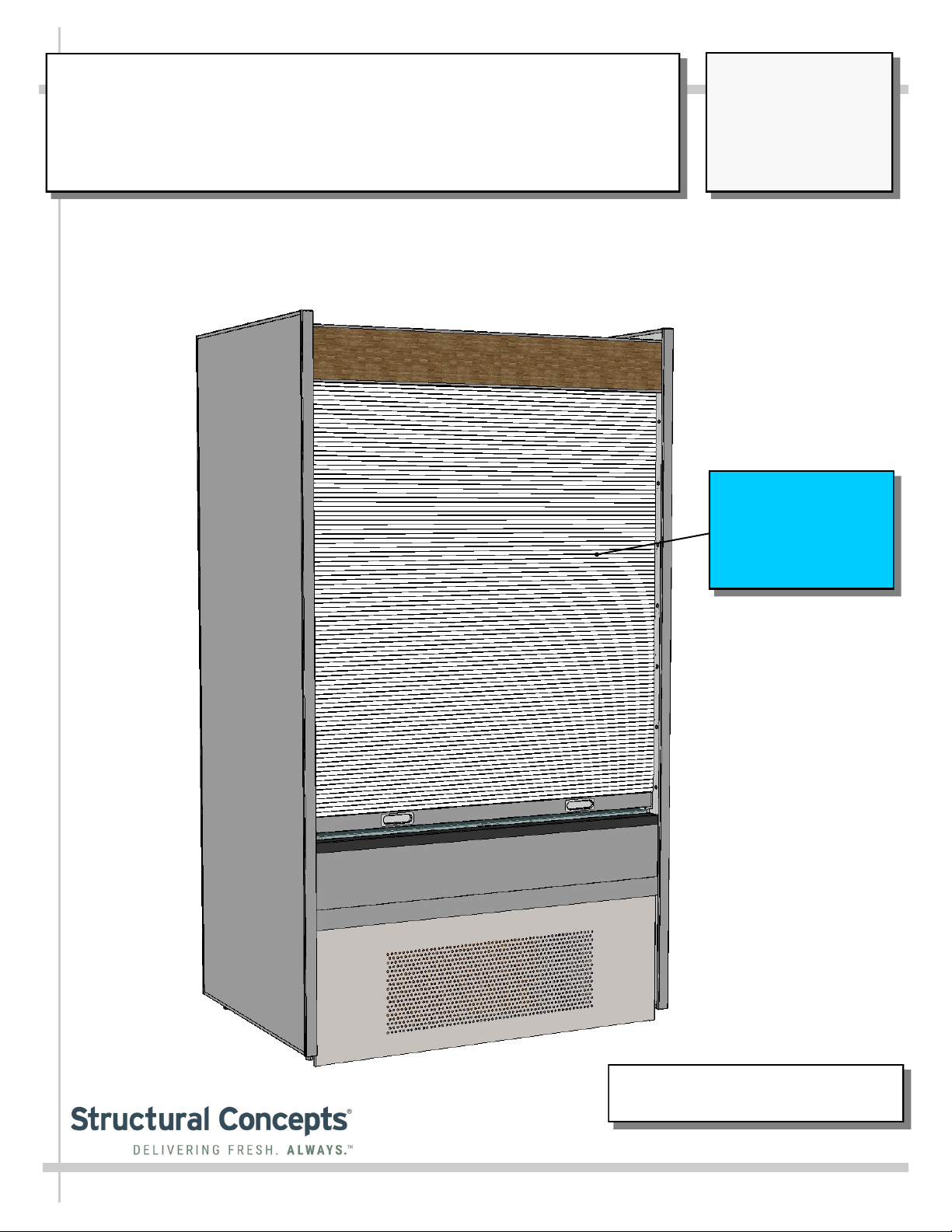

Electronically Controlled Rolling Door
• Electronically controlled rolling door is NOT able to be raised or lowered by hand.
• Handles are from factory stock and are NOT able to be used for raising or lowering door.
• Door is ONLY able to be raised or lowered by electronic controls.
• See INSTALLATION, CONT’D: ELECTRONICALLY CONTROLLED DOOR / AUTO-CLOSE / RAISING
DOOR section in User Manual for specifics.
10

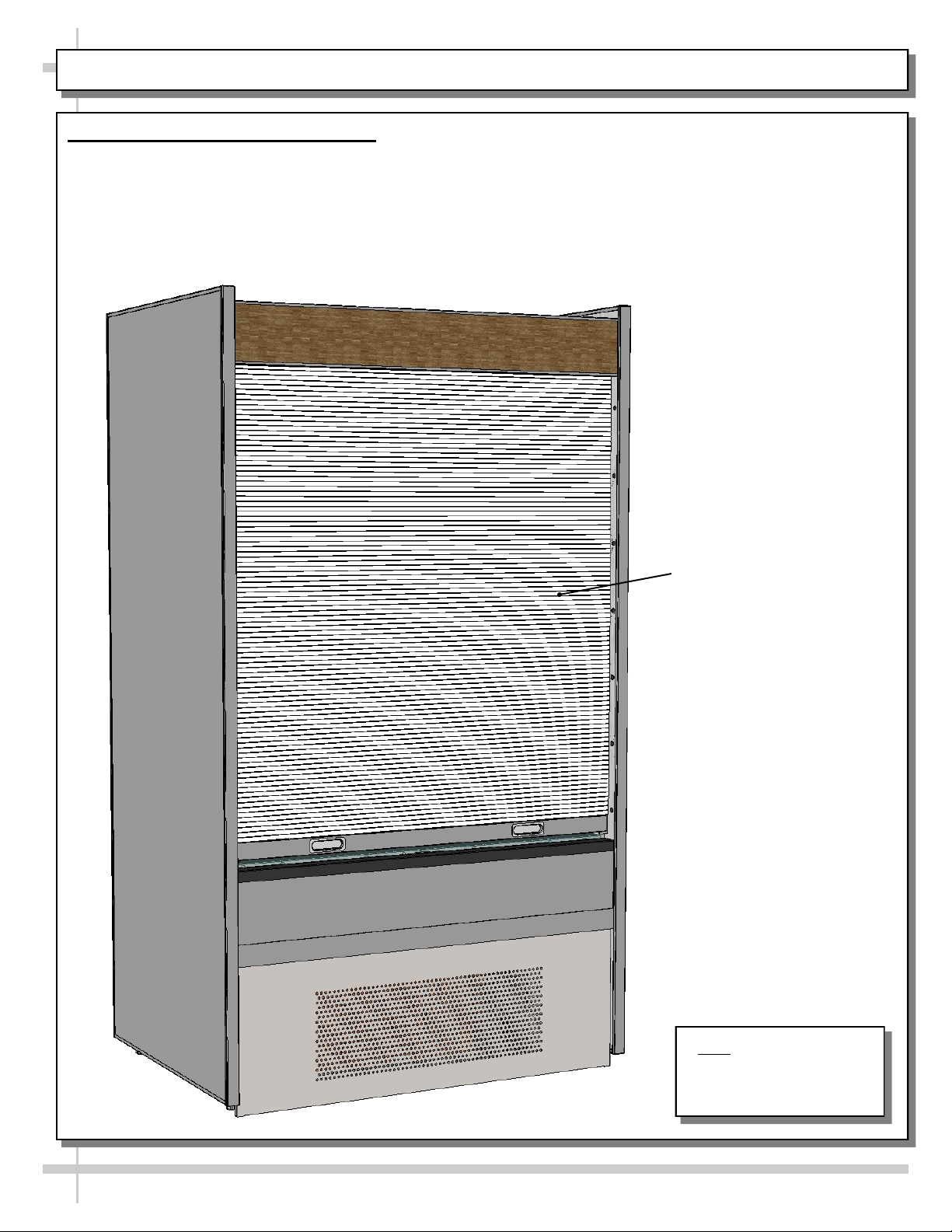

ELECTRONICALLY CONTROLLED ROLLING DOOR
Note: Illustration Shown
May Not Exactly Reflect
Every Feature or Option of
Your Particular Case.
Electronically
Controlled Door

Case shown with End Panel, Decking, and TXV Cover removed.
Note: Illustration Above Has Customer Right TXV. Cases Without EnergyWise
Refrigeration Package Will Have TXV Accessibility at Customer-Left.
11

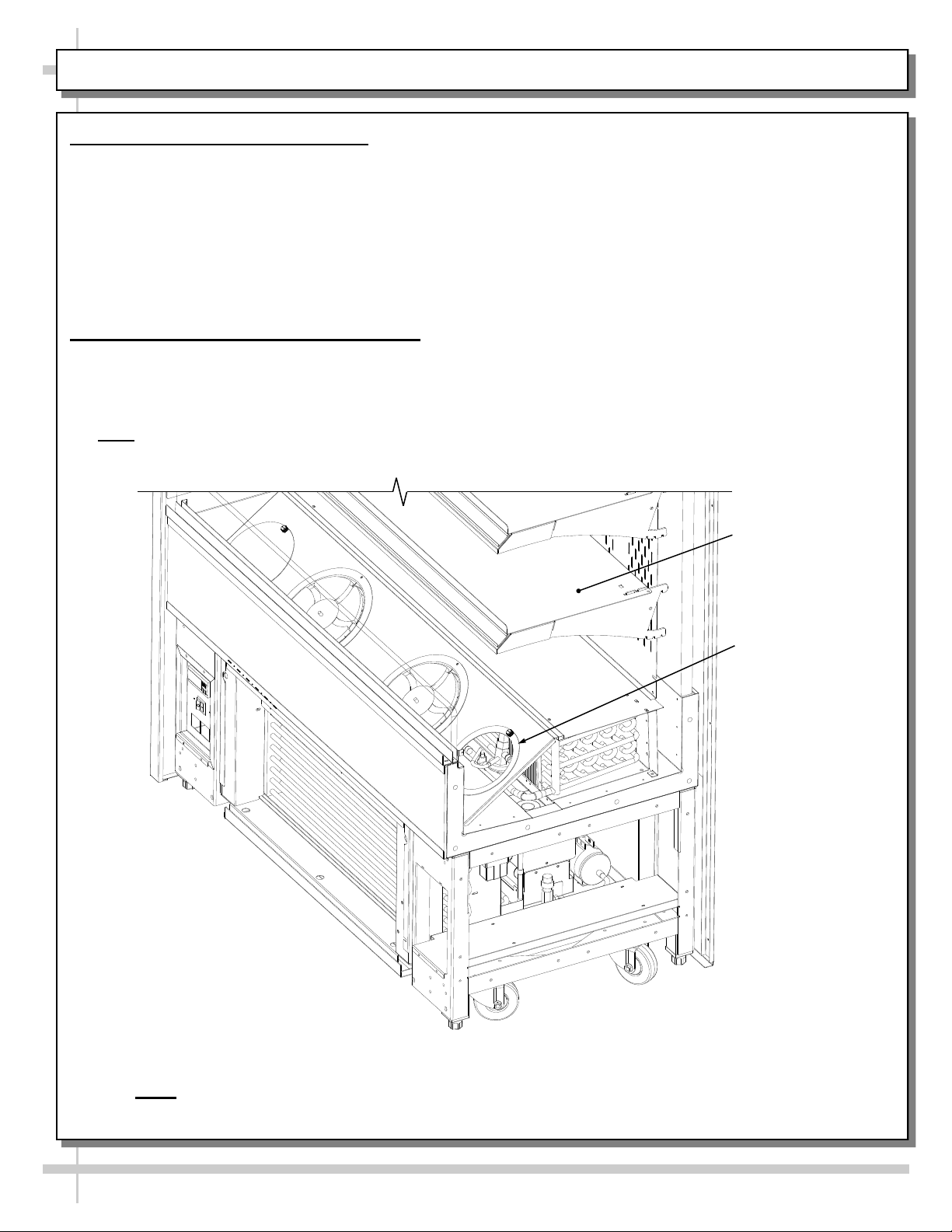

EVAPORATOR COIL FAN DISCHARGE / TXV (THERMOSTATIC EXPANSION VALVE)
1. Evaporator Coil Fan Discharge
• When main power switch is turned on, refrigeration assembly will energize (see FRONT GRILLE
REMOVAL / CONDENSER PACKAGE / OVERFLOW PAN / MAIN POWER SWITCH section for
startup specifics).
• Evaporator coil fans should turn on. From inside of the case, check for discharge air from front baffle to
confirm that the fans are functioning properly.
• When the case is in a start up mode or has been idle for a long period of time, the unit will require 75
minutes of run time to pull-down temperature.
• See below illustration.
2. TXV (Thermostatic Expansion Valve)
• TXV is under TXV access panel.
• Decking must be removed for access.
• TXV cover must also be removed for access (remove two thumb screws).
• See illustration below.
• Note: Standard cases have TXV at customer-left. For cases with EnergyWise, TXV is at customer-right.
TXV Cover
(Shown Removed)
Decking

12
HONEYCOMB AIR DIFFUSER / LED LIGHT FIXTURES / LED LIGHT REMOVAL & REPLACEMENT
1. Honeycomb Air Diffuser
• Honeycomb is located in discharge air duct.
• See illustration below.
• Note: Depending upon model chosen,
illustrations shown below may not exactly reflect
every design feature or option as yours.
2. LED Light Fixtures
• Warning! Disconnect power before providing
maintenance and service to unit.
• When replacing LED lights, you must replace
with similar lights.
• Light switch is located at customer-left of case
under header, behind honeycomb.
• Turning on light switch will turn on ALL lights
in entire case.
• LED lights are located at both header and
shelving of case (as illustrated at right).
3. LED Light Removal / Replacement
Removal of lamp:
• LED lights rarely require change-out.
• Contact Structural Concepts’ Technical Service
Department for replacement parts (see the
Technical Service section of operating manual).
Honeycomb
Air Diffuser
LED Light
Plug
LED’s Barrel
Shaped Insert
No Gap
Gap

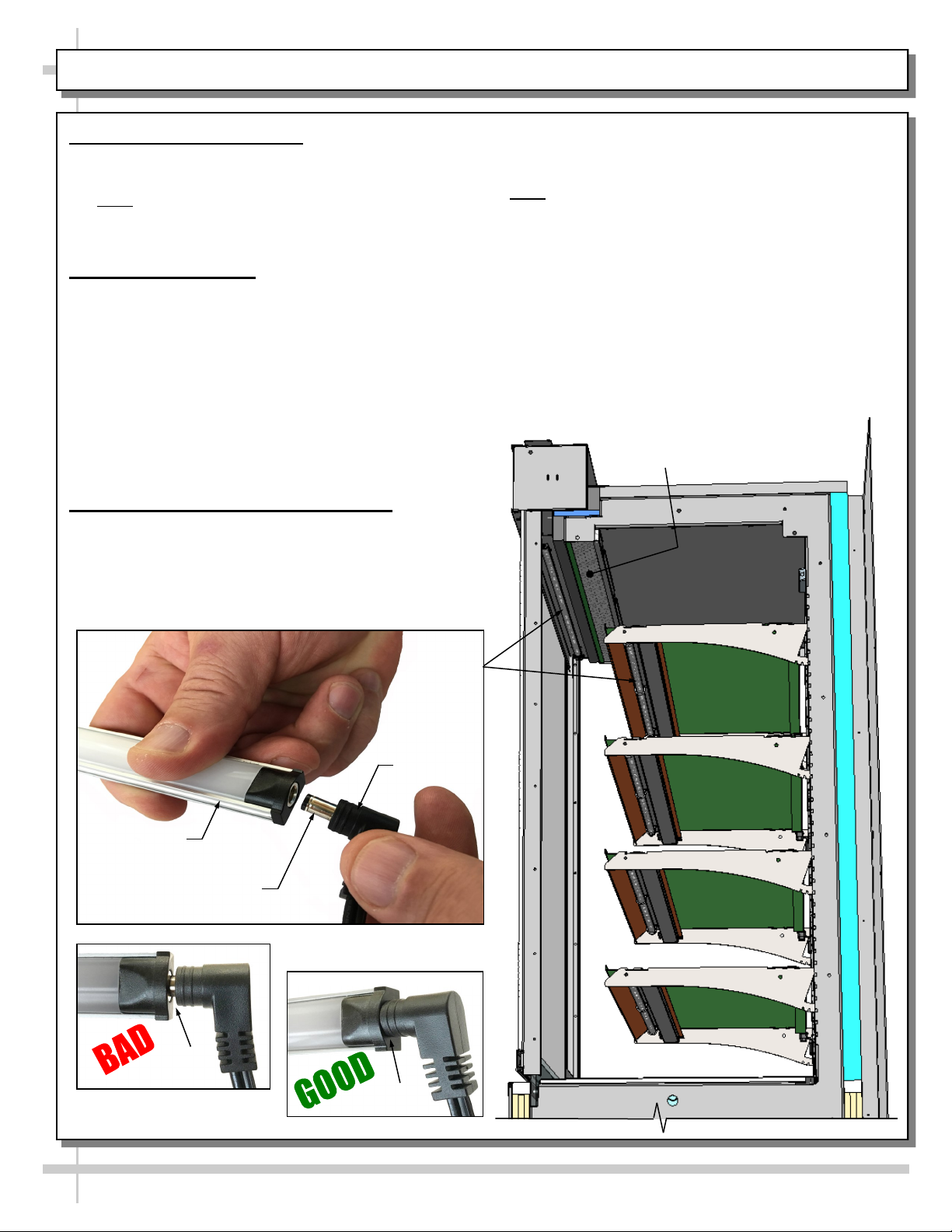

Replacement of lamp:
• To replace LED Light Fixture, disconnect
existing light from its brackets.
• Note: LED Light and Plug must be connected in a
specific manner or they will not work.
• Make certain that oval form of plug connects to
oval form of LED end cap.
• Check that ALL of the light plugs are properly
connected to the LED lights.
• Plugs must be inserted ALL THE WAY into the
LED light orifices (with no gap) to work properly.
• See illustrations below for BAD vs GOOD
connection practices.

1. Wall Spacing / Rear Venting (May
Not Be Applicable To Your Model)
• Caution: Venting is an integral part of
case temperature management. Do not
remove rear panel!
• Rear grille may be removed (by
removing 4 screws) for service or
maintenance of condenser unit.
• Return rear grille to case rear when

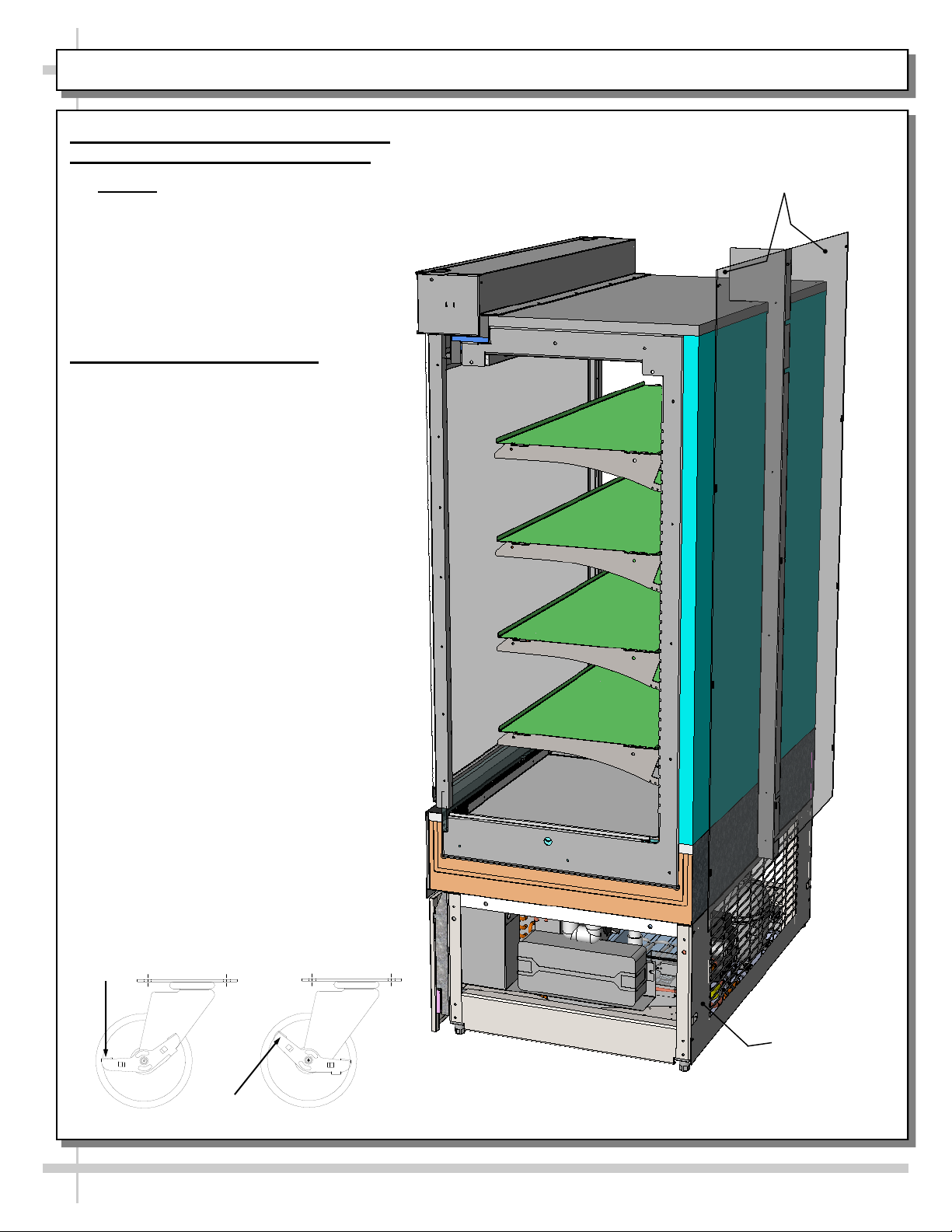

completed.
2. Caster Locking Operation
• Depending upon your case design,
casters may be locked and unlocked.
• To lock casters push down on lever, to
unlock pull up the lever all the way.
• See illustration below-left.
13
WALL SPACING / REAR VENTING / CASTER LOCKING OPERATION
Model BV4732 Shown Above
(Partially Disassembled For Illustrative Purposes Only)
Rear Panel (Shown Transparent
For Illustrative Purposes Only)
Rear Grille
Locked
Unlocked
--- Sample Caster Design ---

14

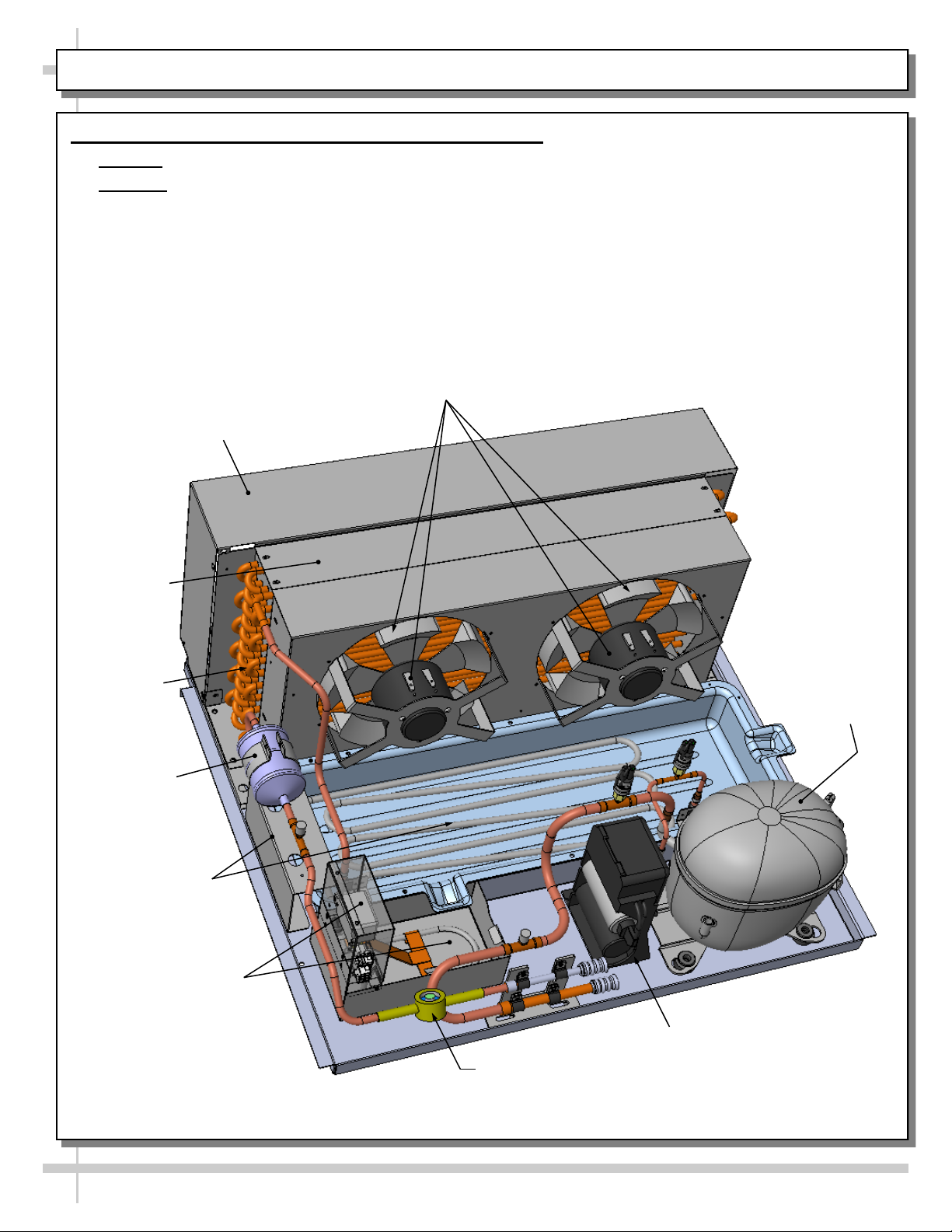

SELF-CONTAINED HOT GAS LOOP CONDENSATE PACKAGE LAYOUTS - PAGE 1 of 3
1. Self-Contained Hot Gas Loop Condensate Package
• Caution: Only trained service providers are to provide maintenance and service to unit.
• Warning! Disconnect power before providing maintenance and service to unit.
• Note: Illustration shown may not reflect your particular condensate package layout.
Sight Glass
Filter Dryer
Embraco®
Starter Unit
Electrical Box
Overflow Pan
Hot Gas Condensate
Coils and Pan
Condenser Coil
Condenser Coil
Housing
Condenser Coil Fan &
Housing
Compressor
CleanSweep® Housing

15

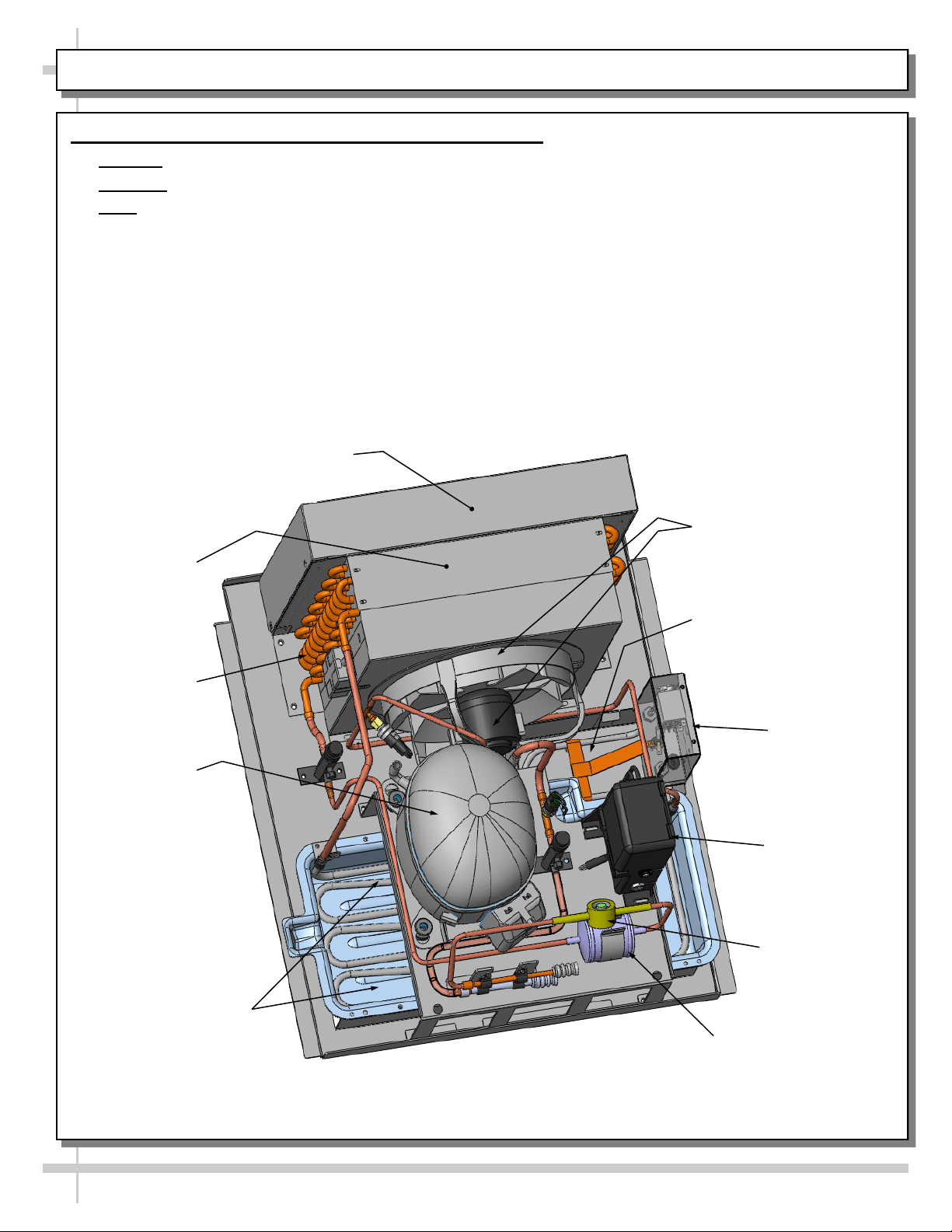

SELF-CONTAINED HOT GAS LOOP CONDENSATE PACKAGE LAYOUTS - PAGE 2 of 3
--- Model BV4732 Condenser Package Shown Above ---

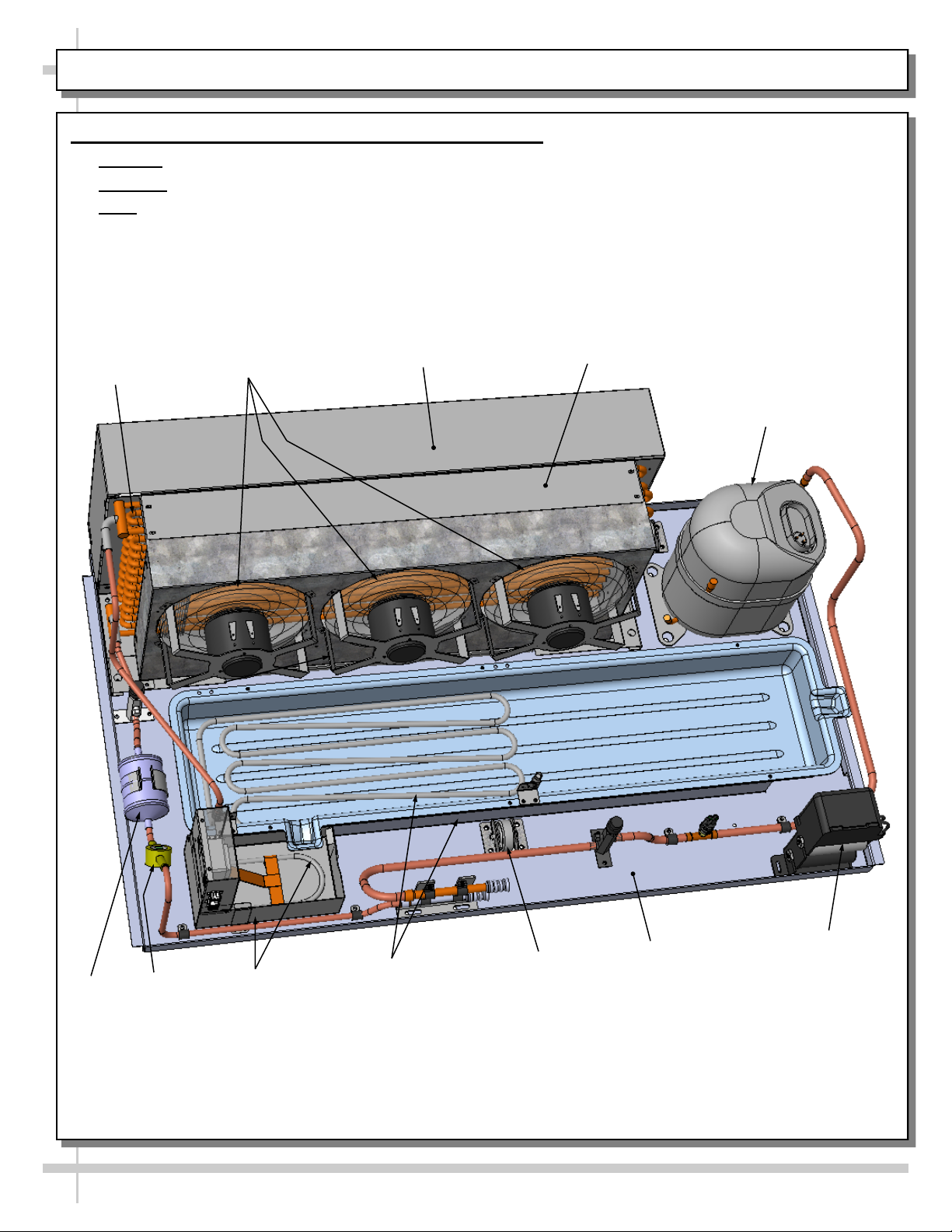

2. Self-Contained Hot Gas Loop Condensate Package
• Caution: Only trained service providers are to provide maintenance and service to unit.
• Warning! Disconnect power before providing maintenance and service to unit.
Sight Glass
Filter Dryer
Embraco®
Starter Unit
Overflow
Pan Unit
Hot Gas Condensate
Coils and Pan
Condenser
Coil
Condenser Coil
Housing
Condenser Coil
Fan & Housing
Compressor
CleanSweep® Housing

16
SELF-CONTAINED HOT GAS LOOP CONDENSATE PACKAGE LAYOUTS - PAGE 3 of 3
3. Self-Contained Hot Gas Loop Condensate Package
• Caution: Only trained service providers are to provide maintenance and service to unit.
• Warning! Disconnect power before providing maintenance and service to unit.
• Note: Illustration shown may not reflect your particular condensate package layout.
--- Model B6632SC.6241 Condenser Package Component Layout ---
Sight
Glass
Filter
Dryer
Embraco®
Starter Unit
Heater Rod
Overflow Pan
Hot Gas Condensate
Coils and Pan
Condenser Coil
Condenser Coil
Housing
Condenser Coil
Fans & Housing
Compressor
CleanSweep® Housing
Condenser Pan
Caster
Condenser
Pan

MODEL B42 SIDE SHOWN (APPLIES TO ALL MODELS).
CASE IS PARTIALLY DISASSEMBLED AND FILLED
WITH PRODUCT FOR ILLUSTRATIVE PURPOSES ONLY.
17

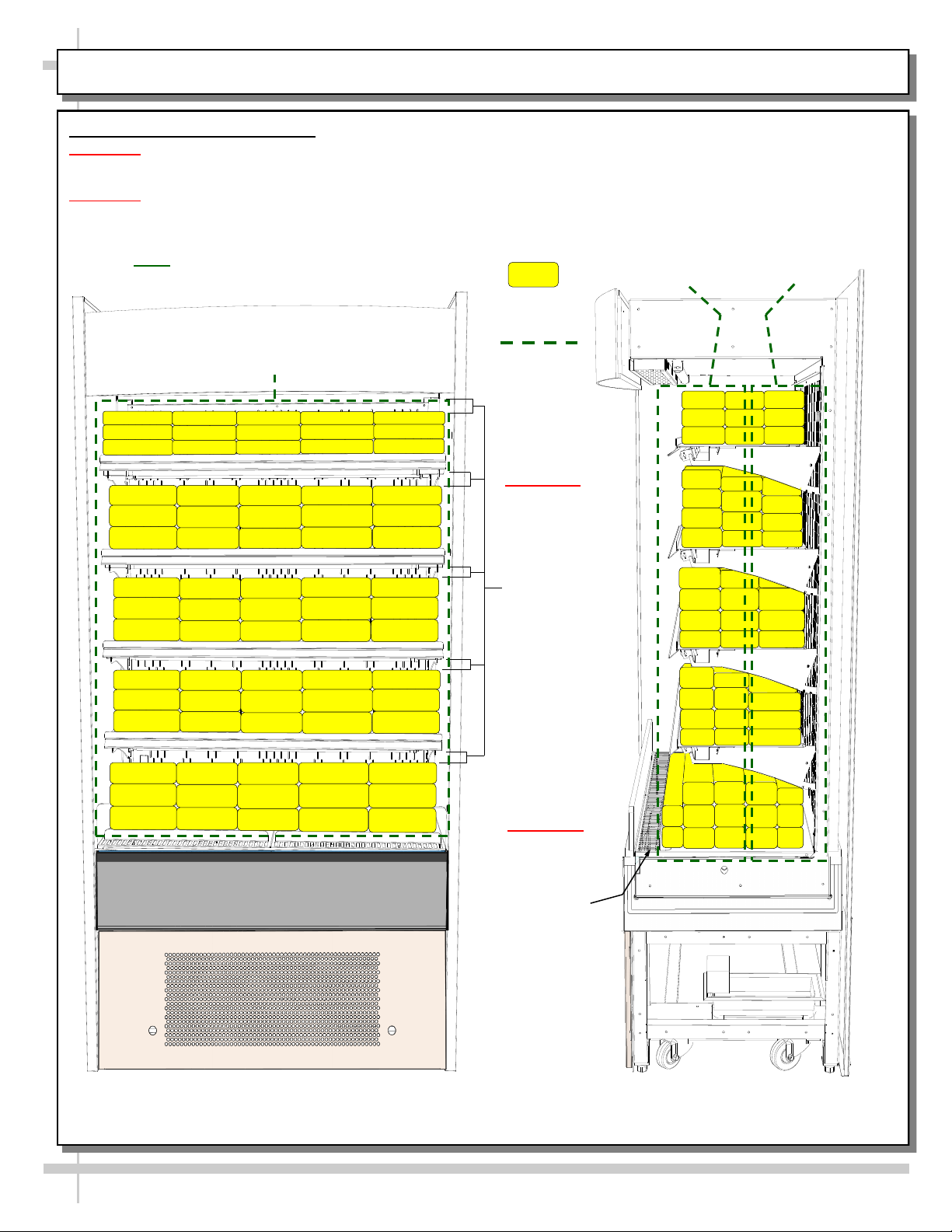

LOAD LEVEL GUIDE / TEMPERATURE GUIDE (MODEL B42 SHOWN / APPLICABLE TO OTHERS)
LOAD LEVEL & TEMPERATURE GUIDE
CAUTION 1: TO PREVENT PRODUCT FROM FREEZING OR BECOMING
OVERLY WARM, ALLOW AT LEAST 1” SPACE BETWEEN PRODUCT
AND UPPER SHELF LIGHTS.
CAUTION 2: TO PREVENT PRODUCT FROM FREEZING OR BECOMING
OVERLY WARM, DO NOT BLOCK AIR RETURN GRILLE WITH PRODUCT.
PACKAGED
PRODUCT
38 °F To 41 °F
PRODUCT AT CASE FRONT TEMPERATURE
RANGE
MODEL B42 FRONT SHOWN (APPLIES TO ALL MODELS).
CASE IS FULLY ASSEMBLED AND FILLED
WITH PRODUCT FOR ILLUSTRATIVE PURPOSES ONLY.
CAUTION 1:
TO PREVENT
PRODUCT
FROM
FREEZING OR
BECOMING
OVERLY
WARM,
ALLOW AT
LEAST 1”
SPACE
BETWEEN
PRODUCT
AND UPPER
SHELF
LIGHTS.
• IMPROPER PRODUCT PLACEMENT PREVENTS PROP-
ER AIRFLOW CAUSING PRODUCT TO FREEZE OR
BECOME OVERLY WARM.
• FOLLOW THESE PRODUCT PLACEMENT GUIDELINES
TO MAINTAIN DESIRED PRODUCT TEMPERATURES.
CAUTION 2:
TO PREVENT
PRODUCT
FROM
FREEZING OR
BECOMING
OVERLY
WARM, DO
NOT BLOCK
AIR RETURN
GRILLE WITH
PRODUCT.
NOTE: SEE VIEW AT RIGHT FOR PRODUCT
TEMPERATURE RANGE AT FRONT vs. REAR OF CASE
38 °F To 41 °F
PRODUCT AT
CASE FRONT
28 °F To 35 °F
PRODUCT AT
CASE REAR

18

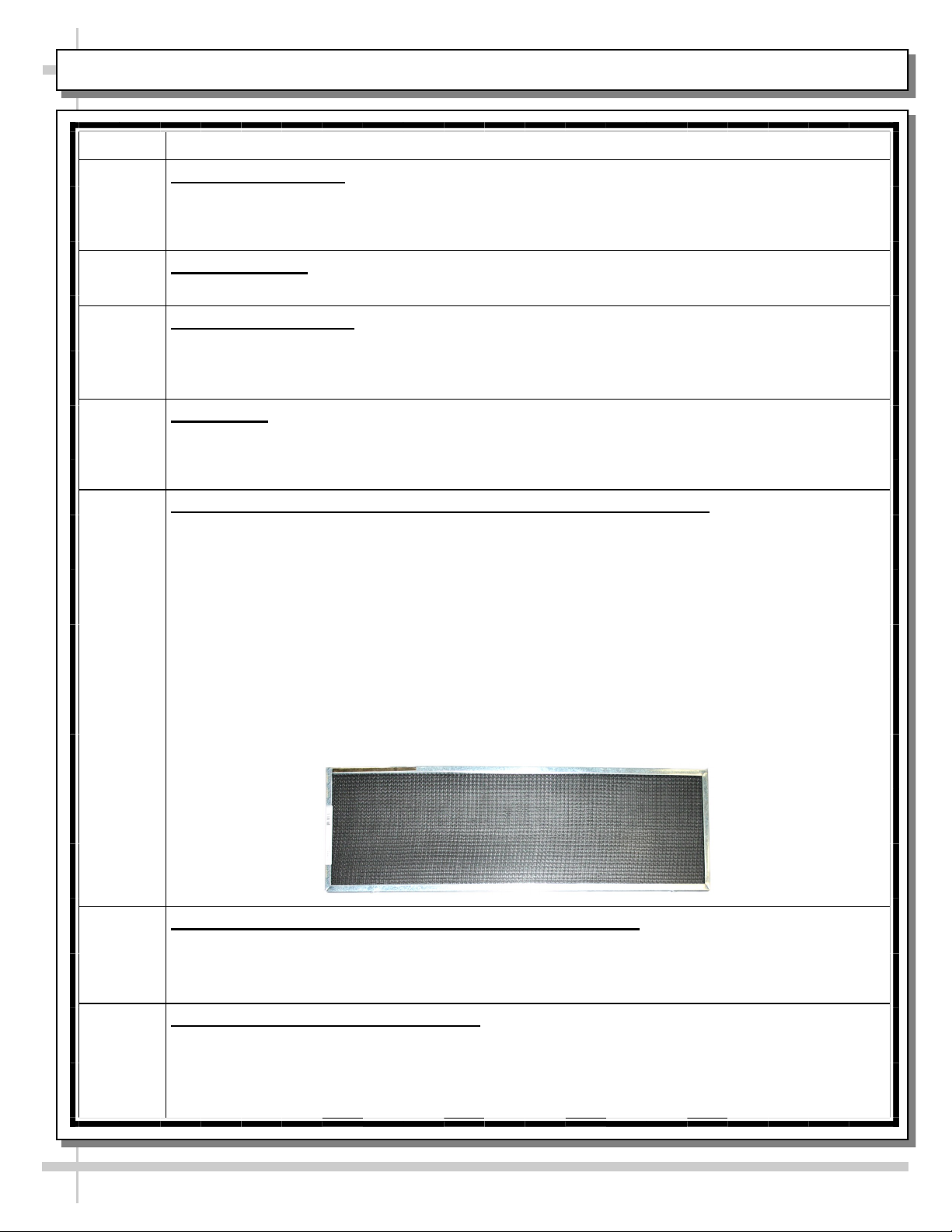

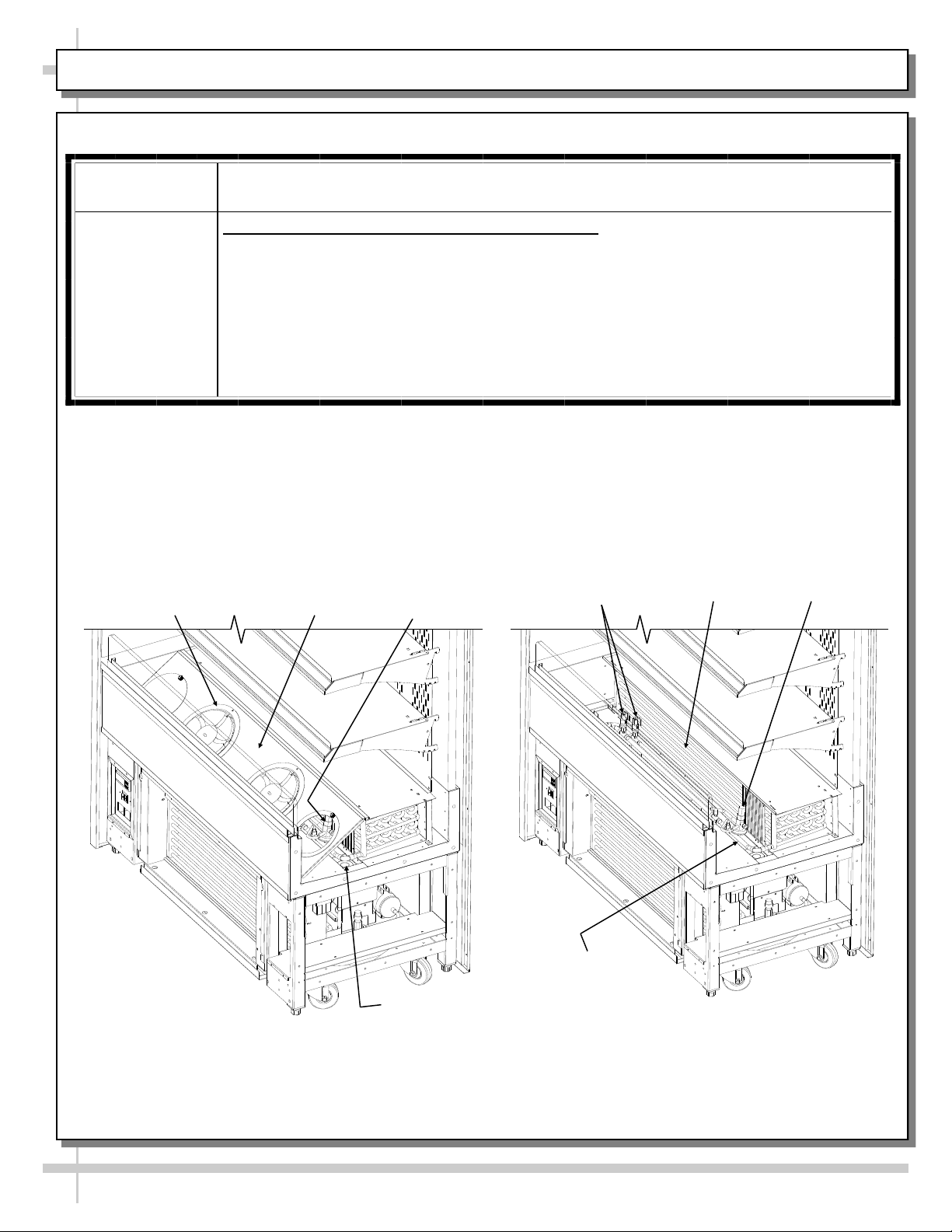

CLEANING SCHEDULE - TO BE PERFORMED BY STORE PERSONNEL
FREQ. INSTRUCTIONS
Daily Acrylic Air Deflectors: Clean with a warm water and mild soap solution and soft cloth. Never
use ammonia-based cleaners (nor household or commercial window cleaner) on acrylic.
Daily Shelves & Decks: Wipe off with moist cloth.
Daily Glass/Mirror Surfaces:
• Clean with household or commercial glass cleaner. Dry with soft cloth or paper towel.
Weekly Tub & Drain: Vacuum tub under decks. Clean with soap and water solution. Wipe dry with
clean cloth. Keep drain free of debris to prevent clogging.
Weekly Magnetic Condenser Coil Filter Option (Self-Contained Units Only):
• This optional filter helps prevent dust particles from entering condenser coil.
• It is accessible by removing front panel from case.
• Clean magnetic condenser coil filter by following either of these steps:
1. As magnetic condenser coil filter is dishwasher safe, remove from case (no screw
removal); use a rag or soft-bristled brush to wipe off excess dust particles from filter.
Run in normal dishwasher cycle. Remove from dishwasher. Dry with soft cloth or
paper towel. Return to case.
2. If not using dishwasher, remove magnetic condenser coil filter from case. Use rag or
soft-bristled brush to wipe off excess dust particles from filter. Submerse in warm,
soapy water. Use soft-bristled brush to remove dust, dirt, grease and grime that may
collect on filter. Rinse thoroughly.
3. Dry with soft cloth or paper towel. Replace.
Weekly Rear Perforated Plenum (Either Stainless Steel or Acrylic):
• Clean with a warm water and mild soap solution and soft cloth.
Monthly Air Return Grille and Fan Shroud Area: See Illustration below. 1) Turn off power.
2) Remove decks from case. 3) Clean with moist cloth.

19
WARNING! TURN OFF CASE BEFORE PERFORMING PREVENTIVE MAINTENANCE!
Fan Assembly
(Typical)
Fan
Shroud
Case shown with End Panel, Deck,
and TXV Cover removed.
Case shown with End Panel,
Decks, Fan Shroud and TXV Cov-
er removed.
Drain Trough
Along Entire Tub
Pressure
Switches
TXV
PREVENTIVE
MAINTENANCE
INSTRUCTIONS
Case Interior Tub, Coil, Drain, Fan Blades, Motors, Brackets:
Disconnect power from case before cleaning the tub, coil, fan, motor and drain area!
• Remove decking, sub-deck (if any) and fan shroud.
• Use vacuum to clean condenser coils.
• Clean tub, coil and drain with warm water, clean cloth, brush and mild soap solution.
• Remove any debris that may clog drain.
• Wipe down fan blades, motors and brackets with moist cloth.
• Replace decking, sub-deck (if any) and fan shroud.
Drain
TXV
Evaporator
Coils
Above Illustrations (With TXV at Customer-Right) is ONLY on Cases With
EnergyWise Refrigeration Package (With Hot Gas Loop Condensate System)
QUARTERLY PREVENTIVE MAINTENANCE (PERFORMED BY TRAINED SERVICE PROVIDERS)

20
WARNING! TURN OFF CASE BEFORE PERFORMING PREVENTIVE MAINTENANCE!
PREVENTIVE
MAINTENANCE
INSTRUCTIONS
Case Interior Under Case Cleaning:
Whenever refrigeration assembly is removed from underside of case, vacuum (or
broom) under case to remove all dust, debris and dirt that may collect.
Case Interior Condenser Coil Fins / Refrigeration Assembly Without Evaporator Pan:
Warning! Disconnect power from case before beginning process!
A. Remove front grille (by removing thumbscrews).
B. Slide out refrigeration assembly.
C. Use vacuum (in suction mode) and brush to dislodge and remove dust both in and
on coil fins.
D. Place damp rags around condensing fan motor brackets to collect airborne dust.
E. Switch vacuum to blow mode to blow air through condenser coils and into damp
rags on fans. Blow entire surface of condensing coil to assure that all entrenched
dust is removed. Caution! Coil fins are sharp!
F. While refrigeration assembly is out from under case, use a moist cloth to wipe off
dust & debris that collects on various parts (fans, sight glass, overflow pan, etc.).
G. Slide refrigeration assembly back under case.
H. Replace front grille to case (reattach with thumbscrews).
See illustrations below.
QUARTERLY PREVENTIVE MAINTENANCE (PERFORMED BY TRAINED SVC PROVIDERS), CONT’D
