Structural Concepts grocerant FB9S-6HO.7355 Installation instructions

Rev B Date: 3.12.2019
Oper Manuals\Grocerant_Food Bar_V2_Auto-Fill Htd Wells_Overhead Htd Canopy_LEDs_20-75996.pub
888 E. Porter Road ∙ Muskegon, MI 49441 Phone: [phone] Fax: [phone] www.structuralconcepts.com
Grocerant™ Food Bars: Hatco® Manual or Auto-Fill Heated Wells / Alto-Shaam® Dry Heated
Buffet Wells / Stainless Steel Service Glass / Heated Canopy With Ceramic Heaters /
LED Lights / Rear Sanalite® Work Surfaces / Solid Quartz Surface
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION &
OPERATING MANUAL
SCC P/N 20-98713
Model
FB9S-6HO.7355
With Hatco®
Heated Wells
Shown At Left
Model FB5S-3HO
With Alto-Shaam®
Heated Wells
Shown At Right

2
TABLE OF CONTENTS / MODELS INCLUDED IN MANUAL
TABLE OF CONTENTS / MODELS INCLUDED IN MANUAL ………………………………..…...………
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS ….......……
CASE REMOVAL FROM SKID / REMOVABLE TOE-KICKS ……………………………………………..
ADJOINMENT GUIDE: LOWERING FRONT PANEL FOR END PANEL ADJOINMENT ……………...
ADJOINMENT GUIDE, CONTINUED: REAR ADJOINMENT ACCESS (VIA COVER PLATE
REMOVAL) ………………………………………………………………………………………………
ADJOINMENT GUIDE, CONTINUED: BASE FRAME ADJOINMENT BRACKET ……………………...
ADJUSTING FRAME SUPPORT RAILS VIA SHIMS ………………………………………………….…...
CASE START-UP / MAIN POWER SWITCH AND LED LIGHT SWITCH ACCESS .….………………..
LED LIGHTS & SWITCH (AND OPTIONAL SKIRT LIGHTING) …………………………………………..
FRONT OVERVIEW - MODEL FB9S-6HO.7355 ……………………….………...………………………….
REAR OVERVIEW - MODEL FB9S-6HO.7355 …………………………………..………………………….
LED LIGHT SWITCH / LED STYLE LIGHT FIXTURES ...…………………………………………………..
FRONT CASE UNDERSIDE / FIELD ACCESS BOXES …………………………………………………...
HATCO® HEATED WELL OPERATION: POWERING UP / HEATED WELLS CONTROLS & DAILY
PROCEDURE …………………………………………………………………………………………...
HEATED CANOPY (WITH CERAMIC HEATERS) / PRE-HEAT / SCC THERMOSTAT
CONTROLLER / LED LIGHTS ………………………………………………………………………..
SCC PROPRIETARY THERMOSTAT CONTROLLERS: HEATED CANOPY (WITH CERAMIC
HEATERS) ……………………………………………………………………………………………….
HATCO® HEATED WELL MODEL DESCRIPTION / CAPABILITIES / SPECIFICATIONS ..………….
HATCO® MODULAR BUILT-IN HEATED WELLS - IMPORTANT SAFETY INFORMATION ………...
HATCO® MODULAR BUILT-IN HEATED WELLS OPERATION (AUTO-FILL WELLS ONLY) ….…..
HATCO® MODULAR BUILT-IN HEATED WELL MAINTENANCE & CLEANING …………..………....
HATCO® HEATED WELLS - TROUBLESHOOTING GUIDE ………..…………………………...……….
ALTO-SHAAM® HEATED BUFFET WELLS - OVERVIEW / SAFETY PROCEDURES AND
PRECAUTIONS ..………………………………………………………………………………………..
ALTO-SHAAM® HEATED BUFFET WELLS - PRODUCT PAN CAPACITY / ELECTRICAL
CONNECTION …………………………………………………………………………………………..
ALTO-SHAAM® HEATED BUFFET WELLS - OPERATING INSTRUCTIONS ………………………….
ALTO-SHAAM® HEATED BUFFET WELLS - GENERAL HOLDING TEMPERATURE RANGES …..
ALTO-SHAAM® HEATED BUFFET WELLS - CARE AND CLEANING …………………..………...…..
ALTO-SHAAM® HEATED BUFFET WELLS - FOOD SAFETY …………………………………………...
ALTO-SHAAM® HEATED BUFFET WELLS - LIMITED WARRANTY / CONTACT INFORMATION ...
2-3
4-5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29-30
31
32

3
TABLE OF CONTENTS / MODELS INCLUDED IN MANUAL
CLEANING SCHEDULE - GENERAL …………………………………………...……………….…………...
CLEANING SCHEDULE, CONTINUED - NATURAL QUARTZ SURFACES …….…………………..….
CLEANING SCHEDULE, CONTINUED - STAINLESS STEEL ……………………………………………
TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL) ……………………………...
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) …….….
SERIAL LABEL LOCATION & INFORMATION LISTED / TECH INFO & SERVICE ……...…..............
TECHNICAL SERVICE CONTACT INFORMATION & WARRANTY INFORMATION ..........................
33
34
35
36
37
38
39

4
OVERVIEW
• Service Upper Section Heated Wells and Heated
Canopy With Ceramic Heaters: This unit is designed to
merchandise perishable, unpackaged products at a
range of temperatures.
• Product must be heated to the proper food-safe
temperature before placing in the heated wells. Failure
to heat food product properly may result in serious
health risks. This unit is for pre-heated product only.
• Cases should be installed and operated according to
this operating manual’s instructions to ensure proper
performance. Improper use will void warranty.
• Merchandising capabilities meet the required standards
for maintaining proper food temperatures and
sanitation.
TYPE I vs. TYPE II ENVIRONMENTAL CONDITIONS
This unit is designed for the display of products in ambient
store conditions where temperature and humidity are
maintained within a specific range.
• Type I display refrigerators are intended for use in an
area where environmental conditions are controlled and
maintained so that the ambient temperature does not
exceed 75 °F (24 °C) and 55% maximum humidity.
• Type II display refrigerators are intended for use in an
area where environmental conditions are controlled and
WARNING
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
WARNING
ELECTRICAL
HAZARD
COMPLIANCE
This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PAGE 1 of 2
ATTENTION
CONTRACTORS
WARNING
Heated wells and heated canopy (with ceramic heaters) are hot!
Turn off and allow to cool before cleaning,
servicing or removing from case.
WARNING
HOT
SURFACE
maintained so that the ambient temperature does not
exceed 80 °F (27 °C) and 55% maximum humidity.
• If unsure if your unit is Type I or II, see tag next to serial
label. See SERIAL LABEL LOCATION &
INFORMATION LISTED / TECH INFO & SERVICE
section in this manual for sample serial labels.
COMPLIANCE
• Performance issues when in violation of applicable
NEC, federal, state and local electrical and plumbing
codes are not covered by warranty.
REFRIGERANT DISCLOSURE STATEMENT
• This equipment is prohibited from use in California with
any refrigerants on the “List of Prohibited Substances”
for that specific end-use, in accordance with California
Code of Regulations, title 17, section 95374.
• This disclosure statement has been reviewed by
Structural Concepts and Structural Concepts attests,
under penalty of perjury, that these statements are true
and accurate.
WARNINGS
• This page contains important warnings to prevent
injury or death. Please read carefully!
WARNING: This product can expose you to chemicals, including
Urethane (Ethyl Carbamate), which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to P65Warnings.ca.gov.

5
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PAGE 2 of 2
PRECAUTIONS
• Following are important precautions to prevent
damage to unit or merchandise.
• Please read carefully!
• See previous page for specifics on OVERVIEW,
TYPE, COMPLIANCE and WARNINGS.
WIRING DIAGRAM
• Each case has its own wiring diagram folded and in its
own packet.
• Wiring diagram placement may vary; it may be placed
near ballast box, field wiring box, raceway cover, or
other related location.
POWER CORD AND PLUG MAINTENANCE
• Caution! Risk of electric shock.
• If cord or plug becomes damaged, replace only with
cord and plug of same type.
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle
CAUTION! LAMP REPLACEMENT GUIDELINES
LED lamps reflect specific size, shape, color, light output and overall
design. Any replacements must meet factory specifications.
CAUTION
CAUTION! POWER CORD AND PLUG MAINTENANCE
Risk of electric shock. If cord or plug becomes damaged,
replace only with cord and plug of same type.
CAUTION!
DO NOT RELY ON THERMOMETERS OR THERMOSTATS
FOR ACTUAL PRODUCT (FOOD) TEMPERATURES.
• Thermometers and thermostats reflect air temperatures ONLY.
• For ACTUAL food temperatures, use a calibrated food thermometer.
CAUTION! ADVERSE CONDITIONS / SPACING ISSUES
• Performance issues caused by adverse conditions are NOT warranted.
• Unit must be kept at least 15-feet from exterior doors, overhead HVAC
vents or any air curtain disruption to maintain proper temperatures.
• Unit must not be exposed to direct sunlight or any heat source.
CAUTION

6

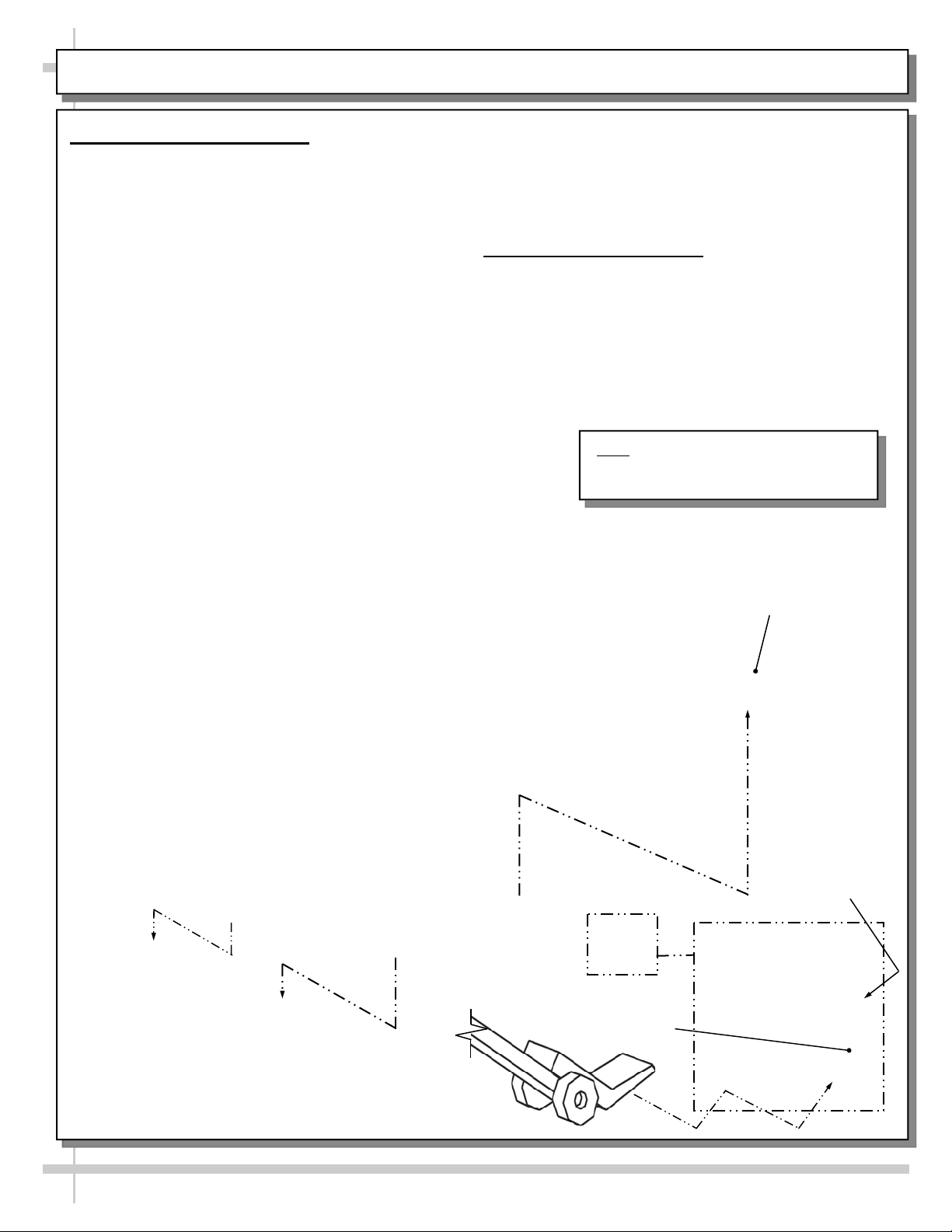

CASE REMOVAL FROM SKID / REMOVABLE TOE-KICKS
1. Remove Case From Skid
Fork Lift
• To lift case up for lift-truck forks to slide into
position, use J-Bar Lift Tab (location shown).
• Make certain case is well-supported on lift truck.
Move into position.
J-Bar or Dolly Only (No Fork Lift)
• See illustration below for J-bar/dolly case
removal instructions.
• Slide case to edge of skid.
• With several people in position, carefully slide
frame support rail to edge of skid.
• With several people in position, slide case
several more inches (off skid) and lower rear
frame support to floor.
• Once the rear frame support rail rests on the floor,
have several people supporting front of case while
skid is slid out from under case.
• After case is off skid, several employees may be
required to slide into position.
2. Removable Toe-Kicks
• Toe-kicks are lifted up and off case.
• Slots in toe-kicks reside over hooks.
• Case magnets also hold toe-kick in position.
• Illustrations below show case after toe-kick
has been removed and reversed (for
illustrative purposes).
J-Bar Lift Tab &
J-Bar Lift
Hook (Typ.)
Magnet (Typ.)
Rear Toe-Kick
(Typ.)
Front Toe-Kicks
Shown Above
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.

7

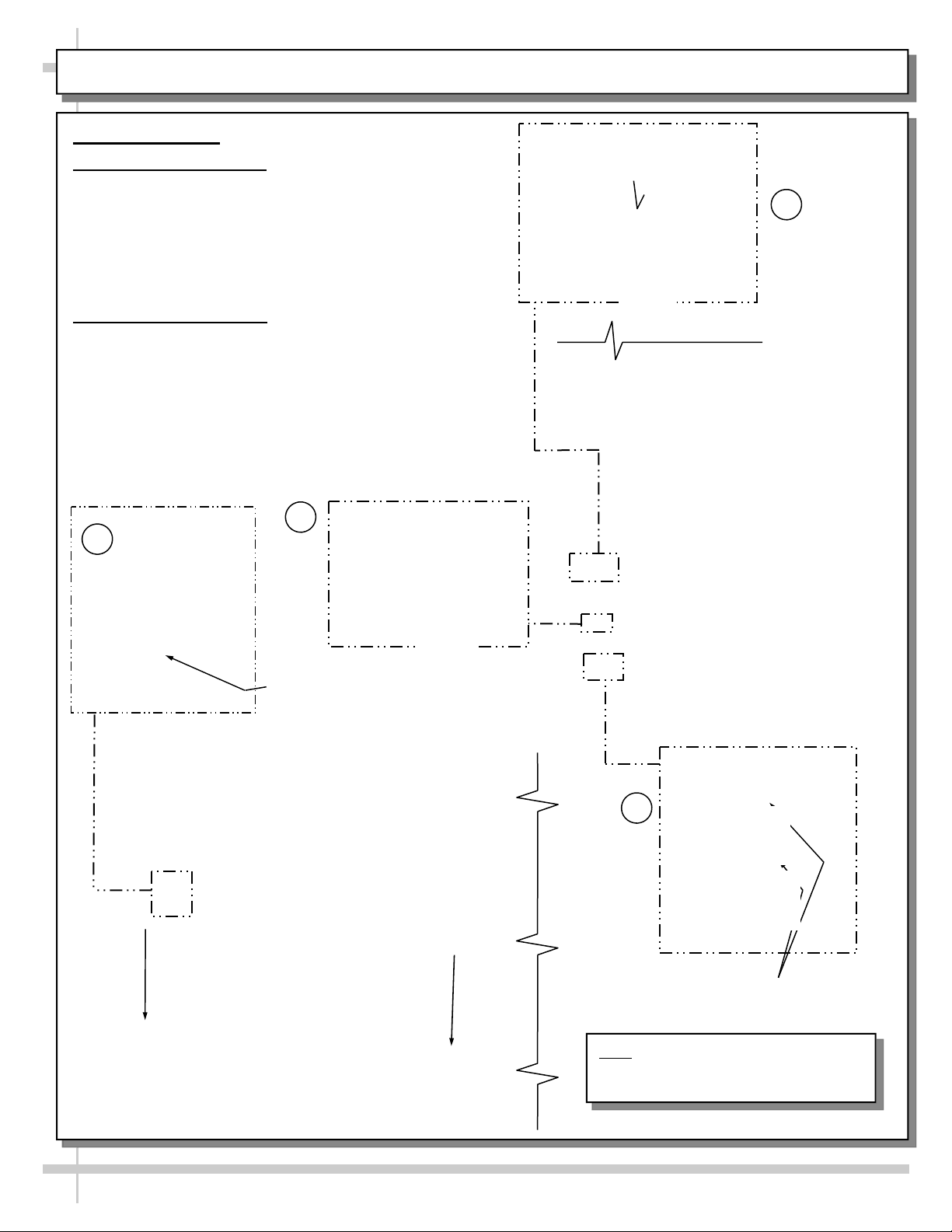

ADJOINMENT GUIDE: LOWERING FRONT PANEL FOR END PANEL ADJOINMENT
Adjoinment Guide
1. Lowering Front Panel
• Lowering front panel allows screws to be inserted
through inner end panels and into adjacent cases.
• To do so, you must first remove two (2) screws from
brackets located at front underside of case.
• Number of brackets vary depending upon case
length.
2. Adjoining End Panels
• Use wood screw to attach to adjacent case.
• After adjoinment screw has been attached, raise
front panel back up and reattach (2) screws in each
bracket.
• Drill bits and screws are provided in lineup kit.
• Number of brackets vary depending upon case
length.
* Inner End Panel
Adjoinment Spot (At
Both Ends) After Front
Panel Is Lowered
Screw Locations (Remove To
Lower The Front Panel)
2
1
1
1
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.

8

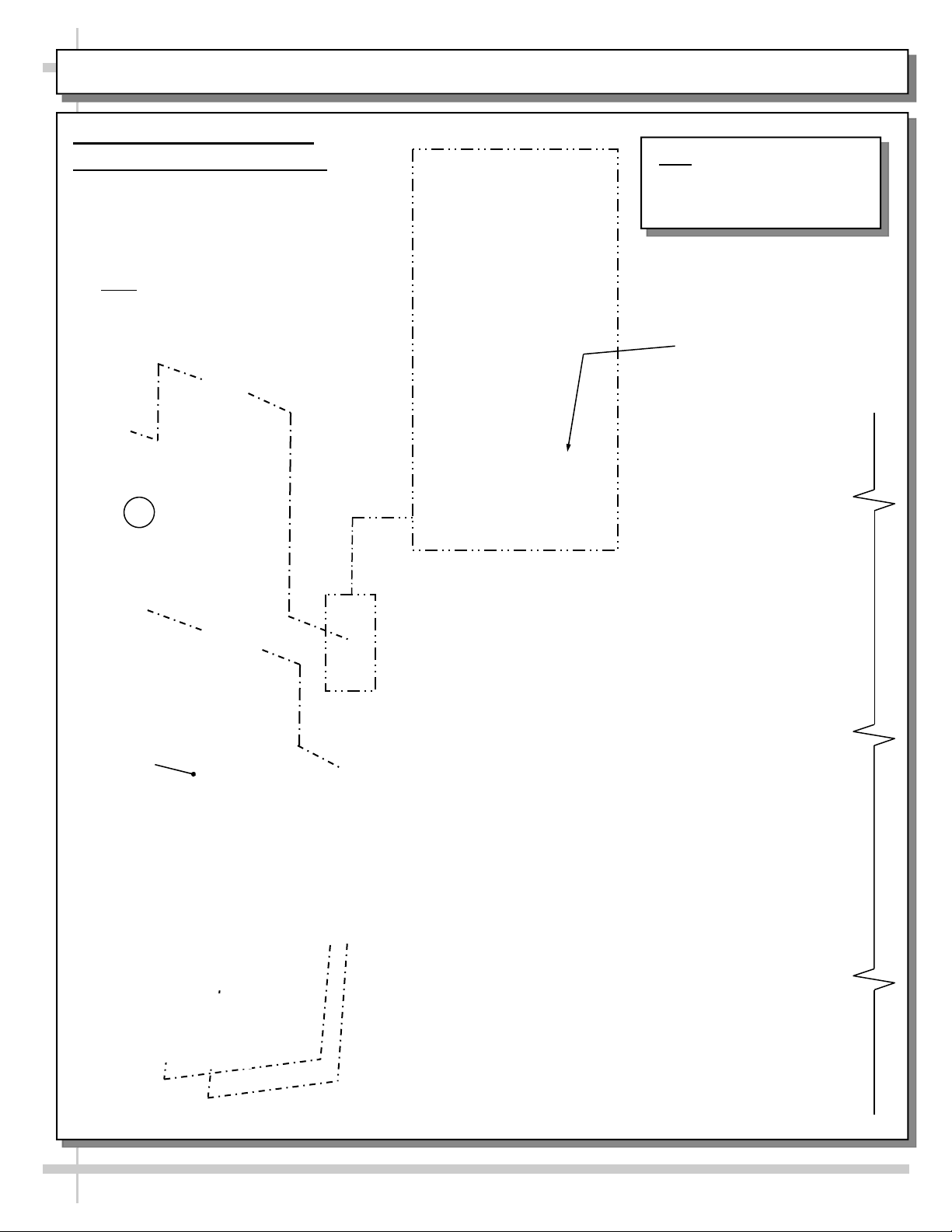

ADJOINMENT GUIDE, CONTINUED: REAR ADJOINMENT ACCESS (VIA COVER PLATE REMOVAL)
Adjoinment Guide, Continued
3. Rear Adjoinment Cover Plate
• Removal of rear adjoinment cover plate
allows access to inner end panels
(at both ends of case).
• Attach through end panel to adjacent
case end panel with wood screws.
• Note: Drill bits for pilot holes and wood
screws are included in adjoinment kit.
• Return rear adjoinment cover plate to
case in reverse order it was removed.
Apply Wood Screw Through
Inner End Panel After Rear
Adjoinment Cover Plate Has
Been Removed
Rear
Adjoinment
Cover Plate
(Typ.)
3
*
Note: Model FB9S-6HO.7355
(shown) may not exactly reflect
every feature or option of your
particular case.

9
ADJOINMENT GUIDE, CONTINUED: BASE FRAME ADJOINMENT BRACKET
Adjoinment Guide, Continued
4. Adjoinment Bracket
• Adjoinment brackets (at both ends of case) have holes for wood screws to attach to adjacent case’s end
panel.
• See illustration below.
Base Frame Holes For 5/16”ø
Bolt Adjoinment Into Adjacent
Case’s Base Frame
4
5
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.

10
ADJUSTING FRAME SUPPORT RAILS VIA SHIMS
1. Position & Align Case Alongside Other Cases
• Before adjusting levelers (or shimming frame support
rails), make certain that the case is in proper position
and, if required, aligned with adjoining case(s).
• This may require the repositioning of the case you
are installing or the already positioned case.
2. Cases With Frame Support Rails: Shim
• Illustration below shows case with frame
support rails.
• Shims will be provided with all cases that have
frame support rails.
• Use shims to level case.
• Note: After case is in position, it must be
sealed to floor to prevent entry or leakage
of liquid or moisture.
Frame Support
Rails
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.

11
CASE START-UP / MAIN POWER SWITCH AND LED LIGHT SWITCH ACCESS
1. Case Start-Up: Main Power Switch
• Case will energize when main power switch is
turned on.
• See illustration below for main power switch
location (at right of control panel).
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.
2. LED Light Switch Access
• LED light switch is at case rear near overhead
heaters control.
• See illustration below

12
LED LIGHTS & SWITCH (AND OPTIONAL SKIRT LIGHTING)
LED Lights and Light Switch
• LED lights are located at underside of heated canopy as
well as skirt (optional).
• The LED LIGHT SWITCH controls only the LED lights
at underside of heated canopy.
• Optional skirt lighting is daisy-chained from accompanying
cases.
• See illustration below.
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.
Canopy
LED Lights
Optional Skirt
LED Lighting
Control Panel
(From Case Rear)

13
FRONT OVERVIEW - MODEL FB9S-6HO.7355
Front Overview - Model FB9S-6HO.7355
• Glass sneeze guard is held in place with stainless steel posts (and its accompanying hardware).
• See next page for rear overview of same model.
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.
Glass Sneeze
Guard (End)
Front-Left
Toe-Kick
Bumper
Front-Right
Toe-Kick
Heated Canopy
Front-Left Glass
Sneeze Guard
Glass Sneeze
Guard (End)
Heated
Canopy
Stainless Steel
Post (Typ.)

14
REAR OVERVIEW - MODEL FB9S-6HO.7355
Rear Overview - Model FB9S-6HO.7355
• Glass sneeze guards held in place with stainless
steel posts are used on case.
• Sanalite® cutting boards are removable and
are dishwasher safe.
Sanalite®
Cutting Board
(Typ.)
Hatco® Heated Well
Drain Valve (Typ.)
Hatco® Heated
Wells (Typ.)
Toe-Kick
Heated Canopy
(Ceramic Heaters &
LED Lights, Typ.)
Heated Canopy (With Ceramic Heaters)
Thermostat Controller and LED Light Controller
Auto-Fill
Symbol
(This
Switch
Activates
Auto-Fill
System)
Hatco® Heated Well Temperature Control
Dials and On/Off Switches (Typ.)
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.

15
LED LIGHT SWITCH / LED STYLE LIGHT FIXTURES
1. Light Switch
• Light switch at case rear controls heated canopy
LED lights only.
• Optional skirt lighting is daisy-chained from
accompanying cases.
• See CASE START-UP / MAIN POWER SWITCH
AND LED LIGHT SWITCH ACCESS section in
manual for general light switch location.
1. LED Style Light Fixtures
Removal of Faulty LED Lights:
• LED lights rarely require change-out.
• Contact Structural Concepts’ Technical Service
Department for replacement LED lights.
• Turn off LED light switch.
• To remove faulty LED light, follow these steps:
A. Disconnect plug from LED light.
B. Using both hands, grasp LED light assembly
(with its magnetic mounting clips). Pull
downward and off its shelf (or header).
C. Remove magnetic mounting clips from LED
light by pressing against flange part of clip
with thumb.
>> Note: Mounting clips MAY be riveted to shelf or
header. In such instances, simply remove LED light
from mounting clips by pressing against flange part
of clips with thumb.
Replacement of LED lights:
• Attach magnetic mounting clips onto LED light.
• Adjust magnetic mounting clips so they are
equally spaced on LED light.
• Reattach LED light assembly to its shelf/header.
• Position properly in shelf/header.
>> Note: If mounting clips are riveted to shelf (or
header), attach by placing LED in base of clip and
then snapping into clip at FLANGE SIDE.
• Press plug’s barrel-shaped insert all the way into
LED light.
• Important: If plug is not inserted ALL THE WAY
IN the LED light’s orifice, the light may not
energize. See “BAD” vs. “GOOD” insertion
illustrations in TROUBLESHOOTING (TO BE
PERFORMED BY STORE PERSONNEL)
section of manual.
• Turn LED light switch back on.
LED Lights
(Typ.)
Optional LED Skirt Lights
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.
Magnetic
Mounting Clip View #2
LED
Lights
B
A
Plug
Barrel
Shaped
Insert
LED
Light
C
Magnetic
Mounting Clip View #2

16

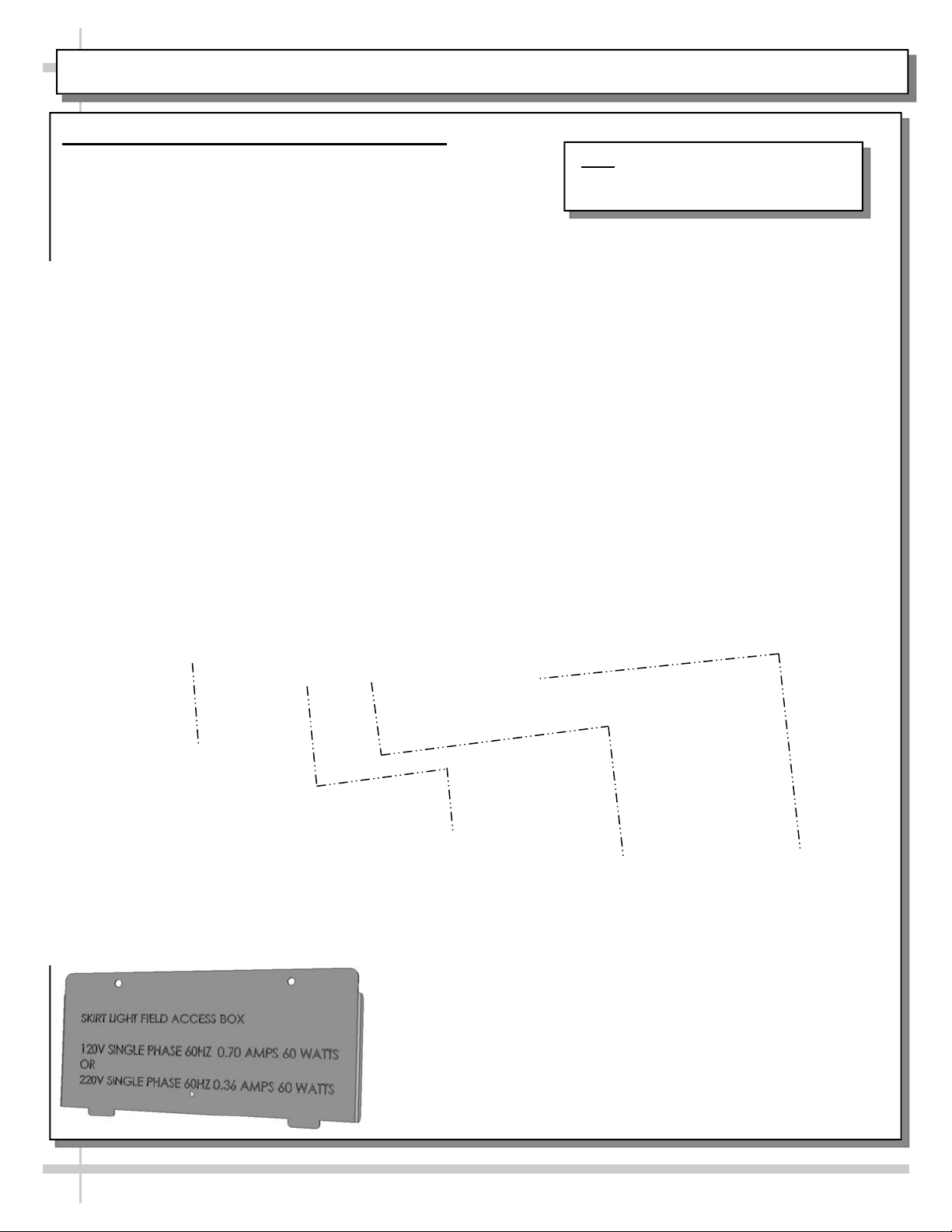

FRONT CASE UNDERSIDE / FIELD ACCESS BOXES
Front Case Underside / Field Access Boxes
• Illustration below is shown after removal of front
panel/toe-kick.
• Caution! Only licensed electrical technicians are to access
electrical area of case.
• Refrigeration lines connect to remote source.
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.

17
HATCO® HEATED BUFFET WELLS - START-UP AND OPERATION (AUTO-FILL HEATED WELLS)
Heated Well
Drain Valve
Start-Up and Operation
1. Power Up Case
• Case will energize when properly field-wired.
• Caution! Only certified electricians are to
field-wire!
2. Heated Wells On/Off Switch Control
• Each heated well has its own On/Off switch.
• Caution! You must have product in heated
wells prior to turning on Heated Well switches!
• Caution! Heated Wells can get very hot! Use
extreme caution!
3. Heated Wells Temperature Control Dial
• Each heated well temperature control dial controls
a different heated well (as illustrated below).
4. Heated Wells Power / Auto-Fill Switch
• Each heated well has its own POWER (Heat) On/
Off switch located under each heated well
temperature control dial (as shown mid-right).
• Turning on the far-left POWER (Heat) switch
automatically activates the Auto-Fill system and
begins heating the water within wells that are also
turned on.
• Heated wells should be filled to 1 1/4” max. depth.
• To turn ONLY the auto-fill on, just turn the heated
well temperature control dial all the way down.
• Caution! You must have product in wells prior
to turning on heated well switches!
• Caution! Heated wells can get very hot! Use
extreme caution!
5. Daily Step-By-Step Procedure
A. At beginning of the day, verify that drain is closed. If not,
turn heated well drain valve to ‘Closed’ (shown below-right).
B. Turn on the far-left power on/off switch (with the “pitcher”
on it) to activate the Auto-Fill system. Note: Green indicator
light glows when on/off switches are properly activated.
C. Turn power switch on all other wells to ‘on’ position.
D. Turn temperature control knobs on all wells to desired
safe food temperature.
E. Allow units to preheat for approximately 30 minutes.
F, All wells will fill until water in far-left well reaches the
‘water level sensor’ in the far-left well.
G. During operation, the Auto-Fill system will maintain water
level automatically (using water level sensor).
H. Insert pans into wells.
I. At end of day, flip ALL heated well switches to ‘off’ position
to disable Auto-Fill (so water will not run all night)!
G. After item “I” is complete, crank heated well drain valve to
‘Open’ (see below) and drain units.
H. Remove pans from heated wells.
I. Clean pans (see HATCO® HEATED WELLS - CLEANING
GUIDELINES & SCHEDULE section of manual).
1 2 3 1 2 3
Heated
Well
On/Off
Switches
Auto-Fill
Symbol
(This
Switch
Activates
Auto-Fill
System)
1 2 3

18
HEATED CANOPY / PRE-HEAT / SCC THERMOSTAT CONTROLLER / LED LIGHTS
--- Section/Underside View of Heated Canopy ---
Rear LH Overhead
Ceramic Heaters (Typ.)
Service Side
LH LED Lights
Service Side
RH LED Lights
• To decrease temperature, press ▼ DOWN KEY.
• The red HEAT LED indicates that the relay is
energized and heater is on.
• See next page for heat adjustment settings.
3. Overhead LED Lights
• Overhead LED lights are controlled by the
“LED LIGHT SWITCH” on rear panel.
• Note: LED driver is located in LED LIGHT
SWITCH / MAIN POWER compartment.
• See illustration below.
1. Heated Canopy (Ceramic Heaters) / Pre-Heat
• Press pre-heat button (one at on each thermostat).
Allow 25 minutes for preheat.
• Red light will come on while pre-heating.
• Red light will go off when case is fully pre-heated.
2. Overhead Ceramic Heaters: SCC
Thermostat Controller
• Separate sets of controls set and maintain the
temperatures of overhead ceramic heaters.
• To increase temperature, press ▲UP key.
Front LH Overhead
Ceramic Heaters (Typ.)
Rear RH Overhead
Ceramic Heaters (Typ.)
Front RH Overhead
Ceramic Heaters (Typ.)

19
SCC PROPRIETARY THERMOSTAT CONTROLLERS: HEATED CANOPY WITH CERAMIC HEATERS
1. Main Power Switch / Individual Controls
• Main Power switch (at right of thermostats on
main control panel) controls power to heated
canopy’s ceramic heaters.
• Two (2) separate sets of controls operate left
and right heated surfaces (as shown in
illustration below).
2. SCC Controller Thermostat Settings
• To increase temperature, press ▲UP key.
• To decrease temperature, press ▼ DOWN KEY.
• If controllers are set at “0”, relays will be
de-energized.
• HEAT LED indicates that the relay is energized
and heater is on.
• Setting “1” is minimum heat.
• Setting “5” is medium heat.
• Setting “9” is maximum heat.
• Adjust settings accordingly to reflect your desired
food temperatures.
• After unit is adjusted, the control will automatically
save the user setting approximately 5 seconds
after the user stops adjusting the setting.
• Note: Should food temperatures significantly vary
from acceptable range, contact SCC Technical
Service. See SCC TECHNICAL SERVICE
CONTACT INFORMATION section of this
manual for specifics.
Setting “ “ = Minimum Heat Setting “ “ = Medium Heat Setting “ “ = Maximum Heat
Heat Settings
Note: Model FB9S-6HO.7355 (shown)
may not exactly reflect every feature or
option of your particular case.

20
HATCO® HEATED WELL MODEL DESCRIPTION / CAPABILITIES / SPECIFICATIONS
1. Model Description
• SCC Model FB9S-6HO.7355 Uses Hatco®
Heated Well Model HWBI-3MA 208V.
• Consult your Hatco Modular Built-In Insulated
Heated Wells Installation and Operating Manual
for specifics on your heated well.
2. Capabilities
• This model is capable of holding a variety of pan
combinations in its heated well.
• Consult your Hatco Modular Built-In Insulated
Heated Wells Installation and Operating Manual
for specifics.
--- HWBI-3 Series Shown Above ---
3. Specifications
• See serial label for voltage, wattage, amperage &
phase.
• Consult your Hatco Modular Built-In Insulated
Heated Wells Installation and Operating Manual for
specifics on plug configurations, water supply
specifications, electrical rating chart, etc.
