Struers LaboForce-Mi User manual

Manual No.: 
Date of Release .01.2011
LaboForce-Mi
Instruction Manual
Gebrauchsanweisung
Mode d’emploi
Spare Parts and Diagrams

LaboForce-Mi
Instruction Manual

LaboForce-Mi
Instruction Manual
Instruction Manual
Table of Contents Page
User’s Guide ............................................................... 1
Reference Guide ......................................................... 8
Spare Parts and Diagrams ....................................... 15
Always state Serial No and Voltage/frequency if you have technical questions or when ordering spare parts.
You will find the Serial No. and Voltage on the type plate of the machine itself. We may also need the Date
and Article No of the manual. This information is found on the front cover.
The following restrictions should be observed, as violation of the restrictions may cause cancellation of
Struers legal obligations:
Instruction Manuals: Struers Instruction Manual may only be used in connection with Struers equipment
covered by the Instruction Manual.
Service Manuals: Struers Service Manual may only be used by a trained technician authorised by Struers.
The Service Manual may only be used in connection with Struers equipment covered by the Service Manual.
Struers assumes no responsibility for errors in the manual text/illustrations. The information in this manual is
subject to changes without notice. The manual may mention accessories or parts not included in the present
version of the equipment.
Original instructions. The contents of this manual is the property of Struers. Reproduction of any part of this
manual without the written permission of Struers is not allowed.
All rights reserved. © Struers 2011.
Struers A/S
Pederstrupvej 84
DK-2750 Ballerup
Denmark
Telephone [phone]
Fax [phone]

LaboForce-Mi
Instruction Manual
LaboForce-Mi
Safety Precaution Sheet
To be read carefully
before use
1. The operator(s) should be fully aware of the use of the machine
according to the Instruction Manual.
2. The machine must be placed in an adequate working position.
3. If you observe malfunctions or hear unusual noises - stop the machine
and call technical service.
The equipment should only be used for its intended purpose and as detailed in the Instruction Manual.
The equipment is designed for use with consumables supplied by Struers. If subjected to misuse, improper
installation, alteration, neglect, accident or improper repair, Struers will accept no responsibility for
damage(s) to the user or the equipment.
Dismantling of any part of the equipment, during service or repair, should always be performed by a qualified
technician (electromechanical, electronic, mechanical, pneumatic, etc.).

LaboForce-Mi
Instruction Manual
Disposal
Equipment marked with a WEEE symbol contain electrical and
electronic components and must not be disposed of as general
waste.
Please contact your local authorities for information on the correct
method of disposal in accordance with national legislation.

LaboForce-Mi
Instruction Manual
1
User’s Guide
Table of Contents Page
1. Getting Started
Checking the Contents ....................................................................... 2
Getting Acquainted with LaboForce-Mi ............................................. 2
Setting up LaboForce-Mi .................................................................... 3
Electrical Connection ......................................................................... 3
Mounting the Drip Lubricator (accessory) .......................................... 3
Changing the Lubricator Tube .................................................. 3
2. Operation
Mounting the Specimen Mover Plate ................................................. 4
Removing the Specimen Mover Plate ....................................... 4
Inserting a Specimen ......................................................................... 4
Adjusting the Force ............................................................................ 4
Coarse Adjustment ................................................................... 4
Fine Adjustment ........................................................................ 4
Operating LaboForce-Mi .................................................................... 5
Forced Rotation of Specimens ........................................................... 5
Operating the Drip Lubricator ............................................................. 6
Changing Lubricant ................................................................... 6
3. Maintenance
Every Day ........................................................................................... 7
Every Week ........................................................................................ 7

LaboForce-Mi
Instruction Manual
2
1. Getting Started
In the packing box you should find the following parts:
1 LaboForce-Mi
1 Allen-key 6 mm for securing LaboForce-Mi on LaboPol-35
1 Nylon tube 4 mm dia., 300 mm long
1 Instruction Manual
Take a moment to familiarise yourself with the location and names of
the LaboForce-Mi components.
 Thrust pad on adjustment column
 Release knob
 Force adjustment column
 Height adjustment screw
 Drip lubricator (accessory)
 Specimen mover plate
Checking the Contents
Getting Acquainted with
LaboForce-Mi
LaboForce-Mi mounted on
LaboPol-35 (accessory)

LaboForce-Mi
Instruction Manual
3
LaboForce-Mi is designed to be mounted on Struers’
grinding/polishing machine LaboPol-35 only.
 Remove the black plastic lid from the pre-punched hole on
LaboPol-35.
 Lead the LaboForce-Mi column through the hole, and position
the head of LaboForce-Mi over the turntable of LaboPol-35.
 Remove the two light grey caps from the left hand side of
LaboPol-35.
 Tighten the two screws with the enclosed allen-key.
 Move the handle on the left hand side of LaboForce-Mi up, to
allow the head to move to the uppermost position.
 Mount a specimen mover plate on LaboForce-Mi.
 Mount a grinding/polishing disc on LaboPol-35.
 Press the head down and adjust the distance between
preparation disc and specimen mover plate to about 2 mm by
turning the black knob on top of LaboForce-Mi.
Connect LaboForce-Mi to the female plug on the back of LaboPol-35,
marked specimen mover.
A drip lubricator provides the necessary lubricant during the
preparation process.
 Remove the drip lubricator from its box.
 Loosen the finger screw underneath LaboForce-Mi.
 Guide the bottom plate of the drip lubricator onto the finger screw
and the positioning pin underneath the LaboForce-Mi, and re-
tighten the finger screw.
 Hold the lubricant bottle with one hand and remove the lid.
 Fill the bottle with lubricant.
 Replace the lid and the drip lubricator is ready to use.
To apply the lubricant to exactly the right spot on the preparation
disc, a different length of lubricator tube may be necessary.
300 mm of spare tube is supplied with LaboForce-Mi.
To remove the present tube from the drip lubricator press back the
retaining ring and pull out the tube.
To insert the new tube simply press it into the hole in the retaining
ring.
Use a pair of scissors to cut to the correct length.
Setting up LaboForce-Mi
Please Note
For instructions on how to set up and connect LaboPol-35,
please see the LaboPol-35 Instruction Manual.
Electrical Connection
Mounting the Drip Lubricator
(accessory)
Changing the Lubricator Tube

LaboForce-Mi
Instruction Manual
4
2. Operation
 Unlock LaboForce-Mi and let it move into top position.
 Turn LaboForce-Mi to the left over the edge of LaboPol-35.
 Place the specimen mover plate under the column, align the pin
and the slot and press it upwards.
 Move LaboForce-Mi back into position, press it down and lock
the handle.
As specimens must fit the holes in the specimen mover plate
quite accurately, the specimen mover plate must be changed
when samples of another size are prepared.
To remove a specimen mover plate, turn the plate clockwise to
release it.
 Lift the thrust pad on the adjustment screw to make room for the
specimen.
 Place the specimen in one of the holes of the specimen mover
plate and lower the thrust pad.
There are two ways to adjust the force.
Press the release knob  and move the column  up or down
to approximately the correct force.
Adjust the force by turning the column . The marks  on the spring
loaded column correspond to the actual force in Newton as stated
below:
Indication Force
0 0 N
1 — 2.5 N
2
–
5 N
3 — 7.5 N
4
–
10 N
5 — 12.5 N
6
–
15 N
7 — 17.5 N
8
–
20 N
Mounting the
Specimen Mover Plate
Removing the
Specimen Mover Plate
Inserting a Specimen
Adjusting the Force
Coarse Adjustment
Fine Adjustment
WARNING
Make sure that the pressure feet not in use do not touch the
preparation surface. If necessary, press the release button
and move the pressure feet not in use upwards.
— Thin mark
–
Black mark

LaboForce-Mi
Instruction Manual
5
 Press LaboForce-Mi down and turn into the correct position over
the preparation disc.
 Secure LaboForce-Mi in that position by locking the handle
 Insert the specimens in the specimen mover plate.
 Adjust the force.
 Adjust the amount of lubricant on the drip lubricator.
 Press START  on LaboPol-35, then press START  on
LaboForce-Mi.
 Perform the preparation step and press STOP  on
LaboForce-Mi, then press STOP  on LaboPol-35.
 Close the valve on the drip lubricator.

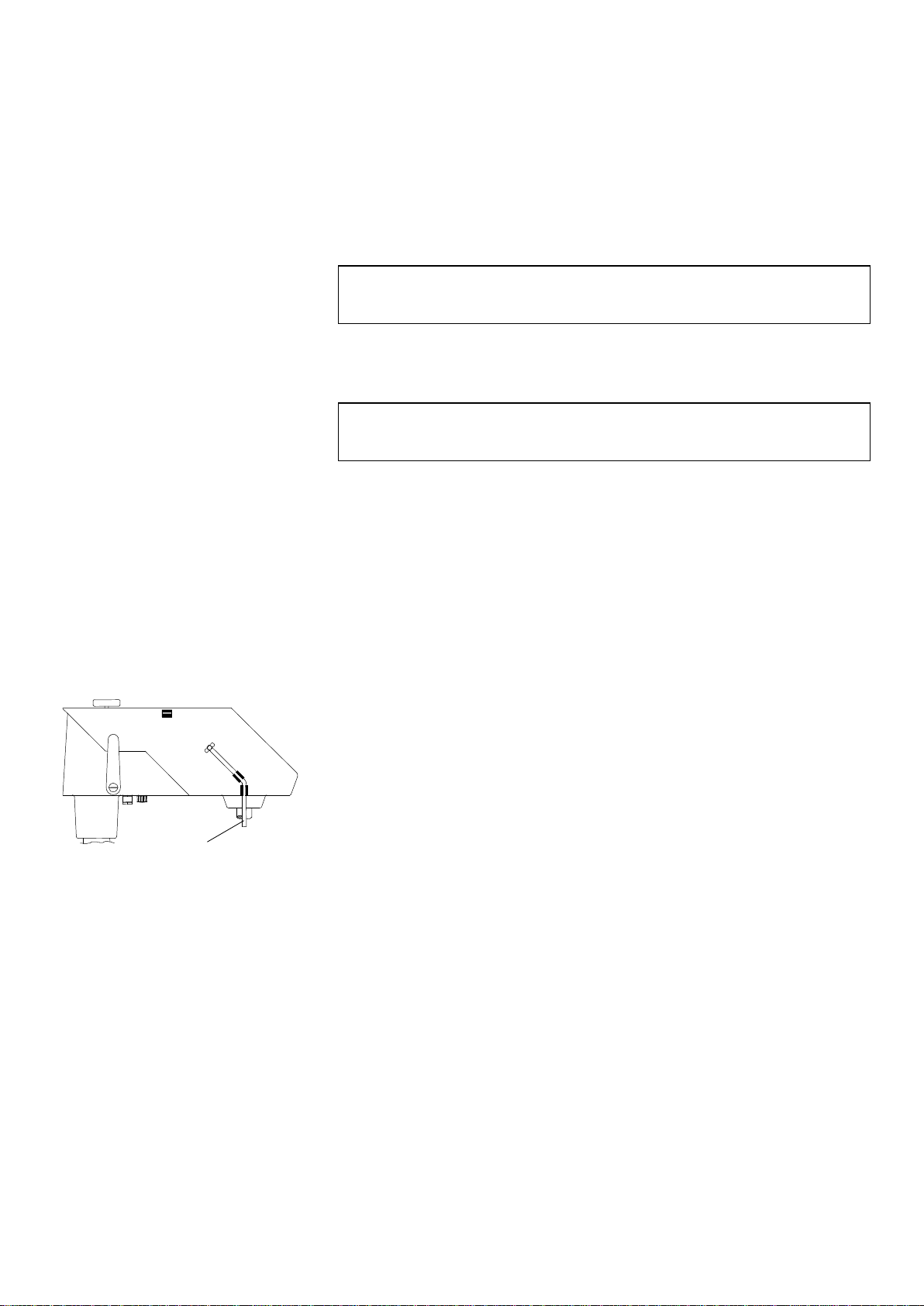

To avoid directional abrasion of the specimens during preparation
LaboForce-Mi is equipped with the ability to carry out forced rotation
of the specimens.
Simply move the angled stainless steel pin down and press it into the
clips on the left hand side of LaboForce-Mi.
If forced rotation is no longer required move the pin back into the
upper position and secure.
Operating LaboForce-Mi
Important
The specimens should run close to the edge of the preparation disc.
The distance should be about 2 mm.
Important
To turn the specimen mover disc use the start and stop keys of
LaboForce-Mi. Do not turn the specimen mover disc manually.
Forced Rotation of Specimens
Steel pin

LaboForce-Mi
Instruction Manual
6
 Position the dosing nozzle in the correct position over the
preparation disc.
 Open the valve and adjust the amount of lubricant.
 After completion of the preparation step close the valve to stop
lubricant dosing.
 Remove the drip lubricator from LaboForce-Mi.
 Hold the lubricant bottle firmly and remove the lid.
 Pour out the lubricant, and fill the bottle with a mild soap solution.
 Open the valve to clean the tube.
 Exchange the soap solution with clean water and repeat the
above procedure.
 Empty the lubricator.
 Put the lubricator back on LaboForce-Mi and tighten the finger
screw.
 Refill with lubricant and replace the lid.
Operating the Drip Lubricator
Changing Lubricant

LaboForce-Mi
Instruction Manual
7
3. Maintenance
Clean the specimen mover plate with a damp cloth.
Clean LaboForce-Mi with a damp cloth.
 Remove the specimen mover plate and thoroughly clean the
column and the coupling on the specimen mover plate.
 Remove the drip lubricator from LaboForce-Mi.
 Hold the lubricant bottle firmly and remove the lid.
 Pour out the lubricant, and fill the bottle with a mild soap solution.
 Open the valve to clean the tube.
 Exchange the soap solution with water and repeat the above
procedure.
 Empty the lubricator.
 Put the lubricator back on LaboForce-Mi and tighten the finger
screw.
 Refill with lubricant and replace the lid.
Every Day
Every Week

LaboForce-Mi
Instruction Manual
8
Reference Guide
Table of Contents Page
1. Accessories ............................................................................. 9
2. Trouble-Shooting .................................................................. 10
4. Technical Data ...................................................................... 11

LaboForce-Mi
Instruction Manual
9
1. Accessories
Specification Cat. No:
Specimen holder plates
for 8 x ø 25 mm specimens
for 8 x ø 30 mm specimens
for 4 x ø 40 mm specimens
for 4 x ø 60 mm specimens
for 8 x specimens 20 x 30 mm
05236901
05236902
05236903
05236904
05236905
Drip lubricator
Additional drip lubricator for quick changing between
different lubricant types
05216908
Remember...
Struers offers a comprehensive range of consumables for lapping, grinding
and polishing. Please ask for separate leaflets.

LaboForce-Mi
Instruction Manual
10
2. Trouble-Shooting
Error Cause Action
The machine does not
operate when the start
switch  is pressed.
- LaboPol-35 is switched off or not
connected to the power supply
- LaboForce-Mi is not connected to
LaboPol-35
- Make sure that LaboPol-35 is
working correctly
- Connect the plug from
LaboForce-Mi to the female
plug at the back of LaboPol-35
The force adjustment
screw is rotating when
a specimen is passing
the centre of the
preparation disc.
The friction between the force adjustment
screw and the rubber foot is too high
Add a drop of oil in the rubber
foot to reduce the friction.

LaboForce-Mi
Instruction Manual
11
4. Technical Data
Subject Specifications
Safety
standards Please refer to the Declaration of Conformity
Noise level Approx. 45 dB(A) at idle running at a distance of 1.0 m/39.4” from the machine
Surrounding
temperature 5-40°C / 41-104°F
Humidity Non condensing 0-95%RH
Supply Power Directly from LaboPol-35
Voltage 1 x 100 V / 50-60 Hz or 1/3 x 200-240 V / 50-60 Hz
Dimensions and
weight Width 140 mm / 5.5"
Depth 355 mm / 14.0"
Height 315 mm / 12.4"
Weight 12 kg / 27 lbs

612 LaboForce-Mi
612D_2015
English Declaration of Conformity

Manufacturer,
responsible for
Technical File
Struers A/S
Pederstrupvej 84
DK-2750 Ballerup, Denmark
Telephone [phone]
Herewith declares that
Product Name: LaboForce-Mi
Type No: 612
Machine Type: Specimen mover
is in conformity with the provisions of the following directives:
Safety of Machinery
2006/42/EC according to the following standard(s):
EN ISO 12100:2011, EN 60204-1:2006/AC:2010.
EMC-Directive
2004/108/EC according to the following standard(s):
EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011.
RoHS
2011/65/EU according to the following standard(s):
EN 50581:2012.
Supplementary
Information
The equipment complies with the American standards:
UL508.
The above has been declared according to the global method, module A
Date: 13.02.2015 Christian Skjold Heyde,
Vice President, R & D and Production, Struers A/S
Dansk Overensstemmelseserklæring

Fabrikant,
ansvarlig for Teknisk
Dossier
Struers A/S
Pederstrupvej 84
DK-2750 Ballerup, Danmark
Telefon [phone]
erklærer herved, at
Produktnavn: LaboForce-Mi
Type nr.: 612
Maskintype: Prøvebevæger
er i overensstemmelse med følgende EU-direktiver:
Maskindirektivet
2006/42/EF efter følgende norm(er):
EN ISO 12100:2011, EN 60204-1:2006/AC:2010.
EMC-direktivet
2004/108/EF efter følgende norm(er):
EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011.
RoHS
2011/65/EU efter følgende norm(er):
EN 50581:2012.
Supplerende
oplysninger
Endvidere overholdes de amerikanske normer:
UL508
Ovenstående overensstemmelse(r) er erklæret iflg. den globale metode, modul A
Dato: 13.02.2015 Christian Skjold Heyde,
Vice President, Udvikling og Produktion, Struers A/S


Pederstrupvej 84
DK-2750 Ballerup
Denmark

LaboForce-Mi
Spare Parts and Diagrams
15
Spare Parts
and Diagrams
Table of contents Drawing
Drawings
LaboForce-Mi, complete ....................................................16120010A
Sample Mover Carrousel, complete...................................15230040A
Pressure Foot assembly ....................................................15230050A
Lubricator, complete...........................................................15210051E
Diagrams
Circuit diagrams, LaboForce-Mi...........................................16123100
Wiring Diagrams.................................................................15233450B
Some of the drawings may contain position numbers
not used in connection with this manual.

LaboForce-Mi
Spare Parts and Diagrams
16
The following is a list of the spare parts that may need replacement
during the lifetime of the equipment.
To check the availability of other replacement parts, please contact
your local Struers Service Technician. It may help identify the part by
referral to its position number on the assembly drawings included in
this manual.
Drawing Pos. Spare Parts List, LaboForce-Mi Part No.
16120010 LaboForce-Mi, complete
10 Chassis w. shaft and bearings R5230102
40 Drive pin, 5x30 A4 DIN 7 (5 pcs) RZS11530
50 Ball bearing 6004-2RSR 2BK00045
70 Ball bearing 6203-2RSR 2BK00033
90 Locking mechanism, complete 15230055
100 Column 15230130
110 V-ring VS-0040 2IV00040
120 Locking ring, A40 DIN 471 (10 pcs) 2ZL10400
130 Pressure spring, ø16.0 x ø2.0 Lo=145 2GF10145
140 Guide pin for spring 15270115
150 Bridge with screws R5230140
200 Elesa button AP B.193/15P-M4X10 2GH00160
220 Gear wheel with key etc. R5230200
260 Gear motor 240V 50/60Hz 2MD00240
260 Gear motor 120V 50//60Hz 2MD00120
310 Sample mover, complete R5230040
