Struers TegraDoser-5 User manual

Manual No.: 15607001
TegraDoser-5
Instruction Manual
Date of Release: 25.02.2009

TegraDoser-5
Instruction Manual
FCC Notice
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to
this product not expressly approved by Struers A/S could cause harmful
radio interference and void the user’s authority to operate the equipment.
Always state Serial No and Voltage/frequency if you have technical questions or when ordering spare parts.
You will find the Serial No. and Voltage on the type plate of the machine itself. We may also need the Date
and Article No of the manual. This information is found on the front cover.
The following restrictions should be observed, as violation of the restrictions may cause cancellation of
Struers legal obligations:
Instruction Manuals: Struers Instruction Manuals may only be used in connection with Struers equipment
covered by the Instruction Manual.
Service Manuals: Struers Service Manuals may only be used by a trained technician authorised by Struers.
The Service Manual may only be used in connection with Struers equipment covered by the Service Manual.
Struers assumes no responsibility for errors in the manual text/illustrations. The information in this manual is
subject to change without notice. The manual may mention accessories or parts not included in the present
version of the equipment.
The contents of this manual are the property of Struers. Reproduction of any part of this manual without the
written permission of Struers is not allowed.
All rights reserved. © Struers 2009.
Struers A/S
Pederstrupvej 84
DK-2750 Ballerup
Denmark
Telephone [phone]
Fax [phone]

TegraDoser-5
Instruction Manual
TegraDoser-5
Safety Precaution Sheet
To be read carefully
before use
1. The operator(s) should be fully instructed in the use of the machine,
any connected equipment and accessories and the applied
consumables according to the relevant Instruction Manuals.
2. The machine must be placed on a safe and stable table with an
adequate working height. All functions on the machine and any
connected equipment must be in working order.
3. Alcohol based consumables: follow the current safety rules for
handling, mixing, filling, emptying and disposal of the alcohol-based
liquids.
4. If you observe malfunctions or hear unusual noises - stop the machine
and call technical service.
The equipment should only be used for its intended purpose and as detailed in the Instruction Manual.
The equipment is designed for use with consumables supplied by Struers. If subjected to misuse, improper
installation, alteration, neglect, accident or improper repair, Struers will accept no responsibility for
damage(s) to the user or the equipment.
Dismantling of any part of the equipment, during service or repair, should always be performed by a qualified
technician (electromechanical, electronic, mechanical, pneumatic, etc.).

TegraDoser-5
Instruction Manual
Disposal
Equipment marked with a WEEE symbol contain electrical and
electronic components and must not be disposed of as general
waste.
Please contact your local authorities for information on the correct
method of disposal in accordance with national legislation.

TegraDoser-5
Instruction Manual
1
User’s Guide
Table of Contents Page
1. Getting Started
Checking the Contents of the Packing Box ........................................ 3
Getting Acquainted with TegraDoser-5 .............................................. 3
Back of TegraDoser-5 ............................................................... 4
Unpacking TegraDoser-5 ................................................................... 5
Placing TegraDoser-5 ........................................................................ 5
Electrical Connections ........................................................................ 5
Supplying Water (OP versions only) .................................................. 5
7-nozzle Dosing Head ........................................................................ 6
Fitting the Dosing Head to the TegraForce ............................... 6
Removing the Dosing Head from the TegraForce .................... 7
2. Basic Operation of TegraDoser-5
Front Panel ......................................................................................... 8
Front Panel Controls ................................................................. 8
Reading the Display .................................................................. 9
Acoustic Signals ........................................................................ 9
Software Settings ............................................................................. 10
Changing the Display Contrast ............................................... 10
Editing Numeric Values ........................................................... 12
Editing Pre-defined Alphanumeric Values .............................. 13
Editing New Alphanumeric Values - Using the Text Editor ..... 15
Configuring the Suspension and Lubricant Bottles .......................... 16
Preparation Process Set-up ............................................................. 18
Selecting a Preparation Method .............................................. 18
Starting the Process ......................................................................... 20
Changing parameters while the process is running ......................... 20
Stopping the Process ....................................................................... 21
For OP-versions Only ............................................................. 21
3. Using Struers Methods
Introduction ...................................................................................... 22
Viewing Struers Methods ................................................................. 22
Viewing a Struers Methods Preparation Method Step ............ 23
Copying Struers Methods and Method Steps................................... 24

TegraDoser-5
Instruction Manual
2
4. Using User Methods
Introduction ...................................................................................... 25
Method Groups ................................................................................ 25
Creating a New Method Group ............................................... 26
Renaming Method Groups ...................................................... 27
Deleting Method Groups ......................................................... 28
User Methods ................................................................................... 29
Displaying USER METHODS Menu........................................ 29
Copying User Methods ........................................................... 30
Inserting/Pasting User Methods .............................................. 31
Creating a New User Method .................................................. 32
Renaming User Methods ........................................................ 33
Deleting/Moving User Methods ............................................... 33
User Method Steps .......................................................................... 35
Displaying the User Method Step menu ................................. 35
Copying Method Steps ............................................................ 36
Inserting Method Steps ........................................................... 36
Creating a New Method Step .................................................. 37
Editing Method Steps ....................................................................... 38
Defining Surfaces, Lubricants and Suspensions .................... 41
Setting Dosing Levels ............................................................. 43
5. Using Configuration
Introduction ...................................................................................... 44
Defining a User Surface Configuration ............................................. 44
Defining a User Suspension Configuration ...................................... 46
Defining a User Lubricant Configuration .......................................... 49
Setting the Operation Mode ............................................................. 51
Changing the Pass Code ........................................................ 54
Resetting the Struers LAN Module ................................................... 57
6. Trouble-shooting .................................................................. 59
7. Maintenance
Daily Service .................................................................................... 60
Changing Tubes ............................................................................... 62
8. Technical Data ...................................................................... 65

TegraDoser-5
Instruction Manual
3
1. Getting Started
In the packing box you should find the following parts:
1 TegraDoser-5
1 Dosing bottle box with bottles and built-in pumps
1 Screw
2 Silicone tubes for use with alcohol based lubricants
1 Set of Instruction Manuals
Take a moment to familiarise yourself with the location and names of
all the TegraPol components:
Checking the Contents of the
Packing Box
Note
Check against your order that the machine delivered has
the correct number of pumps fitted.
If not, contact your local supplier before using the machine.

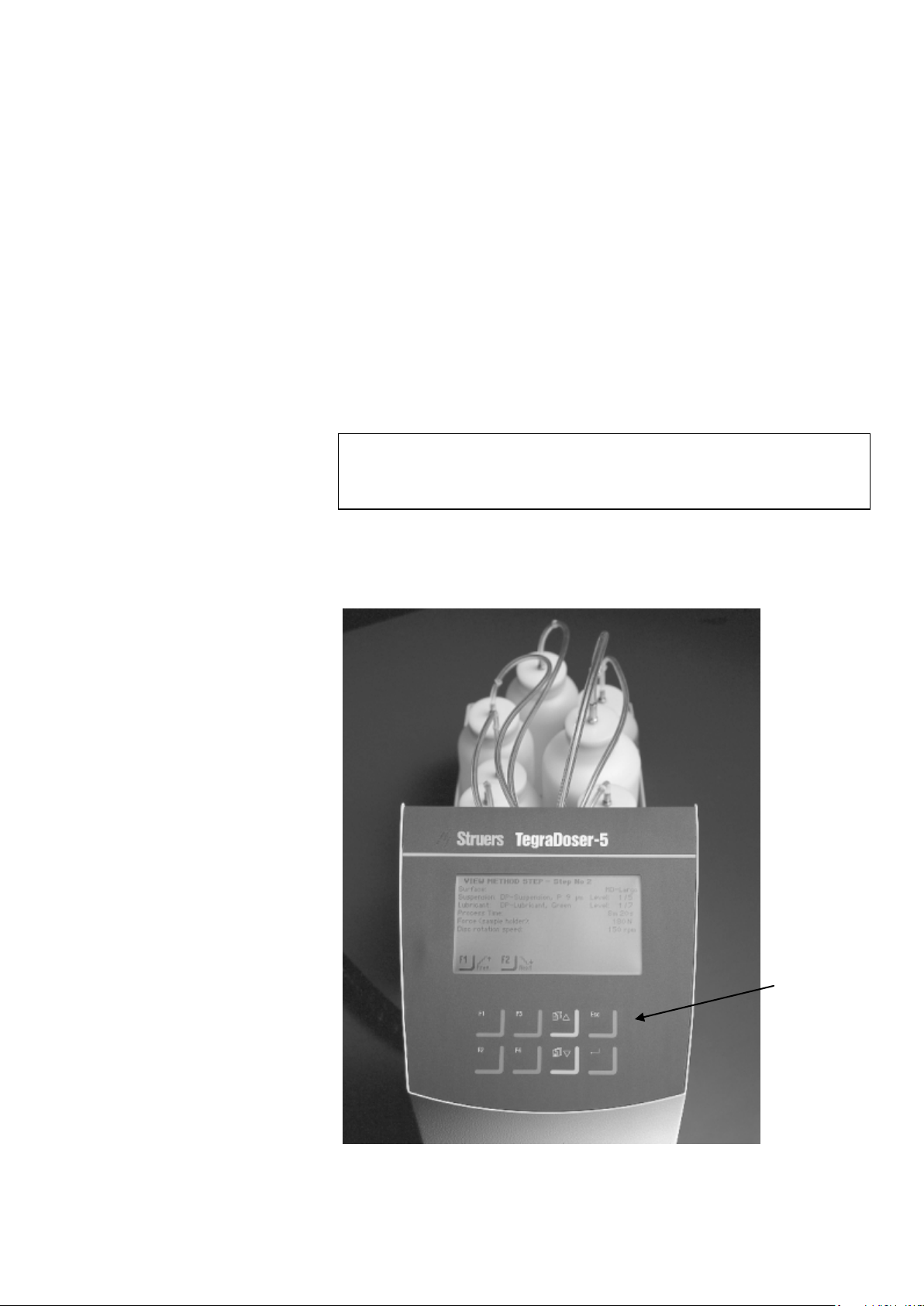

Getting Acquainted with
TegraDoser-5
Front panel
control(s)

TegraDoser-5
Instruction Manual
4
TegraDoser-5 comes as 2 versions:
• Standard version
• OP-version
Both these versions come as variants, depending on the number of
pumps required. Both versions can be fitted with 3 to 6 pumps for
diamond suspension or lubricant, only the OP-versions have a pump
fitted in position 7 and a connector for the water supply.

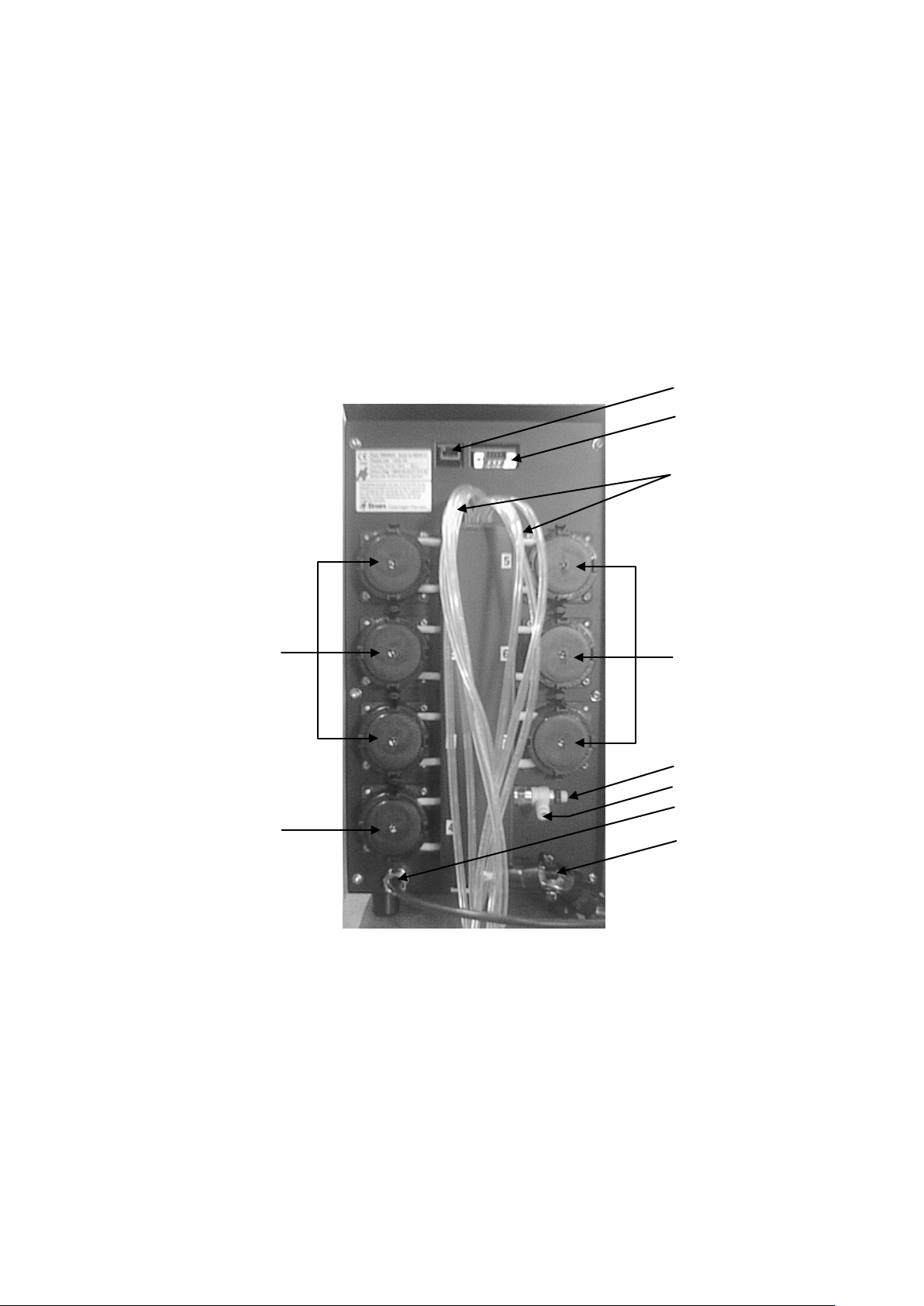

 Network socket (RJ45 connector)
 Service socket (serial port connector)
 Supply tubes from lubricant / suspension bottles
 Pumps (3 to 6 depending on option)
 OP-pump (only present on OP-versions)
 Regulation valve for water pressure
 Water connection from TegraPol for OP-pump
(only present on OP-versions)
 Power and interface connection from TegraPol
 Tubes going to the TegraForce
Back of TegraDoser-5











TegraDoser-5
Instruction Manual
5
Remove TegraDoser-5 from the foam packing.
Place TegraDoser-5 as close to the TegraPol as possible without it
interfering with the operational condition of the TegraPol.
There is a single electrical connection between the TegraPol and
TegraDoser-5. This provides both the 24V power supply to
TegraDoser-5 and a data bus, which enables the two machines to
communicate together.
 Switch off the TegraPol.
 Use the single cable attached to the rear of TegraDoser-5 and
connect it to the Doser connector on the rear of the TegraPol. To
locate this connector, refer to the diagram of the rear of the
machine in the TegraPol manual.
A water supply is only required when an OP pump is fitted on
TegraDoser-5. This comes directly from the TegraPol.
 Push the water tube supplied into the quick fit connector on the
rear of the TegraPol.
 Take the other end of the water tube and push it into the quick fit
connector on the rear of TegraDoser-5, refer to the diagram of
the rear of TegraDoser-5 on page 4.
Do not push the water tube all the way into the connector as that
might squeeze the tube and reduce the water flow.
 To adjust the water flow, use the built in regulator at the back of
the TegraDoser-5.
Unpacking TegraDoser-5
Placing TegraDoser-5
Note
The tubes between TegraDoser-5 and the TegraPol are pre-fitted on
delivery. These tubes limit the distance between the two units.
Electrical Connections
Supplying Water
(OP versions only)

TegraDoser-5
Instruction Manual
6
TegraDoser-5 comes complete with a 7-nozzle dosing head and
tubing to allow it to be mounted on the TegraForce.
 Swing the dosing nozzle arm aside to gain access to the D-sub
connector.
 Insert the dosing head into the recess on the side of the
TegraForce.
 Press downwards until the dosing head is in position.
 Insert the included screw and tighten it to secure the dosing
head.
 Swing the dosing nozzle arm back into position under the body
of the dosing head.
 Make sure that the tubes from TegraDoser-5 are not taut so that
the TegraForce can be turned freely.
7-nozzle Dosing Head
Note
The length of the tubes between TegraDoser-5 and the dosing head
determine the distance between the TegraForce and TegraDoser-5.
The factory-mounted tubes are of optimal length and it is not recommended
that this length be increased.
Fitting the Dosing Head to the
TegraForce
D-sub connector
on TegraForce
Dosing head
after installation
Dosing nozzle arm

TegraDoser-5
Instruction Manual
7
 Loosen the securing screw located on the top of the dosing
head.
 Swing the dosing nozzle arm outwards away from the
TegraForce until it is clear of the D-sub connector.
 Grip the top and bottom of the dosing head and pull upwards
until it comes free of the TegraForce D-sub connector.
 Ensure that the tubes do not get snagged on the TegraForce as
you lift the dosing head clear.
Removing the Dosing Head from
the TegraForce

TegraDoser-5
Instruction Manual
8
2. Basic Operation of TegraDoser-5
TegraDoser 5-
Key Function Key Function
F1 Controls for various purposes. See the
bottom line of the individual screens.
 Moves cursor in display upwards or
increases the value when editing
parameter values.
F2 Controls for various purposes. See the
bottom line of the individual screens.  Moves cursor in display downwards or decreases the value when editing
parameter values.
F3 Controls for various purposes.
See the bottom line of the
individual screens.
Esc Leaves the present menu or aborts
functions/changes.
F4 Controls for various purposes.
See the bottom line of the
individual screens.
 Enables selected parameter values to be
activated for editing. Saves the edited
parameter values. Toggles when only 2
parameters available.
Front Panel
Front Panel Controls

TegraDoser-5
Instruction Manual
9
The display on the front panel provides different levels of status
information. For example, when the machine is switched on using the
Mains switch located at the rear of the TegraPol, the display informs
you which software version is installed:
When operating TegraDoser-5, this display is the user-interface to its
software.
The display is primarily divided into 3 areas. The position of these
areas and the information they contain are explained in the
illustration below, which uses the METHOD GROUPS Menu as an
example:
A Heading:
this is a navigational aid, telling you where you are in the
software’s hierarchy.
B Information fields:
these will either be numerical values or text fields providing
information associated with the process shown in the heading.
The inverted text shows the cursor position.
C Function key options:
the functions of these keys change depending on the individual
situations.
When pressing a key, a short beep indicates that the command has
been accepted, whereas a long beep indicates that the key cannot
be activated at the moment.
Reading the Display
Acoustic Signals
A
B
C

TegraDoser-5
Instruction Manual
10
When the machine is started it automatically uses the language
selected in the TegraPol configuration menu.
During normal operation, immediately after start up, where the splash
screen is displayed, the software goes to the last screen displayed.
When starting with the software the MAIN MENU is displayed. This is
the highest level in the menu structure. From this menu, you can
enter the Struers Methods, User Methods, Manual Function and
Configuration menus.
To change the Display contrast setting:

 Use the Arrow buttons to select Configuration.

 Press ENTER  to activate the
CONFIGURATION MENU.




Use the Arrow buttons  to select Options.

Software Settings
Changing the Display Contrast

TegraDoser-5
Instruction Manual
11

 Press ENTER  to activate the OPTIONS menu.


 Press ENTER  to activate the Display contrast pop-up
menu.



Use the Arrow buttons

to select the setting you
prefer.
 Contrast settings are: Default: 25
Contrast range: 0 – 50
Change increment: 1
 Press ENTER  to accept the setting.

Esc

Press Esc 2 times to return to the MAIN MENU.

TegraDoser-5
Instruction Manual
12



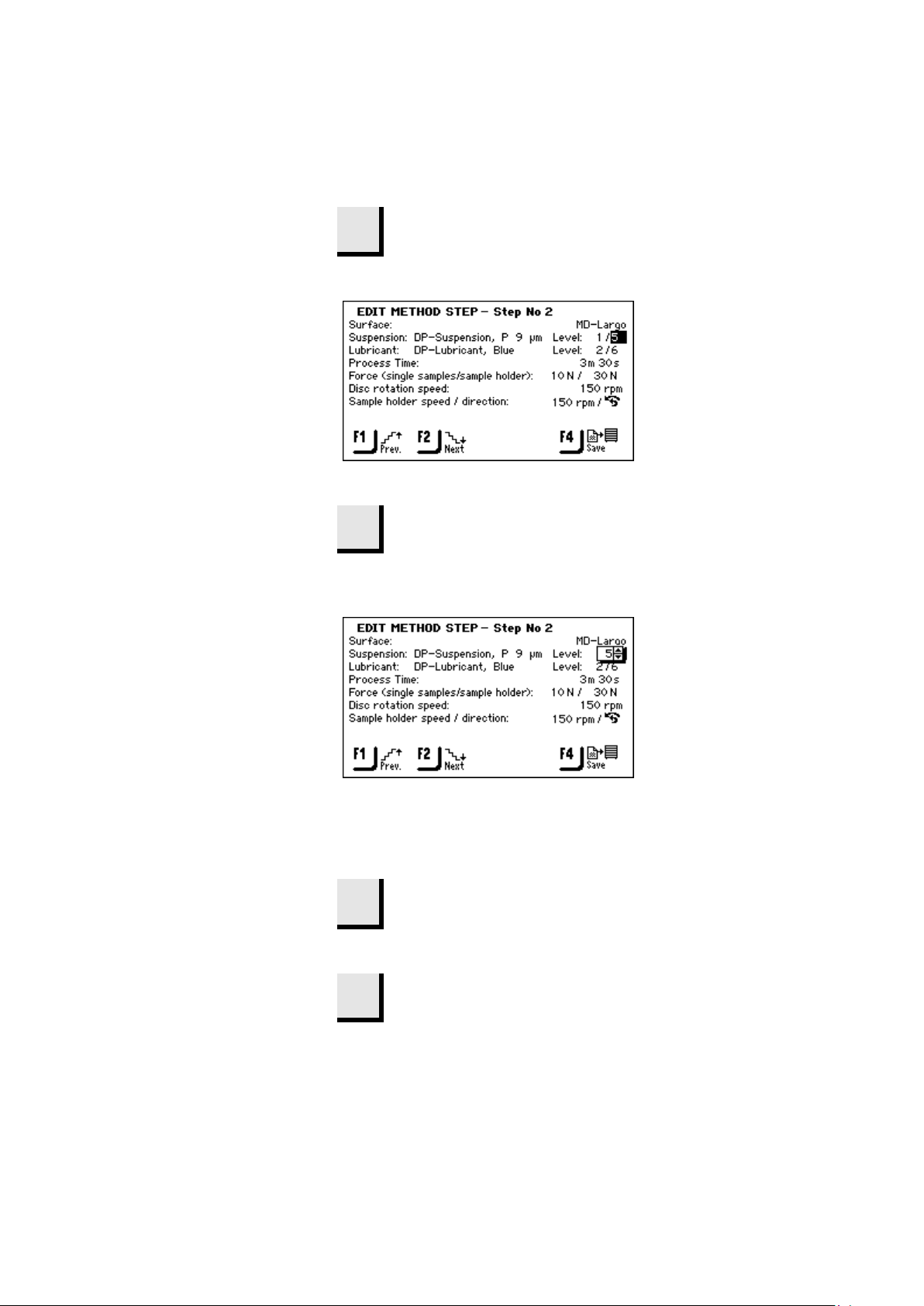

Use the Arrow buttons

to select the value to be
changed, e.g. Dosing Level:


 Press ENTER  to edit the value.

A popup box showing the current value
and up/down arrows is displayed.

Note:
If there are only two options, the popup box is not
displayed. Use ENTER  to toggle between the two
options and ignore the following steps.


Use the Arrow buttons

to increase or decrease the
numeric value.

 Press ENTER  to accept the new value.
(Pressing Esc, aborts the changes, preserving the original
value.)

Editing Numeric Values

TegraDoser-5
Instruction Manual
13

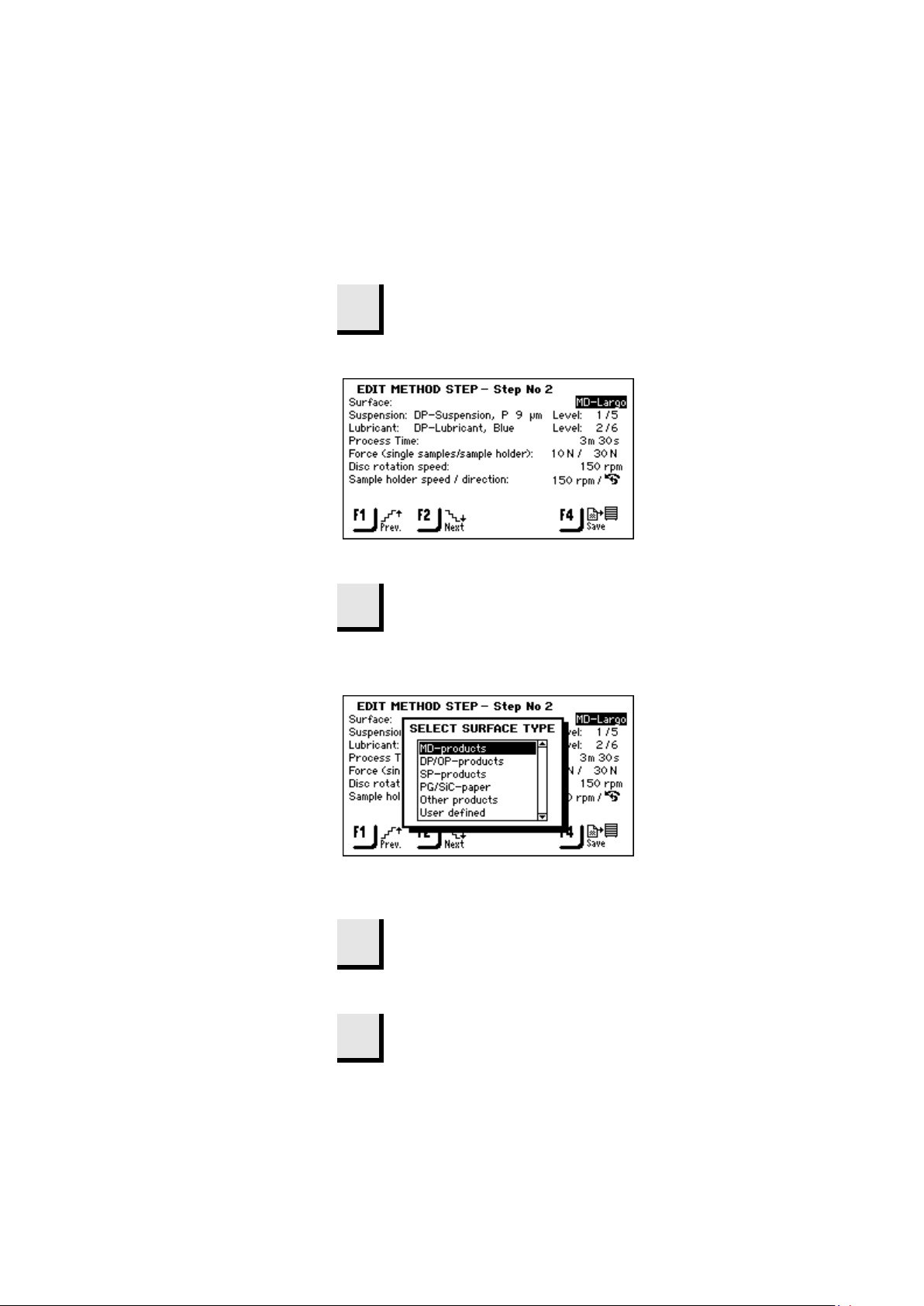

If the parameters are already in the system, for example surface
types, suspension types and lubricants, then you are presented with
a list of possibilities:


Use the Arrow buttons

to select the parameter value
to be changed, e.g. Surface type


 Press ENTER  to edit the value.

A popup box showing all the options
available is displayed:


 Use the Arrow buttons  to select the correct option.

 Press ENTER  to accept the new value.
(Pressing Esc, aborts the changes, preserving the original
value.)

Editing Pre-defined Alphanumeric
Values

TegraDoser-5
Instruction Manual
14



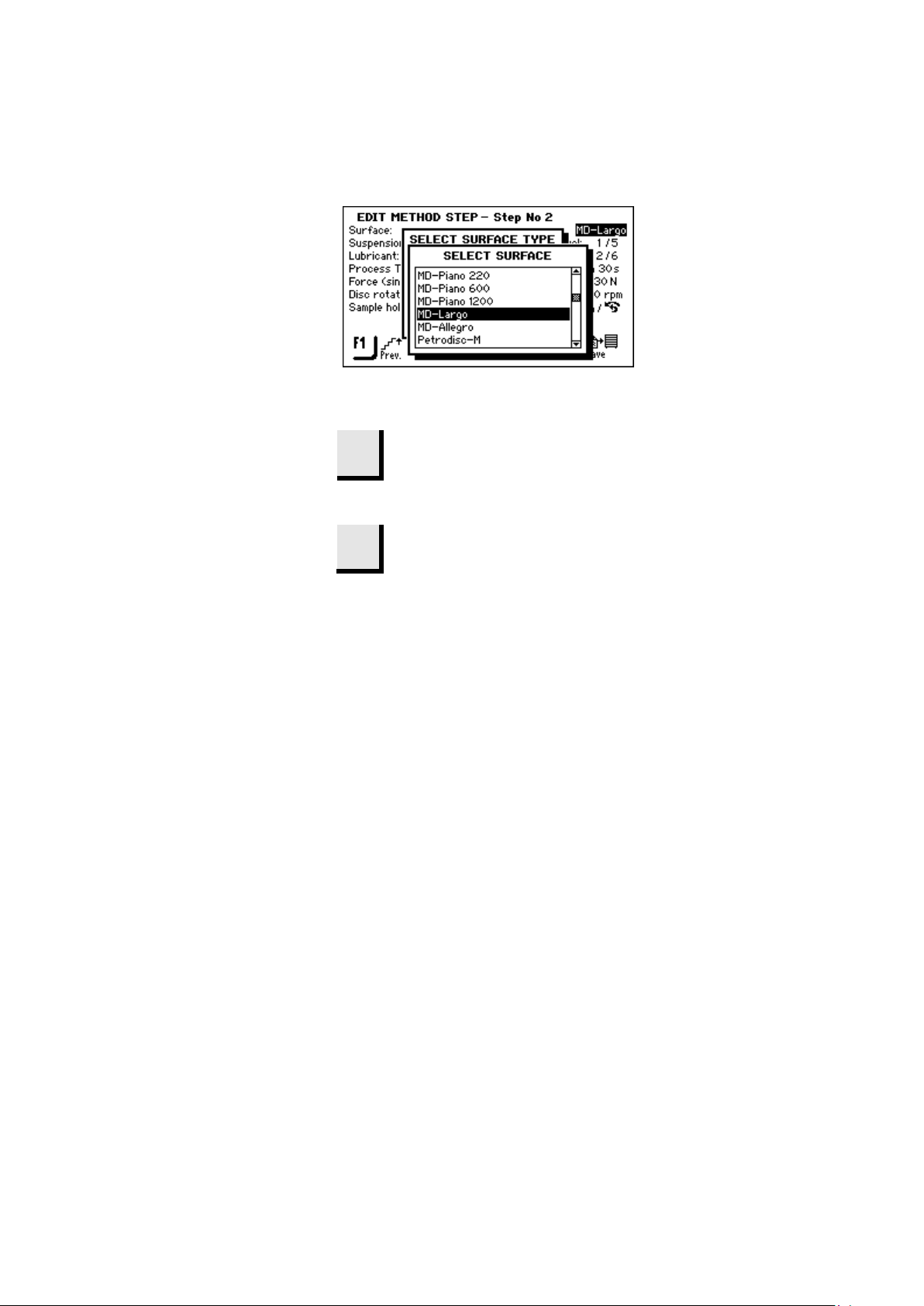

 Use the Arrow buttons  to select the correct option.

 Press ENTER  to accept the new value. (Pressing Esc,
aborts the changes, preserving the original value.)

TegraDoser-5
Instruction Manual
15

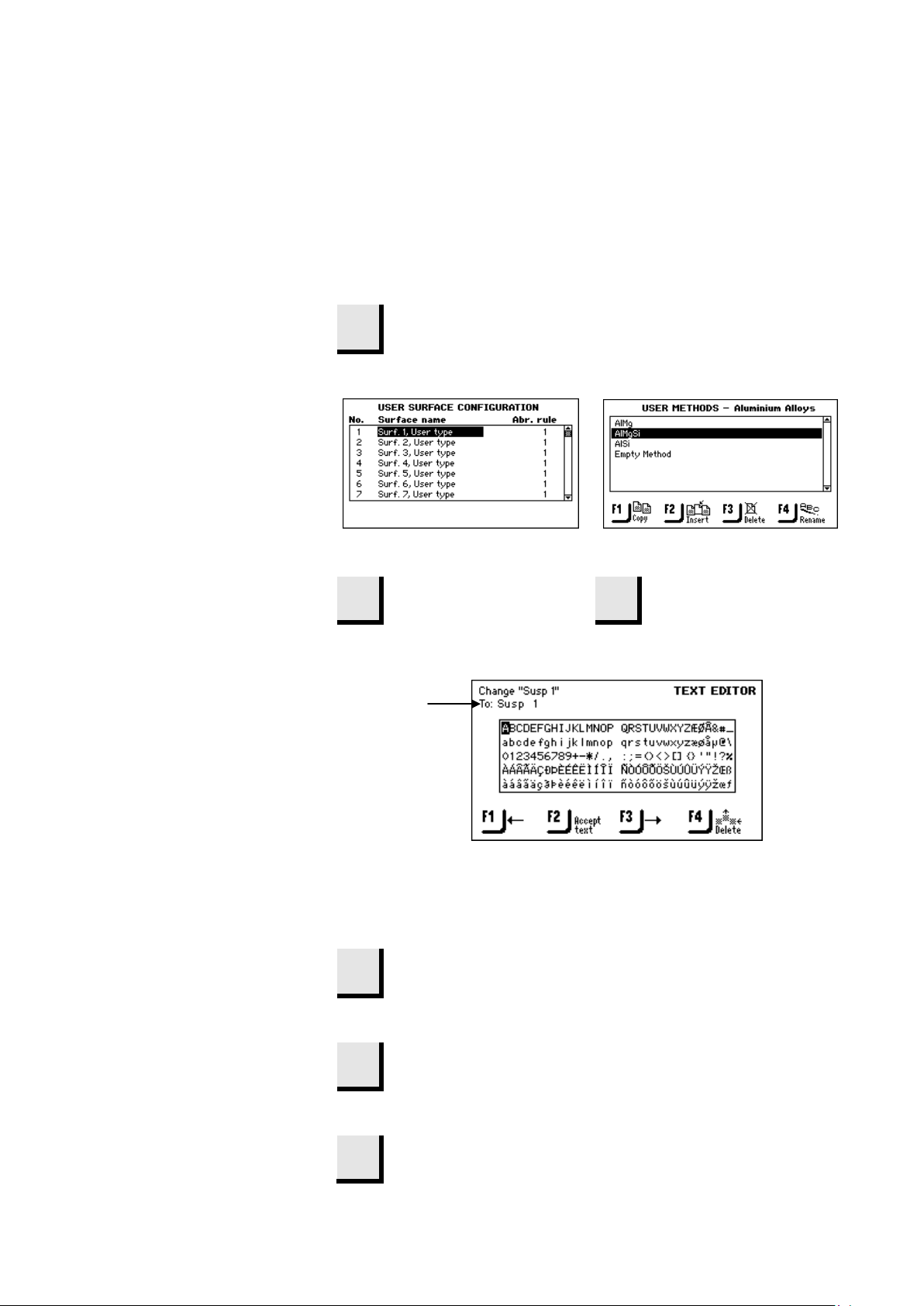

When new alphanumeric values need to be defined, for example
when naming “User defined” consumables (suspensions, lubricants
and surfaces) in the CONFIGURATION MENU or renaming Method
Groups or User Methods then the TEXT EDITOR is used.


Use the Arrow buttons

to select the value to be
changed:

or

 Press ENTER  to start
TEXT EDITOR.
F4 Press F4 to start TEXT
EDITOR.


The F# key functions are associated with the text
displayed in the Name field. Use them to position the
cursor in the correct part of the text string, accept and
delete the text string displayed.


Use the Arrow buttons  to move around the
alphanumeric pad and highlight the correct character.

 Press ENTER  to select the highlighted character.
 Repeat the last 2 steps until the desired text string is
displayed in the Name field:
F2
Press F2 to accept the text string.
Editing New Alphanumeric
Values - Using the Text Editor
Name field

TegraDoser-5
Instruction Manual
16

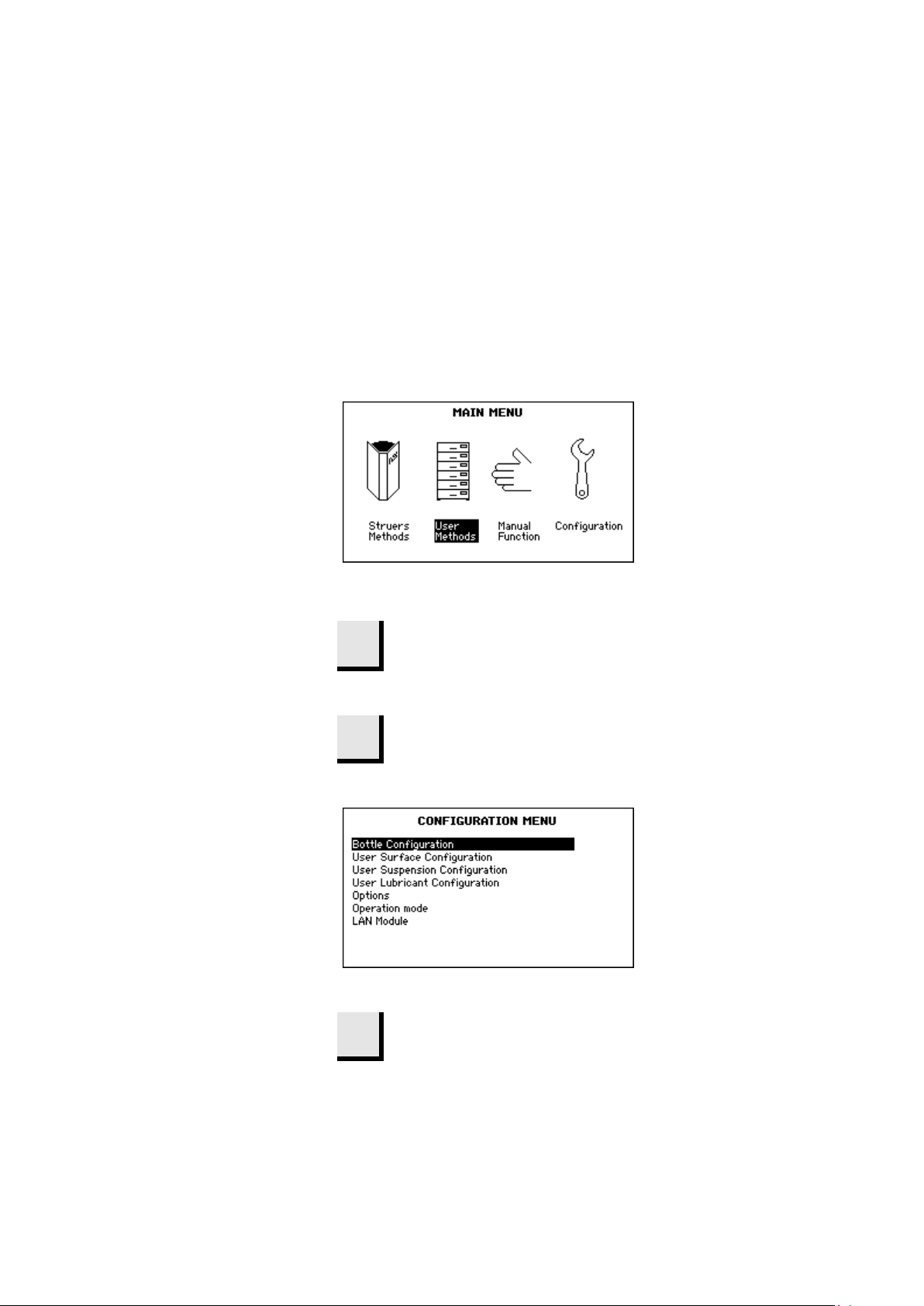

Before TegraDoser-5 can be used in a preparation process, it is
necessary to define which suspensions or lubricants are present in
the bottles connected to the pumps.

 Use the Arrow buttons to select Configuration.

 Press ENTER  to activate the
CONFIGURATION MENU.




Use the Arrow buttons  to select
Bottle Configuration.

 Press ENTER  to activate the
BOTTLE CONFIGURATION menu.




Use the Arrow buttons

to select the Lub./Susp.
column for the individual bottles.

Configuring the Suspension
and Lubricant Bottles
Note!
When present, Bottle 7 can only be configured as OP or AP suspension.
