1 Introduction
1.1 Instrument description
The 940 Professional IC Vario is a professional ion chromatograph. It is dis-
tinguished by:
￭Its intelligence: All of the functions are monitored, optimized and docu-
mented in an FDA-compatible manner. Intelligent components, such as
iColumns, save important data onto a chip.
￭Its compact design: It has a small footprint.
￭Its modularity: It provides flexibility for use in various applications. It
can hold up to three modules for different functions in its three draw-
ers. Individual modules can be swapped or added as needed.
￭Its transparency: All components are easily accessible and located for
simple visibility and can be monitored during operation through a large
window.
￭Its safety: The design separates the wet end and the electronics,
thereby preventing liquids from coming into contact with the electron-
ics to a large extent. A leak sensor is integrated into the wet end.
￭Its environmental compatibility.
￭Its low noise emissions.
￭The intelligent MagIC Net software
The 940 Professional IC Vario is operated solely using the MagIC Net soft-
ware. A USB cable is used to connect the instrument to a computer with
MagIC Net installed. The intelligent software detects the instrument auto-
matically and checks its functionality. The software controls and monitors
the instrument, evaluates the measured data and manages it in a data-
base.
The 940 Professional IC Vario ONE/SeS/Prep 1 consists of the following
modules:
Housing
The sturdy housing contains the instrument's electronic components,
including their interfaces and three connections for separation columns
(two of which are built into the installed column thermostat). In addition,
the housing provides space for two detectors (conductivity detectors or
amperometric detectors) and up to three plug-ins with different functions.
Capillaries and cables can be fed into and out of the instrument through
several openings.

1.1 Instrument description ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2￭￭￭￭￭￭￭￭ 940 Professional IC Vario ONE/SeS/Prep 1 (2.940.1410)
Leak sensor
The leak sensor detects leaking liquid that collects in the instrument's base
tray. Liquid that leaks in the instrument is routed to the base tray using
drainage tubing and detected there.
Column thermostat
The column thermostat regulates the temperature for the separation col-
umns and the eluent, thereby providing stable measuring conditions. The
interior of the column thermostat can be heated and cooled. There are
two column holders with chip readers in the column thermostat.
Eluent degasser
The eluent degasser removes gas bubbles and dissolved gases from the
eluent.
High-pressure pump
The intelligent and low-pulsation high-pressure pump pumps the eluent
through the IC system. It is equipped with a chip where its technical speci-
fications and "life history" (operating hours, service data, etc.) are stored.
Inline filter
Inline filters protect the separation column reliably from potential contami-
nation from the eluent. The filter pads with 2 µm pore size can be
replaced quickly and easily. They remove particles from the solutions, such
as bacteria and algae.
Pulsation absorber
The pulsation absorber protects the separation column from damage
caused by pressure fluctuations, e.g. when the injection valve is switched,
and reduces interfering pulsations during highly sensitive measurements.
Injection valve
The injection valve connects the eluent path to the sample path. By a
quick and precise switching of the valve, a quantity of sample solution
defined by the size of the sample loop is injected and flushed to the sepa-
ration column with the eluent.
Metrohm Suppressor Module (MSM)
The chemical suppressor MSM consists of the suppressor drive, a rotor
and, where applicable, an adapter. The suppressor drive gives you the flex-
ibility to use different rotors according to the principle "one drive – many
rotors". Suppression rotors with different capacities and construction or a
rotor for sample preparation (SPM Rotor) are readily interchangeable with
appropriate adapters as needed. The rotors are not included in the instru-
ment's scope of delivery. The rotor required for the application and any
adapter that is required must be ordered separately.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction
940 Professional IC Vario ONE/SeS/Prep 1 (2.940.1410) ￭￭￭￭￭￭￭￭ 3
Metrohm CO2 Suppressor (MCS)
The Metrohm CO2 Suppressor (MCS) removes the CO2 from the eluent
stream. This lowers the background conductivity, improves detection sen-
sitivity and minimizes the injection peak and system peak.
Detector
Metrohm offers a series of different detectors for various analysis tasks. A
suitable detector type must be ordered as a separate device.
Sample degasser
The sample degasser removes gas bubbles and dissolved gases from the
sample.
Peristaltic pump
The peristaltic pump is used for pumping sample and auxiliary solutions. It
can rotate in both directions.
Separation column
The intelligent separation column separates different components accord-
ing to their interactions with the column. Metrohm separation columns
are equipped with a chip where their technical specifications and history
(start-up, operating hours, injections etc) are stored.
1.2 Intended use
The 940 Professional IC Vario ONE/SeS/Prep 1 is used for the determina-
tion of anions, cations or polar substances with sequential suppression
using ion chromatography.
Sequential suppression consists of:
￭Chemical suppression with a Metrohm Suppressor Module (MSM) and
subsequent
￭CO2 suppression with the Metrohm CO2 Suppressor (MCS).
Background conductivity is reduced to a minimum with sequential sup-
pression.
It can also be used as needed for the determination of cations, polar sub-
stances or anions without chemical suppression.
This instrument is suitable for processing chemicals and flammable sam-
ples. Usage of the 940 Professional IC Vario therefore requires the user to
have basic knowledge and experience in handling toxic and caustic sub-
stances. Knowledge regarding the application of fire prevention measures
prescribed for laboratories is also mandatory.

1.3 Safety instructions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4￭￭￭￭￭￭￭￭ 940 Professional IC Vario ONE/SeS/Prep 1 (2.940.1410)
1.3 Safety instructions
1.3.1 General notes on safety
WARNING
This instrument may only be operated in accordance with the specifica-
tions in this documentation.
This instrument has left the factory in a flawless state in terms of technical
safety. To maintain this state and ensure non-hazardous operation of the
instrument, the following instructions must be observed carefully.
1.3.2 Electrical safety
The electrical safety when working with the instrument is ensured as part
of the international standard IEC 61010.
WARNING
Only personnel qualified by Metrohm are authorized to carry out service
work on electronic components.
WARNING
Never open the housing of the instrument. The instrument could be
damaged by this. There is also a risk of serious injury if live components
are touched.
There are no parts inside the housing which can be serviced or replaced
by the user.
Supply voltage
WARNING
An incorrect supply voltage can damage the instrument.
Only operate this instrument with a supply voltage specified for it (see
rear panel of the instrument).

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction
940 Professional IC Vario ONE/SeS/Prep 1 (2.940.1410) ￭￭￭￭￭￭￭￭ 5
Protection against electrostatic charges
WARNING
Electronic components are sensitive to electrostatic charges and can be
destroyed by discharges.
Do not fail to pull the power cord out of the power socket before you
set up or disconnect electrical plug connections at the rear of the
instrument.
1.3.3 Tubing and capillary connections
CAUTION
Leaks in tubing and capillary connections are a safety risk. Tighten all
connections well by hand. Avoid applying excessive force to tubing con-
nections. Damaged tubing ends lead to leakage. Appropriate tools can
be used to loosen connections.
Check the connections regularly for leakage. If the instrument is used
mainly in unattended operation, then weekly inspections are manda-
tory.
1.3.4 Flammable solvents and chemicals
WARNING
All relevant safety measures are to be observed when working with
flammable solvents and chemicals.
￭Set up the instrument in a well-ventilated location (e.g. fume cup-
board).
￭Keep all sources of flame far from the workplace.
￭Clean up spilled liquids and solids immediately.
￭Follow the safety instructions of the chemical manufacturer.
1.3.5 Recycling and disposal
This product is covered by European Directive 2012/19/EU, WEEE – Waste
Electrical and Electronic Equipment.
The correct disposal of your old instrument will help to prevent negative
effects on the environment and public health.

1.4 Symbols and conventions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
6￭￭￭￭￭￭￭￭ 940 Professional IC Vario ONE/SeS/Prep 1 (2.940.1410)
More details about the disposal of your old instrument can be obtained
from your local authorities, from waste disposal companies or from your
local dealer.
1.4 Symbols and conventions
The following symbols and formatting may appear in this documentation:
Cross-reference to figure legend
The first number refers to the figure number, the sec-
ond to the instrument part in the figure.
Instruction step
Carry out these steps in the sequence shown.
Method Dialog text, parameter in the software
File ▶ New Menu or menu item
[Next] Button or key
WARNING
This symbol draws attention to a possible life-threat-
ening hazard or risk of injury.
WARNING
This symbol draws attention to a possible hazard due
to electrical current.
WARNING
This symbol draws attention to a possible hazard due
to heat or hot instrument parts.
WARNING
This symbol draws attention to a possible biological
hazard.
CAUTION
This symbol draws attention to possible damage to
instruments or instrument parts.
NOTE
This symbol highlights additional information and
tips.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Overview of the instrument
940 Professional IC Vario ONE/SeS/Prep 1 (2.940.1410) ￭￭￭￭￭￭￭￭ 7
2 Overview of the instrument
2.1 Front

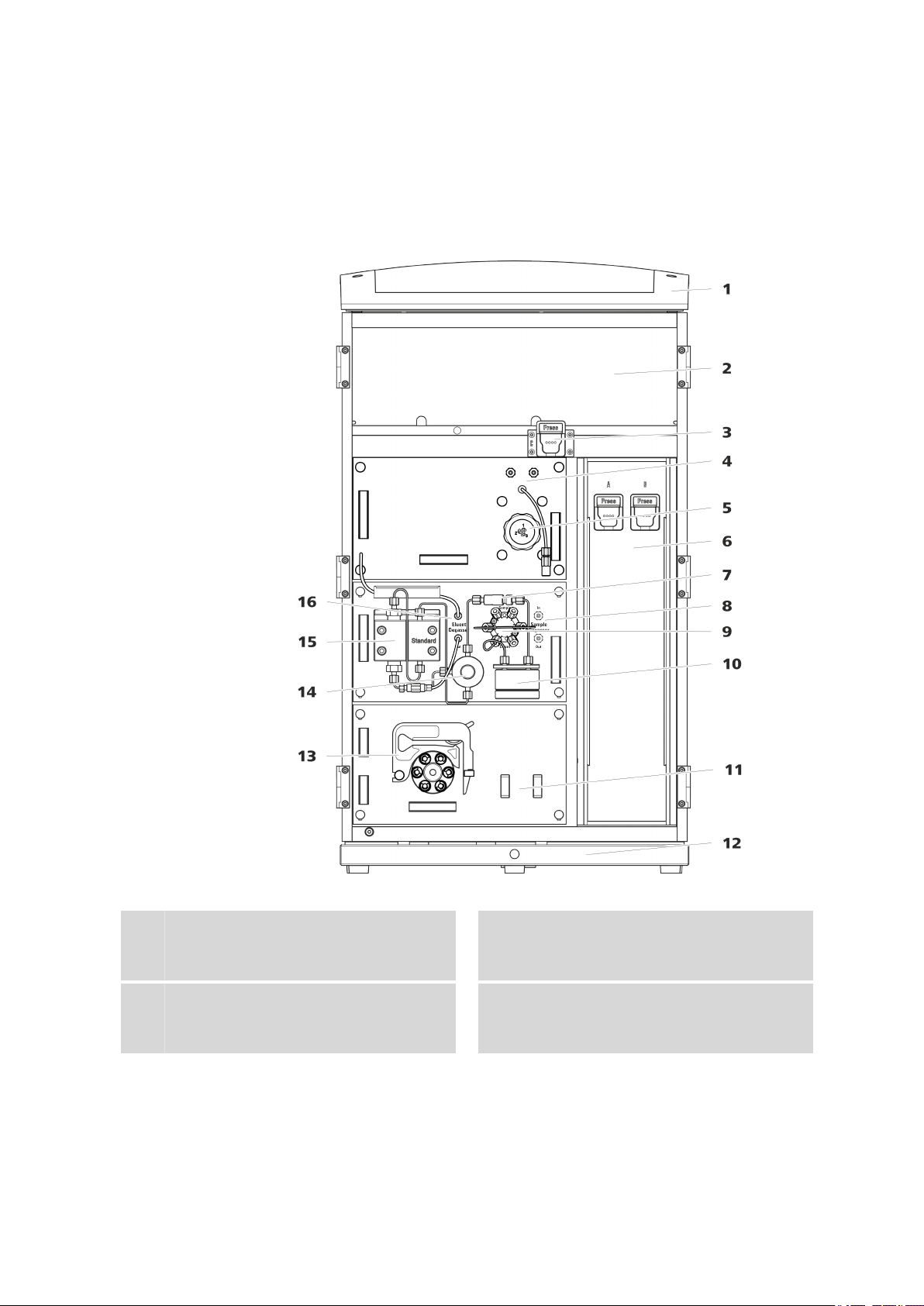

Figure 1 Front
1Bottle holder
Offers space for the eluent bottle(s) and
additional accessories.
2Detector chamber
Offers space for two embedded detectors
and additional accessories.
3Column holder
For a third separation column outside the
column thermostat.
4Metrohm CO2 Suppressor (MCS)

2.1 Front ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
8￭￭￭￭￭￭￭￭ 940 Professional IC Vario ONE/SeS/Prep 1 (2.940.1410)
5Metrohm Suppressor Module (MSM) 6Column thermostat
With two column holders for two separation
columns.
7Inline filter 8Sample degasser
9Injection valve 10 Pulsation absorber
11 Holder
For a dialysis cell or ultrafiltration cell.
12 Base tray
With leak sensor.
13 Peristaltic pump
For transporting solutions for sample prepa-
ration.
14 Purge valve
For deaerating the high-pressure pump.
15 High-pressure pump 16 Eluent degasser

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Overview of the instrument
940 Professional IC Vario ONE/SeS/Prep 1 (2.940.1410) ￭￭￭￭￭￭￭￭ 9
2.2 Rear

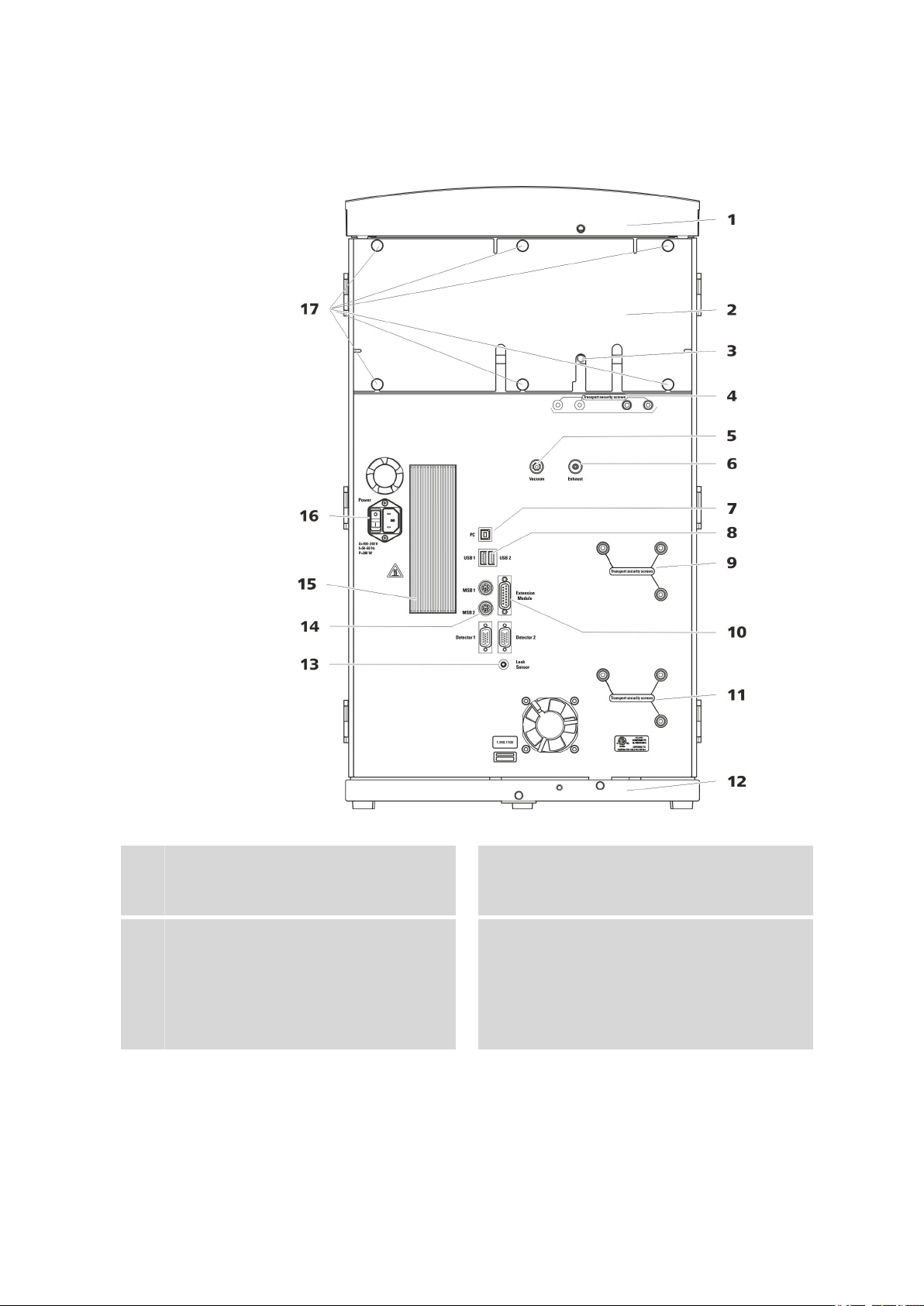

Figure 2 Rear
1Bottle holder
Offers space for the eluent bottle(s) and
additional accessories.
2Back panel
Removable. Enables access to the detector
chamber.
3Drainage tubing connection
For connecting the drainage tubing, which
guides escaped liquids away from the detec-
tor chamber.
4Transport locking screws
For securing the vacuum pump(s) when
transporting the instrument. Up to two vac-
uum pumps can be installed in an instru-
ment. Only two transport locking screws are
used if just one vacuum pump is installed.

2.3 Feed-throughs for capillaries and cables ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10 ￭￭￭￭￭￭￭￭ 940 Professional IC Vario ONE/SeS/Prep 1 (2.940.1410)
5Vacuum connection
For connecting an Extension Module that
has a degasser but not its own vacuum
pump. This connection has to be firmly
sealed with a stopper when not in use.
6Exhaust opening
Labeled Exhaust. For extracting the air from
the vacuum chamber.
7PC connection socket
For connecting the instrument to the com-
puter with the USB cable (6.2151.020).
8USB connection sockets
Labeled USB 1 and USB 2. For connecting
USB devices.
9Transport locking screws
For securing the high-pressure pump (in the
middle plug-in) when transporting the
instrument.
10 Extension Module connection socket
Labeled Extension Module. For connecting
the cable (6.2156.060) used for connecting
the instrument to the Extension Module.
11 Transport locking screws
For securing the high-pressure pump (in the
bottom plug-in) when transporting the
instrument. These screws are only installed if
a plug-in with a high-pressure pump is used
in the bottom slot.
12 Base tray
With leak sensor and leak sensor cable.
13 Leak sensor connection socket
Labeled Leak Sensor. For connecting the
leak sensor connection cable coiled up in
the base tray.
14 MSB connection sockets
Labeled MSB 1 and MSB 2. For connecting
MSB devices.
15 Cooler
For cooling the power supply unit. May
become hot!
16 Power socket
Power socket for connecting the power
cable and power switch for switching the
instrument on and off.
17 Knurled screws
For fastening the removable back panel.
2.3 Feed-throughs for capillaries and cables
Multiple openings are available for leading capillaries into the instrument
and for leading capillaries and cables out of the instrument:
￭Openings on the door (see Figure 3, page 11)
￭Openings on the back panel
￭Ducts between the instrument and the base tray as well as between
the instrument and the bottle holder (see Figure 5, page 13)
