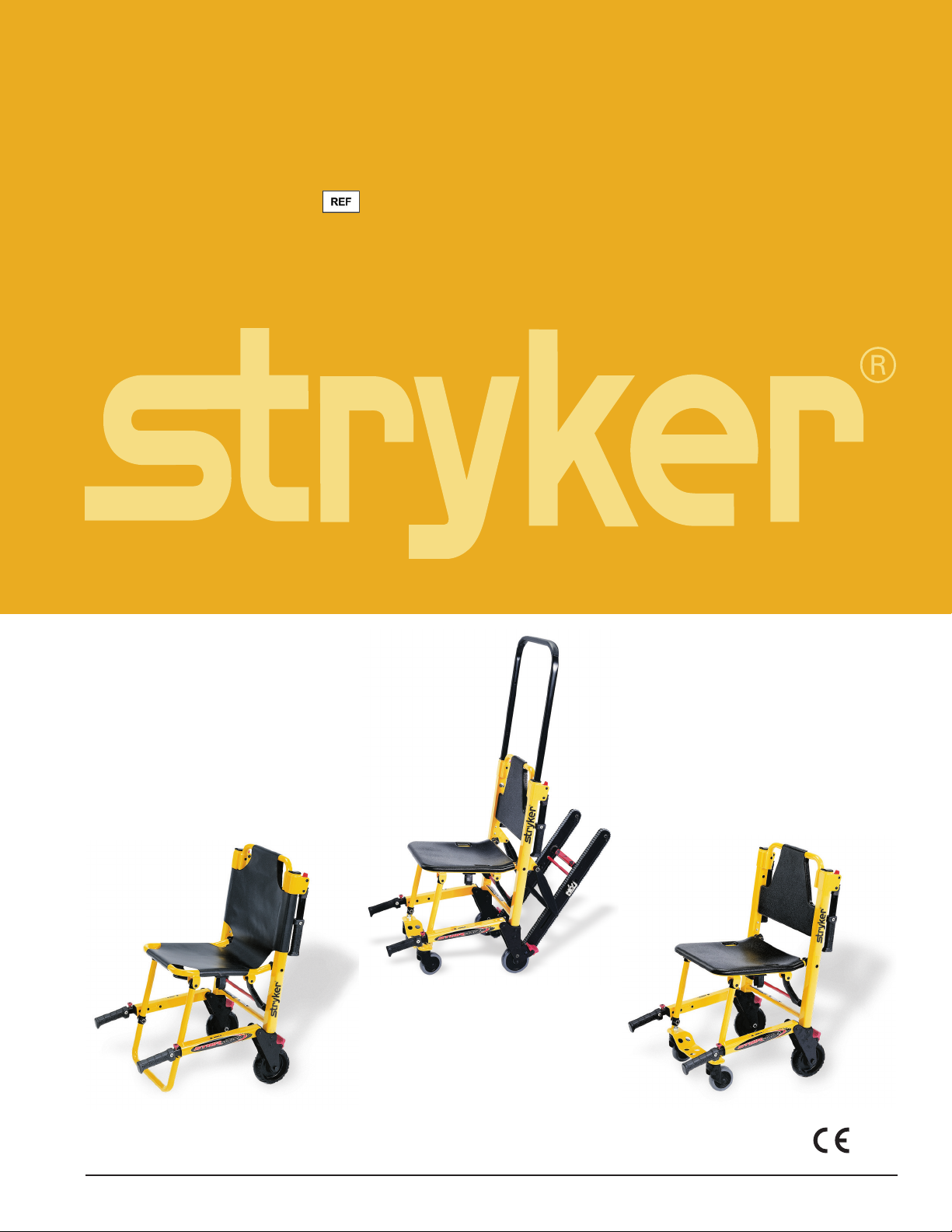

Stryker stair-pro 6250 Manual

2011/03 6250-001-161 REV D.2 www.stryker.com
Operations/Maintenance Manual
6250
Stair-PRO®
Stair Chair/Chaise-civière/Treppenrollstuhl
Trapstoel/Sedia portantina/Silla para escaleras
Cadeira para escada/Trappstol/Trappestol/Porrastuoli
Αμαξίδιο για σκάλες/Krzesło do przenoszenia po schodach
Model/Modèle/Modell/Modello/Modelo/Malli/Μοντέλο
6250/6251/6252
6251
6252
Manuel d’utilisation et d’entretien
Bedienungs- und Wartungshandbuch
Gebruiks-/onderhoudshandleiding
Manuale d’uso e manutenzione
Manual de uso y mantenimiento
Manual de funcionamento/manutenção
Betjenings-/vedligeholdelsesmanual
Användar-/underhållshandbok
Käyttö- ja huolto-ohjekirja
Εγχειρίδιο λειτουργίας/συντήρησης
Instrukcja obsługi / konserwacji

EASTERN EUROPE
Stryker SA - Export Business
Grand-Rue 90
P.O. Box 1567
1820 Montreux, Switzerland
Phone: [phone]
Fax: [phone]
AUSTRIA
Stryker-Howmedica Osterreich GmbH
Millenium Tower
Handelskai 94-96
120 Wien
Austria
Phone: [phone]
Fax: [phone]
BELGIUM
NV Stryker SA
Ikaros Business Park- Fase III
Ikaroslaan 12
1930 Zaventem, Brussels
Belgium
Phone: [phone]
Fax: [phone]
DENMARK
Stryker Denmark
Filial of Stryker AB
Postbox 772
1532 Copenhagen
Denmark
Phone: [phone]
Fax: [phone]
ENGLAND
Stryker UK Limited
Stryker House
Hambridge Road
Newbury, Berkshire
RG14 5EG, England
Phone: [phone]
Phone: [phone]
Fax: [phone]
POLAND
Stryker Polska Sp. ZO.O
Kolejowa 5/7
01-217 Warsawa
Poland
Phone: [phone]
Fax: [phone]
PORTUGAL
Stryker Portugal Produtos
Medicos, LTDA.
Avenida Marechal Gomes
da Costa, 35
1800-255 Lisboa
Portugal
Phone: [phone]
Fax: [phone]
ROMANIA
Stryker Osteonics Romania S.R.L.
19, Leonida Str.
District 2
7000 Bucharest
Romania
Phone: [phone]
Fax: [phone]
SOUTH AFRICA
Stryker Osteonis PTY. LTD.
3 Susan Street
Strydom Park
Johannesburg, 2194 - South Africa
Mailing Address:
P.O. Box 48039
2129 Roosevelt Park
Johannesburg, South Africa
Phone: [phone]
Fax: [phone]
SPAIN
Stryker Howmedica Iberica S.L.U.
Manual Tovar, 35
28034 Madrid
Spain
Phone: [phone]
Phone: [phone]
Fax: [phone]
SWEDEN
Stryker AB/Scandinavia
Box 50425
SE-204 14 Malmo
Sweden
Phone: [phone]
Fax: [phone]
FINLAND
Stryker AB, Finland
PO 80 Makelankatu 2
00501 Helsinki
Finland
Phone: [phone]
Fax: [phone]
FRANCE
Stryker France SA
ZAC - Avenue de Satolas Green
69330 Pusignan
France
Phone: [phone]
Fax: [phone]
GERMANY
Stryker Howmedica GmbH
Dr. Homer Stryker Platz 1
47228 Duisburg
Germany
Phone: [phone]
Fax: [phone]
GREECE
Stryker Hellas EPE
455 Messogion ave
153 43 Agia Paraskevi
Athens, Greece
Phone: [phone]
Fax: [phone]
ITALY
Stryker Italia SrL
Via Ghisalba 15B
00188 Roma
Italy
Phone: [phone]
Fax: [phone]
MIDDLE EAST / NORTH AFRICA
Stryker Osteonics SA
Twin Towers
11th Floor, Suite 1101 & 1102
P.O. Box 41446
Baniyas Road
Dubai, Deira, UAE
Phone: [phone]
Fax: [phone]
NEDERLANDS
Stryker Nederlands BV
(P.O. Box 13, 4180 BA Waardenburg)
4181 CD Waardenburg
The Nederlands
Phone: [phone]
Fax: [phone]
NORWAY
Stryker Norway
Norsk Fillial
Nedre Vollgate 3
0158 Oslo
Norway
Phone: [phone]
Fax: [phone]
EUROPE HEADQUARTERS
Stryker SA
Cite-Centre, Grand-Rue 90
P.O. Box 1568
1820 Montreux, Switzerland
Phone: [phone]
Fax: [phone]
International Addresses

www.stryker.com 6250-001-161 REV D 1-3
English
Table of Contents
Symbols and Definitions ...................................................................1-4
Symbols ...........................................................................1-4
Warning / Caution / Note Definition........................................................1-4
Introduction ............................................................................1-5
Specifications .......................................................................1-5
Component Identification ...............................................................1-6
Warranty ..............................................................................1-7
Stryker EMS Return Policy ..............................................................1-8
Return Authorization...................................................................1-8
Damaged Merchandise ................................................................1-8
International Warranty Clause............................................................1-8
Patent Information ....................................................................1-8
Summary of Safety Precautions .............................................................1-9
Setup Procedures.......................................................................1-10
Operation Guide........................................................................1-11
Operating Guidelines ................................................................1-1 1
Unfolding the Chair ..................................................................1-12
Folding the Chair ....................................................................1-13
Transferring the Patient to the Stair-PRO® Stair Chair .........................................1-14
Using Restraint Straps ................................................................1-15
Proper Lifting Techniques..............................................................1-18
Transporting the Patient on Flat Surfaces ..................................................1-19
Transporting the Patient Down Stairs .....................................................1-20
Transporting the Patient Up Stairs .......................................................1-23
Operating the Wheel Locks ............................................................1-24
Adjusting the Wheel Locking Force.......................................................1-25
Operating the Optional Locking Rear Lift Handles............................................1-26
Using the Optional Head Support (Model 6252 Only) .........................................1-27
Using Additional Assistance ............................................................1-28
Cleaning..............................................................................1-29
Washing Procedure ..................................................................1-29
Washing Limitations ..................................................................1-29
Preventative Maintenance.................................................................1-31
Checklist ..........................................................................1-31
Maintenance Record.....................................................................1-32
Training Record ........................................................................1-33
Quick Replacement Part List...............................................................1-34
Service Information......................................................................1-35
Vinyl Seat Replacement ...............................................................1-35
Track Belt Replacement (For Model 6252) .................................................1-36
Track Belt Reconditioning (For Model 6252) ................................................1-39
Rear Wheel Replacement..............................................................1-41
Upper Control Handle Cable Replacement (For Model 6252)....................................1-42

1-4 6250-001-161 REV D www.stryker.com
English
Return To Table of Contents
WARNING / CAUTION / NOTE DEFINITION
The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.
WARNING
Alerts the reader about a situation, which if not avoided, could result in death or serious injury. It may also describe
potential serious adverse reactions and safety hazards.
CAUTION
Alerts the reader of a potentially hazardous situation, which if not avoided, may result in minor or moderate injury to the
user or patient or damage to the equipment or other property. This includes special care necessary for the safe and
effective use of the device and the care necessary to avoid damage to a device that may occur as a result of use or
misuse.
NOTE
This provides special information to make maintenance easier or important instructions clearer.
Symbols and Definitions
Warning/Caution: consult accompanying documentation
Safe Working Load
SYMBOLS

www.stryker.com 6250-001-161 REV D 1-5
English
Return To Table of Contents
Introduction
INTRODUCTION
This manual is designed to assist you with the operation and maintenance of the Model 6250, 6251, and 6252 Stair-
PRO®Stair Chairs. Read it thoroughly before using the equipment or beginning any maintenance on it.
SPECIFICATIONS
Model 6250 6251 6252
Maximum Load 3 500 lbs. 228 kg. 500 lbs. 228 kg. 500 lbs. 228 kg.
Height 36” 91 cm. 36” 91 cm. 37.5” 95.25 cm.
Width 20.5” 52 cm. 20.5” 52 cm. 20.5” 52 cm.
Depth 228” 71 cm. 28” 71 cm. 28” 71 cm.
Folded Depth 8” 20 cm. 8” 20 cm. 8” 20 cm.
Weight 20 lbs. 9 kg. 23 lbs. 10 kg. 31.5 lbs. 14 kg.
1Dimensions are measured from the outermost edges of the main frame. Specifications are rounded. Conversions are calculated
before rounding.
2Depth dimensions are measured with extendable handles retracted.
3Maximum load capacity is total weight distributed in accordance to basic human anatomy. Operators must consider the weight
of the patient, equipment, and accessories when determining the total load on the product.
Stryker reserves the right to change specifications without notice.

1-6 6250-001-161 REV D www.stryker.com
English
Return To Table of Contents
Introduction

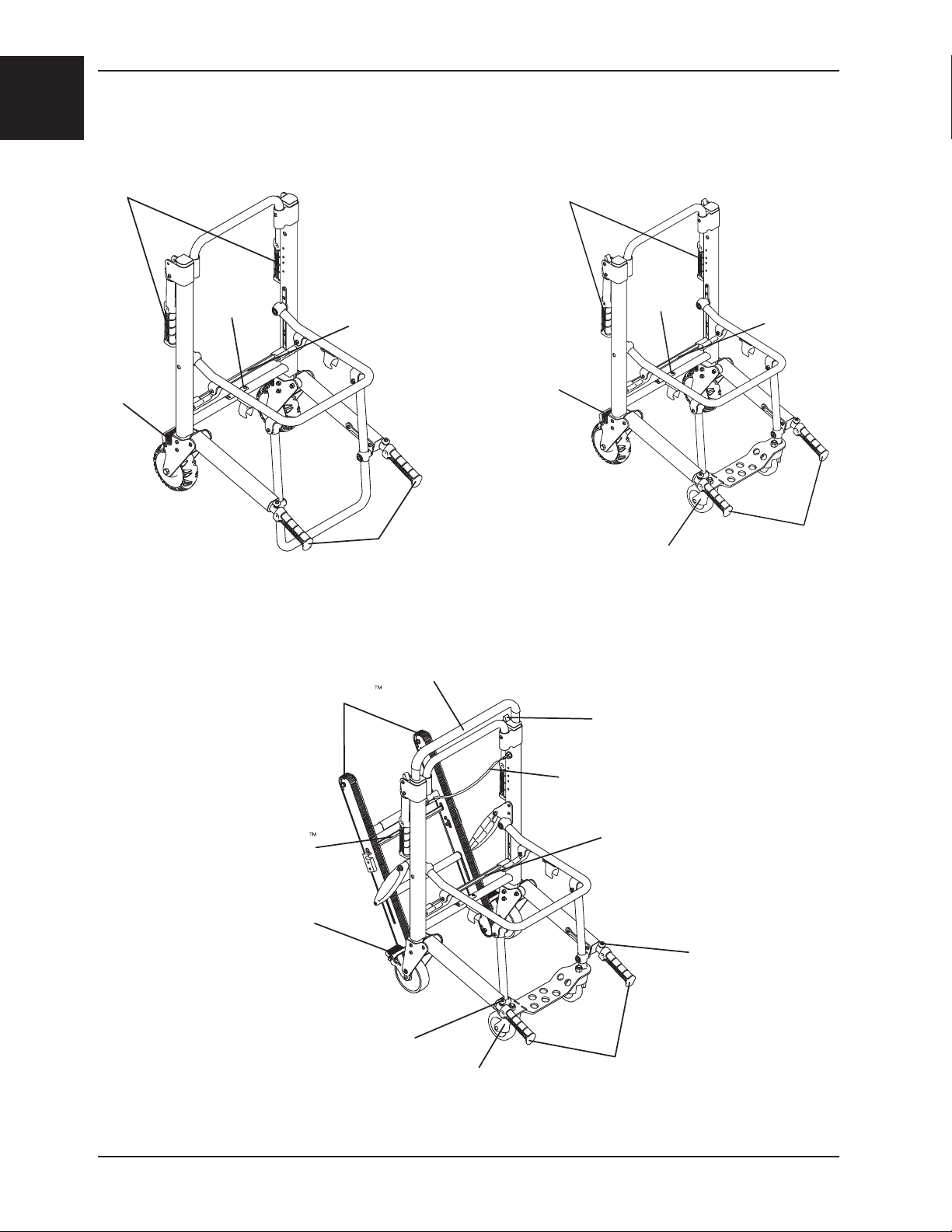

Serial
Number
Location
Head End
Lift Handles
Foot End
Lift Handles
Chair Fold
Lock Bar
Wheel Lock
Serial
Number
Location
Head End
Lift Handles
Foot End
Lift Handles
Front Caster
Chair Fold
Lock Bar
Wheel Lock
Foot End
Lift Handles
Front Caster
Stair−TREAD
Upper
Control Handle
Chair Fold
Lock Bar
Wheel Lock
Lift Handle
Release Button
Lift Handle
Release Button
Upper Control Handle
Release Cable
Optional Lift Handles
Release Lever
Stair−TREAD
Lock Bar
6250
6252
6251
COMPONENT IDENTIFICATION

www.stryker.com 6250-001-161 REV D 1-7
English
Return To Table of Contents
Warranty
Stryker EMS, a division of the Stryker Corporation, offers two distinct warranty options in the
United States:
One (1) year parts and labor. Under this option, Stryker EMS warrants to the original purchaser
that its products should be free from manufacturing non-conformances that affect product
performance and customer satisfaction for a period of one (1) year after date of delivery. Stryker’s
obligation under this warranty is expressly limited to supplying replacement parts and labor for, or
replacing, at its option, any product that is, in the sole discretion of Stryker, found to be defective.
Two (2) year parts. Under this option, Stryker EMS warrants to the original purchaser that non-
expendable components of its products should be free from manufacturing non-conformances
that affect product performance and customer satisfaction for a period of two (2) years after date
of delivery. Stryker’s obligation under this warranty is expressly limited to supplying replacement
parts for, or replacing, at its option, any product which is, in the sole discretion of Stryker, found to
be defective. Expendable components, i.e. mattresses, restraints, IV poles, storage nets, storage
pouches, O2 straps, and other soft goods, have a one (1) year limited warranty with this option.
Under either warranty option, Stryker EMS products are designed for a 7 year expected service
life under normal use, conditions, and with appropriate periodic maintenance as described
in the maintenance manual for each device. Stryker warrants to the original purchaser
that the welds on its EMS products will be free from structural defects for the expected 7
year life of the EMS product as long as the original purchaser owns the product. Original
purchasers will also obtain a three (3) year limited parts warranty for the X-frame components
of the MX-PRO R3 stretcher provided they also purchase X-frame guards at the time of the
original purchase and the guards are installed on the MX-PRO before it is put into service.
If Stryker requests, products or parts for which an original purchaser makes a warranty
claim, the purchaser shall return the product or part prepaid freight to Stryker’s factory.
Any improper use or alteration or repair by unauthorized service providers in such a manner as
in Stryker’s judgment affects the product materially and adversely, shall void this warranty. Any
repair of Stryker products using parts not provided or authorized by Stryker shall void this warranty.
No employee or representative of Stryker is authorized to change this warranty in any way.
This statement constitutes Stryker EMS’s entire warranty with respect to the aforesaid equipment.
STRYKER MAKES NO OTHER WARRANTY OR REPRESENTATION EITHER EXPRESSED OR
IMPLIED, EXCEPT AS SET FORTH HERIN. THERE IS NO WARRANTY OF MERCHANTABILITY
AND THERE ARE NO WARRANTIES OF FITNESS FOR ANY PARTICULAR PURPOSE. IN NO
EVENT SHALL STRYKER BE LIABLE HEREUNDER FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING FROM OR IN ANY MANNER RELATED TO SALES OR USE OF ANY SUCH
EQUIPMENT.

1-8 6250-001-161 REV D www.stryker.com
English
Return To Table of Contents
Warranty
STRYKER EMS RETURN POLICY
Cots, Stair Chairs, Evacuation Chairs, Cot Fasteners and Aftermarket Accessories may be returned up to
180 days of receipt if they meet the following guidelines:
Prior to 30 Days
• 30daymoneybackguaranteeineffect
• StrykerEMSisresponsibleforallcharges
• Returnswillnotbeapprovedonmodifieditems
Prior to 90 Days
• Productmustbeunused, undamaged and in the original packaging
• Customerisresponsiblefora10%restockingfee
Prior to 180 Days
• Productmustbeunused, undamaged and in the original packaging
• Customerisresponsiblefora25%restockingfee
RETURN AUTHORIZATION
Merchandise cannot be returned without approval from the Stryker Customer Service Department. An
authorization number will be provided which must be printed on the returned merchandise. Stryker reserves
the right to charge shipping and restocking fees on returned items.
SPECIAL, MODIFIED, OR DISCONTINUED ITEMS NOT SUBJECT TO RETURN.
DAMAGED MERCHANDISE
ICC Regulations require that claims for damaged merchandise must be made with the carrier within fifteen
(15) days of receipt of merchandise. DO NOT ACCEPT DAMAGED SHIPMENTS UNLESS SUCH DAMAGE
IS NOTED ON THE DELIVERY RECEIPT AT THE TIME OF RECEIPT. Upon prompt notification, Stryker will
file a freight claim with the appropriate carrier for damages incurred. Claim will be limited in amount to the
actual replacement cost. In the event that this information is not received by Stryker within the fifteen (15)
day period following the delivery of the merchandise, or the damage was not noted on the delivery receipt
at the time of receipt, the customer will be responsible for payment of the original invoice in full.
Claims for any short shipment must be made within thirty (30) days of invoice.
INTERNATIONAL WARRANTY CLAUSE
This warranty reflects U.S. domestic policy. Warranty outside the U.S. may vary by country. Please contact
your local Stryker Medical representative for additional information.
PATENT INFORMATION
Stryker products are covered by one or more of the following patents:
United States 5,575,026 6,276,010 6,648,343 6,908,133 6,796,757
5,537,700 6,125,485 6,735,794 7,10 0, 224 7,398,571
D527,103
Other Patents Pending

www.stryker.com 6250-001-161 REV D 1-9
English
Return To Table of Contents
Summary of Safety Precautions
The following is a list of safety precautions that must be observed when operating or servicing this unit. The precautions
are repeated throughout the manual, where applicable. Carefully read this list before using or servicing the unit.
WARNING
• Do not modify the Stair-PRO®Stair Chair. Modifying the chair can cause unpredictable operation resulting in injury
to the patient or operator. Modifying the chair will also void its warranty.
• Do not allow untrained helpers to assist in the operation of the Stair-PRO® Stair Chair. Untrained technicians/
helpers can cause injury to the patient or themselves.
• An unlocked chair can fold during use, causing injury to the patient or operator. Always make sure the chair is
locked in the unfolded position before use.
• To avoid injury, always verify the lift handles are locked in place before using them to lift the chair.
• Always use all restraint straps to secure the patient on the chair. An unrestrained patient may fall from the chair
and be injured.
• Do not push the Model 6252 with the upper control handle in the fully extended position. Pushing the chair with
the handle in the fully extended position may cause the chair to tip when obstacles are encountered.
• Never leave a patient unattended on the chair or injury could result. Hold the chair securely while a patient is on
the chair.
• The Stair-PRO® Stair Chair is not recommended for use with suspected cervical, spinal, or fracture injuries.
• To avoid injury, transporting the patient on stairs requires a minimum of two operators. If more people are required
to safely control the chair, use the chart on page 1-28 as reference for proper positioning of the helpers.
• Only use the wheel locks during patient transfer or without a patient on the chair. Tipping could occur if the chair
is moved while wheel locks are applied, resulting in injury to the patient or operator and/or damage to the chair.
• Never use a wheel lock on a chair with excessively worn wheels. Using a wheel lock on a wheel with less than a
5” diameter (Model 6252) or a 6” diameter (Models 6250/6251) could compromise the holding ability of the wheel
lock, possibly resulting in injury to the patient or operator and/or damage to the chair or other equipment.
• To avoid injury, always verify the Stair-TREAD™ system on the Model 6252 is securely locked in place before
transporting the patient.
• Water, ice and debris on the stairs can affect operator footing and proper operation of the Stair-TREAD™ system.
To avoid injury, clear the path or consider an alternate route.
• Condensation, water, ice and/or debris on the Stair-TREAD™ system can cause unpredictable performance,
resulting in a sudden change in the weight the operators must support. To avoid injury, and to aid proper operation
of the Stair-TREAD™ system, ensure the belts are clean and dry before transporting the patient.
• Never lubricate the Stair-TREAD™ system. Lubrication on the system can cause inconsistent operation possibly
resulting in injury to the patient or operator.
• To avoid injury to the operators and/or the patient, operators should never attempt to transport patient loads greater
than what they can safely lift.
• Use any appropriate personal safety equipment (goggles, respirator, etc.) to avoid the risk of inhaling contagion. Use
of power washing equipment can aerate contamination collected during the use of the chair.
CAUTION
• Improper usage of the Stair-PRO® Stair Chair can cause injury to the patient or operator. Operate the Stair-PRO®
Stair Chair only as described in this manual.
• Improper maintenance can cause injury or damage to the unit. Maintain the Stair-PRO® Stair Chair as described
in this manual. Use only Stryker approved parts and maintenance procedures. Using unapproved parts and
procedures could cause unpredictable operation and/or injury and will void the product warranty.
• Casters are not suitable for all surfaces. Caution should be used at all times.
• Wheel locks are only intended to help prevent the empty chair from rolling while unattended and to aid in patient
transfer. The wheel lock may not provide sufficient resistance on all surfaces or under loads.
• Release the red track release bar before clicking the Stair-TREAD™ system into the locked position. Failure to follow
this procedure could result in the track failing to lock. Always verify the Stair-TREAD™ system is locked by trying
to fold it before descending stairs.

1-10 6250-001-161 REV D www.stryker.com
English
Return To Table of Contents
Setup Procedures
Unpack the cartons and check all items for proper operation. It is important that the Stair-PRO® Stair Chair is working
properly before it is put into service. Have a qualified service person use the following list and the operation instructions
to check the chair before it is put into service.
• All fasteners secure (reference all assembly drawings).
• All welds intact, not cracked or broken.
• No bent or broken tubing or sheet metal.
• No debris in wheels.
• All wheels secure and rolling properly.
• Chair unfolds and locks properly.
• No rips or cracks in seat or backrest.
• Patient restraints intact and working properly.
• Wheel locks operating properly.
• Foot end lift handles extend and lock properly.
• Head end lift handles fold and unfold.
• Front casters secure, rolling and swiveling properly (if equipped).
• Upper control handle extends and locks in all positions (if equipped).
• Stair-TREAD™ system unfolds and locks (if equipped).
• Track belts roll properly (if equipped).
• Optional accessories intact and operating properly.
The storage compartment on the vehicle in which the Stair-PRO® Stair Chair will be transported must be large enough
to accommodate the folded dimensions of the chair (see page 1-5).
When necessary, modify the vehicle to fit the chair. Do not modify the chair.
WARNING
Do not modify the Stair-PRO® Stair Chair. Modifying the chair can cause unpredictable operation resulting in injury to the
patient or operator. Modifying the chair will also void its warranty.

www.stryker.com 6250-001-161 REV D 1-11
English
Return To Table of Contents
Operation Guide
OPERATING GUIDELINES
• Use the Stair-PRO® Stair Chair only as described in this manual.
• Read all labels and instructions on the chair before using the chair.
• When a patient is on the chair, use a minimum of two operators to manipulate the chair on stairs. If more people
are required to safely control the chair, use the chart on page 1-28 as reference for proper positioning of the
helpers.
• Do not roll the chair, ascend, or descend stairs without advising the patient. Stay with the patient and control the
chair at all times.
• Only use the wheel locks during patient transfer or without a patient on the chair.
• Always use the restraint straps when a patient is on the chair.
• Use properly trained helpers when necessary to control the chair and patient.
WARNING
• Always use all restraint straps to secure the patient on the chair. An unrestrained patient may fall from the chair
and be injured.
• Only use the wheel locks during patient transfer or without a patient on the chair. Tipping could occur if the chair
is moved while the wheel locks are applied, resulting in injury to the patient or operator and/or damage to the chair.
• Condensation, water, ice and/or debris on the Model 6252 Stair-TREAD™ system can cause unpredictable
performance, resulting in a sudden change in the weight the operators must support. To avoid injury, and to aid
proper operation of the Stair-TREAD™ system, ensure the belts are clean and dry before transporting the patient.
• To avoid injury to the operators and/or the patient, operators should never attempt to transport patient loads greater
than what they can safely lift.

1-12 6250-001-161 REV D www.stryker.com
English
Return To Table of Contents
To unfold the chair (refer to Figure 1a above):
1. Stand behind the chair.
2. Apply the wheel locks (if desired).
3. Pull the backrest and the extension handle apart. The lock mechanism will automatically engage when the chair
is completely unfolded.
4. Verify the lock is engaged by pulling up on the seat. If the lock is properly engaged, the chair will not fold.
WARNING
An unlocked chair can fold during use, causing injury to the patient or operator. Always make sure the chair is locked
in the unfolded position before use.
Operation Guide
Figure 1a - Unfolding the Chair
(6250 Shown)
UNFOLDING THE CHAIR

www.stryker.com 6250-001-161 REV D 1-13
English
Return To Table of Contents
Operation Guide
To fold the chair (refer to Figure 1b above):
1. Apply the wheel locks (if desired). Buckle the restraint straps and fold them neatly to prevent them from interfering
with proper folding of the chair. If the chair is equipped with the optional head support strap, secure it behind the
chair frame.
2. Stand at the side of the chair.
3. Pull up on the red lock bar at the rear of the chair.
4. Tip the chair forward.
5. Fold the seat up to the backrest until the front legs lock in the clips on the bottom of the seat tube.
Note: On models 6251 and 6252, rotate the front casters so they do not interfere with folding the chair.
WARNING
An unlocked chair can fold during use, causing injury to the patient or operator. Always make sure the chair is locked
in the unfolded position before use.
Figure 1b - Folding the Chair
(6250 Shown)
FOLDING THE CHAIR

1-14 6250-001-161 REV D www.stryker.com
English
Return To Table of Contents
Operation Guide
TRANSFERRING THE PATIENT TO THE STAIR-PRO® STAIR CHAIR
To transfer the patient to the chair:
1. Place the chair beside the patient.
2. Apply the wheel locks to prevent the chair from moving.
3. Open the restraint straps.
4. Transfer the patient to the chair using accepted EMS procedures.
5. Use all the restraints to secure the patient on the chair (page 1-15).
6. Disengage the wheel locks before transporting.
WARNING
The Stair-PRO®is not recommended for use with suspected cervical, spinal, or fracture injuries.

www.stryker.com 6250-001-161 REV D 1-15
English
Return To Table of Contents
Operation Guide
USING RESTRAINT STRAPS
WARNING
Always use all restraint straps to secure the patient on the chair. An unrestrained patient may fall from the chair and be
injured.
The restraints can be used in two configurations.
For the cross-chest configuration (Figure 2): Buckle the chest restraints in an “X” pattern across the patient’s chest.
For the chest and lap configuration (Figure 3): Buckle one restraint across the patient’s chest and the other across
the patient’s lap.
For either configuration: Match up the color coded restraints and buckle the ankle restraint across the patient’s legs.
To avoid damage to the buckles and straps, keep the restraint straps buckled when the chair is not being used with a
patient.
When attaching the restraint straps to the chair, remember the attachment points must provide strong anchorage and
proper restraint position while not interfering with equipment and accessories.
Figure 2
Cross-Chest Configuration
Figure 3
Chest and Lap Strap
Configuration
Figure 4
Lap Strap
Attachment Points
Vinyl Seat
Top View
ABS Seat
Top View

1-16 6250-001-161 REV D www.stryker.com
English
Return To Table of Contents
Operation Guide
USING RESTRAINT STRAPS - CONTINUED
To attach the chest straps in the cross-chest configuration:
1. Wrap each strap around the chair frame, insert the end through
the loop on the end of the strap and pull it tight.
2. Pull the strap across the patient’s chest, lengthening the strap
as necessary.
3. Buckle the strap.
4. Pull the loose end of the strap to tighten it securely around
the patient.
5. Repeat for the second strap and the lap belt.
Figure 5 - Insert the end through
the loop
Figure 8 - Buckle strap
Figure 9 - Tighten strap securely
Figure 7 - Lengthen strap as
necessary
Figure 6 - Pull the strap tight

www.stryker.com 6250-001-161 REV D 1-17
English
Return To Table of Contents
Operation Guide
To attach the ankle strap:
1. Remove the three plastic pieces from the
strap.
2. Thread the strap through one of the
plastic “D” rings and slide the ring down to
the end of the strap up to the white label.
3. Loop the strap around the front leg of
the chair and pull the loose end of the
strap through the ring. Pull until the
ring rests against the foot rest tube.
4. Thread the strap through the other “D”
ring.
5. Loop the strap around the other front leg
of the chair and pull the loose end of
the strap through the loop. Pull until the
“D” ring rests against the foot rest tube.
6. Attach the final “male” end clip on the
strap.
Figure 10-18 - Attaching the leg strap
USING RESTRAINT STRAPS - CONTINUED

1-18 6250-001-161 REV D www.stryker.com
English
Return To Table of Contents
Operation Guide
USING RESTRAINT STRAPS - CONTINUED
• To lengthen the restraint, grasp the buckle, turn it at an angle to the webbing and pull it out. A hemmed tab at the
end of the webbing prevents the buckle from coming off the strap. To shorten the restraint, grasp the hemmed tab
and pull the webbing back through the buckle until the required tightness is achieved.
• When the chair is put into service, open the restraints and place them at either side of the chair until the patient
is positioned on the seat. Lengthen the restraint, buckle it around the patient and shorten it until the required
tightness to properly secure the patient is achieved.
• To open the restraint, press the tabs on the side of the buckle to release the buckle and pull the tang out of the
receiver. To close the restraint, push the tang into the receiver until a ”click” is heard.
• Whenever a restraint is buckled on a patient, the attendant should verify the tang is locked and the extra webbing
is not tangled in the chair or hanging loose.
• Inspection of the restraints should be done at least once a month (more frequently if used heavily). Inspection
should include checking for a bent or broken receiver or tang, torn or frayed webbing, etc. Any restraint showing
wear or not operating properly must be replaced immediately.
PROPER LIFTING TECHNIQUES
When lifting the Stair-PRO® Stair Chair and patient, remember these five basic guidelines:
• Keep your hands close to your body.
• Keep your back straight.
• Coordinate your movements with your partner and lift with your legs.
• Avoid twisting.
• Always operate the Stair-PRO® Stair Chair as described in this manual.
