Style selections 81851/23DE5209-PB84 User manual

1
Lowes.com
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-877-888-8225, 8 a.m. - 8 p.m., EST, Monday - Friday.
ITEM #0466670
MODEL #81851/23DE5209-PB84
Français p. 18
Español p. 35
Style Selections® is a registered trademark
of LF, LLC. All rights reserved.
EB15197
WALL/CORNER MEDIA
ELECTRIC FIREPLACE

2
Lowes.com
Product Specications ......................................................................................................................... 2
Safety Information ................................................................................................................................ 3
Package Contents ................................................................................................................................ 6
Hardware Contents............................................................................................................................... 7
Preparation........................................................................................................................................... 8
Assembly Instructions........................................................................................................................... 8
Operating Instructions ........................................................................................................................ 13
Care and Maintenance ....................................................................................................................... 13
Troubleshooting.................................................................................................................................. 15
Warranty ............................................................................................................................................. 16

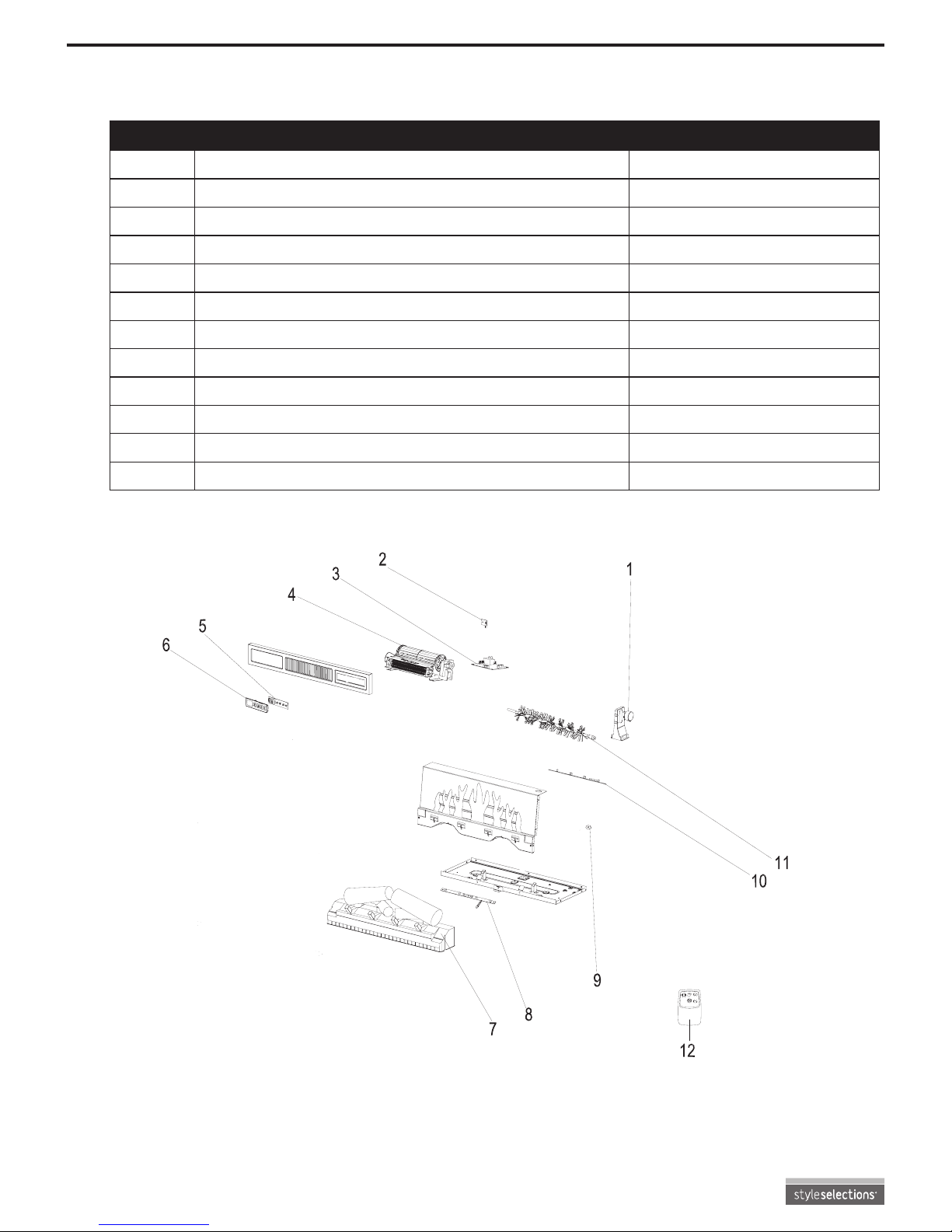

Replacement Parts List ...................................................................................................................... 17
PRODUCT SPECIFICATIONS
TABLE OF CONTENTS
VOLTAGE 120 V, 60 Hz
AMPS (with heater) 11.7 Amps
AMPS (without heater) < 0.1 Amps
WATTS (with heater) 1,400 Watts
WATTS (without heater) < 10 Watts

3
Lowes.com
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product. When using electrical appliances, basic precautions should always be followed to reduce the
risk of re, electrical shock and injury to persons, including the following:
DANGER:
• This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. Never place this appliance where it may fall into a bathtub or other water container.
WARNING:
• Use this appliance only as described in the manual. Any other use not recommended
by the manufacturer may cause re, electrical shock or injury to persons.
• The appliance is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given proper instructions or are being supervised carefully.
• Do not swallow batteries. Seek emergency care if batteries are ingested.
• Disconnect power before attempting any maintenance or cleaning to reduce the risk
of re, electrical shock or personal injury.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electrical shock or re, or damage the appliance.
CAUTION:
• High temperatures may be generated under certain abnormal conditions. Do not partially or fully
cover or obstruct the front of this heater.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
• This heater includes a visual alarm to warn when parts of the heater are getting
excessively hot. If the alarm ashes, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may cause high temperatures.
DO NOT OPERATE THE HEATER WITH THE ALARM FLASHING!
• In order to avoid overheating, do not cover the heater.
• Do not use outdoors.
• To prevent a possible re, do not block air intakes or exhaust in any manner. Do not use
on soft surfaces, like a bed, where opening may become blocked.
• This appliance has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint or ammable liquids are used or stored. This replace should not be used
as a drying rack for clothing. Christmas stockings or decorations should not be hung in the area
of it.

4
Lowes.com
SAFETY INFORMATION
• To disconnect this appliance, turn controls to the off position, then remove plug from
outlet.
• Connect to properly grounded outlets only. This heater is for use on 120 volts. Do not
use 2-prong adapters. Never use with an extension cord or relocatable power tap
(outlet/power strip).
• This appliance, when installed, must be electrically grounded in accordance with local
codes or, in the absence of local codes, with the current CSA C22.1 Canadian Electrical
Code. For U.S.A. installations, follow local codes and the National Electrical Code,
ANSI/NFPA NO.70.
• Make sure the power is turned off before proceeding. Any electrical repairs or
rewiring of this unit should be carried out by a licensed electrician in accordance with national
and local codes. If repairing or replacing any electrical component or wiring, the original wire
routing, color coding and securing locations must be followed.
• Electrical outlet wiring must comply with local building codes and other applicable
regulations to reduce the risk of re, electrical shock and injury to persons.
• Do not use this replace if any part of it has been under water. Immediately call a
qualied service technician to inspect the replace and replace any part of the electrical system.
• During any service of this appliance, the power to the unit must be turned off.
First turn the main power switch to the OFF position, then remove the electrical plug from
the wall outlet.
• Never leave the heater operating unattended. Extreme caution is necessary if
unsupervised children or invalids are nearby.
• Always unplug this appliance when not in use.
• Do not operate any heater with a damaged cord or plug or after the appliance
malfunctions, or if it has been dropped or damaged in any manner.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the
like. Arrange cord away from trafc areas and where it will not be tripped over.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (Carbon Zinc), or rechargeable (NiCd, NiMH, etc.)
batteries.
1. Read all instructions before using this appliance.
2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving
this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet
(0.9 m) from the front of this appliance.
WARNING: In order to avoid overheating, do not cover the heater.
3. CAUTION: Whenever the heater is left operating and unattended, extreme caution is necessary if children or invalids are nearby.
4. The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction.
5. Always unplug this appliance when not in use.
6. Do not operate any heater with a damaged cord or plug or after the appliance malfunctions, or if it has been dropped or
damaged in any manner.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order
to avoid a hazard.
8. Do not use outdoors.
9. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate this appliance where it
may fall into a bathtub or other water container.
10. Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from trafc areas
and where it will not be tripped over.
11. To disconnect this appliance, turn controls to the off position, then remove plug from outlet.

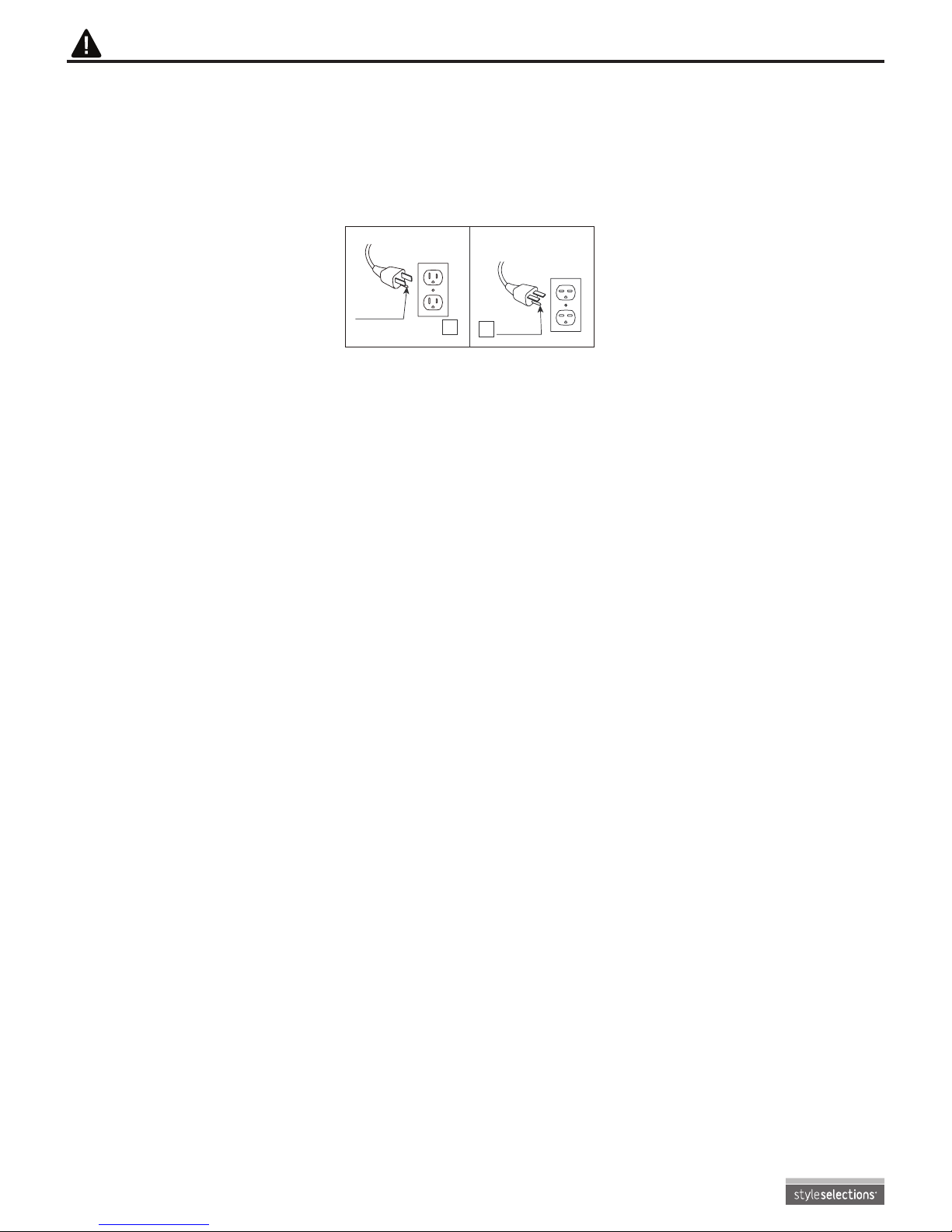

12. Connect to properly grounded outlets only, See Fig.1. Do not use a 2 prong adapters.
13. This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the current CSA C22.1 Canadian Electrical Code or for U.S.A. installations, follow local codes and the National Electrical
Code, ANSI/NFPA NO.70.
14. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or re, or
damage the appliance.
15. To prevent a possible re, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where
opening may become blocked.
16. This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or ammable liquids are
used or stored. This replace should not be used as a drying rack for clothing. Christmas stockings or decorations should not be
hung in the area of it.22. Use this appliance only as described in the manual. Any other use not recommended by the
manufacturer may cause re, electric shock or injury to persons.
17. Always plug heaters directly into a wall outlet/ receptacle. Never use with an extension cord or relocatable power tap (outlet/
power strip).
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of re, electrical shock, and injury
to persons including the following:
2
ABFig.1
SAVE THESE INSTRUCTIONS

5
SAFETY INFORMATION
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on. The user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Modications not approved by the party responsible for compliance could void user’s authority to operate
the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
ELECTRICAL CONNECTION
A 15-Amp, 120-volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the replace will
be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or
the fuse to blow when the heater is in operation. The unit comes standard with 6 ft. three-wire
cord, exiting from the rear of the replace.
Cold-climate installation: It is mandatory the outer walls be insulated to conform to applicable
insulation codes.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the product
SAVE THESE INSTRUCTIONS.

6
Lowes.com
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Base 1
B Left Side Panel 1
C Right Side Panel 1
D Center Shelf 1
E Left Front Door 1
F Right Front Door 1
GMantel Top 1
H Wood Shelf 2
I Center Left Panel 1
J Center Right Panel 1
K Center Front Panel 1
L Top Left Support Panel 1
M Top Middle Support Panel 1
N Top Right Support Panel 1
O Rear Panel 2
P Center Back Panel 1
Q Top Corner Extension 1
R Securing Block 1
S Corner Brace 1
T Insert 1
U Remote 1
J
FC
B
A
D
G
L
P
O
O
NM
E
H
H
IR
S
K
Q
TU

7
Lowes.com
HARDWARE CONTENTS (shown actual size)
Bolt Truss Head
Screw
Long Screw Shelf PinWood Dowel
Door Pull
(Not to scale)
Touch-up Pen
(Not to scale)
Short Screw
Qty: 29 Qty: 38Qty: 5 Qty: 8Qty: 14
Qty: 2
Qty: 1
Qty: 24
AA DD BB EE CC FF
HHGG
W3504A
Hinge
(Not to scale) Hinge Bracket (Not to scale)
Qty : 4 Qty : 4
II JJ

8
Lowes.com

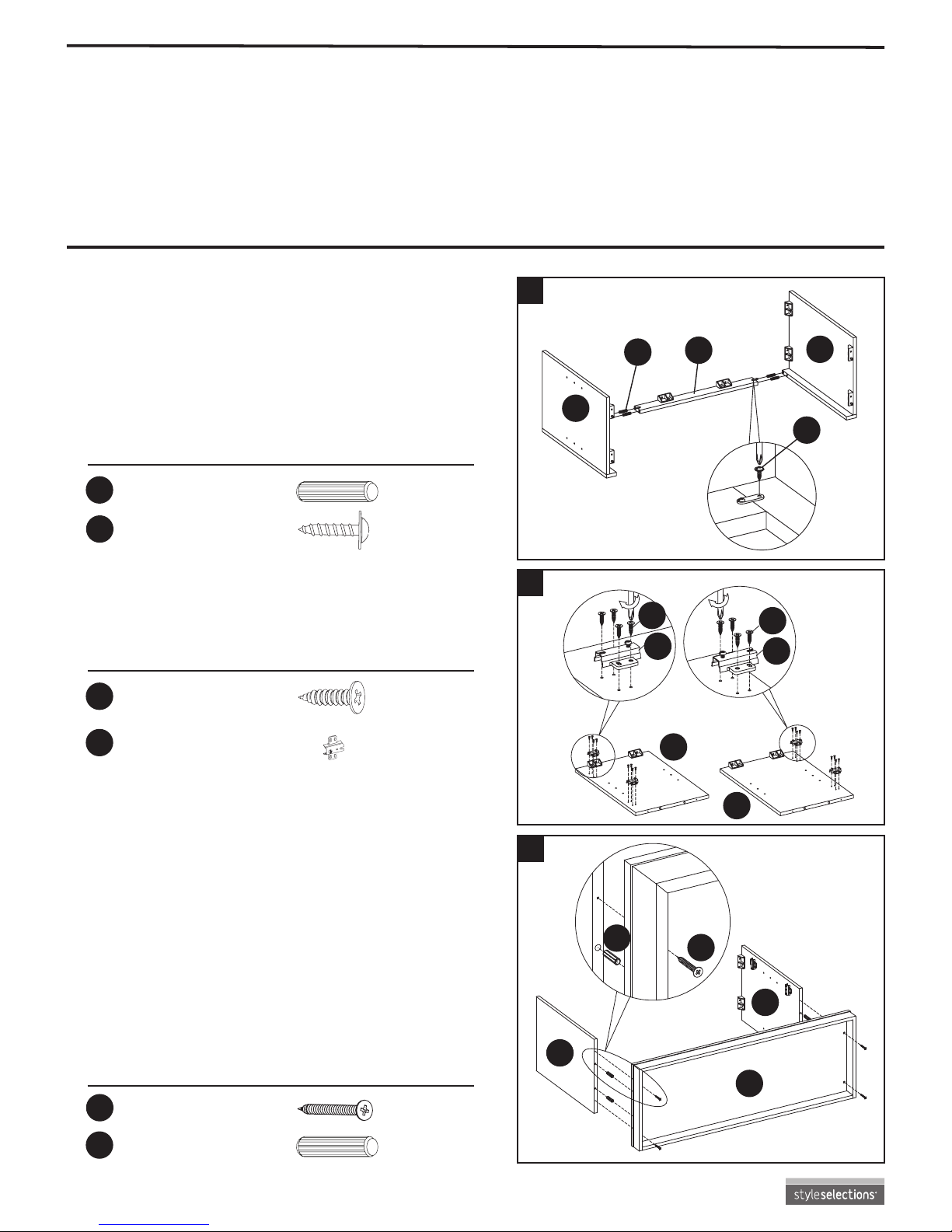

ASSEMBLY INSTRUCTIONS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. To protect the product from possible scratches, please assemble the parts
on a scratch-free surface.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Phillips screwdriver, scissors and utility knife.
1. Insert one wood dowel (CC) into each of the
pre-drilled holes in center front panel (K). Connect
center left panel (I), center right panel (J) and center
front panel (K), then secure by tightening truss head
screws (DD) into the pre-drilled holes on the
preassembled connections plates on center front
panel (K).
HAND TIGHTEN ONLY.
2. Attach the hinge bracket (JJ) to the left
side panel (B) and right side panel (C) using
short screws (HH) and tighten.
Hardware Used
Hardware Used
Hardware Used
DD
CC
JJ
JJ
HH
HH
A
C
B
J
B
C
I
K
1
2

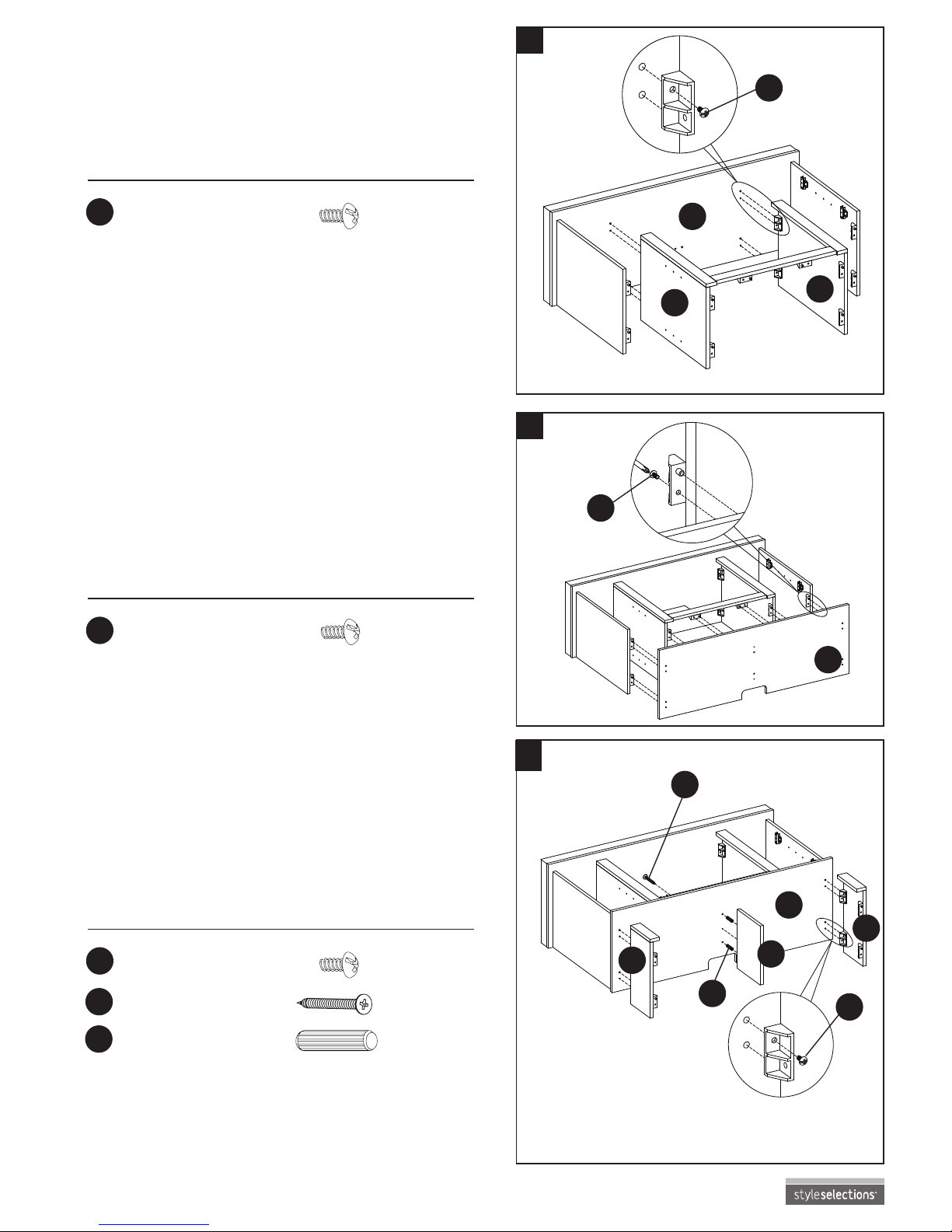

3. Insert one wood dowel (CC) into each
of the pre-drilled holes in left side panel (B)
and right side panel (C). Push the left side panel (B)
and right side panel (C) snug to the base (A).
Secure with screws (BB) through the bottom of base
(A) and into the left side panel (B) and right side
panel (C).
HAND TIGHTEN ONLY.
3
CC
HH
JJ
CC
CC
Wood Dowel
Short Screw
Hinge Bracket
Wood Dowel
x 4
x 16
x 4
x 4
DD
BB
BB
Truss Head Screw
Long Screw
x 2
x 4

9
Lowes.com
4. Attach the completed assembly from step 1 to
the base (A). Secure with bolts (AA) through
the holes in the plastic blocks -- preassembled on
the center left panel (I) and center right panel
(J) -- and into the base (A)
HAND TIGHTEN ONLY.
5. Attach the center shelf (D) to the top of the assembly
with bolts (AA) through the preassembled plastic
blocks and into the center shelf (D).
HAND TIGHTEN ONLY.
6. Insert one wood dowel (CC) into each of the
pre-drilled holes in the top middle support panel (M)
and attach it to the top of center shelf (D); secure
from the bottom with screw (BB). Attach top left
support panel (L) and top right support panel (N)
to the center shelf (D) with bolts (AA) through the
preassembled plastic blocks and into the pre-drilled
holes on center shelf (D).
Hardware Used
Hardware Used
Hardware Used
AA
AA
AA
Bolt
Bolt
Bolt
x 4
x 4
x 10
CC Wood Dowel x 2
BB Long Screw x 1
D
AA
AA
A
JI
4
5
AA
CC
LM
D
N
6
BB

10
Lowes.com

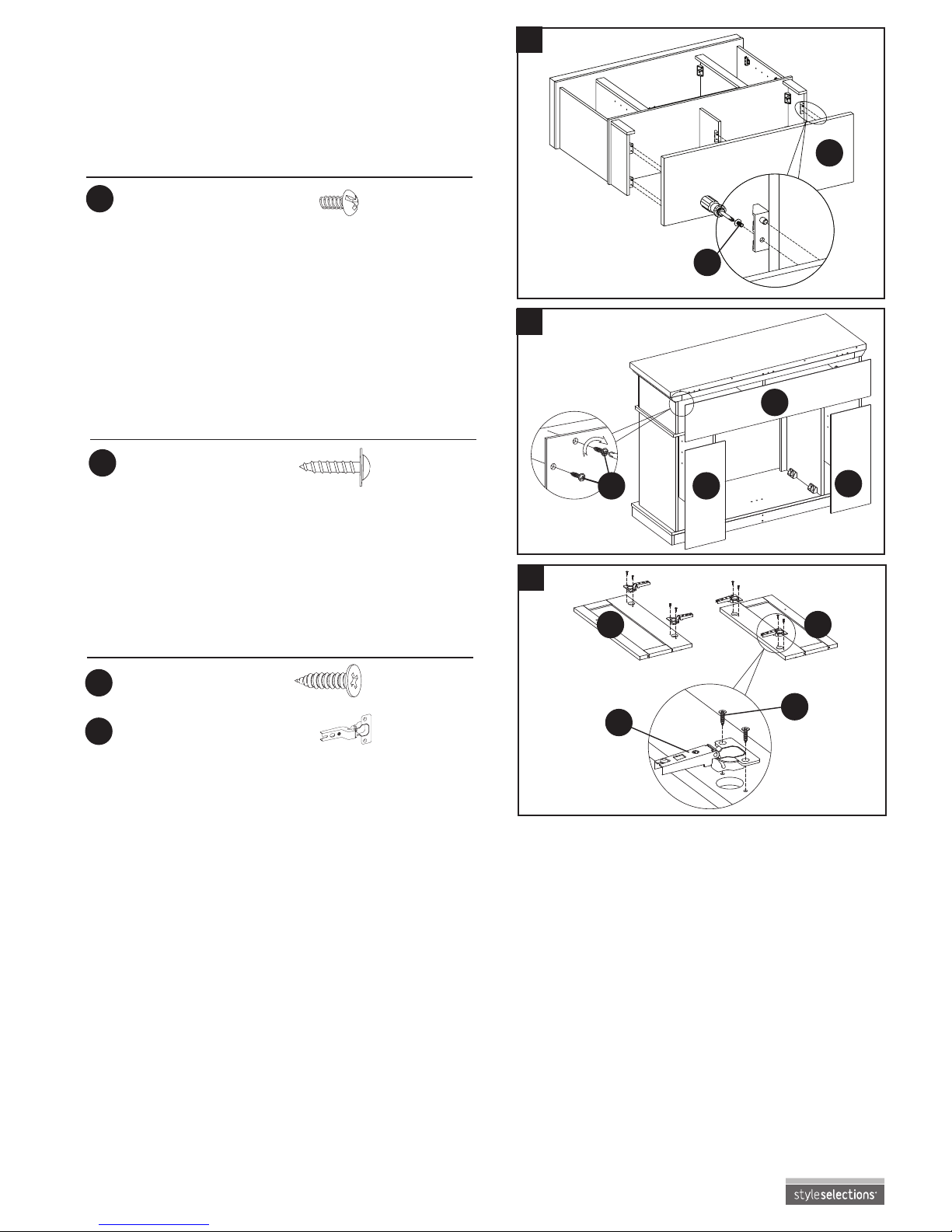

7. Attach the mantel top (G) to the assembly using bolts
(AA) through the plastic blocks into the pre-drilled
holes on the bottom of mantel top (G). Note: A short-
handled screwdriver (not included) might be helpful.
HAND TIGHTEN ONLY.
8. Set the assembly upright. Attach the center back
panel (P) and rear panels to the back of the
assembly using truss head screws (DD) through
the pre-drilled holes on the panels.
9. Attach hinge (II) to left front door (E) and right
front door (F) with short screws (HH) in the
pre-drilled holes.
Hardware Used
P
O
E F
O
8
9
Hardware Used
DD Truss Head Screw x 36
AA Bolt x 5
DD
Hardware Used
HH
HH
II II
Short Screw
Hinge
x 8
x 4
AA
G
7

11
Lowes.com
11. Choose desired height of wood shelf (H) and place
the four shelf pins (EE) the corresponding holes.
Insert wood shelf (H) on top of the shelf pins (EE).
Repeat as desired for the other wood shelf (H).
O
Hardware Used
Hardware Used
11
EE
FF
EE
H
H
Shelf Pin
Door Pull
x 8
x 2
9
9

$
&
%

10. Remove the preassembled bolt from the door pulls
(FF), then attach the door pull (FF) to the left front
door (E) and right front door (F) with the bolts.
Align the hinges (II) to the hinge brackets (JJ),
sliding hinges (II) over the hinge brackets (JJ) at
the locked position. Tighten the preassembled
screw on hinge bracket (JJ) to secure each
door in place.
TO ADJUST HINGES
To adjust door forward or backward, change
keyhole slot position (Diagram 3a).
To adjust door right or left, loosen/tighten
screw on (JJ) (Diagram 3B).
To adjust door up or down, adjust bracket
height (Diagram 3c).
To remove the door from the mantel, loosen the
screw (a) and then lift from mounting bracket.
10
FF
FF
JJ
E
F
II

12
Lowes.com
13. Insert bolts (AA) through preassembled mounting
blocks on corner brace (S) to attach it to the top
corner extension (Q). HAND TIGHTEN ONLY.
14. Insert wood dowels (CC) into the pre-drilled holes
on the top corner extension and carefully slide the
assembly from step 12 into place at the back of the
assembled mantel. Secure with bolts (AA) through
the preassembled mounting blocks and into the
pre-drilled holes on the mantel.
HAND TIGHTEN ONLY.
Assembly is now complete. Verify all connections
are secure and, with the help of another person,
move the assembly to the desired location.
Hardware Used
Hardware Used
AA
AA
Bolt
Bolt
x 1
x 4
13
14
S
AA
CC
Q
AA
AA
Q
CC Wood Dowel x 4
Completed
Unit
Electric
Fireplace
Insert
Install Insert
From Back
12. Note: Be sure to read all safety information prior to
installing the insert (T). Insert (T) should be installed
in the replace as close to the nal position as
possible; two people are recommended for this step.
Lift insert (T) carefully into the back of the unit and
center in the insert opening. Do not drag insert (T)
across base (A), as it may scratch the unit. Use bolts
(AA) to attach the preassembled plastic block on
securing block (R) to base (A). Rest insert (T) against
securing block (R) to secure it to the back of the unit.
12
T
T
R
AA
Hardware Used
AA Bolt x 1

13
Lowes.com
OPERATING INSTRUCTIONS
FUNCTION
FLAME There are 6 brightness levels that can be selected.
Settings F6 - F4 are for a amber-only colored only
color ame effect.
F6 is maximum brightness, F5 medium and F4 low.
Settings F3 - F1 have a blue glow at the bottom of the
ame effect.
F3 is maximum brightness, F2 medium and F1 low.
The replace contains a fan forced wire element heater.
The thermostat setting range is 62°F - 82°F or
continously ON.
The thermostat is adjustable by 2°F increments.
The up and down buttons “” on the remote will
increase/decrease temperature setting. The button on
the control panel scrolls through specic temperature
settings.
To change between Fahrenheit and Celsius, press and
hold the heater button on the control panel for 3 seconds.
Pressing the timer button will cycle through the timer
settings: 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and OFF.
HEATER
TIMER
ICON DESCRIPTION
The heater can be operated by either the remote control or the control panel.
Control Panel
Display
Front View of Insert (T) Remote (U)
POWER Use the POWER button to turn on or off the replace
from the remote or control panel.
Note: Holding the POWER button on the control panel
for 10 seconds will disable the heater function.
To re-enable the heater, press and hold the POWER
button for another 10 seconds.

14
Lowes.com
Note:
Battery disposal
Please always dispose of batteries
at a suitable recycling point.
AAA 1.5V
AAA 1.5V
REPLACING THE BATTERIES:
When the remote (U) stops operating or its range
seems reduced, it is time to replace the batteries.
Note: Batteries should be removed if the product
is to be left unused for a long time.
• Remove battery cover from the back of remote
(U).
• Remove old batteries and replace with 2 AAA
batteries, ensuring the polarities on the
batteries match the inside of the battery
compartment.
• Replace the battery cover.
U
CARE AND MAINTENANCE
• The motors used on the fan and the ame generator assembly are pre-lubricated for extended
bearing life and require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater
is recommended.
• Make sure the unit is turned OFF and unplugged whenever you are cleaning the replace.
• Dust the replace regularly with a soft, non-lint producing cloth or household dusting product.
• Clean the replace with a gentle non-abrasive household cleaner. Make sure to dry the replace
immediately with a soft cloth or towel.
• Tips for using touch-up pen (GG): For scratches, stroke in direction of scratch. For worn areas,
stroke in direction of wood grain. Rub excess cororant promptly with a soft cloth.
Note:
Battery disposal
Please always dispose of batteries
at a suitable recycling point.
AAA 1.5V
AAA 1.5V
NOTE:
Always dispose of
batteries at a suitable
recycling point.

15
Lowes.com
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Display shows “ ” The thermostat sensor is
broken or disconnected.
Unplug the replace, remove the back panel of the replace and
check that the thermostat is plugged into the main circuit board. If
this does not solve the problem contact customer service for a
replacement thermostat sensor.
Display shows “ ” The thermostat sensor is
broken. Contact customer service for a replacement thermostat sensor.
Display shows “ ” Manual Reset overheat
protection has triggered.
Inspect the heater and check that the air inlets and outlets are not
blocked as this may cause overheating. Unplug the heater for 30
minutes and allow it to cool down. Replug and operate, monitor the
heater for signs of overheating, if the problem persist discontinue use
of the heater and contact customer service.
Display shows “ ” The heater air outlet is
blocked.
Check that nothing is in front of the the heater air outlet by at least 3
feet (0.9 m).
Display shows “ ” Normal operation.
Check your heater cord and plug connections. Faulty wall outlet
connections or loose plugs can cause the outlet or plug to overheat.
Be sure the plug ts tight in the outlet. Heaters draw more current
than small appliances, overheating of the outlet may occur even if it
has not occurred with the use of other appliances. During use check
frequently to determine if your plug outlet or faceplate is HOT! If so,
discontinue use of the heater and have a qualied electrician check
and/or replace the faulty outlet(s).
Heater does not blow
warm air. Cool down cycle. Normal operation, will continue to run for several minutes before
shutting down. Times will vary based on temperatures. During this
time cool air will blow.
No power, logs do not
glow. No power to the unit Check that unit is plugged into a standard 120V outlet. Press power button several times, make sure power is set at “ON”position.
Logs glow, but no
ame effect. Flame effect turned off Press ame button several times.
Heater does not blow
warm air.
Thermostat setting is
preventing heater from
turning on.
Adjust the temperature settings to ensure that the thermostat is set
higher than the current room temperature.
Flame effect works but
heater function does
not and the emberbed
ashes when the
heater button is
pressed.
The heater is disabled.
With the power on press and hold the POWER button on the control
panel for 10 seconds. Once re-enabled the emberbed lights will ash
multiple times.
Remote Control is not
working.
No batteries Change the remote batteries.
Poor Signal
Operate remote transmitter at a slow measured pace.
Press the remote control buttons with an even motion and gentle
pressure. Repeatedly pressing buttons in rapid succession may
cause the transmitter to malfunction.
Distance Operate the remote at a distance less than 20 feet from the front of
the appliance; point the remote at the control panel.

16
Lowes.com
1-YEAR LIMITED WARRANTY
The manufacturer warrants this product to be free from manufacturing and material defects for a period of
one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this item in accordance with the installation and operating
instructions furnished with the product at all times. Any unauthorized repair, alteration, willful abuse,
accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was
made through an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or
workmanship, provided that such part(s) have been subjected to normal conditions of use and
service, after said defect is conrmed by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by
refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from
defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty,
nor shall the manufacturer assume responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or
consequential loss or damage arising out of the use, or inability to use the product, except
as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and
accessories, or any obligations/liabilities on the part of the manufacturer are hereby expressly
excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other
liabilities with respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories used in conjunction
with the installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from
state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
IF WARRANTY SERVICE IS NEEDED
Contact the manufacturer by calling the customer service department at 1-877-888-8225, 8 a.m. - 8 p.m.,
EST, Monday - Friday. Make sure to have the warranty, sales receipt, location of purchase and the model
serial number of the product.

17
Lowes.com
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-888-8225, 8 a.m. - 8 p.m., EST,
Monday - Friday.
PART DESCRIPTION PART NUMBER(23EF033FSL)
1 Flame Generator Drive Motor P10-6-Q
2 Thermostat Sensor INS-NTC
3 Main Circuit Board Y15-C70-P15
4Heater/Blower Assembly Y15-C72-P01
5 Control Panel Circuit Board Y15-C70-P32
6 Control Panel Buttons Y15-C70-P85
7 Emberbed with Log Y15-S146-P02
8 Emberbed Circuit Board Y15-S146-P44E
9 Blue Flame Circuit Board Y15-C70-P40BL
10 Flame Circuit Board Y15-C73-P40
11 Flame Generator/ Spinner Y15-S146-P11
12 Remote Control P115
Style Selections®is a registered trademark
of LF, LLC. All rights reserved.
