Style selections MEDIA MANTEL 1730FM-23-273 User manual

1
ITEM #4976292
ELECTRIC FIREPLACE
MEDIA MANTEL
MODEL #1730FM-23-273
Español p. 23
ATTACH YOUR RECEIPT HERE
STYLE SELECTIONS and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Serial Number _______________ Purchase Date _______________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 877-888-8225, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at
[email protected].
AS22230

2
TABLE OF CONTENTS
Package Contents ............................................................................................................................... 3
Hardware Contents.............................................................................................................................. 4
Safety Information ............................................................................................................................... 4
Preparation.......................................................................................................................................... 8
Assembly Instructions.......................................................................................................................... 8
Maximum Recommended Weight Loads........................................................................................... 16
Operating Instructions ....................................................................................................................... 17
Care And Maintenance...................................................................................................................... 19
Troubleshooting................................................................................................................................. 20
One-Year Limited Warranty ............................................................................................................... 21
Replacement Parts List ..................................................................................................................... 22

3

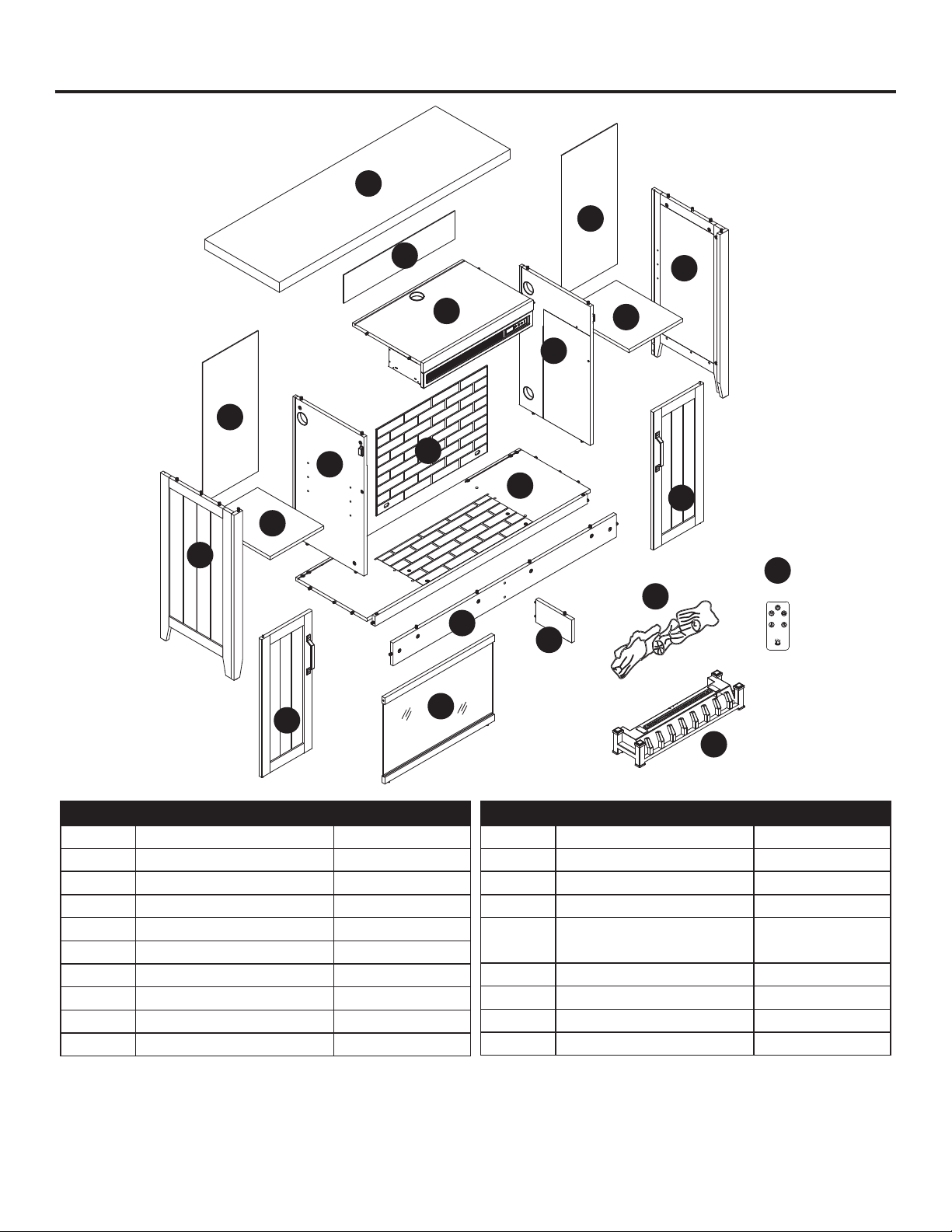

PACKAGE CONTENTS
R
Q
M
B
C
G
I
J
J
K
K
H
E
D
F
L
N
O
A
S
T
PART DESCRIPTION QUANTITY
ATop 1
B Center Shelf 1
C Left Middle Wall 1
D Right Middle Wall 1
E Left Outer Wall 1
F Right Outer Wall 1
G Left Door 1
H Right Door 1
I Center Back Panel 1
J Back Panel 2
PART DESCRIPTION QUANTITY
K Shelf 2
L Fireplace Brick Wall 1
M Fire Log 1
N Fireplace Grate 1
ORemote Control
(Battery Inside) 1
Q Fireplace Glass Front 1
R Base Panel 1
S Base Panel Rail 1
T Base Panel Support 1

4

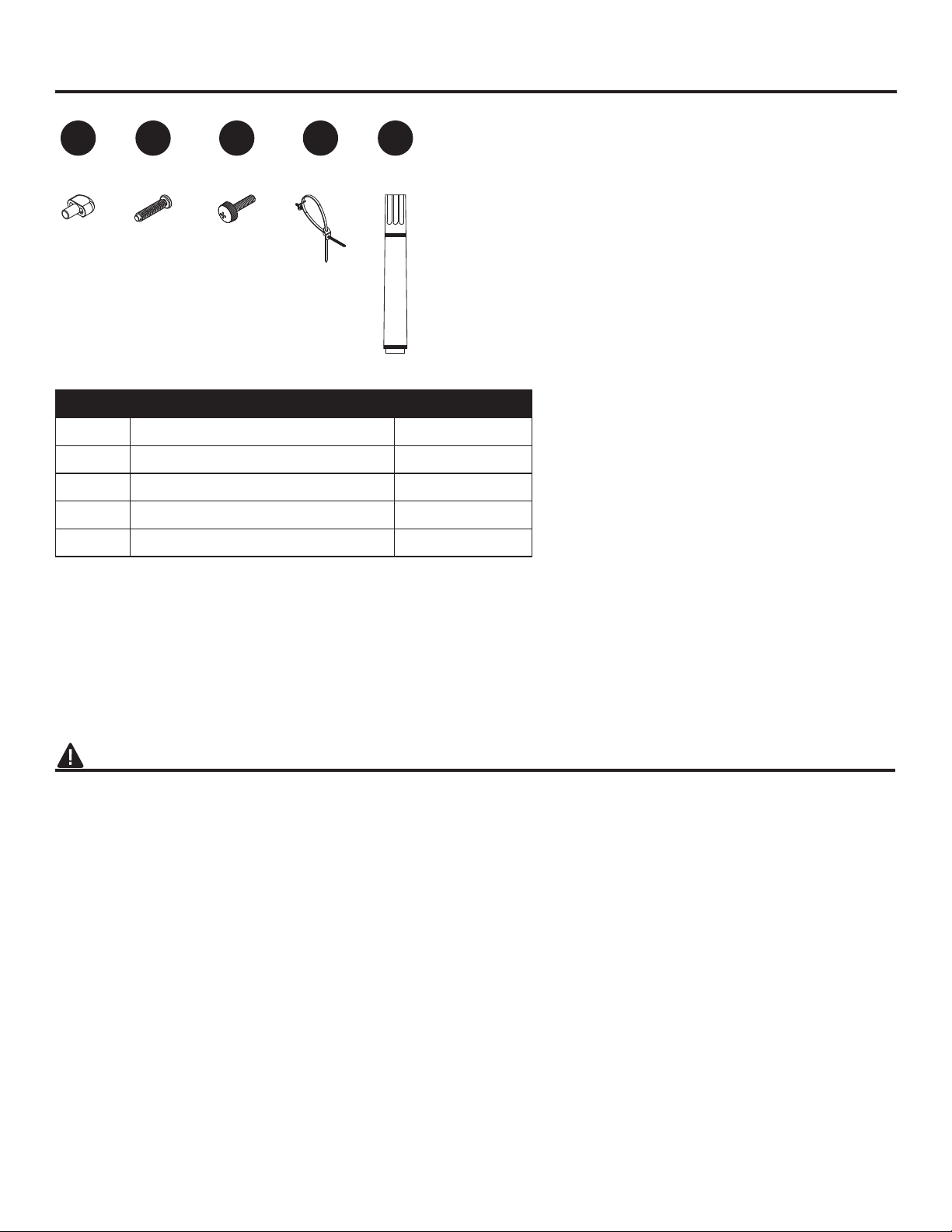

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
AA BB CC DD EE
PART DESCRIPTION QUANTITY
AA Shelf Pin 8
BB Bolt 2
CC Bolt with Knob 2
DD Tip Restraint Hardware 2
EE Touch-up Pen 1
SAFETY INFORMATION
Please read and understand this entire manual before
attempting to assemble, operate or install the product.
This equipment has been tested and found to comply
with the limits for Class B digital devices, pursuant to
Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. The equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on. The
user is encouraged to try and correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
the receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference received,
including interference that may cause undesired
operation.

5
SAFETY INFORMATION (CONTINUED)
Modifications not approved by the party responsible
for compliance could void user’s authority to operate
the equipment.
This Class B digital apparatus complies with Canadian
ICES-003.
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electric shock and injury to persons, including the
following:
DANGER
• To reduce the risk of electrical shock, ensure the
product is stable and avoid tipping.
• Read all instructions before installing or using this
heater.
• If the information in this manual is not followed
exactly, an electric shock or fire may result causing
property damage, personal injury or loss of life.
• ALWAYS unplug this appliance/furnishing from the
electrical outlet before cleaning or servicing.
• This product is intended to fit most plasma and
LCD televisions (up to 50 inches and weighing a
maximum of 58 pounds). Using this item with loads
heavier than the stated maximum can result in
tipping and/or instability, which can result in injury or
even death.
WARNING
• This appliance is hot when in use. To avoid burns,
DO NOT let bare skin touch hot surfaces. Keep
combustible material, such as furniture, pillows,
bedding, papers, clothes and curtains at least 3 feet
from this appliance and keep them away from the
sides and rear.
• Extreme caution is necessary when any heater
is used by or near children or individuals with
disabilities and whenever the fireplace is left
operating and unattended.
• DO NOT run cord under carpeting. DO NOT cover
cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances.
Arrange cord away from traffic areas and where it
will not be tripped over.
• DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause
an electric shock or fire or damage the appliance.
• This appliance has hot and arcing or sparking parts
inside. DO NOT use it in areas where gasoline,
paint or flammable vapors or liquids are used or
stored. This fireplace should not be used as a
drying rack for clothing. Christmas stockings or
decorations should not be hung in the area of it.
• Use this appliance only as described in the manual.
Any other use is NOT recommended by the
manufacturer and may cause fire, electric shock or
injury to persons.
• Reduce the risk of burns, fire, electrical shock, or
injury to persons:
• Unplug from outlet before putting on or taking off
parts.
• Close supervision is necessary when this furnishing
is used by, or near children, invalids, or disabled
persons.
• Use this furnishing only for its intended use
as described in these instructions. DO NOT
use attachments not recommended by the
manufacturer.
• Keep the cord away from heated surfaces.
• Never operate the furnishing with the air openings
blocked. Keep the air openings free of lint, hair, and
other debris.
• Never drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products
are being used or where oxygen is being
administered.
• To disconnect, turn all controls to the off position,
then remove plug from outlet.
• Each surface intended to support a load shall have
a corresponding statement in the use instructions
specifying the maximum intended load for that
surface in pounds (kilograms).
• Risk of electric shock-connect this furnishing to
a properly grounded outlet only. See Grounding
Instructions.

6
SAFETY INFORMATION (CONTINUED)
• To avoid electric shock, fire, or injury, review the
assembly instruction to confirm that the appropriate
critical components and accessories are being used
with the furnishing.
• Death or serious injury may occur when children
climb on audio and/or video equipment furniture. A
remote control or toys placed on the furnishing may
encourage a child to climb on the furnishing and as
a result the furnishing may tip over on to the child.
• Relocating audio and/or video equipment to
furniture not specifically designed to support audio
and/or video equipment may result in death or
serious injury due to the furnishing collapsing or
overturning onto a child.
CAUTION
• DO NOT operate any heater with a damaged
cord or plug or after the heater malfunctions. DO
NOT operate any heater if it has been dropped
or damaged in any manner. Disconnect power
at service panel and have heater inspected by a
reputable electrician before reusing.
• Any repairs to this fireplace should be carried out by
a qualified service person.
• Under no circumstances should this fireplace be
modified. Parts having to be removed for servicing
must be replaced prior to operating this fireplace
again.
• Household use only.
• DO NOT use outdoors.
• “WARNING – Death or serious injury may occur
when children climb on audio and/or video
equipment furniture. A remote control or toys placed
on the furnishing may encourage a child to climb on
the furnishing and as a result the furnishing may tip
over on to the child”.
• “WARNING – Relocating audio and/or video
equipment to furniture not specifically designed to
support audio and/or video equipment may result
in death or serious injury due to the furnishing
collapsing or overturning onto a child”.
• This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. NEVER
place heater where it may fall into a bathtub or other
water container.
• To disconnect this appliance, turn controls to the
OFF position, then remove plug from outlet.
• ONLY connect to properly grounded outlets.
• This appliance, when installed, must be electrically
grounded in accordance with local codes, with the
current CSA C22.1 Canadian Electrical Code or
follow U.S.A. Installations, follow local codes and
the National Electrical Code, ANSI/NFPA N0.70.
• To prevent a possible fire, DO NOT block air intakes
or exhaust in any manner. DO NOT use on soft
surfaces, like a bed, where opening may become
blocked.
• The heaters MUST NOT be located immediately
below a socket-outlet.
• ALWAYS plug heaters directly into a wall outlet /
receptacle. NEVER use with an extension cord or
re-loadable power tap (outlet / power strip).
• DO NOT slide insert on top of wood to avoid
scratching wood surface.
• DO NOT place any object on top of the insert or
block the air intakes / vents as this can cause the
unit to overheat and could cause a fire.

7
SAFETY INFORMATION (CONTINUED)
Electrical Connection
• A 15-Amp, 120-volt, 60 Hz circuit with a properly
grounded outlet is required. Preferably, the fireplace
will be on a dedicated circuit as other appliances
on the same circuit may cause the circuit breaker
to trip or the fuse to blow when the heater is in
operation. The unit comes standard with 6-ft. three-
wire cord, exiting from the rear of the fireplace. DO
NOT exceed the current rating of the current tap.

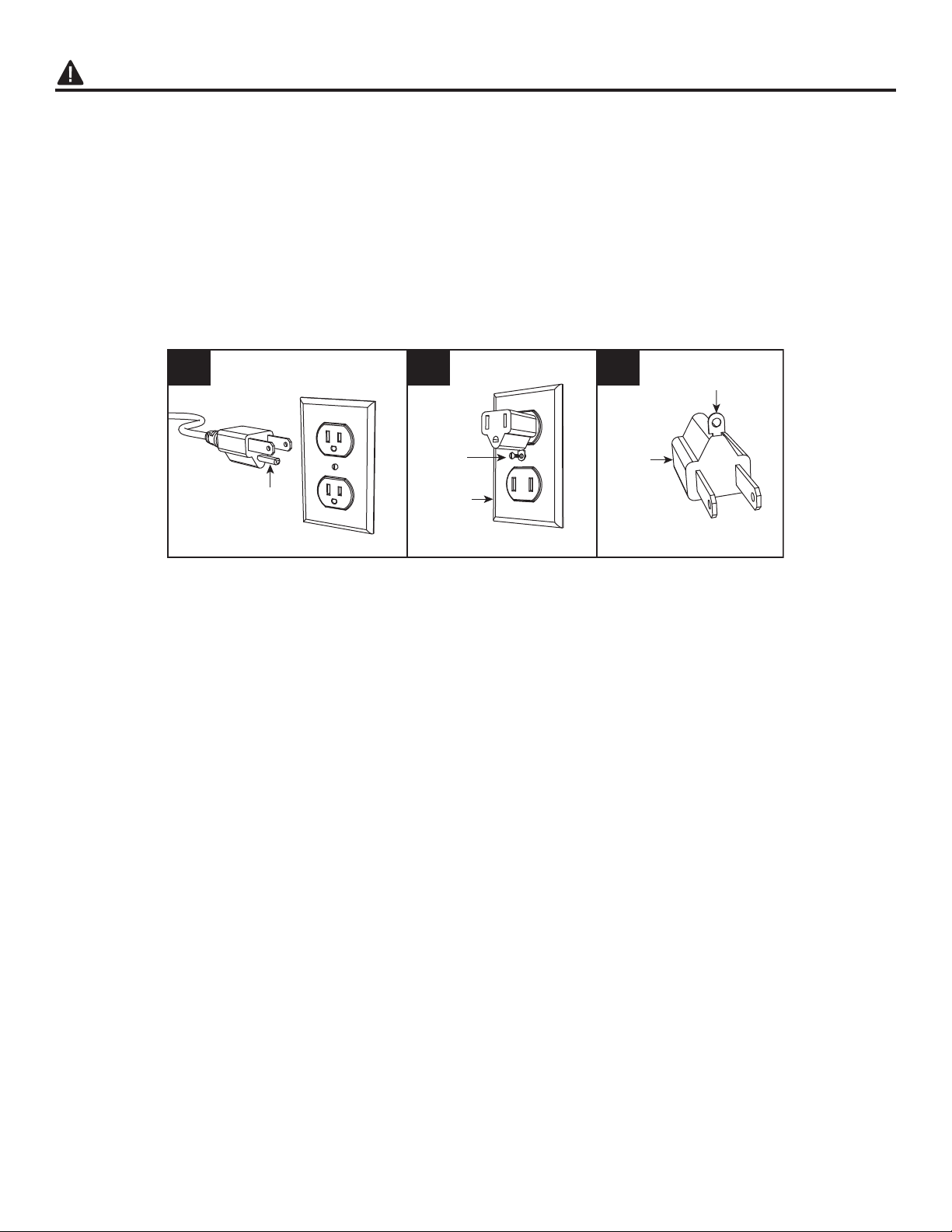

Grounding Instructions
• This heater is for use on 120-volt. The cord has a
plug as shown below. See illustration or grounding
instruction. An adapter as shown at C is available
for connecting three-blade grounding type plugs
to two-slot receptacles. The green grounding plug
extending from the adapter must be connected to
a permanent ground such as a properly grounded
outlet box. The adapter should not be used if a
three-slot grounded receptacle is available.
A B C
Grounding Pin
Grounding Means
Metal
Screw
Cover of
Grounding
Box
Adapter
SAVE THESE INSTRUCTIONS

8
PREPARATION
Before beginning assembly of product, make sure
all parts are present. Compare parts with package
contents list and hardware contents list. If any part is
missing or damaged, do not attempt to assemble the
product.
Estimated Assembly Time: 50 minutes
Tools Required for Assembly (not
included): Phillips screwdriver
ASSEMBLY INSTRUCTIONS

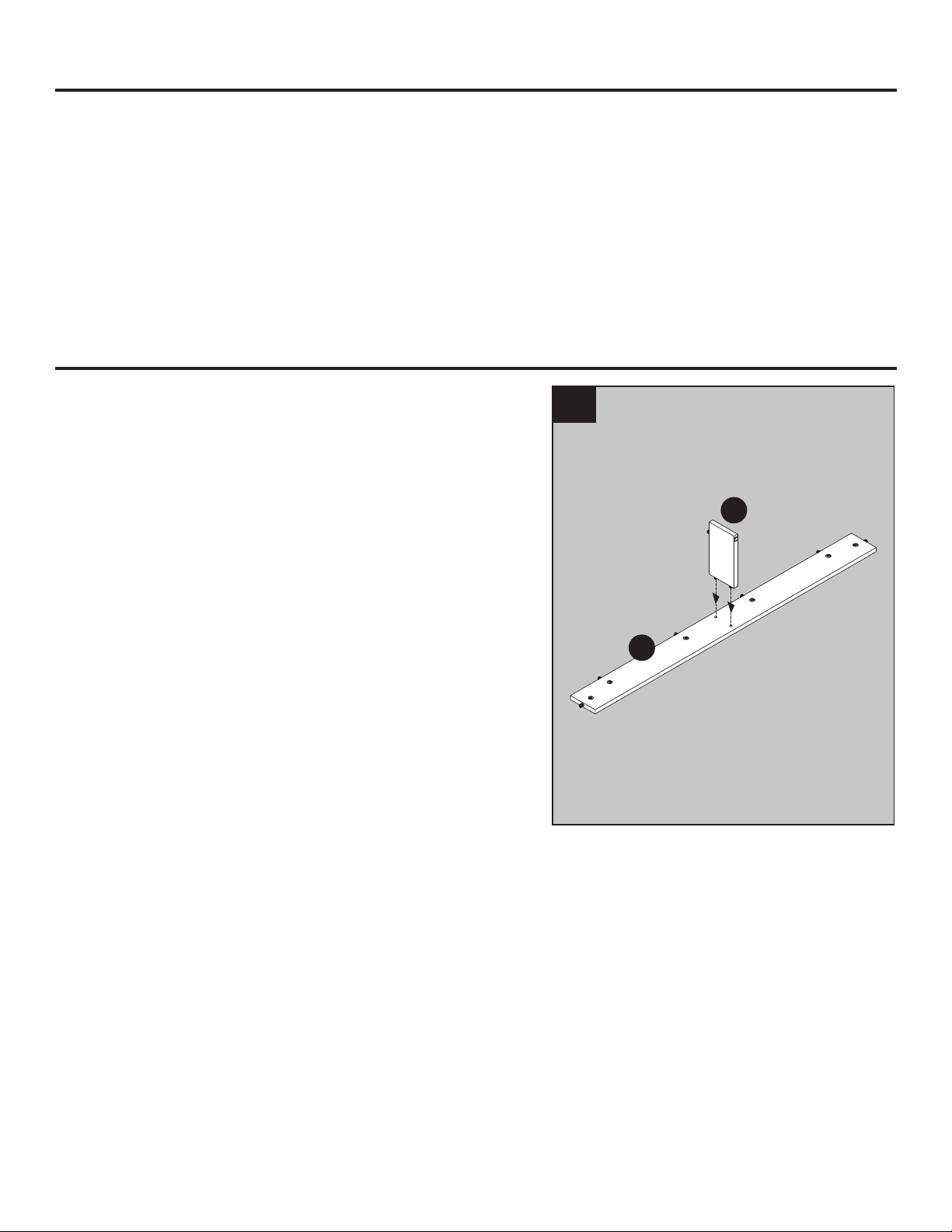

1. Attach the base panel support (T) into the holes on
the bottom panel rail (S). 1
T
S

9
ASSEMBLY INSTRUCTIONS (CONTINUED)
2. Insert the assembled base panel rail (S, T) into
the holes on the base panel (R). Using the
Phillips head screwdriver to turn the locking nut
in clockwise direction up to 180° from the
connection joint to properly secure the panels.
2
R
S
T
3. Attached the outer walls (E, F) to the assembled
base panel (R). Turn the locking nut in clockwise
direction up to 180° from the connection joint to
properly secure the walls.
Turn the assembled parts upright.
3
E
F
R
1
1
2

10
ASSEMBLY INSTRUCTIONS (CONTINUED)

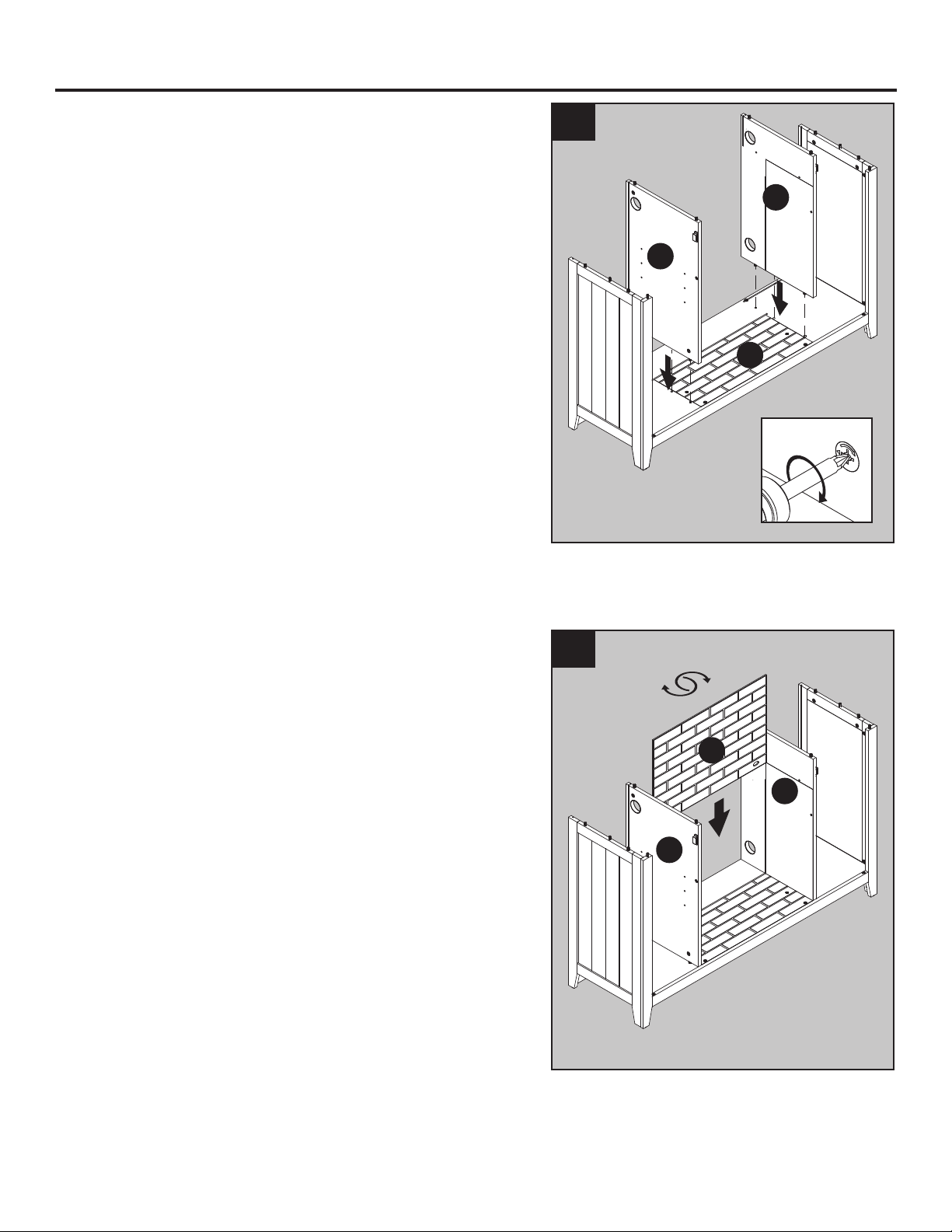

4. Attach the middle walls (C, D) into the holes in
the middle of the base panel (R). Turn the
locking nut in clockwise direction up to 180° from
the connection joint to properly secure the walls.
4
2
1
1
R
C
D
5. Insert the fireplace brick wall (L) into the middle
of the cabinet by sliding it downwards along the
grooves on the middle walls (C, D).
Note: The fireplace brick wall (L) is reversible.
Choose black or brick pattern for your firebox.
5
C
D
L

11
ASSEMBLY INSTRUCTIONS (CONTINUED)

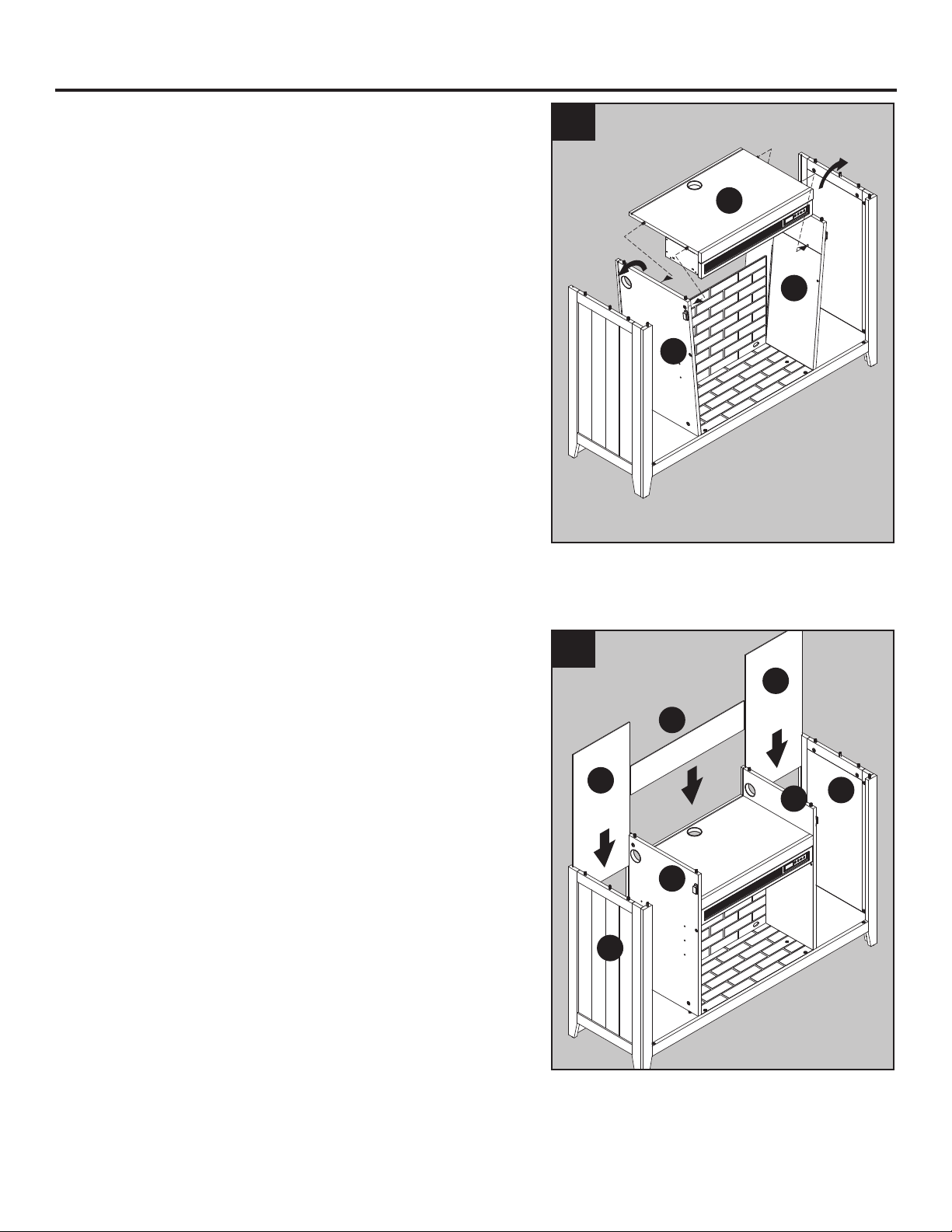

6. Tilt the middle walls (C, D) slightly outwards and
attach the center shelf (B) to the middle walls.
Make sure the middle walls are pushed back to
vertical position to secure the center shelf.
6
B
C
D
7. As shown in the diagram, insert the center back
panel (I) and back panels (J) along the grooves
of the middle walls (C, D) and outer walls (E, F).
D
C
E
F
I
J
J
7

12
ASSEMBLY INSTRUCTIONS (CONTINUED)

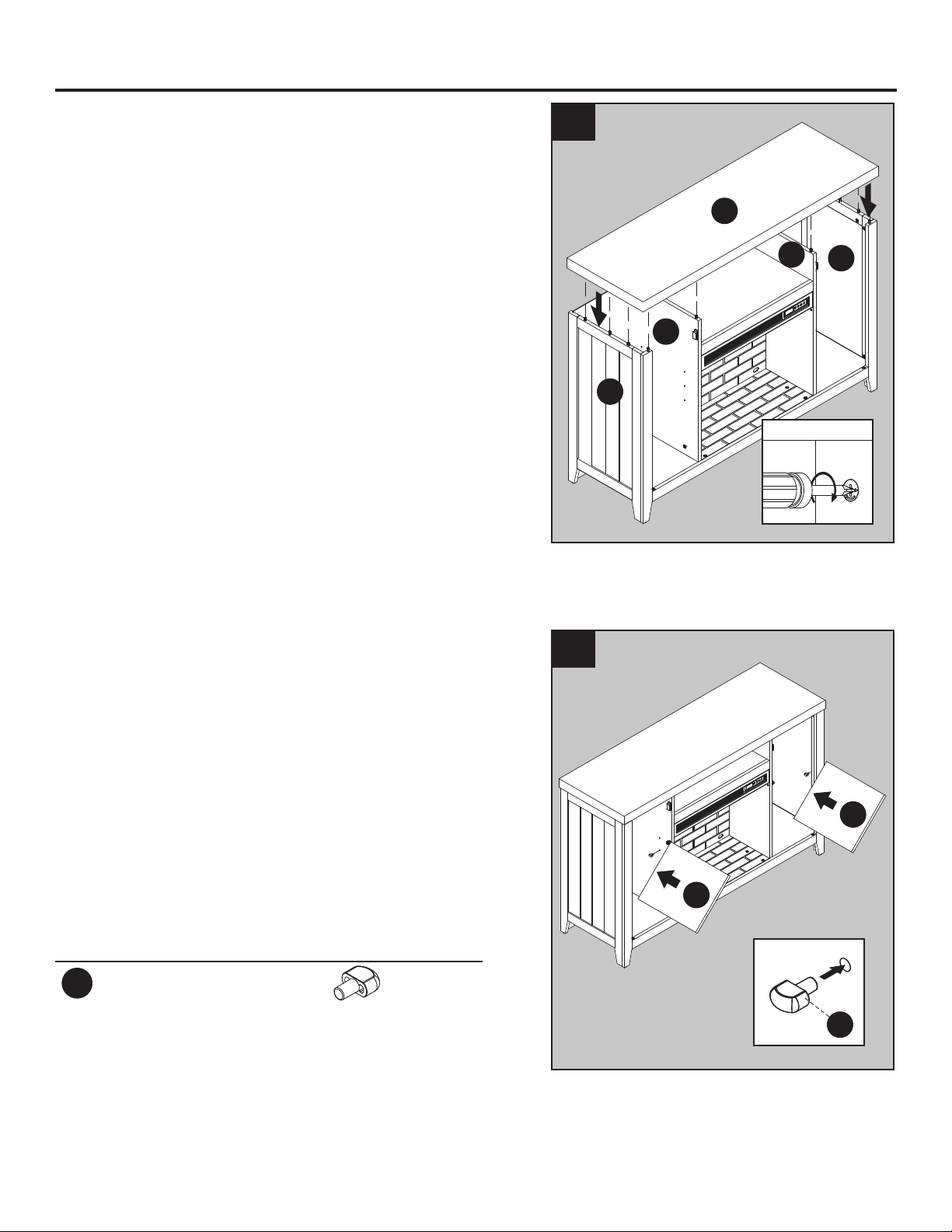

8. Assemble the top (A) onto the middle walls
(C, D) and outer walls (E, F). Turn the locking
nut in clockwise direction up to 180° from the
connection joint to properly secure the top.
8
1
1
A
C
D
E
F
2
9. Insert shelf pins (AA) at desired height,
ensuring they are level. Place shelf (K) on top of
shelf pins (AA).
Repeat for the remaining shelf (K).
Hardware Used
AA Shelf Pin x 8
9
1
AA
K
K
2
2

13
ASSEMBLY INSTRUCTIONS (CONTINUED)

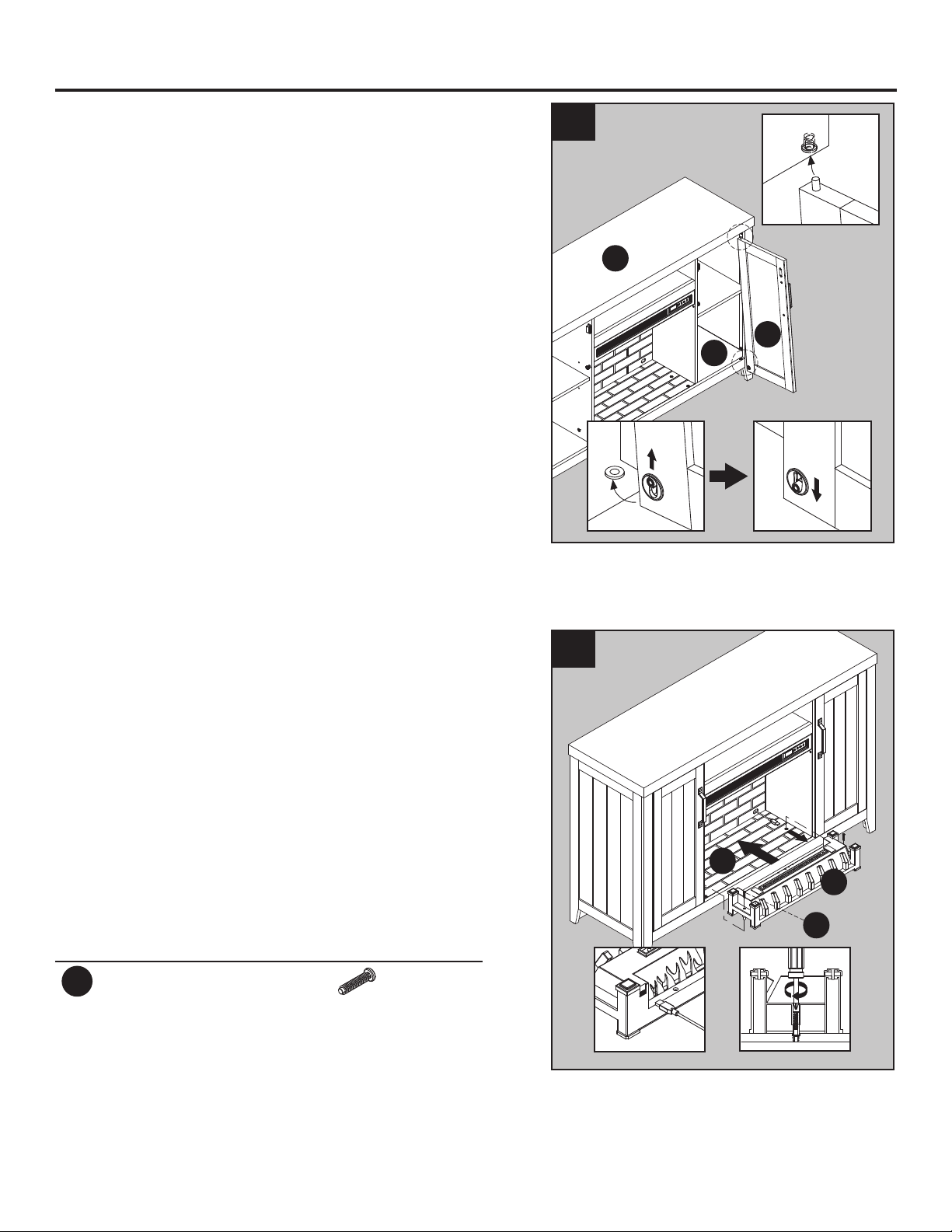

10. Insert the top pin of the right door (H) into the
hole of the plastic nut under the top (A). Pull
the latch to re-tract the pin on the bottom of the
right door (H) and position it over the hole of
the plastic nut on the base panel (R). Release
the latch to secure the bottom pin into the base
panel (R).
Repeat for the other left door (G).
To remove the doors, push up the latch on the
bottom pin and the door can be released from
the console.
A
H
R
10
1
2
4
3
11. Connect the USB cable into the USB port behind
the fireplace grate (N).
Position the fireplace grate (N) by matching the
pin on the bottom of the fireplace grate (N) to the
holes on the base panel (R). Secure the fireplace
grate using two bolts (BB).
Hardware Used
BB Bolt x 2
2
BB
N
R
11
13

14
ASSEMBLY INSTRUCTIONS (CONTINUED)
12. Remove the film from the adhesive on the top of
the fireplace grate (N) and place the fire log (M)
on the center of the fireplace grate (N).
12
M
N
13. Insert the pins at the fireplace glass front (Q)
onto the holes of the plastic nuts on the base
panel (R).
Push the top of the fireplace glass front (Q)
inward until the hole on the side frame is
adjacent to the hole on the middle walls. Screw
the fireplace glass front (Q) from inside the
left and right middle walls using bolt with knob
(CC).
Hardware Used
CC Bolt with Knob x 2
R
13
1
Q2
CC

15
ASSEMBLY INSTRUCTIONS (CONTINUED)

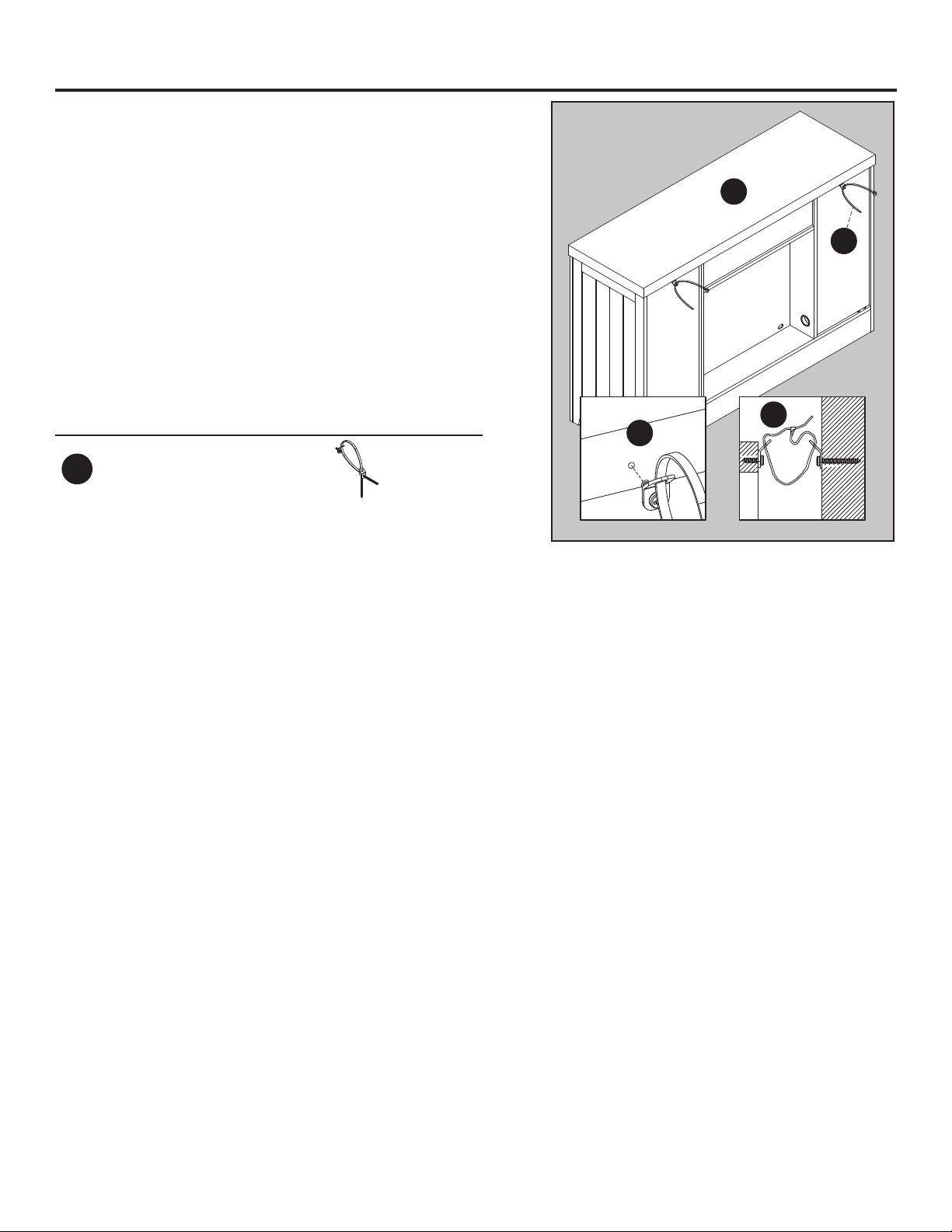

WARNING: You must install the tip restraint
hardware to help prevent any accidents or
damage to the unit. We strongly recommend
attaching the tip restraint hardware to a wall stud
and your unit. For all other wall types, please visit
your local hardware store to obtain the proper
hardware.
Assembly is now complete. With the help of
another person, move the unit to the final desired
position. Once in the final position, you may attach
the tip restraint hardware to the wall. You may now
plug the heater into the power outlet.
Hardware Used
DD Tip Restraint
Hardware x 2
A
DD
1
2

16

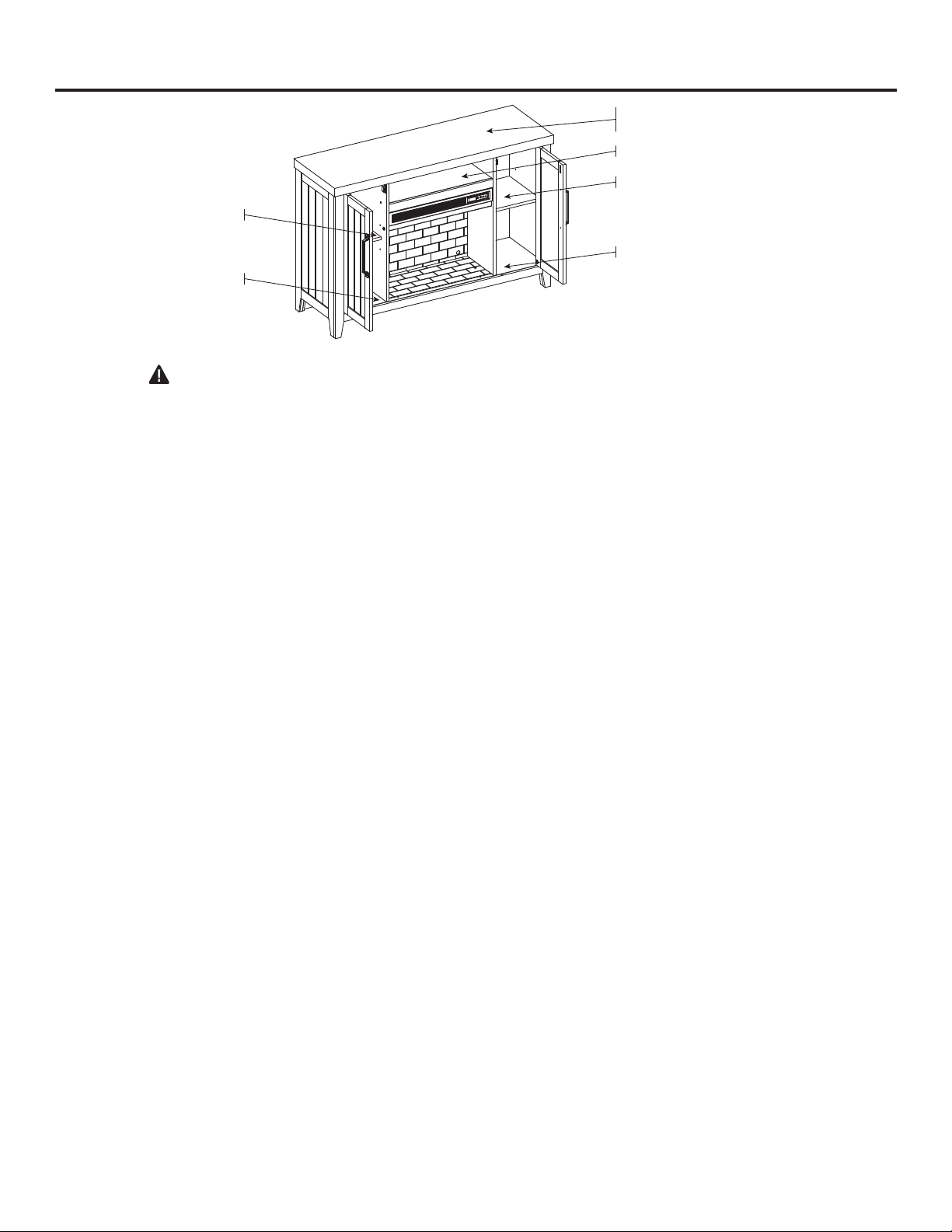

MAXIMUM RECOMMENDED WEIGHT LOADS
FITS UP TO MOST 127 cm / 50 in FLAT PANEL TVS
MAXIMUM LOAD 26.3 kg / 58 lb
MAXIMUM LOAD 9.07 kg / 20 lb
MAXIMUM LOAD 6.8 kg / 15 lb
MAXIMUM LOAD 6.8 kg / 15 lb
MAXIMUM LOAD 6.8 kg / 15 lb
MAXIMUM LOAD 6.8 kg / 15 lb
CAUTION: This console is intended for use with flat panel TV’s only. Do not exceed the maximum
weights indicated. Use with products heavier than the maximum weights may result in instability causing
possible injury.

17
OPERATING INSTRUCTIONS

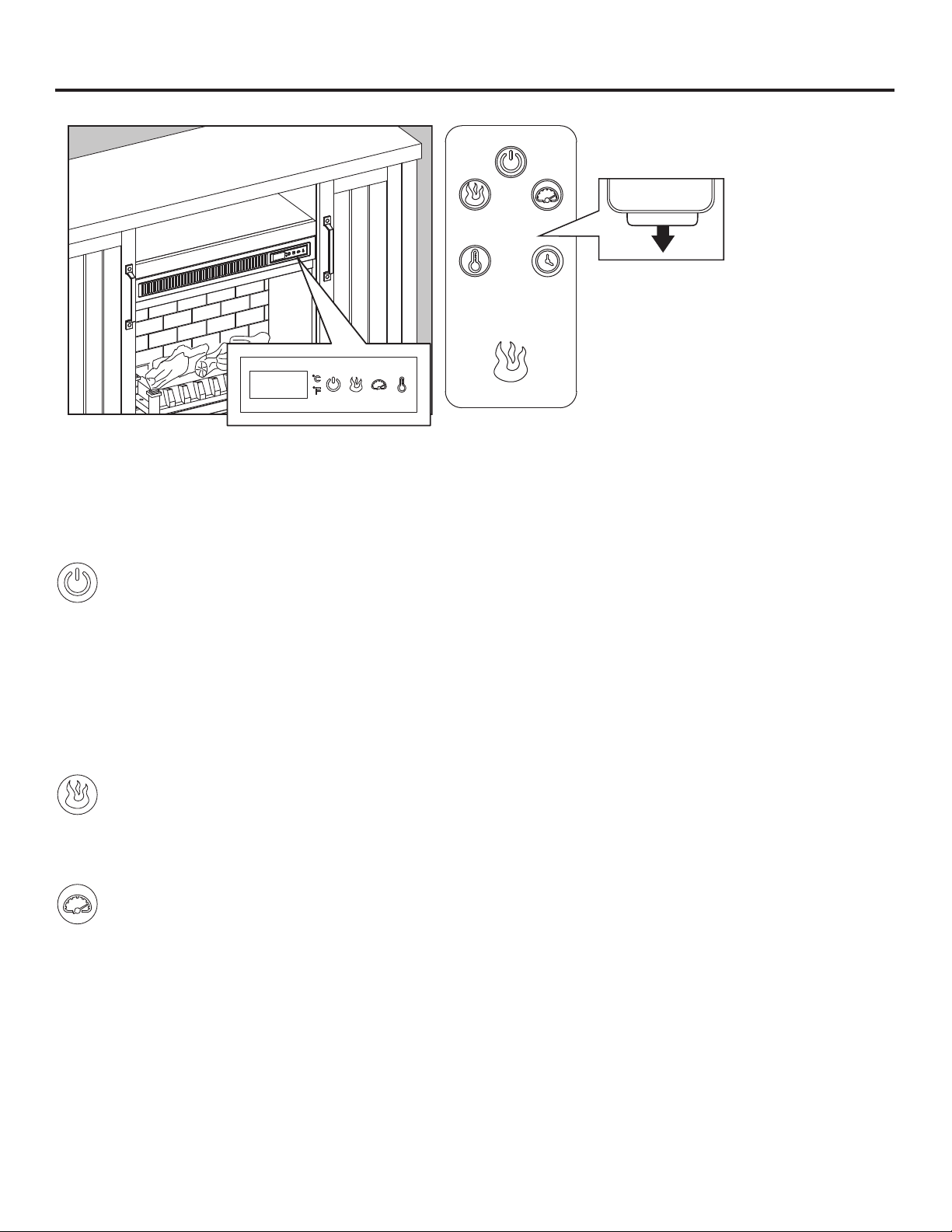

Control Panel Remote Control
To use the remote control, first remove
the plastic tab by gently pulling it out of
remote control.
Controls and Display
The control panel will display the heater setting when the unit power is turned ON. Whichever control icon
you press will display the current setting of the corresponding function. Press the control icon again to adjust
the setting. Following adjustment of any setting(s), the unit will resume to display the heater setting after 5
seconds.
Power Function
• When the unit is plugged-in but not in use, F or C will illuminate to indicate that it is in stand-by
mode.
• Press the POWER ICON to turn the main power to the unit ON or OFF.
• When the unit is powered ON, the control panel will display the heater setting to indicate the unit
has power.
• Functions stored in memory will resume at the last setting.
• When the unit is powered OFF, the fan will continue to blow for a 40 second cool-down cycle prior
to shutting down (a countdown will be displayed).
Flame Brightness Function
• Press the FLAME BRIGHTNESS ICON to display the current flame brightness setting.
• Press the FLAME BRIGHTNESS ICON again to scroll down through the flame brightness settings:
5, 4, 3, 2, 1, OF (OFF).
Flame Speed Function
• Press the FLAME SPEED ICON to display the current flame speed setting.
• Press the FLAME SPEED ICON again to scroll down through the flame speed settings: 5, 4, 3, 2, 1.

18
OPERATING INSTRUCTIONS (CONTINUED)
Heater Function
• Press the HEATER ICON to display the current heater setting.
• Press the HEATER ICON again to scroll down through the heater settings.
Note: Long-hold the icon to quickly scroll through settings.
• Set the heater to “HI” (High) to have the heater run continually.
• Set the heater to “OF” (OFF) to use the flame functions without heat.
• This heater has a thermostat sensor to control the ambient temperature in the surrounding area
of the fireplace. The heater will cycle ON and OFF to maintain the selected temperature. The
thermostat setting range is 90ºF (43°C) to 65°F (18°C).
Note: This may not exactly match the room thermostat reading as their sensors are located in
different areas.
• Hold down the FLAME SPEED ICON for 10 seconds to toggle between Fahrenheit and Celsius. “F”
or “C” will be displayed on the control panel (°F/°C can only be toggled from the control panel and
will not work if using the remote control).
• See HEATER OVERRIDE section to disengage the heater.
Sleep Timer Function (Remote Control Only)
• The Sleep TIMER function will set a countdown to shut down the unit’s main power.
• Press the TIMER ICON to display the current Sleep Timer setting.
• Press the TIMER ICON again to scroll through the timer settings, which are: 30 (minutes), 1H, 2H,
3H, 4H, 5H, 6H, 7H, 8H, 9H, OF (OFF).
• When the timer reaches zero, it will turn OFF the main power and will maintain all the settings in
memory.
HEATER OVERRIDE
The power to the heater can be disengaged to prevent the heater from being accidentally or unintentionally
powered on. This feature is primarily added to help prevent children from powering on the heater when it is not
desired.
Note: The heater override can only be set from the control panel and will not work if using the remote control.
• First turn the main power OFF. Press the POWER ICON; as the heater setting display is flashing, press the
POWER ICON again and long-hold 20 seconds. The E3 symbol will display to indicate that the heater is
now disengaged.
• Note: The Flame and Timer functions will operate normally. Only the heater is disengaged.
• Repeat the same process to re-engage the heater function. The E3 symbol will change back to display the
heater setting when the heater is re-engaged.
MEMORY FUNCTION
• This unit has a memory function that allows you to turn off the MAIN POWER and retains all the other
function settings (excluding the SLEEP TIMER function).

19
CARE AND MAINTENANCE
• Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are
cleaning the heater or fireplace.
• Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household
cleaners as these products will damage the metal trim.
• The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life
and require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater and air intake/
output vents are recommended.
• When the heater is not in use, the power cord should be stored properly to avoid contact with hot or sharp
objects.
• Any other servicing should be performed by an authorized service representative.
• Tips for using touch-up pen (EE): For scratches, stroke in direction of scratch. For worn areas, stroke in the
direction of wood grain. Rub excess colorant promptly with a soft cloth.
Replacing the Remote-Control Battery
When the remote control (O) stops operating or its range
seems reduced, it is time to replace the battery. Note: The
battery should be removed if the product is to be left unused
for a long time.
1. The battery compartment is located on the back end of the
remote control (O).
2. Press the small tab inward as you slide the battery door
open and remove the old battery.
3. Insert a new CR2025 lithium battery (not included),
checking that the + and - sides of the battery match the
inside of the battery compartment.
4. Re-insert the battery door.
BATTERY
O
Note: Non-rechargeable battery is not to be recharged. Exhausted battery is to be removed from the product.
Harmful if swallowed.
Disposal of Used Battery
A battery may contain hazardous substances that could be endangering the environment and human health.
• This symbol marked on the battery and/or packaging indicates that used
battery shall not be treated as municipal waste. Instead, it shall be left at
the appropriate collection point for recycling.
• By ensuring the used battery is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health. The recycling of materials will help to conserve natural resources.
• Do not dispose of battery in fire. Battery may explode or leak.
For more information about collection and recycling of used battery, please
contact your local municipality, your waste disposal service or the
point-of-sale where you purchased this battery.

20
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Error E1 displayed on
control panel.
The overheat sensor has
been engaged.
Unplug unit, wait 15-20 minutes, then the sensor will reset
itself. Plug the unit back in and turn on the heater. If the
problem persists, call customer service.
Note: The other functions will work normally excluding the
heater.
Error E2 displayed on
control panel.
The thermostat sensor
is broken or not working
correctly.
Unplug unit, wait 15-20 minutes, then the sensor will reset
itself. Plug the unit back in and turn on the heater. If the
problem persists, call customer service.
Note: The other functions will work normally excluding the
heater.
Error E3 displayed on
control panel.
Heater override function is
engaged.
See page 18 Heater Override Section for more details.
No power. The unit does not have
power.
Check that the power cord is securely plugged into a
standard 120V outlet. Then check to make sure the unit is
powered on.
No flame effect but the
unit is powered on.
The flame effect is
powered off.
Push the flame brightness button until desired level is
achieved.
USB cable. Connect the USB cable into the USB port behind the
Fireplace Grate.
Heater and blower
do not power on but
rest of functions are
working.
Heater setting. Set the heater to "HI" (High) to have the heater run
continually.
Power cord gets warm
to the touch.
Normal operation. This is normal for a heater appliance as it requires more
current to operate. Check the connections of the appliance
cord and the outlet. Make sure the plug fits tightly into the
outlet. During use, check the plug and outlet frequently to
determine if it is HOT; if so, discontinue use of the appliance
and consult with a qualified technician to check or change
the overheating outlet(s).
Remote control does
not work.
Weak or failing battery. Replace with 1 CR-2025 battery (See page 19 for more
information).
Remote control signal
is weak and only work
sometimes.
Pressing the buttons too
quickly.
Press the buttons slowly and steadily to ensure the
transmitter recognizes the request.
Using the remote control
too far away or at an off
angle.
Move closer to the insert; the remote control will only work
within a distance of 20 feet and 45 degrees to either side
from the front of the fireplace insert.
Fan motor continues
to blow after the unit is
powered off.
Normal operation. This is a standard feature; the blower runs for an additional
time to cool off the heater tubes.
