Style selections 34HF600GRA User manual

MODEL # 34HF600GRA
1
WALL HANGING
ELECTRIC FIREPLACE
Style Selections® is a registered
tradmark of LF, LLC. All rights reserved.
ITEM # 0385776
Français p.14
Español p.27
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-877-888-8225, 8 a.m. - 8 p.m., EST, Monday - Friday.

Product Specications ......................................................................................................................... 2
Important Information ........................................................................................................................... 3
Package Contents ................................................................................................................................ 5
Hardware Contents............................................................................................................................... 5
Preparation........................................................................................................................................... 6
Installation Instructions......................................................................................................................... 6
Operating Instructions .......................................................................................................................... 9
Care and Maintenance ........................................................................................................................11
Troubleshooting...................................................................................................................................11
Warranty ............................................................................................................................................. 12
Replacement Parts............................................................................................................................. 13
PRODUCT SPECIFICATIONS
TABLE OF CONTENTS
VOLTAGE 120 V, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
2

Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any question regarding the product, please call customer service at 1-877-888-8225,
9 a.m.-5 p.m., EST, Monday-Friday.
When using electrical appliances, always follow basic precautions to reduce the risk of re, electrical
shock, and injury to persons including the following:
1. Read all instructions before using this appliance.
2. This appliance is hot when in use. To avoid burns, do not touch hot surfaces with bare skin.
If provided, use handles when moving this appliance. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes and curtains at least 3 ft. from the front of this appliance.
WARNING: In order to avoid overheating, do not cover the heater.
WARNING: Use extreme caution when operating heater near children and the disabled.
3. The appliance is not to be used by children or persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction.
4. This appliance is not a toy. Supervise children playing near it.
5. If possible, always unplug this appliance when not in use.
6. Do not operate any heater with a damaged cord or plug, after the appliance malfunctions, or if it has
been dropped or damaged in any manner.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
8. Only a qualied service person should repair this product.
9. Under no circumstances should this replace be modied. Parts having to be removed for servicing
must be replaced prior to operating this replace again.
10. Do not use outdoors.
11. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never
locate this appliance where it may fall into a bathtub or other water container.
12. Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord
away from trafc areas and where it will not be tripped over.
13. To disconnect this appliance, turn controls to the off position, and then remove plug from outlet.
14. Connect to properly grounded outlets only.
15. This appliance, when installed, must be electrically grounded in accordance with local codes or, in
the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or for U.S.A.
installations, follow local codes and the National Electrical Code, ANSI/NFPA NO.70.
16. The heater must not be located immediately below a socket-outlet.
17. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause
an electric shock or re, or damage the appliance.
18. To prevent a possible re, do not block air intakes or exhaust in any manner. Do not use on soft
surfaces, like a bed, where opening may become blocked.
19. This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline,
paint or ammable liquids are used or stored. This replace should not be used as a drying rack for
clothing. Do not hang Christmas stockings or other decorations on or near this product.
20. Use this appliance only as described in the manual. Any other use not recommended by the
manufacturer may cause re, electric shock or injury to persons.
21. There is a thermostat limiter inside the heater. When the inner temperature overheating or abnormal
heating occurs, the thermostat protective device will cutoff the power supply to avoid damage to the
replace or risk of re.
3
IMPORTANT INFORMATION

22. Avoid the use of an extension cord because the extension cord may overheat and cause risk of re.
However, if you have to use an extension cord, the cord must be No.14 AWG minimum size and rated
not less than 1875 watts. The extension cord must be a three-wire cord with grounding type plug and
cord connection. The extension cord shall not be more than 20 ft. in length.

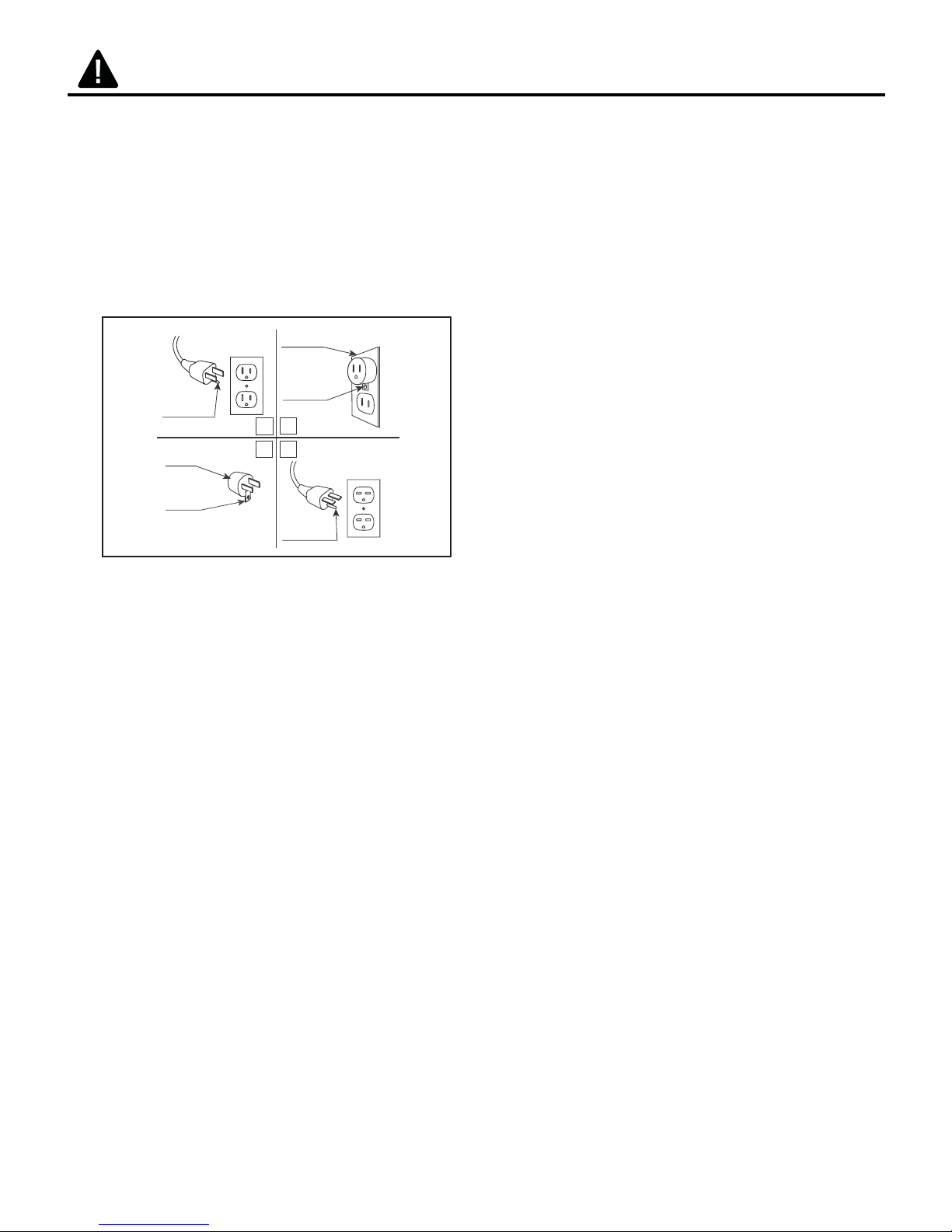

23. See directions in Figure 1. This heater is for use on 120 volts. The cord has a plug as shown in gure
1. See Figure 1 for grounding instruction. An adapter as shown at C is available for connecting three-
blade grounding type plugs to two-slot receptacles. The green grounding plug extending from the
adapter must be connected to a permanent ground such as a properly gounnded outlet box. The
adapter should not be used if a three-slot grounded receptacle is available.
B
A
C D
Fig. 1
IMPORTANT INFORMATION
4
SAVE THESE
INSTRUCTIONS
Grounding Pin
Cover Of Grounded
Outlet Box
Metal
Screws
Adapter
Grounding
Means
Grounding
Pin

PACKAGE CONTENTS
Part Description Quantity
A Mounting Bracket 1
B Wall Hanging Fireplace 1
C Bottom Bracket 1
D Bottom Base 1
E Remote Control 1
F Rocks 1
B
A
C
DEF
HARDWARE CONTENTS
Part Description Quantity
(Shown to size)
Screw
0.2 in. x 1.5 in.
Wall Plug
0.3 in. x 1.5 in.
4
4
BB
AA
5
Screw
1/4 in. x 0.7 in. 4
CC
Screw
1/4 in. x 0.5 in. 1
DD

6
PREPARATION
Before beginning installation of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt to
assemble, install or operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 15 minutes
Tools Required for Assembly (not included): Phillips screwdriver, Drill, Hammer
WARNING! Do not use this electric replace if any part has
been under water. Immediately call a qualied service
technician to inspect and to replace any part of the electrical
system if necessary. Keep plastic wrapping away from children.
• Open the packaging carefully and remove the foam.
• Remove and discard the plastic bag.
• Be responsible when handling the packing materials.
• Keep the original packaging for future transport and/or storage.
• Check that all accessories are removed before you discard the packing.
LOCATING YOUR ELECTRIC FIREPLACE
Your new electric replace may be installed virtually anywhere in your home. However, when
choosing a location ensure that the general instructions are followed. For best results, install out of direct
sunlight. Power supply service must be either completed or placed within the electric replace prior to
nishing to avoid reconstruction.
WARNING: Keep drapery and other furnishings
at least 3 ft. from the front and sides of the
electric replace.
Clearance to combustibles
Sides ….......................................................2 in.
Floor ........................................................... 2 in.
Top ..............................................................2 in.
Back ............................................................0 in.
FLOOR
min.
50 mm
2 in.
WALL
min. 50 mm
2 in.
min.
50 mm
2 in.
INSTALLATION INSTRUCTIONS
Fig. 1
1. Remove mounting bracket (A) from back of
Fireplace (B) by removing the two screws at the
top back of the unit. Choose a solid wall surface to
attach the mounting bracket (A). Position the
mounting bracket (A) in the desired location and
mark the four holes with a pencil (Fig. 1).

INSTALLATION INSTRUCTIONS
2. Drill 4 holes (∮0.32 in) in the wall. Insert
the wall anchors (BB) into the holes using a
hammer. (Fig. 2)
3. Attach the mounting bracket (A) to the wall
fastening the 4 screws (AA) into the wall
anchors (Fig. 3).
4. Hang the wall hanging replace (B) on
the hooks at bottom and push the wall
hanging replace (B) into mounting bracket
(A). Re-fasten the two screws removed in
Step 1.(Fig. 4)
Fig. 2
Fig. 3
Fig. 4
Wall Plug
0.3 in. x 1.5 in.
x 4
x 4
Screw
0.2 in. x 1.5 in.
Hardware Used
Hardware Used
BB
BB
AA
7
AA
B
A

8

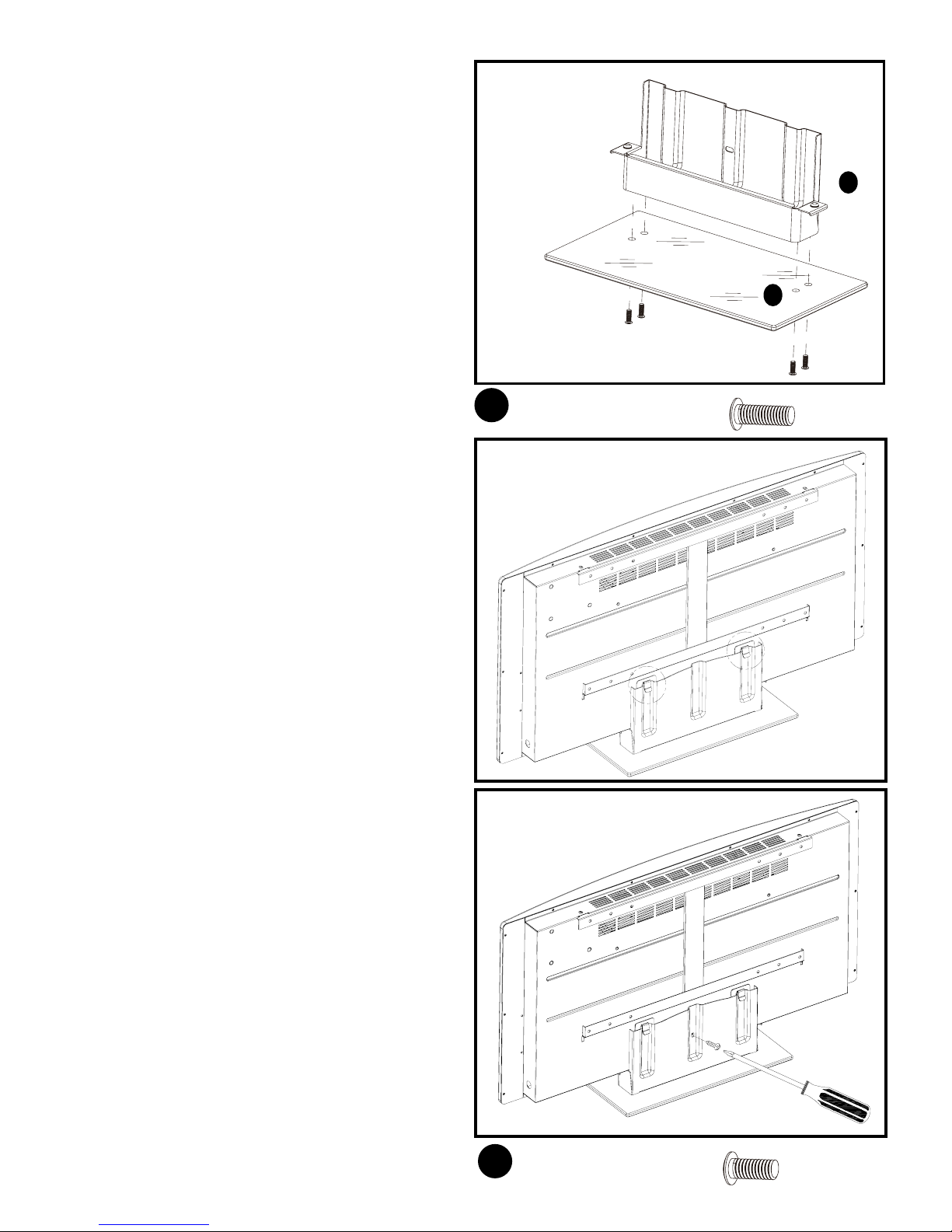

STAND BASE INSTALLATION INSTRUCTIONS
1. Use 4 screws to fasten the stand (C) to the
stand base (D.) (Fig. 5)
Fig. 5
C
D
Fig. 6
2. Mount main body to the stand base (Fig. 6).
x 4
Screw
1/4 in. x 0.7 in.
CC
3. Insert the stand bracket to the main body
and fasten with 1 screw. (Fig. 6)
Fig. 7
x 1
Screw
1/4 in. x 0.5 in.
DD

9
ELECTRICAL CONNECTION
A 15 AMP, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the replace will
be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or
the fuse to blow when the heater is in operation. The unit comes standard with 6 ft. three-prong cord,
exiting from the rear of the replace. Plan the installation to avoid the use of an extension cord. If an
extension cord must be used, it must be a minimum 14 AWG, three wire with grounding type plug
connector and rated not less than 1875 watts. The cord shall not be more than 20 ft. in length.
Cold climate installation recommendation: When installing this unit against a non-insulated
exterior wall or chase, the outer walls must be insulated to conform to applicable insulation
codes.
This appliance can be operated by both remote control and manual button. Once the unit has been
properly connected to an earthed electrical outlet, turn on the main power switch located on the left hand
side of the appliance. A beep should be heard when the power is rst applied.
OPERATING INSTRUCTIONS
CAUTION! The unit power cord must be connected to a properly grounded and protected 120V
outlet. Always use ground fault protection where required by the electrical code.
Do not operate the unit if it is damaged or has malfunctioned. If you suspect the
unit is damaged, please call a qualied service technician to inspect and to replace
any part of the electrical system if necessary.
NOTE: To use both remote control and manual functions, the main power switch must be in
“ON” position.
- POWER
The POWER button supplies power to all of the functions of the replace. The POWER button will put the
insert in a standby mode. This will turn off all functions at once but will hold the settings in the memory.
By pressing the POWER button again the unit will turn on at the same settings.
NOTE: Holding the POWER button on the control panel for 10 second will disable the heater function.
- FLAME
Each time the ame button is pressed, the intensity of the ame decreases. There are 6 brightness levels
you can cycle through and the OFF setting.
- HEATER
Your replace consists of a fan forced wire element type heater. The thermostat setting range is 62°F -
82°F or 17°C - 27°C or always ON.
This button on the remote control only turns ON and OFF heater function.
NOTE: To change between °F and °C press and hold the HEATER button on the control panel for 10
seconds.
- TIMER
Press the TIMER button will cycle through the 10 timer settings (30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H,
7H, 8H and 9H) and the OFF setting.
- BACKLIGHT
Press the backlight button will turn on and off backlight effects.

10
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Modications not approved by the party responsible for compliance could void user’s authority to oper-
ate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Note: please operate remote transmitter at a slow measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing buttons in rapid succession may cause the
transmitter to Malfunction.
REPLACING THE REMOTE CONTROL BATTERY
When the remote control stops operating or its range seems reduced, it is time to replace the batteries
with new ones. Remove the batteries if the remote control won’t be used for a long period of time.
1. The battery compartment is located on the back end of the remote.
2. Press the small tab inward as you slide the battery door open and remove the old batteries.
3. Replace with (2) AAA batteries (not included), making sure the + and - sides of the battery match the
inside of the battery compartment.
4. Replace the battery door.
Note: Do not mix old and new batteries.
Do not mix alkaline, standard (carbonzinc), or rechargeable (nicad, nimh, etc) batteries.
DISPOSAL OF USED BATTERIES
Batteries may contain hazardous substances which could be endangering to the
enviroment and to human health.
This symbol marked on the battery and/or packaging indicates that used battery shall
not be treated as municipal waste. Instead it shall be left at the appropriate collection
point for recycling.
By ensuring used batteries are disposed of correctly, you will help to prevent
potential negative consequences for the environment and human health. The
recycling of materials will help to conserve natural resources.
For more information about collection and recycling of used batteries, please contact
your local municipality or your waste disposal service.

11
CARE AND MAINTENANCE
CLEARANCE TO COMBUSTIBLES
Keep electrical cords, drapery, furniture and other combustibles at least 3 ft. from the front of the heater
and away from the sides.
CLEANING TRIM
Clean the metal trim using a soft cloth, slightly dampened with a citrus oil-based product and buff with a
clean soft cloth. Do not use brass polish or household cleaners as these products will damage the metal
trim. Citrus oil-based products can be obtained at supermarkets or hardware stores.
WARNING: Make sure the power is turned off before proceeding. Any electrical repairs
or rewiring of this unit should be carried out by a licensed electrician in accordance with
national and local codes.
If repairing or replacing any electrical component or wiring, the original wire routing,
color coding and securing locations must be followed.
WARNING: Electrical outlet wiring must comply with local building codes and other
applicable regulations to reduce the risk of re, electrical shock and injury to persons.
WARNING: Do not use this replace if any part of it has been under water. Immediately
call a qualied service technician to inspect the replace and replace any part of the
electrical system.
WARNING: Disconnect power before attempting any maintenance or cleaning to reduce
the risk of re, electrical shock or personal injury.
WARNING: During any service of this appliance, the power to the unit must be turned off.
First turn the main power switch to the OFF position. Then remove the electrical plug from
the wall outlet.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
No power. Power cord was not
plugged in the outlet.
Check that unit is plugged into a standard
120V outlet.
Main power switch is in “ON”
position, but no ame effect.
Spinner motor doesn’t
work.
Open the front panel and place in a safe
position, and check if the spinner motor
was working.
Have ame effect, but
heater does not blow warm air.
Heater or blower
doesn’t work.
Try to turn on/off heater button several times
to make sure it is at “ON” position, and the
indicator light should light up at the same
time.
Heater doesn’t work, but
power and heater switches
are in the “ON” position.
The product is on the
protected status.
Turn all switches to the “OFF” position and
unplug the unit from the wall outlet for 5
minutes. After 5 minutes plug the unit back
into wall outlet, and operate as normal.

12
1-YEAR LIMITED WARRANTY
The manufacturer warrants that your new electric replace is free from manufacturing and material
defects for a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this electric replace in accordance with the installation and operating
instructions furnished with the product at all times. Any unauthorized repair, alteration, willful abuse,
accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable and is made to the original owner, provided that the purchase was
made through an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or
workmanship, provided that such part(s) have been subjected to normal conditions of use and
service, after said defect is conrmed by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty
by refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from
defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty,
nor shall the manufacturer assume responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or
consequential loss or damage arising out of the use, or inability to use the product, except as
provided by law.
7. All other warranties – expressed or implied –with respect to the product, its components
and accessories, or any obligations/liabilities on the part of the manufacturer are hereby
expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume, on its behalf,
any other liabilities with respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories used
in conjunction with the installation of this product.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. There is any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
IF WARRANTY SERVICE IS NEEDED
Contact the manufacturer at www.twinstarhome.com or call our customer service department
at 1-877-888-8225, 9 a.m.-5 p.m., EST, Monday-Friday. Make sure you have your warranty,
your sales receipt, location of purchase and the model/serial number of your product.

13
REPLACEMENT PARTS LIST AND EXPLODED VIEW
For replacement parts, call our customer service department at 1-877-888-8225,
9 a.m.-5 p.m., EST, Monday-Friday.
1
2
3
4
5
7
6
8
9
I.D. No. Description Part No. Qty
1 Control Panel 5 Buttons Y12-S84-P85 1
2 Spinner Motor P10-Q 1
3 Right Backlight PCBA Y12-S84-P49R 1
4 Thermostat Sensor 34HF-NTC 1
5 Left Backlight PCBA Y12-S84-P49L 1
6Blower/Heater Assembly Y07-C26-P01 1
7 Flame PCBA Y12-S84-P40 1
8 Flame Generator/ Spinner Y12-S84-P11 1
9 Remote Control - 5 Buttons P91 1
