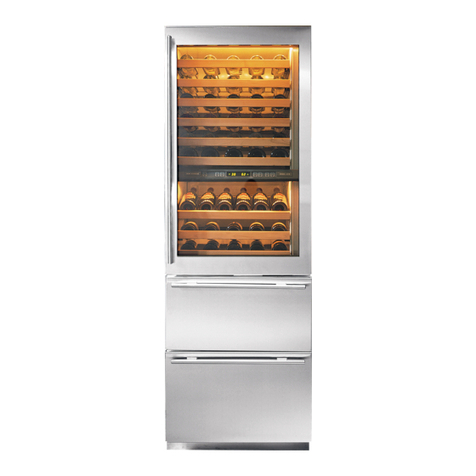

Sub-Zero Designer Series User manual

Designer Series Wine Storage
Installation Guide
SPECIFICATIONS, INSTALLATION,
AND MORE

2 | Sub-Zero Customer Care 800.222.7820
Contents
3Designer Series Wine Storage
4Opening Dimensions
5Electrical Requirements
6Preparation
6Anti-Tip Bracket
8Placement
9Alignment
10 Panels
12 Panel Installation
14 Completion
Features and specifications are subject to change at any
time without notice. Visit subzero.com/specs for the most
up-to-date information.
Designer Series Wine Storage
Important Note
To ensure this product is installed and operated as safely
and eciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION
Indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING
States a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified
IMPORTANT NOTE: Save these instructions for the local
electrical inspector.

subzero.com | 3
Product Information
Important product information, including the model and
serial number, are listed on the product rating plate. The
rating plate is located on the handle side wall, directly
below the control panel. Refer to the illustration below.
If service is necessary, contact Sub-Zero Factory Certified
Service with the model and serial number. For the name of
the nearest Sub-Zero Factory Certified Service or for ques-
tions regarding the installation, visit the Product Support
section of our website, subzero.com, or call Sub-Zero
Customer Care at 800-222-7820.
Rating plate location
RATING PLATE
Designer Series Wine Storage

4 | Sub-Zero Customer Care 800.222.7820
Site Preparation
Opening Dimensions
WINE STORAGE
OPENING DIMENSIONS W
18" Model 18" (457)
24" Model 24" (610)
30" Model 30" (762)
The depth of each wine storage model is 24" (610). Allow
for panel thickness when planning the finished open-
ing depth. A minimum 3⁄" (89) finished return is required
on all sides of the opening. Framed cabinets will require
additional finished filler material behind the face frame for
a proper installation. Refer to the illustration.
DUAL INSTALLATION
When installing two units side by side in a dual installa-
tion, the opening width is the width of the two units added
together. A dual installation kit is required for this installa-
tion. If a dual installation kit is not specified, a minimum
2" (51) filler strip is required between the units.
Dual installation kits are available through an authorized
Sub-Zero dealer. For local dealer information, visit the
find a showroom section of our website, subzero.com.
For questions regarding the installation, call Sub-Zero
Customer Care at 800-222-7820.
W
OPENING WIDTH
84"
(2134)
OPENING
HEIGHT
NOTE: 3
1/2" (89) finished returns will be visible and should be finished to match cabinetry.
SIDE VIE
W
TOP VIEW
FRONT VIEW
3/4" (19)
TYPICAL
FRAMED
CABINETRY
W
FILLER
31/2" (89)
FINISHED
RETURN
FRAMELESS
CABINETRY
W
3/4" (19)
TYPICAL
31/2" (89)
FINISHED
RETURN
25" (635)
OPENING
DEPTH

subzero.com | 5
Electrical Requirements
Installation must comply with all applicable electrical codes.
The electrical supply must be located within the shaded
area shown in the illustration and chart below. A separate
circuit servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and
may cause interruption of operation.
The electrical outlet must be positioned with the ground-
ing prong to the right of the thinner blades.
ELECTRICAL REQUIREMENTS
Electrical Supply 115 VAC, 60 Hz
Service 15 amp dedicated circuit
Receptacle 3-prong grounding-type
ELECTRICAL SUPPLY LOCATION A
18" Model 6" (152)
24" Model 9⁄" (241)
30" Model 12⁄" (318)
Site Preparation
CAUTION
The outlet must be checked by a qualified electrician
to be sure it is wired with the correct polarity. Verify
the outlet is properly grounded.
WARNING
Do not locate multiple portable socket-outlets,
power strip, or portable power supplies at the rear of
the appliance.
WARNING
Do not use an extension cord, two-prong adapter, or
remove the power cord ground prong.
A
1/4" (6)
1/4" (6)
41/4"
(108)
41/2"
(114)
FLOOR
LEFT SIDE
OF OPENING
Electrical supply location

6 | Sub-Zero Customer Care 800.222.7820
Preparation
Uncrate the unit and inspect for damage. Remove the
wood base and discard the shipping bolts and brackets.
Remove and recycle packing materials. Do not discard the
kickplate, anti-tip bracket, and hardware.
Remove the kickplate by extracting the two mounting
screws. Refer to the illustration below.
Site Preparation
SCREW
Kickplate removal
Anti-Tip Bracket
WARNING
To prevent the unit from tipping forward, the anti-tip
bracket must be installed.
The back of the anti-tip bracket must be installed 24" (610)
from the front of the unit (without panels). Use all the anti-
tip bracket hardware as instructed for wood or concrete
floors.
IMPORTANT NOTE: For wood or concrete floor applica-
tions, if the #12 screws do not hit a wall stud or wall plate,
use the #8 screws and #12 washers with the wall anchors.
IMPORTANT NOTE: In some installations, the subflooring
or finished floor may necessitate angling the screws used
to fasten the anti-tip bracket to the back wall.
ANTI-TIP HARDWARE
1 Anti-tip bracket
12 #12 x 2⁄" pan head screws
4 ⁄"–16 x 3⁄" wedge anchors
12 #12 flat washers
4 #8–18 x 1⁄" truss head screws
4 Nylon Zip-it®wall anchors

subzero.com | 7
Anti-Tip Bracket
WOOD FLOOR APPLICATION
After properly locating the anti-tip bracket in the open-
ing, drill pilot holes ⁄" (5) diameter maximum in the wall
studs or wall plate. Use the #12 screws and washers to
secure the brackets. Verify the screws penetrate through
the flooring material and into the wall studs or wall plate
a minimum of ⁄" (19). Refer to the illustration and chart
below.
CONCRETE FLOOR APPLICATION
After properly locating the anti-tip bracket in the opening,
drill pilot holes ⁄" (5) diameter maximum in the wall studs
or wall plate. Drill ⁄" (10) diameter holes into the concrete
a minimum of 1⁄" (38) deep. Use the #12 screws and
washers to secure the brackets to the wall, and use the ⁄"
wedge anchors to secure the brackets to the floor. Verify
the screws penetrate the wall studs or wall plate a mini-
mum of ⁄" (19). Refer to the illustration and chart below.
ANTI-TIP BRACKET PLACEMENT A
18" Model 9" (229)
24" Model 12" (305)
30" Model 15" (381)
Site Preparation
A
A
SUBFLOORING
WOOD FLOOR
WALL PLATE
FINISHED
FLOORING
A
A
SUBFLOORING
CONCRETE
FLOOR
WALL PLATE
FINISHED
FLOORING
11/2"(38)
min
Wood floor Concrete floor
CONCRETE WEDGE ANCHOR INSTALLATION
1 Drill a ⁄" (10) diameter hole any depth exceeding the
minimum embedment. Clean the hole or drill additional
depth to accommodate the drill fines.
2 Assemble the washer and nut flush with the end of
anchor to protect threads. Drive the anchor through
the material to be fastened until the washer is flush with
the surface material.
3 Expand the anchor by tightening the nut 3–5 turns past
hand-tight position or to 25 foot-pounds of torque.
WARNING
Verify there are no electrical wires or plumbing in the
area which the screws could penetrate.
CAUTION
Always wear safety glasses and use other neces-
sary protective devices or apparel when installing or
working with anchors.
Anchors are not recommended for use in lightweight
masonry material such as block or brick, or for use
in new concrete which has not had sucient time to
cure. The use of core drills is not recommended to
drill holes for the anchors.

8 | Sub-Zero Customer Care 800.222.7820
Site Preparation
Placement
CAUTION
Before moving the unit into position, secure the
door/drawers closed and protect any finished
flooring.
Use an appliance dolly to move the unit near the opening.
The front leveling legs are extended below the front rollers
to improve stability during placement. Once the unit is
placed in front of the opening, completely retract the front
leveling legs to allow the unit to be rolled into position.
The front and rear leveling legs can be adjusted from the
front once the unit is positioned.
If the unit has been on its back or side, it must stand
upright for a minimum of 24 hours before connecting
power.
Plug the power cord into the grounded outlet and roll the
unit into position. Verify the anti-tip bracket is properly
engaged.

subzero.com | 9
Installation
Alignment
LEVELING
Once the unit is in position, the height adjustment can be
made from the front. Using a Phillips drive, turn clockwise
to raise the unit or counterclockwise to lower. Use the
lowest torque setting when using a power drill. Do not turn
the leveling legs by hand. Refer to the illustration below.
When the unit is properly leveled, door/drawer adjust-
ments are less likely to be necessary.
IMPORTANT NOTE: Level the unit to the floor, not the sur-
rounding cabinetry. This could aect the operation of the
unit, such as door closing.
WARNING
To reduce the possibility of the unit tipping forward,
the front leveling legs must be in contact with the
floor.
REAR
ADJUSTMENT
FRONT
ADJUSTMENT
Leveling
ANCHORING
Adjust the depth of the unit to fit flush with the surround-
ing cabinetry. Once aligned, verify the door/drawers open
properly, then install the #8 x ⁄" flat-decorative head
screws in each side trim.
WARNING
To avoid a hazard due to instability of the appliance,
it must be fixed in accordance with the instructions.
FRONT OF
UNIT
CABINETRY
FACE
FRAME
PANEL
THICKNESS
SCREW
SIDE TRIM
Anchoring

10 | Sub-Zero Customer Care 800.222.7820
Custom Panels
Custom door/drawer panels and handle hardware must
be installed. Stainless steel panels are available through an
authorized Sub-Zero dealer. For local dealer information,
visit the find a showroom section of our website,
subzero.com.
The thickness of the custom panel can vary. A minimum
⁄" (16) thick panel is required, but the thickness can be
increased provided it does not exceed the maximum panel
weight indicated in the chart below. The depth of each
model is 24" (610). Allow for panel thickness when planning
the finished opening depth.
PANEL REQUIREMENTS
WEIGHT PER PANEL MAX
Door (column model) 35 lb (16 kg)
Door (tall model) 25 lb (11 kg)
Drawer 15 lb (7 kg)
PANEL THICKNESS MIN
All Panels ⁄" (16)
Reveals between panels can vary, ⁄" (3) reveals are typical.
CAUTION
When installing a panel thicker than 1" (25), the 90°
door stop may be required to prevent damage to the
unit and adjacent cabinetry.
CAUTION
As reveals between cabinetry and the unit decrease,
severe finger pinching can occur while the door is
closing.
Finish all sides of the custom panels. They will be visible
when the door is open.
D-style handles are recommended. Locate the door
handle near the edge of the panel opposite the hinge and
centered top to bottom. Locate the drawer handles near
the top edge of each panel. Stainless steel tubular and
pro handles are available through an authorized Sub-Zero
dealer. For local dealer information, visit the find a show-
room section of our website, subzero.com.
Panels

subzero.com | 11
Panels
Custom Panels
DOOR PANEL HEIGHT
The height of the custom door panel can extend beyond
the typical panel height, provided it does not exceed the
weight limit. Refer to the illustration below.
TOE KICK CLEARANCE
The height of the toe kick area can extend beyond the
typical toe kick height, provided it does not exceed the
dimensions in the illustration below. Toe kick heights from
2" (51) to 3⁄" (98) require a reduced toe kick accessory
available through an authorized Sub-Zero dealer. For ques-
tions regarding the installation, call Sub-Zero Customer
Care at 800-222-7820.
13/4"
(45)
A DECORATIVE VALANCE
CANNOT EXTEND
BEYOND THIS PLANE
DOOR
PANEL
HINGE
24" (610)
TO BACK OF UNIT
84"
(2134)
1/8" (3)
Upper valance (side view)
24" (610)
TO BACK OF UNIT
VENTED
LOUVERS
HINGE**
DOOR
PANEL
11/8" (29)
MAX
TOE KICK
ADJUSTMENT
A DECORATIVE TOE KICK
CANNOT EXTEND
BEYOND THIS PLANE
2" (51)*
TO
6" (152)
FROM
FLOOR
*2"(51) to 37/8"(98) requires sales accessory.
**Column models only.
Toe kick (side view)

12 | Sub-Zero Customer Care 800.222.7820
Panel Installation
DOOR PANEL
Typical panel dimensions are based on an 84" (2134) fin-
ished height with ⁄" (3) reveals. Placement of the template
must be adjusted for panels exceeding the typical dimen-
sions.
For tall models, the door panel should be installed first,
followed by the upper, then lower drawer panel.
Place the panel face down on a protected work surface.
Position the template flush with the top and sides of the
panel. Verify the correct side of the template is being used,
then mark and drill holes. Refer to the illustration below.
For tall models, align the notch in the template with the
bottom of the door panel, then mark and drill holes. Refer
to the illustration below.
Use a Torx drive to partially insert a #8 x ⁄" screw into the
second hole from the top on each side of the panel. The
screws should be approximately ⁄" (4) proud of the panel
and will support the weight of the panel during installation.
Align the support screws on the back of the panel with the
slotted holes on both door mounting brackets. Refer to
the illustration below. Opening the door slightly may help
with alignment. Once the panel is supported by the screws,
partially insert a #8 x ⁄" screw into the second hole from
the bottom on each side of the panel, but do not tighten.
CAUTION
As reveals between cabinetry and the unit decrease,
severe finger pinching can occur while the door is
closing.
BACK OF
DOOR PANEL
Door panel mounting
BOTTOM OF
DOOR PANEL
EDGE OF DOOR PANEL
USE TABS FOR HINGE
SIDE PANEL EDGE ON
DUAL INSTALLATION
TOP OF
DOOR PANEL
84" APPLICATION
83 7/8" ACTUAL
EDGE OF DOOR PANEL
TOP OF DOOR PANEL
BOTTOM OF
DOOR PANEL
EDGE OF DOOR PANEL
USE TABS FOR HINGE
SIDE PANEL EDGE ON
DUAL INSTALLATION
TOP OF
DOOR PANEL
84" APPLICATION
83 7/8" ACTUAL
EDGE OF DOOR PANEL
BOTTOM OF
DOOR PANEL
Door panel template—top Door panel template—bottom
(tall model)
Panel Installation

subzero.com | 13
PANEL ADJUSTMENT
Close the door/drawers, now adjustments can be made to
align the panels and reveals.
For side-to-side adjustment, move the panels side to side,
then install and tighten all mounting screws.
For up-and-down and in-and-out adjustments, slightly
loosen the bracket screws. Depending on the level of
adjustment required, it may be helpful to loosen all of the
bracket screws which will allow for maximum adjustment.
Once the bracket screws are loosened, use a wrench to
rotate the cams to make adjustments. After the adjust-
ments have been made, tighten all bracket screws. Refer to
the illustrations below.
BRACKET
SCREWS
IN-AND-OUT
CAM
BRACKET
SCREWS
UP-AND-DOWN
CAM
In-and-out adjustment Up-and-down adjustment
Panel Installation
DRAWER PANELS (TALL MODEL)
Place the panel face down on a protected work surface.
Position the template flush with the top and sides of the
panel. Verify the correct side of the template is being used,
then mark and drill holes. Refer to the illustration below.
Use a Torx drive to partially insert a #8 x ⁄" screw into the
second hole from the top on each side of the panel. The
screws should be approximately ⁄" (4) proud of the panel
and will support the weight of the panel during installation.
Align the support screws on the back of the panel with the
slotted holes on both drawer mounting brackets. Refer
to the illustration below. Opening the drawer slightly may
help with alignment. Once the panel is supported by the
screws, partially insert a #8 x ⁄" screw into the second
hole from the bottom on each side of the panel, but do
not tighten.
RIGHT EDGE OF DRA
WER PANEL
TOP HOLES
FOR UPPER
AND LOWER
DRAWERS
BOTTOM
HOLES FOR
LOWER
DRAWER
BOTTOM
HOLES FOR
UPPER
DRAWER
7021340
TOP OF
DRAWER PANEL
LEFT EDGE OF DRAWER PANEL
TOP OF DRAWER PANEL BACK OF
DRAWER PANEL
Drawer panel template—top Drawer panel mounting
Panel Installation

14 | Sub-Zero Customer Care 800.222.7820
Completion
DOOR TRIM INSTALLATION
After the panels have been adjusted, install the decorative
side trim to the door/drawers. To install, start at the top
and align the trim with the front and rear flanges on the
bracket, then snap into place by pushing the trim toward
the back of the panel. Once the top is secure, continue the
installation downward until the remaining trim is com-
pletely secure. Refer to the illustrations below.
Side trim
SIDE TRIM
FRONT
FLANGE
REAR
FLANGE
Door side trim Bracket flanges
Installation
SIDE TRIM INSTALLATION
Install the decorative trim strip to the handle side of tall
and column models. The side trim snaps over the bracket
attached to the handle side of the unit. Refer to the illustra-
tion below.

subzero.com | 15
90° DOOR STOP
A 105° door stop is built into the hinges. To limit the door
swing to 90°, open the door slightly less than 90°, then use
a standard screwdriver blade to remove the existing clips
from each hinge. Locate the 90° clips from inside the plas-
tic bag containing the product literature, then insert the
90° clips onto each hinge. Refer to the illustration below.
WARNING
Follow all city and state laws when storing, recycling,
or discarding unused refrigerators and freezers.
CLIP
90° door stop
Installation
Completion
KICKPLATE INSTALLATION
Position the kickplate and install using the two mount-
ing screws. Refer to the illustration below. Kickplate must
be removable for service. The floor cannot interfere with
removal.
A maximum 6" (152) decorative kickplate can be attached
to the factory-installed kickplate. The two rows of vented
louvers can be covered if the door panel is a minimum 4"
(102) from finished floor.
To install a decorative kickplate, remove the paper backing
from the magnets and attach the decorative kickplate to
the magnets. The magnets allow the decorative kickplate
to be removed if necessary.
Turn power on by touching “power” on the control panel.
SCREWMAGNET
Kickplate installation
Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowflake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf &
Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries.
All other trademarks are property of their respective owners in the United States and other countries.

2 | Atención al cliente de Sub-Zero 800.222.7820
Contenido
3Almacenamiento de vinos de la serie diseñador
4Dimensiones de abertura
5Requisitos eléctricos
6Preparación
6Soporte antivuelco
8Colocación en posición
9Alineación
10 Paneles
12 Instalación de los paneles
14 Finalización
Las características y especificaciones están sujetas a
cambios sin previo aviso. Visite subzero.com/specs para
obtener la información más actualizada.
Almacenamiento de vinos de la serie diseñador
Aviso importante
Para garantizar que este producto se instale y opere de
la forma más segura y eficiente posible, tome nota de los
siguientes tipos de información resaltada en este manual:
AVISO IMPORTANTE señala la información que es
especialmente importante.
PRECAUCIÓN
Indica una situación en la que se pueden sufrir
heridas leves o provocar daños al producto si no se
siguen las instrucciones.
ADVERTENCIA
Indica peligro de que se produzcan heridas graves o
incluso la muerte si no se siguen las precauciones.
AVISO IMPORTANTE: En toda esta guía, las dimensiones
entre paréntesis son milímetros, a menos que se
especifique lo contrario.
AVISO IMPORTANTE: Guarde estas instrucciones para el
inspector eléctrico local.

subzero.com | 3
Información del producto
La información importante del producto, incluido el
modelo y número de serie de la unidad, se encuentra en la
placa de datos del producto. La placa de datos se encuen-
tra en la parte de abajo del panel de control, a la izquierda.
Consulte la siguiente ilustración.
Si necesita servicio, póngase en contacto con el centro
de servicio autorizado de Sub-Zero y tenga a la mano el
modelo y número de serie de la máquina. Para obtener los
datos del centro de servicio autorizado de Sub-Zero más
cercano o si tiene preguntas acerca de la instalación, visite
la sección de Soporte de productos de nuestro sitio web,
subzero.com o llame a la línea de atención al cliente de
Sub-Zero al 800-222-7820.
Ubicación de la placa de datos
PLACA DE DATOS
Almacenamiento de vinos de la serie diseñador

4 | Atención al cliente de Sub-Zero 800.222.7820
Preparación del sitio
Dimensiones de abertura
ALMACENAMIENTO DE VINOS
DIMENSIONES DE ABERTURA A
Modelo de 18" 18" (457)
Modelo de 24" 24" (610)
Modelo de 30" 30" (762)
La profundidad de cada modelo de almacén de vinos es
24" (610). Para determinar la profundidad de la abertura ya
con acabados, considere el grosor del panel. Se necesita
un tubo de retorno de 3⁄" (89) con acabados en todos los
lados de la abertura. Los gabinetes con marco necesitarán
material de relleno de acabado detrás del marco frontal
para lograr una instalación adecuada. Consulte la ilus-
tración.
INSTALACIÓN DOBLE
Al colocar dos unidades juntas en una instalación doble,
el ancho de la abertura es la suma del ancho de ambas
unidades. Para esta instalación se requiere un kit de insta-
lación doble. Si el uso de un kit de instalación doble no
está especificado, se debe utilizar una tira de relleno de 2"
(51) como mínimo entre las unidades.
Los kits de instalación doble están disponibles a través de
un distribuidor autorizado de Sub-Zero. Para obtener más
información acerca de los distribuidores locales, visite la
sección para encontrar una sala de exhibición de nuestro
sitio web, subzero.com. Para preguntas sobre la insta-
lación, comuníquese con la línea de atención al cliente de
Sub-Zero al 800-222-7820.
25" (635)
PROFUNDIDAD
DE LA
ABERTURA
A
ANCHO DE
LA ABERTURA
84"
(2134)
ALTURA DE
LA ABERTURA
NOTA:
Los tubos de retorno de 31/2" (89) con acabados se podrán ver y se deben terminar
para que se ajusten a los gabinetes.
VIST
A LATERAL
VISTA SUPERIOR
VISTA FRONTAL
TÍPICO
DE 3/4" (19)
GABINETE CON
MARCO
A
RELLENO
TUBO DE
RETORNO DE
31/2" (89) CON
ACABADOS
TUBO DE
RETORNO DE
31/2" (89) CON
ACABADOS
GABINETE SIN
MARCO
A
TÍPICO
DE 3/4" (19)

subzero.com | 5
Requisitos eléctricos
La instalación debe cumplir con todos los códigos eléc-
tricos vigentes. El suministro eléctrico debe colocarse
dentro del área sombreada que se muestra en la siguiente
ilustración. Es necesario un circuito independiente que dé
servicio únicamente a este aparato. No es recomendable
utilizar un circuito de fallos de conexión a tierra (GFCI, por
sus siglas en inglés) ya que puede interrumpir el funcio-
namiento de la unidad. El tomacorriente eléctrico debe
colocarse de tal forma que la clavija con conexión a tierra
quede a la derecha de las aspas más delgadas.
REQUISITOS ELÉCTRICOS
Suministro eléctrico 115 V CA, 60 Hz
Servicio Circuito dedicado de 15 amperes
Receptáculo Conexión a tierra de 3 clavijas
UBICACIÓN DEL SUMINISTRO ELÉCTRICO A
Modelo de 18" 6" (152)
Modelo de 24" 9⁄" (241)
Modelo de 30" 12⁄" (318)
Preparación del sitio
PRECAUCIÓN
Un electricista calificado debe revisar el tomacor-
riente para asegurarse de que la conexión se haya
realizado con la polaridad correcta. Verifique que el
tomacorriente esté debidamente conectado a tierra.
ADVERTENCIA
No ubique múltiples tomas de corriente portátiles,
regletas o fuentes de alimentación portátiles en la
parte posterior del aparato.
ADVERTENCIA
No utilice un cable de extensión ni retire la clavija
con conexión a tierra del cable de alimentación.
A
1/4" (6)
1/4" (6)
41/4"
(108)
41/2"
(114)
SUELO
LADO IZQUIERDO
DE LA ABERTURA
Ubicación del suministro
eléctrico

6 | Atención al cliente de Sub-Zero 800.222.7820
Preparación
Desembale la unidad e inspeccione si tiene algún daño.
Retire la base de madera y deseche los pernos y soportes
de transporte. Retire y recicle los materiales de embalaje.
No deseche el zócalo, el soporte antivuelco ni las piezas
de montaje.
Para quitar el zócalo extraiga los dos tornillos para mon-
taje. Consulte la siguiente ilustración.
TORNILLO
Extracción del zócalo
Preparación del sitio
Soporte antivuelco
ADVERTENCIA
Para evitar que la unidad se vuelque hacia el frente,
debe instalarse el soporte antivuelco.
La parte posterior del soporte antivuelco debe instalarse a
24" (610) del frente de la unidad (sin paneles).
Utilice todas las piezas de montaje de los soportes anti-
vuelco de acuerdo con las instrucciones para suelos de
madera o de concreto.
AVISO IMPORTANTE: Para aplicaciones en suelo de
madera o de concreto, si los tornillos del #12 no alcanzan
un travesaño o la placa de pared, utilice tornillos del #8 y
arandelas del #12 con los anclajes de pared.
AVISO IMPORTANTE: En algunas instalaciones el contra-
piso o el suelo terminado pueden necesitar inclinar los
tornillos utilizados para sujetar el soporte antivuelco a la
pared del fondo.
