Sumitomo Drive Technologies P1-PN Operating instructions

ManualDM3403E-1
PROFINETforCommunicationoption
Model:P1-PN
OperatingandMaintenanceManual
HF-430NEOSeries
1. Makesurethatthisoperatingandmaintenencemanualis
 deliveredtotheenduserofinverterunit.
2. Readthismanualbeforeinstallingoroperatingtheinverter
 unit,andstoreitinasafeplaceforreference.
NOTICE
Power Transmission & Controls Group
Headquarter ThinkPark Tower, 1-1 Osaki 2-chome, Shinagawa-ku, Tokyo 141-6025, Japan
Specications, dimensions, and other items are subject to change without prior notice.
No.DM3403E-1.0
EA10 Printed 2020.01
Worldwide Locations
U.S.A
Sumitomo Machinery Corporation of America
(SMA)
4200 Holland Blvd. Chesapeake, VA 23323, U.S.A.
TEL [phone] FAX [phone]
Canada
SM Cyclo of Canada, Ltd. (SMC)
1453 Cornwall Road, Oakville, Canada ON L6J 7T5
TEL [phone] FAX [phone]
Mexico
SM Cyclo de Mexico, S.A. de C.V. (SMME)
Av. Desarrollo 541, Col. Finsa, Guadalupe,
Nuevo León, México, CP67132
TEL [phone] FAX [phone]
Brazil
Sumitomo Industrias Pesadas do Brasil Ltda.
(SHIB)
Rodovia do Acucar (SP-075) Km 26
Itu, Sao Paulo, Brasil
TEL [phone] FAX [phone]
Chile
SM-Cyclo de Chile Ltda. (SMCH)
Camino Lo Echevers 550, Bodegas 5 y 6,
Quilicura, Región Metropolitana, Chile
TEL [phone] FAX [phone]
Argentina
SM-Cyclo de Argentina S.A. (SMAR)
Ing Delpini 2230, B1615KGB Grand Bourg,
Malvinas Argentinas, Buenos Aires, Argentina
TEL [phone] FAX [phone]
Guatemala
SM Cyclo de Guatemala Ensambladora, Ltda.
(SMGT)
Parque Industrial Unisur, 0 Calle B 19-50 Zona 3,
Bodega D-1 Delta Bárcenas en Villa Nueva, Guatemala
TEL [phone] FAX [phone]
Colombia
SM Cyclo Colombia, S.A.S. (SMCO)
Parque Industrial Celta, Km 7.0 Autopista Medellín,
Costado Occidental, Funza, Cundinamarca, Colombia
TEL [phone]
Peru
SM Cyclo de Perú, S.A.C (SMPE)
Jr. Monte Rosa 255, Ocina 702, Lima,
Santiago de Surco, Perú
TEL [phone] FAX [phone]
Germany
Sumitomo (SHI) Cyclo Drive Germany GmbH
(SCG)
Cyclostraße 92, 85229 Markt Indersdorf, Germany
TEL [phone] FAX [phone]
Austria
Sumitomo (SHI) Cyclo Drive Germany GmbH
(SCG)
SCG Branch Austria Oce
Gruentalerstraße 30A, 4020 Linz, Austria
TEL [phone] FAX [phone]
Belgium
Hansen Industrial Transmissions NV (HIT)
Leonardo da Vincilaan 1, Edegem, Belgium
TEL [phone] FAX [phone]
France
SM-Cyclo France SAS (SMFR)
8 Avenue Christian Doppler, 77700 Serris, France
TEL [phone] FAX [phone]
Italy
SM-Cyclo Italy Srl (SMIT)
Via dell' Artigianato 23, 20010 Cornaredo (MI), Italy
TEL [phone] FAX [phone]
Spain
SM-Cyclo Iberia, S.L.U. (SMIB)
C/Gran Vía Nº 63 Bis, Planta 1, Departamento 1B
48011 Bilbao–Vizcaya, Spain
TEL [phone] FAX [phone]
United Kingdom
SM-Cyclo UK Ltd. (SMUK)
Unit 29, Bergen Way, Sutton Fields Industrial Estate,
Kingston upon Hull, HU7 0YQ, East Yorkshire,
United Kingdom
TEL [phone] FAX [phone]
Turkey
SM Cyclo Turkey Güç Aktarım Sis. Tic. Ltd. Sti.
(SMTR)
Barbaros Mh. Çiğdem Sk. Ağaoğlu, Ofce Mrk. No:1 Kat:4 D.18
Ataşehir, İstanbul, Turkey
TEL [phone] FAX [phone]
India
Sumi-Cyclo Drive India Private Limited (SDI)
Gat No. 186, Raisoni Industrial Park, Alandi Markal Road,
Fulgaon-Pune, Maharashtra, India
TEL [phone]
China
Sumitomo (SHI) Cyclo Drive China, Ltd. (SCT)
11F, SMEG Plaza, No. 1386 Hongqiao Road,
Changning District, Shanghai, China （P.C. 200336）
TEL [phone] FAX [phone]
Hong Kong
SM-Cyclo of Hong Kong Co., Ltd. (SMHK)
Rm 1301, CEO Tower, 77 Wing Hong Street,
Cheung Sha Wan, Kowloon, Hong Kong
TEL [phone] FAX [phone]
Korea
Sumitomo (SHI) Cyclo Drive Korea, Ltd. (SCK)
Royal Bldg. 19 Rm. 913, 5 Saemunan-ro 5-Gil Jongro-Gu
Seoul, Korea 03173
TEL [phone] FAX [phone]
Taiwan
Tatung SM-Cyclo Co., Ltd. (TSC)
22 Chungshan N. Road 3rd., Sec. Taipei, Taiwan 104,
R.O.C.
TEL [phone] FAX [phone]
Singapore
Sumitomo (SHI) Cyclo Drive Asia Pacic Pte.
Ltd. (SCA)
15 Kwong Min Road, Singapore 628718
TEL [phone] FAX [phone]
Philippines
Sumitomo (SHI) Cyclo Drive Asia Pacic Pte. Ltd.
Philippines Branch Oce (SMPH)
C4 & C5 Buildings Granville Industrial Complex, Carmona,
Cavite 4116, Philippines
TEL [phone] FAX [phone]
Vietnam
SM-Cyclo (Vietnam) Co., Ltd. (SMVN)
Factory 2B, Lot K1-2-5, Road No. 2-3-5A,
Le Minh Xuan Industrial Park, Binh Chanh Dist.,
HCMC, Vietnam
TEL [phone] FAX [phone]
Malaysia
SM-Cyclo (Malaysia) Sdn. Bhd. (SMMA)
No.7C, Jalan Anggerik Mokara 31/56, Kota Kemuning,
Seksyen 31, 40460 Shah Alam, Selangor Darul Ehsan,
Malaysia
TEL [phone] FAX [phone]
Indonesia
PT. SM-Cyclo Indonesia (SMID)
Jalan Sungkai Blok F 25 No. 09 K, Delta Silicon III,
Lippo Cikarang, Bekasi 17530, Indonesia
TEL [phone] FAX [phone]
Thailand
SM-Cyclo (Thailand) Co., Ltd. (SMTH)
195 Empire Tower, Unit 2103-4, 21st Floor, South
Sathorn Road, Yannawa, Sathorn, Bangkok 10120,
Thailand
TEL [phone] FAX [phone]
Australia
Sumitomo (SHI) Hansen Australia Pty. Ltd.
(SHAU)
181 Power St, Glendenning, NSW 2761, Australia
TEL [phone] FAX [phone]
Japan
Sumitomo Heavy Industries, Ltd. (SHI)
ThinkPark Tower, 1-1 Osaki 2-chome, Shinagawa-ku,
Tokyo 141-6025, Japan
TEL [phone] FAX [phone]

Copyright © 2020 Sumitomo Heavy Industries,Ltd. All rights reserved.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, mechanical, electronic, photocopying, recording, or otherwise,
without the prior written permission of Sumitomo. No patent liability is assumed with respect to the use of
the information contained herein. Moreover, because Sumitomo is constantly striving to improve its
high-quality products, the information contained in this manual is subject to change without notice. Every
precaution has been taken in the preparation of this manual. Sumitomo assumes no responsibility for
errors or omissions. Neither is any liability assumed for damages resulting from the use of the information
contained in this publication.

1
Introduction
Thank you for purchasing the P1-PN communication option for HF-430NEO series inverter.
This instruction manual describes how to handle and maintain the P1-PN. Please read this manual carefully
before using the P1-PN, and keep it handy for those who operate, maintain and inspect it.
For the purpose of reducing paper consumption and provision of the latest information, we enclose the
instruction manual only, while providing the User's Guide for more detailed description through electronic
data instead of CD or printed document.
■Instruction manual (this document)
The instruction manual provides the minimum information necessary for handling the product.
Please make sure to read the Instruction manual as well as the User's Guide for more detailed information.
■User's Guide (P1-PN)
The User's Guide provides detailed information necessary for handling the product.
Please make sure to read User's Guide for proper use.
If future updated descriptions differ from the Basic Guide, the description in the User's Guide will have
higher priority. Always use the P1-PN strictly within the range described in the User's Guide and perform
proper inspection and maintenance to prevent failures or accidents.
The latest version of the User's guide can be obtained through our website.
■Handling the inverter HF-430NEO
For handling the inverter, please make sure to read its Instruction manual and User's Guide.
■For a proper use
Before using the inverter, please read carefully the inverter's Instruction manual and User's Guide, the P1-
PN User's Guide and this manual.
In Addition any personnel handling or performing maintenance of the product must read carefully the
inverter's Instruction manual and User's Guide, the P1-PN User's Guide and this manual.
Before any attempt to install, operate, maintain or inspect this equipment, a complete understanding of the
equipment specifications, safety instructions, precautions, handling and operation instructions is required.
Please follow all the specifications and instructions for a proper use. Additionally, periodically review the
inverter's Instruction manual and User's Guide, the P1-PN User's Guide and this manual.
■Precautions
It is prohibited to reproduce or reform this document partially or totally in any form without the publisher's
permission.
The contents of the document are subject to change without prior notice.
Any handling, maintenance or operation method NOT described on the inverter's Instruction manual and
User's Guide, the P1-PN User's Guide or this manual is not covered by the product warranty.
Please DO NOT perform any procedure NOT described on the HF-430NEO or the P1-PN manuals since it
can be the cause of unexpected failures or accidents.
We are not responsible for any impact from operations regardless of unexpected failure or accident due to
operation or handling of the product in a manner not specified on the inverter's Instruction manual and
User's Guide, the P1-PN User's Guide or this manual. We appreciate your understanding.
Note that, in case the inverter's Instruction manual and User's Guide, the P1-PN User's Guide and this
manual are enclosed, they should be delivered to the end user of the inverter. Also make sure to download
and keep accessible any other related guides or instruction manuals for the end user.

2
Table of Contents
●Introduction ・・・・・・・・・・・・・・・・・・・・・・・・・・・・1
●Table of Contents ・・・・・・・・・・・・・・・・・・・・・・・・・・2
1. Precautions
1.1 Please be Careful！・・・・・・・・・・・・・・・・・・・・・・・・3
1.2 Precautions during the installation！・・・・・・・・・・・・・・・・3
1.3 Precautions during the wiring！・・・・・・・・・・・・・・・・・・・4
1.4 Precautions during operation！・・・・・・・・・・・・・・・・・・・5
1.5 Precautions during Maintenance/Inspection！・・・・・・・・・・・・6
1.6 Precautions for disposal！・・・・・・・・・・・・・・・・・・・・・6
1.7 Other Precautions！・・・・・・・・・・・・・・・・・・・・・・・・6
2. The enclosed items ・・・・・・・・・・・・・・・・・・・・・・・・7
3. Verification after the purchase ・・・・・・・・・・・・・・・・・7
4. Product Inquiry ・・・・・・・・・・・・・・・・・・・・・・・・・・7

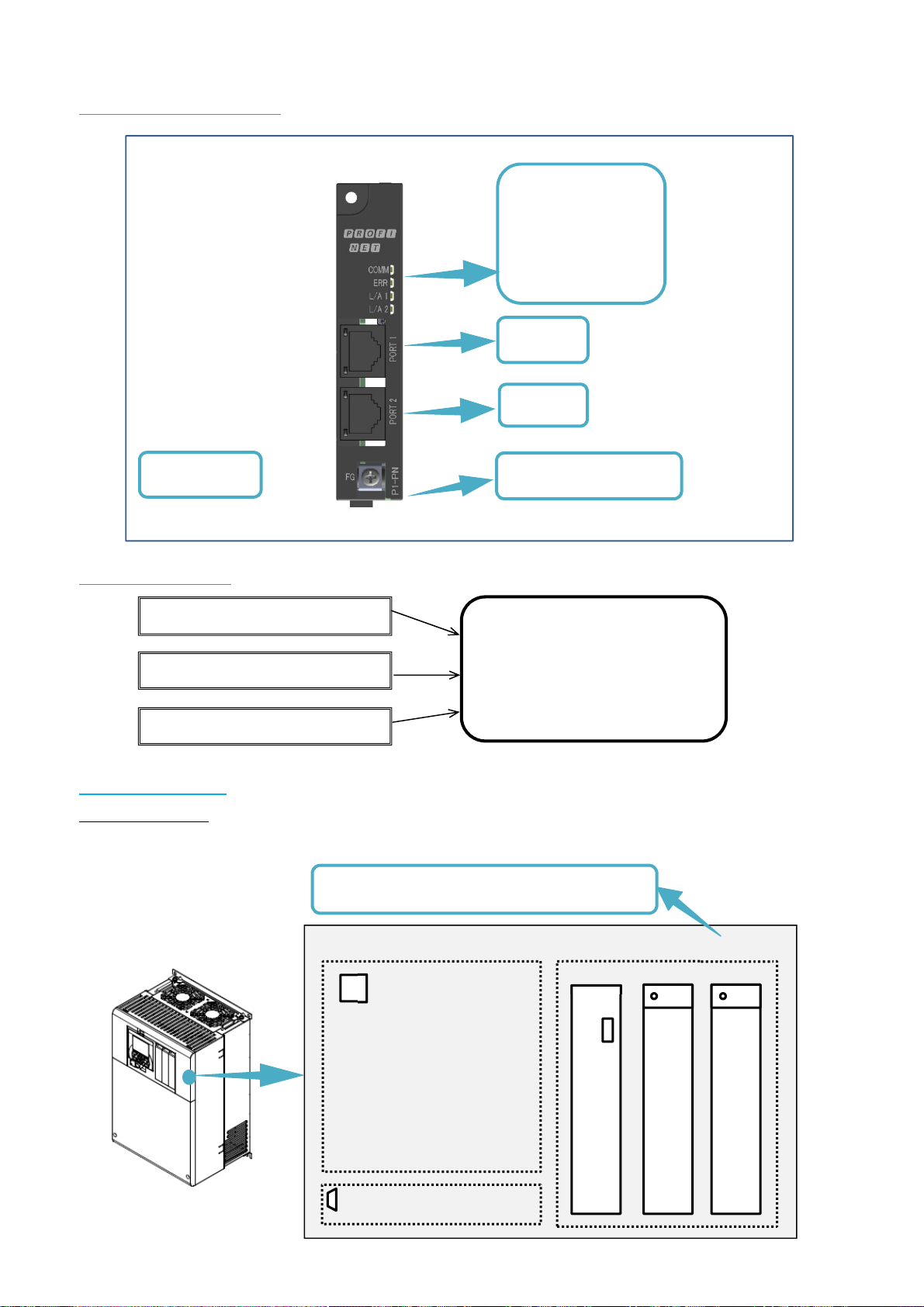

5. External Features ・・・・・・・・・・・・・・・・・・・・・・・・・8
6. Name plate ・・・・・・・・・・・・・・・・・・・・・・・・・・・・8
7. Installation
7.1 Installation ・・・・・・・・・・・・・・・・・・・・・・・・・・・・8

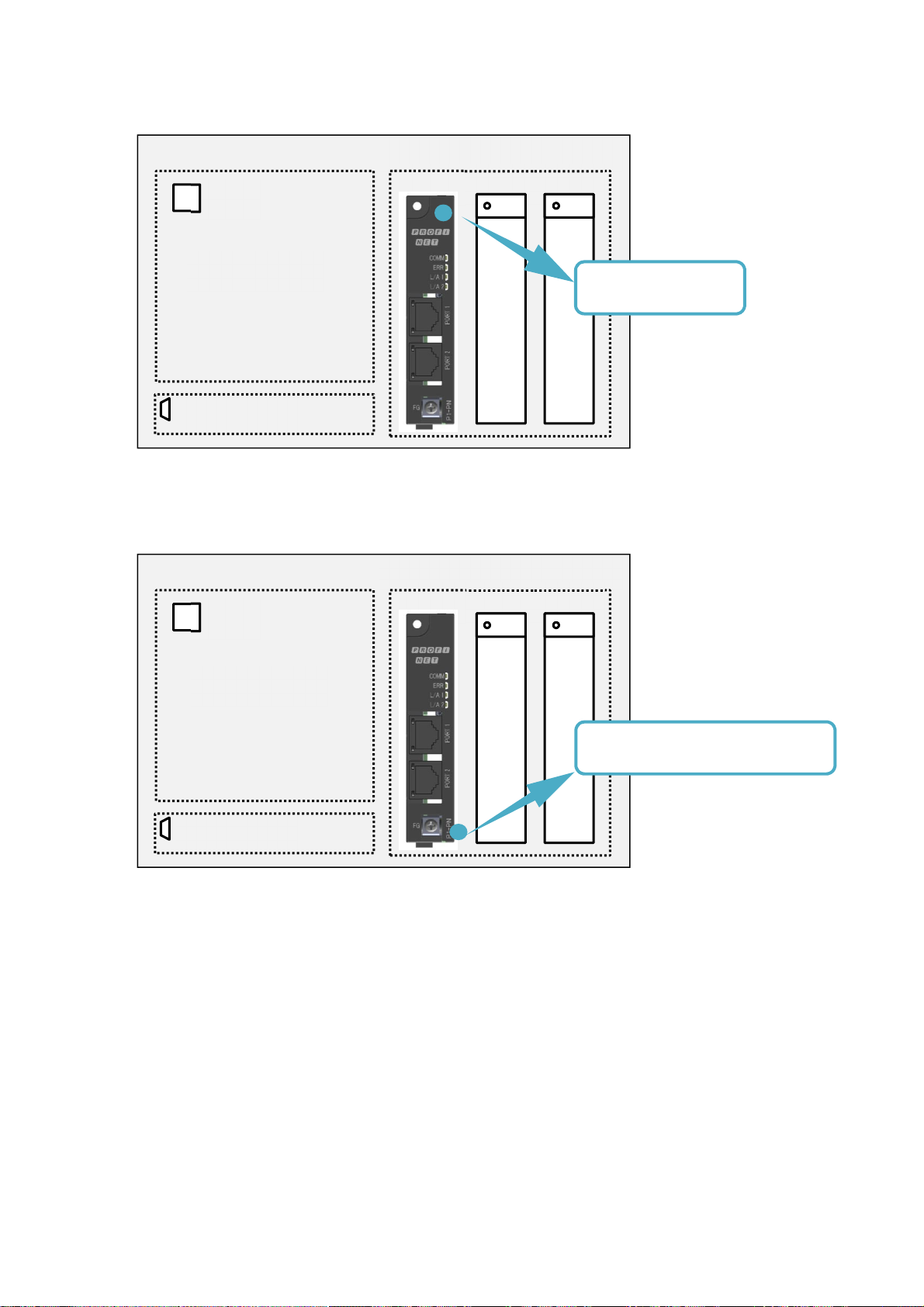

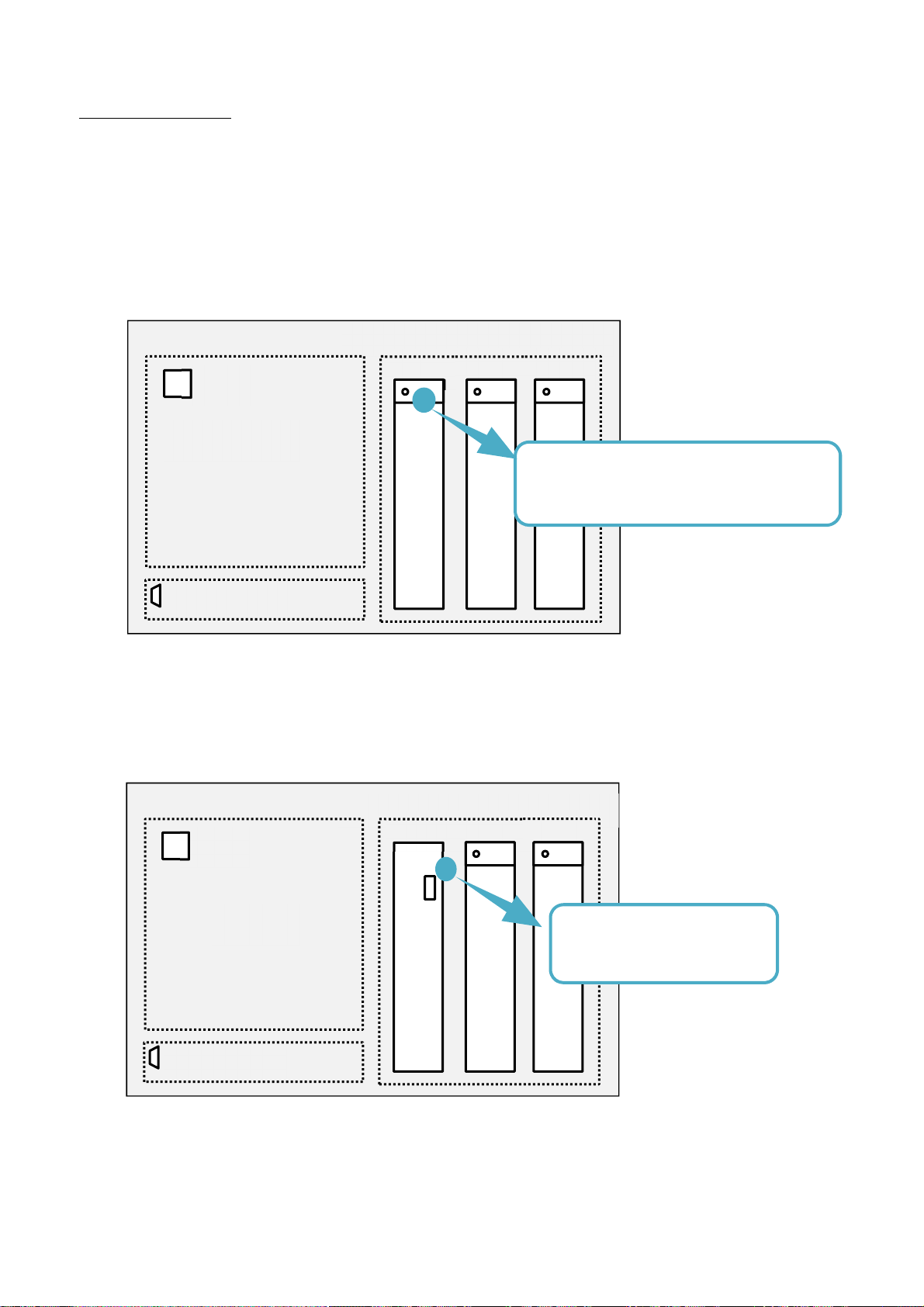

7.2 How to install ・・・・・・・・・・・・・・・・・・・・・・・・・・・9
8. Attach the Ferrite Cores ・・・・・・・・・・・・・・・・・・・・11
9. Connection ・・・・・・・・・・・・・・・・・・・・・・・・・・・11
10. GSDM File ・・・・・・・・・・・・・・・・・・・・・・・・・・・11
11. Device specifications ・・・・・・・・・・・・・・・・・・・・・12
12. Dimensions after installed ・・・・・・・・・・・・・・・・・・・13
13. Registered Trademark ・・・・・・・・・・・・・・・・・・・・・13
●Warranty ・・・・・・・・・・・・・・・・・・・・・・・・・・App.1-1

3
1. Precautions
1.1 Please be Careful！
・If handled incorrectly or improperly, it might cause death, serious physical injuries, or damage to
the inverter, motor or even the entire system.
・Before installation, wiring, operation, inspection, or usage please read and fully understand this
guide.
・There will be additional warnings about hazards and failure causes in other chapters.
・Before installation, wiring, operation, inspection, or usage please read and fully understand this
guide.
・In order to explain this device details the illustrations in this guide might show this device without
covers.
・Before operating this device please return all the covers to the original position, and follow all the
necessary regulations and instructions written in this guide.
1.2 Precautions during the installation!
●Risk of Fire！
・DO NOT place inflammable objects nearby.
・DO NOT let scraps of wire, welding sputtering, irons scraps or other objects get inside the device.
・Avoid installing this device in places with high temperature, high humidity, Condensation-prone
conditions, dusty conditions, corrosive gas, explosive gas, flammable gas, grinding fluid mist,
hydrogen sulfide or salt damage prone conditions. Additionally, it is recommended to install this
device in ventilated room not exposed to direct sunlight.
●Risk of Injury！
・DO NOT install or operate products with damage or missing parts.
●Risk of an Inverter failure！
・This device is a precision equipment, do not drop it, or give it a strong shock.
・DO NOT get on (step on) or place heavy objects on this device.
・When handling the object, avoid places prone to static electricity(like carpets).
・Since the human body can get charged with static electricity, as a safety measure please touch
a safe metallic surface before handling this device.
Caution
Do
Danger
Caution
Do
Danger
Do
Fire
Hazard
Injury
Prohibited
Prohibited
Failure
Do
Caution
Do

4
1.3 Precautions during the wiring!
●Risk of an electric shock and/or fire！
・Be sure to ground the inverter.
・Entrust the wiring work only to a qualified electrician.
・Before the wiring work make sure to turn off the power supply and wait for more than 10 or 15
minutes depending on the inverter model* .
(Confirm that the charge lamp is OFF and the DC voltage between terminals P and N is 45 V or
less.)
＊For HF4322-5A5 to HF4322-022, HF4324-5A5 to HF4324-022 models the wait time is 15 minutes.
For HF4322-030 to HF4322-055, HF4324-030 to HF4324-055 models the wait time is 15 minutes.
●Risk of inverter failure！
・DO NOT pull any wire after wiring.
●Risk of an electric shock and/or injury！
・Perform the wiring only after installing the inverter.
●Risk of an electric shock and/or injury！
・DO NOT operate/switch any of the switches from the 4 pole DIP switch on this device. When this
device is shipped all switches are turned off.
・If any of the switches from the 4 pole DIP switch is operated/switched, this device will not work
as intended and it might be the cause of failure.
・Please handle the cables properly and do not let them get damaged. Using damaged cables will
not only interfere with the correct operation of this device but also might be the cause of a system
failure.
●Risk of Fire！
・Please tighten the screws and bolts with the specified torque.
(Please refer to the inverter user's guide.)
・Verify that none of the screws and bolts are loose.
・Make sure that the inverter and this device are fixed together with the securing screw.
・Make sure that the connectors are properly fixed.
Do
Fire
hazard
Do
Electric
shock
and
injury
Warning
Do
Electric
shock
and Fire
hazard
Danger
Failure
Prohibited
Do
Electric
shock
and
injury

5
1.4 Precautions during operation!
●Risk of an electric shock or fire！
・DO NOT touch the inside of this device, check the signal, do any wiring or plug/unplug the
connectors while it energized.
・DO NOT insert any sick or rod like objects inside this device while it is energized.
●Risk of an injury and/or fire！
・DO NOT touch the inside of this device or the inverter while they are energized
●Risk of an electric shock！
・Make sure to fasten all the screws of this device before turning it on. DO NOT detach this device
while it is energized or the inverter capacitors are still charged. Additionally, do not touch the
inverter while the inverter capacitors are still charged.
・DO NOT touch this device with wet hands.
●Risk of an injury and/or device damage！
・By using this device it becomes easier to change the settings and the output frequency of the
inverter. When changing the settings or the output frequency of the inverter please make sure
that it is within the supported range by the motor and/or the equipment.
・In case this device is being used to make the inverter produce high frequency outputs for the gear
motor, make sure that the gear can tolerate the high frequency output given by the inverter.
・During operation verify the motor rotation direction, and that there are no irregular sounds or
vibrations
Injury or
device
Damage
Warning
Do
Prohibited
Prohibited
Injury
and Fire
hazard
Danger
Electric
shock
and Fire
hazard
Prohibited
Electric
shock
Do

6
1.5 Precautions during Maintenance /Inspection!
●Risk of an electric shock！
・Before any maintenance or inspection make sure to turn off the power supply and wait for more
than 10 or 15 minutes depending on the inverter model *.
(Confirm that the charge lamp is OFF and the DC voltage between terminals P and N is 45 V or
less.)
・Entrust the maintenance, inspection and/or part replacement only to a specialized personnel.
(Be sure to remove wristwatches and metal accessories, e.g., bracelets, before maintenance and
inspection work and use insulated tools for the work.)
＊For HF4322-5A5 to HF4322-022, HF4324-5A5 to HF4324-022 models the wait time is 10 minutes.
For HF4322-030 to HF4322-055, HF4324-030 to HF4324-055 models the wait time is 15 minutes.
1.6 Precautions for disposal！
●Risk of an injury and/or an explosion！
・Outsource to a qualified industrial waste disposal contractor when discarding this device.
Disposing of this device on your own may result in the production of poisonous gas.
・A qualified waste disposer includes industrial waste collector/transporter and industrial waste
disposal operator. Follow all laws and decrees related to procedures of waste management and
public cleansing when disposing of this device.
1.7 Other Precautions
●Risk of an injury, an electric shock and/or fire！
・DO NOT modify this device
＊ In addition to the precautions described above, there are other precautions described in the chapter
8 of HF-430NEO user's guide. Please read and follow those precautions as well.
Do
Injury and
explosion
hazard
Danger
Do
Prohibited
Electric
shock
Danger
Prohibited
Electric
sock
injury
and Fire
hazard
Danger

7
2. The enclosed items
・Enclosed items
3．Verification after the purchase
・Please verify the following items when unpacking.
・In case there is any doubt or trouble with the product, please contact your sales agent as soon as
possible.
4．Product Inquiry
For an inquiry about product damage or faults or a question about the product, notify your supplier.
When contacting the technical service, please provide the following information
(1) Inverter model
(2) Inverter manufacture number (MFG No.)
(3) Option device model (P1-PN)
(4) P1-PN manufacture number (MFG No.)
(5) Date of purchase
(6) Inquiry contents
For information about how to check the inverter model and the manufacture number (MFG No.) please
refer to HF-430NEO user's manual.
For information about how to check the P1-PN model and the manufacture number (MFG No.) please
refer to the section 6.
Furthermore, if the inquiry is about a P1-PN communication problem please provide us with the following
additional information.
(7) Current problem or abnormality
(8) Frequency of occurrence
(9) The PROFINET master being used
(10) The PROFINET network configuration
(11) A packet capture when the problem occurs
For further information regarding the packet capture please refer to the chapter 11 section 3 “P1-PN
troubleshooting”of the User's Guide.
P1-PN x1 Instruction Manual x1
(This document)
Check that the items were not smashed or damaged during the delivery.
Check that there is a P1-PN, there is an Instruction Manual, there are 2 ferrite cores, when
unpacking.
Please check again that your order match with the name plate of the device.
Ferrite Core x2

8
5. External Features
6．Name plate
7．Installation
7.1 Installation
The P1-PN can be attached to any of the 3 option slots of the HF-430NEO inverter.
From the top
・COMM LED
・ERR LED
・L/A 1 LED
・L/A 2 LED
FG Terminal Name Plate (Bottom)
P1-PN
○○○○
＊＊＊＊＊＊＊△□□□□
Device model
Manufacture number (MFG No)
Factory control number
It can be attached to either SLOT1, 2 or 3.
Port 1
Port 2
Option cassette connection slots
Keypad
RJ45
USB(micro-B)
SLOT1 SLOT2 SLOT3

9
7.2 How to install
Before installing the P1-PN, please refer to the chapter 7“Inverter setting” of the user's guide and
configure the inverter.
For explanation purposes, it will be assumed that the P1-PN is going to be installed in the SLOT1.
(1) Remove the cover of the option cassette connection slot.
Despite the removed cover will no longer be needed, it is recommended to keep it in a safe place.
However the screw that secured the cover will be used to secure the P1-PN.
(2) Attach the P1-PN. The slots 2 and 3 have one more connection in the lower side.
However, the P1-PN will not need that connection.
Option cassette connection slots
VOP Keypad
RJ45
USB(micro-B)
SLOT1 SLOT2 SLOT3
Remove the screw and then remove the
cover. The screw will be used later.
Option cassette connection slots
Keypad
RJ45
USB(micro-B)
SLOT1 SLOT2 SLOT3
Attach the P1-PN to this
connection.

10
(3) Secure the P1-PN with the screw removed in (1)
(4) Connect the FG terminal to functional ground.
Option cassette connection slots
Keypad
RJ45
USB(micro-B)
SLOT1 SLOT2 SLOT3
Option cassette connection slots
Keypad
RJ45
USB(micro-B)
SLOT1 SLOT2 SLOT3
Fasten the screw.
Connect to functional ground.

11
8．Attach the Ferrite Cores
Attach the enclosed ferrite cores to the PROFINET cable.
These cores should be attached as close as possible to the P1-PN RJ-45 connection.
However, depending on the PROFINET cable the ferrite core cannot be correctly fixed to the cable and it
may slip along the cable, despite having an anti-slip claw.
In these cases the ferrite core can be fixed by attaching something like a clamping band or a wire to the
PROFINET cable on one or both sides of the ferrite core.
Keep in mind that the cores should be attached as close as possible to the P1-PN RJ-45 connection.
9．Connection
・Make sure that the communication line and the power line are placed as far as possible from each
other. If they are placed close to each other, the communication line will pick up noise from the power
line that can interfere with the transmission.
・Make sure to set up the system, so that in an event of a network failure, the inverter output stops
immediately.
(1) In case the master detects an abnormality in the connection, shut down the inverter primary power
supply.
(2) Allocate functions such as “free run”or “reset”to the inverter input terminals.
Accordingly, please turn on these terminals when the master detects a connection abnormality.
(3) Configure the inverter in a way that it stops, free run stops or trip in case of a connection
abnormality. (When the operation command is received through PROFINET, the inverter shipment
settings are configured so that if there is any abnormality in the connection the inverter will
immediately stop.)
For other information concerning the installation, please refer to HF-430NEO user's guide.
Connect the communication cable (PROFINET cable), so it minimizes the tension and stress over the
connector.
10．GSDML File
In order to use the P1-PN, it is necessary to install the P1-PN GSDML file into the PROFINET master
Configuration tool.
The GSDML file is an xml file that has the specific information of the PROFINET slave device.
The GSDML file can be obtained through our website. In case is not available or cannot be
downloaded please contact the nearest sales office.

12
11．Device specifications
■Specifications
Item Specification
Model P1-PN
Weight 170g
Environment
Ambient operating
temperature －10〜50℃
No icing or condensation conditions.
Ambient operating humidity 20〜90%RH
Storage temperature －20〜65℃
Vibration resistance 5.9m/s2(0.6G)、10〜55Hz
Conformance to EMC and
electrical safety standards
IEC/EN61800-3
Second environment, Category C3
IEC/EN61800-5-1 SELV
Enclosure type IP00
PROFINET
Interface
Communications protocol PROFINET DPV0
PROFINET DPV1
Device type PROFINET IO Device
Conformance class B
Protocol DCP, LLDP, SNMP, MRP
Profile PROFIdrive
Physical layer 100BASE-TX (IEEE802.3)
Auto MDI-X function is supported.
Cable 100BX-TX support (category 5e or higher)
STP(Shield twist pair) cable (Straight or Crossed).
Communication speed Auto negotiation.
However, 100BASE-TX full duprex (IEEE802.3) only
Communication distance Distance between nodes(between devices): 100[m]max
PROFIdrive
PROFIdrive version 4.2
Application class AC1 (Standard Drive)
Telegram
Standard telegram 1
P1-PN telegram 103 (PPO3 of PROFIdrive version 2)
P1-PN telegram 104 (PPO4 of PROFIdrive version 2)
P1-PN telegram 105 (like PPO5 of PROFIdrive version 2)
Configuring of telegram oH-24 and From oJ-01 to oJ-60 of HF-430NEO parameters
Operating mode Speed control mode
Jogging Only jogging 1 is supported.

13
12．Dimensions after installed
The dimensions of the P1-PN after it is installed on the HF-430NEO are shown in the image below.
As shown on the image a part of this device will stand out from the HF-430NEO.
Please be cautious when installing the device.
13．Registered Trademark
PROFINET
®
is trade names of the non-profit organization PROFINET Nutzerorganisation e.V.(PNO).
HF-430NEO Inverter
HF-430NEO
Front surface
View from the right side of HF-430NEO
31.3mm
96.5mm

App.1-1
Warranty
Warranty
Warranty
period The warranty shall be 18 months from date of shipment or 12 months after initial operation, whichever is shorter.
Warranty
condition
In the event that any problem or damage to the Product arises during the “Warranty
Period” from defects in the Product whenever the Product is properly installed and
combined with the Buyer’s equipment or machines maintained as specified in the
maintenance manual, and properly operated under the conditions described in the
catalog or as otherwise agreed upon in writing between the Seller and Buyer or its
customers; the Seller will provide, at its sole discretion, appropriate repair or replacement
of the Product without charge at a designated facility, except as stipulated in the
“Warranty Exclusions” as described below.
However, if the Product is installed or integrated into the Buyer’s equipment or machines,
the Seller shall not reimburse the cost of: removal or re-installation of the Product or
other incidental costs related thereto, any lost opportunity, any profit loss or other
incidental or consequential losses or damages incurred by the Buyer or its customers.
Warranty
exclusion
Not withstanding the above warranty, the warranty as set forth herein shall not apply to
any problem or damage to the Product that is caused by:
1.Installation, connection, combination or integration of the Product in or to the other
equipment or machine that rendered by any person or entity other than the Seller.
2.Insufficient maintenance or improper operation by the Buyer or its customers such that
the Product is not maintained in accordance with the maintenance manual provided or
designated by the Seller;
3.Improper use or operation of the Product by the Buyer or its customers that is not
informed to the Seller, including, without limitation, the Buyer’s or its customers’
operation of the Product not in conformity with the specifications;
4.Any problem or damage on any equipment or machine to which the Product is
installed, connected or combined or any specifications particular to the buyer or its
customers;
5.Any changes, modifications, improvements or alterations to the Product or those
functions that are rendered on the Product by any person or entity other than the
Seller;
6.Any parts in the Product that are supplied or designated by the Buyer or its customers;
7.Earthquake, fire, flood, salt air, gas, lightning, acts of God or any other reasons beyond
the control of the Seller;
8.Normal wear and tear, or deterioration of the Product’s parts, such as the cooling fan
bearings;
9.Any other troubles, problems or damage to the Product that are not attributable to the
Seller.
Others The Seller will not be responsibility for the installation and removal of the inverter. Any
inverter transportation cost shall be born by both Seller and Buyer.
