Sunrise Medical Quickie Q50R User manual

User manual
Model: Q50R
Powered wheelchair

1
QUICKSTART GUIDE

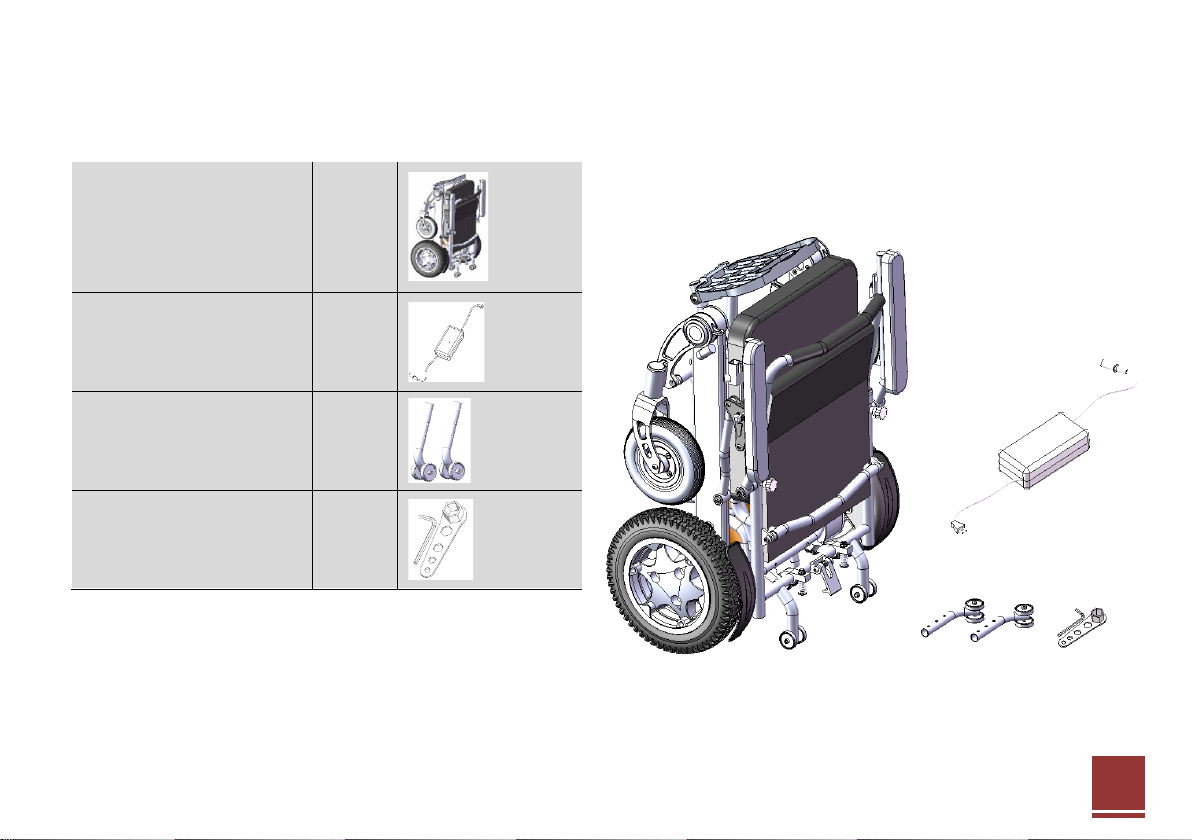

1.Frame body and spare parts list
1.Frame
x1
2.Charger
x1
3.Anti-rolling wheel
（Removable）
x2
4. Toolbox
x1
After receiving the product, you need to check whether the
part is missing or damaged according to the above picture. If
you have any questions, please contact with Sunrise Medical or the dealer in time.

2
2. Installation steps

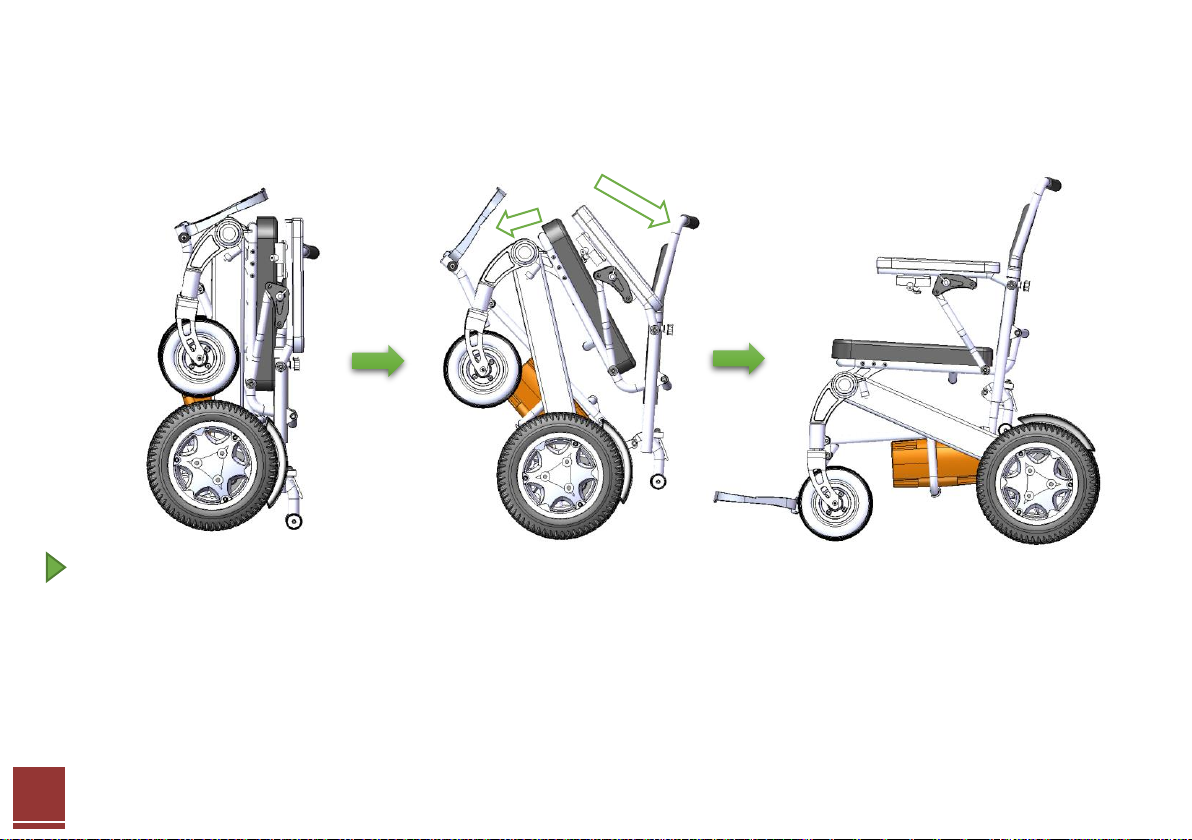

Step1 Unfold frame
Take the Power wheelchair out of the box and pull the backrest back in the direction shown until it is fully extended.

3

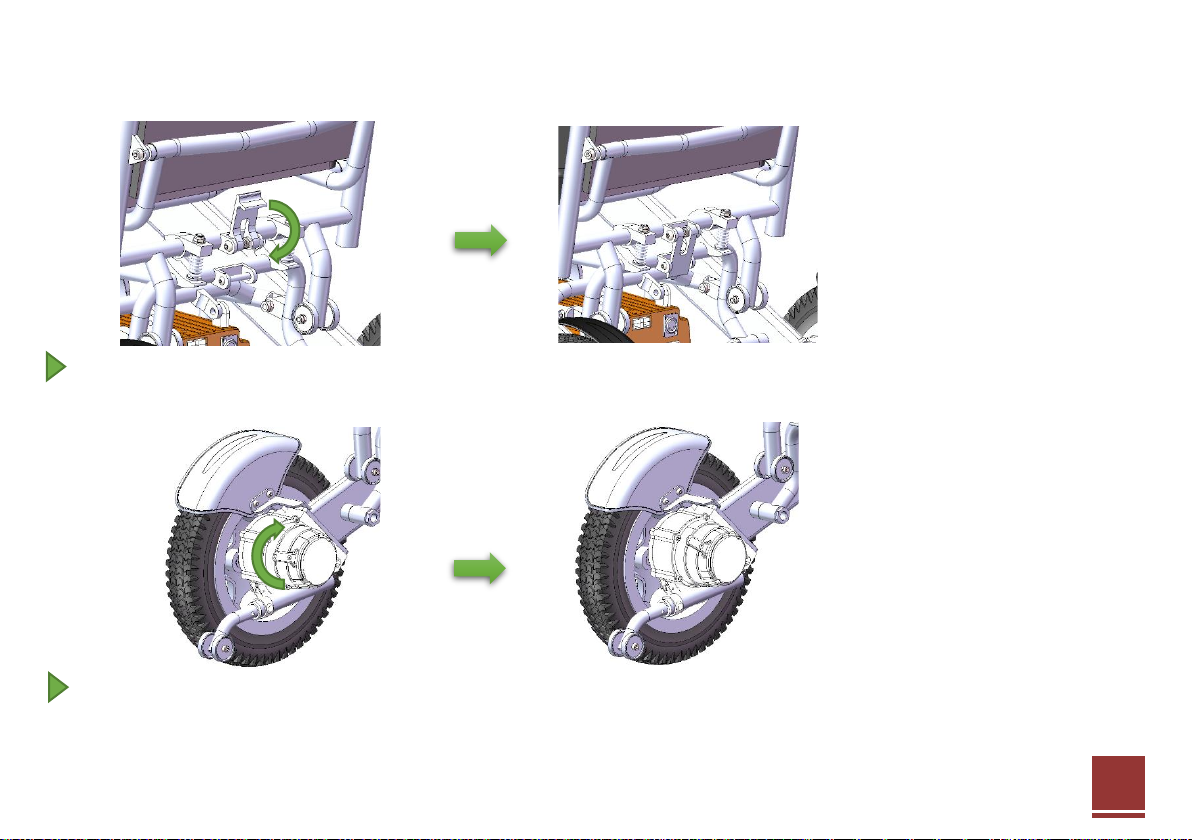

Step2 Buckle up
Flip the lock down and press it firmly into the lock pin. Check for firmness.
Step3 Brake lever switch
Turn the brake handle to the Drive Mode. For details, please refer to 4. Instruction Manual-2. Electromagnetic Brake Handle.

4
Step4 Install the controller
Remove the controller and place it in the corresponding position as shown in the figure.
Step5 Install anti-roll tube
Pull out the C-shaped buckle, insert the anti-tilt pipe according to the direction shown in the figure, align the corresponding
holes on the frame, and then insert the C-shaped buckle to check whether it is secure.

5
User Information
Intended use power wheel chairs:
Power wheelchairs are exclusively for a user who is unable to walk or has limited mobility, for their own personal use in-
and outdoor.
When an Attendant Control Module is fitted, the Power Wheelchair may be operated by an assistant on behalf of the user.
When a Dual Control Module is fitted the Power Wheelchair may be operated by the user, or control may be switched to
an assistant to operate on behalf of the user.
The maximum weight limit (includes both the user and any weight of accessories fitted to the wheelchair) is marked on the
serial number label, which is affixed to the chassis of the chair.
In the chair packaging there is an additional chair serial number this can be affixed to the front page of the owners manual
supplied with the wheelchair.
Warranty can only be taken on if the product is used under the specified conditions and for the intended purposes.
The intended lifetime of the wheelchair is 5 years. Please DO NOT use or fit any 3rd party components to the wheelchair
unless they are officially approved by Sunrise Medical.
NOTE:
General user advice.
Not following these instructions may result in physical injury, damage to the product or damage to the environment!
A notice to the user and/or patient that any serious incident that has occurred in relation to the device should be reported
to the manufacturer and the competent authority of the Member State in which the user and/or patient is established.

6
B4Me special adaptations
Sunrise Medical strongly recommends that in order to ensure that your B4Me product operates, and performs as intended
by the manufacturer; all the user information supplied with your B4Me product is read and understood, before the
product is first used.
Sunrise Medical also recommends that the user information is not discarded after reading it, but it is kept safely stored for
future reference.
Area of application
The variety of fitting variants as well as the modular design mean that it can be used by those who cannot walk or have
limited mobility e.g. because of:
• Paralysis
• Loss of extremity (leg amputation)
• Extremity defect deformity
• Joint contractures/joint injuries
• Strokes and brain injuries

7
WARNING！
• Neurological disabilities (e.g. MS, Parkinson…)
• Illnesses such as heart and circulation deficiencies, disturbance of equilibrium or cachexia as well as for elderly people
who still have the strength in the upper body.
• Persons who are mentally and physically able to control an input device to operate the chair and its functions in a safe way.
When considering provision, please also note the body size, weight including the distribution of body weight, the user’s
physical and psychological constitution, the age of the user, their living conditions and their environment.
If in doubt a health care professional should be involved to ensure the user is not exposed to unacceptable risks.
INTCO is ISO 9001 certified, which ensures quality at all stages of the development and production of
this wheelchair.
DO NOT USE YOUR WHEELCHAIR UNTIL THIS MANUAL
HAS BEEN READ AND UNDERSTOOD.

8
INTCO declares under its sole responsibility that this product is a Class 1 device, and that it complies with the requirements
of the EU Medical Device Regulation (EU) MDR 2017/745.
The serial number and other important information can be found on the nameplate located on the left side of the product
frame.
This symbol means
Medical Device

9
Q50R Features
As part of a continuous product improvement initiative, INTCO reserves the right to change specifications and model
without notice. In addition, some functions and options available are not compatible with all chair configurations.
All following dimensions are approximate and subject to change.

10
Contents
1.0 Safety..........................................................................................................................................................11
2.0 Product description....................................................................................................................................19
3.0 Use Instruction...........................................................................................................................................24
4.0 Transport....................................................................................................................................................38
5.0 Maintenance & cleaning ............................................................................................................................39
6.0 Machine Fault Repair Guide.......................................................................................................................44
7.0 EMC Guidelines…………………………………………………………………………………………………………………………………….51
8.0 Disposal......................................................................................................................................................55
9.0 Service advice-service history……………………………………………………………………………………………………………… 56
10.0 Guarantee ………………………………………………………………………………………………………………………………………… 58

11
1.0 Safety
If you follow the instructions given in this manual, you will enjoy many trouble-free years of use.
Warning! Failure to heed the warnings in this manual may cause personal injury and
damage to this Power wheelchair;
Note! Prompt the user to pay attention to matters, failure to pay attention to these
matters may cause damage to your Power wheelchair;
Prompt! Prompt the user for possible phenomena during operation, so that the user can
master the operation skills of this Power wheelchair as soon as possible.
Safety guide
Overview:
This product is designed for people with reduced mobility for daily travel and is easy to fold and transport.
We recommend either a professional installer completes the assembly of the Power wheelchair according
to the provided process description, or the authorized distributor of this product has provided the process
description. If the assembly is not completed correctly and this result in a problem is caused by the use part
or the care part, INTCO is not responsible for this.
The user must practice using the product under the supervision of trained personnel.
Here are some safety tips to help users use this product safely. Sunrise Medical recommends that you check
whether the wheelchair works smoothly and safely before each use. For detailed information on how to
perform the inspection, please read "6. Maintenance".

12
Please check the following before using this product:
Check the connection between the controller and the battery box to ensure safety and correctness;
Check the battery level;
Check the firmness of the Lap belt;
Check the brake system.
Before you use it, if any problem occurs, please contact your authorized dealer as soon as possible.
Weight capacity：
The maximum weight capacity of this product is 136KG.
Warning! Sunrise Medical will not be responsible for personal injury and vehicle damage caused by
overweight.
Slope information: Some buildings have slopes, some slopes may also include a turn. Negotiating a turn on
a slope requires you to have good skills in using this product.
When driving up slopes, try to keep the product moving. If you want to stop and restart, adjust the speed
so you start-off slowly. When going downhill, set the speed to the slowest speed and drive forward. If the
speed of the product is going downhill faster than preset or envisaged, then lower the lever to stop the
wheelchair, and then slowly push the lever forward.
Warning! Do not drive on potentially dangerous slopes (such as snow-covered ground, grass, and
slopes covered with damp leaves).

13
Warning! When climbing a hill, you must drive straight up the inclined surface, which will greatly
reduce the possibility of overturning. When climbing a hill, be sure to watch out for extreme heights. Do
NOT drive backwards when going uphill or downhill, this could lead to personal injury.
The safe climbing angle of our wheelchair is 8 °, see Figure 1-1 and Figure 1-2.
Warning! Any attempt to drive on a slope exceeding 8 ° may cause the product to tip over, which may
cause personal injury or damage to the product.
The safe climbing angle of our wheelchair is 8 °, see Figure 1-1 and Figure 1-2.
Warning！Any attempt to drive on a slope exceeding 8 ° may cause the product to sway and tip over,
which may cause personal injury or damage to the product.
Requirements for outdoor driving:
This product can be driven on conventional cement or asphalt pavement. When choosing a pavement, pay
attention to the following:
Slow down on unknown terrain or soft soil
8°
8°
Figure 1-2 Maximum number of downhill slopes
Figure 1-1 Maximum degree of uphill slopes

14
Avoid driving on wet grass, tyres may slip
Avoid driving on soft gravel and beaches
If you are unsure about the condition of the surface, try to avoid driving on it.
Manual mode:
This product is equipped with a Free-wheel Mode that allows an attendant to manually push the
wheelchair. For more detailed information about manual mode, please refer to "5. Instructions for use ----
3. Electromagnetic brake".
Warning! The use of Free-wheel mode is only allowed with an attendant holding the product behind,
otherwise the product may run away uncontrolled and result in personal injury.
Warning！When you are sitting in the wheelchair, do not move the position by yourself as you may
loose control and this may lead to personal injury. Ask your attendant for help.
Warning！It is forbidden to place a wheelchair in Free-wheel mode on a slope. The wheelchair may roll
uncontrolled and cause personal injury.

15
Fixed obstacles (stairs, curbs, etc.)：
Warning！Do not attempt to drive backwards over any steps, curbs, or other obstacles, as this could tip the
product over and cause injury.
Roads and parking:
Warning！ It is forbidden to drive this product in the motorway. You must know that it is not easy to be
seen by others when you are sit in a wheelchair. Please observe local traffic regulations. You should still
drive carefully when there are no road obstacles on the road.
Stairs and escalators:
Power wheelchairs are not designed to have the function of ascending or descending stairs or escalators,
but can use elevators.
Warning！Do not use this product to go up and down stairs or escalators. Doing so will cause injury to
you and others, and may cause damage to this product.
Electromagnetic field:
Radio waves can interfere with Power wheelchairs. Radio waves are a type of electromagnetic energy.
When this energy has a negative impact, we call it electromagnetic interference or radio interference.

16
Your wheelchair may be affected by mobile phones or other transmitting antennas during use Within
range, your wheelchair use may be affected by them.
Do not use a high-power handheld radio transmitter or receiver when the power switch is on. Use personal
communications devices such as mobile phone should use qualified products (note: such qualified
electronic products are according to the relevant standard tests and conform to the requirements of the
electromagnetic compatibility, not interfering the normal work of this wheelchair)
Be aware of nearby radio transmitters, such as radio or television transmitters, to avoid proximity to them
or drive carefully
It may be caused by electromagnetic interference for the braking failure and the driving uncontrolled of the
Power wheelchair, if you are in safety, turn off the power as soon as possible.
Sitting or leaving a Power wheelchair：
Sitting or leaving a Power wheelchair requires a good sense of balance. When practicing getting in and out
of a wheelchair, be sure to have someone supporting you.
In order to avoid injury, it is recommended that users who use this product for the first time be assisted by
trained personnel. Before using a wheelchair, please complete the following operations:
Make sure that the controller is off and that the product is in electric mode. Refer to "IV. Instructions for
use: motor clutch".

17
Make sure the armrests are turned up or the footplates are turned up. This will help your feet not touch
the footplate.
Warning！Before getting on or off the Power wheelchair, you must ensure that the power is turned off.
Otherwise, you may run into the wheelchair and cause serious personal injury.
Warning！ It is forbidden to stand on the footplates, otherwise it will cause the wheelchair to fall
over and cause personal injury.
Battery:
In addition to following the warnings, you must also ensure compliance with other relevant operating
requirements. See "4. Instruction" for more detailed information.
Warning！Do not disassemble, repair or modify the battery.
Prevent accidental wheelchair movement
Warning！If you intend to stay in a fixed position for a while, please turn off the power to prevent
accidental movement caused by accidentally touching the controller's operating lever, or even cause personal
injury.

18
Use restrictions:
Wheelchairs are prohibited in the following cases:
Users do not have the physical strength, intelligence or strain force to operate the power wheelchair
safely.
Persons with visual or intellectual disabilities, please seek advices from a medical care professional.
Users must have the ability to maintain the upper body balance while operating and to withstand
bumps caused by bumps on the road surface.

19
2.0 Product description
Product name：Power wheelchair
Model：Q50R
Manufacturer：Jiangsu Intco Medical Products Co.,Ltd.
Registered address： NO.77 Yandunshan Road, Dagang Zhenjiang, Jiangsu Province 212132 P.R. China
Production address：NO.77 Yandunshan Road, Dagang Zhenjiang, Jiangsu Province 212132 P.R. China
Distributor：Sunrise Medical
EC Representative：Sunrise Medical GmbH
Main structure：
This product consists of two parts: the electrical part and the wheelchair main body. The electrical part
includes motor, battery box, controller and charger. The main parts of the wheelchair include front wheels,
rear wheels, frame, armrest, footplate, seat cushion and backrest.
