Sunstream Evolve 20 EHS User manual

ASSEMBLY MANUAL
Evolve 20 EHS Far Infrared Sauna

Pre-Assembly Checklist
Selecting a suitable location
For best results, please place your sauna on a flat level surface. Suitable locations could include the
garage, bedroom, sunroom. The sauna can be placed on carpet, tiles, timber flooring or concrete.
For outdoor placement please note that the sauna must go in a covered area to provide protection from
direct rainfall, additionally the sauna must be protected by one of our Australian made covers to protect
the warranty. Saunas placed outside unprotected will not be covered by our warranty.
Assembly Instructions
Assembly of the sauna will require 2 adults to complete. Please read through the
instructions carefully before beginning the assembly process. Should you encounter any
issues along the way, please contact us on free phone [phone] (United
Kingdom and EU).
1. Keep all liquids away from the sauna during the assembly process.
2. Install the sauna on a flat level surface.
3. Install the sauna in an area that is dry and protected from the weather.
4. Your sauna is a self-contained free standing unit and should not be built into any
structure without consultation with Sun Stream Saunas.
5. Please maintain about 3cm clearance from the walls on all sides of the unit.
NB: Please exercise great care when handling the front wall assembly and glass
door making sure they do not swing open and break whilst securing in place.

Prepare the Sauna Floor

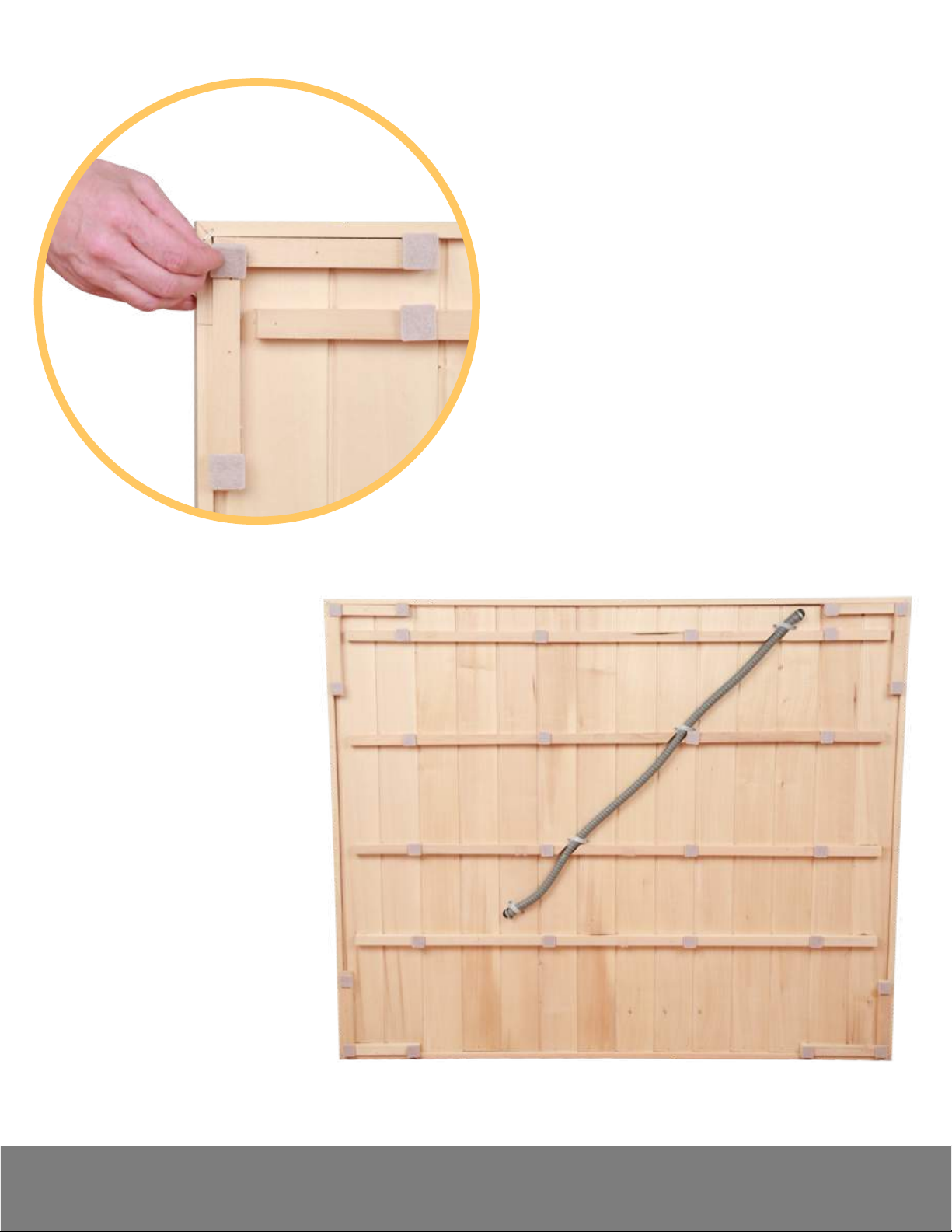

If you are assembling your sauna on a hard
surface floor it is recommended that you
apply the included adhesive felt to the
bottom of the sauna floor.
United Kingdom - 0800 86 11 841

Place the sauna Floor Base in the desired location. It is necessary to position the floor out
from your walls for assembly and move the sauna following assembly.
PLEASE NOTE: It is important that the sauna floor is level. Checking with a large
level is recommended. If the floor is not level, shimming or other remedies should
be applied before assembling the sauna.
United Kingdom - 0800 86 11 841

Position the Front Wall
Lift the front wall into position carefully lowering the bottom of the wall into the channel
on the floor base. Prop up one end of the front wall to enable connection of the door
heater electrical lead.
Front Wall Installation
Ensure that the door heater electrical is
protruding from bottom of front wall frame
United Kingdom - 0800 86 11 841

Connect door heater electrical lead
to the floor base.
Ensure that the threaded cuff is fully screwed
onto the floor base connector.
NOTE:
Be sure that the wire's connector is fully
inserted into the floor base connector and
that the threaded cuff is fully screwed
onto the floor base connector.
4 Furniture Bolts
Screw the 2 furniture bolts through the
Front Wall frame into Floor Base
The furniture bolts will require either
a Phillips head screwdriver OR the
allen key included with the sauna
accessories.
There are also 2 furniture bolts to go
through the Front Wall and thread into the
Roof later in the assembly.
United Kingdom - 0800 86 11 841

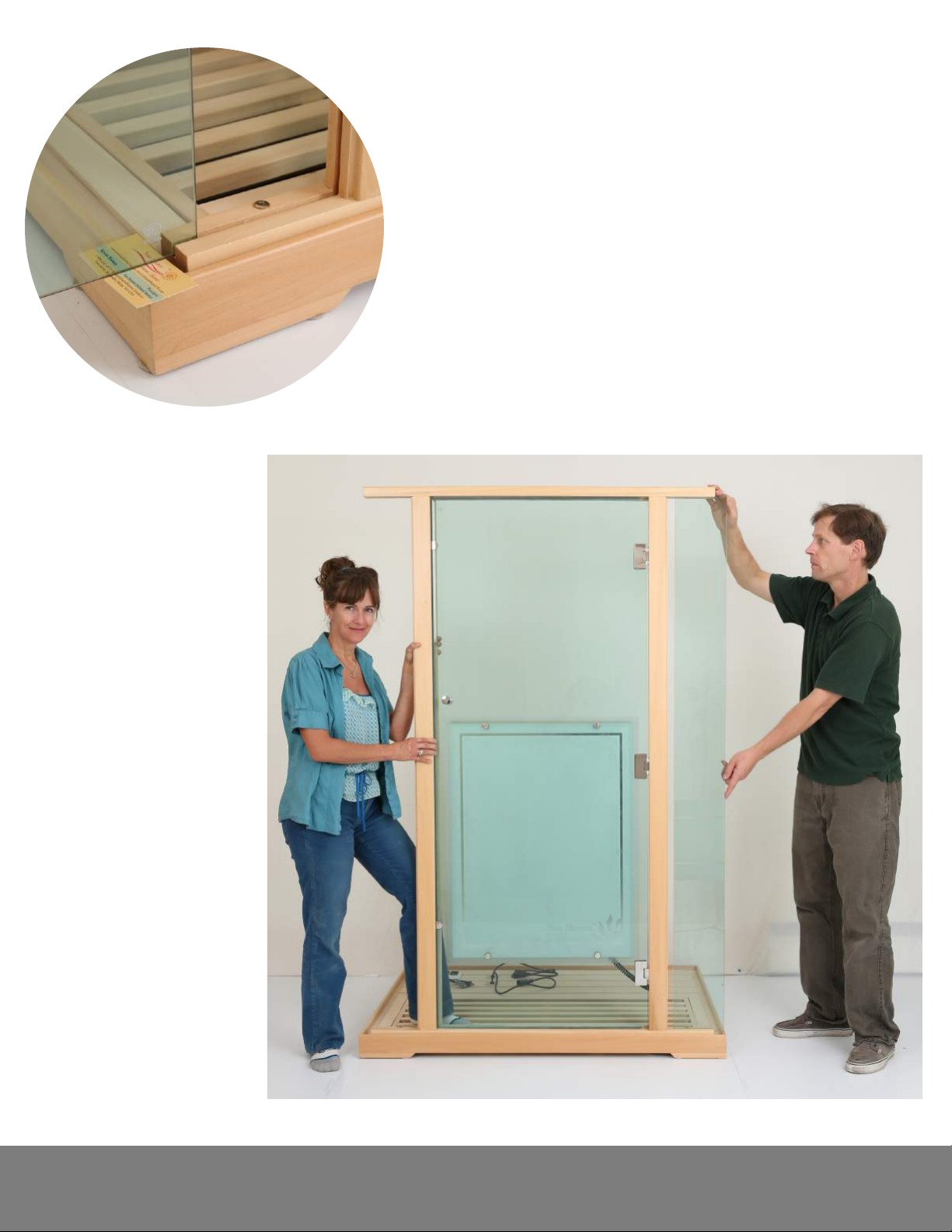

Protect Floor Base
As a precaution to protect the floor base, place
a business card or similar on the floor base
before installing glass panel
Install Right Side Front
Wall Glass Panel
United Kingdom - 0800 86 11 841

Connect Side Wall to Front Wall
Insert Side Wall into the channel of floor base while aligning
the slot in Side Wall with edge of Front Wall glass panel.
USE EXTRA CARE fitting the Side Wall to the glass
panel
United Kingdom - 0800 86 11 841

Back Wall
Insert back wall into
channel of floor base
SIDE
WALL
Wood Screw
Use the supplied wood screw and the
pre-drilled hole to secure the Side Wall
to the Front Wall frame.
United Kingdom - 0800 86 11 841

Connect the Back Wall to
Side Wall
Cinch the two walls together
by applying pressure on the
outside of the Side Wall with
the inside of your knee.
Slide the Back Wall up approx. 3/4” while holding
the Side Wall down with your opposite hand.
The 2 sets of fasteners for the walls will connect
when the back wall is raised sufficiently. When
you feel the fasteners connect, slide the Back
Wall back down.
NOTE: It is NOT necessary to lift the entire
Back Wall. Simply slide the Back Wall upward
at the back corner of the sauna to connect to
the Side Wall
It is helpful if a second person applies pressure against the opposite edge of the back wall.
This will helps ensure that the two walls remain in contact and the fasteners will connect.
United Kingdom - 0800 86 11 841

Second Front Glass Panel
Use the same procedure as
for the first glass panel
There are two sets of fasteners to join the saunas' back corners together. After lowering
the Back Wall, check to ensure that both sets of fasteners have connected by looking at
the corner inside of the sauna. It is possible to connect one set of fasteners and miss the
other. If there is an obvious gap in the corner between the two walls the fasteners have
not connected and the raising and lowering procedure will need to be repeated.
United Kingdom - 0800 86 11 841

Connect the second Side Wall
to the Back and Front Wall
Use supplied wood screw and pre-
drilled hole to secure the top of the side
wall to the front wall frame.
Insert the Left Side Wall into the
channel of floor base while
aligning the slot in Side Wall with
edge of Front Wall glass panel.
USE EXTRA CARE fitting the
Side Wall to the glass panel
Wood Screw
Use the supplied wood screw and the
pre-drilled hole to secure the Left Side
Wall to the Front Wall frame.
SIDE
WALL
United Kingdom - 0800 86 11 841

Install the Sauna Roof

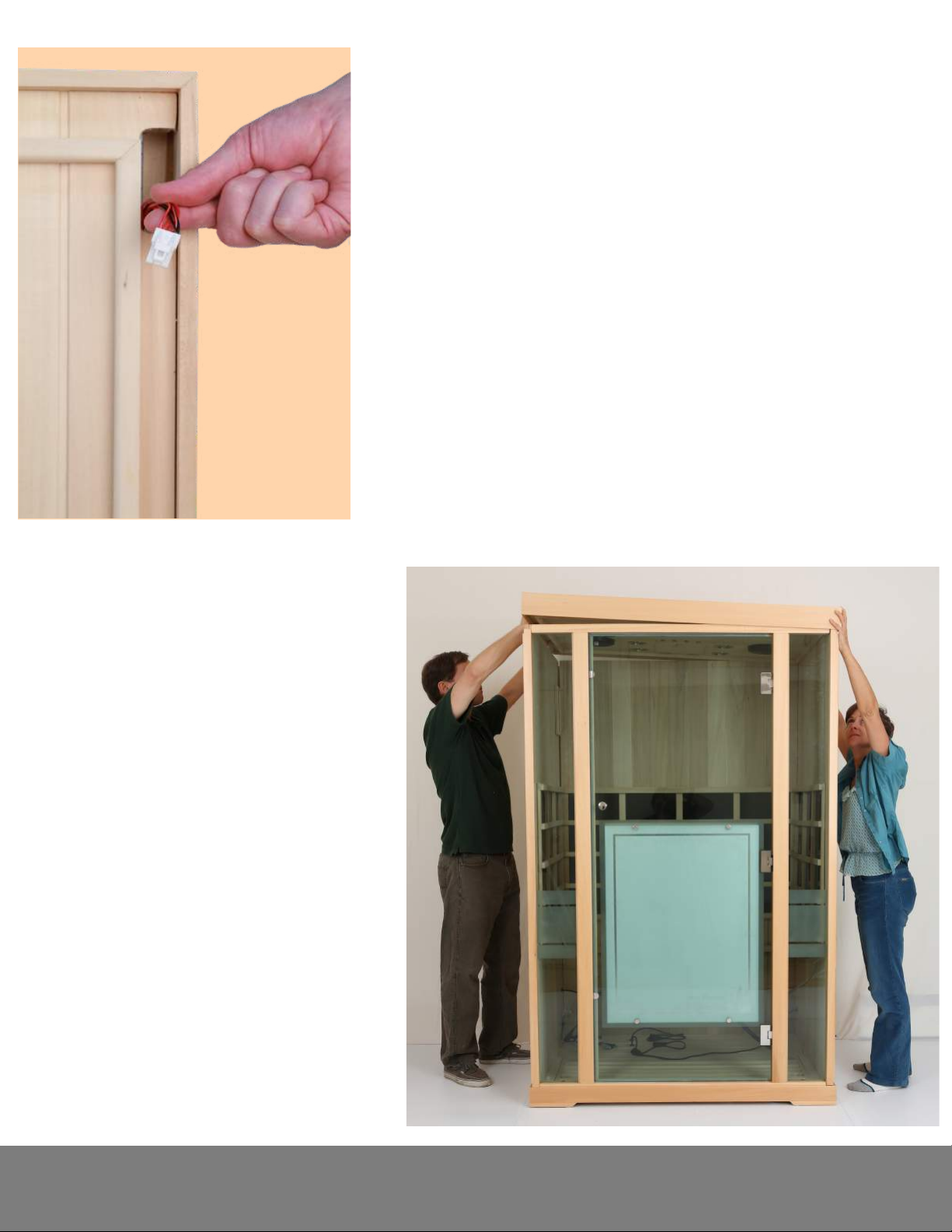

Lift the roof up and over top of the
sauna walls. If you are installing
the sauna in a restrictive space
and are unable to walk down the
sides of the saunas, it may be
necessary for one person to go
inside the sauna.
Hook the right side corners of the
roof over the walls then lower the
roof toward the left of the sauna.
Pull the single plastic connector
down and out of the roof before
lifting the roof into place.
If you are unable to grab hold of
the connector through the small
opening in the ceiling, it may be
necessary to remove the first
T&G board on the top left side of
the roof and feed the connector
down through the opening.
United Kingdom - 0800 86 11 841

Connect the 12 Volt power supply
wire at the back left corner of the
sauna.
This wire brings power to the roof
for the stereo and lighting
components.
Lower the roof on to the walls
Under-Bench Electrical
NOTE: Do not connect main power cord to your wall outlet yet at this time.

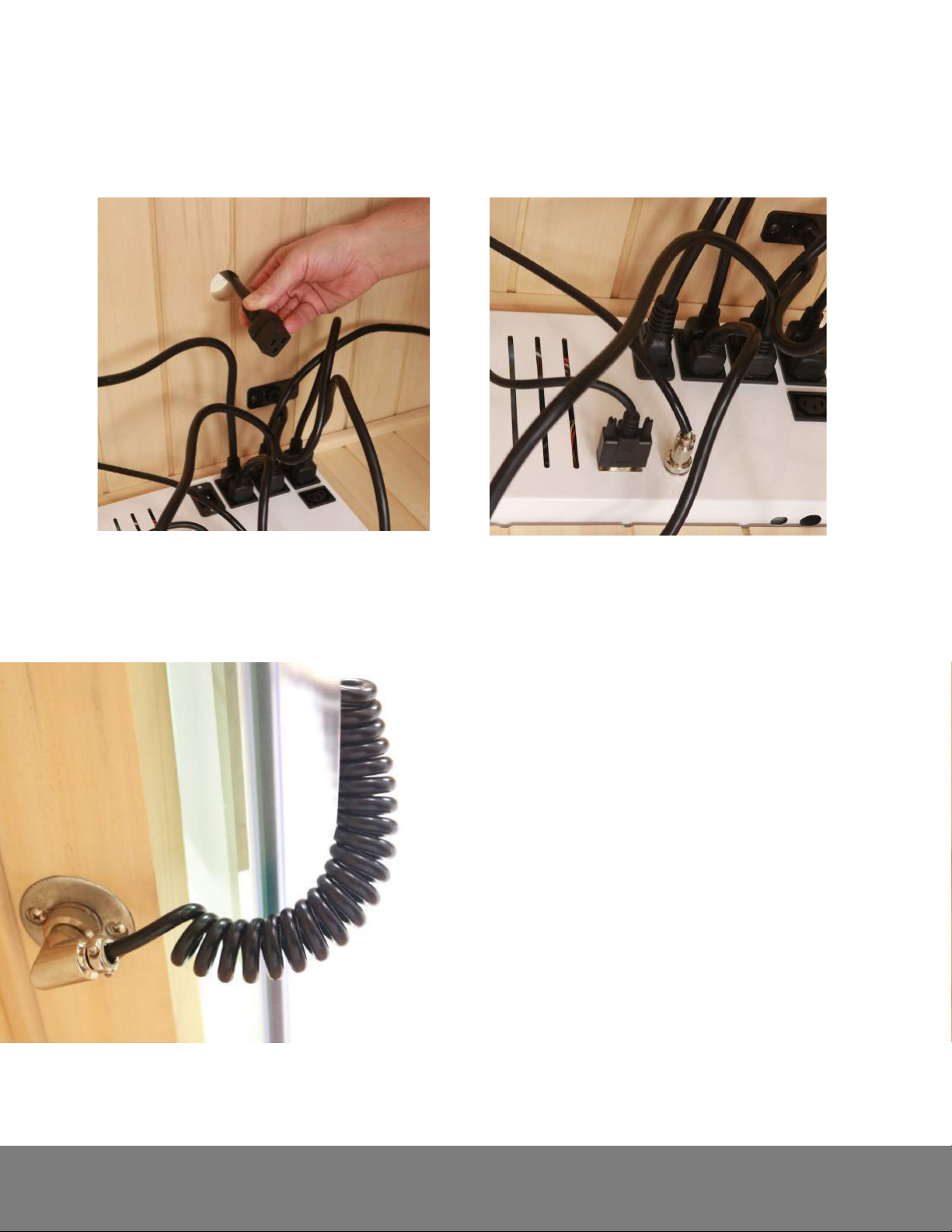

Connect the circular connector to
power supply box. Align the
groove in connector to properly
insert. Thread the cuff of
connector on fully.
Attach the 'D-Sub' computer
style connector as shown.
Plug in all heater leads to the receptacles
on top of the power supply box.
United Kingdom - 0800 86 11 841

Power Supply Cord
Feed the main power supply cord in through the hole in back wall and insert in to the power
supply box. DO NOT plug power cord into your wall outlet until all electrical connections are
complete inside of the sauna.
Door Heater Electrical
Connect the coiled wire from the door heater
to the connector on the door frame.
Ensure that the connector is fully inserted and
the threaded cuff is fully screwed on to the
door frame connector.
United Kingdom - 0800 86 11 841

Remove Side Wall Heater
Guards
The wooden lattice work in front
of the heaters is referred to as
the heater guards. These are
held on with strong magnets. It is
necessary to remove the heater
guards from the two side walls in
order to install the sauna bench.
Leg Heater
Install the leg heater by
lowering it into the brackets
mounted on the side walls.
Plug leg heater into the
power supply box in floor.
United Kingdom - 0800 86 11 841

Connect the grounding
wire from bottom side of
Bench as shown
Install Bench
Angle the Bench into place to clear the Side Wall window
frames. The Bench installs foil side down.
Lower the Bench into Position
Connecting the ground wire
United Kingdom - 0800 86 11 841

Install Bench
The bench in your new sauna is
reversible. Choose whichever
side appeals to you to face upward.
Reinstall the
Side Wall heater guards
Install the Door Handle
United Kingdom - 0800 86 11 841

Glass Glazing Strips
There are 4 strips of flexible glazing
material included with your Evolve 20
sauna. These hold the glass panels
snugly in the wooden frame.
It may not be necessary to use the
glazing strips, or not necessary to use the
entire length of the strip, if the glass
panels are a snug fit in the wooden
frame. If required, install the glazing strip
by firmly pressing it into the channel
along side the glass panel. The glazing
can be installed on the inside or outside
of the glass panels
A small wooden wedge is included to
help push the glazing strip into the
channel.
The Chromatherapy LED panel is controlled by the remote control and is
NOT connected to the sauna wall control panel.
United Kingdom - 0800 86 11 841

Heater Guards
The heater guards in your new Sun Stream Infrared Sauna are held to the wall with
strong earth magnets. If preferred, the heater guards can be screwed directly to the wall
for a more permanent and secure attachment. The heater guards are pre-drilled for the
attachment screws.
Screws are included to attach the heater guard to the wall. Select a drill
bit with a smaller diameter than the screw threads to drill a pilot hole
