Sunstream Evolve 10 EHS User manual

ASSEMBLY MANUAL
Evolve 10 EHS Far Infrared Sauna

Pre-Assembly Checklist
Selecting a suitable location
For best results, please place your sauna on a flat level surface. Suitable locations could include the
garage, bedroom, sunroom. The sauna can be placed on carpet, tiles, timber flooring or concrete.
For outdoor placement please note that the sauna must go in a covered area to provide protection from
direct rainfall, additionally the sauna must be protected by one of our Australian made covers to protect
the warranty. Saunas placed outside unprotected will not be covered by our warranty.
Keep all liquids away from the sauna during the assembly process.
Assembly of the sauna will require 2 adults to complete. Please read through the
instructions carefully before beginning the assembly process. Should you encounter any
issues along the way, please contact us on free phone [phone] (Australia) or
0800 21 8020 (New Zealand)
1.
2. Install the sauna on a flat level surface.
3. Install the sauna in an area that is dry and protected from the weather.
4. Your sauna is a self-contained free standing unit and should not be built into any
structure without consultation with Sun Stream Saunas.
5. Please maintain about 3cm clearance from the walls on all sides of the unit.
NB: Please exercise great care when handling the front wall assembly and glass
door making sure they do not swing open and break whilst securing in place.
Assembly Instructions

Prepare & Position the Sauna Floor
If you are assembling your sauna on a hard surface floor it is recommended that you apply
the included adhesive felt to the bottom of the sauna floor.
It is important that the sauna floor is level. Checking with a large level is
recommended. If the floor is not level, shimming or other remedies should be
applied before assembling the sauna.
Place the sauna floor in the desired location. It is necessary to position the floor out from
your walls for assembly and slide the sauna into final position following assembly.
Australia - 1800 316 962 | New Zealand 0800 21 8020

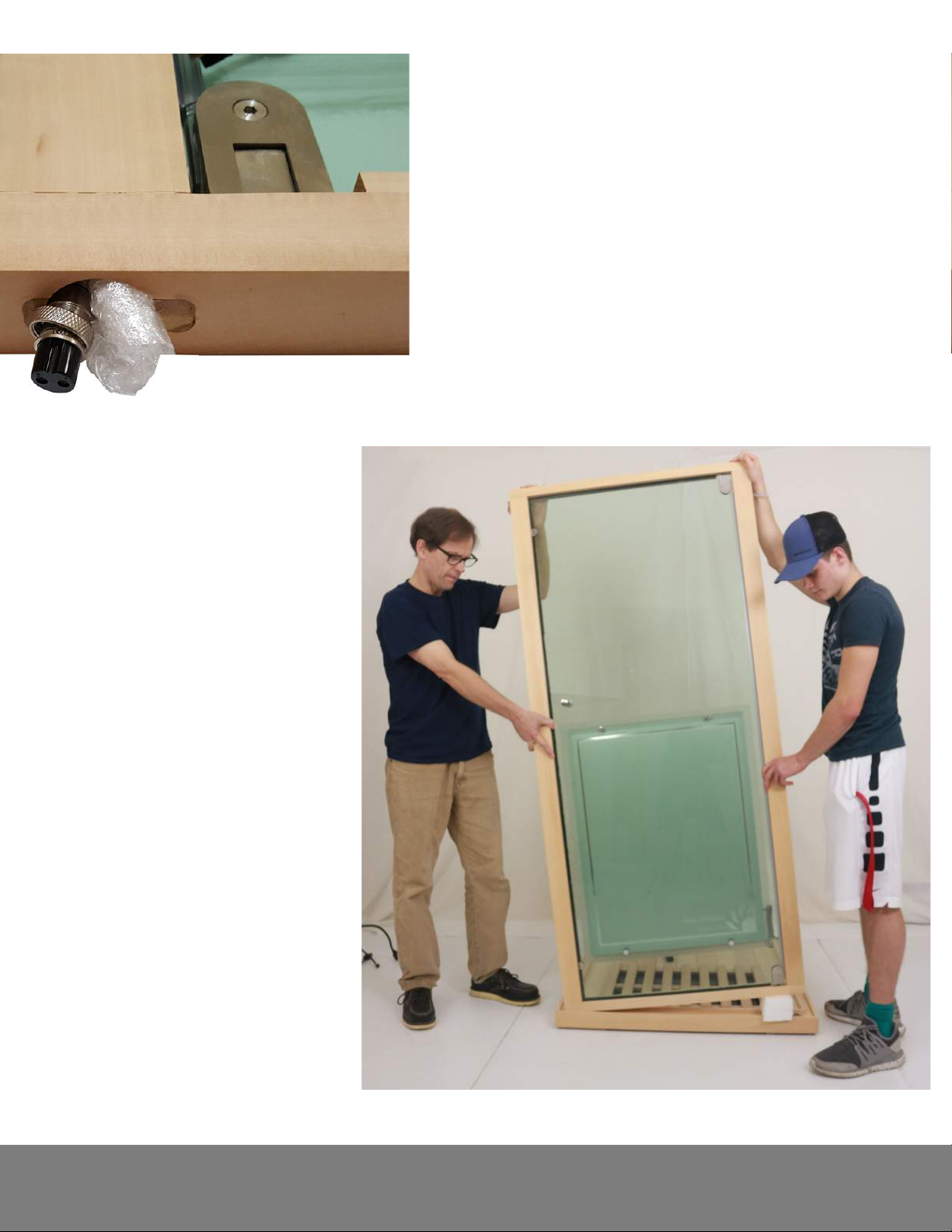

Position the Front Wall
Lift the front wall into position
carefully lowering the bottom of
the wall into the channel on the
floor base. Prop up one end of
the front wall to enable
connection of the door heater
electrical lead.
Before installing the Front Wall, ensure that the
door heater electrical is protruding from bottom of
Front Wall frame
A bit of plastic wrap can serve to hold the
connector out slightly.
Australia - 1800 316 962 | New Zealand 0800 21 8020

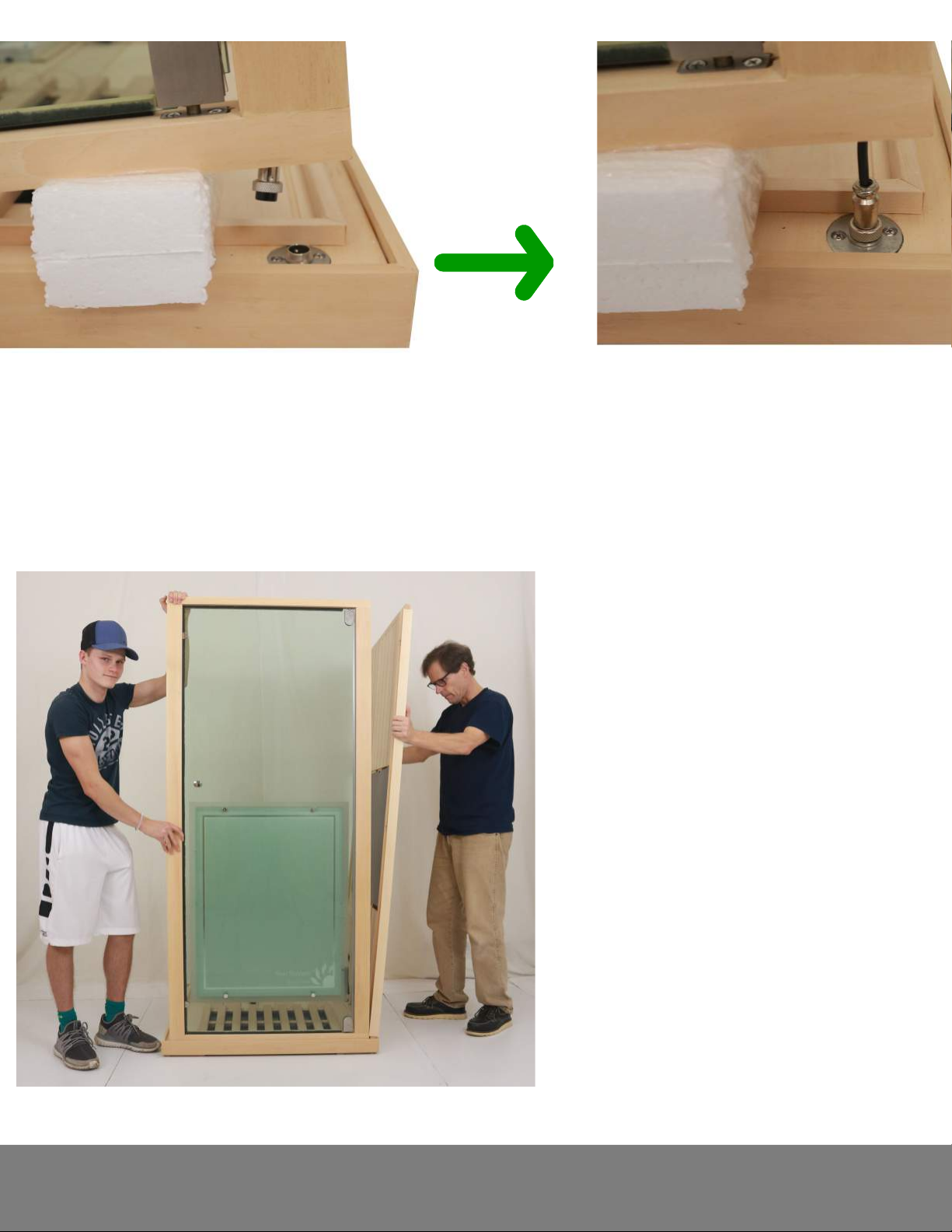

Connect door heater electrical lead to the floor base.
Ensure hat the threaded cuff is fully screwed onto the floor base connector.
NOTE:
Be sure that the wire's connector is fully inserted into the floor base connector and that the
threaded cuff is fully screwed onto the floor base connector.
Position Right Side Wall
Lift the Right Side Wall into position
wedging the bottom of the wall into
the channel in the floor base.
Australia - 1800 316 962 | New Zealand 0800 21 8020

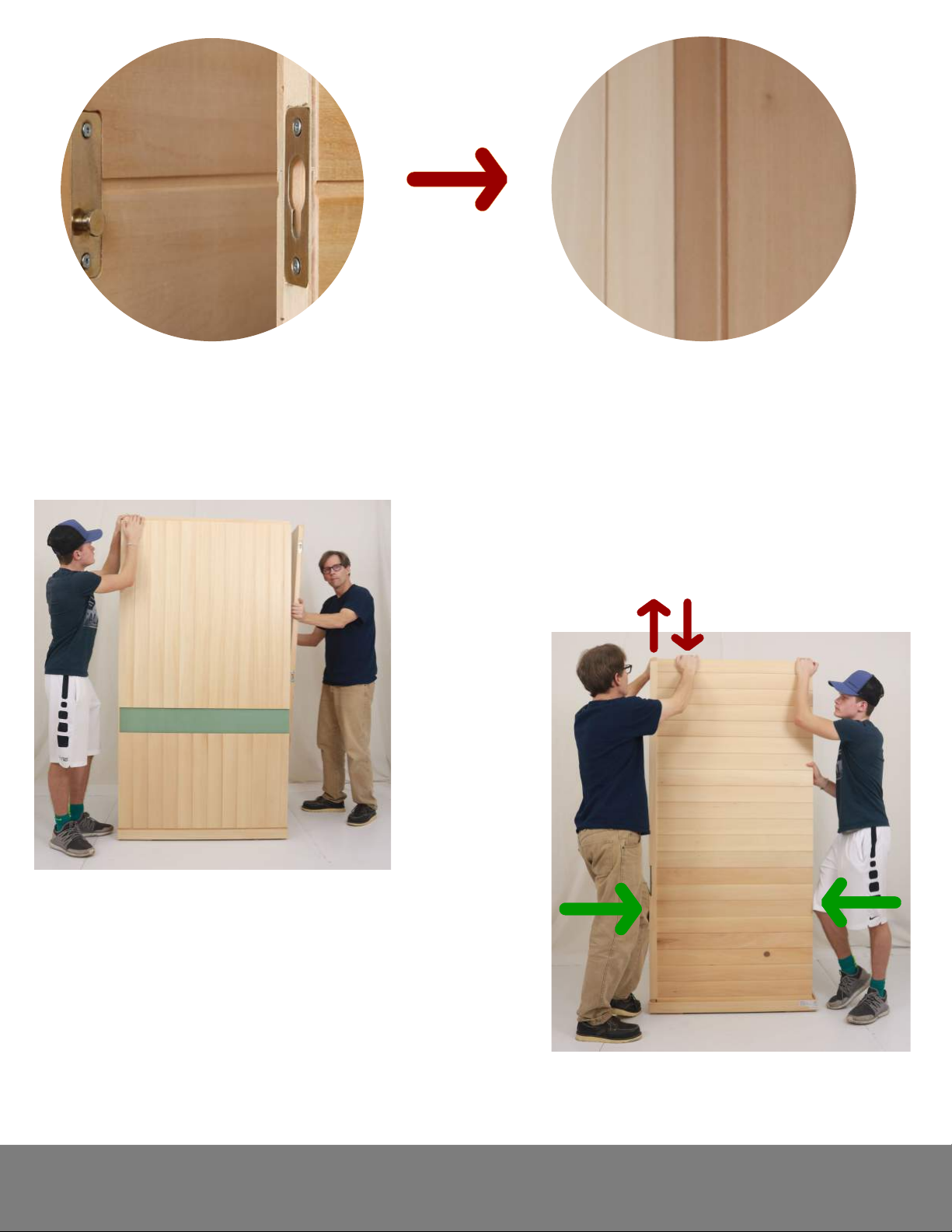

Connect Side & Front Wall
Cinch the two walls together by
applying pressure on the outside
of the side wall with your knee
Slide the side wall upward approx.
3/4” while holding the front wall
down
It is helpful if a second person applies pressure against the opposite edge of the front
wall. This will help ensure that the two walls remain in contact and the fasteners
connect.
The 2 sets of fasteners for the
walls will connect when the
Side Wall is raised sufficiently.
When you feel the fasteneres
connect, slide the Side Wall
down while continuing to cinch
the two walls together.
NOTE: It is NOT necessary to lift the entire Side Wall. Simply slide the Side Wall
upward at the front corner of the sauna to connect to the Front Wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

Repeat procedure to connect the Back Wall to the
Right Side Wall.
Raise the side wall up approx 3/4".
NOTE: Do not raise the Side Wall any further than
necessary. Raising the Side Wall too much may
disrupt the connected front corner
Check to ensure that both sets of fasteners have connected by looking at the corner
inside of the sauna. It is possible to connect one set of fasteners and miss the other.
If there is an obvious gap in the corner between the two walls the fasteners have not
connected and the raising and lowering procedure will need to be repeated.
RIGHT
SIDE
WALL
BACK
WALL
Position the Back Wall
Lift the Back Wall into position wedging the bottom
of the wall into the channel in the floor base.
NOTE: It is NOT necessary to lift the entire Side Wall. Simply slide the Side Wall
upward at the back corner of the sauna to connect to the Back Wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

Position Left Side Wall
Lift the Left Side Wall into position,
wedging the bottom of the wall into
the channel in the floor base.
Repeat the raising up and sliding down procedure again to connect the Left Side wall to
Back Wall and the the Left Side Wall to the Front Wall.
Connect one corner at a time.
Raise Side Wall up
Back
Wall
Side
Wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

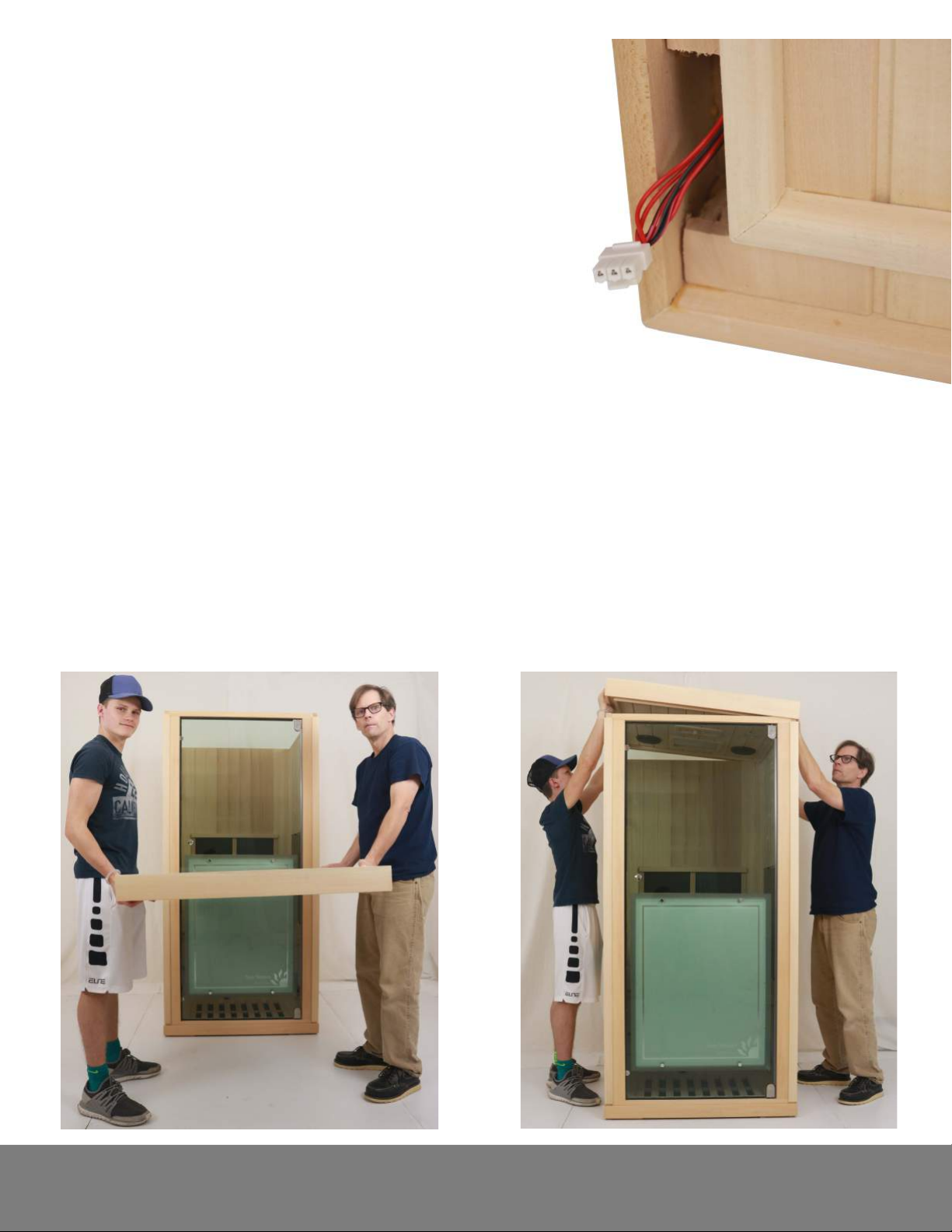

Prepare to install the sauna roof
Pull the single plastic connector down and out of the roof
before lifting the roof into place. If you are unable to grab
hold of the connector through the small opening in the
ceiling, it may be necessary to remove the first T&G board
on the top left side of the roof and feed the connector down
through the opening.
Install the Sauna Roof
Lift the roof up and over top of the sauna walls. If you are installing the sauna in a restrictive
space and are unable to walk down the sides of the saunas, it may be necessary for one
person to go inside the sauna.
Hook the right side of the roof over the Right Wall then lower the roof toward the left of the
sauna.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Connect Roof Wires
Before lowering the roof, connect the 12 V power supply wires.
This is easiest accomplished with one person holding the weight of the roof while the other
snaps together connectors and then feeds the connector up into roof. Lower Roof into
Position
This wire brings power
to the roof for the
stereo and lighting
components
Under-Bench Electrical
NOTE: Do not connect main power cord to your wall outlet yet at this time.
Connect the circular connector to
power supply box. Align the groove
in connector to properly insert.
Thread the cuff of connector on fully
Attach the 'D-Sub' computer
style connector as shown
Australia - 1800 316 962 | New Zealand 0800 21 8020

Plug in all heater leads to receptacles
in the power supply box.
Feed the main power supply cord in through the hole in back wall and insert in power
supply box. DO NOT plug power cord into your wall outlet until all electrical connections
are complete inside of the sauna.
Connect circular connector for
the door heater.
Ensure that the connector is fully inserted
and that the cuff of connector is fully
threaded on.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Power Supply Cord
Feed the main power supply cord in through the hole in back wall and insert in to the power
supply box. Connect main power cord to your wall outlet when all electrical connections
inside of the sauna and the roof are complete.
Chromatherapy
The Chromatherapy LED
panel is controlled by the
remote control and is NOT
connected to the sauna wall
control panel.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Remove Side Wall Heater Guards
The wooden lattice work in front of the heaters is
referred to as the heater guard.
These are held on with strong magnets.
It is necessary to remove the heater guards from the
two side walls in order to install the leg heater and
the sauna bench.

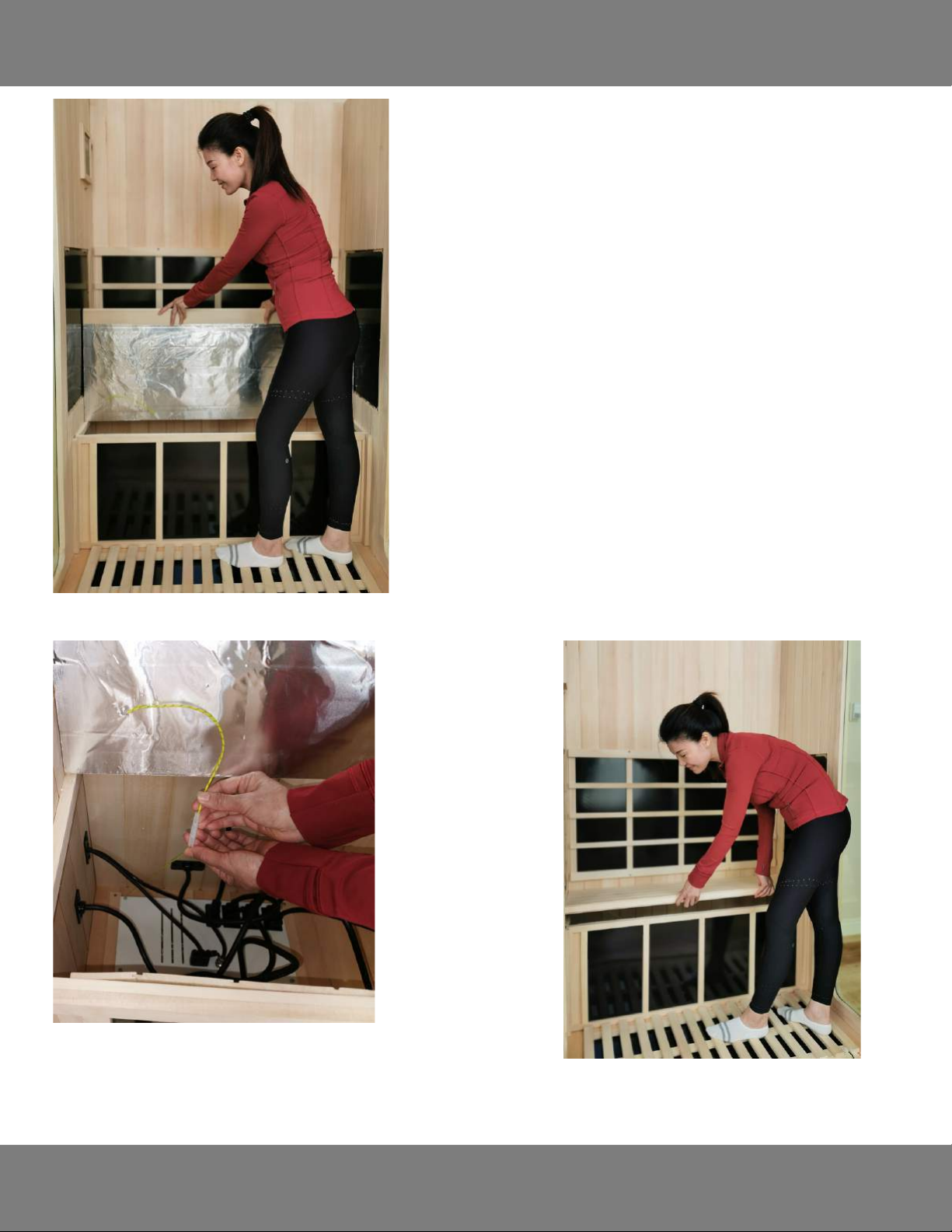

Leg Heater
Install the leg heater by lowering it into the brackets
mounted on the side walls.
Plug leg heater into the power
supply box in floor.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Connect the grounding
wire from bottom side of
Bench as shown

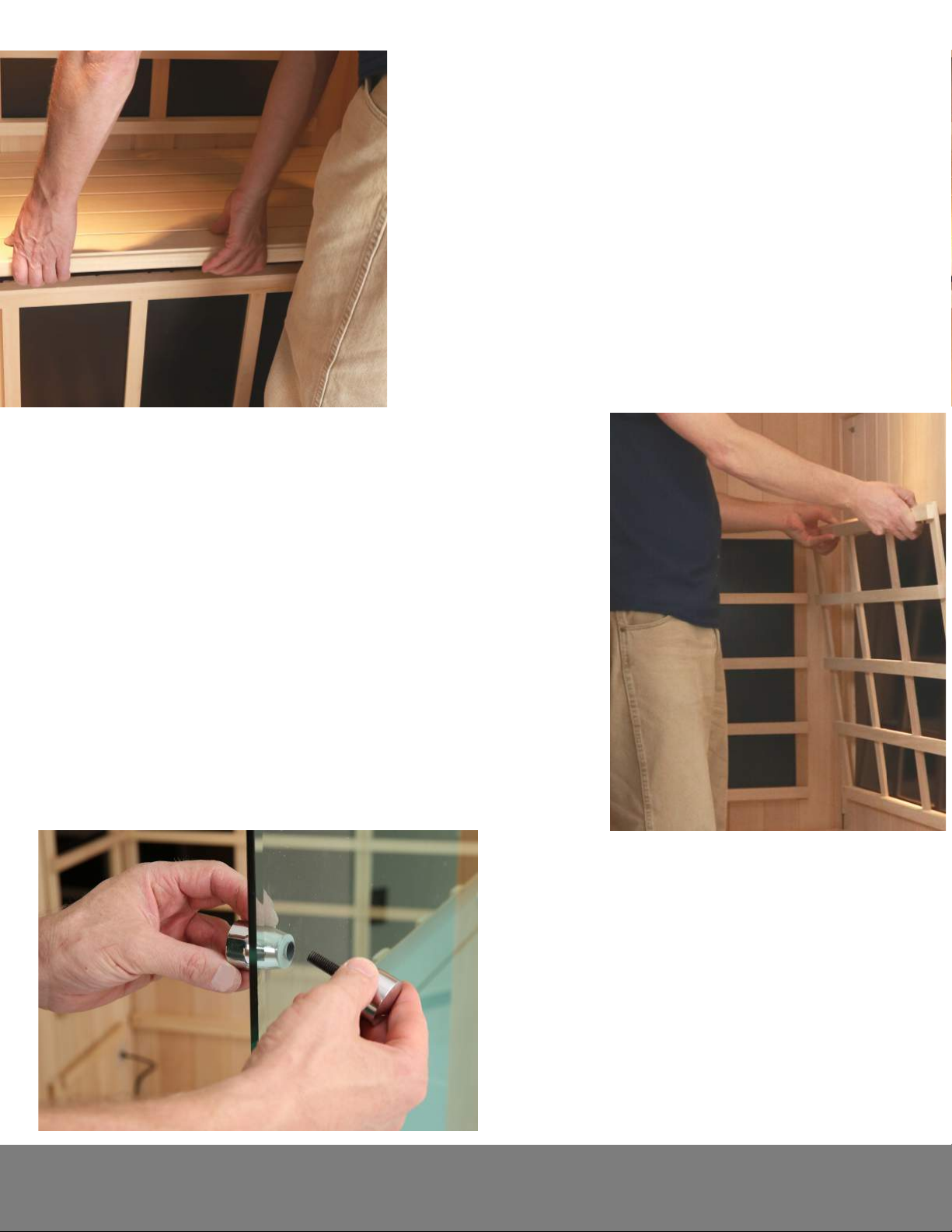

Install Bench
Angle the Bench into place to clear the Side Wall window
frames. The Bench installs foil side down.
Lower the Bench into Position
Australia - 1800 316 962 | New Zealand 0800 21 8020
Connecting the ground wire

Install Bench
The bench in your new sauna is
reversible. Choose whichever side
appeals to you to face upward.
Reinstall the side wall
heater guards
Install the door handle
Australia - 1800 316 962 | New Zealand 0800 21 8020

Heater Guards

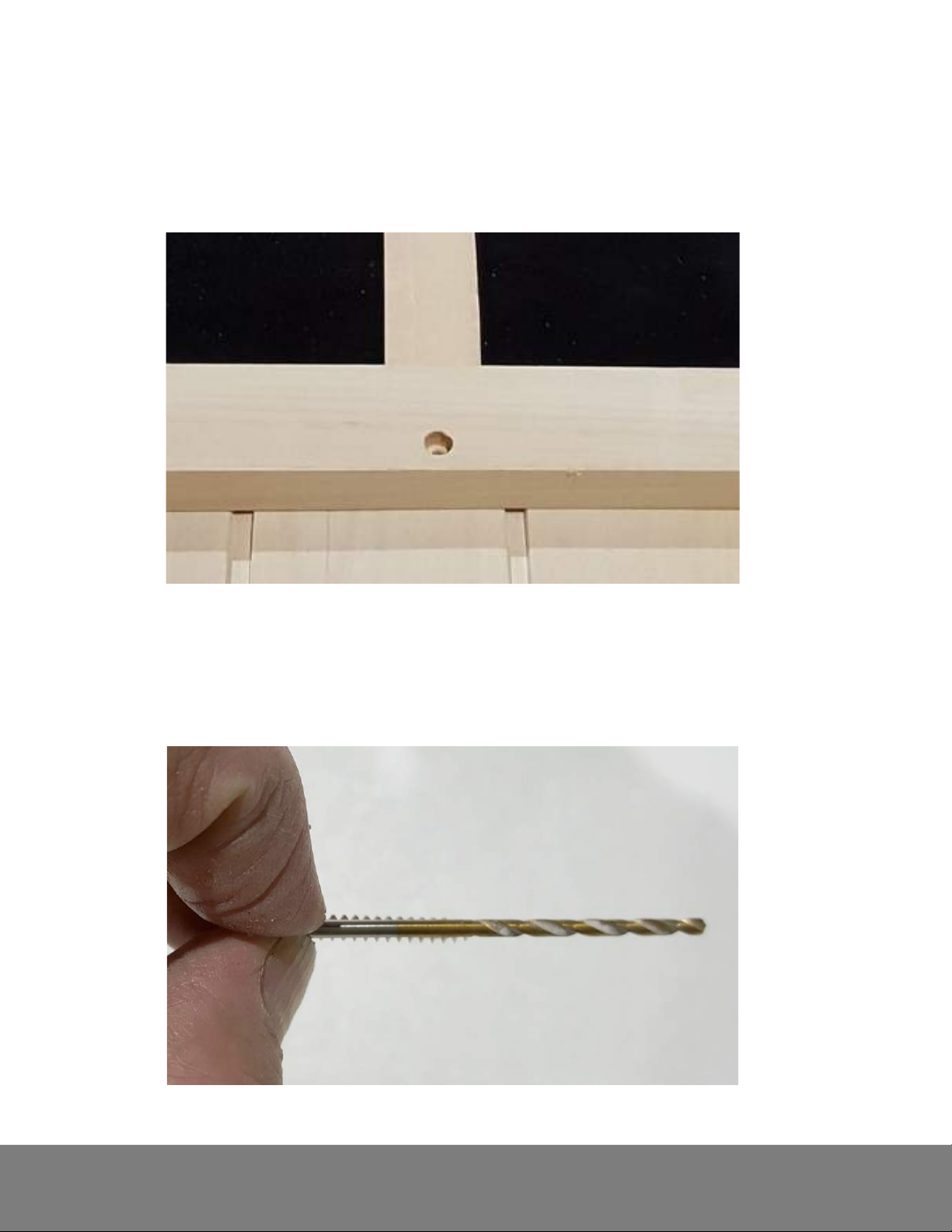

The heater guards in your new Sun Stream Infrared Sauna are held to the wall with
strong earth magnets. If preferred, the heater guards can be screwed directly to the wall
for a more permanent and secure attachment. The heater guards are pre-drilled for the
attachment screws.
Screws are included to attach the heater guard to the wall. Select a drill
bit with a smaller diameter than the screw threads to drill a pilot hole
Australia - 1800 316 962 | New Zealand 0800 21 8020

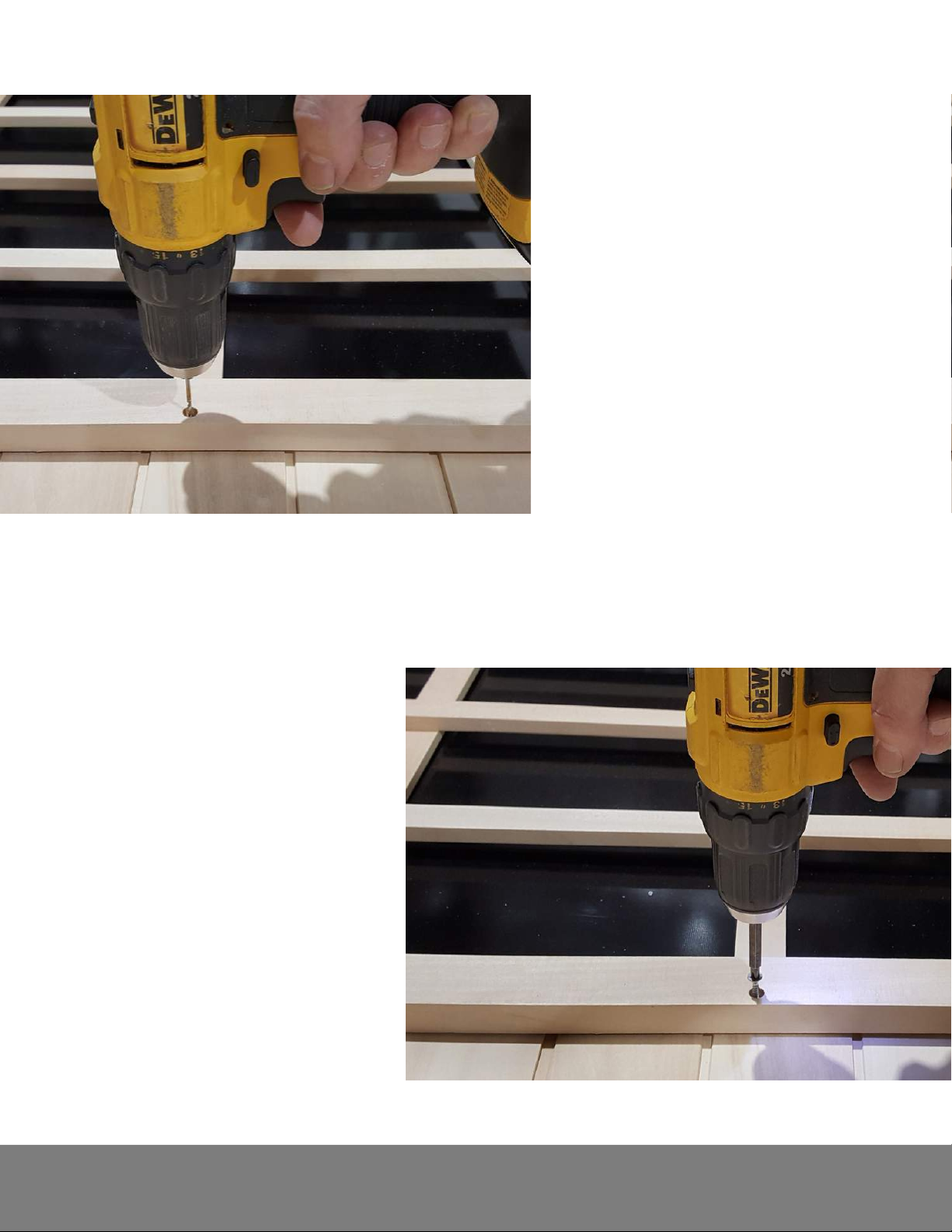

Drill a pilot hole into the wall through
the holes in the heater guards.Do not
drill deeper than necessary for the
length of the screw.
NOTE: The pilot holes are important
to ensure that the tongue and groove
wall boards do not split when
installing screws.
Install screws to firmly
attach heater guard to the wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

Ensure that the legs' ends are flush
with the bottom edge of the frames
Connect bench legs to the inside
corners of the frames using supplied
wood screws.
Attach the leg assembly to the bottom of the bench surface.Choose
which surface of the bench you prefer to be the top and bottom.
Option-L Movable
Bench Assembly
Australia - 1800 316 962 | New Zealand 0800 21 8020

Cupholder
Many of our customers simply set the cup holder
on the bench of the sauna. In the Evolve 10, 20
and 30 saunas, the cup holder can be mounted
on the side wall under the heater panels. Be
sure to drill pilot holes first for the wood screws
to mount cup holder to the T&G wall boards.
Backrests
Your new Sun Stream Sauna
comes equipped with
backrests constructed from
Western Red Cedar. Position
the backrest as pictured to
provide lower back support
and to position yourself a
comfortable distance from the
Infrared heater panels.
Accessories
Aromatherapy
Enjoy the aroma of your favorite essential oils,
such as eucalyptus or lavender, while in the
sauna. Add water and a few drops of your
essential oil to the aromatherapy glass which can
be hung on the wall heater guard.
