Assembly Manual

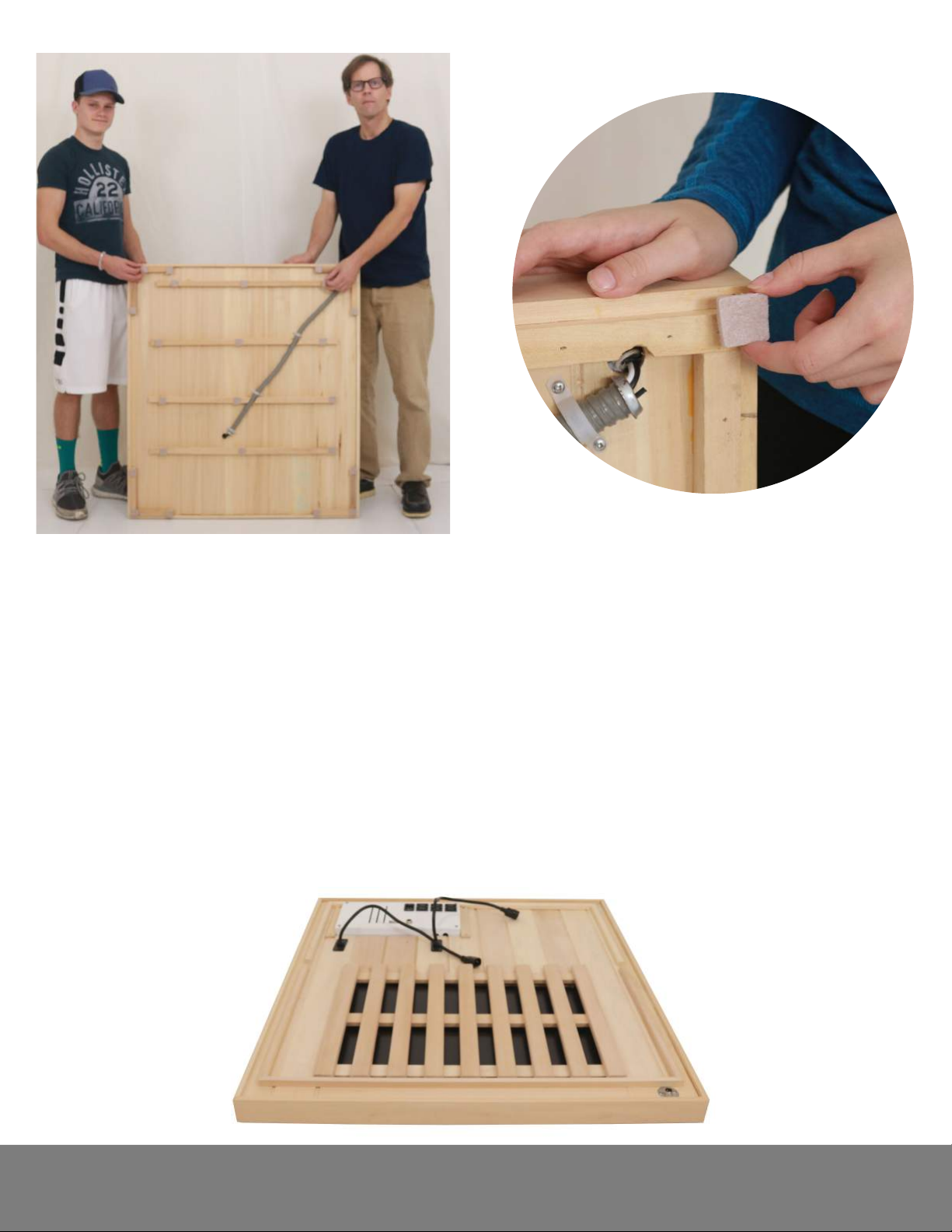

Prepare & Position the Sauna Floor
If you are assembling your sauna on a hard surface floor it is recommended that you apply
the included adhesive felt to the bottom of the sauna floor.
It is important that the sauna floor is level. Checking with a large level is
recommended. If the floor is not level, shimming or other remedies should be
applied before assembling the sauna.
Place the sauna floor in the desired location. It is necessary to position the floor out from
your walls for assembly and slide the sauna into final position following assembly.
Australia - 1800 316 962 | New Zealand 0800 21 8020

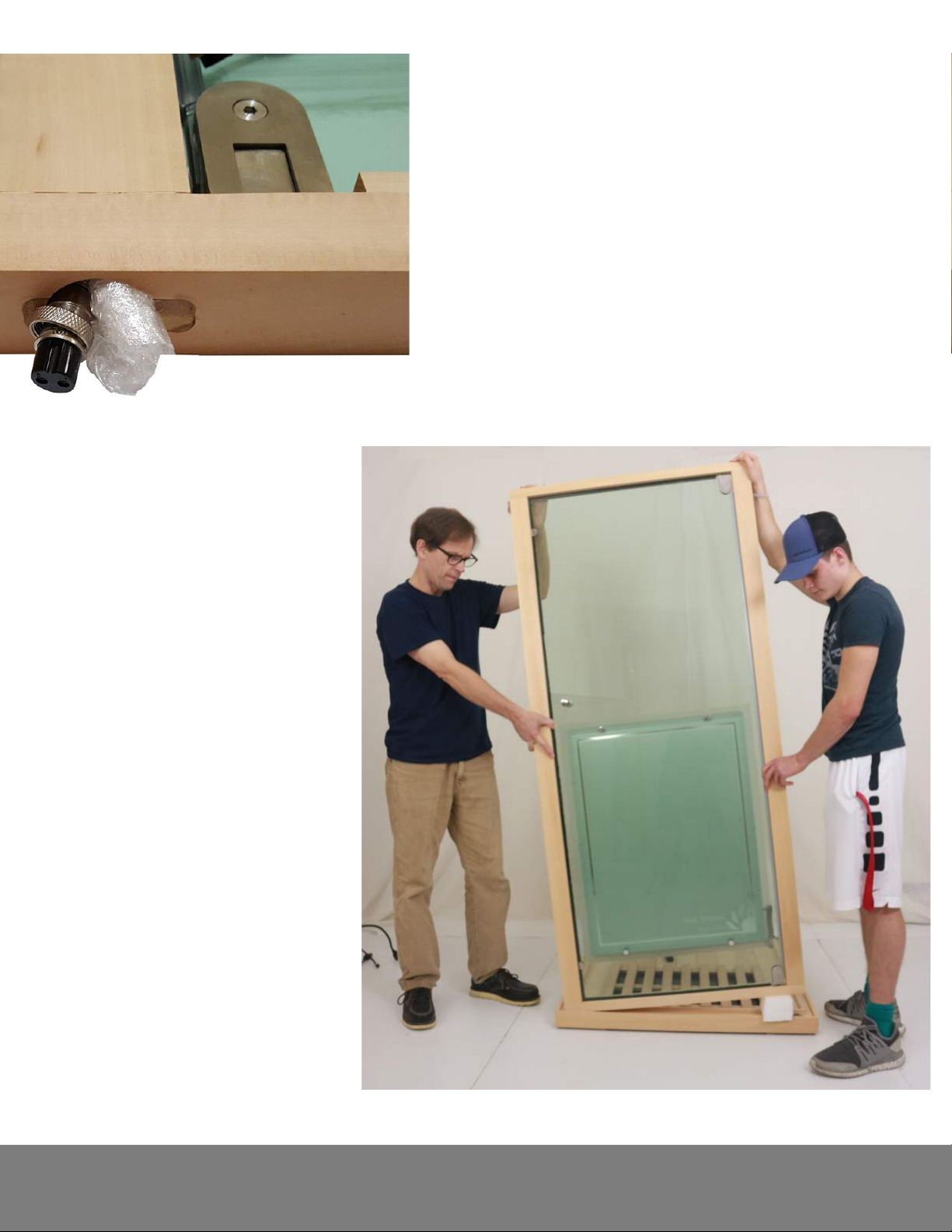

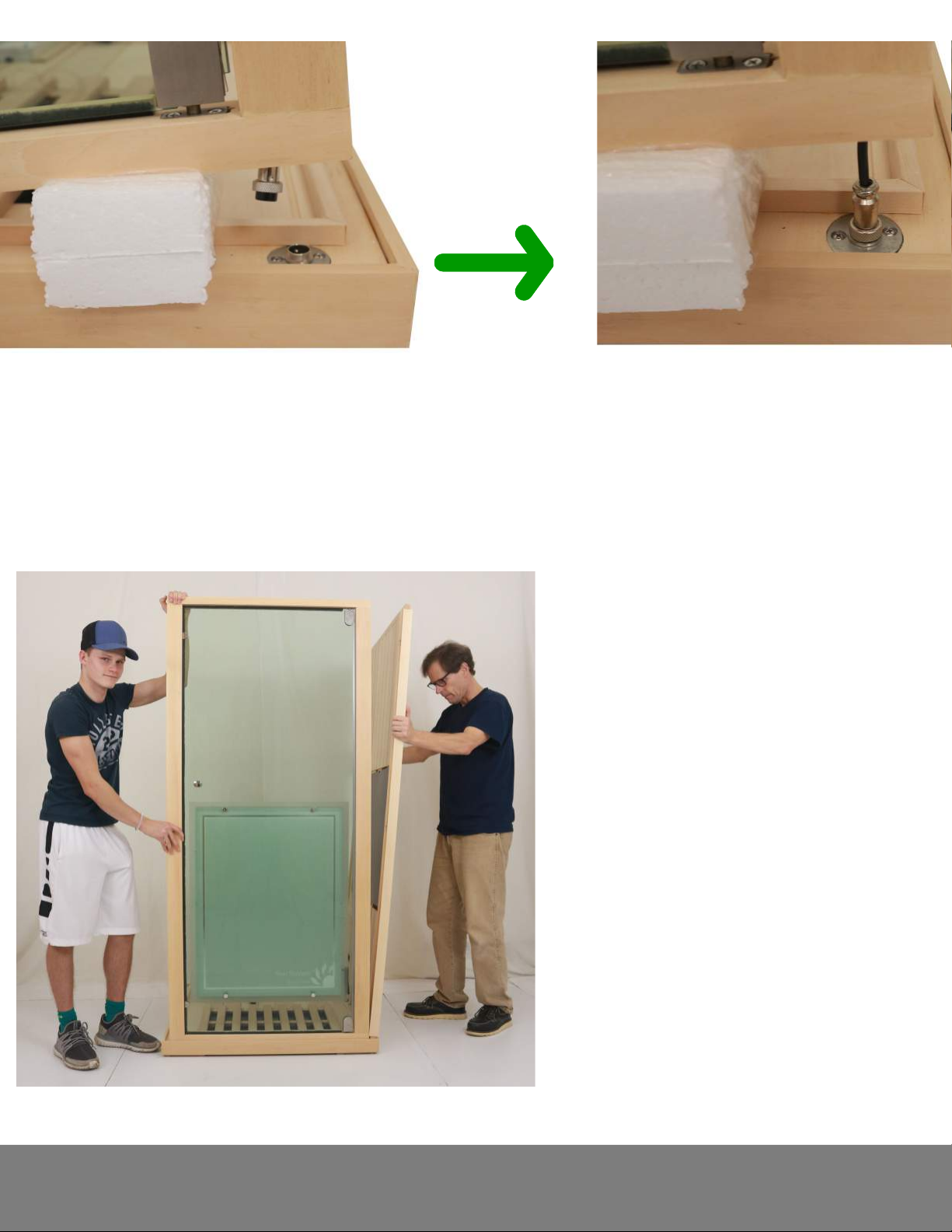

Position the Front Wall
Lift the front wall into position
carefully lowering the bottom of
the wall into the channel on the
floor base. Prop up one end of
the front wall to enable
connection of the door heater
electrical lead.
Before installing the Front Wall, ensure that the
door heater electrical is protruding from bottom of
Front Wall frame
A bit of plastic wrap can serve to hold the
connector out slightly.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Connect door heater electrical lead to the floor base.
Ensure hat the threaded cuff is fully screwed onto the floor base connector.
NOTE:
Be sure that the wire's connector is fully inserted into the floor base connector and that the
threaded cuff is fully screwed onto the floor base connector.
Position Right Side Wall
Lift the Right Side Wall into position
wedging the bottom of the wall into
the channel in the floor base.
Australia - 1800 316 962 | New Zealand 0800 21 8020

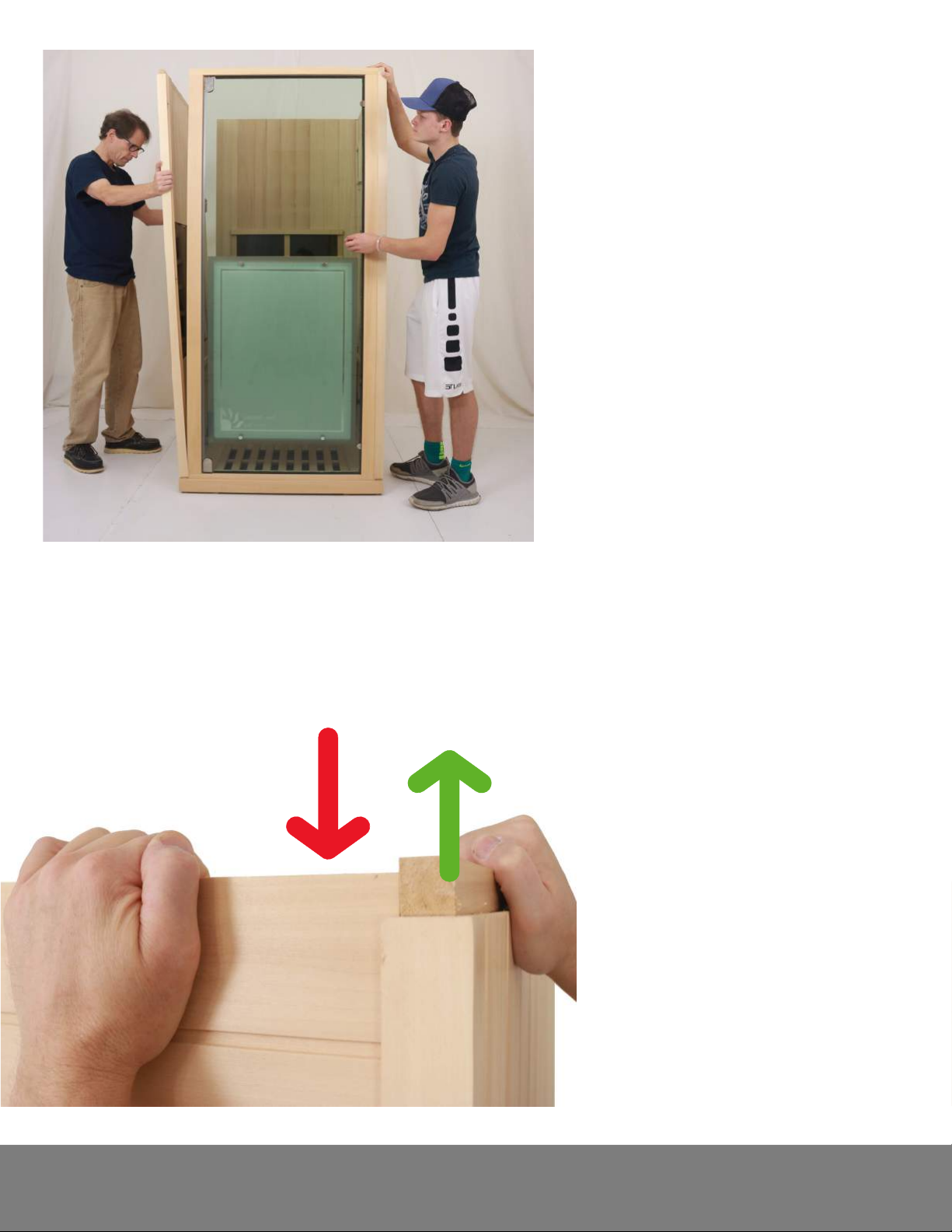

Connect Side & Front Wall
Cinch the two walls together by
applying pressure on the outside
of the side wall with your knee
Slide the side wall upward approx.
3/4” while holding the front wall
down
It is helpful if a second person applies pressure against the opposite edge of the front
wall. This will help ensure that the two walls remain in contact and the fasteners
connect.
The 2 sets of fasteners for the
walls will connect when the
Side Wall is raised sufficiently.
When you feel the fasteneres
connect, slide the Side Wall
down while continuing to cinch
the two walls together.
NOTE: It is NOT necessary to lift the entire Side Wall. Simply slide the Side Wall
upward at the front corner of the sauna to connect to the Front Wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

Repeat procedure to connect the Back Wall to the
Right Side Wall.
Raise the side wall up approx 3/4".
NOTE: Do not raise the Side Wall any further than
necessary. Raising the Side Wall too much may
disrupt the connected front corner
Check to ensure that both sets of fasteners have connected by looking at the corner
inside of the sauna. It is possible to connect one set of fasteners and miss the other.
If there is an obvious gap in the corner between the two walls the fasteners have not
connected and the raising and lowering procedure will need to be repeated.
RIGHT
SIDE
WALL
BACK
WALL
Position the Back Wall
Lift the Back Wall into position wedging the bottom
of the wall into the channel in the floor base.
NOTE: It is NOT necessary to lift the entire Side Wall. Simply slide the Side Wall
upward at the back corner of the sauna to connect to the Back Wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

Position Left Side Wall
Lift the Left Side Wall into position,
wedging the bottom of the wall into
the channel in the floor base.
Repeat the raising up and sliding down procedure again to connect the Left Side wall to
Back Wall and the the Left Side Wall to the Front Wall.
Connect one corner at a time.
Raise Side Wall up
Back
Wall
Side
Wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

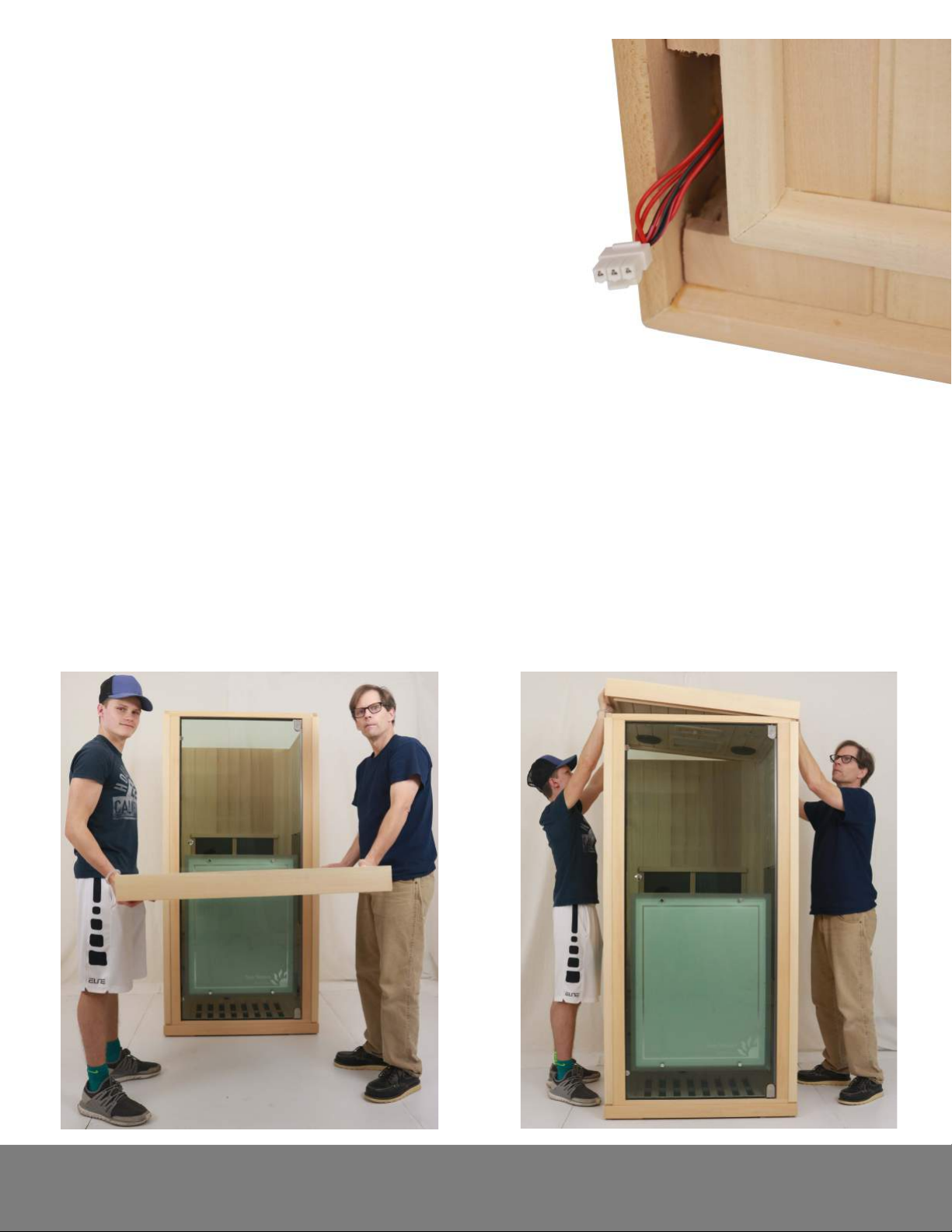

Prepare to install the sauna roof
Pull the single plastic connector down and out of the roof
before lifting the roof into place. If you are unable to grab
hold of the connector through the small opening in the
ceiling, it may be necessary to remove the first T&G board
on the top left side of the roof and feed the connector down
through the opening.
Install the Sauna Roof
Lift the roof up and over top of the sauna walls. If you are installing the sauna in a restrictive
space and are unable to walk down the sides of the saunas, it may be necessary for one
person to go inside the sauna.
Hook the right side of the roof over the Right Wall then lower the roof toward the left of the
sauna.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Connect Roof Wires
Before lowering the roof, connect the 12 V power supply wires.
This is easiest accomplished with one person holding the weight of the roof while the other
snaps together connectors and then feeds the connector up into roof. Lower Roof into
Position
This wire brings power
to the roof for the
stereo and lighting
components
Under-Bench Electrical
NOTE: Do not connect main power cord to your wall outlet yet at this time.
Connect the circular connector to
power supply box. Align the groove
in connector to properly insert.
Thread the cuff of connector on fully
Attach the 'D-Sub' computer
style connector as shown
Australia - 1800 316 962 | New Zealand 0800 21 8020

Plug in all heater leads to receptacles
in the power supply box.
Feed the main power supply cord in through the hole in back wall and insert in power
supply box. DO NOT plug power cord into your wall outlet until all electrical connections
are complete inside of the sauna.
Connect circular connector for
the door heater.
Ensure that the connector is fully inserted
and that the cuff of connector is fully
threaded on.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Power Supply Cord
Feed the main power supply cord in through the hole in back wall and insert in to the power
supply box. Connect main power cord to your wall outlet when all electrical connections
inside of the sauna and the roof are complete.
Chromatherapy
The Chromatherapy LED
panel is controlled by the
remote control and is NOT
connected to the sauna wall
control panel.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Remove Side Wall Heater Guards
The wooden lattice work in front of the heaters is
referred to as the heater guard.
These are held on with strong magnets.
It is necessary to remove the heater guards from the
two side walls in order to install the leg heater and
the sauna bench.
Leg Heater
Install the leg heater by lowering it into the brackets
mounted on the side walls.
Plug leg heater into the power
supply box in floor.
Australia - 1800 316 962 | New Zealand 0800 21 8020

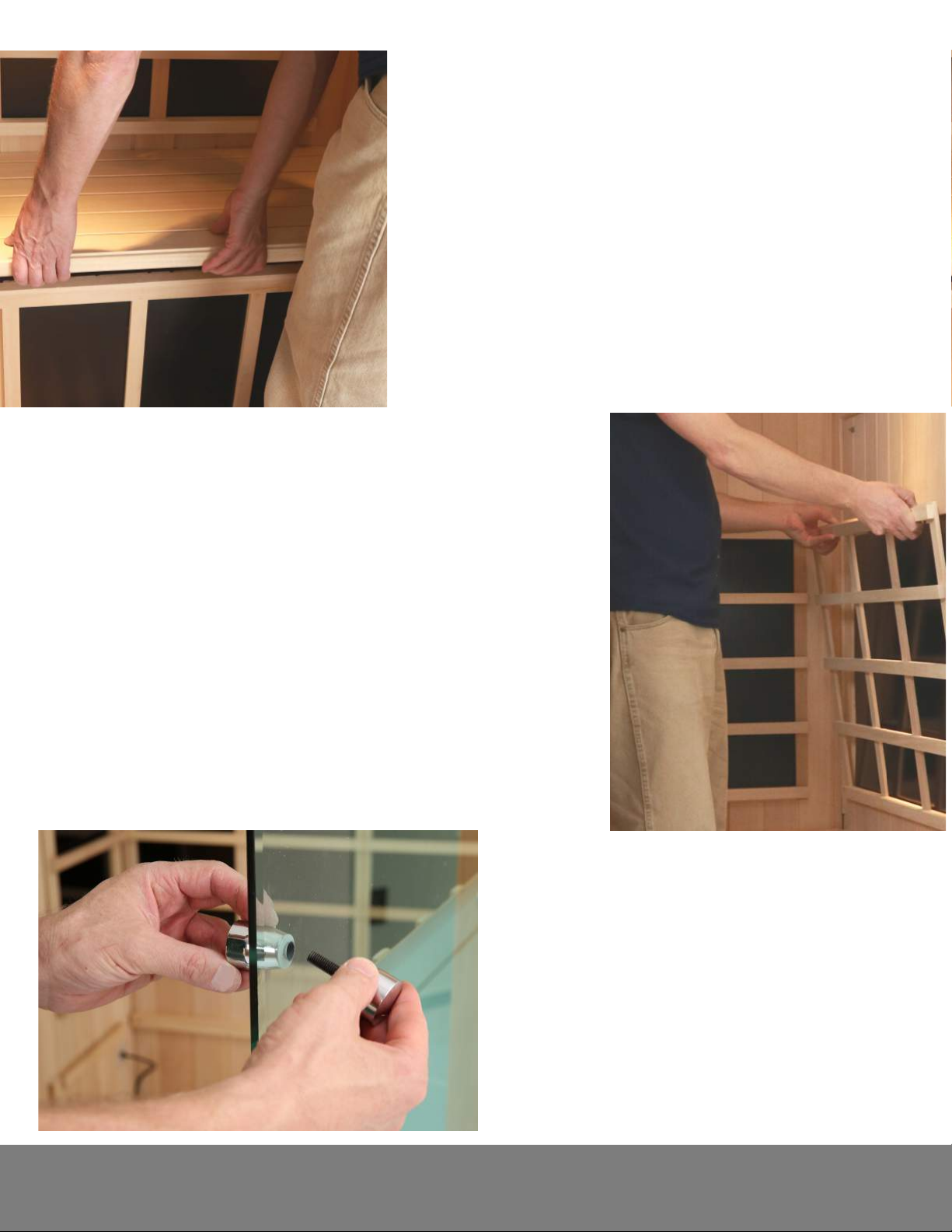

Install Bench
The bench in your new sauna is
reversible. Choose whichever side
appeals to you to face upward.
Reinstall the side wall
heater guards
Install the door handle
Australia - 1800 316 962 | New Zealand 0800 21 8020

Heater Guards
The heater guards in your new Sun Stream Infrared Sauna are held to the wall with
strong earth magnets. If preferred, the heater guards can be screwed directly to the wall
for a more permanent and secure attachment. The heater guards are pre-drilled for the
attachment screws.
Screws are included to attach the heater guard to the wall. Select a drill
bit with a smaller diameter than the screw threads to drill a pilot hole
Australia - 1800 316 962 | New Zealand 0800 21 8020

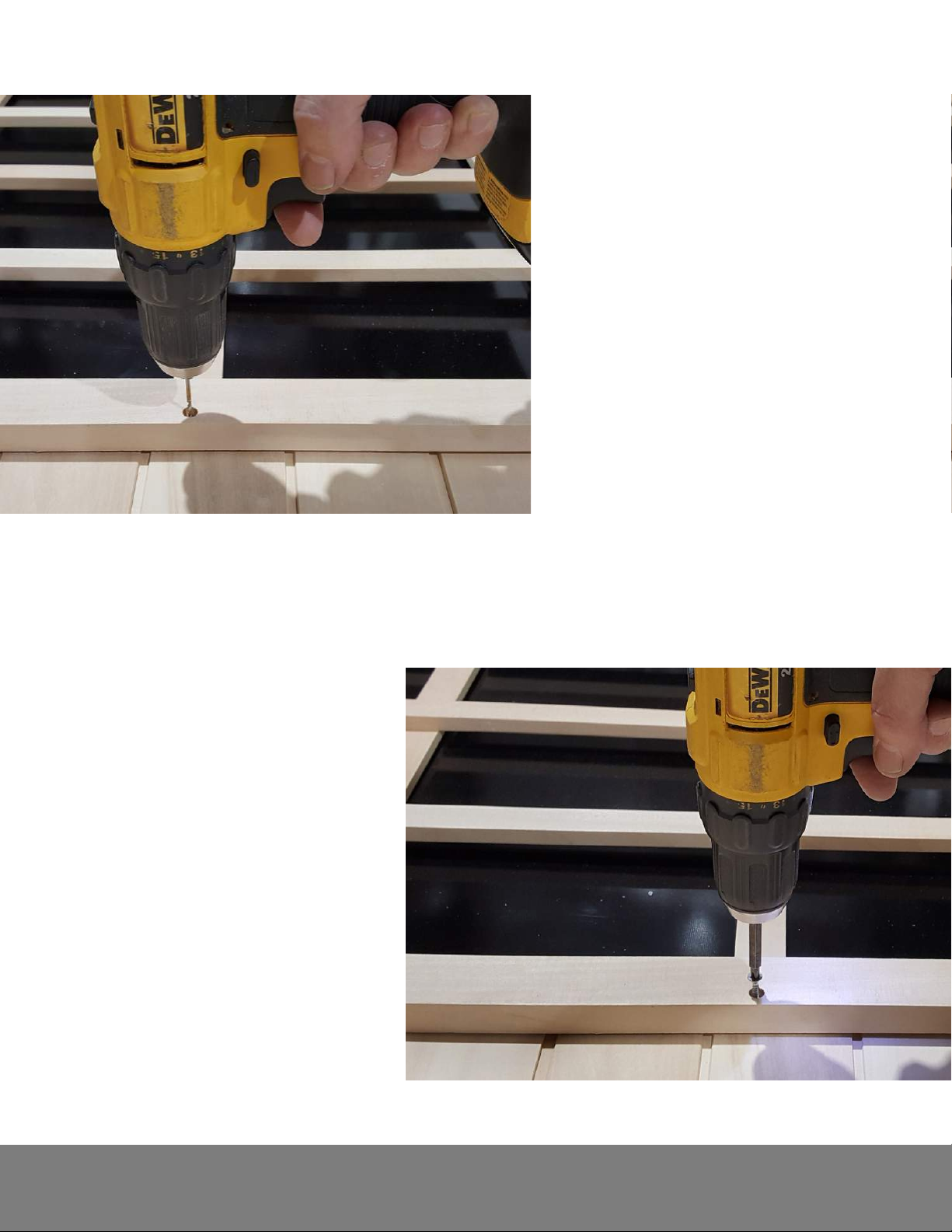

Drill a pilot hole into the wall through
the holes in the heater guards.Do not
drill deeper than necessary for the
length of the screw.
NOTE: The pilot holes are important
to ensure that the tongue and groove
wall boards do not split when
installing screws.
Install screws to firmly
attach heater guard to the wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

Ensure that the legs' ends are flush
with the bottom edge of the frames
Connect bench legs to the inside
corners of the frames using supplied
wood screws.
Attach the leg assembly to the bottom of the bench surface.Choose
which surface of the bench you prefer to be the top and bottom.
Option-L Movable
Bench Assembly
Australia - 1800 316 962 | New Zealand 0800 21 8020

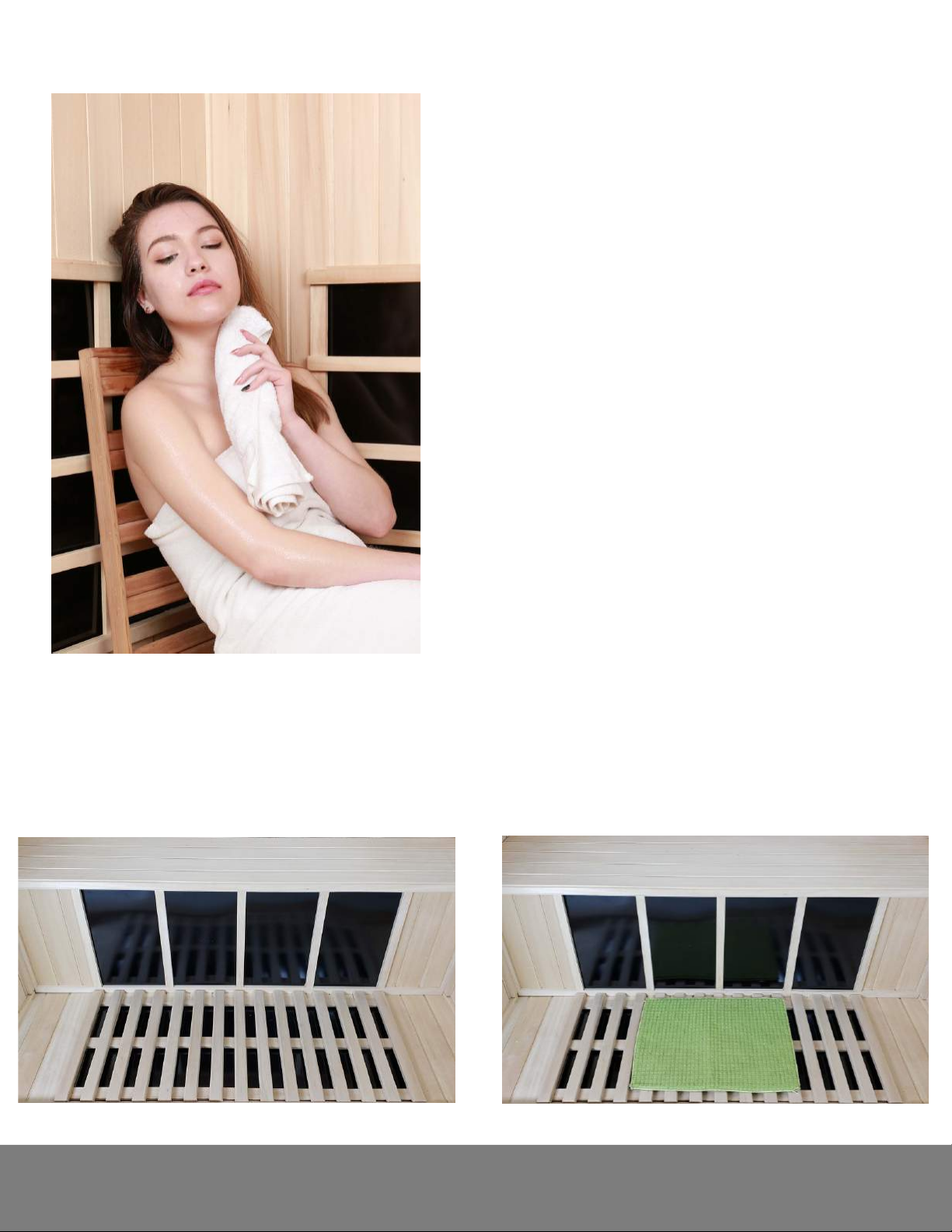

Floor Heater and General Maintenance
It is inevitable that you will drip some sweat down through the floor grate and on to the floor
heater panel. Try to minimize this by wiping sweat from your body regularly during your sauna
session.
The floor heater can be used with or without a SMALL towel under your feet.
Sweat
Always sit on a towel on the sauna bench
and wipe yourself down with a small
towel to contain your sweat. This will
minimize staining of the wood surfaces in
the sauna.
Australia - 1800 316 962 | New Zealand 0800 21 8020

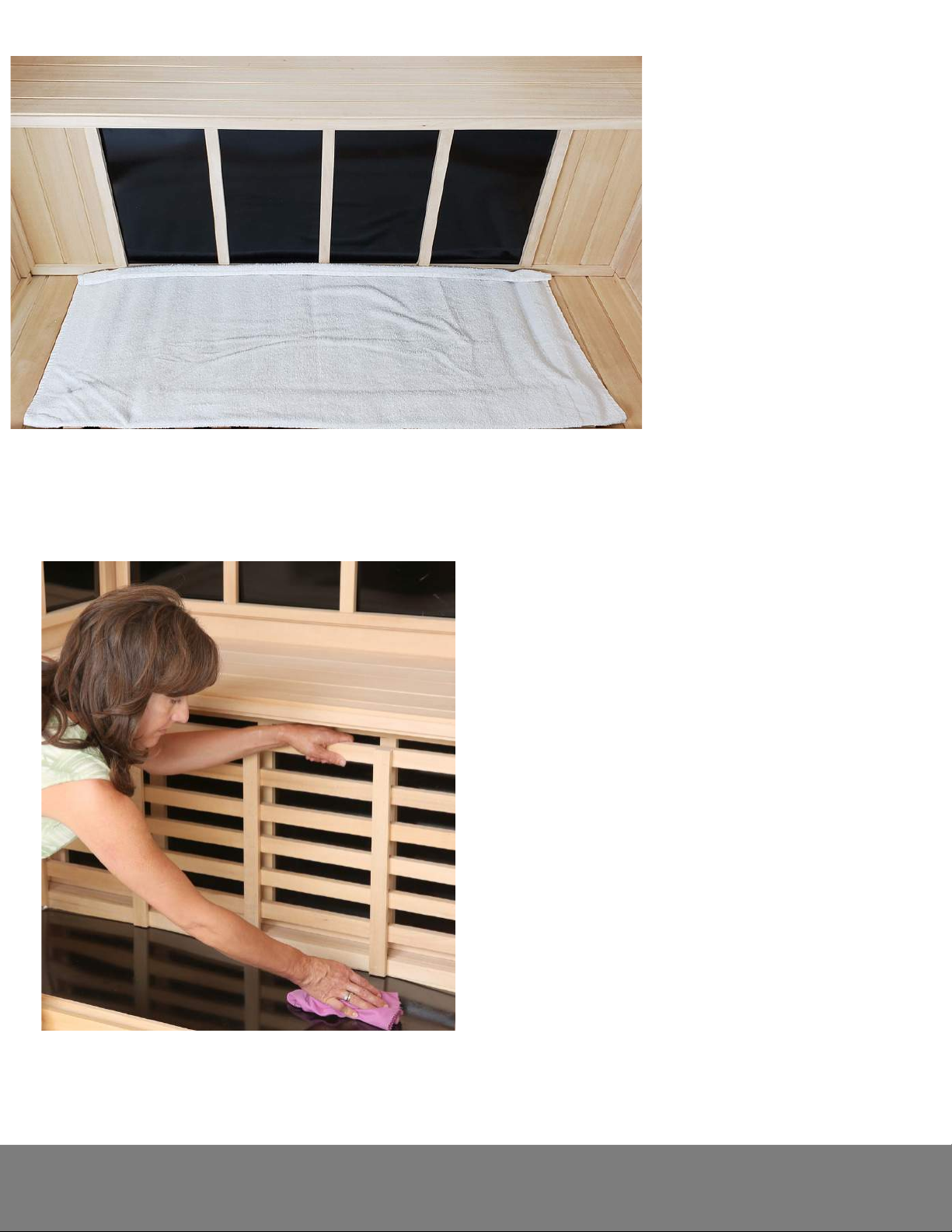

X
CAUTION: DO NOT use
LARGE towels on the floor
heater that cover any more
than 30% of the floor heater.
SMALL towel only.
Floor Heater Cleaning
Simply tilt the floor grate up to access
the floor heater. Gently wipe the
heater with a damp cloth to clean.
A bit of dish soap can be used on the
floor heater if necessary.
DO NOT scrub the heater with
excessive pressure.
Follow the same guidlines for cleaning
the wall heater panels.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Audio System
Music can be piped to the speakers in the sauna two different ways, either wireless via
the Bluetooth receiver or by directly connecting your device (smart phone, tablet, laptop
etc.) with a 3.5mm male to male audio cord.
1. Bluetooth Mode.
When you first plug the sauna into the wall outlet a beep will sound indicating the
Audio circuit board in the roof has power. The circuit board's colored LED indicator
lights will flash and these will continue to flash whenever the sauna is plugged into the
wall outlet.
To transmit audio to the sauna's speakers from your device, search for and connect
your device to the 'BT Speaker'

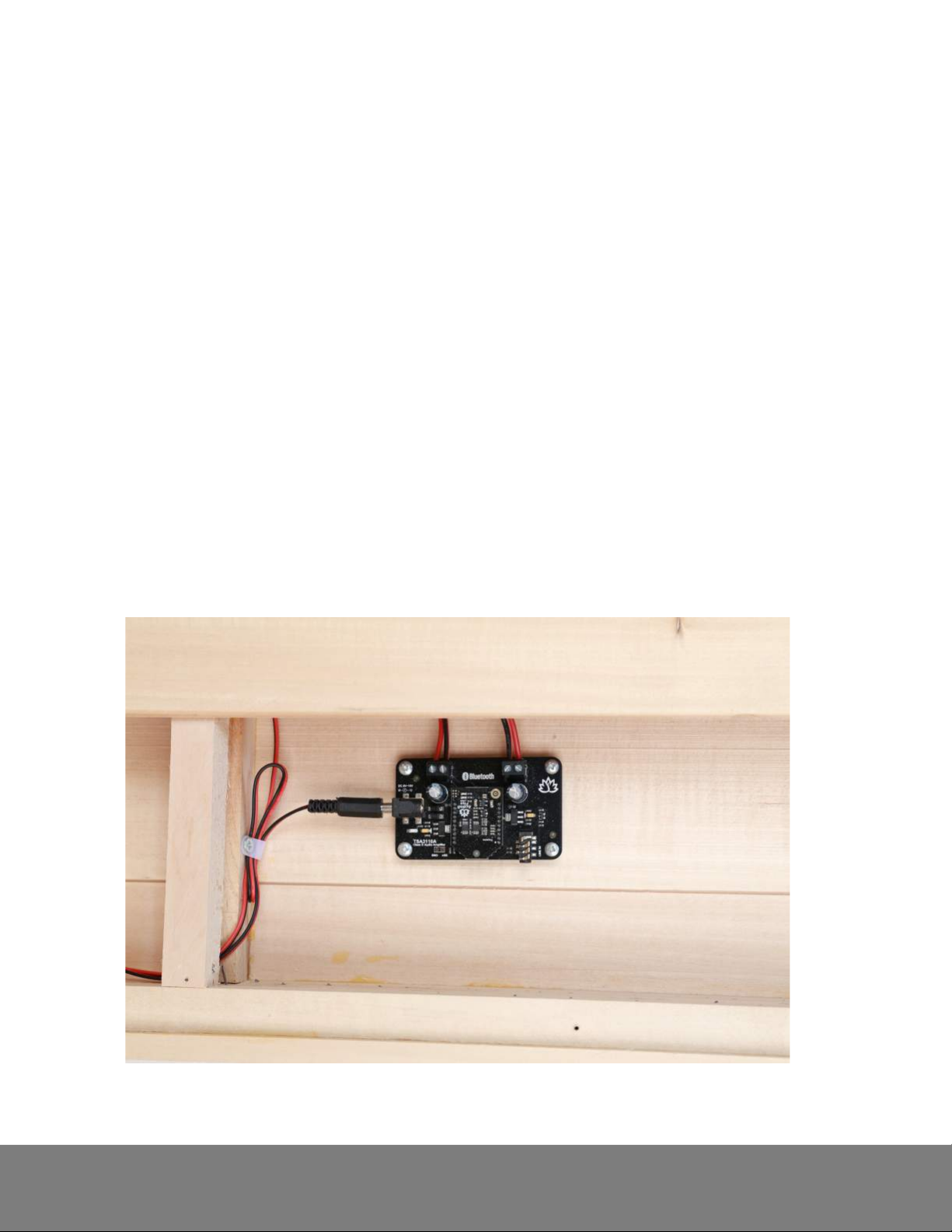

The Audio Circuit Board is shown inside the sauna roof
in Bluetooth Mode without an audio cord connected.
Australia - 1800 316 962 | New Zealand 0800 21 8020

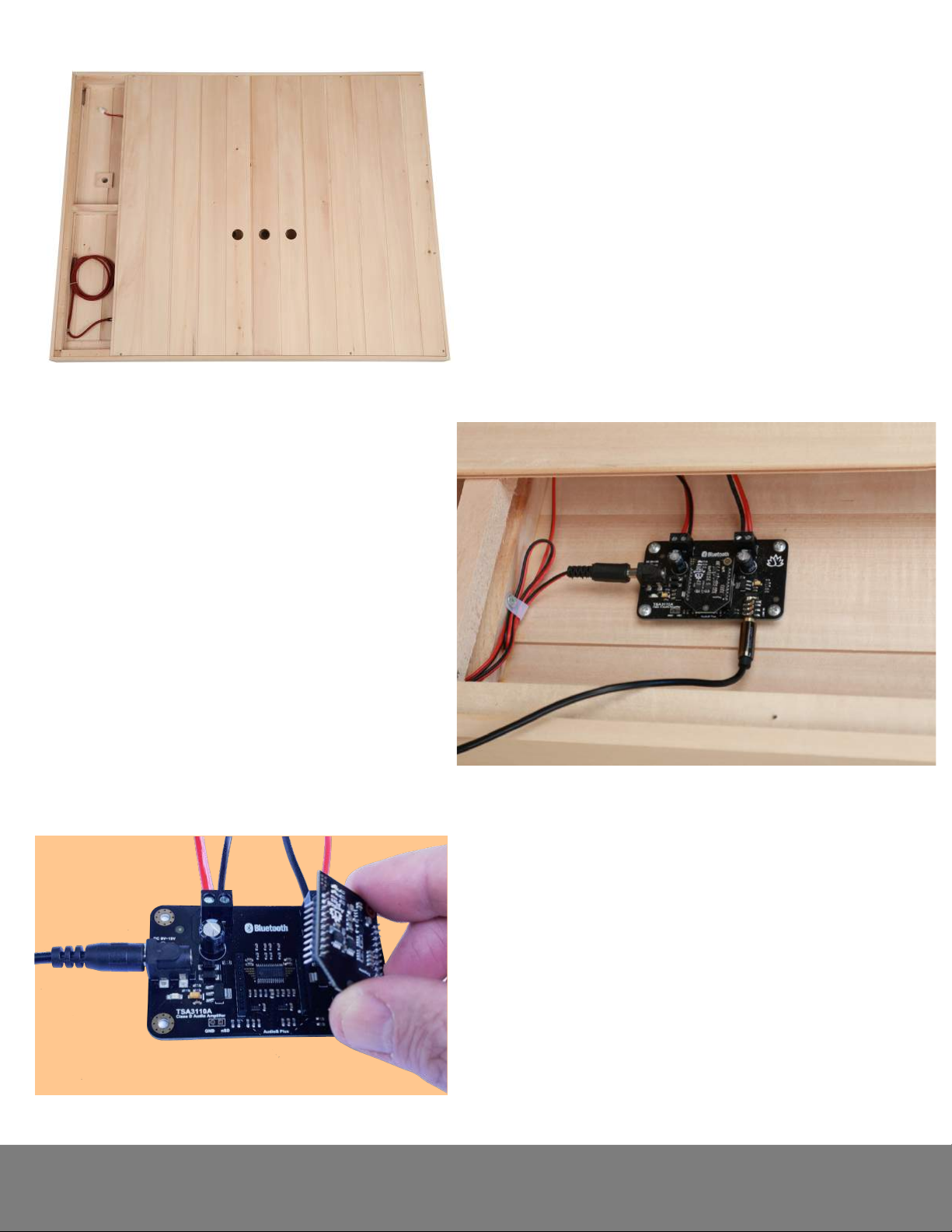

2. Direct Connect Mode
(NO Bluetooth)
First, remove the access panels from
the roof by unscrewing wood screws.
Connect your device to the sauna's audio
system by inserting a 3.5 mm male to
male audio cord into the BT circuit board
as shown (Audio cords not included).
To completely eliminate the RF Bluetooth
signal, simply remove the Bluetooth
module from the circuit board as shown
