Sunstream evolve 30 User manual

Assembly Manual
Australia - 1800 316 962 | New Zealand 0800 21 8020

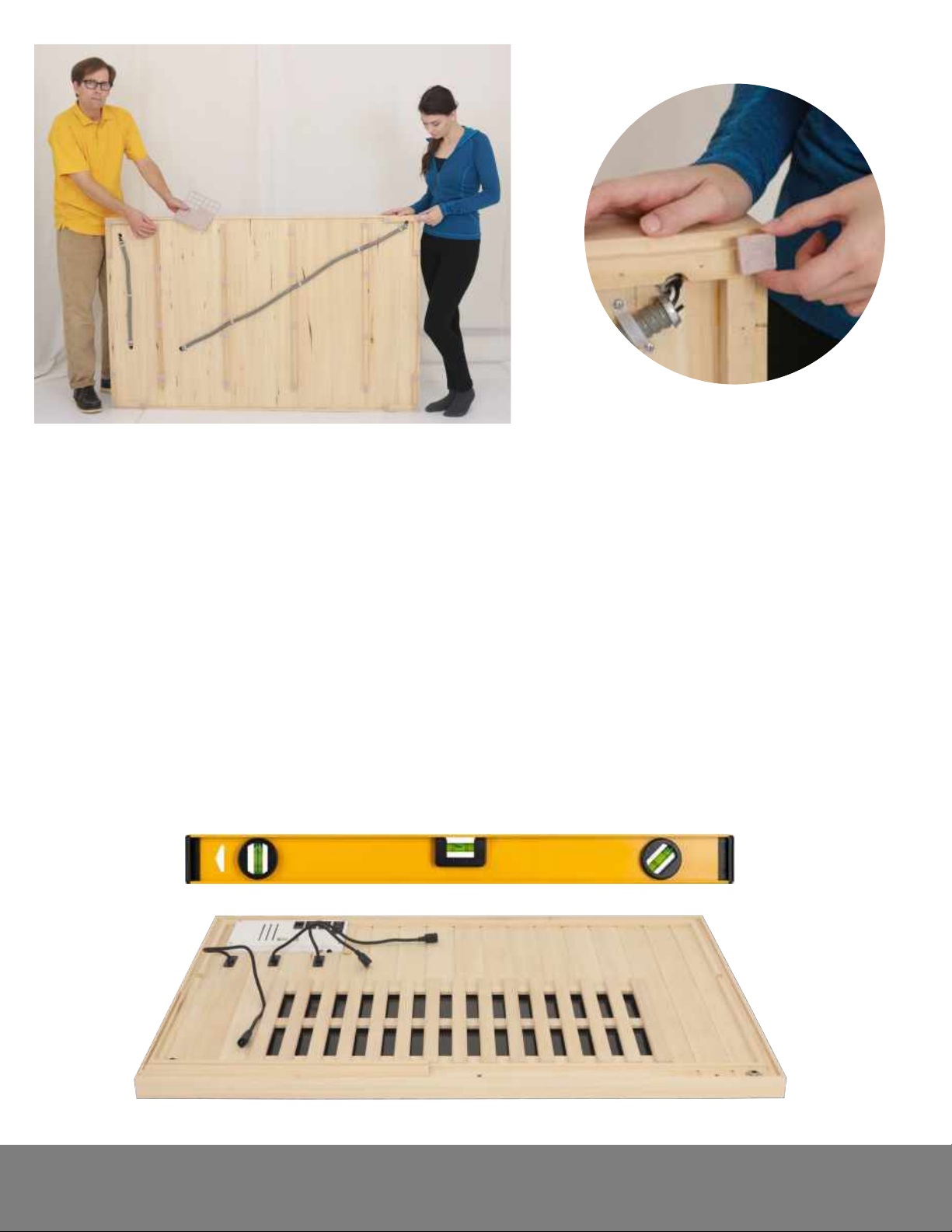

Prepare & Position the Sauna Floor
If you are assembling your sauna on a hard surface floor it is recommended that you apply the included
adhesive felt to the bottom of the sauna floor.
Place the sauna floor in the desired location. It is necessary to position the floor out from your walls for
assembly and move the sauna following assembly.
Please note: It is important that the sauna floor is level. Checking with a large level is
recommended. If the floor is not level, shimming or other remedies should be applied before
assembling the sauna.
Australia - 1800 316 962 | New Zealand 0800 21 8020

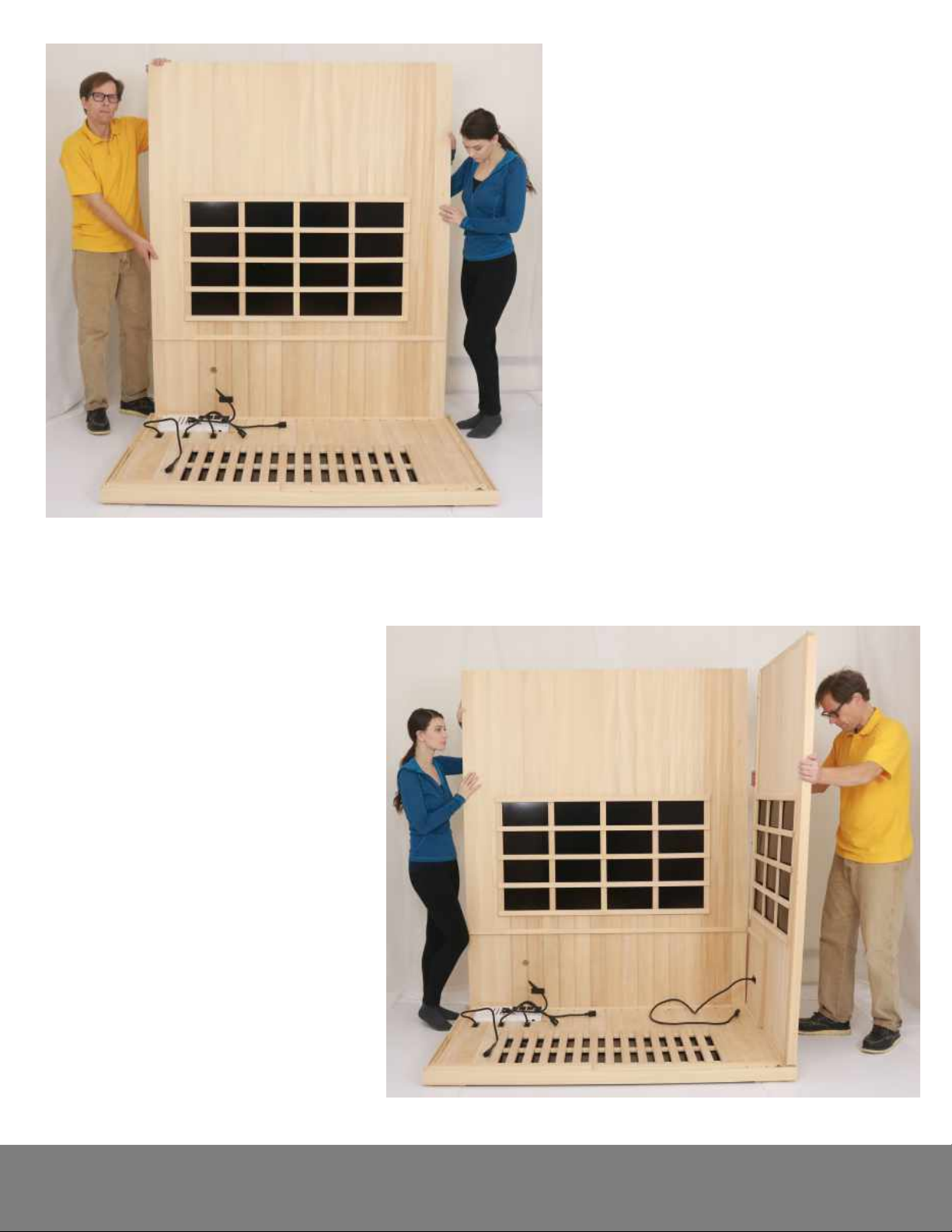

Position the Back Wall
Lift the back wall into position carefully
lowering the bottom of the wall into the
channel on the floor base.
Position Right Side Wall
Lift the Right side wall into position
wedging the bottom of the wall into the
channel in the floor base.
Australia - 1800 316 962 | New Zealand 0800 21 8020

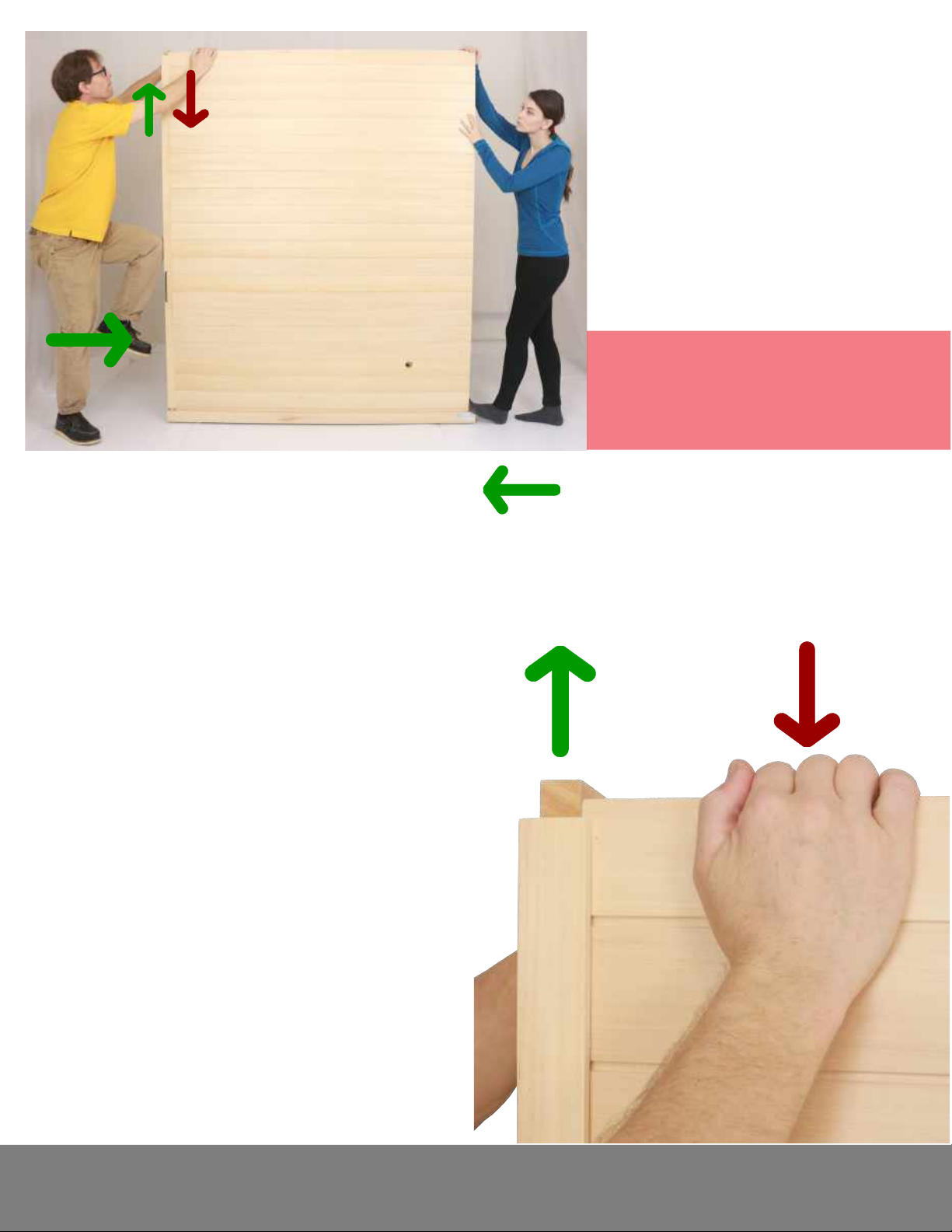

Back Right Corner Wall
Cinch the Right Side wall and the Back
wall together by applying pressure on
the outside of the Side wall.
Slide the Right Side wall upward
approx. 1/2” while holding
the back wall down
It is helpful if a second person applies pressure against the opposite edge of the back wall. This will help
ensure that the two walls remain in contact and the fasteners connect.
The 2 sets of fasteners for the walls will connect when
the side wall is raised sufficiently.
Slide the Side Wall down while continuing to cinch the
two walls together.
NOTE: It is NOT necessary to lift
the entire Side Wall. Simply slide
the Right Side wall upward at the
back corner of the sauna.
Back Wall
Held Down
Side Wall Up
Australia - 1800 316 962 | New Zealand 0800 21 8020

There are two sets of fasteners to join the saunas' corners together. After lowering the Side Wall, check to
ensure that both sets of fasteners have connected by looking at the corner inside of the sauna. It is possible to
connect one set of fasteners and miss the other. If there is an obvious gap in the corner between the two walls
at least one fastener has not connected and the raising and lowering procedure will need to be repeated.
Back Left Corner
Lift the Left Side Wall into position wedging the bottom of the wall into the channel in the floor base.
Back Wall
Cinch the Left Side Wall and the Back Wall together by applying
pressure on the outside of the Left Side wall.
Slide the Left Side wall upward approx. 1/2” while holding the Back
Wall down
The 2 sets of fasteners for the walls will connect when the Side wall is
raised sufficiently.
Slide the Left Side Wall down while continuing to cinch the two walls
together.
Back Wall
Side Wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

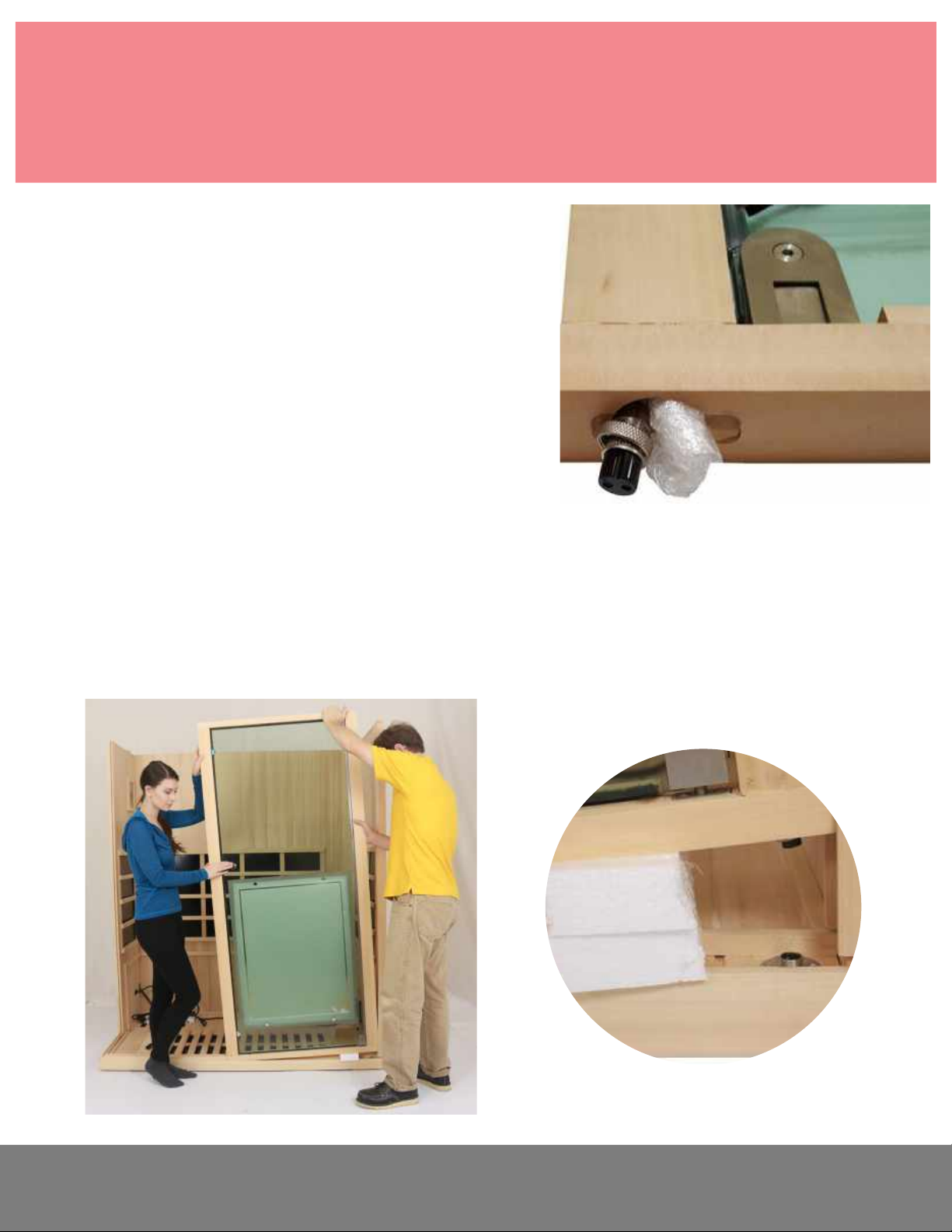

Position the Front Wall/Door Frame
Lift the Front Wall/Door Frame into position carefully lowering the bottom into the channel on the floor base.
Prop up one end of the Front Wall/Door Frame to enable connection of the door heater electrical lead.
Door Heater Electrical
Ensure that the door heater electrical is protruding from
bottom of Front Wall Door frame. A bit of plastic wrap can
serve to hold the connector out slightly.
NOTE:
After installing the Back and 2 Side Walls, you may want to slide the sauna back into its final position before
proceeding with Front Wall and Roof. It may be helpful to insert the main power cord through the hole in Back
Wall before sliding the sauna back against your homes wall. Move the sauna by pushing horizontally on the
Floor Base. DO NOT push upward on the Walls as they are not mechanically connected to the Floor base.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Connect door heater electrical lead to the floor base.
NOTE:
Be sure that the wire's connector is fully inserted into the
floor base connector and that the threaded cuff is fully
screwed on to the floor base connector.
Secure the Right Wall
Use the supplied wood screw and the pre-drilled
hole to secure the Right Side Wall to the Front
Wall/Door Frame.
Side Wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

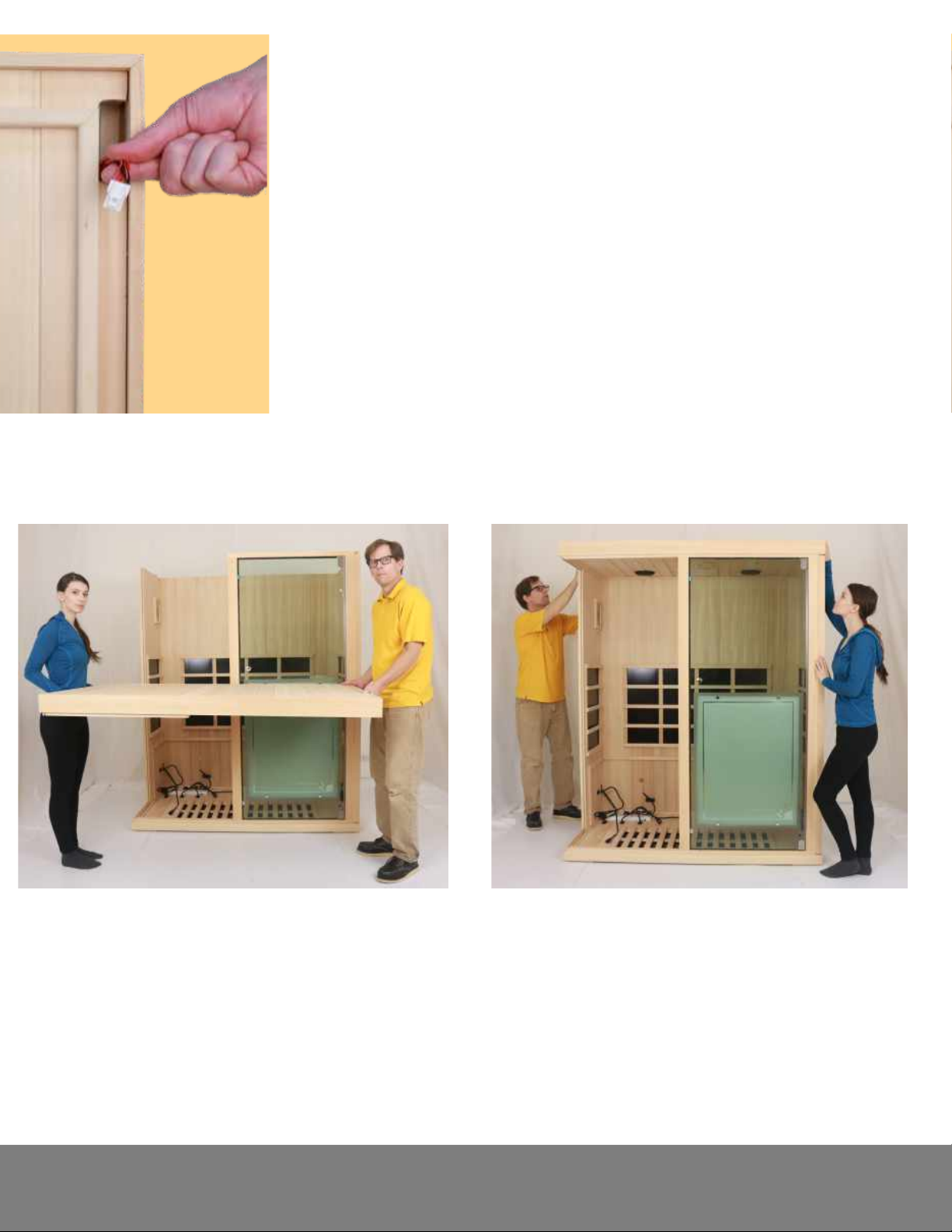

Install the Sauna Roof
Lift the Roof up and over top of the sauna walls. If you are installing the sauna in a restrictive space and are
unable to walk down the sides of the saunas, it may be necessary for one person to go inside the sauna.
Hook the right side corners of the Roof over the walls then lower the Roof toward the left of the sauna.
Prepare to install the sauna roof
Pull the single plastic connector down and out of the roof before lifting the
roof into place.
If you are unable to grab hold of the connector through the small opening
in the ceiling, it may be necessary to remove the first T&G board on the
top left side of the roof and feed the connector down through the opening.

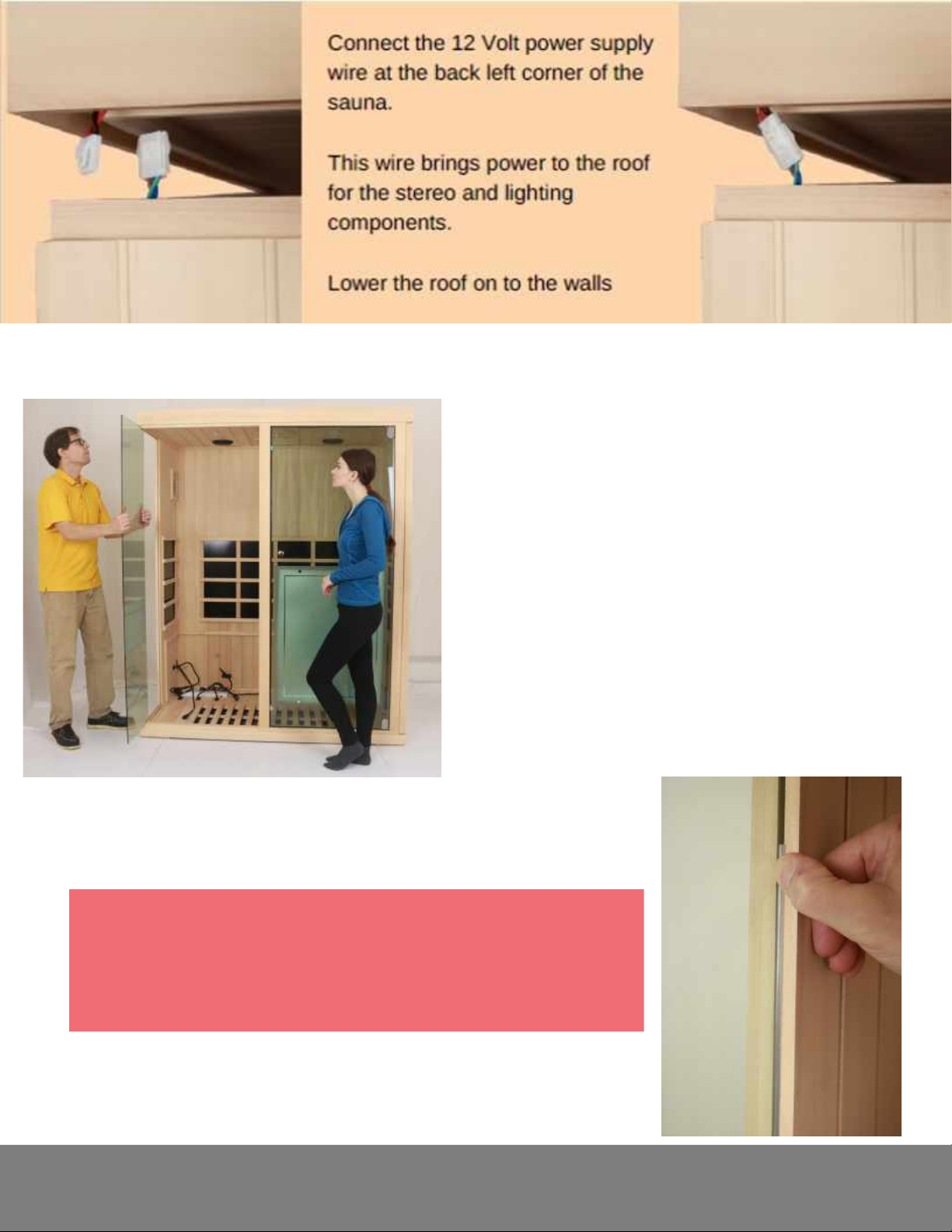

Lower Roof into Position
It may be necessary to push on the inside or outside of the Back and Side walls to enable to roof to drop into
position.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Side Wall Glass
Install Side Wall glass panel.
Glass etching is intended to face inward.
IMPORTANT
For temporary purposes, insert a foot or two of the flexible plastic
strip on the inside of the Side Wall glass panel. This will hold the
glass panel in place and assist in the following assembly steps.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Install Front Wall Glass Panel
Carefully insert the bottom edge of the Front Wall glass panel into the slot in the Floor base. The Front
Wall glass panel must be positioned so that the heater panel is fitting inside of the Side Wall glass panel.
Carefully tilt the front edge of the Roof
upward, about 1/2", just enough to tilt the Front
Wall Glass in to position
Australia - 1800 316 962 | New Zealand 0800 21 8020

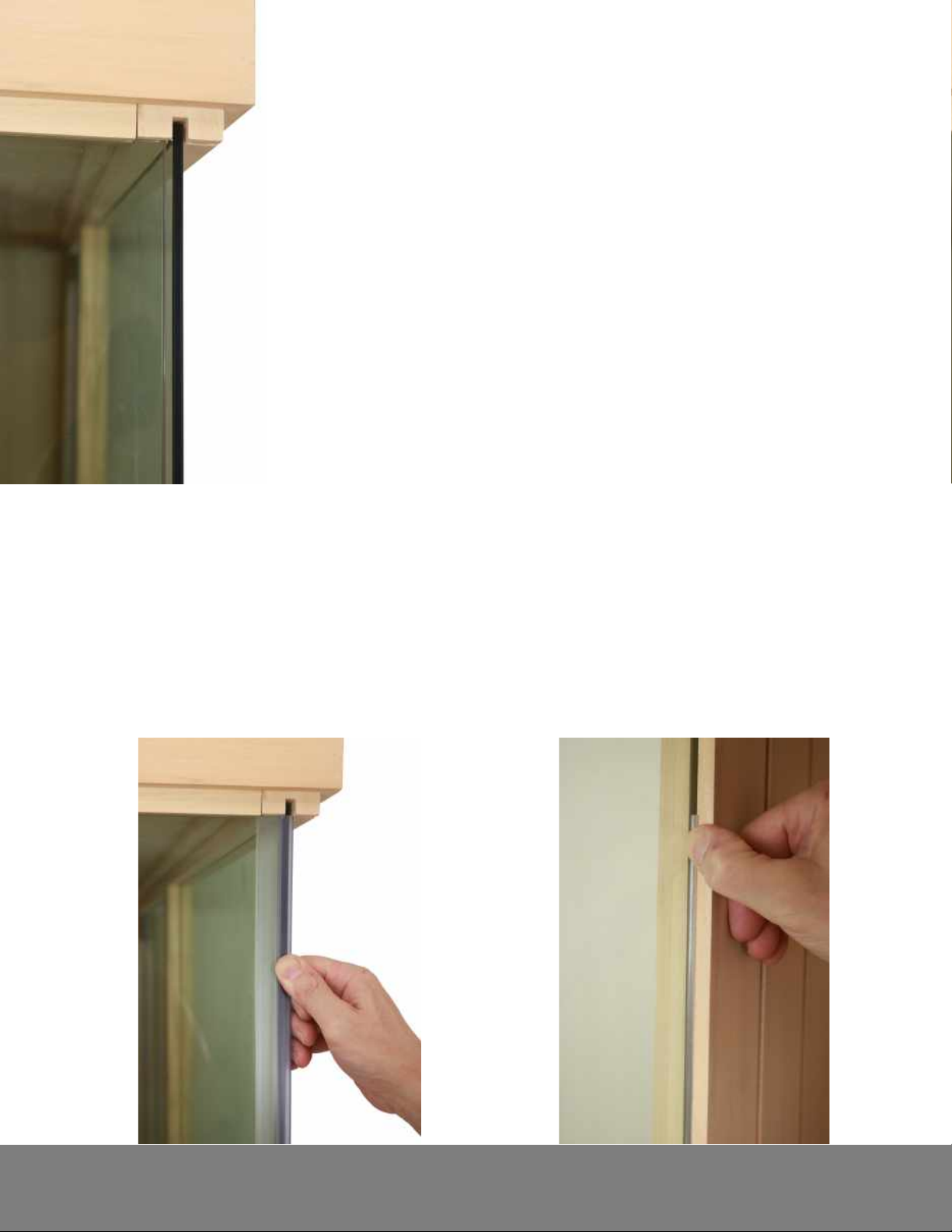

Lower the Roof so that the Front Wall
glass panel fits into the Roof slot.
Install Corner Seal
Firmly press the corner seal on to the
edge of the Front Wall glass panel Remove the temporary plastic glazing strip
from the inside of Side Wall glass panel
Australia - 1800 316 962 | New Zealand 0800 21 8020

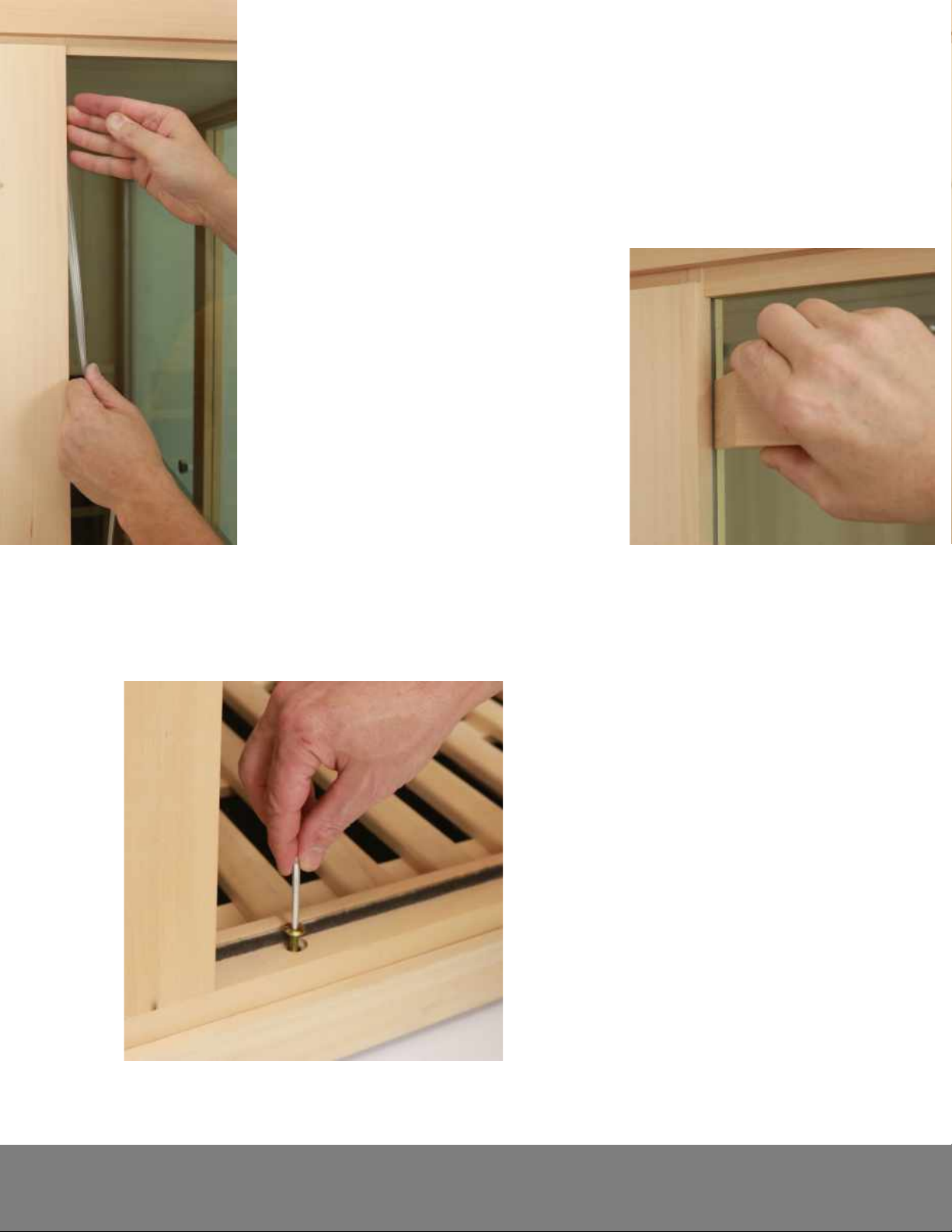

Firmly press flexible glazing strip into wood channels along the outside of the
Side and Front Wall glass panels.
It may not be necessary to use the flexible glazing for the full height of the
glass panels. Use the glazing strip where it fits into the channels.
Small wooden block (included)
can be used to fully press the
glazing strip into channel
Install 4 furniture bolts through top
and bottom of door frame using the
allan key (included)
Australia - 1800 316 962 | New Zealand 0800 21 8020

Connect the circular connector to
power supply box. Align the
groove in connector to properly
insert. Thread the cuff of the
connector on fully.
Attach the 'D-Sub' computer
style connector as shown
Plug in all heater leads to
receptacles in the power supply box.
Under-Bench Electrical
NOTE: Do not connect main power cord to your wall outlet yet at this time.
Australia - 1800 316 962 | New Zealand 0800 21 8020

Feed the main power supply cord in through the hole in Back Wall and insert in power supply box.
Do NOT plug power cord into your wall outlet until all electrical connections are finished inside of the sauna.
Connect circular connectors for the 2 Front Wall heaters.
Thread the cuff of connectors on fully. When all connections are made inside of the sauna, plug the
sauna's main power cord into wall outlet.
Australia - 1800 316 962 | New Zealand 0800 21 8020

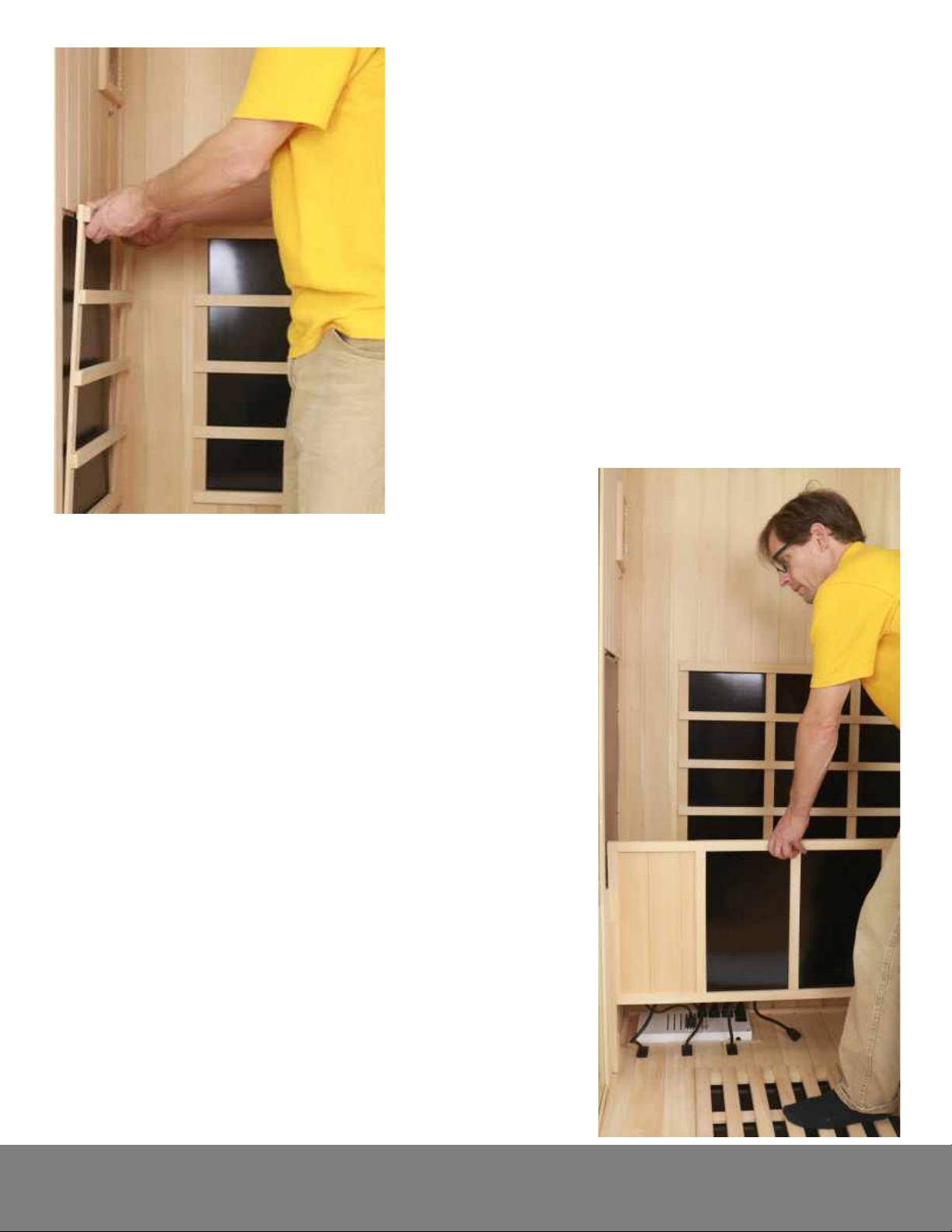

Remove Side Wall Heater Guards
The wooden lattice work in front of the
heaters is referred to as the heater guard.
These are held on with strong magnets.
It is necessary to remove the heater guards
from the two side walls in order to install the
leg heater and the sauna bench.
Install the Leg Heater
Install the leg heater by lowering it into the brackets
mounted on the side walls.
Plug the leg heater into the power supply box in floor.
Australia - 1800 316 962 | New Zealand 0800 21 8020

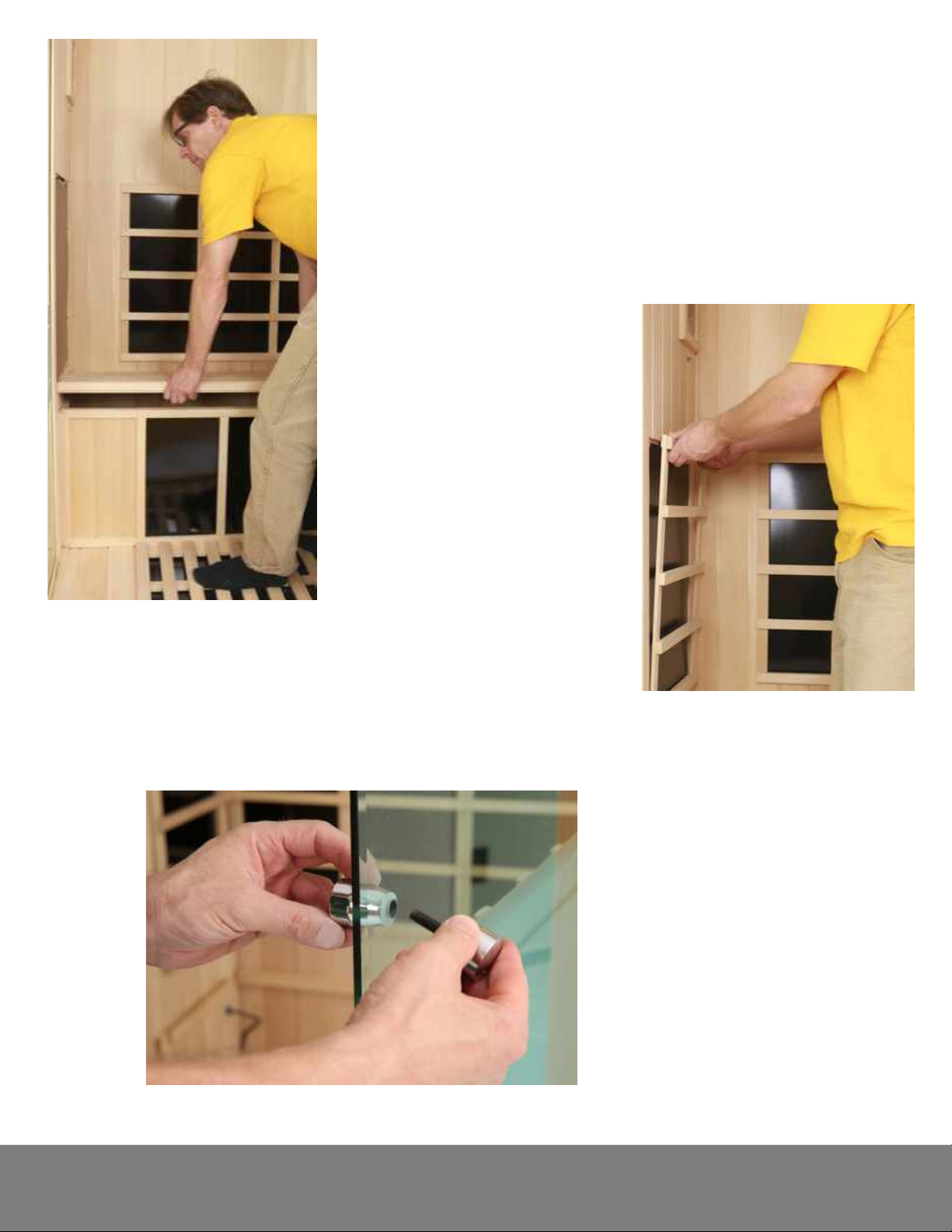

Install Bench
The bench in your new sauna is
reversible. Choose whichever side
appeals to you to face upward.
Reinstall the side wall
heater guards
Install the door handle
Australia - 1800 316 962 | New Zealand 0800 21 8020

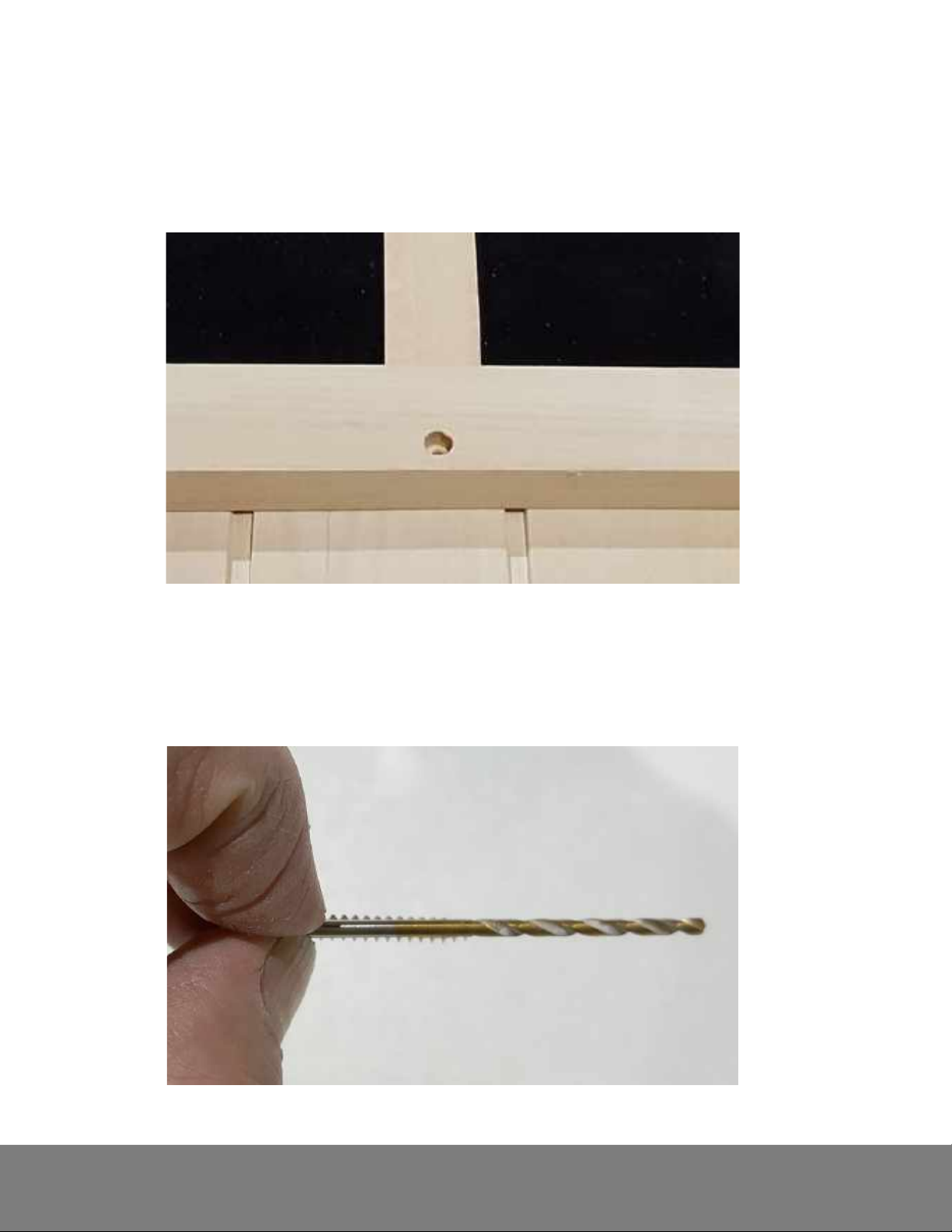

Heater Guards
The heater guards in your new Sun Stream Infrared Sauna are held to the wall with
strong earth magnets. If preferred, the heater guards can be screwed directly to the wall
for a more permanent and secure attachment. The heater guards are pre-drilled for the
attachment screws.
Screws are included to attach the heater guard to the wall. Select a drill
bit with a smaller diameter than the screw threads to drill a pilot hole
Australia - 1800 316 962 | New Zealand 0800 21 8020

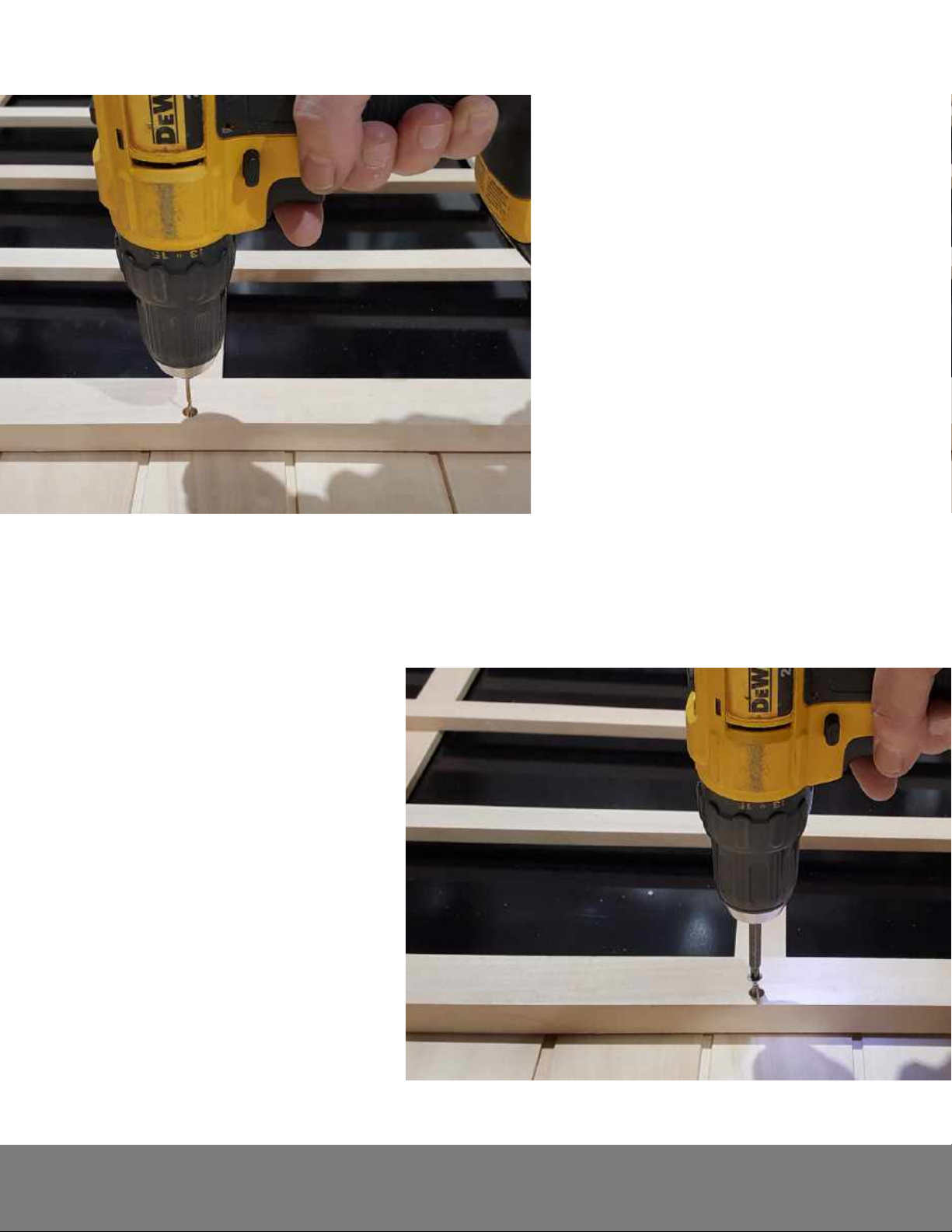

Drill a pilot hole into the wall through
the holes in the heater guards.Do not
drill deeper than necessary for the
length of the screw.
NOTE: The pilot holes are important
to ensure that the tongue and groove
wall boards do not split when
installing screws.
Install screws to firmly
attach heater guard to the wall
Australia - 1800 316 962 | New Zealand 0800 21 8020

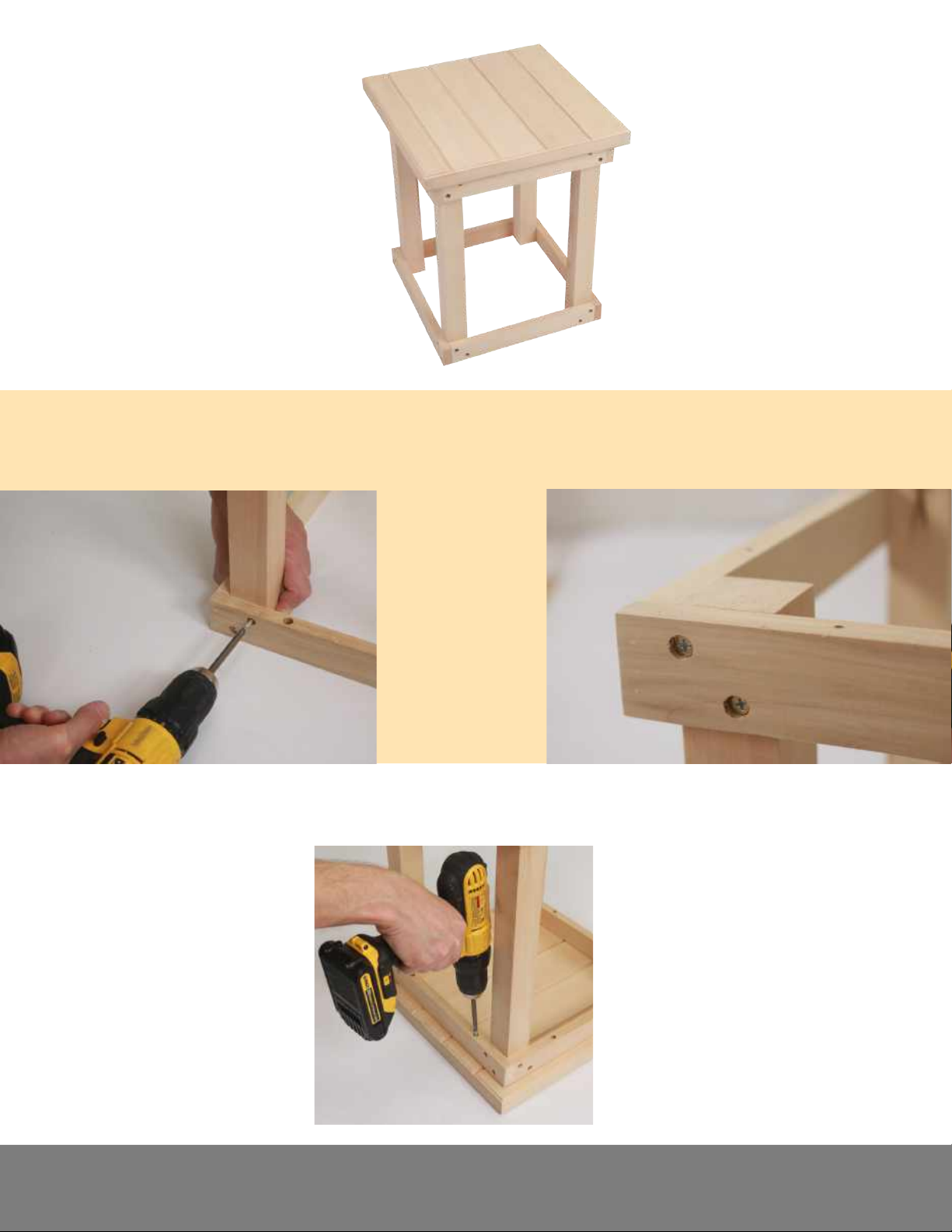

Ensure that the legs' ends are flush
with the bottom edge of the frames
Connect bench legs to the inside
corners of the frames using supplied
wood screws.
Attach the leg assembly to the bottom of the bench surface.Choose
which surface of the bench you prefer to be the top and bottom.
Option-L Movable
Bench Assembly
Australia - 1800 316 962 | New Zealand 0800 21 8020

Audio System
Music can be piped to the speakers in the sauna two different ways, either wireless via
the Bluetooth receiver or by directly connecting your device (smart phone, tablet, laptop
etc.) with a 3.5mm male to male audio cord.
1. Bluetooth Mode.
When you first plug the sauna into the wall outlet a beep will sound indicating the
Audio circuit board in the roof has power. The circuit board's colored LED indicator
lights will flash and these will continue to flash whenever the sauna is plugged into the
wall outlet.
To transmit audio to the sauna's speakers from your device, search for and connect
your device to the 'BT Speaker'
The Audio Circuit Board is shown inside the sauna roof
in Bluetooth Mode without an audio cord connected.
