SUP’AIR Pixair User manual

User’s manual
Harness
SUP’AIR - VLD
34 rue Adrastée
Parc Altaïs
74650 Annecy - Chavanod
FRANCE
45°54.024’N / 06°04.725’E
English
Revision index : 07/02/2019

Harness User’s manual
SUP’AIR _PIXAIR Page 2
ank you for choosing the PIXAIR We are glad
to be able to share our common paragliding pas-
sion with you.
SUP’AIR has been designing, producing and
selling free ying equipment since 1984. By
choosing a SUP’AIR product you benet from
almost thirty years of expertise, innovation and
listening. Our mission statement: research and
develop to constantly enhance our product line.
We hope you will nd this user’s manual com-
prehensive, explicit and hopefully enjoyable as
well. We advise you to read it carefully.
You will nd the lastest udated information
about this product on our website www.supair.
com. If you have further inquiries, feel free to
ask one of our retailers for answers. And natu-
rally, the entire SUP’AIR team is at your disposal
at [e-mail]
We wish you many safe enjoyable ying hours
and happy landings.
Team SUP’AIR

Harness User’s manual
SUP’AIR _PIXAIR Page 3
List of contents.
Introduction 4
Technical specications. 5
Size choice 6
Components list 7
Equipment overview 8
Accessories assembly. 9
Seat-plate 9
Speed-bar system 10
Foot-rest 11
Installing the reserve parachute. 12
POD reserve parachute handle connection. 12
Reserve parachute/harness connection 13
Reserve parachute characteristics 15
Installing the reserve parachute in its container 16
Gear packing and tips. 17
Adjustments 18
e various adjustments 18
Adjusting the harness 19
Wing/harness connection 20
Inight behavior 21
Flight phases 22
Pre-Flight check 22
Takeo 22
In ight 23
Speed-bar use 23
Landing 23
Using the reserve parachute 24
Towing 24
Mandatory thorough checkup. 24
Maintenance 25
Harness cleaning and maintenance 25
Storage and transport 25
Product longevity 25
Repairs 26
Spare parts. 26
Materials 26
Recycling 26
Warranty 27
Disclaimer 27
Pilot’s gear 27
28

Harness User’s manual
SUP’AIR _PIXAIR Page 4
Welcome to the paragliding world according to SUPAIR; a world of shared passion.
e PIXAIR was designed for pilots coming out of school or in progression. It brings comfort and peace of mind to pilots experiencing with their
rst XC ( Cross-Country ) ights to discover new horizons!
It was designed with schooling and fun in mind to provide full comfort and a worry free learning curve.
e harness PIXAIR harness was certied EN 1651: 1999 and LTF 91/09
Indicating that it meets European and German safety requirements.
Aer reading this manual we suggest you to check your harness during a hang-test to adjust it before your rst ight.
Introduction
N.B : ree important icons will help you when reading this manual
Advice Caution ! Danger !!

Harness User’s manual
SUP’AIR _PIXAIR Page 5
A
B
C
D
E
F
S M L
Pilot size (cm) 155 -175 170 -185 180 -195
Pilot weight (mini - maxi) 60 - 80 kg 65 - 85 kg 70 - 100 kg
Harness weight (+carabiners+speedbar) 3 300 g 3 620 g 3 720 g
Designed for paragliding only
Backrest height (cm) A57 64 70
Backrest tilt adjustments (cm) B35 37 38
Seat depth (cm) C46 47 48
Seat width(cm) D35 37 40
Hooking point height. (cm) E44 45 46
Length between the hooking points. (cm) F36 - 46 36 - 46 36 - 46
Impact damping system: Airbag Ye s
Impact damping system: Bumpair No
Certication Yes : EN 1651 : 1999 and LTF 91/09
Tandem (Pilot or Passenger) Passenger only
Acrobatic ying Ye s
Towing Ye s
Reserve parachute pocket volume ( Liters ). 7.5 L
Technical specications

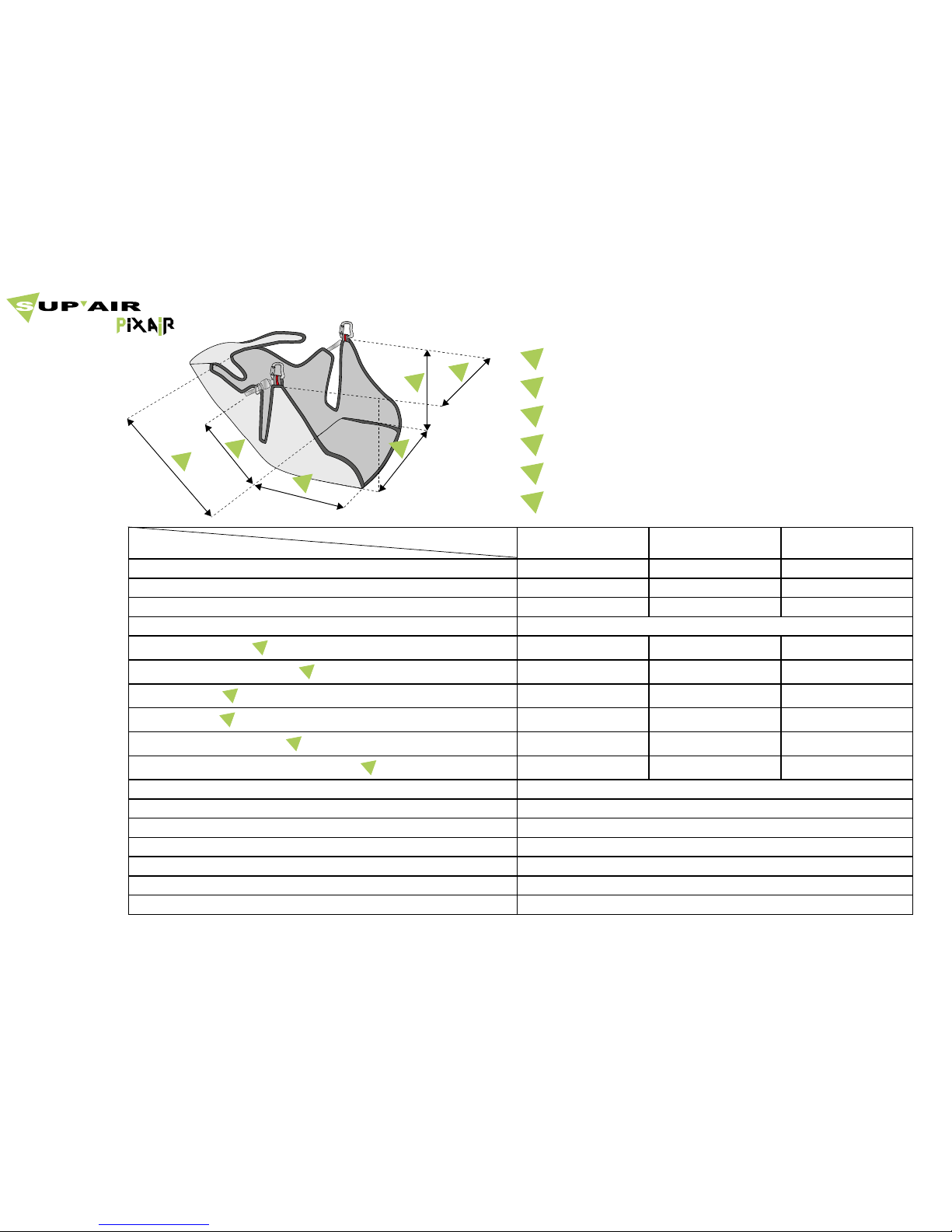

ABackrest height.
BBackrest tilt adjustments.
CSeat depth.
DSeat length
EHooking point height.
FLength between the hooking points.
Characteristics Harness size

Harness User’s manual
SUP’AIR _PIXAIR Page 6
Choosing your harness’ size is important. You will nd here below a height/weight table to help you with your size choice. With its hammock archi-
tecture and reclined ying posture, we advise you to try out the harness during a hang-test rst at one of our retailers location to choose the correct
size.
For a complete list of our retailers list click here : www.supair.com
Size choice.
Preliminary hang-test.
Size
Weight 1m55 1m60 1m65 1m70 1m75 1m80 1m85 1m90 1m95
50
55 S S S S
60 S S S S
65 S S S S
70 S S S M M
75 S M M M L
80 M M M L L
85 L L L L
90 L L L L L
95 L L L L
100 L L L

Harness User’s manual
SUP’AIR _PIXAIR Page 7

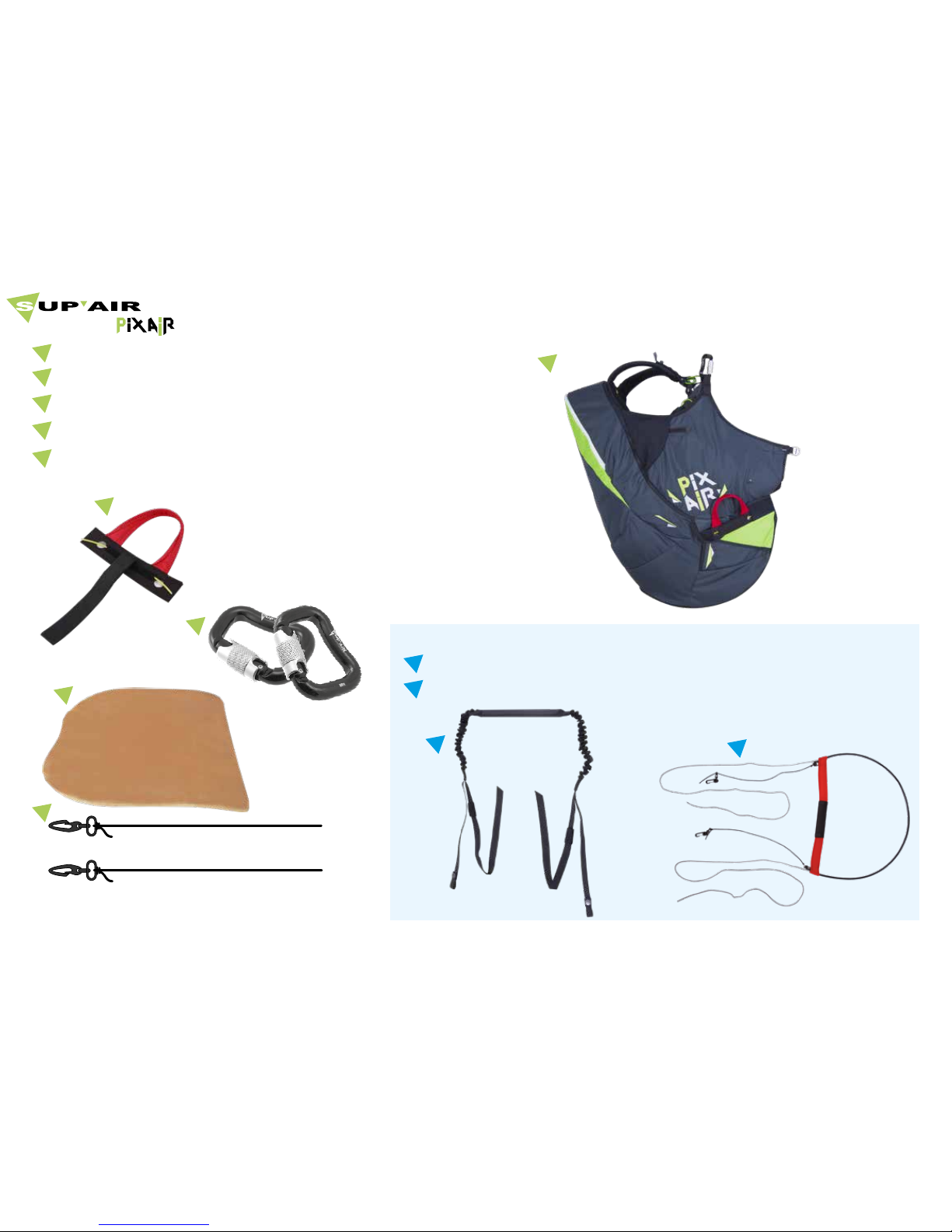

2«E2» reserve parachute handle. (réf. : POIE2)
Zicral 30 mm carabiners. (réf. : MAILCOMOUS30)
wood seat plate. (réf. : MPPL017 à MPPL019 selon la taille)
Nomenclature
Harness
1
3
4
2
4
3
Options
Retractable 20mm foot rest (réf. : CALEPIEDRETRACT20)
Standard double stage accelerator/speed-bar (réf. : ACCELSOUPLE)
6
7
67
1
5Elastische Kordel für Beschleunigers Rückkehr
5

Harness User’s manual
SUP’AIR _PIXAIR Page 8

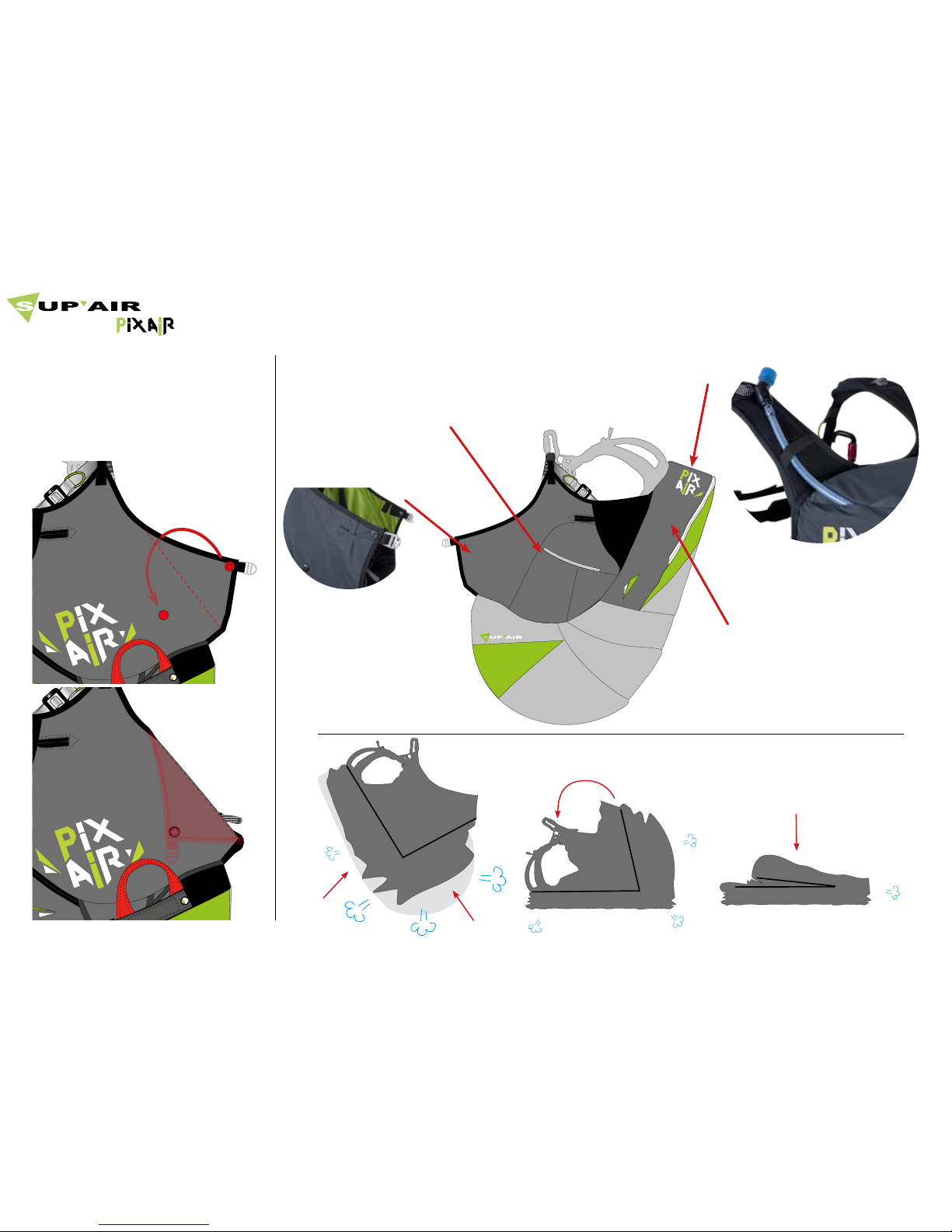

Harness overview

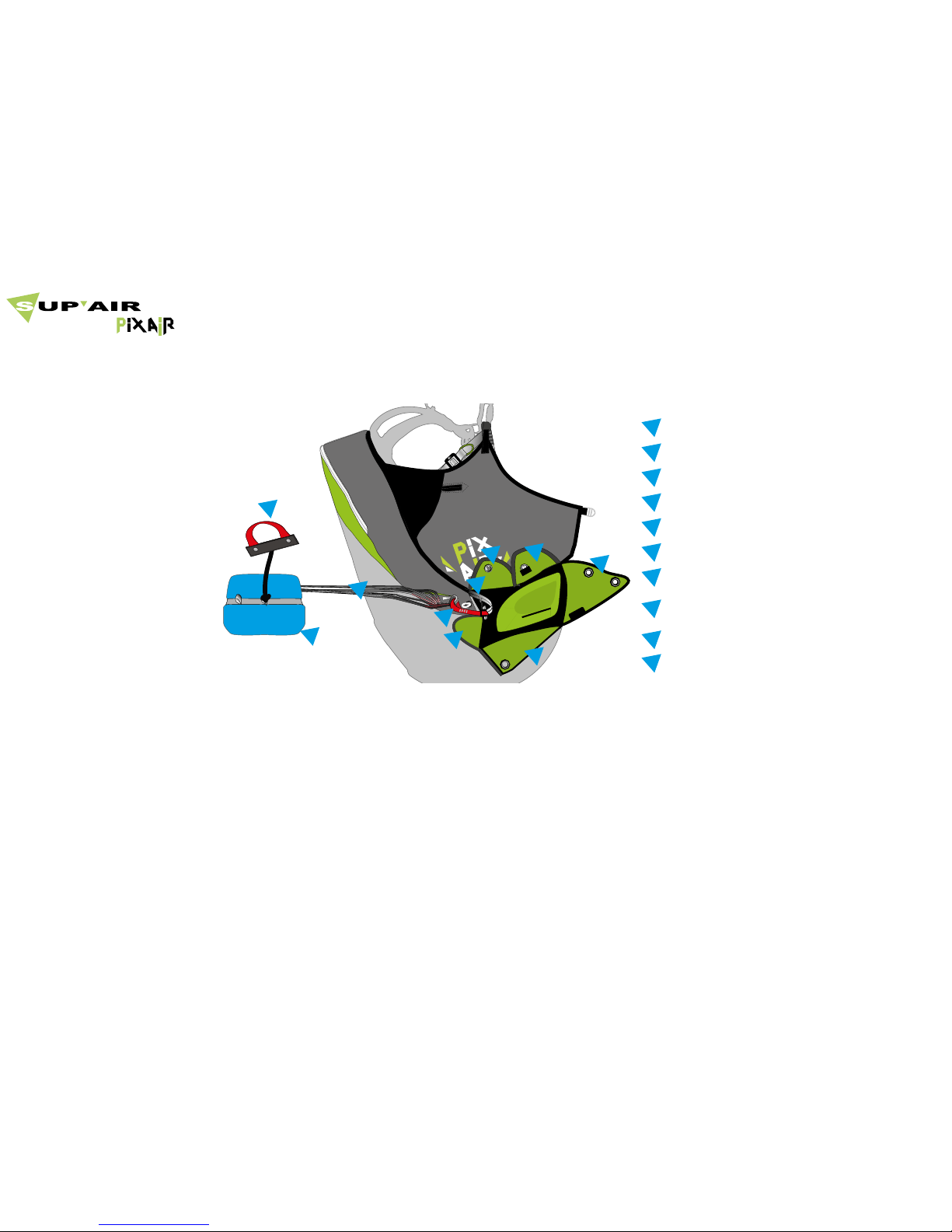

Chest strap with automatic buckles.
Safe-T-bar.
Leg strap buckle.
Chest strap adjustment.
Backrest tilt adjustment.
Reserve parachute handle
Reserve parachute pocket.
paragliding main hooking points.
Reserve parachute hooking points.
AIRBAG
AIRBAG air intake.
2
1
3
4
5
7
8
9
10
13
14
Radio and Small storage pocket.
15
Back storage pocket.
16
21
3
4
5
7
6
9
10
11
13
14
15
16
1
3
7
6
8
9
10
13
6
Accelerator/speed-bar recoiling cord
17
17
Shoulder straps adjustments.
6
Speed-bar/accelerator pulleys.
Speed-bar/accelerator tube.
11
12 Recoil accelerator/speed-bar “D” buckle. 18
Foot-rest buckle
19
12
18
19

Harness User’s manual
SUP’AIR _PIXAIR Page 9

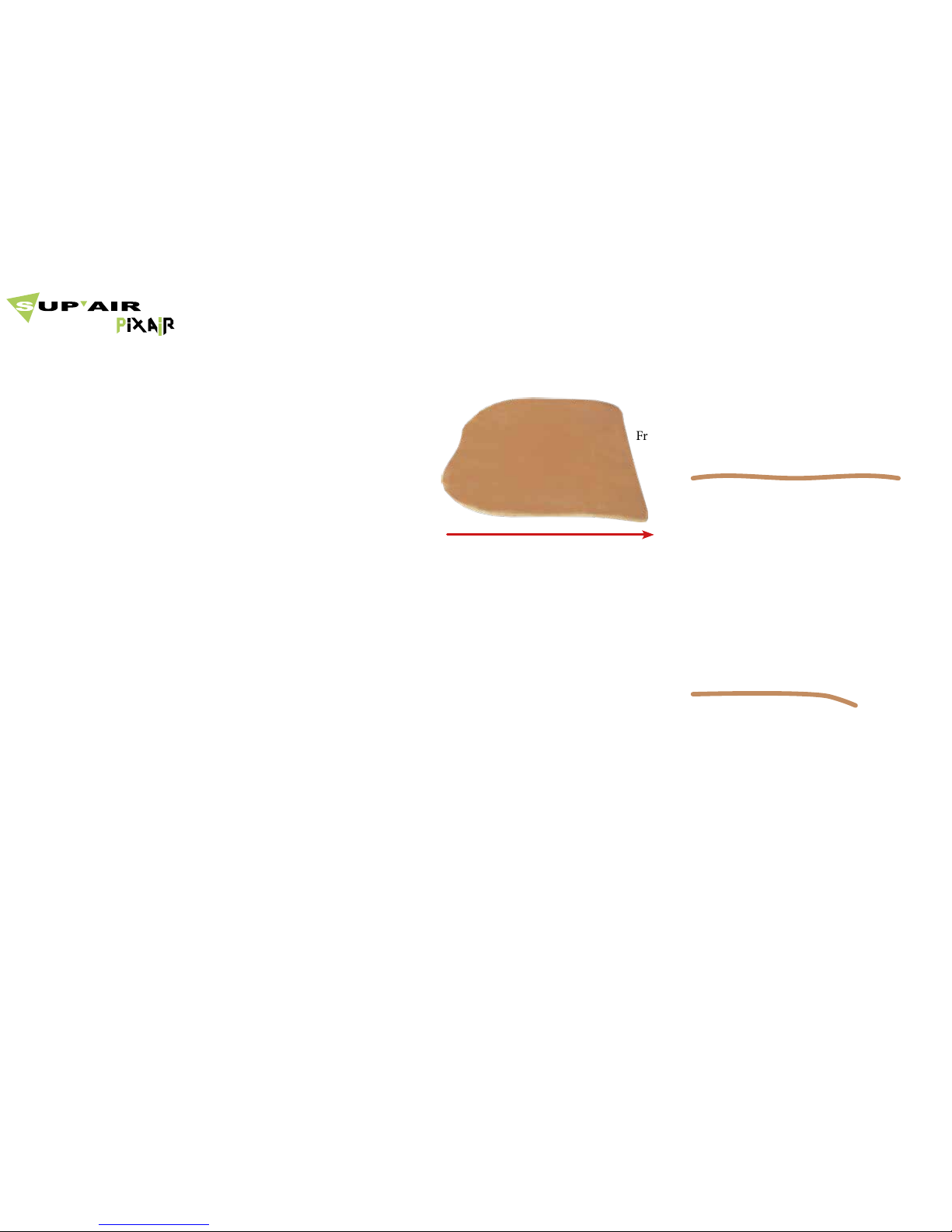

Seat plate description. :
Front
Rear
Installing the seat plate. :
Wooden seat plate.
Taille S Ref. : MPPL017
Taille M Ref. : MPPL018
Taille L Ref. : MPPL019
Accessories assembly
>> 1. Wooden seat plate
Prole view.
Top
Bottom
Rear Front
1. Face the harness. Grab the upper layer end of the seating area and pull it toward you.
Reach inside the seat-plate pocket and pull the leg straps rearward to give enough room to
insert and sandwich the seat plate between them.
2. Sandwich the seat-plate between the leg straps ad push it, leading edge rst, all the way
inside the seat-plate pocket.
Bring the leg straps to their original position by pulling them..
Flight direction.
Front view.

Harness User’s manual
SUP’AIR _PIXAIR Page 10
STANDARD double stage speed-bar/accelerator.
Accessories assembly
>> 2. Speed-bar system
Compatible accelerator/speed-bar :
Réf. : ACCELSOUPLE
Speedbar assembly. :
Regarding either side of the harness:

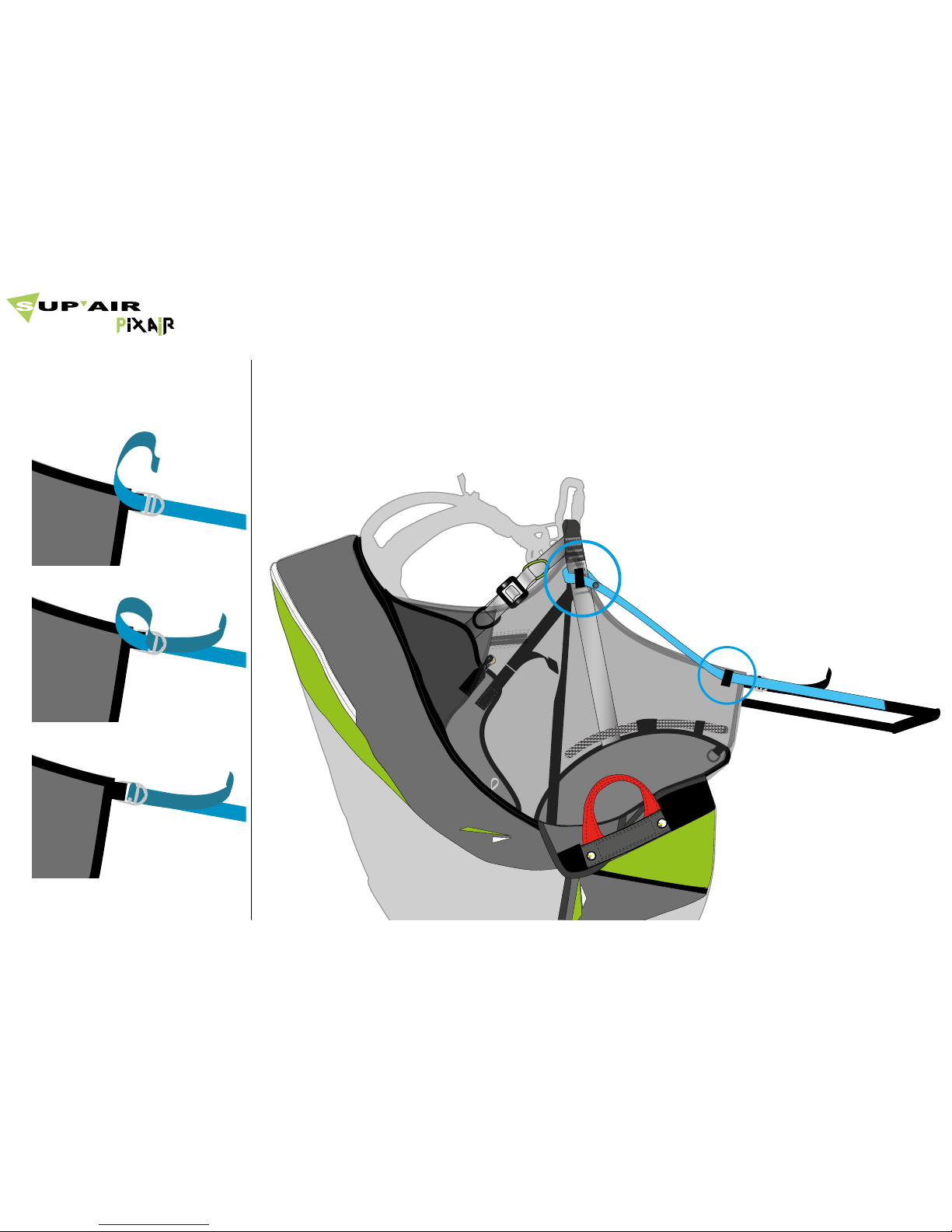

1. Push the accelerator/speed-bar line through the tube
located at the front side of the harness
2. Push the accelerator/speed-bar line through the pulley
connected to the lateral panel.
3. Pull the line through the side skirt opening slit.
4. Push the elasticated cord through the plastic “D” shaped
buckle and connect the plastic clip to the elasticated cord.
5. Finally, attach a hook to the cord before connecting it to the
glider’s speed-bar/accelerator.
6. Simulate the speed-bar/accelerator’s functionality by sliding the
cord back and forth.
17
11
12
12
11
17

Harness User’s manual
SUP’AIR _PIXAIR Page 11
Accessories assembly.
>> 3. Foot-rest (option)
1. Push the foot-rest strap through
buckle located at the front of the har-
ness’s side skirt.
2. Push the elastic under the guide
3. Wrap and connect the elastic around the main strap while pushing it through buckle.
4. Adjust the foot-rest length during a hang-test and stow away the straps excess in the elasticated holder.
1
2
3

Harness User’s manual
SUP’AIR _PIXAIR Page 12
ank you for reading the following carefully ! We recommend for the initial rescue parachute assembly and installation
to be made by a qualied professional.
Reserve parachute folding and installation inside the harness must conform to the specic guidelines found in this man-
ual.
Connecting the handle to the rescue parachute’s deployment bag.
1. Fasten the handle strap to the
POD’s middle loop by making a
loop to loop ( Lark’s head ) knot.
2. Tighten the han-
dle/POD connection
securely.
Installing the reserve parachute.
DSingle reserve parachute.
Reserve parachute handle ( Ref. POIE2 ).
Reserve parachute inside its deployment bag and folded according the manufacturer’s specications.
Parachute rigging lines
B
C
A
D
B
C
A
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w

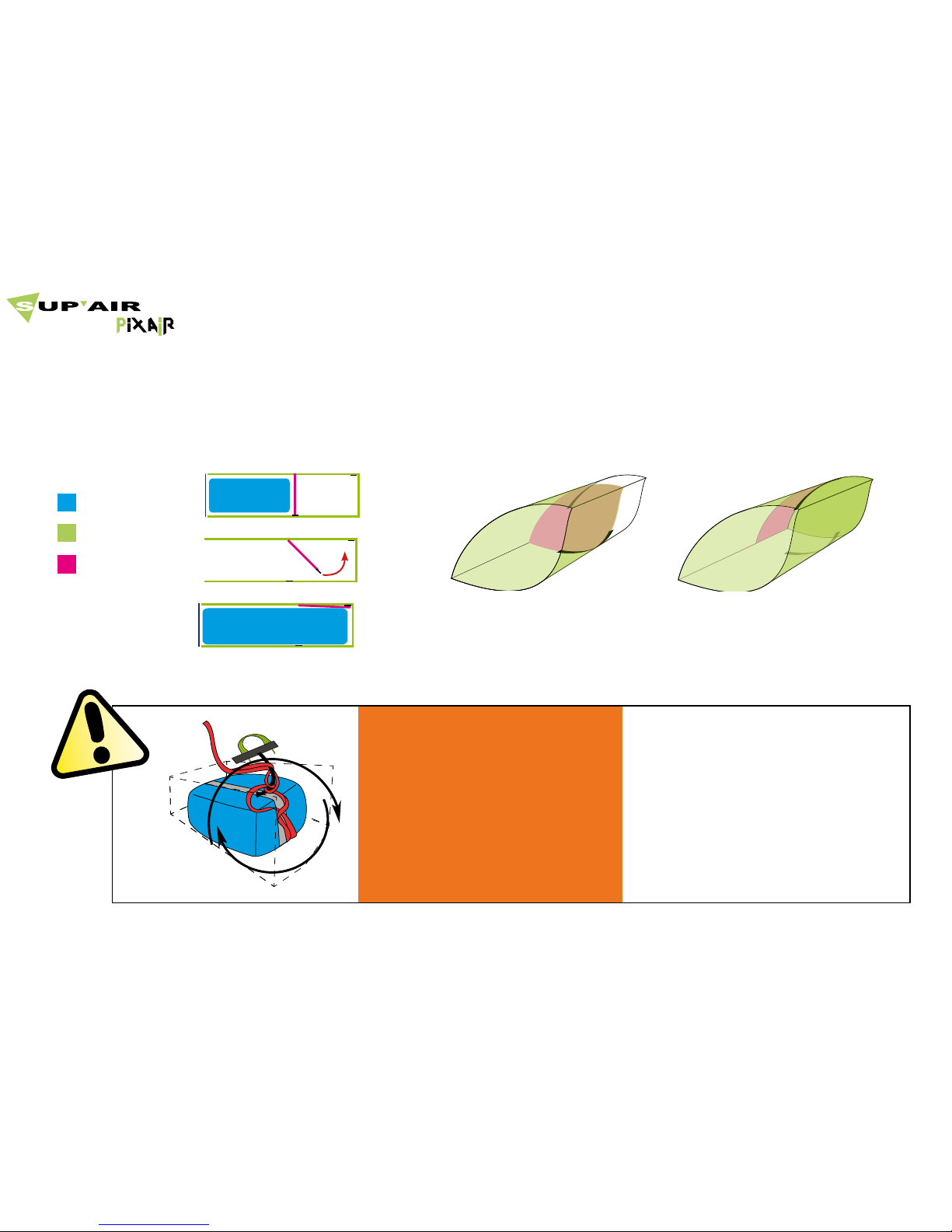

First, open the riser guiding sleeve all the way from top to bottom to access the
reserve parachute connection loops.
Once the riser guiding sleeve is fully opened, the zipper tab must be located on
the same side of the reserve parachute pocket.
>> Access to the reserve parachute connection points.
Reserve parachute/harness connection.
Opening direction

Harness User’s manual
SUP’AIR _PIXAIR Page 13
Reserve parachute/harness connection.
Installing the reserve parachute
>> Loop to loop connection ( Lark’s knot ) of the PIXAIR harness to the reserve parachute individual risers.
1. - Attach each riser to the
shoulder attachment points
by making a Lark’s knot (
loop to loop connection ).
Use the largest bridle loop
ends.
2. - Assemble everything cor-
rectly.
- Make sure for the risers not to
be longer than one another.
- Tighten each connection
securely.
