Supermicro SUPERO C9Z590-CG User manual

C9Z590-CG
C9Z590-CGW

C9Z590-CG/-CGW QUICK REFERENCE GUIDE Product Safety Information
Standardized Warning Statements
Motherboards
About Standardized Warning Statements
The following statements are industry standard warnings, provided to warn the user of situations which can potentially
cause a bodily injury. Should you have questions or experience difculty, contact Supermicro's Technical Support De-
partment for assistance. Only certied technicians should attempt to install or congure components.
Read this section in its entirety before installing or conguring components in the Supermicro chassis.
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
Battery Handling
Warning!
There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or an equiva-
lent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理
廢棄舊電池。
警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理
废旧电池。
電池の取り扱い
電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池はメーカーが推奨する型、または同等のもの
を使用下さい。 使用済電池は製造元の指示に従って処分して下さい。
경고!
배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한
종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.




Note: For complete product safety information, refer to http://www.supermicro.com/about/policies/safety_information.cfm.

C9Z590-CG/-CGW QUICK REFERENCE GUIDE 限用物質含有情況標示聲明
限
限
用
用
物
物
質
質
含
含
有
有
情
情
況
況
標
標
示
示
聲
聲
明
明
書
書
設備名稱：主機板 /
Motherboard
型號（型式）：C9Z590-CG, C9Z590-CGW
單元Ｕnit
限用物質及其化學符號
鉛Lead
(Pb) 汞Mercury (Hg) 鎘Cadmium (Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
主機板
(Motherboard)
－○○○○○
備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準
值。
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3.〝－〞係指該項限用物質為排除項目。
Equipment name
Type designation (Type)
Restricted substances and its chemical symbols
Declaration of the Presence Condition of the Restricted Substances Marking
Note 1
：
“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the
reference percentage value of presence condition.
Note 2
：
“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
Note 3
：
The “−” indicates that the restricted substance corresponds to the exemption.

AMI BIOS POST Codes
About AMI BIOS POST Codes
The table below lists some of AMI BIOS POST codes for C9Z490-PG/-PGW. For more information, refer to https://www.
supermicro.com/manuals/other/AMI_AptioV_BIOS_POST_Codes_for_SM_Motherboards.pdf.
Code Description
0x32 CPU post-memory initialization is started
0x55 No Memory detected or memory failed
0x63 CPU DXE initialization is started
0x69 North Bridge DXE initialization is started
0x70 South Bridge DXE initialization is started
0x92 PCI Bus initialization is started
0x99 Super IO Initialization
0x9A USB initialization is started
0xA0 IDE initialization is started
0xA9 Boot into BIOS setup menu
0xAE Legacy Boot event
0xB2 Legacy Option ROM Initialization
0xB4 USB hot plug
0xD6 No console output devices are found
0xD7 No console input devices are found
0xF2 Recovery process started
0xF9 Recovery capsule is not found
C9Z590-CG/-CGW QUICK REFERENCE GUIDE AMI BIOS POST Codes

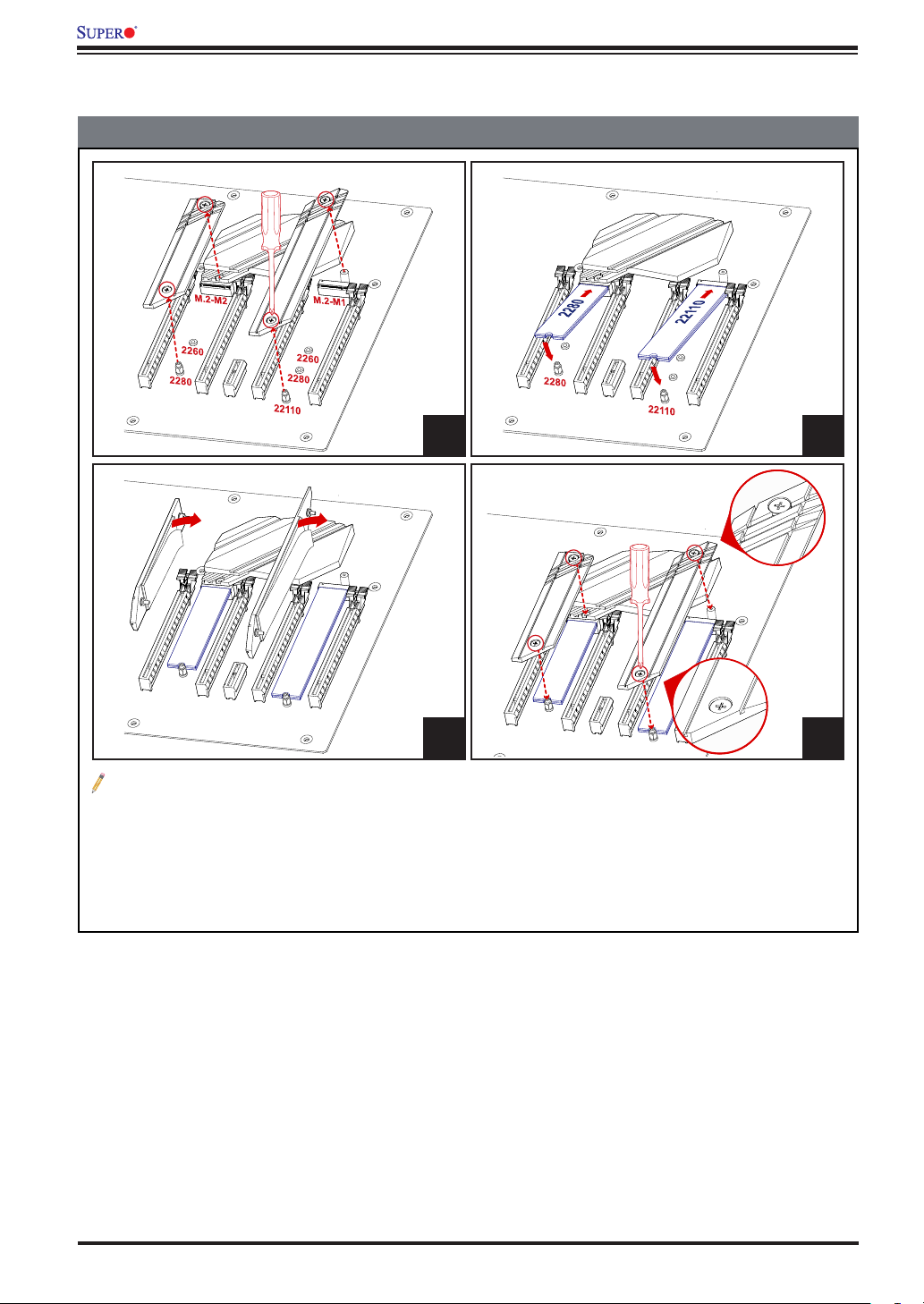

M.2 Device Installation Instructions
Installation with Pre-installed Stando󰀨s
Notes:
1. The graphics shown above are examples of the M.2 installation. The motherboard you received may or may
not look exactly the same.
2. DO NOT install the bounded M.2 heatsink (refer to images 3 and 4) if the M.2 device has a heatsink installed.
3. Please assemble the M.2 heatsink back to the motherboard once the M.2 device has been removed.
4. Beware of the direction when assembling the heatsink (refer to image 4).
5. Refer to the user's manual for more detailed descriptions.
C9Z590-CG/-CGW QUICK REFERENCE GUIDE M.2 Device Installation Instructions
1 2
43

C9Z590-CG/-CGW QUICK REFERENCE GUIDE M.2 Device Installation Instructions
Installation without Pre-installed Stando󰀨s
Notes:
1. The graphics shown above are examples of the M.2 installation. The motherboard you received may or may
not look exactly the same.
2. To install an M.2 22110 device, please refer to the instructions of Installation with Pre-installed Standoffs on
the previous page.
3. DO NOT install the bounded M.2 heatsink (refer to images 4 and 5) if the M.2 device has a heatsink installed.
4. Please assemble the M.2 heatsink back to the motherboard once the M.2 device has been removed.
5. Beware of the direction when assembling the heatsink (refer to image 5).
6. Refer to the user's manual for more detailed descriptions.
1
3
2
4
5

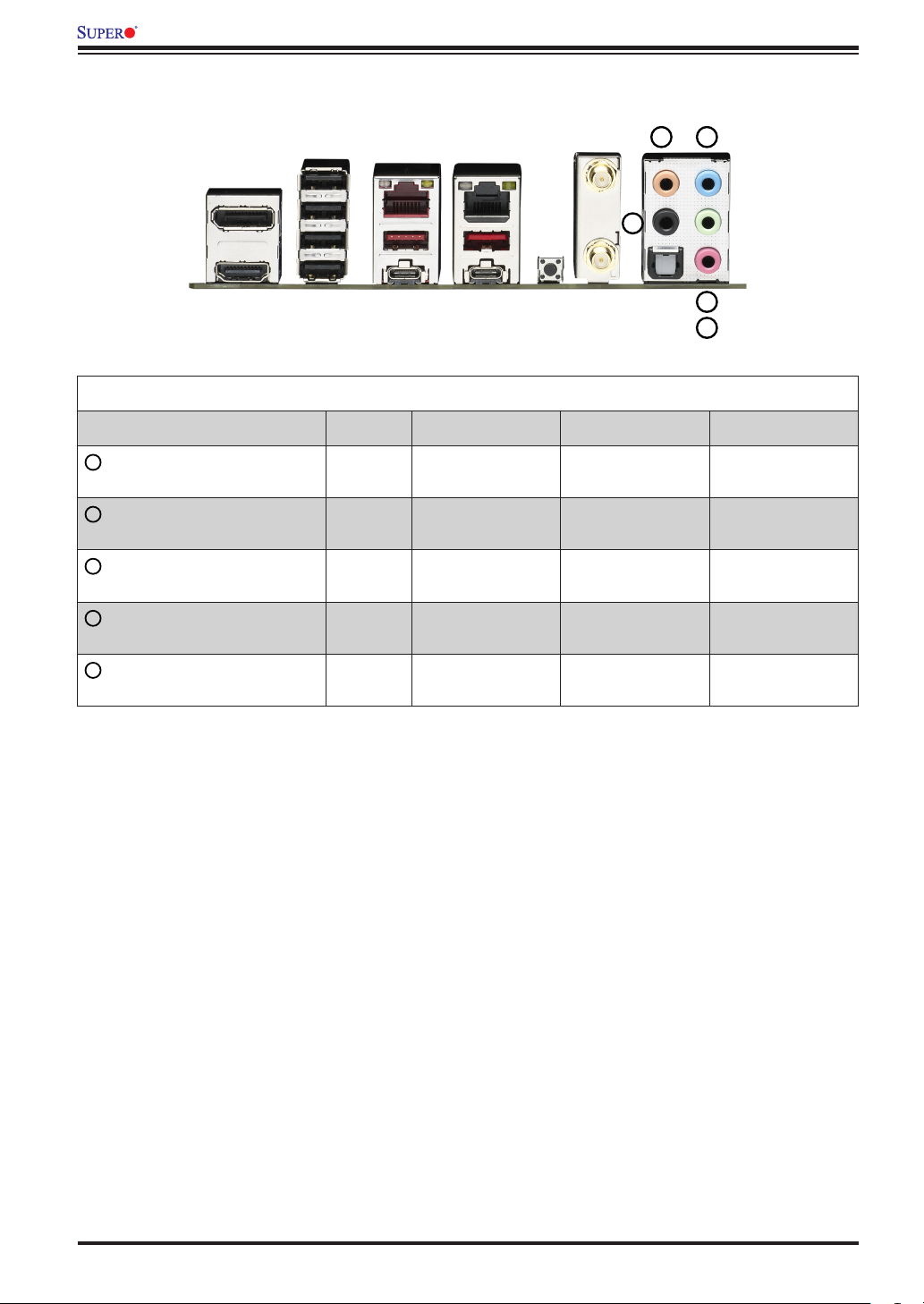

Audio Conguration
1 3
4
5
2
Audio Conguration
2 Channel 4.1 Channel 5.1 Channel 7.1 Channel
1Orange
(Center/LFE Out) Center/Subwoofer Center/Subwoofer
2Black
(Surround) Rear Speaker Out Rear Speaker Out Rear Speaker Out
3Light Blue
(Line In/Side Speaker Out) Line In Line In Line In Side Speaker Out
4Lime
(Line Out/Front Speaker Out) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
5Pink
(Mic In) Mic In Mic In Mic In Mic In
C9Z590-CG/-CGW QUICK REFERENCE GUIDE Audio Conguration

C9Z590-CG/-CGW QUICK REFERENCE GUIDE Notes
Notes

SUPERMICR R
C9Z590-CG/-CGW
QuiCk RefeRenCe Guide Rev. 1.00

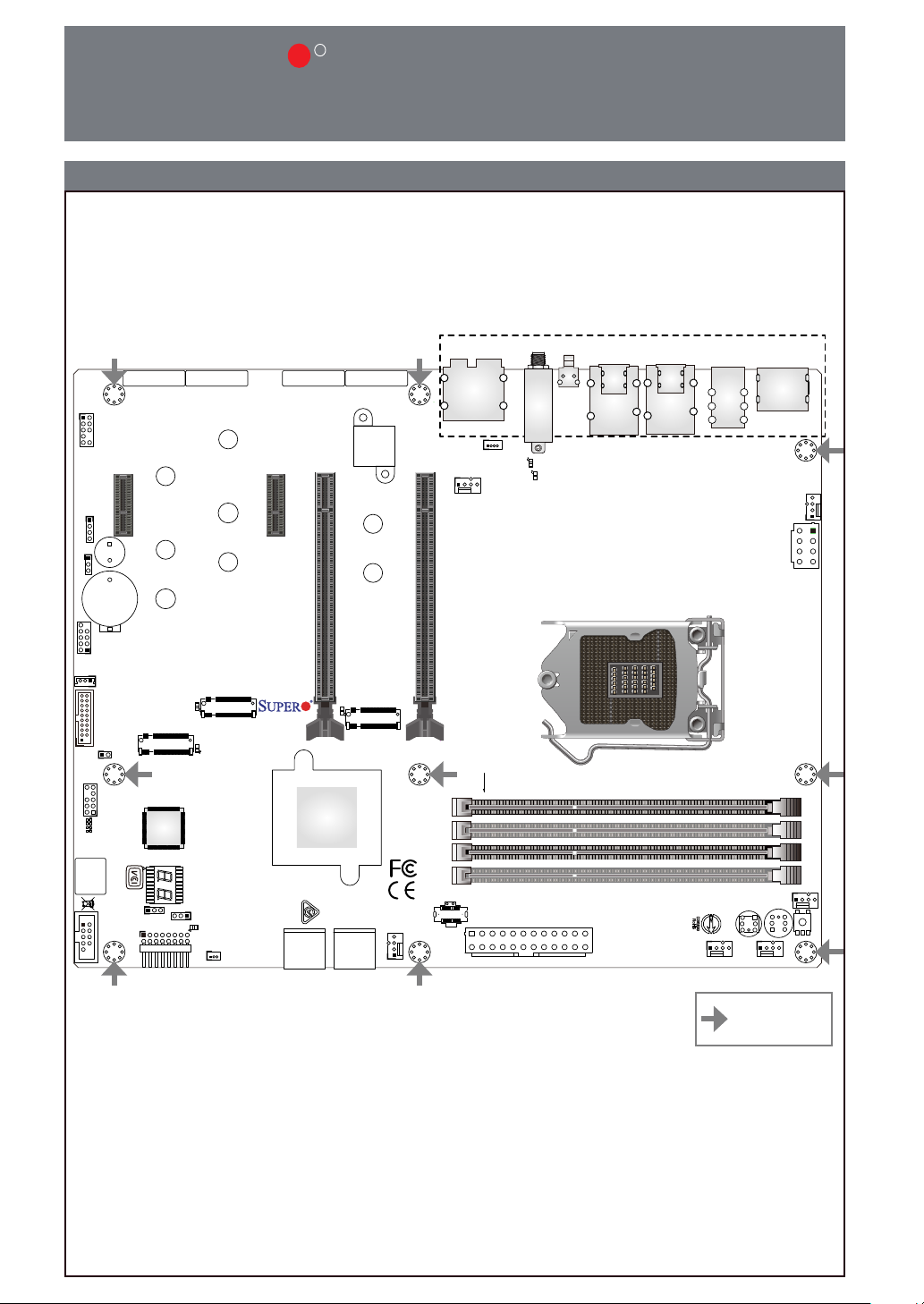

Motherboard Layout and Features
= mounting hole
I/O BACK PANEL
DESIGNED IN USA
C9Z590-CGW
REV:1.01
BIOS
LICENSE
MAC CODEMAC CODE BAR CODE BAR CODE
iuqP
JRLED1
JSTBY1
JTPM1
B1
SP1
JD1
JSD1
JPW1
LED17
LED18
LED1
LED4801
LED2
LED3
JPW2
JL1
LED4
JLED1 JWD1
JPME2
PCH
2260
2280
PCH SLOT1 PCI-E 3.0 X1
USB 12(3.2(20Gb))
12V_PUMP_PWR1
JF1
22110
2280
2260
2260
2280
22110
BOOT LED
VGA LED
DIMM LED
CPU LED
AUDIO FP
COM1
USB4/5
USB 10/11(3.2(5Gb))
PCH SLOT4 PCI-E 3.0 X1
I-SATA3
I-SATA2
CPU SLOT5 PCI-E 4.0 X8 (IN X 16)
I-SATA1
I-SATA0
CPU SLOT7 PCI-E 4.0 X16
SYS_FAN2
SYS_FAN3
USB 0/1/2/3
POWER
BUTTON
DIMMB1
DIMMB2
DIMMA1
DIMMA2
RESET
BUTTON
SYS_FAN1
CPU_FAN1
CLEAR CMOS
CPU_FAN2
USB 6 (3.2, 10Gb)
USB 7 (3.2, 20Gb)
LAN1
USB 9 (3.2, 20Gb)
USB 8 (3.2, 10Gb)
LAN2
DP/HDMI
SW1
HD AUDIO
PCIE M.2-M2
PCIE M.2-M3
PCIE M.2-M1
PCIE M.2-E1

Package contents
• One Supermicro Motherboard
• Four SATA Cables
• One I/O Shield
• One S-Connector
• One Quick Reference Guide
• One Driver CD
• Two Antennas (C9Z590-CGW only)
Connectors
Connector Description
12V_PUMP_PWR1 12V 4-pin Power Connector for CPU Liquid Cooling Pump
AUDIO FP Front Panel Audio Header
B1 Onboard Battery
COM1 COM1 Header
CPU_FAN1/CPU_FAN2 CPU Fan Headers
CPU SLOT5 PCI-E 4.0 x8
(IN x16)
PCIe 4.0 x16 Slot (PCIe 4.0 x8 Link )
*CPU Slot5 PCIe 4.0 x8 (IN x16) slot shares PCIe x16 link with CPU Slot7 PCIe 4.0 x16 slot, therefore CPU
Slot7 PCIe 4.0 x16 link will change to PCIe 4.0 x8 link when one graphics card is installed in CPU Slot5 PCIe
4.0 x8 (IN x16) slot.
CPU SLOT7 PCI-E 4.0 x16 PCIe 4.0 x16 Slot (PCIe 4.0 x16 Link)
*Always plug in one graphics card in CPU Slot7 PCIe 4.0 x16 slot rst to maximize performance.
DP/HDMI Back Panel DisplayPort/High Denition Multimedia Interface
HD AUDIO High Denition Audio Ports
I-SATA0~3 (Intel Z590) Serial ATA (SATA 3.0) Ports 0~3 (6Gb/sec)
JF1 Front Control Panel Header
*Please align the printed indications on the S-Connector with the corresponding pins on JF1 when plugging in.
JL1 Chassis Intrusion Header
JLED1 Power LED Indicator Header
JPW1 24-pin ATX Main Power Connector (Required)
JPW2 +12V 8-pin CPU Power Connector (Required)
JRLED1 4-pin Connector for a White Light LED Board (Pre-installed) Inside the I/O cover
JSD1 SATA DOM (Disk-On-Module) Power Connector
JSTBY1 5V Standby Power Header
JTPM1 Trusted Platform Module (TPM)/Port 80 Header (Supports TPM 2.0 only)
LAN1/LAN2 RJ45 1GbE/10GbE LAN Ports
PCIE M.2-E1 WiFi 6 + BT 5.1 (Pre-installed, for C9Z590-CGW only)
PCIE M.2-M1/PCIE M.2-M2 PCIe 3.0x4 M.2 M-Key Sockets attached to the PCH. Support the type of 2260/2280/22110
Module NVMe SSD Storage Device and RAID 0, 1, and 5.
PCIE M.2-M3 PCIe 4.0 x4 M.2 M-Key Socket attached to the CPU. Supports the type of 2260/2280 Module
NVMe SSD Storage Device and RAID 0, 1, and 5.
PCH SLOT1/4 PCI-E 3.0 x1 PCIe 3.0 x1 Slots (PCIe 3.0 x1 Link)
SP1 Internal Speaker/Buzzer
SYS_FAN1 ~ SYS_FAN3 System Fan Headers
USB 0/1/2/3 Back Panel USB 2.0 Ports (Type A)
USB 4/5 Front Panel Accessible USB 2.0 Header
USB 6 Back Panel USB 3.2 Gen 2 Port (10Gb, Type A)
USB 7 Back Panel USB 3.2 Gen 2x2 Port (20Gb, Type C)
USB 8 Back Panel USB 3.2 Gen 2 Port (10Gb, Type A)
USB 9 Back Panel USB 3.2 Gen 2x2 Port (20Gb, Type C)
US B 10/11 Front Panel Accessible USB 3.2 Gen 1 Header (5Gb)
USB 12 Front Panel Accessible USB 3.2 Gen 2x2 20-pin Connector (20Gb)
Jumpers and Connectors
Jumpers
Jumper Description Default
CLEAR CMOS Clear CMOS Switch Push Button Switch
JD1 Speaker / Buzzer Pins 1-4: External Speaker / Pins 3-4: Buzzer
JPME2 Intel Manufacturing Mode Pins 1-2: Normal
Pins 2-3: Manufacturing Mode
JWD1 Watch Dog Function Enable Pins 1-2: RST / Pins 2-3: NMI
POWER BUTTON Internal Power Button Push Button Switch
RESET BUTTON Onboard System Reset Button Push Button Switch
SW1 Back Panel Clear CMOS Switch Push Button Switch

ContaCt InformatIon
• www.supermicro.com (Email: [email protected])
• Manuals: http://www.supermicro.com/support/manuals
• Drivers & Utilities: https://www.supermicro.com/wftp/driver/
• Safety: http://www.supermicro.com/about/policies/safety_information.cfm

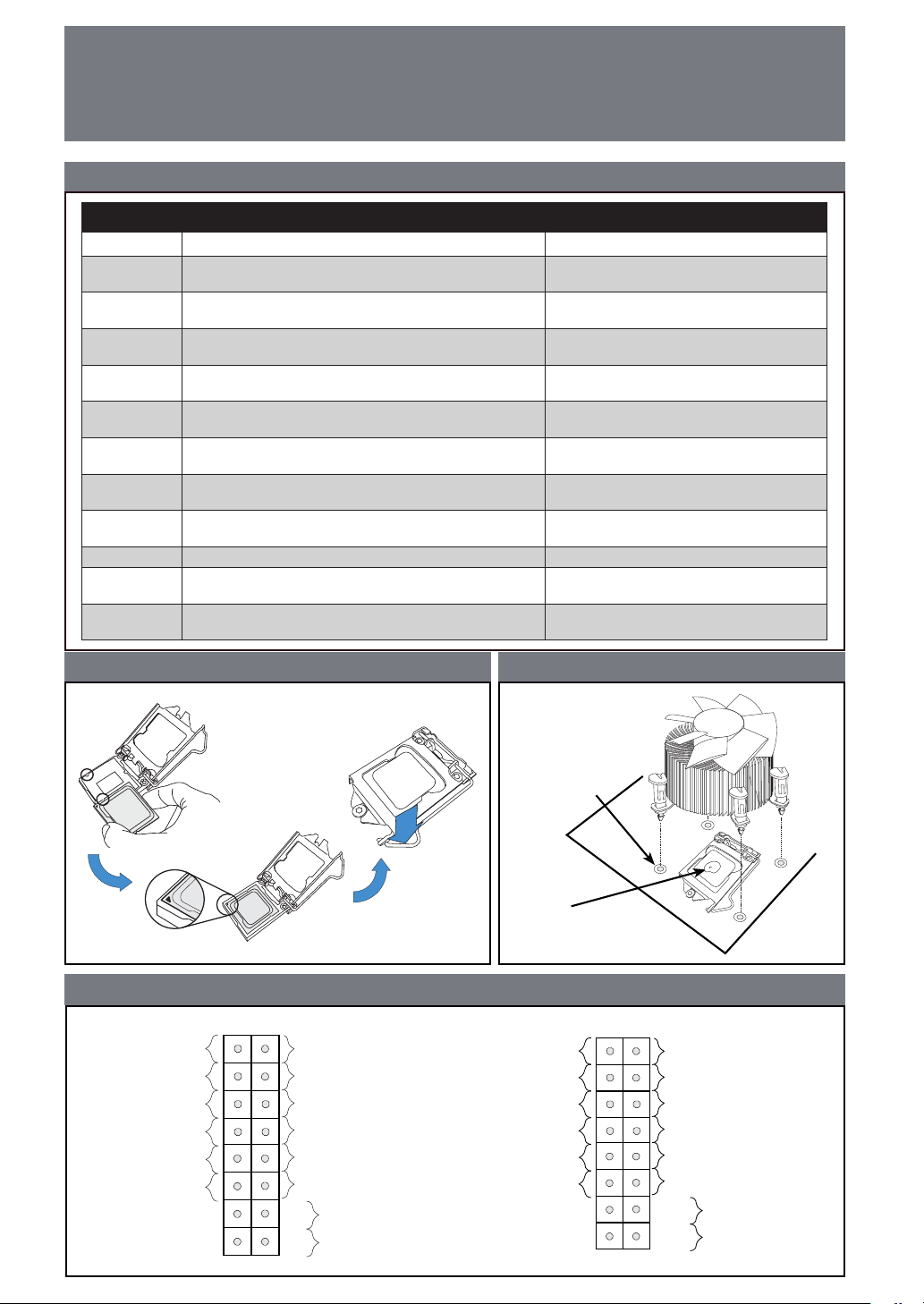

LED Indicators
LED Indicators
LED Description Color/State
BOOT LED Bootable Device POST (Power-On Self-Test) Status Bootable Device POST: Orange ON
Bootable Device POST Completion: OFF
CPU LED CPU POST (Power-On Self-Test) Status CPU POST: Yellow ON
CPU POST Completion: OFF
DIMM LED DIMM POST (Power-On Self-Test) Status DIMM POST: Blue ON
DIMM POST Completion: OFF
LED1 Onboard Power LED
S3 (Suspend to RAM) LED
Power On: Green On
S3: Green Blinking
LED17 WLAN POST (Power-On Self-Test) Status WLAN POST: Green ON
WLAN POST Completion: OFF
LED18 Bluetooth Device POST (Power-On Self-Test) Status Bluetooth Device POST: Green ON
Bluetooth Device POST Completion: OFF
LED2 PCIe M.2-M2 Socket LED PCIe Device Detected: Green ON
Activity: Green Blinking
LED3 PCIe M.2-M1 Socket LED PCIe Device Detected: Green ON
Activity: Green Blinking
LED4 BIOS POST Code LED Digital Readout
LED4801 PCIe M.2-M3 Socket LED PCIe Device Detected: Green ON
Activity: Green Blinking
VGA LED Onboard VGA POST (Power-On Self-Test) Status Onboard VGA POST: Green ON
Onboard VGA POST Completion: OFF
Front Control Panel (JF1)
Power Button
Overheat/
Fan Fail LED (-)
2
NIC1 LED (-)
Reset Button
1
HDD LED (-)
POWER LED (-)
Reset
PWR
POWER LED (+)
Ground
Ground
XX
HDD LED (+)
NIC1 LED (+)
Overheat/
Fan Fail LED (+)
1615
NIC2 LED (-) NIC2 LED (+)
CPU Installation Heatsink Installation
Heatsink
with Fan
Motherboard
Mounting Hole
Add
thermal paste

MNL-2335-QRG-100
© 2021 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Super- micro's written consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.
Notes
• Graphics shown in this quick reference guide are for illustration only. Your components may
or may not look exactly the same as drawings shown in this guide.
• Refer to Chapter 2 of the User Manual for detailed information on jumpers, connectors, LED
indicators, memory support and CPU/motherboard installation instructions.
The C9Z590-CG/-CGW supports a single 11th Gen Intel® CoreTM i9/i7/i5/i3, Pentium®, and Celeron® series
processor (LGA1200 socket), up to 128GB of Unbuffered non-ECC UDIMM with speeds of up to 3200MHz
(2DPC, by CPU) in four 288-pin memory slots. Populating these DIMM slots with a pair of memory modules
of the same type and size will result in interleaved memory, which will improve memory performance.
Notes: 1) For memory optimization, use only DIMM modules that have been validated by Supermicro. For the latest memory updates, please
refer to our website at http://www.supermicro.com/products/motherboard.
2) Always connect the power cord last, and always remove it before adding, removing or changing any hardware components.
3) Overheating can seriously damage CPU and motherboard. Always make sure cooling fans function properly to protect CPU from overheating.
4) This motherboard supports only an 11th Gen Intel Core series processor. The system will not boot up if using the 10th Gen Intel Core series
processor.
DIMM Memory Installation
Towards the CPU
DIMMB2 (Gray Slot)
DIMMA2 (Gray Slot)
DIMMA1 (Black Slot)
DIMMB1 (Black Slot)
Memory Population Guidelines
When installing memory modules, the DIMM slots should be populated in the following order: DIMMA2, DIMMB2,
then DIMMA1, DIMMB1.
• Always use DDR4 DIMM modules of the same size, type, and speed.
• Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
Recommended Population (Balanced)
DIMMA1 DIMMB1 DIMMA2 DIMMB2 Total System Memory
2GB DIMM 2GB DIMM 4GB
2GB DIMM 2GB DIMM 2GB DIMM 2GB DIMM 8GB
4GB DIMM 4GB DIMM 8GB
4GB DIMM 4GB DIMM 4GB DIMM 4GB DIMM 16GB
8GB DIMM 8GB DIMM 16GB
8GB DIMM 8GB DIMM 8GB DIMM 8GB DIMM 32GB
16GB DIMM 16GB DIMM 32GB
16GB DIMM 16GB DIMM 16GB DIMM 16GB DIMM 64GB
32GB DIMM 32GB DIMM 64GB
32GB DIMM 32GB DIMM 32GB DIMM 32GB DIMM 128GB
CPU & Memory Support
Back Panel I/O Connectors
1. DisplayPort 1.4a 7. Ethernet RJ45 10GbE Port 2 13. Surround Out
2. HDMI Port 2.0b 8. USB8: USB 3.2 Gen 2 (10Gb, Type A) 14. S/PDIF Out
3. USB0/1/2/3: USB 2.0 (Type A) 9. USB9: USB 3.2 Gen 2x2 (20Gb, Type C) 15. Line In
4. Ethernet RJ45 1GbE Port 1 10. SW1: CLEAR CMOS 16. Line Out
5. USB6: USB 3.2 Gen 2 (10Gb, Type A) 11. WiFi 6+BT 5.1 (C9Z590-CGW only) 17. Mic In
6. USB7: USB 3.2 Gen 2x2 (20Gb, Type C) 12. Center/LFE Out
7
8
9
10 11
12
14
13
15
17
16
1
2 3
4
5
6

SUPERMICR R
美超微電腦股份有限公司
C9Z590-CG/-CGW 快速參考指南版本 1.00
主機板元件配置圖
= 裝機孔
I/O BACK PANEL
DESIGNED IN USA
C9Z590-CGW
REV:1.01
BIOS
LICENSE
MAC CODEMAC CODE BAR CODE BAR CODE
iuqP
JRLED1
JSTBY1
JTPM1
B1
SP1
JD1
JSD1
JPW1
LED17
LED18
LED1
LED4801
LED2
LED3
JPW2
JL1
LED4
JLED1 JWD1
JPME2
PCH
2260
2280
PCH SLOT1 PCI-E 3.0 X1
USB 12(3.2(20Gb))
12V_PUMP_PWR1
JF1
22110
2280
2260
2260
2280
22110
BOOT LED
VGA LED
DIMM LED
CPU LED
AUDIO FP
COM1
USB4/5
USB 10/11(3.2(5Gb))
PCH SLOT4 PCI-E 3.0 X1
I-SATA3
I-SATA2
CPU SLOT5 PCI-E 4.0 X8 (IN X 16)
I-SATA1
I-SATA0
CPU SLOT7 PCI-E 4.0 X16
SYS_FAN2
SYS_FAN3
USB 0/1/2/3
POWER
BUTTON
DIMMB1
DIMMB2
DIMMA1
DIMMA2
RESET
BUTTON
SYS_FAN1
CPU_FAN1
CLEAR CMOS
CPU_FAN2
USB 6 (3.2, 10Gb)
USB 7 (3.2, 20Gb)
LAN1
USB 9 (3.2, 20Gb)
USB 8 (3.2, 10Gb)
LAN2
DP/HDMI
SW1
HD AUDIO
PCIE M.2-M2
PCIE M.2-M3
PCIE M.2-M1
PCIE M.2-E1

單一主機板包裝盒內容清單
• Supermicro主機板 x1
• SATA訊號線 x4
• 後檔板 x1
• S-轉接器 x1
• 快速參考指南 x1
• 驅動程式光碟片x1
• 天線 x2 (僅 C9Z590-CGW 提供)
連接埠（Connector）
連接埠 說明
12V_PUMP_PWR1 12V水冷幫浦電源插座
AUDIO FP 前面板音效接頭
B1 內建電池
COM1 COM1序列連接埠
CPU_FAN1/CPU_FAN2 CPU（中央處理器）風扇接頭
CPU SLOT5 PCI-E 4.0 x8
(IN x16)
PCIe 4.0 x16插槽，支援PCIe 4.0 x8運作效能規格
* CPU Slot5 PCIe 4.0 x8（IN x16）插槽與CPU Slot7 PCIe 4.0 x16插槽共享頻寬，所以當CPU Slot5 PCIe 4.0 x8
（IN x16）插槽安裝顯示卡時，CPU Slot7 PCIe 4.0 x16插槽最高以 x8頻寬運作。
CPU SLOT7 PCI-E 4.0 x16 PCIe 4.0 x16插槽，支援PCIe 4.0 x16運作效能規格
*為發揮顯示卡最大效能，如只安裝一張顯示卡時務必優先安裝至CPU Slot7 PCIe 4.0 x16插槽。
DP/HDMI 背板DisplayPort顯示連接埠/高畫質多媒體介面（HDMI）連接埠
HD AUDIO 背板5個音源接頭（中央及重低音輸出、後喇叭輸出、音源輸入、音源輸出、麥克風）和1個S/PDIF
光纖輸出插座
I-SATA0~3 （Intel Z590）序列ATA介面（SATA 3.0）連接埠 0~3（6Gb/秒）
JF1 前控制面板接頭
*請參照S-轉接器上面的印刷標示連接對應的前控制面板針腳。
JL1 機殼防盜裝置接頭
JLED1 LED指示燈電源接頭
JPW1 24針腳ATX主電源連接埠（必備）
JPW2 +12伏特8針腳CPU電源連接埠（必備）
JRLED1 4-pin 接頭連接I/O上蓋內部的白光LED導光板（已安裝）
JSD1 SATA DOM（磁碟模組）電源連接埠
JSTBY1 5V待機電源接頭
JTPM1 TPM信任平台模組/Port 80 插座（僅支援TPM 2.0）
LAN1/LAN2 RJ45 1GbE/10GbE 網路連接埠
PCIE M.2-E1 WiFi 6 + BT 5.1（C9Z590-PGW出貨預連接一張無線網卡）
PCIE M.2-M1/PCIE M.2-M2
PCIe3.0 x4 M.2介面連接埠（連接PCH），適用2260/2280/22110高速傳輸NVMe介面的固態硬碟
儲存裝置，並支援RAID1、0和5
（註：PCIe為電腦匯流的一種規格、M.2為固態硬碟的一種傳輸介面，而NVMe為非揮發性記憶體
儲存裝置的一種標準。）
PCIE M.2-M3 PCIe4.0 x4 M.2介面連接埠（連接CPU），適用2260/2280高速傳輸NVMe介面的固態硬碟儲存裝
置，並支援RAID1、0和5
PCH SLOT1/4 PCI-E 3.0 x1 PCIe 3.0 x1插槽，支援PCIe 3.0 x1運作效能規格
SP1 內部喇叭/蜂鳴器
SYS_FAN1 ~ SYS_FAN3 系統風扇接頭
USB 0/1/2/3 背板USB 2.0 規格接頭（Type A）
USB 4/5 前面板USB 2.0 規格接頭
USB 6 背板USB 3.2 Gen 2規格連接埠（10Gb，Type A）
USB 7 背板USB3.2 Gen 2x2 規格連接埠（20Gb，Type C）
USB 8 背板USB 3.2 Gen 2 規格連接埠（10Gb，Type A）
USB 9 背板USB 3.2 Gen 2x2 規格連接埠（20Gb，Type C）
US B 10/11 前面板USB 3.2 Gen 1規格接頭（5Gb）
USB 12 USB 3.2 Gen 2x2規 格 連 接 埠，適 用 於 連 接 機 殼 前 面 板 Type C連接埠（20Gb）
跳線器/連接埠
跳線器（Jumper）
跳線器 說明 預設值
CLEAR CMOS CMOS（可讀寫隨機存取記憶體晶片）組態資料清除開關 按鍵式開關
JD1 喇叭 / 蜂鳴器 針腳 1-4：外接喇叭 / 針腳 3-4：蜂鳴器
JPME2 Intel製造模式 針腳 1-2：正常/ 針腳 2-3：製造模式
JWD1 啟動系統監控（Watch Dog）功能 針腳 1-2：重設 / 針腳 2-3：NMI
POWER BUTTON 內部電源開關 按鍵式開關
RESET BUTTON 系統重設開關 按鍵式開關
SW1 背板CMOS（可讀寫隨機存取記憶體晶片）組態資料清除開關 按鍵式開關

線上技術支援及下載
• 聯絡我們（技術支援信箱）：www.supermicro.com （Email: [email protected]）
• 產品手冊文件：http://www.supermicro.com/support/manuals
• 驅動程式及工具程式：https://www.supermicro.com/wftp/driver/
• 產品安全性須知：http://www.supermicro.com/about/policies/safety_information.cfm
LED指示燈
LED 指示燈
LED 說明 燈號顏色/狀態
BOOT LED 顯示硬碟開機時POST狀態 正在執行硬碟POST程序：橘燈
完成硬碟POST程序：燈滅
CPU LED 顯示CPU POST狀態 正在執行CPU POST程序：黃燈
完成CPU POST程序：燈滅
DIMM LED 顯示記憶體POST狀態 正在執行記憶體POST程序：藍燈
完成記憶體POST程序：燈滅
LED1 開啟/S3模式
（ 待機 ） 指示燈 開機：綠燈
待機S3模式：綠燈閃爍
LED17 無線網路 POST狀態 正在執行WiFi POST程序：綠燈
完成WiFi POST程序：燈滅
LED18 藍芽POST狀態 正在執行藍芽POST程序：綠燈
完成藍芽POST程序：燈滅
LED2 PCIe M.2-M2指示燈 偵測到裝置：綠燈恆亮
裝置運作中：綠燈閃爍
LED3 PCIe M.2-M1指示燈 偵測到裝置：綠燈恆亮
裝置運作中：綠燈閃爍
LED4 BIOS POST代碼指示燈 數位式讀值
LED4801 PCIe M.2-M3指示燈 偵測到裝置：綠燈恆亮
裝置運作中：綠燈閃爍
VGA LED 顯示VGA顯示卡開機時POST狀態 正在執行VGA顯示卡POST程序：綠燈
完成VGA顯示卡POST程序：燈滅
前控制面板配置（JF1）
Power Button
Overheat/
Fan Fail LED (-)
2
NIC1 LED (-)
Reset Button
1
HDD LED (-)
POWER LED (-)
Reset
PWR
POWER LED (+)
Ground
Ground
XX
HDD LED (+)
NIC1 LED (+)
Overheat/
Fan Fail LED (+)
1615
NIC2 LED (-) NIC2 LED (+)
中央處理器安裝方式 散熱器安裝方式
電源鍵
過熱/
風扇故障 LED (-)
2
網卡1 LED (-)
重設鍵
1
硬碟 LED (-)
電源 LED (-)
重設
電源
電源 LED (+)
接地
接地
X X
硬碟 LED (+)
網卡1 LED (+)
過熱/
風扇故障 LED (+)
1615
網卡2 LED (-) 網卡2 LED (+)
散熱器與風扇
安裝孔
塗上散熱膏

MNL-2335-QRG-100
© 2021 美超微股份有限公司（以下簡稱「本公司」）版權所有。未經本公司書面同意，嚴禁重製本文件部分或全部內容。所有商標均為所屬公司所有，所有 提供資訊於印刷之際視為但不保證正確。
備註
• 快速參考指南中的圖例僅供安裝及操作說明使用，可能與實際產品外觀不同。
• 欲知更多跳線器/連接埠/指示燈/記憶體/主機板/中央處理器的安裝相關資訊，請參閱
《Supermicro c9Z590-cG/-cGW使用手冊》第二章。
本主機板 C9Z590-CG/-CGW 支援單顆第十一代Intel® Core
TM
i9/i7/i5/i3、Pentium®及Celeron®系列處理
器（ LGA120 0 插槽）。記憶體支援四組Unbuffered DIMM non-ECC DDR4，容 量 最 高128GB，速 度 最 高 達
3200MHz（2 D P C ， 根 據 使 用 的 處 理 器 規 格）288支針腳的記憶體插槽。欲取得雙通道效能，請安裝成對相同型號與
速 度 之 記 憶 體。
註：1) 請安裝使用本公司所認可的記憶體模組以達記憶體模組最佳化。更多的記憶體模組相關訊息，請參閱本公司網頁
（ http://www.supermicro.com/products/motherboard ） 。
2) 增加、移除和更換任何硬體元件前，請務必先拔掉電源線。待確實完成所有程序後，再重新連接電源線。
3) 請確保冷卻風扇工作正常，以避免系統過熱損壞處理器和主機板。
4) 本主機板僅支援第11代Intel Core系列處理器。如果在此主機板上安裝第10代Intel Core系列處理器，系統將無法開機。
DIMM（記憶體模組）安裝方式
此面朝向中央處理器
DIMMA2（灰色插槽）
DIMMB2（灰色插槽）
DIMMA1（黑色插槽）
DIMMB1（黑色插槽）
請依照以下說明及表格安裝記憶體模組：
• 請遵循下列插槽編號順序依序安裝：DIMMA2（ 通道 A 、插槽 2 ）、 DIMMB2（ 通道 B 、插槽 2 ）、 DIMMA1（ 通道
A、 插槽 1 ） 、DIMMB1（ 通道 B、 插槽 1 ） 。
• 請使用相同型號（DDR4 DIMM ） 與速度之記憶體。若混合使用不同速度之記憶體，系統將依較低的記憶體速度
執行。
建議插槽使用方式
DIMMA1 DIMMB1 DIMMA2 DIMMB2 系統記憶體總容量
2GB DIMM 2GB DIMM 4GB
2GB DIMM 2GB DIMM 2GB DIMM 2GB DIMM 8GB
4GB DIMM 4GB DIMM 8GB
4GB DIMM 4GB DIMM 4GB DIMM 4GB DIMM 16GB
8GB DIMM 8GB DIMM 16GB
8GB DIMM 8GB DIMM 8GB DIMM 8GB DIMM 32GB
16GB DIMM 16GB DIMM 32GB
16GB DIMM 16GB DIMM 16GB DIMM 16GB DIMM 64GB
32GB DIMM 32GB DIMM 64GB
32GB DIMM 32GB DIMM 32GB DIMM 32GB DIMM 128GB
中央處理器和記憶體支援
背板輸出/輸入連接埠
1. DisplayPort 1.4a 顯示連接埠 7. RJ45 5GbE網路線連接埠 2 13. 環繞聲道輸出
2. 高畫質多媒體介面HDMI 2.0b 連接埠 8. USB8: USB 3.2 Gen 2 (10Gb, Type A) 連接埠 14. S/PDIF輸出
3. USB0/1/2/3: USB 2.0 (Type A) 連接埠 9. USB9: USB 3.2 Gen 2x2 (20Gb, Type C) 連接埠 15. 音效輸入
4. RJ45 1GbE網路線連接埠 1 10. SW1: CMOS組態資料清除 16. 音效輸出
5. USB6: USB 3.2 (10Gb, Type A) 連接埠 11. WiFi 6+BT 5.1 (僅 C9Z590-CGW) 17. 麥克風插孔
6. USB7: USB 3.2 Gen 2x2 (20Gb, Type C) 連接埠 12. 中央/低音聲道輸出
7
8
9
10 11
12
14
13
15
17
16
1
2 3
4
5
6

SUPERMICR R
美超微电脑股份有限公司
C9Z590-CG/-CGW 快速參考指南版本 1.00
主板元件功能布局图
= 螺丝孔
I/O BACK PANEL
DESIGNED IN USA
C9Z590-CGW
REV:1.01
BIOS
LICENSE
MAC CODEMAC CODE BAR CODE BAR CODE
iuqP
JRLED1
JSTBY1
JTPM1
B1
SP1
JD1
JSD1
JPW1
LED17
LED18
LED1
LED4801
LED2
LED3
JPW2
JL1
LED4
JLED1 JWD1
JPME2
PCH
2260
2280
PCH SLOT1 PCI-E 3.0 X1
USB 12(3.2(20Gb))
12V_PUMP_PWR1
JF1
22110
2280
2260
2260
2280
22110
BOOT LED
VGA LED
DIMM LED
CPU LED
AUDIO FP
COM1
USB4/5
USB 10/11(3.2(5Gb))
PCH SLOT4 PCI-E 3.0 X1
I-SATA3
I-SATA2
CPU SLOT5 PCI-E 4.0 X8 (IN X 16)
I-SATA1
I-SATA0
CPU SLOT7 PCI-E 4.0 X16
SYS_FAN2
SYS_FAN3
USB 0/1/2/3
POWER
BUTTON
DIMMB1
DIMMB2
DIMMA1
DIMMA2
RESET
BUTTON
SYS_FAN1
CPU_FAN1
CLEAR CMOS
CPU_FAN2
USB 6 (3.2, 10Gb)
USB 7 (3.2, 20Gb)
LAN1
USB 9 (3.2, 20Gb)
USB 8 (3.2, 10Gb)
LAN2
DP/HDMI
SW1
HD AUDIO
PCIE M.2-M2
PCIE M.2-M3
PCIE M.2-M1
PCIE M.2-E1

单一主板包裝盒內容清单
• Supermicro主板 x1
• SATA数据线 x4
• 后档板 x1
• S-转接器 x1
• 快速参考指南 x1
• 驱动程序光盘 x1
• 天线 x2 (仅 C9Z590-CGW 提供)
跳帽/接口
跳帽（Jumper）
跳帽 说明 默认值
CLEAR CMOS 清除CMOS开关 按键式开关
JD1 喇叭/蜂鸣器 针脚 1~4：外接喇叭 / 针脚 3~4：蜂鸣器
JPME2 Intel制造模式 针脚 1-2：正常 / 针脚 2-3：制造模式
JWD1 启动系统监控（Watch Dog）功能 针脚1-2：重设/ 针脚 2-3：NMI
POWER BUTTON 內部电源开关 按键式开关
RESET BUTTON 系统重设开关 按键式开关
SW1 背板CMOS资料清除开关 按键式开关
接口（Connector）
接口 说明
12V_PUMP_PWR1 用于CPU液体冷却泵的12V 4针脚电源接口
AUDIO FP 高清音频接口（背板）
B1 纽扣型电池
COM1 COM1串口
CPU_FAN1/CPU_FAN2 CPU风扇接口
CPU SLOT5 PCI-E 4.0 x8
(IN x16)
PCIe 4.0 x16插槽（PCIe 4.0 x8总线规格）
*CPU Slot5 PCIe 4.0 x8（IN x16）插槽与CPU Slot7 PCIe 4.0 x16插槽共享带宽，所以当CPU Slot5 PCIe 4.0 x8
（IN x16）插槽安装显卡时，CPU Slot7 PCIe 4.0 x16插槽最高以 x8带宽运行。
CPU SLOT7 PCI-E 4.0 x16 PCIe 4.0 x16插槽（PCIe 4.0 x16总线规格）
*为发挥显卡最大效能，如只安装一張显卡时务必优先安装至CPU Slot7 PCIe 4.0 x16插槽。
DP/HDMI 背板DisplayPort显示接口/高清多媒体接口（HDMI）接口
HD AUDIO 背板5個音源接头（中央及重低音输出、后喇叭输出、音源输入、音源输出、麦克风）和1个S/
PDIF光纤输出接口
I-SATA0~3 （Intel Z590）串行ATA（SATA 3.0）接口0~3（6Gb/秒）
JF1 前控制面板接口
*请参照S-转接器上面的印刷标示连接对应的前控制面板针脚。
JL1 机箱入侵检测接口
JLED1 LED指示灯电源接口
JPW1 24针脚ATX主电源接口（必备）
JPW2 +12V 8针脚CPU电源接口（必备）
JRLED1 4-pin 接头，连接I/O上盖内部的白光LED导光板（已安装）
JSD1 SATA DOM（磁盘模组）电源接口
JSTBY1 待机电源接口
JTPM1 TPM信任平台模组接口/Port 80 接口（仅支持TPM 2.0）
LAN1/LAN2 RJ45 1GbE/10GbE 网络接口
PCIE M.2-E1 WiFi 6 + BT 5.1（C9Z590-CGW出货预连接一张无线网卡）
PCIE M.2-M1/PCIE M.2-M2
PCIe 3.0 x4 M.2接口（连接PCH），适用2260/2280/22110高速传输NVMe接口的固态硬盘储存设
备，并支持RAID1、0和5
（註：PCIe为电脑总线的一种规格、M.2为固态硬盘的一种传输接口，而NVMe为非挥发性记忆体
储存设备的一种标准。）
PCIE M.2-M3 PCIe 4.0 x4 M.2接口（连接CPU），适用2260/2280高速传输NVMe接口的固态硬盘储存设备，并
支持RAID1、0和5
PCH SLOT1/4 PCI-E 3.0 x1 PCIe 3.0 x1插槽（PCIe 3.0 x1总线规格）
SP1 内部喇叭/蜂鸣器
SYS_FAN1 ~ SYS_FAN3 系统风扇接口
USB 0/1/2/3 背板USB 2.0 接口（Type A）
USB 4/5 前置USB 2.0 接口
USB 6 背板 3.2 Gen 2 接口（10Gb, Type A）
USB 7 背板 3.2 Gen 2x2 接口（20Gb, Type C）
USB 8 背板 3.2 Gen 2 接口（10Gb, Type A）
USB 9 背板 3.2 Gen 2x2 接口（20Gb, Type C）
US B 10/11 前置USB 3.2 Gen 1 接口（5Gb）
USB 12 前置USB 3.2 Gen 2x2 20针脚接口（20Gb）

在线技术支持及下载
• 联络我们（技术支持信箱）：www.supermicro.com （Email: [email protected]）
• 产品手冊文件：http://www.supermicro.com/support/manuals
• 驱动程序及工具软件：https://www.supermicro.com/wftp/driver/
• 产品安全性须知：http://www.supermicro.com/about/policies/safety_information.cfm
LED指示灯
LED 指示灯
LED 说明 灯号颜色/状态
BOOT LED 显示启动设备POST（开机自检）状态 正在执行启动设备POST程序：橘灯
完成启动设备POST程序：灯灭
CPU LED 显示CPU POST状态 正在执行CPU POST程序：黄灯
完成CPU POST程序：灯灭
DIMM LED 显示内存POST状态 正在执行内存POST程序：蓝灯
完成内存POST程序：灯灭
LED1 开启/S3模式（待机）指示灯 开机：绿灯
待机S3模式：绿灯闪烁
LED17 WiFi无线网络 POST状态 正在执行WiFi POST程序：绿灯
完成WiFi POST程序：灯灭
LED18 蓝芽 POST状态 正在执行蓝芽POST程序：绿灯
完成蓝芽POST程序：灯灭
LED2 PCIe M.2-M2指示灯 侦测到设备：绿灯恒亮
设备运行中：绿灯闪烁
LED3 PCIe M.2-M1指示灯 侦测到设备：绿灯恒亮
设备运行中：绿灯闪烁
LED4 BIOS POST代码指示灯 数位式读值
LED4801 PCIe M.2-M3指示灯 侦测到设备：绿灯恒亮
设备运行中：绿灯闪烁
VGA LED 显示VGA显卡开机时POST状态 正在执行VGA显卡POST程序：绿燈
完成VGA显卡POST程序：燈滅
前控制面板配置（JF1）
Power Button
Overheat/
Fan Fail LED (-)
2
NIC1 LED (-)
Reset Button
1
HDD LED (-)
POWER LED (-)
Reset
PWR
POWER LED (+)
Ground
Ground
XX
HDD LED (+)
NIC1 LED (+)
Overheat/
Fan Fail LED (+)
1615
NIC2 LED (-) NIC2 LED (+)
中央处理器安装方式 散热器安装方式
电源键
过热/
风扇故障 LED (-)
2
网卡1 LED (-)
重置键
1
硬盘 LED (-)
电源 LED (-)
重置
电源
电源 LED (+)
接地
接地
X X
硬盘 LED (+)
网卡1 LED (+)
过热/
风扇故障 LED (+)
1615
网卡2 LED (-) 网卡2 LED (+)
散热器与风扇
安装孔
涂上散热膏
主板
