Supplies4Heat SAXON User manual

Pipe centres left to right =
Pipe centres from wall =
Depth from wall =
width of radiator plus valves
70mm
120mm
Drawings
Pipe Centres
www.supplies4heat.co.uk 01342 306880
Aluminium Radiator in White
Horizontal and Vertical
Please read these instructions and terms and conditions carefully
prior to installation. Failure to do so may invalidate the warranty.
SAXON
Fitting Instructions
Drawing 2 - Bracket PositionsDrawing 1 - Bush Configurations
2 x Right
Hand
Brackets
2 x Left
Hand
Brackets
Tighten ‘S’
Anti-clockwise
Tighten ‘D’
Clockwise
SAX_IR_1.1
SAXON radiators have specific left and right hand threaded
bushes and these can be easily damaged if forced or incorrectly
fitted (this will inevitably cause leaks). Bushes require a dry fit
connection only; you must not use any Compound materials
(e.g. Jet Blue) or Plumbers Hemp. If you choose you may use
up to 4 turns of PTFE tape to help seal the threads (the tape
should be applied in the direction of the thread and no more
than this amount should be used as this may cause leaks to occur)
If looking directly at the front of the radiator, the two
bushes with an ‘S’ cast on them are positioned on the
left and turned anti-clockwise. The two bushes cast with
a ‘D’ are positioned on the right and turned clockwise.
Please see Drawing 1

With the brackets firmly fixed and level, the radiator is lowered directly
onto the brackets. When commissioning your radiator on an indirect/
closed system we recommend using a suitable quality and quantity of
mixed metal inhibitor to protect against scale & corrosion.
Damage caused to systems not protected by a suitable inhibitor
will not be covered by manufacturer’s guarantee.
You should have:
• 1 Radiator
• 4 Wall Brackets
• 1 Manual Airvent
• 4 Bushes with Gaskets
• 1 Blanking Plug
• 1 Diverter (for 1800mm vertical models only)
You will need:
• Tape measure
• Electric drill and bits
• Spirit level
• Bush spanner
3. Fit Diverter
5. Hang & Commission
Radiator
Technical Specifications
Materials Aluminium.
Connections ½” flow and return.
Test pressure 9 Bar
Testing authority EN442
Maximum operating pressure 6 Bar
Maximum working temperature 110ºC
Packaging Wrapped in polythene & boxed.
You will have been supplied with at least four brackets (see drawing
1 on other page and drawing B below). The brackets are typically
positioned one section in from either end with extra brackets spaced at
equal distances between these two (see drawing 2 on the other page).
Brackets should be fixed using suitable drill bit, screws and plugs.
PLEASE NOTE:
It is essential that all brackets are level and square prior to hanging the
radiator to ensure a vertical alignment for connecting the pipework.
Mark and fix the 2 top brackets checking they are level. Hang radiator in
position and mark the location of the 2 bottom brackets and fix in place.
All products must be inspected once removed
from the packaging and your point of purchase
notified within 28 days of delivery of any
scratches, blemishes or other damage. Your point
of purchase will then agree appropriate action.
Imperfect radiators should therefore not be
fitted and we will not accept responsibility for
replacement of scratched or damaged radiators
once they have been fitted. This includes any
consequential loss or cost of fitting.
If we are not notified within 28 days of the date
on the signed delivery note then it will be deemed
that we have fully complied with our obligations
and claims will not be considered.
Failure to comply with any of the above may
invalidate any claims. We recommend that after
you check the product on delivery that it is stored
in its packaging to prevent damage prior to
installation, we cannot accept responsibility for
items damaged after delivery.
For full details of our Terms and Conditions
please visit www.supplies4heat.co.uk or call us
on 01342 306880.
Terms & Conditions
This product is guaranteed for 10 years. As we are not the manufacturers of this product
we will take all reasonable endeavours to make over to you the benefit of any warranty or
guarantee given by the manufacturer.
The guarantees in all cases are subject to the products being installed in accordance with
British and or European standards as well as these fitting instructions. The guarantees in all
cases are restricted to the free of charge replacement or repair of the failed product only.
Our liability will under no circumstances extend beyond the repair or replacement of the
product supplied by us. Claims for either labour in replacement or damage to property are
not admissible. Any goods that are returned, in the event of a problem, will belong to us.
Guarantees & Liabilities
A
B
PLEASE NOTE: To reduce the possibility of noise caused by rapid heating and cooling of
aluminium radiators; adequate capacity for expansion must be provided within the overall
heating system. Systems using micro bore pipework must have adequate pressure and flow
rates for the number and style of radiators on the system.
www.supplies4heat.co.uk 01342 306880
A brand of , Italy’s leading manufacturer of design led radiators.
2. Contents
4.Fix Brackets

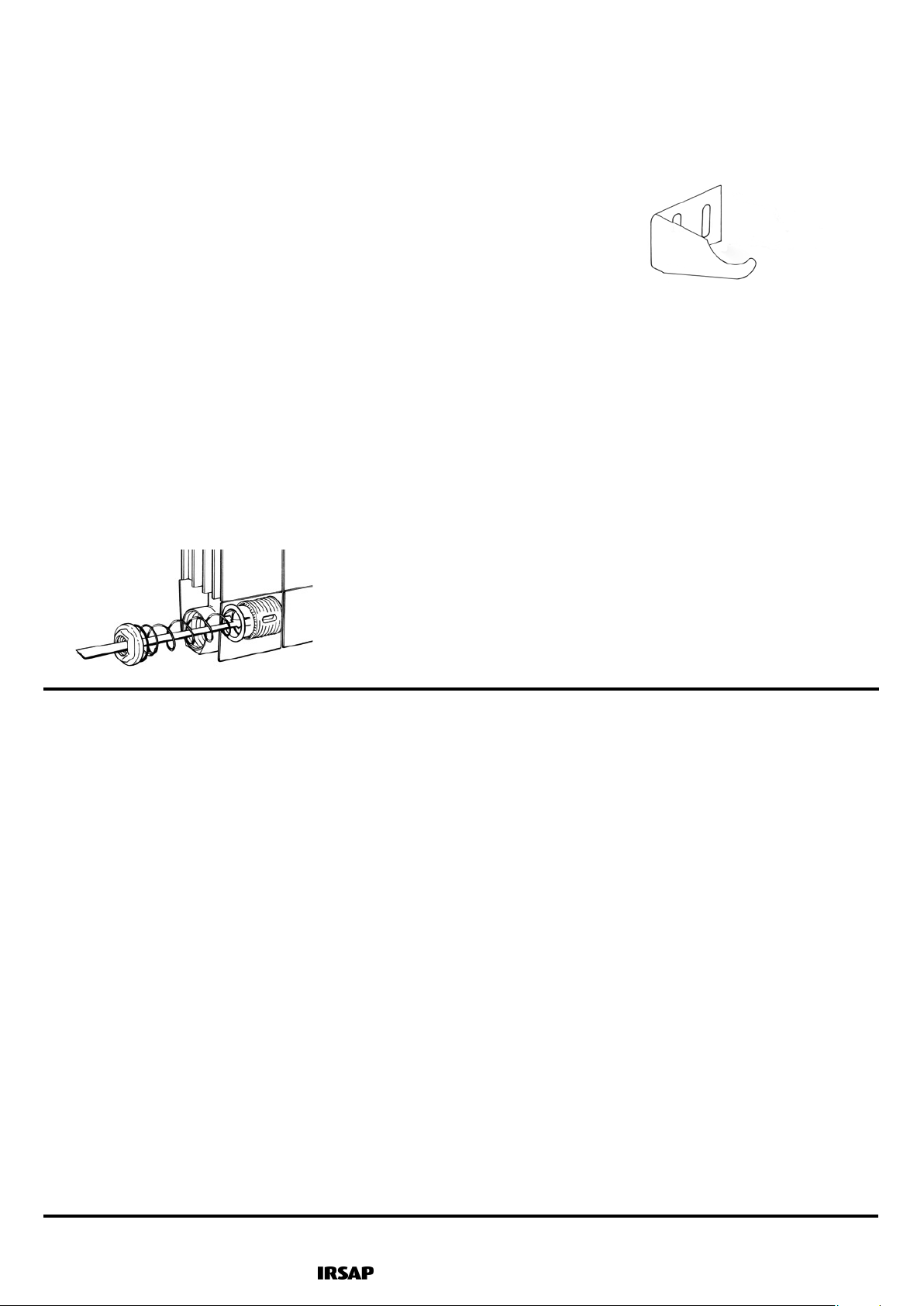

Aluminium radiators which are 1800mm tall are supplied with
a Spring Diverter, which is installed in the lower waterway at
either end.
This is installed by pushing the cap firmly in the waterway until
it locates against the barell nipple and is retained in place by
the bush. The flow must enter this end first (please see drawing
A below).
1. Unpack & Inspect
This product should have reached you in perfect condition. Please
carefully unpack and inspect this radiator and all fittings. Your point
of purchase must be notified of any shortages or damage within
28 days of delivery. For further information please see terms and
conditions on reverse.
