SUPREME OXYLINE User manual

Installation Manual
www.pavirani.com

Installation record....................................................................................................................2
Important information.............................................................................................................3
Operating conditions and requirements...................................................................................3
Preparation of the system for installation.................................................................................4
Installation...........................................................................................................................5-6
Commissioning....................................................................................................................7-8
Electronic control panel...................................................................................................9-13
Maintenance..................................................................................................................14-15
For future reference, fill in the following data
EN
INSTALLATION RECORD
Serial number:...................................................................................
Model:...............................................................................................
Iron (Fe) content-inlet........................................................................
Manganese (Mn) content-inlet:.........................................................
Hydrogen sulphide (H S) :..............................................
2 content-inlet
Water pressure-inlet:.......................................................................
Date of installation:..........................................................................
Company name:...............................................................................
Installer name:.................................................................................
Phone number:................................................................................ 2

- Before you begin the installation of the appliance,
we advise you read and carefully follow the instructions
contained in this manual. It contains important
information about safety, installation, use and
maintenance of the product. The actual system that you
have received, may differ from the pictures, illustrations,
descriptions in these Instructions.
- Failure to follow the instructions could cause personal
injury or damage to the appliance or property. Only when
installed, commissioned and serviced correctly, the
appliance will offer you many years of trouble-free
operation.
- The appliance is intended to 'filter' the water, meaning
it will remove specific undesired substances; it will not
necessarily remove other contaminants present in the
water. The appliance will not purify polluted water
or make it safe to drink!
- Installation of the appliance should only be undertaken
by a competent person, aware of the local codes in force.
All plumbing and electrical connections must be done
in accordance with local codes.
OPERATING PRESSURE MIN-MAX: 2,5-8,6 bar / 36-125 psi
-this appliance is configured to perform optimally at an operating pressure of 3 bar (45 psi) ±1/2 bar (7 psi);
in case of a lower or higher operating pressure the performance may be affected negatively!
- check water pressure regularly.
- take into account that night time water pressure may be considerably higher than day time water pressure.
- install a pressure reducer ahead of the appliance if necessary.
- Before setting up the appliance, make sure to check
it for any externally visible damage; do not install or use
when damaged.
- Use a hand truck to transport the appliance. To prevent
accident or injury, do not hoist the appliance over your
shoulder. Do not lay the appliance on its side.
- Keep these Instructions in a safe place and ensure that
new users are familiar with the content.
-The appliance is designed and manufactured
in accordance with current safety requirements
and regulations. Incorrect repairs can result in unforeseen
danger for the user, for which the manufacturer cannot
be held responsible. Therefore repairs should only
be undertaken by a competent technician, familiar and
trained for this product.
- The appliance must be serviced at least once a year (this
service may be payable). The service must be done by a
qualified company. In order to perform the services,
please contact the distributor from whom you purchased
your appliance.
- In respect of the environment, the appliance should
be disposed of in accordance with Waste Electrical and
Electronic Equipment requirements. Refer to national,
local laws and codes for correct recycling of the appliance.
IMPORTANT INFORMATION
OPERATING CONDITIONS AND REQUIREMENTS
pH to remove iron
Parameter OXYLINE OXYLINE PLUS
pH to remove iron and manganese
2+ *
Max. level of iron (Fe )
2+ *
Max. level of manganese (Mn )
*
Organiccompounds
*
Chlorine
*
Max. level of hydrogen sulphide (H S)
2
pH to remove manganese
Limits of application:
3
6,8 - 9,0
8,0 - 9,0
8,0 – 8,5
up to 15 mg/l up to 70 mg/l
up to 35 mg/l
up to 15 mg/l
0 mg/l
- mg/l
up to 2 mg/l
up to 5 mg/l
up to 2 mg/l
up to 5 mg/l
5,8 – 10,0
5,8 – 10,0
5,8 – 10,0
* the values presented in the table are developed based on the MSDS from the producers of filter beds and depend on other physical and chemical
parameters of water.
We strongly recommend to have the appliance selected by a qualified water technologist.

OPERATING TEMPERATURE MIN-MAX: 2-43 °C / 39-109 °F
- do not install the appliance in an environment where high ambient temperatures (e.g. unvented boiler house)
or freezing temperatures can occur.
- the appliance cannot be exposed to outdoor elements, such as direct sunlight or atmospheric precipitation.
- do not install the appliance too close to a water heater; keep at least 3 m (10 ft) of piping between
the outlet of the appliance and the inlet of the water heater; water heaters can sometimes transmit
heat back down the cold pipe into the appliance; always install a check valve at the outlet of the appliance.
ELECTRICAL CONNECTION: 230V-50Hz
- the appliance only works on 12V AC; always use it in combination with the supplied transformer 230/12V-50Hz.
- make sure to plug the transformer into a power outlet, which is installed in a dry location, with the proper
rating and over-current protection.
OPERATING CONDITIONS AND REQUIREMENTS
PREPARATION OF THE SYSTEM FOR INSTALLATION
4
- Before installing the appliance, in the first place you should
prepare the system for installation. To do so, please follow the
steps described below.
IMPORTANT INFORMATION
Step 1. Unscrew the head from the cylinder. NOTE! The
distribution pipe should be embedded inside the
cylinder.
Step 3. Fill in the cylinder with quartz substrate so that it is
placed evenly on the cylinder bottom and it covers
completely the lower distributor.
NOTE! To make the cylinder filling easier, please use a
funnel.
Step 2. Cover the distribution pipe with an end cap.
NOTE! If quartz or bed gets inside the distribution pipe, it
can damage the control valve during the appliance
operation.
Step 4. Fill in the cylinder with the proper bed.
Step 5. Screw up the control valve on the cylinder.
NOTE! Earlier take off the end cap from the distribution
pipe.

INSTALLATION
- In case of high concentration of impurities in the inlet
water, we recommend the installation of a sediment filter,
ahead of the appliance.
- We strongly recommend the use of flexible hoses
to connect the appliance to the water distribution system;
use hoses with a large diameter in order to limit
the pressure loss.
- If the appliance is not equipped with the factory bypass
(optional), we strongly recommend to install a 3-valve
bypass system (not included with this product!) to isolate
the appliance from the water distribution system in case
of repairs. It allows to turn off the water to the appliance,
while maintaining (untreated) water supply to the user.
INLET & OUTLET

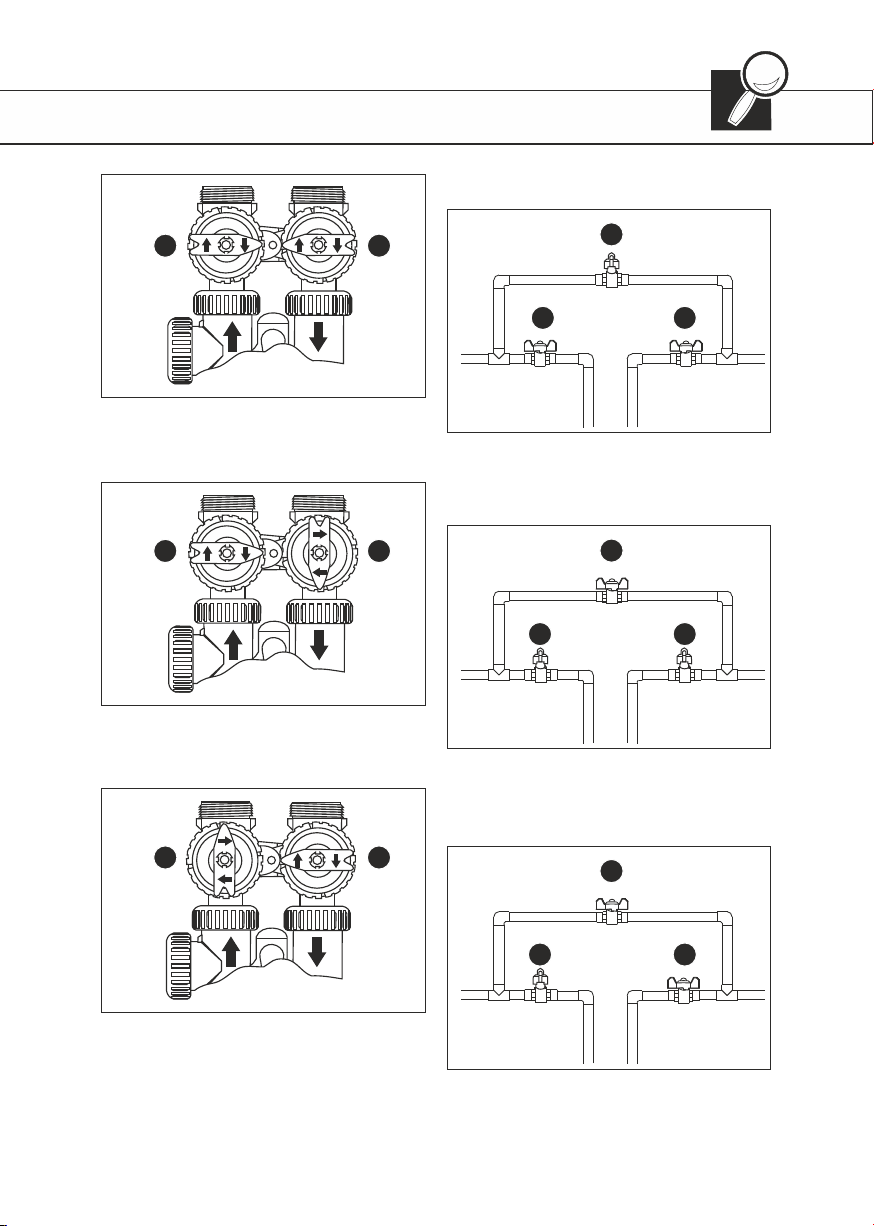

WITH FACTORY BYPASS (optional).
2
3
41
1. mains water supply (untreated water).
2. inlet of appliance (untreated water).
3. outlet of appliance (treated water).
4. house/application (treated water).
STEP 1. Screw the factory bypass onto the connections
of the appliance (2 & 3); make sure to install the gasket
seals. Tighten the nuts firmly by hand.
STEP 2. Screw the connection kit with nuts onto the factory
bypass (1 & 4); make sure to install the gasket seals.
Tighten the nuts firmly by hand.
STEP 3. Connect the mains water supply to the adaptor
on the inlet port of the factory bypass (1).
STEP 4. Connect the house/application to the adaptor
on the outlet port of the factory bypass (4).
5

1. mains water supply (untreated water).
2. inlet of appliance (untreated water).
3. outlet of appliance (treated water).
4. house/application (treated water).
STEP 1. Install the 3-valve bypass system.
STEP 2. Screw the connection kit with nuts onto the
connections of the appliance (2 & 3); make sure to install
the gasket seals. Tighten the nuts firmly by hand.
STEP 3. Connect the 3-valve bypass system to the adaptors
on the in (2) and out (3) connections.
STEP 4. Connect the mains water supply to the inlet
of the 3-valve bypass system (1).
STEP 5. Connect the house/application to the outlet
of the 3-valve bypass system (4).
WITH 3-VALVE BYPASS SYSTEM
(not included).
1
4
INSTALLATION
- We recommend the use of a stand pipe with air trap.
- To prevent backflow from the drainage system into
the appliance, always make sure to have an air gap
between the end of the drain line and the drainage
system itself; as a rule of thumb, the air gap should
be minimum 2x the diameter of the drain line.
- Lay-out the drain hoses in such a way that pressure
loss is minimized; avoid kinks and unnecessary
elevations.
- Make sure that the sewerage system is suitable
for the rinse water flow rate of the appliance.
DRAIN
1
STEP 1. Screw up the hose on the connection (1), make
sure that the hose is equipped with the stiffening insert at
its end.
STEP 2. Run the drain hose to the drainage system and
connect it to the stand pipe assuring sufficient air gap. This
drain line operates under pressure, so it may be installed
higher than the appliance.
2
3
6

COMMISSIONING
ELECTRICAL CONNECTION
Before programming the head, in the first place you
should install the power cord to the transformer. To do so
you must:
PREPARATION OF THE HEAD FOR PROGRAMMING..
Step 1: Take off the head front panel gently.
Step 2: Raise the ratchets with special attention (see
photo). Pull out the element on which the controller is
installed by pushing it gently.
NOTE! YOU MUST BE PARTICULARLY CAREFUL NOT TO
BREAK THE FASTENINGS AND NOT TO DAMAGE THE
DISPLAY.
7
Step 3: Draw the transformer cord through the slot in the
housing.
NOTE! YOU MUST BE PARTICULARLY CAREFUL NOT TO
BREAK THE FASTENINGS AND NOT TO DAMAGE THE
DISPLAY.
Step 4: Connect the transformer.

COMMISSIONING
Step 6. Place the front panel and then connect the
transformer to power outlet.
Step 5. Plug in the element on which the controller is
installed. Push the element gently until you can hear a
characteristic „click”.
NOTE! YOU MUST BE PARTICULARLY CAREFUL NOT TO
BREAK THE FASTENINGS AND NOT TO DAMAGE THE
DISPLAY.
STEP 1. Make sure the bypass system is in 'bypass'
position.
STEP 2. Make sure the electronic controller of the
appliance is in service mode.
PRESSURIZING
STEP 3. Open the mains water supply.
STEP 4. Open a cold treated water faucet nearby the
appliance and let the water run for a few minutes until all
air is purged and all foreign material that may have
resulted from the installation is washed out; close the tap.
STEP 5. Gently pressurize the appliance, by putting it into
service:
factory bypass:
1. open the 'outlet' valve;
2. slowly open the 'inlet' valve.
3-valve bypass:
1. close the 'bypass' valve;
2. open the 'outlet' valve;
3. slowly open the 'inlet' valve.
STEP 6. After 2-3 minutes, open a cold treated water
faucet nearby the appliance and let the water run for a few
minutes until all air is purged from the installation and the
resin bed is rinsed (it is normal for the rinse water to show
some discoloration!); close the tap.
STEP 7. Check the appliance and all hydraulic connections
for leaks.
8

ELECTRONIC CONTROL PANEL
SETTING THE TIME AND DAY OF THE WEEK
Setting the time should take place only in case when the
appliance is connected to the power supply (the first start-
up) and in case when the reset occurred during longer
power outage. In such case, after restarting the controller
the figures indicating the time are flashing.
Step 1: Press the button „SET CLOCK”.
SET CLOCK
+
-
REGEN NEXT
TIME OF DAY
LPM 0 12:00
WED
Step 2: SETTING THE TIME (HOUR): Set proper figure of
„hour” by pressing the buttons „+” or „-”.
Pressing the button „NEXT” causes going to the next
parameter. You can go back to the previous step anytime
by pressing the button „REGEN”.
SET CLOCK
+
-
REGEN NEXT
TIME HOUR
SET 16:00
Step 3: SETTING THE TIME (MINUTES): Set proper figure of
„minutes” by pressing the buttons „+” or „-”. Pressing the
button „NEXT” causes going to the next parameter. You
can go back to the previous step anytime by pressing the
button „REGEN”.
SET CLOCK
+
-
REGEN NEXT
TIME MINUTES
SET 16:23
Step 4: SETTING THE PROPER DAY OF THE WEEK: Set the
day of the week by pressing the buttons „+” or „-”. Pressing
the button „NEXT” causes going to the next parameter.
You can go back to the previous step anytime by pressing
the button „REGEN”.
RETURN
TO THE MAIN
DISPLAY
SET CLOCK
+
-
REGEN NEXT
CURRENT DAY
SET WED
The properly programmed controller should display the
information:
Current water consumption expressed in l/min.
Current time
Current day of week
SET CLOCK
+
-
REGEN NEXT
TIME OF DAY
LPM 0 16:23
WED
APPLIANCE PROGRAMMING
Step 1: Press the buttons „NEXT and „+” at the same time.
SET CLOCK
+
-
REGEN NEXT
9

ELECTRONIC CONTROL PANEL
10
Step 3: Setting the time regeneration - As standard the
producer set the interval between the regenerations
every 4 days. If this parameter is set as „OFF”, the
regeneration will take place in the volume mode i.e. it will
be initiated when proper amount of water in m3 has flown
through the system.
If the daily regeneration mode is set at the position „OFF”,
then the system will operate in the volume mode, but if
the time regeneration parameter is set up (range 1 - 28),
then the system will operate in the volume and time
mode.
With the buttons „+” or „-” set the daily regeneration
mode (recommended 4 days).
NOTE! Based on the observation and the result of the
water test done, the user may increase the time interval
between the regenerations. In order to adjust the
appliance as precisely as possible to the flushing cycles,
we suggest also using the readouts from the pressure
gauges installed on the water inlet and outlet from the
appliance. The difference in the values, (the pressure
drop at the second pressure gauge by 0.5 bars or more),
informs when the next regeneration of the appliance
should occur.
Press the button „NEXT” to go to the next parameter. Press
the button „REGEN” if you want to go back to the previous
parameter.
Step 2: SETTING THE LANGUAGE - the display shows that it
operates in English version „ENGLISH”. With the buttons
„+” or „-” you can change the language. The user may
select the following language versions: English, German,
French, Spanish and Italian. Press the button „REGEN” if
you want to finish, or „NEXT” if you want to go to the next
parameter.
SET CLOCK
+
-
REGEN NEXT
DISPLAY
SET
ENGLISH
SET CLOCK
+
-
REGEN NEXT
6
SET
DAYS BETWEEN REGEN
Step 4: Setting the regeneration time (HOUR) - As standard
the producer set the regeneration at 2:00. At that time the
appliance regeneration cycles are to be initiated. By
means of the buttons „+” or „-” you can set by yourself the
time at which the system is to initiate the regeneration
process. We suggest to leave the regeneration time in the
standard mode, because the water demand is smaller at
night, and in most cases the electricity cost tariff is lower.
Press the button „NEXT”, to go to the next parameter.
Press the button „REGEN” if you want to go back to the
previous parameter.
SET CLOCK
+
-
REGEN NEXT
2:00
SET
REGEN TIME HOUR
Step 6A: Service alarm - By pressing the buttons „+” or „-”
3
set the service alarm in m .
If you want your appliance to remind you about the
planned service works after the proper amount of water
has flown through, switch on the service message (range
3
100 - 50000 m ). The producer recommends to leave this
option as switched off - OFF mode.
Step 5: Setting the regeneration time (MINUTES) - By
pressing the buttons „+” or „-”, set the minutes
analogically.
Press the button „NEXT” to go to the next parameter. Press
the button „REGEN”, if you want to go back to the previous
parameter.
SET CLOCK
+
-
REGEN NEXT
OFF
SET 3
m
SERVICE ALARM

11
Press the button „NEXT” to go to the next parameter. Press
the button „REGEN”, if you want to go back to the previous
parameter.
Step 6B: Service alarm - By pressing the buttons „+” or „-”
set the service alarm in days.
If you want your appliance to remind you about the
planned service works after the proper number of days
passed by, switch on the service message.
The interval is set as every 3 months (0.25). Setting the
value „1.00” causes the alarm to switch on once a year.
NOTE! The appliance must be serviced at least once a
year (this service may be payable). The service must be
done by a qualified company. In order to perform the
services, please contact the distributor from whom you
purchased your appliance.
Press the button „NEXT” to go to the next parameter. Press
the button „REGEN”, if you want to go back to the previous
parameter.
SET CLOCK
+
-
REGEN NEXT
1.00
SET YR
SERVICE ALARM
SET CLOCK
+
-
REGEN NEXT
TYPE
SET
NORMAL ALARM DISPLAY
SET CLOCK
+
-
REGEN NEXT
TYPE
SET
CUSTOM ALARM DISPLAY
Step 7: Setting the type of messages.
The alarm of messages operates in two modes:
NORMAL ALARM DISPLAY: in this option the system will
additionally inform you with a buzzer about the planned
service.
CUSTOM ALARM DISPLAY: in this option the system will
not additionally inform you with a buzzer about the
planned service.
With the buttons „+” and „-” you may choose the proper
mode. Press the button „NEXT” to go to the next
parameter. Press the button „REGEN”, if you want to go
back to the previous parameter.
Step 8. After choosing the proper mode of the alarm
display, the planned time schedule for the messages is
shown on the screen.
SET CLOCK
+
-
REGEN NEXT
1.00
IN YR
SCHEDULED SERVICE
Step 9: Alarm buzzer - By pressing the buttons „+” or „-” set
the alarm buzzer in the position ON or OFF.
3
If you set the service alarm in m or in days and you want
your appliance to inform you with a buzzer about the
planned service works, set the parameter in the position
ON.
Press the button „NEXT” to go to the next parameter. Press
the button „REGEN”, if you want to go back to the previous
parameter.
SET CLOCK
+
-
REGEN NEXT
ON
SET
ALARM BUZZER
Step 10: Setting the time for sound message.
START-UP: SETTING THE TIME (HOUR): Set proper figure of
„hour” by pressing the buttons „+” or „-”.
Pressing the button „NEXT” causes going to the next
parameter. You can go back to the previous step anytime,
by pressing the button „REGEN”.
ELECTRONIC CONTROL PANEL

ELECTRONIC CONTROL PANEL
SET CLOCK
+
-
REGEN NEXT
6:00
SET
ALARM BUZZER START
SET CLOCK
+
-
REGEN NEXT
22:00
SET
ALARM BUZZER END
COMPLETION: Similarly, set the time when the alarm is to
switch off.
Pressing the button „NEXT” causes going to the next
parameter. You can go back to the previous step anytime,
by pressing the button „REGEN”.
START-UP: SETTING THE TIME (MINUTES): Set proper
figure of „minutes” by pressing the buttons „+” or „-”.
Pressing the button „NEXT” causes going to the next
parameter. You can go back to the previous step anytime,
by pressing the button „REGEN”.
12
Step 11: Setting the display operation - By pressing the
buttons „+” or „-” set the mode of the display operation.
OFF mode - if the user does not take any action, the display
switches off after several minutes.
ON mode - causes that the display is switched on all the
time.
You can go back to the previous step anytime, by pressing
the button „REGEN”. Pressing the button „NEXT” causes
the return to the main display.
SET CLOCK
+
-
REGEN NEXT
OFF
SET
LIGHT NORMALLY
RETURN TO THE
MAIN DISPLAY
During the operation, the controller may show one of the
five screens. By pressing the button „NEXT” you can switch
over between the alternative screens.
The first screen always indicates the current time.
The second screen indicates the amount of water
expressed in litres per minute, which has flown through
(has been filtered) by the system.
The third screen informs whether the holiday mode is
activated (the holiday mode may be activated or
deactivated from this level). The holiday mode is
responsible for starting up the regeneration in case when
the time regeneration is switched off. Then, although
sufficient amount of water does not flow through the
system, the system goes into the regeneration mode to
flush periodically the filter bed.
The fourth screen shows the volume of water remaining to
the time of next regeneration
The fifth screen shows the number of days remaining to
the time of next regeneration.
GENERAL INFORMATION
If the regeneration is initiated on a given day, the message
„REGENERATION TODAY” appears on the screen.
SET CLOCK
+
-
REGEN NEXT
REGENERATION TODAY
LPM 3250 16:23
WED
At the moment the system goes into the regeneration
mode, the screen displays the information on the current
stage of the regeneration, as well as the amount of time
remaining to its completion.
REGENERATION MODE
SET CLOCK
+
-
REGEN NEXT
8
SET
BACKWASH-AIR 10%
SEK

ELECTRONIC CONTROL PANEL
The system is configured in such way that it goes into the
regeneration mode when the water demand is lower
(night hours).
REGENERATION MODE
13
If the regeneration is initiated on a given day, the
message „REGENERATION TODAY” appears on the
screen.
REGENERATION MODE
The regeneration process starts automatically, and then it
resets to the water treatment mode by itself. When the
regeneration is completed, the system starts again to
supply the installation with the treated water.
MANUAL REGENERATION: Sometimes it is necessary to
initiate the earlier cycle of regeneration. It may be related
to an intensive period of the system exploitation.
POSTPONED MODE: To initiate the regeneration manually
and define its time, you should press and release the
button „REGEN”. „REGENERATION TODAY" appears on the
screen, the system goes into the regeneration mode at the
set time (you can change the time of regeneration by
reprogramming the hour according to the steps described
previously).
If pressing the button „REGEN” causes an error display,
pressing it again will cancel the whole procedure.
INSTANT MODE: To initiate the regeneration immediately,
you should press and hold the button „REGEN”. The
system immediately goes into the regeneration mode.
NOTE! THIS PROCESS CANNOT BE CANCELLED.
In case the system is during the regeneration, it is possible
to supply the installation with untreated water. In such
situation you should set the BY-PASS valve in the BYPASS
POSITION.
MAINTENANCE
Regularly the user should perform a basic check to verify
if the appliance is functioning correctly, on the basis
of the following control points:
1. Check settings of electronic control panel.
2. Measure the contamination level before and behind
the appliance.
3. Check drain line from control valve; there
shouldn't be any water flow (unless appliance
is in regeneration).
4. Check appliance and surrounding area; there
shouldn't be any water leakages.
ROUTINE CHECKS
Occasionally it may be necessary to put the appliance
hydraulically in bypass, i.e. to isolate it from the water
distribution system; f.e.:
- in case of an urgent technical problem;
- when it is not necessary to supply treated water
to the house/application (refill swimming pool,
irrigation,...).
BYPASSING THE APPLIANCE
SERVICE POSITION [1]
1. inlet valve to appliance is OPEN.
2. outlet valve from appliance is OPEN.
OFF
OFF
OFF
OFF
1
2
[1]
WITH FACTORY BYPASS (optional).

OFF
OFF
OFF
OFF
1
2
[2]
BYPASS POSITION [2]
1. inlet valve to appliance is CLOSED.
2. outlet valve from appliance is CLOSED.
MAINTENANCE
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1
1
2
2
[3]
[4]
MAINTENANCE POSITION [3]
1. inlet valve to appliance is OPEN.
2. outlet valve from appliance is CLOSED.
CLOSED POSITION [4]
1. inlet valve to appliance is CLOSED.
2. outlet valve from appliance is OPEN.
[1] 1
2
3
SERVICE POSITION [1]
1. bypass valve is CLOSED.
2. inlet valve to appliance is OPEN.
3. outlet valve from appliance is OPEN.
WITH 3-VALVE BYPASS SYSTEM (not included).
BYPASS POSITION [2]
1. bypass valve is OPEN.
2. inlet valve to appliance is CLOSED.
3. outlet valve from appliance is CLOSED.
[2] 1
2
3
[3] 1
2
3
MAINTENANCE POSITION [3]
1. bypass valve is OPEN.
2. inlet valve to appliance is OPEN.
3. outlet valve from appliance is CLOSED. 14

MAINTENANCE
The AC transformer comes with a 15 foot power cord and
is designed for use with the control valve; the transformer
should only be used in a dry location.
In the event of a power outage that is less than 24 hours,
the control valve will remember all settings and time of
day. After 24 hours, the only item that needs to be reset is
the time of day and will be indicated by the time of day
flashing. All other settings are permanently stored in the
nonvolatile memory.
If a power loss occurs that is less than 24 hours and the
time of day flashes, this indicates that the battery is
depleted. The time of day should be reset and the non-
rechargeable battery should be replaced. The battery is a 3
Volt Lithium Coin Cell type 2032 and is readily available at
most stores. To access battery location, remove front
cover.
POWER LOSS AND BATTERY REPLACEMENT
+
ERROR MESSAGE: If the word “ERROR” and a number are
alternately flashing on the display record the number and
contact the dealer for help. This indicates that the control
valve was not able to function properly.
ERROR
+
+
+
Correct
battery
orientation
When replacing the battery, align
positives and push down to fully seat.
Battery fully seated
Battery replacement
is 3 volt lithium
coin cell 2032
ERROR
1003
This appliance is manufactured from premium quality
material and assembled in safe conditions to assure
it is clean and sanitary. If installed and serviced correctly,
this appliance will not infect or contaminate your water
supply. However, as in any 'device' plumbed-in in your
water distribution system, a proliferation of bacteria
is possible, especially in case of 'stagnant water'.
Therefore this appliance is equipped with a 'days override'
feature, that will automatically rinse the resin bed
periodically, even in case of low or absence of water usage.
SANITIZING THE APPLIANCE
To retain the appearance of the appliance, simply wipe
it with a damp cloth or clean it with a mild soap solution;
never use abrasive cleaners, ammonia or solvents.
APPEARANCE
15
