Sven MS-1040 User manual

www.sven.fi
OPERATION
MANUAL
2.1 Multimedia Speaker System
MS-1040

Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on “as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................
.............
2. PACKAGE CONTENTS............................................................. ............
3. SAFETY PRECAUTIONS .................................................. ...................
4. TECHNICAL DESCRIPTION .................................................... ................
5. PREPARATION AND OPERATION ..........................................
......................
6. TROUBLESHOOTING.................................
...............................................
7. TECHNICAL SPECIFICATIONS .................................................... ...........
1
2
2
2
3
5
6
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty
card has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card.
• Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.
Technical support is on www.sven.fi.
ENG
1
Operation Manual MS-1040

ENG
2
2. PACKAGE CONTENTS
•Subwoofer – 1 pc
•Satellites – 2 pcs
•Wired remote control – 1 pc
•2RCA to mini-jack Ø 3.5 mm signal cable – 1 pc
•Operation manual – 1 pc
•Warranty card – 1 pc
3. SAFETY PRECAUTIONS
•To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualified specialists in an authorized service center. The list of
authorized service centers is available on www.sven.fi
•Do not allow the circuit of wires (including the grounded ones) between the speakers, on the
power amplifier or the ground, for it causes damage to the power amplifier output stage.
•Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
•Disconnect the MSS from the mains system during a fuse replacement. Use fuses of the same
type and rated value. Do not use hand-made fuses.
•Do not put foreign objects inside the holes of the MSS.
•Protect the MSS from high humidity, water and dust.
•Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose
it to direct sunlight.
•Do not place any open flame sources on or close to MSS.
•Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When
operating the MSS, do not put any devices on it, do not cover it with cloth or other objects pre-
venting it from cooling.
•Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
MS-1040 Multimedia Speaker System 2.1 (MSS) is designed to play music and sound games,
movies etc. MSS has a built-in power amplifier, acoustic cables built into satellites and a signal
cable due to which it can be connected to virtually any audio source (CD/DVD-player, TV, PC, etc.)
without using additional power amplifier. Wired remote control is included.
Special features
• MSS is compatible with PCs, DVD/Media-players, mobile devices and other sound sources
• Тwo-way satellites with silk dome tweeters
•Wired remote control
• High quality silk tweeters
• Master volume control
• Separate subwoofer volume control
•Additional audio input on the wired remote control
• Magnetic shielding
• MDF subwoofer cabinet
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.
2.1 Multimedia Speaker System

ENG
3
Operation Manual MS-1040
j
h
i
g
f
LL
RR
– BASS +
LINE CONTROL
INPUT
OUTPUT
Fig. 3. Subwoofer rear panel
Subwoofer front panel and remote control
aPOWER: Power switch
bPower LED
cPhase inverter
dVOLUME: master volume control knob
e: аdditional input for audio
source connection
Subwoofer rear panel
fOUTPUT: speaker outputs
gINPUT: audio source inputs
hBASS: subwoofer volume control
knob
iLINE CОNTROL: wired remote
control jack
jPower cord
Fig. 2. Wired remote control
Fig. 1. Subwoofer front panel
c
a
b
e
d
5. PREPARATION AND OPERATION
Speaker placement
• Place speakers symmetrically to the listener at the distance not less than one meter. Subwoofer
emits non-directional sound, therefore it can be located in any place of the room, where it will sound
to the best advantage.
• Place MSS far away from monitors and TV sets, as insignificant image distortion in these
supersensitive devices is possible.

ENG
4
Power
cord
2RCA to mini-jack
signal cable
2RCA to 2RCA signal cable
or
LL
RR
– BASS + LINE CONTROL
INPUT
MSS сonnecting and control
MS-1040 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC
sound card, etc. (see Fig. 4 below).
Note! Before connecting, make sure that the device is unplugged.
• Connect acoustic cables built into speakers into OUTPUT fof subwoofer rear panel (see Fig. 4):
left speaker to white color output L, right speaker to red color output R.
• Insert RCA-jack of signal cable (included) into subwoofer INPUT gand connect opposite
mini-jack of signal cable into LINE OUT port of PC sound card or OUTPUT of МР3/CD-player (see
Fig. 4). To connect MSS to DVD-player or TV use stereo signal cables 2RCA to 2RCA (not included).
• Connect wired remote control to appropriate connector LINE CОNTROL ion the subwoofer rear
panel (see Fig. 4). MP3 player сan be connected to an additional audio input eon the wired
remote control via a mini-jack to mini-jack signal cable (not included) (see. Fig. 4).

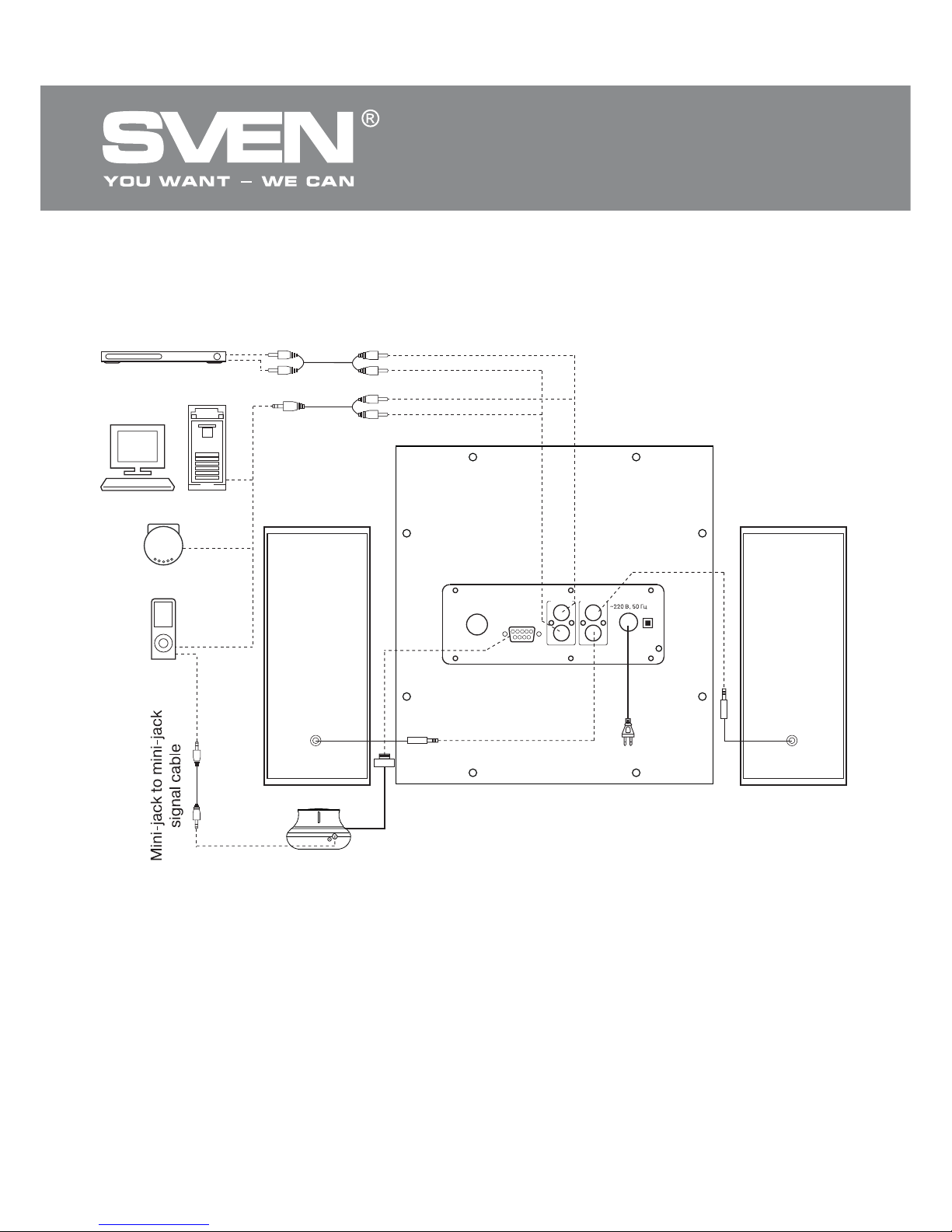

Fig. 4. Сonnection diagram
Remote control
CD
PC
DVD
Player
OUTPUT
2.1 Multimedia Speaker System

ENG
5
Operation Manual MS-1040
• Insert the plug of power cord jon the rear panel of subwoofer into the socket.
•Adjust master volume level to its minimum by turning VOLUME control knob dcounterclockwise
until it stops.
•Shift POWER switch aon the subwoofer front panel, power LED bwill illuminate on the
subwoofer front panel.
• Switch on the audio source and adjust master volume level by turning VOLUME control knob d
on the remote control. While turning the knob clockwise, volume level increases, but while turning it
counterclockwise, it reduces.
• Adjust the subwoofer volume level by turning BASS control knob h. While turning the knob
clockwise, the subwoofer volume level increases, but while turning it counterclockwise, it reduces.
Notes. If the speaker system has not been used for a long time, please mind to switch off
POWER aon the subwoofer rear panel and pull out its plug jfrom the socket.
6. TROUBLESHOOTING
Problem
MSS does not
turn on.
No sound or there is
too quiet sound of
speakers.
Distortion of sound.
Sound is produced by
one of the channels
only.
Remote control is not
working.
Cause
MSS is not connected to the mains
outlet.
Power switch is off.
Volume level is set at minimum value.
Improperly connected audio source.
Large amplitude of the input signal.
Improperly connected speakers to
audio source.
Remote control is not connected to
the subwoofer.
Solution
Check the connection.
Turn on the switch.
Adjust volume control knob.
Connect audio sources correctly.
Turn down source volume
and MSS volume.
Check the connection of speakers.
Check the connection.
If none of the above mentioned solutions solves the problem, please refer to nearest authorized
service center for consultation by a qualified specialist. Never try to repair the device on your
own.

6
ENG
2.1 Multimedia Speaker System
Value
60 (30 + 2 × 15)
30 – 180
180 – 20,000
Ø 145
2 × Ø 70 + Ø 22
~220/50
220 × 210 × 310
100 × 290 × 90
7.24
Parameter, measurement unit
Output power (RMS), W
Frequency range, Hz:
subwoofer
satellites
Speaker diameter, mm:
subwoofer
satellites
Power supply, V / Hz
Dimensions (W × H × D), mm:
subwoofer
one satellite
Weight, kg
7. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications and package contents are subject to change without notice due
to the improvement of SVEN production.

2.0 Multimedia Speaker System
Automatic Voltage Regulator
Стабилизатор напряженияСтабилизатор напряжения
Automatic Voltage Regulator
2.0 Multimedia Speaker System2.0 Multimedia Speaker System
SPS-619
MS-1040
Модель: MS-1040
Импортер вРоссии: ООО «СКАНДИТРЕЛ»,
111024, РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация вРоссии: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите
вгарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 12 мес. Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176
Джу Чиат Роуд, №02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15.
Сделано вКитае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
2.1 Multimedia Speaker System
