Sven MS-305 User manual

www.sven.fi
OPERATION
MANUAL
2.1 Multimedia Speaker System
MS-305

Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2015. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on “as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................
.............
2. PACKAGE CONTENTS............................................................. ............
3. SAFETY PRECAUTIONS .................................................. ...................
4. TECHNICAL DESCRIPTION .................................................... ................
5. PREPARATION AND OPERATION .......................................... ......................
6. OPERATION MODES .................................................... .......................
7. TROUBLESHOOTING................................. ...............................................
8. TECHNICAL SPECIFICATIONS .................................................... ...........
1
2
2
2
5
7
9
9
1. BUYER RECOMMENDATIONS
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the de-
vice for damage; if the product was damaged during transportation, address the firm which carried
out the delivery; if the product functions incorrectly, address the dealer at once.
• Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods num-
ber corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepan-
cy of numbers you forfeit the right for warranty repairs.
• Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
• Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.
Technical support is on www.sven.fi.
ENG
1
Operation Manual MS-305

ENG
2
2.1 Multimedia Speaker System
2. PACKAGE CONTENTS
• Subwoofer – 1 pc
• Satellites – 2 pcs
• Remote control (RC) – 1 pc
• AAA type batteries – 2 pcs
• Signal cable – 1 pc
• Antenna wire – 1 pc
• Operation manual – 1 pc
• Warranty card – 1 pc
3. SAFETY PRECAUTIONS
• To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualified specialists in an authorized service center. The list of
authorized service centers is available at www.sven.fi.
• Do not allow the circuit of wires (including the grounded ones) between the speakers, on the
power amplifier or the ground, for it causes damage to the power amplifier output stage.
• Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
• Do not put foreign objects inside the holes of the MSS.
• Protect the MSS from high humidity, water and dust.
• Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose
it to direct sunlight.
• Do not place any open flame sources on or close to MSS.
• Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When ope-
rating the MSS, do not put any devices on it, do not cover it with cloth or other objects preventing it
from cooling.
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
MS-305 2.1 Multimedia Speaker System (MSS) is designed to play music and sound games,
movies, etc. The MSS has a built-in power amplifier and audio cables tnabling it to connect to
virtual to any audio source (CD/DVD-player, TV, PC, etc.) without using an additional power
amplifier. The MSS has a built-in FM radio,
Bluetooth module and audio files player. Remote control
is included.
Features
• Speaker system is compatible with PCs, DVD/Media-players, mobile devices and other sound
sources
• Wireless signal transmission via Bluetooth module
• Built-in audio files player from external storage devices
• Built-in FM radio
• Alphanumeric LED display
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.

ENG
3
Operation Manual MS-305

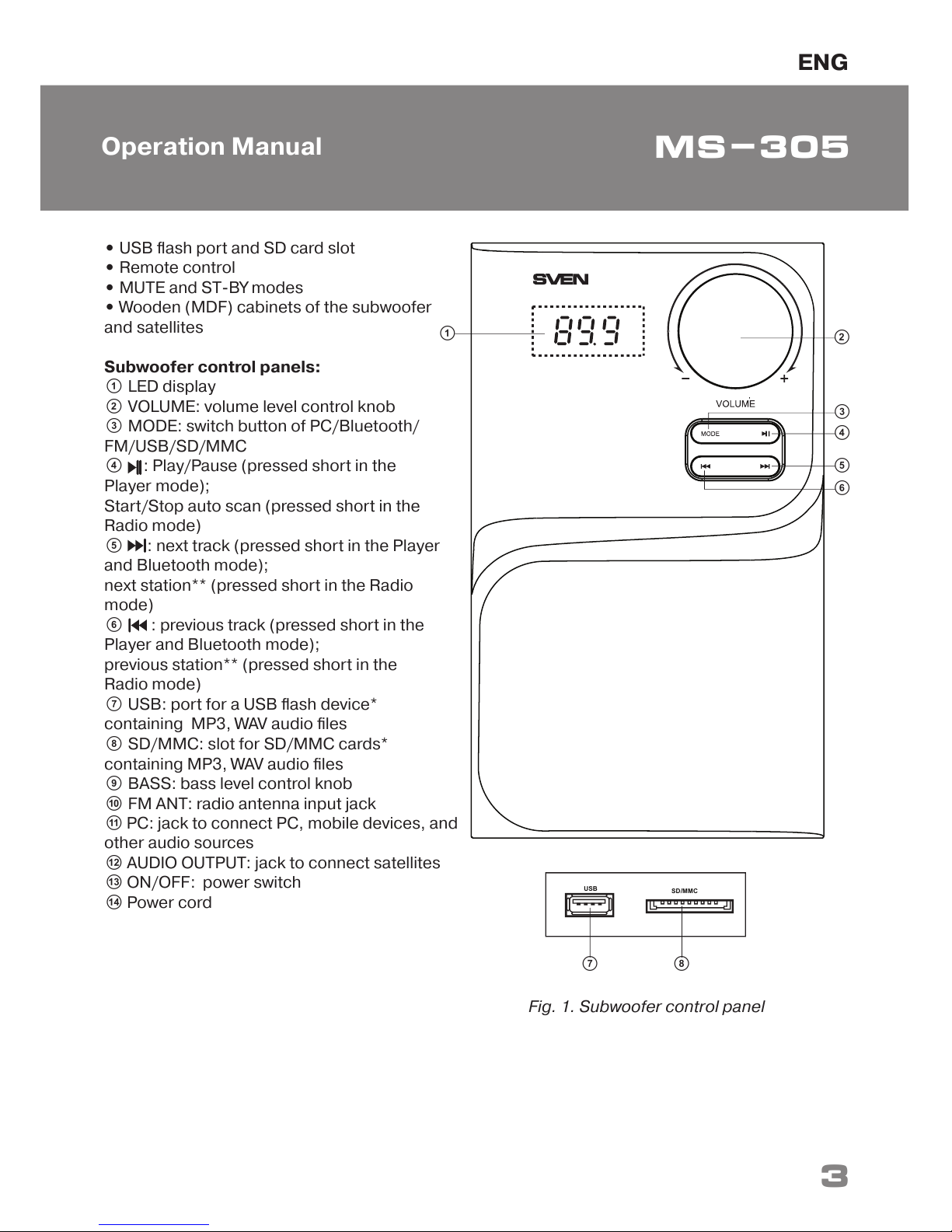

b
c
d
e
f
a
• USB flash port and SD card slot
• Remote control
• MUTE and ST-BY modes
• Wooden (MDF) cabinets of the subwoofer
and satellites
Subwoofer control panels:
a LED display
b VOLUME: volume level control knob
c MODE: switch button of PC/Bluetooth/
FM/USB/SD/MMC
d : Play/Pause (pressed short in the
Player mode);
Start/Stop auto scan (pressed short in the
Radio mode)
e : next track (pressed short in the Player
and Bluetooth mode);
next station** (pressed short in the Radio
mode)
f : previous track (pressed short in the
Player and Bluetooth mode);
previous station** (pressed short in the
Radio mode)
g USB: port for a USB flash device*
containing МР3, WAV audio files
h SD/MMC: slot for SD/MMC cards*
containing МР3, WAV audio files
i BASS: bass level control knob
j FM ANT: radio antenna input jack
k PC: jack to connect PC, mobile devices, and
other audio sources
l AUDIO OUTPUT: jack to connect satellites
m ON/OFF: power switch
n Power cord
Fig. 1. Subwoofer control panel
g h
SD/MMC
USB

ENG
4
2.1 Multimedia Speaker System
e
i
f
h
g
d
k
l
j
bca
i
j
k
l
FM
ANT
L
R
L
R
AUD IO INP UT
AUD IO OUT PUT
ON
OFF ~ 220V /50Hz
BAS S
WARNING:SHOCK HAZARD-DO NOT OPEN
Made in china
n
m
PC
PC
Remote control :
a : On/Off button
b 0-9: numeric pad
c : sound on/off button
d PC/BT: PC line input or Bluetooth mode selection
e USB/SD: playback audio files mode selection
f : Play/Pause (pressed short in the Player mode);
auto scan start/stop (pressed short in the Radio mode)
g : previous track (pressed short in the Player and Bluetooth mode);
previous station** (pressed short in the Radio mode)
h TUNING-/+: buttons for manual radio frequency scanning. Increase/ decrease the frequency up
to 100 kHz by pressing short. By pressing long the search mode is activated the first station (up/
down the frequency range).
Fig. 3. Remote
control
Fig. 2. Subwoofer rear panel

ENG
5
Operation Manual MS-2050
MS-305
Operation Manual
5. PREPARATION AND OPERATION
Speaker placement
• Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits
non-directional sound, therefore it can be located in any place of the room where it sounds the best.
• Place MSS as far away as possible from monitors and TV sets, to avoid insignificant image dis-
tortion .
Installation and operation
MS-305 speaker system can be connected to virtually any audio devices: DVD/CD players, PCs,
laptops, etc. (see connection diagram in Fig. 4).
• Before making any connections, make sure the MSS is off and unplugged. Then connect speakers
to the subwoofer AUDIO OUTPUT L/R l jacks using built-in audio cables. Connect the right speaker to
the subwoofer AUDIO OUTPUT R and the left speaker – to the AUDIO OUTPUT L (see con- nection
diagram in Fig. 4).
Note. Check the fixation connectors.
• To connect the MSS to a PC, МР3/CD player, use 2RCA to mini-jack signal cable (included). Con-
nect the RCA jacks of the signal cable to the L and R jacks of the AUDIO INPUT k, and the mini-jack
(Ø 3.5 mm) of the signal cable – to the LINE OUT port of your PC sound card or to the audio output
(OUTPUT) of your МР3/CD player, as shown in Fig. 4.
• To connect the MSS to a TV set or DVD/CD player, use 2RCA to 2RCA signal cable (not included).
First connect the RCA jacks of the signal cable to the L and R jacks of AUDIO INPUT k and then
connect RCA jacks to your TV set or DVD/CD player audio output jacks, as shown in Fig. 4.

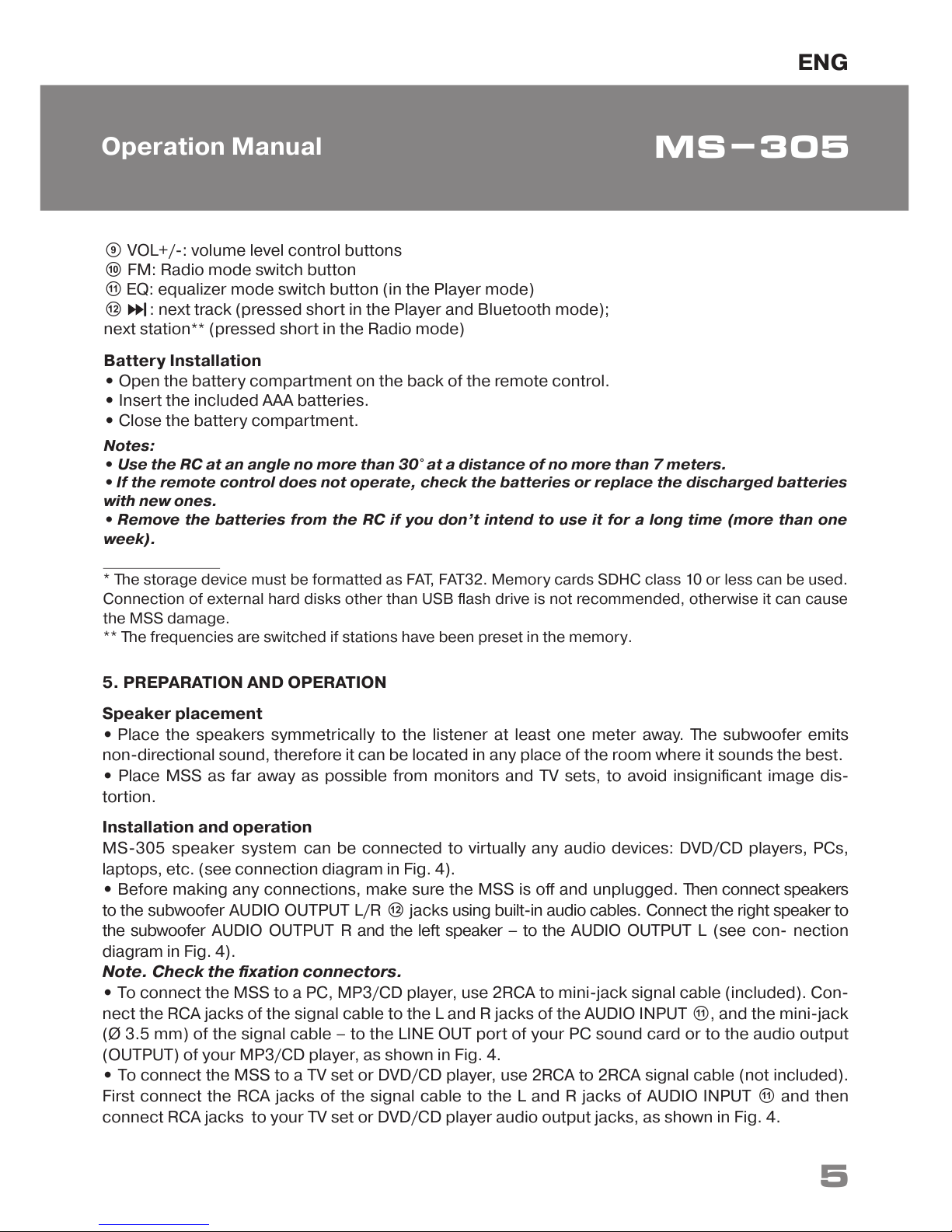

i VOL+/-: volume level control buttons
j FM: Radio mode switch button
k EQ: equalizer mode switch button (in the Player mode)
l : next track (pressed short in the Player and Bluetooth mode);
next station** (pressed short in the Radio mode)
Battery Installation
• Open the battery compartment on the back of the remote control.
• Insert the included AAA batteries.
• Close the battery compartment.
Notes:
• Use the RC at an angle no more than 30° at a distance of no more than 7 meters.
• If the remote control does not operate, check the batteries or replace the discharged batteries
with new ones.
• Remove the batteries from the RC if you don’t intend to use it for a long time (more than one
week).
* The storage device must be formatted as FAT, FAT32. Memory cards SDHC class 10 or less can be used.
Connection of external hard disks other than USB flash drive is not recommended, otherwise it can cause
the MSS damage.
** The frequencies are switched if stations have been preset in the memory.

ENG
6
2.1 Multimedia Speaker System
FM
AN T
L
R
L
R
AU DI O IN PUT
AU DI O OU TPUT
ON
OF F ~2 20 V/50Hz
BA SS
WARNING:SHOCK HAZARD-DO NOT OPEN
Ma de in c hin a
PC
Fig. 4. Connection diagram
USB flash/SD card
connection
CD
DVD
USB
SD
SD/MMC
USB
• Connect the subwoofer to the mains outlet with the power cord n.
• Turn on the MSS power supply using switch m (ON position) on the subwoofer rear panel.
• Turn on the MSS by pressing MODE button c on the front panel or a button on the remote con-
trol.
• Select a desired signal source by pressing short MODE button c on the control panel or pressing
corresponding button on the remote control.
• Adjust the master volume as desired with knob b on the control panel or with the VOL+/- buttons
i on the remote control.
• Use BASS+/- knob i on the rear panel to adjust the subwoofer volume level.
• In order to have the high-fidelity reception orient the antenna in direction of radio signal when
listening to the radio, first connecting the antenna to FM ANT jack j (see Fig. 4).
• When the MSS operation is over, mind to switch it off using switch m (OFF position) and unplug
the power cord n from the socket.
6. OPERATION MODES
Player Mode
• The system will enter the Player mode automatically when a carrier (USB flash or SD/MMC card)*
is connected to corresponding ports g or h; or press MODE button c on the front panel of the
subwoofer or USB/SD button e on the remote control. The LED display a will show the selected
mode, then the number of the tracks found and the track’s number on the play list and then the
playback time. The playback will start automatically.
PC
Player
Right
speaker
FM antenna
2RCA to 2RCA
signal cable
2RCA to mini-jack
signal cable
Left
speaker
CD player

ENG
7
Operation Manual MS-2050
Operation Manual MS-305
FM
AN T
L
R
L
R
AU DI O INP UT
AU DI O OUT PU T
ON
OF F ~2 20V /5 0H z
BA SS
WARNING:SHOCK HAZARD-DO NOT OPEN
Ma de in c hi na
PC
• To select a track, you can directly enter its number on the remote control using the numeric pad
buttons b. The display a will show the track number for a short time and then the playback time
elapsed.
• EQ mode (in the Player mode). There are 7 available preset settings: bas; pop; roc; jaz; cla; cou;
nor.
* The operation may be incorrect if a SD card of 512 Mb capacity or lower is used. If a USB flash device of
8 Gb capacity or more is used, command processing time may be extended.
Bluetooth mode
• In order to transmit signal in this mode it is necessary at first to connect the device with a signal
source (see Fig. 5). For this purpose select the Bluetooth mode using MODE button c on the front
panel of the subwoofer or PC/BT button d on the remote control. After 2-3 seconds the speaker
system will enter the search mode, BLUE mode will be shown on the display a.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone,
notebook, smartphone, etc.). “MS-305” message will be displayed on the screen which it should
be connected to*.
• The BLUE indicator lights continuously when connection is successful. If there is no connection,
BLUE indicator will blink. In this case the system should be switched over to the search mode once
again (turn off and turn on Bluetooth mode)**.
* You might have to enter “0000” code to connect some models via Bluetooth.
** If an item has been already registered in the device list of sources, then the second search mode
activation is not needed. Choose only the item name and the “connect” command on the source.
Right
speaker
Left
speaker
USB
SD
SD/MMC
USB
Phone
PC
FM antenna
USB flash/SD card
connection
Fig. 5. Bluetooth module connection diagram

ENG
8
2.1 Multimedia Speaker System

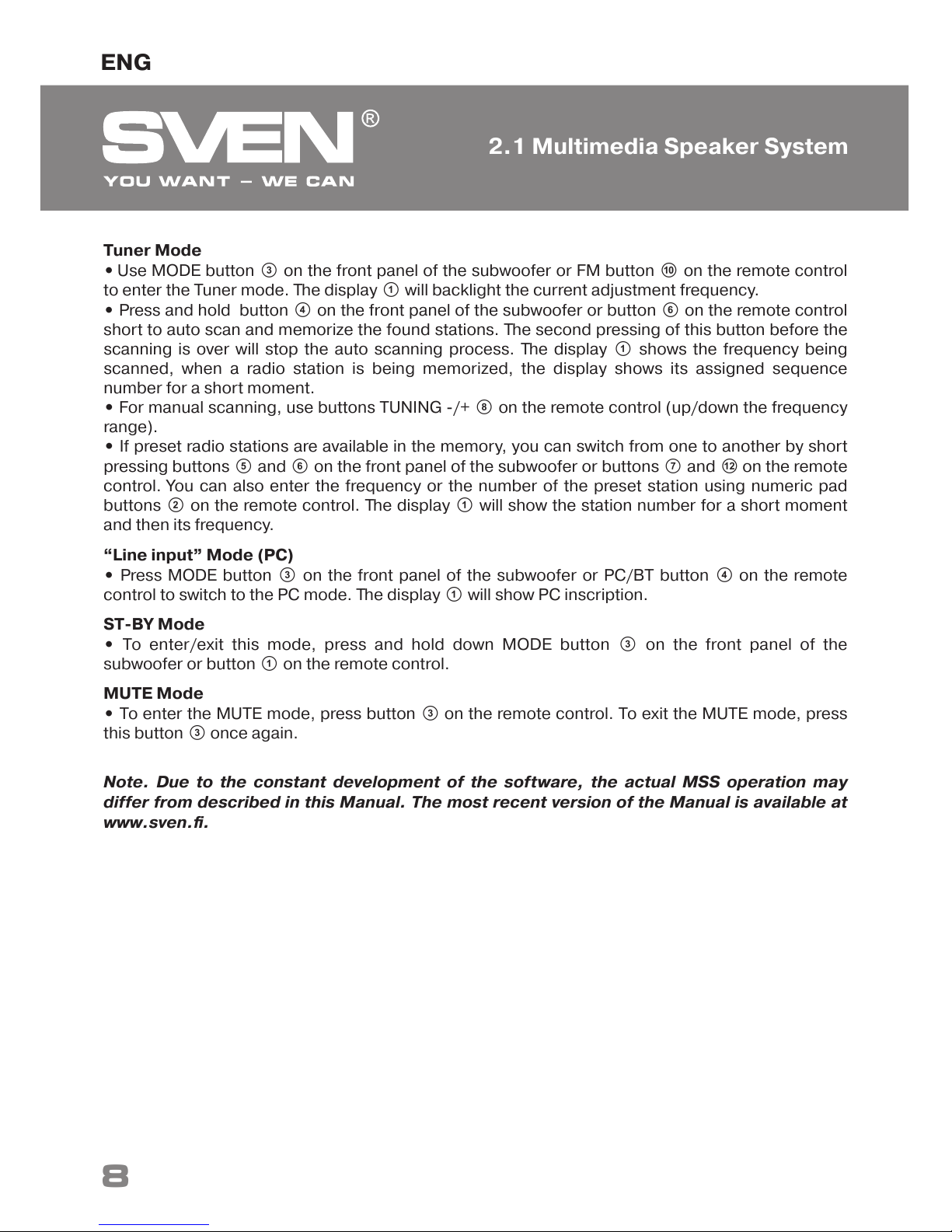

Tuner Mode
• Use MODE button c on the front panel of the subwoofer or FM button j on the remote control
to enter the Tuner mode. The display a will backlight the current adjustment frequency.
• Press and hold button d on the front panel of the subwoofer or button f on the remote control
short to auto scan and memorize the found stations. The second pressing of this button before the
scanning is over will stop the auto scanning process. The display a shows the frequency being
scanned, when a radio station is being memorized, the display shows its assigned sequence
number for a short moment.
• For manual scanning, use buttons TUNING -/+ h on the remote control (up/down the frequency
range).
• If preset radio stations are available in the memory, you can switch from one to another by short
pressing buttons e and f on the front panel of the subwoofer or buttons g and l on the remote
control. You can also enter the frequency or the number of the preset station using numeric pad
buttons b on the remote control. The display a will show the station number for a short moment
and then its frequency.
“Line input” Mode (PC)
• Press MODE button c on the front panel of the subwoofer or PC/BT button d on the remote
control to switch to the PC mode. The display a will show PC inscription.
ST-BY Mode
• To enter/exit this mode, press and hold down MODE button c on the front panel of the
subwoofer or button a on the remote control.
MUTE Mode
• To enter the MUTE mode, press button c on the remote control. To exit the MUTE mode, press
this button c once again.
Note. Due to the constant development of the software, the actual MSS operation may
differ from described in this Manual. The most recent version of the Manual is available at
www.sven.fi.

ENG
9
Operation Manual MS-2050
Operation Manual MS-305

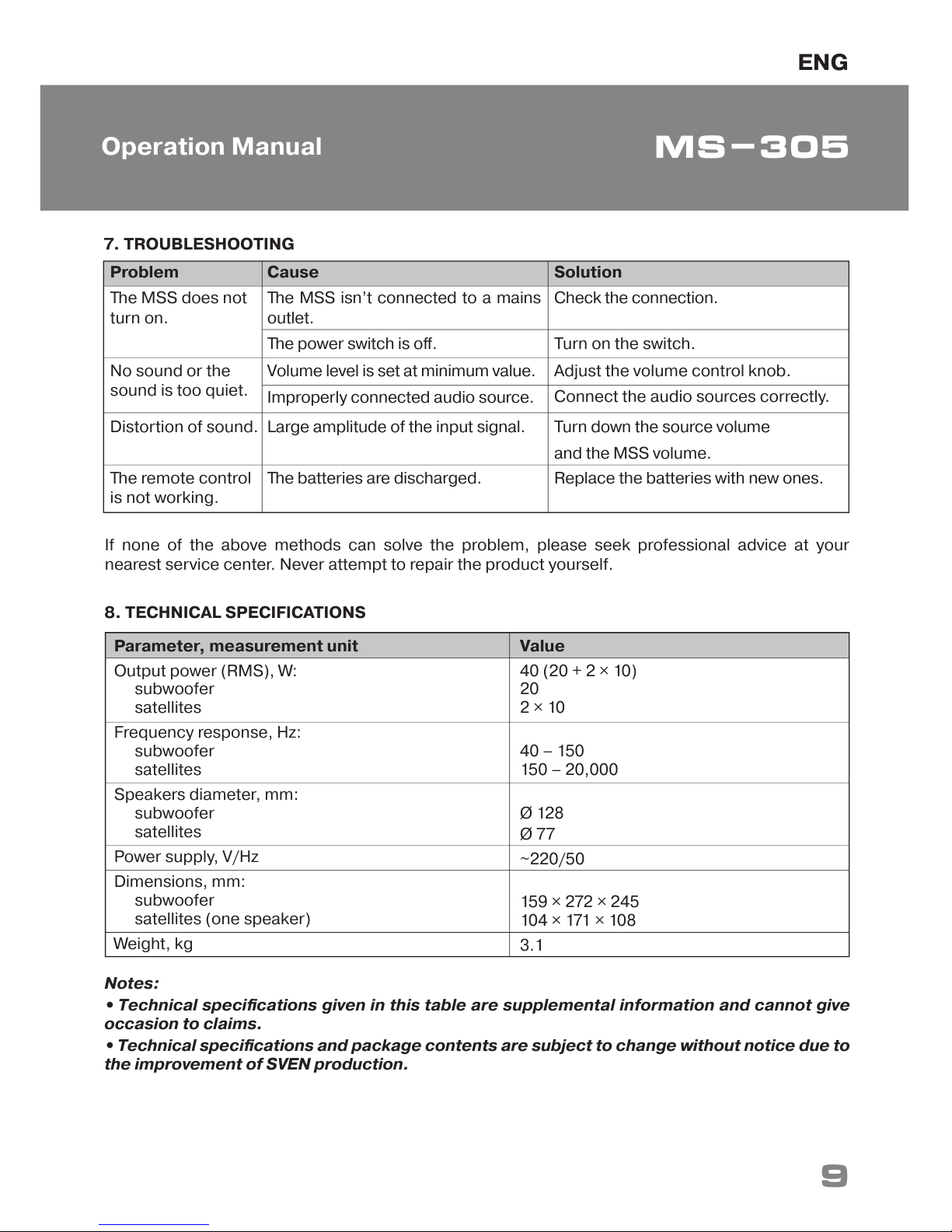

Parameter, measurement unit
Output power (RMS), W:
subwoofer
satellites
Frequency response, Hz:
subwoofer
satellites
Speakers diameter, mm:
subwoofer
satellites
Power supply, V/Hz
Dimensions, mm:
subwoofer
satellites (one speаker)
Weight, kg
8. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications and package contents are subject to change without notice due to
the improvement of SVEN production.
Value
40 (20 + 2 × 10)
20
2 × 10
40 – 150
150 – 20,000
Ø 128
Ø 77
~220/50
159 × 272 × 245
104 × 171 × 108
3.1
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The MSS does not
turn on.
No sound or the
sound is too quiet.
Distortion of sound.
The remote control
is not working.
Cause
The MSS isn’t connected to a mains
outlet.
The power switch is off.
Volume level is set at minimum value.
Improperly connected audio source.
Large amplitude of the input signal.
The batteries are discharged.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect the audio sources correctly.
Turn down the source volume
and the MSS volume.
Replace the batteries with new ones.
7. TROUBLESHOOTING

2.0 Multimedia Speaker System
Automatic Voltage Regulator
Стабилизатор напряженияСтабилизатор напряжения
Automatic Voltage Regulator
2.0 Multimedia Speaker System 2.0 Multimedia Speaker System
SPS-619
Модель: MS-305
Импортер в России: ООО «СКАНДИТРЕЛ», 111024,
РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация в России: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75,
стр. 5. Условия гарантийного обслуживания смот-
рите в гарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 12 мес.
Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176 Джу Чиат
Роуд, № 02-02, Сингапур, 427447. Произведено
под контролем «Свен Скандинавия Лимитед»,
48310, Финляндия, Котка, Котолахдентие, 15.
Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№ 02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland. MS-305
2.1 Multimedia Speaker System
